Dometic RM2310 Product # 926693501 3-WAY Parts Diagram · Burner & Controls

Refrigerator · 5 assemblies · 5 diagram sheets · 151 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2310 Product # 926693501 3-WAY RV refrigerator: 5 assemblies (Burner & Controls, Doors, Cabinet Front View, Cooling Unit, Replacement Refrigerator) and 151 manufacturer part numbers. 30 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

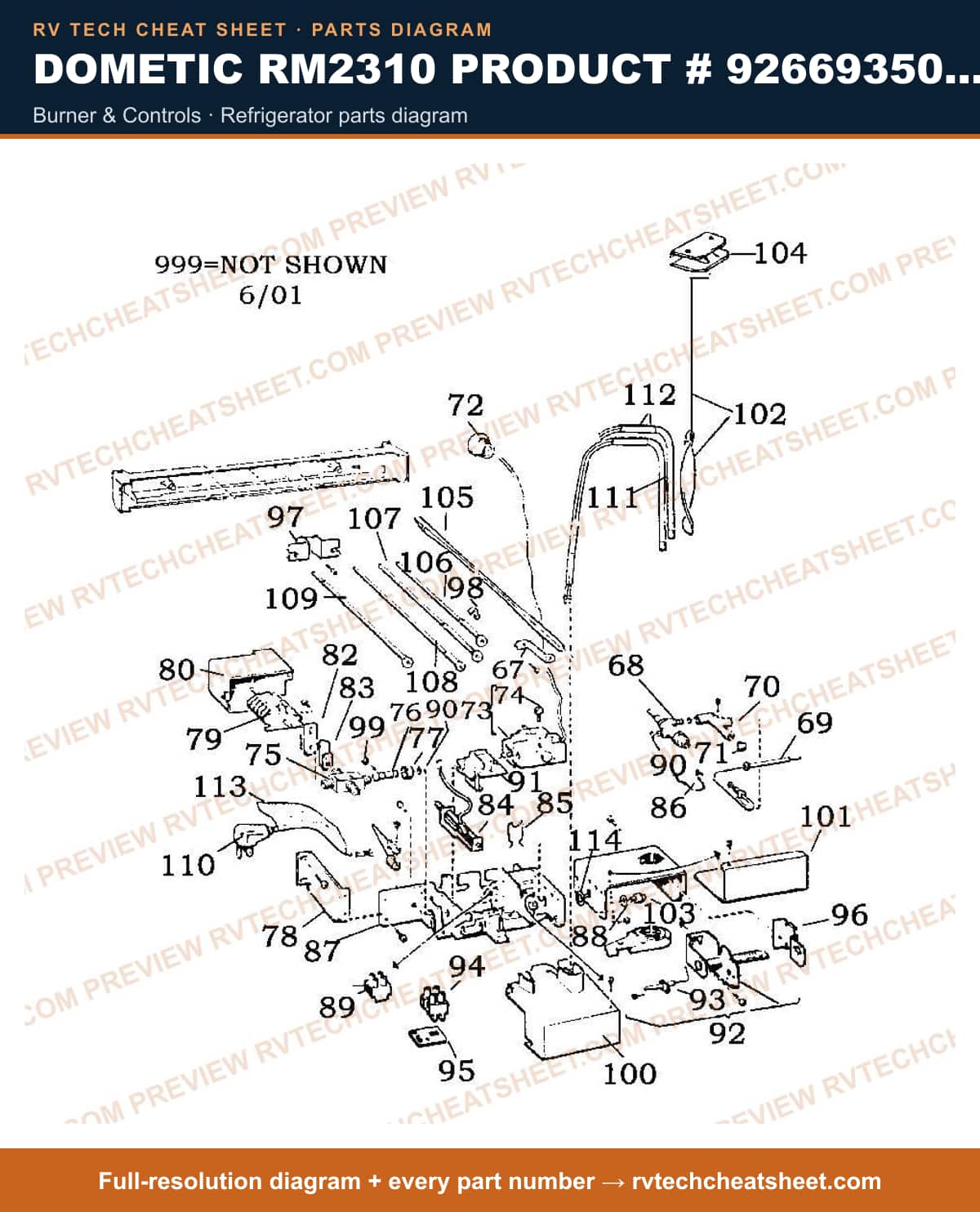

Burner & Controls

Components

60 items

1. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
4. #S,THERMOCOUPLE-232MM MFR # 2931496042
5. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
6. #Coupling MFR # 2007518000
7. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
8. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
9. #Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description
10. #T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description
11. #DOMETIC DUAL T-STAT MFR # 2007199009
12. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
13. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
14. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
15. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
16. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
17. #Appliance Components RV; Nut Union MFR # 172809006
18. #Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007444001
19. #S,SWITCH,RM2410-2810 MFR # 2007432004
20. #Appliance Components RV; Cover Switch MFR # 2007439009
21. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
22. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
23. #Igniter, Piezo MFR # 2007423003
24. #Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description
25. #Appliance Components RV; Retainer MFR # 2007424001
26. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008
27. #Bracket Mount MFR # 2007410000
28. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
29. #Block Terminal Small 3 Poi MFR # 7627202562
30. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
31. #Ring, Sealing 2 Req. MFR # 140748005
32. #Catch Snap 12/120 (Fus) MFR # 2930066028
33. #Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036
34. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
35. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
36. #3858022019 MFR # 3858022019
37. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
38. #PLATE/SIGN,12 VOLT DC MFR # 2007452002
39. #Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007
40. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
41. #APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231
42. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
43. #Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007
44. #APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009
45. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
46. #FLUE TOP USE 45-5828* MFR # 2007598002 Superseded: see description
47. #S,CAP,FLUE MFR # 2007598010
48. #APPLIANCE COMPONENTS RV; Conductor Light MFR # 2007478023
49. #APPLIANCE COMPONENTS RV; Rod Push MFR # 2007468024
50. #APPLIANCE COMPONENTS RV; Rod Push RM360 MFR # 2007468032
51. #APPLIANCE COMPONENTS RV; Shaft T-Stat RM360 MFR # 2007471010
52. #APPLIANCE COMPONENTS RV; Shaft Switch RM360 MFR # 2007475011
53. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
54. #ELEMENT, HEATING 125W 12V MFR # CS000045
55. #ELEMENT, HEATING 125W 12V (25) USE 48-9516 MFR # 173735010 Superseded: see description
56. #ELEMENT,HEATING 120V MFR # CS000012
57. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM2300/ RM2400; 120 Volt; 160 Watts MFR # 173756016MC Superseded: see description
58. #APPLIANCE COMPONENTS RV; Element Heating 120V MFR # 173756016
59. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
60. #Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description

Doors

Components

22 items

1. #TAPE, GASKET KIT 1/32" X 3/4" X 18' MFR # 6141
2. #APPLIANCE COMPONENTS RV; Gasket Kit Door MFR # 3108708367
3. #GASKET TAPE 100" USE 6141 SINGLE DOOR REFER MFR # TAPE1 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Door W/O Shelves MFR # 2930921131
5. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
6. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
8. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
9. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
10. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
11. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
12. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Decoration Door Rm2310 MFR # 2930640582
14. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
15. #SHELF, LOWER DR USE 2002261242 RM2410 MFR # 2002261226 Superseded: see description
16. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
17. #APPLIANCE COMPONENTS RV; Catch Travel Strike MFR # 2931111021
18. #LABEL, WARNING FOR DOOR MFR # 2931620005
19. #PANEL, DOOR WOODGRAIN SINGLE PANEL 25-1/2" X 21-1/16 MFR # RM2310G
20. #APPLIANCE COMPONENTS RV; Service Kit Hinge Plate MFR # 3108703640
21. #PANEL, DOOR BLACK PLEXIGLASS SINGLE PANEL 25-1/2" X 21-1/16 MFR # RM2310L
22. #PANEL,DOOR USE RM2310G RM2310 MFR # 3106863040B Superseded: see description

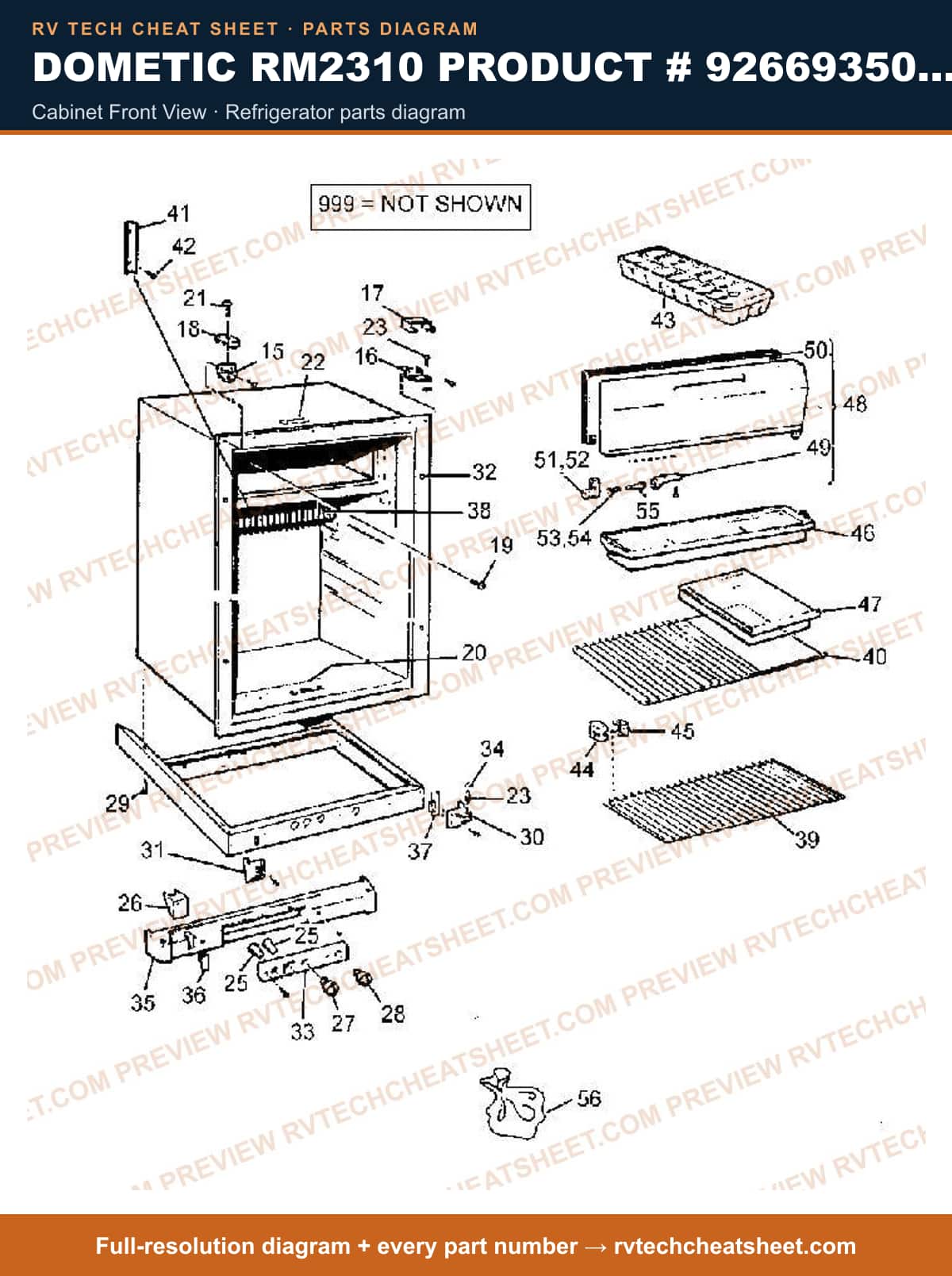

Cabinet Front View

Components

51 items

1. #Appliance Components RV; Hinge Lh MFR # 2007621044
2. #Appliance Components RV; Hinge Rh MFR # 2007622059
3. #APPLIANCE COMPONENTS RV; Coverrm2401 MFR # 2931110023
4. #LATCH,TRAVEL USE 2904817000 RM2301 MFR # 2931140012 Superseded: see description
5. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
6. #CATCH,TRAVEL BLACK MFR # 2904817018
7. #LATCH,TRAVEL USE 2904817018 RM2301 MFR # 2904817000 Superseded: see description
8. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
9. #Sign plate MFR # 2930754003
10. #SCREW,LATCH 2501 MFR # 2931112011
11. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
12. #Pin, Hinge Upper MFR # 2930612003
13. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
14. #Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description
15. #Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088
16. #Retainer, Lamp MFR # 2930557000
17. #Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177
18. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
19. #APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000
20. #APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008
21. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
22. #APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058
23. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
24. #APPLIANCE COMPONENTS RV; Base Front Rm2310 MFR # 2930591199
25. #PLUG MFR # 2930083049
26. #PLATE, SEALING MFR # 2930696014
27. #Appliance Components RV; Flange Cooling MFR # 2007394006
28. #Appliance Components RV; Shelf Lower Rm2301 MFR # 2002652192
29. #Appliance Components RV; Shelf 7" 2301 7"W X 17 7 MFR # 2002650139
30. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
31. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
32. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
33. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
34. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
35. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
36. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
37. #S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011
38. #DRAWER USE 2007625011 MFR # 2007625003 Superseded: see description
39. #BOX MFR # 2007625011
40. #S,LID,FRZ,RM2410,RM2350 MFR # 2002239271
41. #SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description
42. #DOOR,FREEZER WHITE MFR # 2002239263
43. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
44. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
45. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
46. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
47. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
48. #Spring, Freezer Door RH MFR # 2002237010
49. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
50. #PARTS BAG MFR # 2931125021
51. #MISC. PARTS BAG USE 2931125021 MFR # 2931125039 Superseded: see description

Cooling Unit

Components

13 items

1. #REMAN C/U USE 9283349000R (UPS) RM360/2310 MFR # 2934334091R Superseded: see description
2. #Refrigerator Cooling Unit; Use With Dometic RM2310 Model Refrigerator MFR # 5531N Superseded: see description
3. #REMAN C/U USE 5536R (UPS) RM2300/2301 RM336/361 MFR # 9283349000R Superseded: see description
4. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934334091N
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER, ELEMENT MFR # 2800821007
7. #APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009
8. #APPLIANCE COMPONENTS RV; Plate Sign MFR # 2007574011
9. #LABEL, IMPORTANT MFR # 2007689009
10. #DECAL, WARNING 2807/4801 MFR # 2002577001
11. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
12. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
13. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003

Replacement Refrigerator

Components

7 items

1. #64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N
2. #REFER, 3 CU FT 3-WAY TAUPE 29 3/4"H X 20 1/2"W MFR # RM2354N
3. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 3 Cubic Foot Capacity; 30-3/8 Inch Height x 21-11/16 Inch Width x 22-1/16 Inch Depth; 110 Volt AC/ 12 Volt DC; 3 Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ 2 Liter Bottle And 1/2 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2354RB
4. #REFER, 3 CU FT. 2 WAY TAUPE 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2351N
5. #REFER, 3 CU.FT USE RM2351 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2352N Superseded: see description
6. #REFER, 3 CU.FT USE RM2354N 3-WAY MFR # RM2353N Superseded: see description
7. #Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N300N
