Dometic RM2332 Americana Parts Diagram · Cabinet Interior

Refrigerator · 6 assemblies · 6 diagram sheets · 113 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2332 Americana RV refrigerator: 6 assemblies (Cabinet Interior, Cabinet Exterior, Burner & Controls, Refrigerator Replacement, Cabinet Rear View and more) and 113 manufacturer part numbers. 13 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

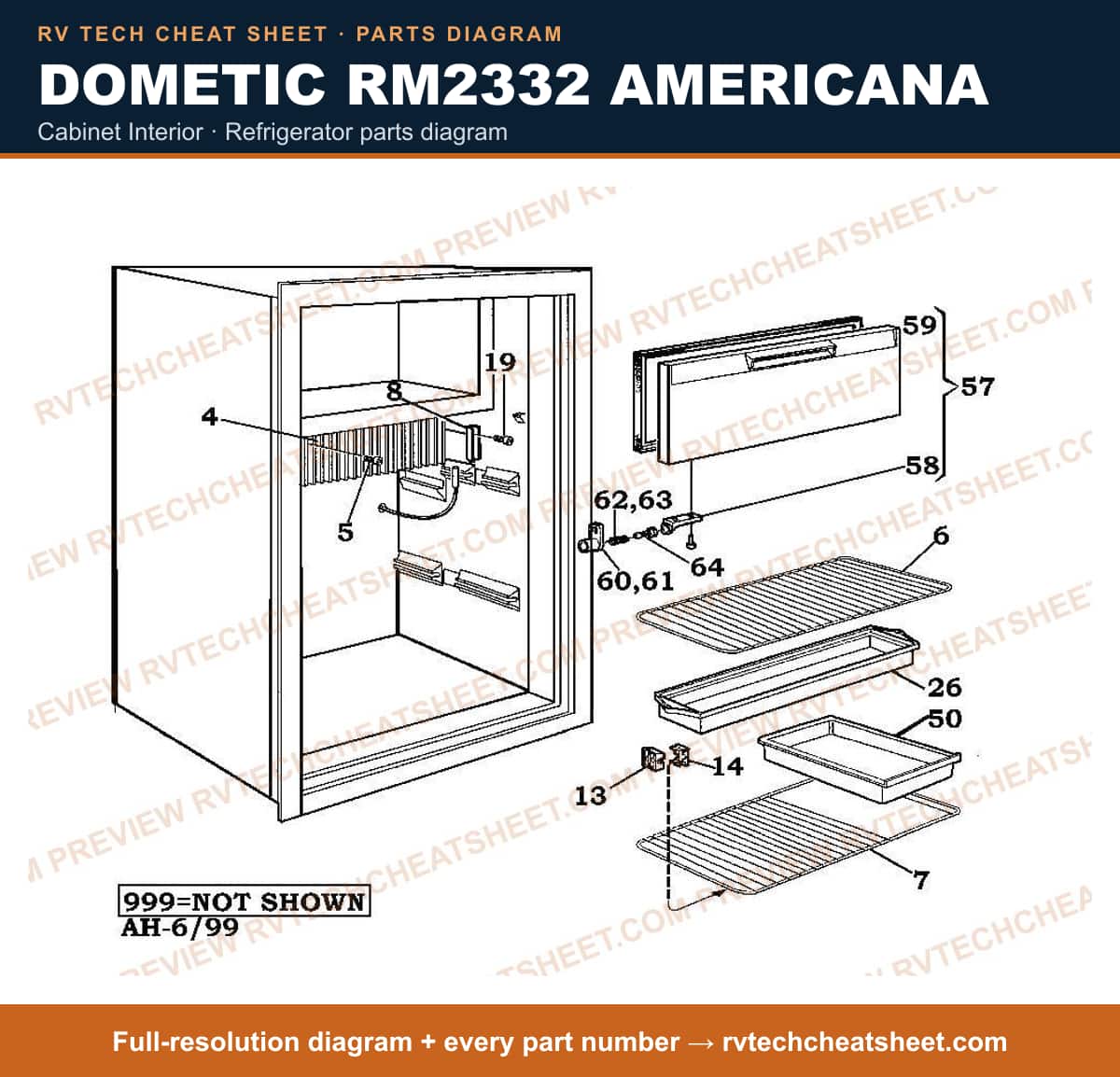

Cabinet Interior

Components

29 items

1. #FIN, COOLING MFR # 2932273010
2. #Screw; Replacement For Dometic RM2332/ RM2353 Model Refrigerator MFR # 2801062049
3. #APPLIANCE COMPONENTS RV; Shelf Upper MFR # 2002652382
4. #SHELF, LOWER USE 2002652192 MFR # 2002650154 Superseded: see description
5. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
6. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
7. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
8. #SCREW, RXS, B8 4,2X16 MFR # 2801062023
9. #S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011
10. #SIGN PLATE MFR # 2932677004
11. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
12. #Runner; Right MFR # 2932486018
13. #Runner; Left MFR # 2932486026
14. #APPLIANCE COMPONENTS RV; Base Front MFR # 2932325026
15. #WASHER COVERING MFR # 2933083012
16. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
17. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model RM233 Americana; Lower Right MFR # 2007622067 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Hinge Lower Left MFR # 2007621051
19. #Refrigerator Support Rail Screw; Replacement For Dometic RM2332/ RM2333/ RM2352/ RM2353 Model Refrigerator; Lower Hinge MFR # 7243325615
20. #BOX MFR # 2007625011
21. #SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description
22. #S,LID,FRZ,RM2410,RM2350 MFR # 2002239271
23. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
24. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
25. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
26. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
27. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
28. #Spring, Freezer Door RH MFR # 2002237010
29. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000

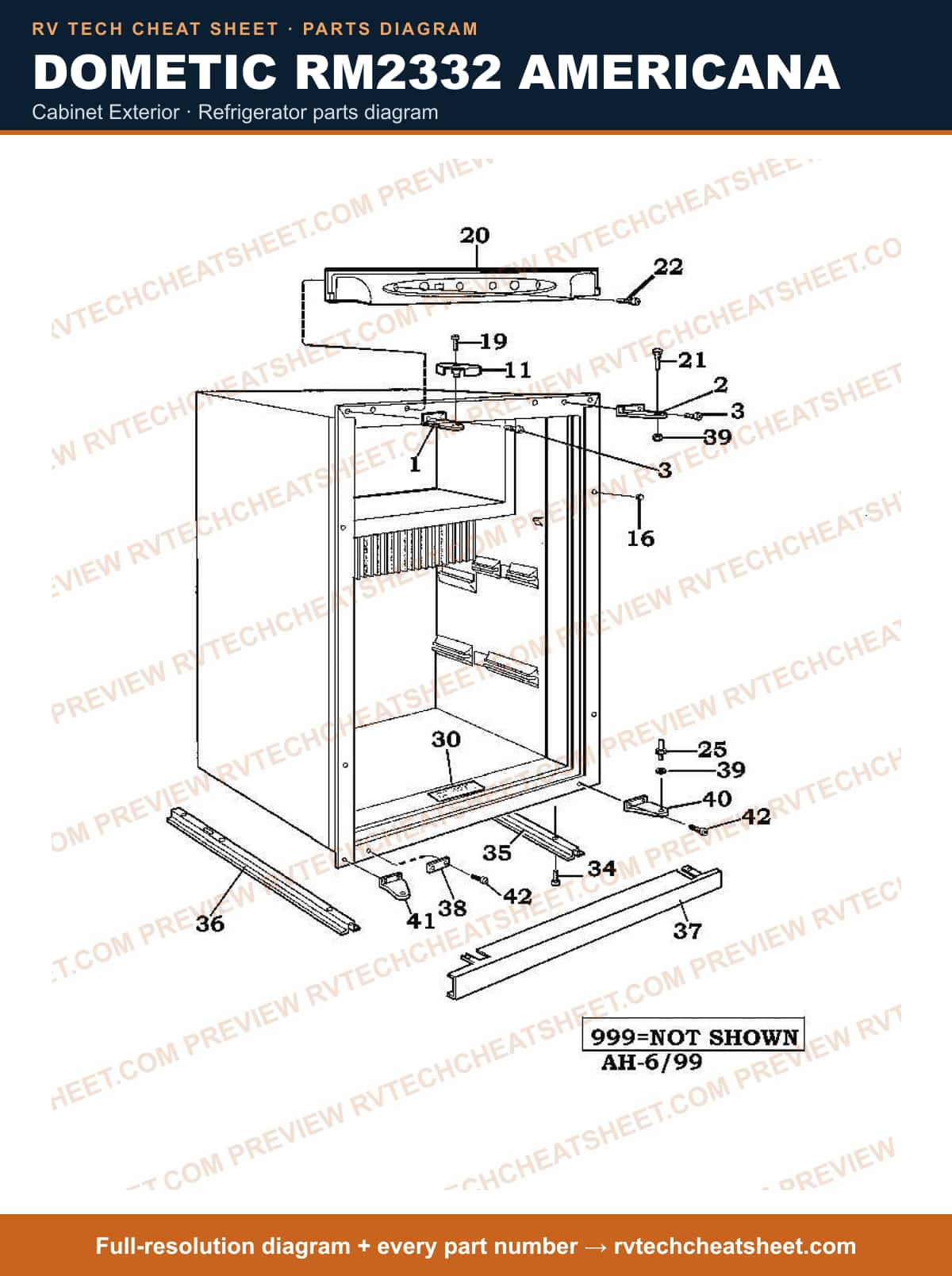

Cabinet Exterior

Components

22 items

1. #Appliance Components RV; Hinge Lh MFR # 2007621044
2. #Appliance Components RV; Hinge Rh MFR # 2007622059
3. #APPLIANCE COMPONENTS RV; Screw Hinge MFR # 7241325617
4. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
5. #CATCH,TRAVEL BLACK MFR # 2904817018
6. #LATCH,TRAVEL USE 2904817018 RM2301 MFR # 2904817000 Superseded: see description
7. #LATCH,TRAVEL USE 2904817000 RM2301 MFR # 2931140012 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Screw Latch 3-Way MFR # 2931112029
9. #Decoration Front MFR # 2933097020
10. #Pin, Hinge Upper MFR # 2930612003
11. #SCREW, RXS, B8 4,2X16 MFR # 2801062023
12. #Refrigerator Door Hinge; Replacement For Dometic RM2333/ RM2332 Refrigerators; Bottom Right Hand MFR # 2932340017
13. #SIGN PLATE MFR # 2932677004
14. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
15. #Runner; Right MFR # 2932486018
16. #Runner; Left MFR # 2932486026
17. #APPLIANCE COMPONENTS RV; Base Front MFR # 2932325026
18. #WASHER COVERING MFR # 2933083012
19. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
20. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model RM233 Americana; Lower Right MFR # 2007622067 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Hinge Lower Left MFR # 2007621051
22. #Refrigerator Support Rail Screw; Replacement For Dometic RM2332/ RM2333/ RM2352/ RM2353 Model Refrigerator; Lower Hinge MFR # 7243325615

Burner & Controls

Components

51 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
4. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RG1350/ RM2353 Refrigerators MFR # 2932591015
5. #NIPPLE MFR # 2931338012
6. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
7. #Thermostat Housing Bolt; Use With Dometic RM2352/ RM2353 Refrigerators MFR # 2954070005 Superseded: see description
8. #THERMOSTAT MFR # 2931336016
9. #Refrigerator Cooling Fan Thermostat; Replacement For Dometic Refrigerator Models RM2332-926695201/ RM2333-926695401/ RM2333-926695801/ RM2352-921145002/ RM2352-921145004/ RM2352-921145009/ RM2352-921145013/ RM2352-921145015/ RM2352-921145018/ RM2352-921145019/ RM2353-921145003/ RM2353-921145005/ RM2353-921145011/ RM2353-921145014/ RM2353-921145016/ RM2353-921145020/ RM2353-921145021/ RM2452-921140101/ RM2452-921140102/ RM2452-921140107/ RM2452-921140108/ RM2453-921140103/ RM2453-921140104/ RM2453-921140109/ RM2453-921140110/ RM2552-921142001/ RM2552-921142002/ RM2553-921142003/ RM2553-921142004 MFR # 2931336016MC
10. #T-STAT USE 2931336016 MFR # V61P0121000 Superseded: see description
11. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
12. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932619014
13. #PROTECTION PLATE MFR # 2933150019
14. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
15. #RETAINER MFR # 2932487016
16. #INTERRUPTER MFR # 2955033002
17. #Refrigerator Gas Valve Adapter Fitting; Use On Dometic Refrigerator Models RM2330/ RM2350/ RM4601 MFR # 2955033002MC Superseded: see description
18. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
19. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
20. #S,PIEZO IGNITER,W/NUT,RM2352 MFR # 2931796011
21. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
22. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
23. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
24. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
25. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
26. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
27. #Screw; Replacement For Dometic RM2452/ RM7030/ RM2333 Refrigerator Models; Gas Valve Screw; M4 x 25; Zinc MFR # 7241297618
28. #APPLIANCE COMPONENTS RV; Valve Manual Gas MFR # 2932617018
29. #Refrigerator Power Selector Switch; Replacement For Dometic RM2353/ RG1350/ RM2552 Refrigerators MFR # 2932614015
30. #Refrigerator Bushing; Replacement For Dometic RM2353/ RG1350 Refrigerators; For Power Selector Switch MFR # 2932602010
31. #TUBE GAS MFR # 2932489012
32. #APPLIANCE COMPONENTS RV; Valve Shut Off MFR # 2932616010
33. #APPLIANCE COMPONENTS RV; NIPPLE MFR # 2931227017
34. #S,THERMOCOUPLE,RM2352 MFR # 2932337013
35. #Nut, T-Couple MFR # 2801043015
36. #TUBE GAS MFR # 2932491018
37. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
38. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RM2453/ RM2552/ RM2453/ RM2352/ RM253/ RG1350/ RM2604 Model Refrigerator MFR # 2930488008
39. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
40. #BUTTON, PUSH MFR # 2932596014
41. #APPLIANCE COMPONENTS RV; Knob T-Stat 2 1/2" MFR # 2932605013
42. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM2552/ RM2553/ RM2452 Refrigerators; 1 Inch Diameter MFR # 2932607019
43. #GUIDING DEVICE MFR # 2932595016
44. #Refrigerator Door Latch Spring; Replacement For Dometic RG1350/ RM2453/ RM2552 Model Refrigerator MFR # 2932594019
45. #Refrigerator Power Selector Switch Cover; Use With Dometic RM2352/ RM2353 Model Refrigerators MFR # 2954023004 Superseded: see description
46. #APPLIANCE COMPONENTS RV; INDICATOR, FLAME MFR # 2955037011
47. #RETAINER MFR # 2933073013
48. #ELEMENT, HEATING 175W & 120V 3/8" DIAM 8-1/4" LONG MFR # 173760109
49. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
50. #APPLIANCE COMPONENTS RV; WIRE, ELECTRODE MFR # 2931360032
51. #BAFFLE MFR # 2932667070

Refrigerator Replacement

Components

3 items

1. #Refrigerator; 3 Cu Ft MFR # RM2332N
2. #64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N
3. #Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N300N

Cabinet Rear View

Components

7 items

1. #Refrigerator Cooling Unit; Replacement For Dometic RM2332/ RM2333 Model Refrigerator MFR # 2934338092N
2. #REMAN Cooling Unit RM2332 MFR # 5533
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
6. #APPLIANCE COMPONENTS RV; Cord Ac MFR # 2002699128
7. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005

Door Assembly

Components

13 items

1. #APPLIANCE COMPONENTS RV; Door Asm MFR # 2932016245
2. #PANEL, DOOR WOODGRAIN SINGLE PANEL 25-1/2" X 21-1/16 MFR # RM2310G
3. #PANEL, DOOR BLACK PLEXIGLASS SINGLE PANEL 25-1/2" X 21-1/16 MFR # RM2310L
4. #PANEL,DOOR USE RM2310G RM2310 MFR # 3106863040B Superseded: see description
5. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
6. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
7. #Refrigerator Door Handle; Replacement For Dometic RM2333/ RM2310/ RM2310 Refrigerators MFR # 2932014026
8. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
9. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
10. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
11. #APPLIANCE COMPONENTS RV; Strip Door MFR # 2930640681
12. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
13. #APPLIANCE COMPONENTS RV; Catch Travel Strike MFR # 2931111021
