Dometic RM2333 Americana Product # 926695401 Parts Diagram · Cabinet Interior

Refrigerator · 6 assemblies · 6 diagram sheets · 118 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2333 Americana Product # 926695401 RV refrigerator: 6 assemblies (Cabinet Interior, Cabinet Rear View, Replacement Refrigerator, Burner & Controls, Cabinet Exterior and more) and 118 manufacturer part numbers. 17 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

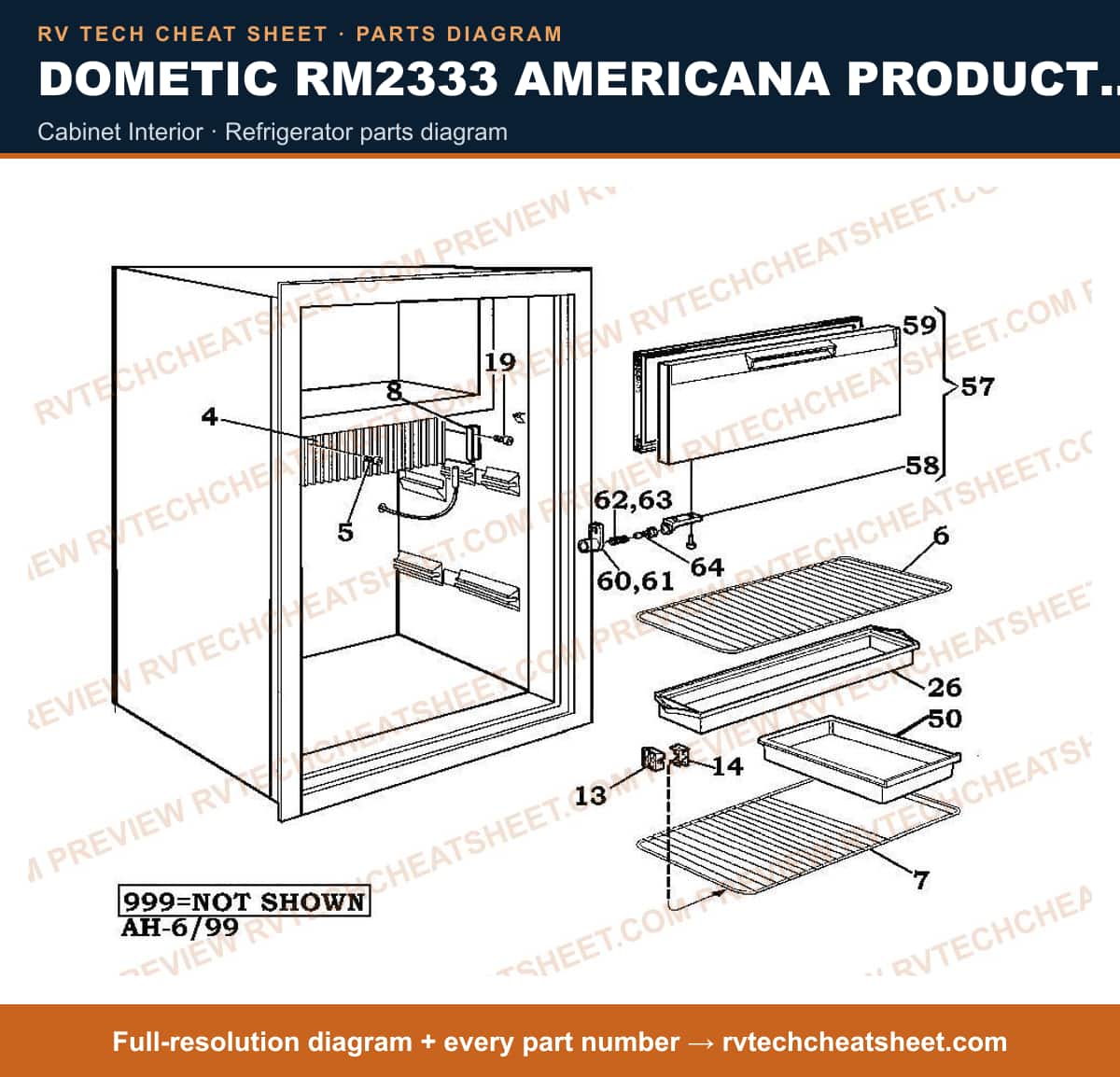

Cabinet Interior

Components

19 items

1. #FIN, COOLING MFR # 2932273010
2. #Screw; Replacement For Dometic RM2332/ RM2353 Model Refrigerator MFR # 2801062049
3. #APPLIANCE COMPONENTS RV; Shelf Upper MFR # 2002652382
4. #SHELF, LOWER USE 2002652192 MFR # 2002650154 Superseded: see description
5. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
6. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
7. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
8. #SCREW, RXS, B8 4,2X16 MFR # 2801062023
9. #S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011
10. #BOX MFR # 2007625011
11. #S,LID,FRZ,RM2410,RM2350 MFR # 2002239271
12. #SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description
13. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
14. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
15. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
16. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
17. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
18. #Spring, Freezer Door RH MFR # 2002237010
19. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000

Cabinet Rear View

Components

6 items

1. #Refrigerator Cooling Unit; Replacement For Dometic RM2332/ RM2333 Model Refrigerator MFR # 2934338092N
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
5. #APPLIANCE COMPONENTS RV; Cord Ac MFR # 2002699128
6. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005

Replacement Refrigerator

Components

4 items

1. #REFER, 3 CU FT 3-WAY TAUPE 29 3/4"H X 20 1/2"W MFR # RM2354N
2. #REFER, 3 CU.FT USE RM2354N 3-WAY MFR # RM2353N Superseded: see description
3. #64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N
4. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 3 Cubic Foot Capacity; 30-3/8 Inch Height x 21-11/16 Inch Width x 22-1/16 Inch Depth; 110 Volt AC/ 12 Volt DC; 3 Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ 2 Liter Bottle And 1/2 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2354RB

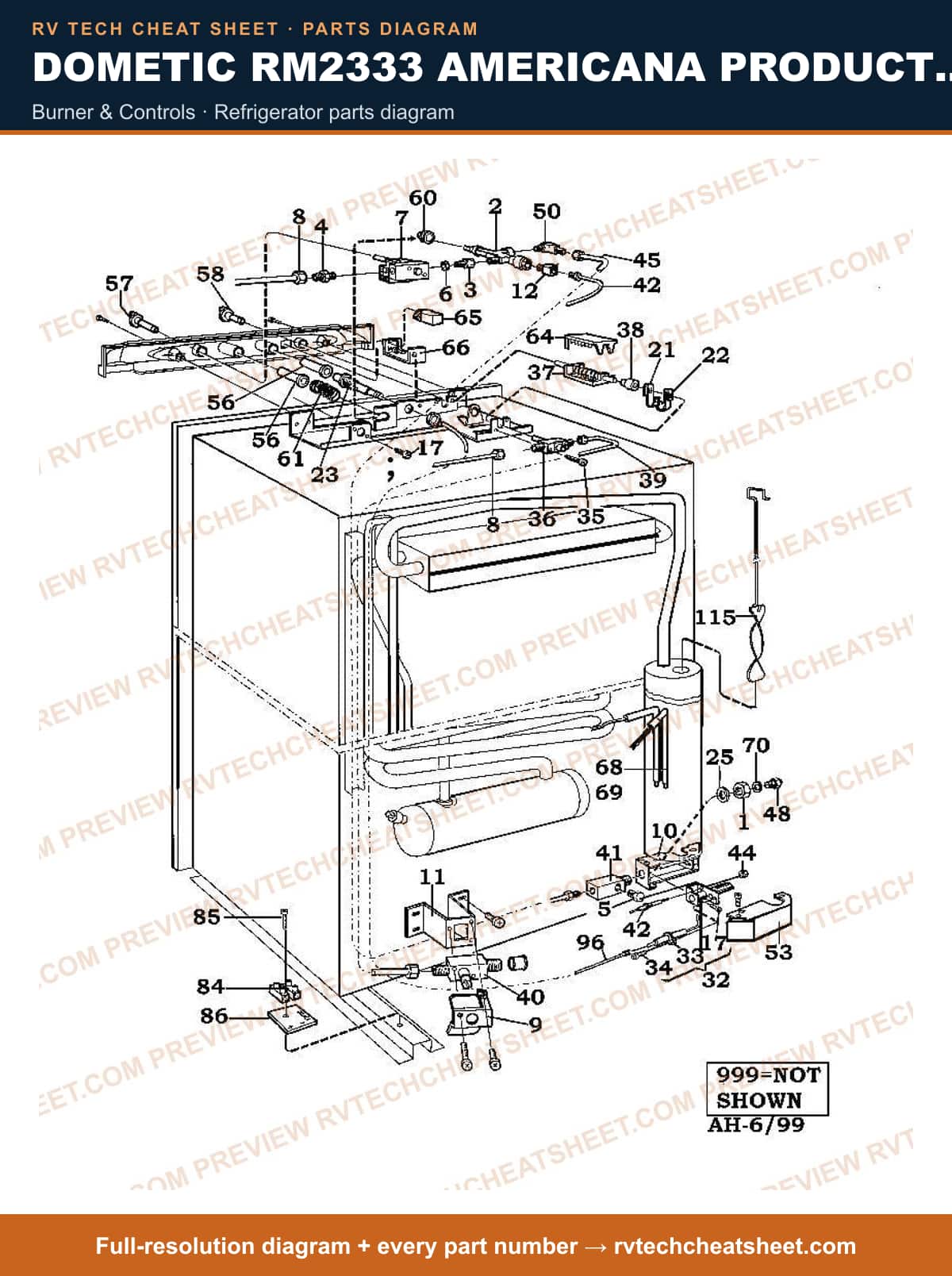

Burner & Controls

Components

56 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
3. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
4. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RG1350/ RM2353 Refrigerators MFR # 2932591015
5. #NIPPLE MFR # 2931338012
6. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
7. #Thermostat Housing Bolt; Use With Dometic RM2352/ RM2353 Refrigerators MFR # 2954070005 Superseded: see description
8. #T-STAT USE 2931336016 MFR # V61P0121000 Superseded: see description
9. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
10. #THERMOSTAT MFR # 2931336016
11. #Refrigerator Cooling Fan Thermostat; Replacement For Dometic Refrigerator Models RM2332-926695201/ RM2333-926695401/ RM2333-926695801/ RM2352-921145002/ RM2352-921145004/ RM2352-921145009/ RM2352-921145013/ RM2352-921145015/ RM2352-921145018/ RM2352-921145019/ RM2353-921145003/ RM2353-921145005/ RM2353-921145011/ RM2353-921145014/ RM2353-921145016/ RM2353-921145020/ RM2353-921145021/ RM2452-921140101/ RM2452-921140102/ RM2452-921140107/ RM2452-921140108/ RM2453-921140103/ RM2453-921140104/ RM2453-921140109/ RM2453-921140110/ RM2552-921142001/ RM2552-921142002/ RM2553-921142003/ RM2553-921142004 MFR # 2931336016MC
12. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932619014
13. #PROTECTION PLATE MFR # 2933150019
14. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
15. #RETAINER MFR # 2932487016
16. #Refrigerator Gas Valve Adapter Fitting; Use On Dometic Refrigerator Models RM2330/ RM2350/ RM4601 MFR # 2955033002MC Superseded: see description
17. #INTERRUPTER MFR # 2955033002
18. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
19. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
20. #S,PIEZO IGNITER,W/NUT,RM2352 MFR # 2931796011
21. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
22. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
23. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
24. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
25. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
26. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
27. #Screw; Replacement For Dometic RM2452/ RM7030/ RM2333 Refrigerator Models; Gas Valve Screw; M4 x 25; Zinc MFR # 7241297618
28. #APPLIANCE COMPONENTS RV; Valve Manual Gas MFR # 2932617018
29. #Refrigerator Power Selector Switch; Replacement For Dometic RM2353/ RG1350/ RM2552 Refrigerators MFR # 2932614015
30. #Refrigerator Bushing; Replacement For Dometic RM2353/ RG1350 Refrigerators; For Power Selector Switch MFR # 2932602010
31. #TUBE GAS MFR # 2932489012
32. #APPLIANCE COMPONENTS RV; Valve Shut Off MFR # 2932616010
33. #APPLIANCE COMPONENTS RV; NIPPLE MFR # 2931227017
34. #S,THERMOCOUPLE,RM2352 MFR # 2932337013
35. #Nut, T-Couple MFR # 2801043015
36. #TUBE GAS MFR # 2932491018
37. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
38. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RM2453/ RM2552/ RM2453/ RM2352/ RM253/ RG1350/ RM2604 Model Refrigerator MFR # 2930488008
39. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
40. #BUTTON, PUSH MFR # 2932596014
41. #APPLIANCE COMPONENTS RV; Knob T-Stat 2 1/2" MFR # 2932605013
42. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM2552/ RM2553/ RM2452 Refrigerators; 1 Inch Diameter MFR # 2932607019
43. #GUIDING DEVICE MFR # 2932595016
44. #Refrigerator Door Latch Spring; Replacement For Dometic RG1350/ RM2453/ RM2552 Model Refrigerator MFR # 2932594019
45. #Refrigerator Power Selector Switch Cover; Use With Dometic RM2352/ RM2353 Model Refrigerators MFR # 2954023004 Superseded: see description
46. #APPLIANCE COMPONENTS RV; INDICATOR, FLAME MFR # 2955037011
47. #RETAINER MFR # 2933073013
48. #ELEMENT, HEATING 175W & 120V 3/8" DIAM 8-1/4" LONG MFR # 173760109
49. #ELEMENT, HEATING USE 173735051 125W & 12V MFR # 173735044 Superseded: see description
50. #ELEMENT, HEATING 150W 12V MFR # 173735051
51. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
52. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
53. #3858022019 MFR # 3858022019
54. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
55. #APPLIANCE COMPONENTS RV; WIRE, ELECTRODE MFR # 2931360032
56. #BAFFLE MFR # 2932667070

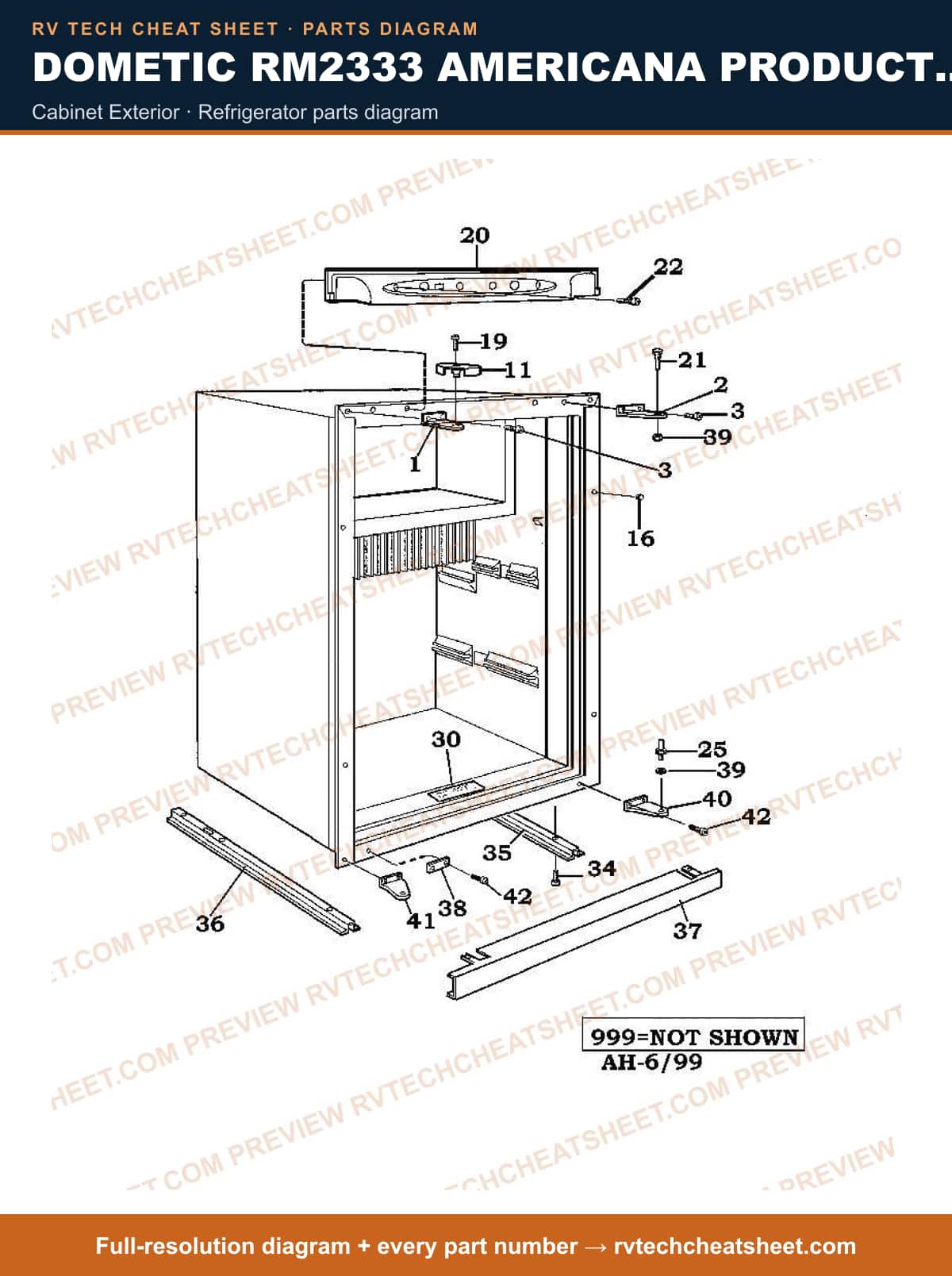

Cabinet Exterior

Components

22 items

1. #Appliance Components RV; Hinge Lh MFR # 2007621044
2. #Appliance Components RV; Hinge Rh MFR # 2007622059
3. #APPLIANCE COMPONENTS RV; Screw Hinge MFR # 7241325617
4. #LATCH,TRAVEL USE 2904817018 RM2301 MFR # 2904817000 Superseded: see description
5. #LATCH,TRAVEL USE 2904817000 RM2301 MFR # 2931140012 Superseded: see description
6. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
7. #CATCH,TRAVEL BLACK MFR # 2904817018
8. #APPLIANCE COMPONENTS RV; Screw Latch 3-Way MFR # 2931112029
9. #APPLIANCE COMPONENTS RV; Decoration Front MFR # 2933097012
10. #Pin, Hinge Upper MFR # 2930612003
11. #SCREW, RXS, B8 4,2X16 MFR # 2801062023
12. #Refrigerator Door Hinge; Replacement For Dometic RM2333/ RM2332 Refrigerators; Bottom Right Hand MFR # 2932340017
13. #SIGN PLATE MFR # 2932677004
14. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
15. #Runner; Right MFR # 2932486018
16. #Runner; Left MFR # 2932486026
17. #APPLIANCE COMPONENTS RV; Base Front MFR # 2932325026
18. #WASHER COVERING MFR # 2933083012
19. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
20. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model RM233 Americana; Lower Right MFR # 2007622067 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Hinge Lower Left MFR # 2007621051
22. #Refrigerator Support Rail Screw; Replacement For Dometic RM2332/ RM2333/ RM2352/ RM2353 Model Refrigerator; Lower Hinge MFR # 7243325615
