Dometic RM235 Parts Diagram

Refrigerator · 1 diagram sheet · 56 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic RM235 RV refrigerator: 56 manufacturer part numbers. 13 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

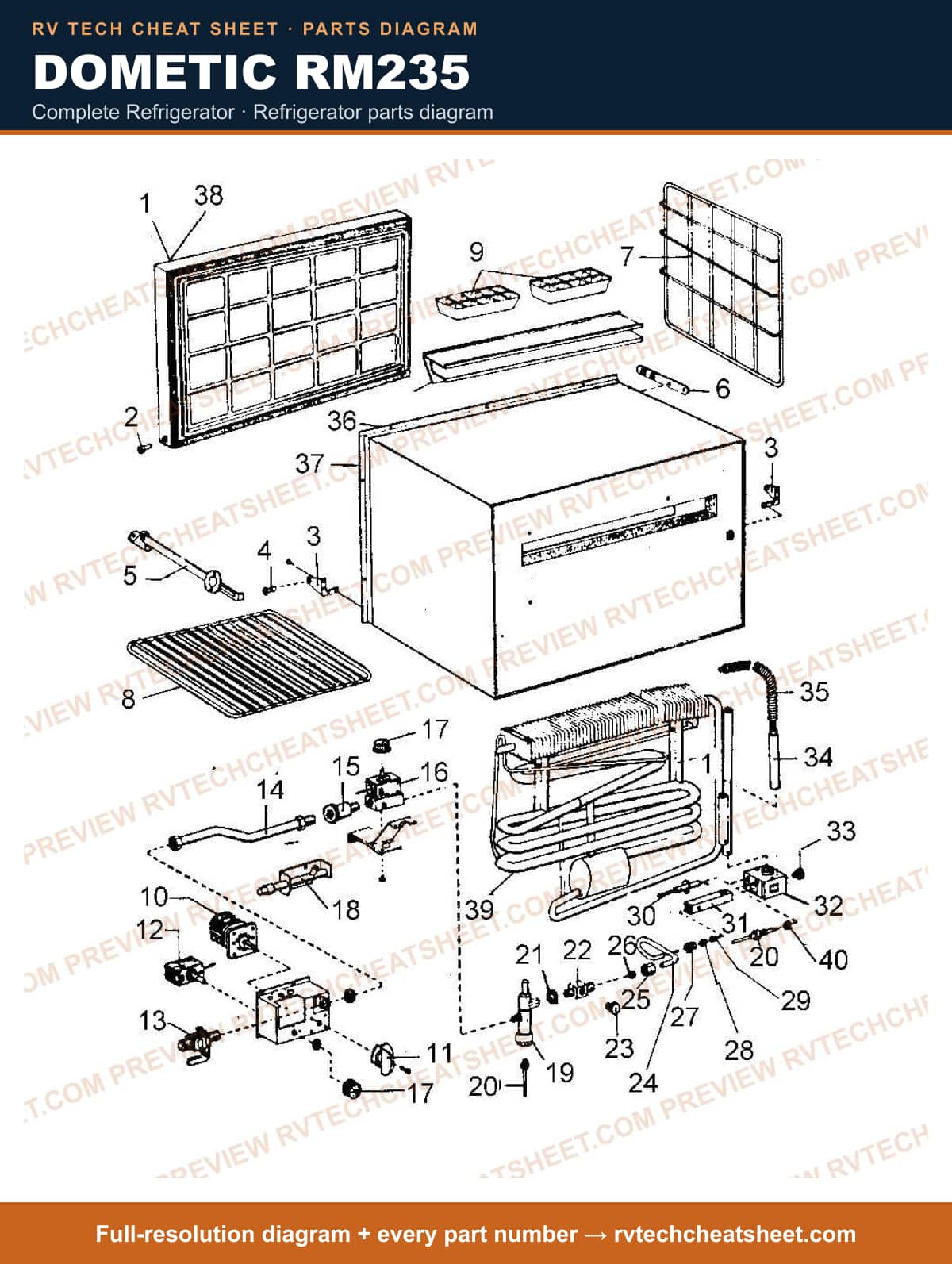

Complete Refrigerator

Components

56 items

1. #DOOR COMPLETE MFR # 2928302005
2. #Hinge Pin MFR # 2928943006
3. #Hinge RH MFR # 2928941018
4. #Hinge LH MFR # 2928942016
5. #Screw MFR # 2928077011
6. #Door Holder MFR # 2928400007
7. #Latch MFR # 2928022017
8. #Separating Grid MFR # 2928392006
9. #Shelf MFR # 2928391008
10. #Ice Tray MFR # 2922072018
11. #SWITCH, CONTROL MFR # 2002586002
12. #APPLIANCE COMPONENTS RV; Knob Gas/Electric Rm22 MFR # 2002585004
13. #T-STAT USE K50P2022 MFR # 2900702008 Superseded: see description
14. #T-STAT USE K50P2022 MFR # K50P2022 Superseded: see description
15. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
16. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
17. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
18. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
19. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
20. #Gas Inlet Pipe MFR # 29287430000
21. #GAS FILTER W/NIPPLE & NUT MFR # 172810004D
22. #T-STAT, GAS MFR # 2922005000
23. #KNOB, T-STAT USE 2901183026 2150, 2201 MFR # 2901183018 Superseded: see description
24. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
25. #Igniter; For Use With Dometic RM2200A/ RM211B/ RM211 Refrigerators; Piezo Spark MFR # 2901181010 Superseded: see description
26. #IGNITER, PIEZO USE 2901181010 USE 2901181010 FIRST UNTIL GONE. MFR # 2901181012 Superseded: see description
27. #VALVE, SAFETY; Use 293165 MFR # 2932656017 Superseded: see description
28. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
29. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
30. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
31. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
32. #VALVE, SAFETY MFR # 293165
33. #Thermocouple MFR # 2928742002
34. #LOCK NUT MFR # 173366006D
35. #HOUSING FOR PLUG SCREW MFR # 173214008D
36. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
37. #PIPE, GAS INLET MFR # 2928741004
38. #APPLIANCE COMPONENTS RV; Nut Union MFR # 2901369005
39. #OLIVE MFR # 173213000D
40. #NUT, GAS LINE MFR # 2922272014
41. #Cone MFR # 2922364043
42. #REFRIG BURNER ORIFICE 45 MFR # 2922033044
43. #ELECTRODE W/LEAD MFR # 2928727029
44. #TUBE, BURNER RM23 5 MFR # 2928720016
45. #BURNER, GAS COMPLETE MFR # 2928740006
46. #Screw MFR # 2928721006
47. #ELEMENT, HEATING (25) USE 72-8460 SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#2901943000. MFR # CS000027 Superseded: see description
48. #APPLIANCE COMPONENTS RV; UNIV ELEMENT 95W SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#2901943000. MFR # 2901943000MC
49. #ELEMENT, HEATING USE 2901943000 12V/110W RM211 MFR # 2901943000D Superseded: see description
50. #APPLIANCE COMPONENTS RV; Element Heating Alts Available. WHEN INVENTORY IS DEPLETED ON THIS ITEM, PLEASE ORDER SUGGESTED ALTERNATE P# CS000027 OR 2901943000MC. MFR # 2901943000
51. #SLEEVE, ARMOURED MFR # 2901806006
52. #Top Aluminum Strip MFR # 2928401000
53. #Side Aluminum Strip MFR # 2928401010
54. #Nameplate "Dometic" MFR # 2928415000
55. #Cooling Unit MFR # 2928303003
56. #NUT MFR # 169386000D
