Dometic RM2351 Americana Product # 921145026 Taupe Parts Diagram · Replacement Refrigerator

Refrigerator · 6 assemblies · 6 diagram sheets · 121 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2351 Americana Product # 921145026 Taupe RV refrigerator: 6 assemblies (Replacement Refrigerator, Door Assembly, Cabinet Rear View, Cabinet Interior, Burner & Controls and more) and 121 manufacturer part numbers. 23 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

7 items

1. #Refrigerators & Ice Makers RV; Ref, 3CF, L, 2-Way/Blk/W/1Fan MFR # RM2351LB1F
2. #Appliance Components RV; 3106863.008C Door Panel RM2351RB1F MFR # 106863008C
3. #REFER, 3 CU FT. 2 WAY TAUPE 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2351N
4. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; Permanent; 3 Cubic Foot Capacity; 30-3/8 Inch Height x 21-11/16 Inch Width x 22-1/16 Inch Depth; 110 Volt AC; 2 Way Alternating Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ 2 Liter Bottle And 1/2 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2351RB
5. #Refrigerator Door Panel;;Fits Dometic Refrigerator 2352 Series; Black; Acrylic MFR # 2352L
6. #Refrigerators & Ice Makers RV; Refer, 3CF, R, 2-Way/Blk/W/1Fan MFR # RM2351RB1F
7. #Refrigerator Door Panel;;Fits Dometic Refrigerator 2353 Series; Woodgrain MFR # 2353G

Door Assembly

Components

12 items

1. #DOOR, REFER MFR # 3850272067
2. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
3. #PLUG MFR # 3850261011
4. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
5. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
6. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
7. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
8. #Refrigerator Trim; Replacement For Dometic RM2352/ RM2353/ RM2351 Model Refrigerator; Door Bottom Trim MFR # 3850259015
9. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
10. #APPLIANCE COMPONENTS RV; Plate Lock MFR # 3850260013
11. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
12. #S,SCREW,RXS,4.2*13ZPBC MFR # 3858002037

Cabinet Rear View

Components

8 items

1. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
2. #Refrigerator Cooling Unit; Replacement For Dometic RM2351/ RM2354 Model Refrigerator MFR # 2934341096
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #COVER, ELEMENT MFR # 2800821007
5. #Cover MFR # 3850601026
6. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
7. #LABEL MFR # 3850583000
8. #Decal MFR # 3850584008

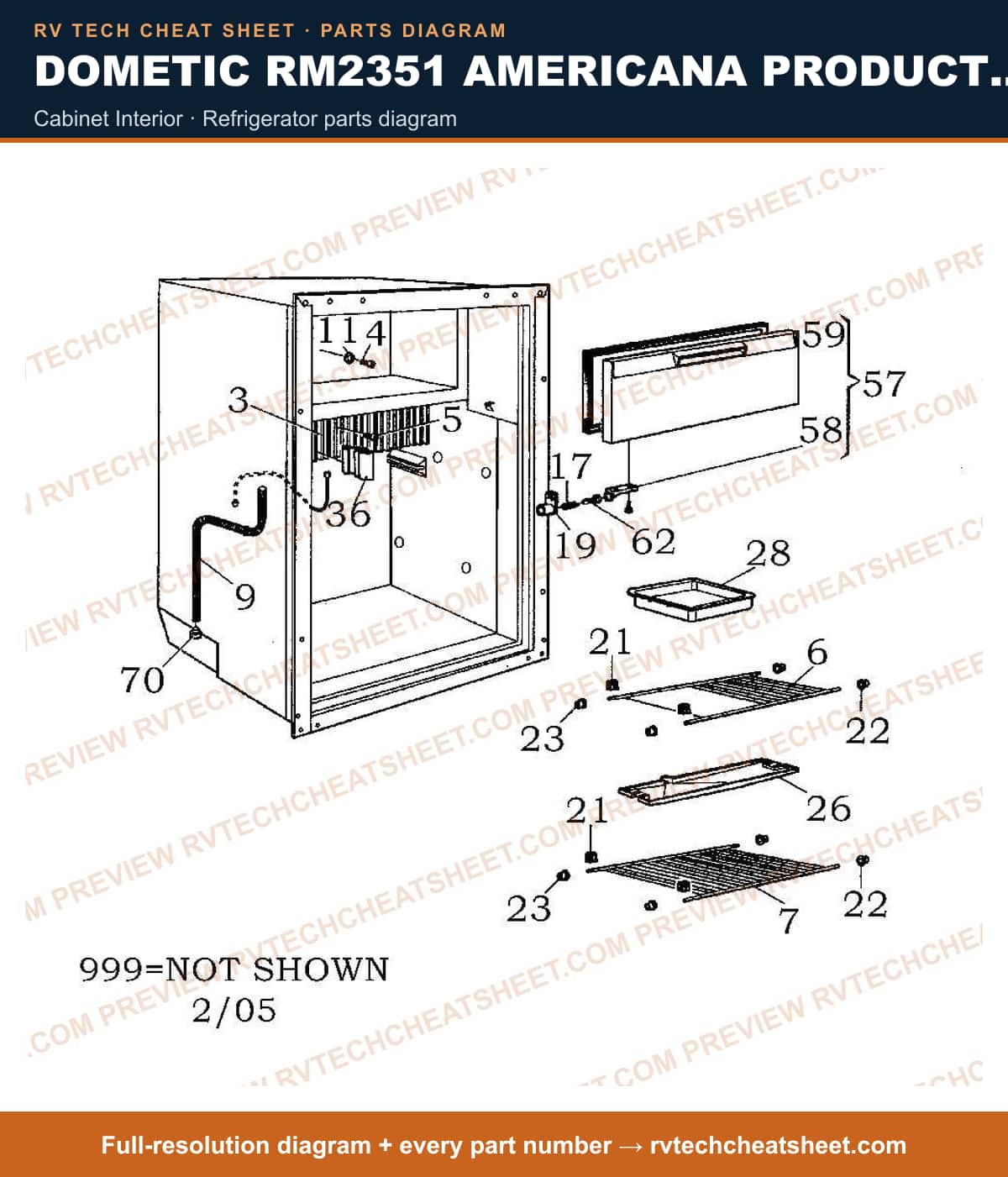

Cabinet Interior

Components

23 items

1. #Refrigerator Evaporator Door Liner; Use With Dometic Refrigerator Model RM2351 Americana/ RM2354 Americana MFR # 3850291018 Superseded: see description
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #Screw; Zinc Plated RXS B10 4.8 x 19 MFR # 3858002292
4. #Appliance Components RV; Shelf MFR # 3850301015
5. #Refrigerator Shelf; Replacement For Dometic RM2353/ RM2351/ RM2354 Refrigerators; Wire; With Cutout MFR # 2932022045
6. #Appliance Components RV; Drain Hose, 1060mm, WHT MFR # 2932749118
7. #Appliance Components RV; Kit Drain Hose MFR # 3312986247
8. #WASHER,STAINLESS MFR # 3858010121
9. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
10. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
11. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
12. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
13. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
14. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
16. #Tray, Drip MFR # 3850274014
17. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
18. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
19. #Appliance Components RV; Door Evaporator MFR # 2002239339
20. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
21. #Gasket, Freezer Door White MFR # 2933145027
22. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
23. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description

Burner & Controls

Components

49 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
9. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
10. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
11. #ELECTRODE W/WIRE LEADS MFR # 293781012MC
12. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
13. #ELECTRODE MFR # 2932781012
14. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
15. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
16. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
17. #Nut, T-Couple MFR # 2801043015
18. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
19. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
20. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
21. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
22. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
23. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Black Box Board Kit 3850415.01 MFR # 385041501
24. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
25. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
26. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
27. #S,CAP,FLUE MFR # 2007598010
28. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
29. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
30. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
31. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
32. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
33. #Lead; Solenoid Valve MFR # 2954540056
34. #Heating Element; 175W 120V; USE 49-8743 MFR # 173771023 Superseded: see description
35. #ELEMENT, HEATING 175W 120V USE 49-8743 MFR # 173738345 Superseded: see description
36. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
37. #APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006
38. #Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description
39. #3858022019 MFR # 3858022019
40. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
41. #Wire With Fuse MFR # 2954553018
42. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
43. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
44. #Reigniter - NLA MFR # 2931132027
45. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
46. #Appliance Components RV; Baffle, Flue MFR # 2007172022
47. #Bracket MFR # 3850754015
48. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
49. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110

Cabinet Exterior

Components

24 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2354/ RM2353 Refrigerator; Fits Top Hinge MFR # 2932415017
2. #Tools & Fasteners RV; Screw Zinc-Plated MFR # 3858039088
3. #SCREW, ZINC PLATED MFX M5X10 MFR # 3858056025
4. #Refrigerator Trim Hole Plug; Use With Dometic Refrigerator Model RM2354 Americana MFR # 3850263017 Superseded: see description
5. #Appliance Components RV; Lock, Latch MFR # 3850319017
6. #Refrigerator Trim Hole Plug; Use With Dometic Refrigerator Model RM2353 Americana/ RM2352 Americana MFR # 3850336011 Superseded: see description
7. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
8. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
9. #DECORATION, FRONT BROWN MFR # 3850759014
10. #Decal; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2562/ DM2862/ DM3862 MFR # 2932776004 Superseded: see description
11. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
12. #Screw; Zinc Plated RXS B10 4.8 x 9.5 MFR # 3858002219
13. #Runner; Right MFR # 2932486018
14. #Runner; Left MFR # 2932486026
15. #APPLIANCE COMPONENTS RV; Base Front MFR # 2932325026
16. #Refrigerator Door Hinge; Replacement For Dometic RM2351/ RM2352/ RM2353/ RM2352 Model Refrigerators; Fits Upper Cabinet Side; Upper Left Hand MFR # 3850271010
17. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2352 Americana; Fits Lower Hinge MFR # 3850322011 Superseded: see description
18. #Nut; Use With Dometic Americana Refrigerators; M6 x 3.2 Inch; Zinc MFR # 3858009032 Superseded: see description
19. #Appliance Components RV; Hinge, Lower LH MFR # 3850341011
20. #PLUG MFR # 3850362017
21. #Holder MFR # 2933056018
22. #Holder MFR # 2933056026
23. #Screw RXK B6x16 MFR # 3858005022
24. #Refrigerator Door Hinge; Reversing Kit For Models RM2351/ RM2354; Reverse Door Hinge Right To Left And Left To Right; Taupe MFR # 385030401
