Dometic RM2351 Americana Product # 921145037 Brown Parts Diagram · Replacement Refrigerator

Refrigerator · 6 assemblies · 6 diagram sheets · 114 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2351 Americana Product # 921145037 Brown RV refrigerator: 6 assemblies (Replacement Refrigerator, Cabinet Interior, Cabinet Exterior, Door Assembly, Burner & Controls and more) and 114 manufacturer part numbers. 19 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

6 items

1. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; Permanent; 3 Cubic Foot Capacity; 30-3/8 Inch Height x 21-11/16 Inch Width x 22-1/16 Inch Depth; 110 Volt AC; 2 Way Alternating Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ 2 Liter Bottle And 1/2 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2351RB
2. #Refrigerator Door Panel;;Fits Dometic Refrigerator 2353 Series; Woodgrain MFR # 2353G
3. #Refrigerators & Ice Makers RV; Refer, 3CF, R, 2-Way/Blk/W/1Fan MFR # RM2351RB1F
4. #Refrigerator Door Panel;;Fits Dometic Refrigerator 2352 Series; Black; Acrylic MFR # 2352L
5. #Refrigerators & Ice Makers RV; Ref, 3CF, L, 2-Way/Blk/W/1Fan MFR # RM2351LB1F
6. #Appliance Components RV; 3106863.008C Door Panel RM2351RB1F MFR # 106863008C

Cabinet Interior

Components

23 items

1. #Refrigerator Evaporator Door Liner; Use With Dometic Refrigerator Model RM2351 Americana/ RM2354 Americana MFR # 3850291018 Superseded: see description
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #Screw; Zinc Plated RXS B10 4.8 x 19 MFR # 3858002292
4. #Appliance Components RV; Shelf MFR # 3850301015
5. #Refrigerator Shelf; Replacement For Dometic RM2353/ RM2351/ RM2354 Refrigerators; Wire; With Cutout MFR # 2932022045
6. #Appliance Components RV; Drain Hose, 1060mm, WHT MFR # 2932749118
7. #Appliance Components RV; Kit Drain Hose MFR # 3312986247
8. #WASHER,STAINLESS MFR # 3858010121
9. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
10. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
11. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
12. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
13. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
14. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
16. #Tray, Drip MFR # 3850274014
17. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
18. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
19. #Appliance Components RV; Door Evaporator MFR # 2002239339
20. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
21. #Gasket, Freezer Door White MFR # 2933145027
22. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
23. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description

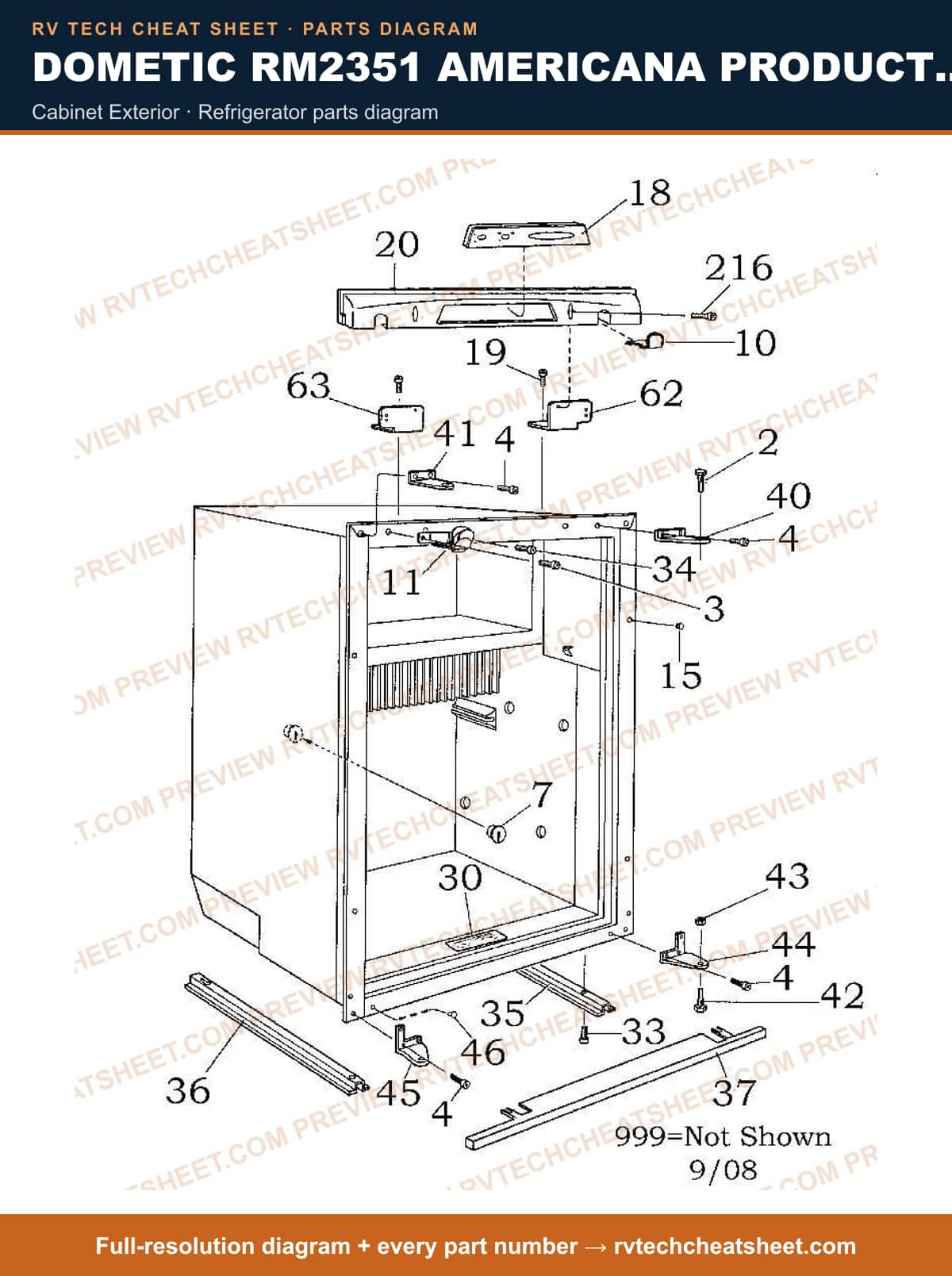

Cabinet Exterior

Components

25 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2354/ RM2353 Refrigerator; Fits Top Hinge MFR # 2932415017
2. #Tools & Fasteners RV; Screw Zinc-Plated MFR # 3858039088
3. #SCREW, ZINC PLATED MFX M5X10 MFR # 3858056025
4. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
5. #Refrigerator Trim Hole Plug; Use With Dometic Refrigerator Model RM2354 Americana MFR # 3850263017 Superseded: see description
6. #Appliance Components RV; Lock, Latch MFR # 3850319017
7. #Refrigerator Trim Hole Plug; Use With Dometic Refrigerator Model RM2353 Americana/ RM2352 Americana MFR # 3850336011 Superseded: see description
8. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
9. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
10. #DECORATION, FRONT BROWN MFR # 3850759014
11. #Decal; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2562/ DM2862/ DM3862 MFR # 2932776004 Superseded: see description
12. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
13. #Screw; Zinc Plated RXS B10 4.8 x 9.5 MFR # 3858002219
14. #Runner; Right MFR # 2932486018
15. #Runner; Left MFR # 2932486026
16. #APPLIANCE COMPONENTS RV; Base Front MFR # 2932325026
17. #Refrigerator Door Hinge; Replacement For Dometic RM2351/ RM2352/ RM2353/ RM2352 Model Refrigerators; Fits Upper Cabinet Side; Upper Left Hand MFR # 3850271010
18. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2352 Americana; Fits Lower Hinge MFR # 3850322011 Superseded: see description
19. #Nut; Use With Dometic Americana Refrigerators; M6 x 3.2 Inch; Zinc MFR # 3858009032 Superseded: see description
20. #Appliance Components RV; Hinge, Lower LH MFR # 3850341011
21. #PLUG MFR # 3850362017
22. #Holder MFR # 2933056018
23. #Holder MFR # 2933056026
24. #Screw RXK B6x16 MFR # 3858005022
25. #DOOR REVERSING KIT, RH TO LH MFR # 3850304019

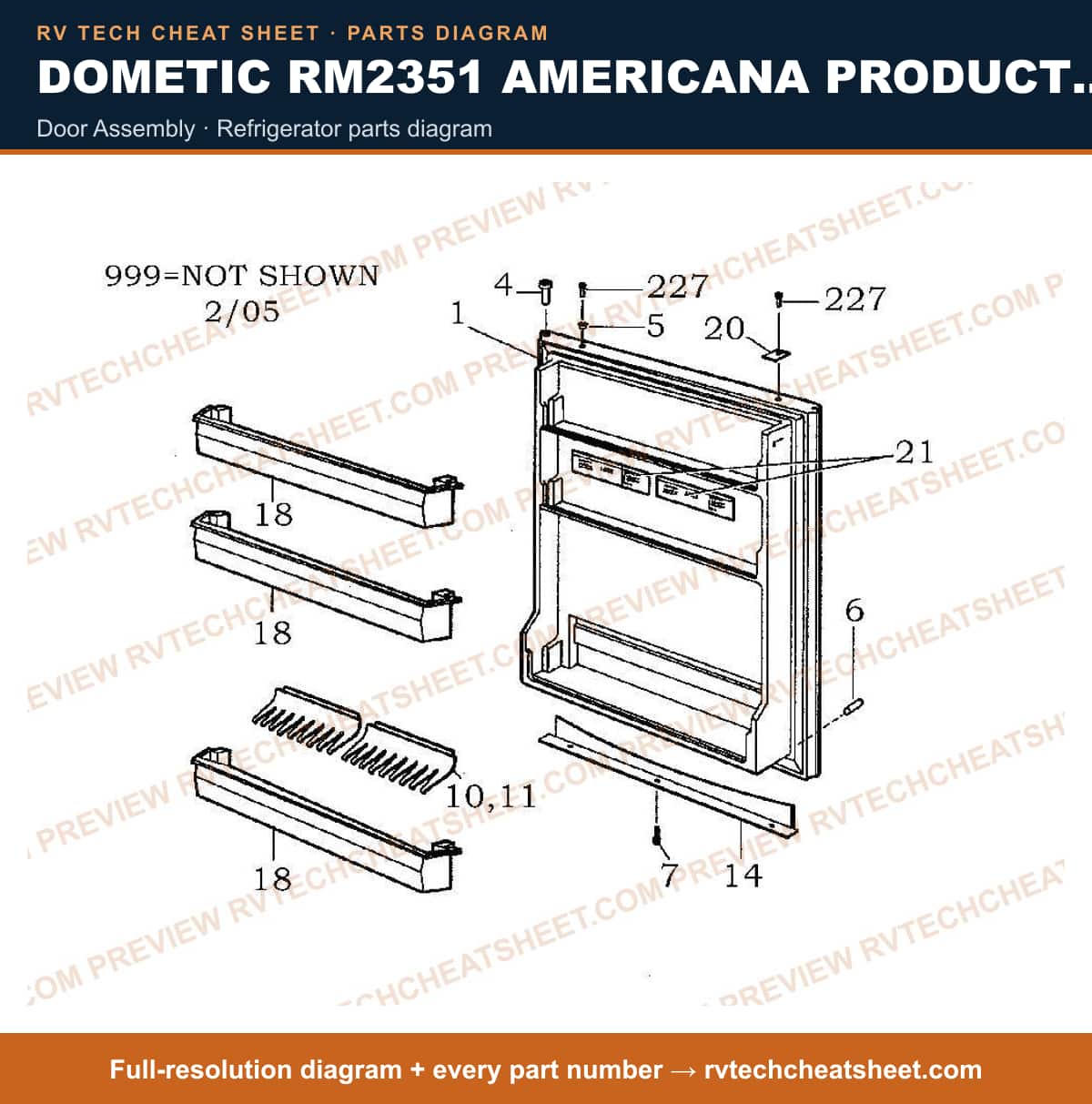

Door Assembly

Components

15 items

1. #DOOR, REFER MFR # 3850272067
2. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
3. #PLUG MFR # 3850261011
4. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
5. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
6. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
7. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
8. #Refrigerator Trim; Replacement For Dometic RM2352/ RM2353/ RM2351 Model Refrigerator; Door Bottom Trim MFR # 3850259015
9. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
10. #APPLIANCE COMPONENTS RV; Plate Lock MFR # 3850260013
11. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
12. #S,SCREW,RXS,4.2*13ZPBC MFR # 3858002037
13. #Panel, Door Brushed Aluminum MFR # RM2352BA
14. #Refrigerator Door Panel; Fits Dometic Refrigerator 2353 Series; Woodgrain; Replaces: IS A USE # FOR 3106863040BSPECS: RM2353G PANEL ALSO FITS RM2351 AND RM2352; Dimensions: 25-1/4" X 19-9/16" MFR # RM2353G Superseded: see description
15. #Refrigerator Door Panel; Fits Dometic Refrigerator 2352 Series; Black; Acrylic; Dimensions: Bottom Panel - 25-1/4" X 19-9/16"; For Woodgrain use RM2353G MFR # RM2352L Superseded: see description

Burner & Controls

Components

39 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
9. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
10. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
11. #ELECTRODE MFR # 2932781012
12. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
13. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
14. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # 385071201
15. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Power Supply Circuit Board; Also Use New Number 3316996.900 MFR # 3850712013 Superseded: see description
16. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
17. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
18. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
19. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 41 Inch Length; Also Use New Number 38510590422 MFR # 3851059034 Superseded: see description
20. #S THERMSTOR COMBO MFR # 3851059422
21. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,GAS VALVE,2WAY MFR # 2954539041
22. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
23. #S,CAP,FLUE MFR # 2007598010
24. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
25. #Refrigerator Interface Circuit Board; Fits Dometic Refrigerators Models RM2354 Americana/ RM2351 Americana MFR # 2954542060
26. #APPLIANCE COMPONENTS RV; ELEMENT, HEATING 175W 120 MFR # 3850644455
27. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
28. #3858022019 MFR # 3858022019
29. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
30. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
31. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
32. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
33. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
34. #Appliance Components RV; Baffle, Flue MFR # 2007172022
35. #Bracket MFR # 3850754015
36. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
37. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
38. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
39. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024

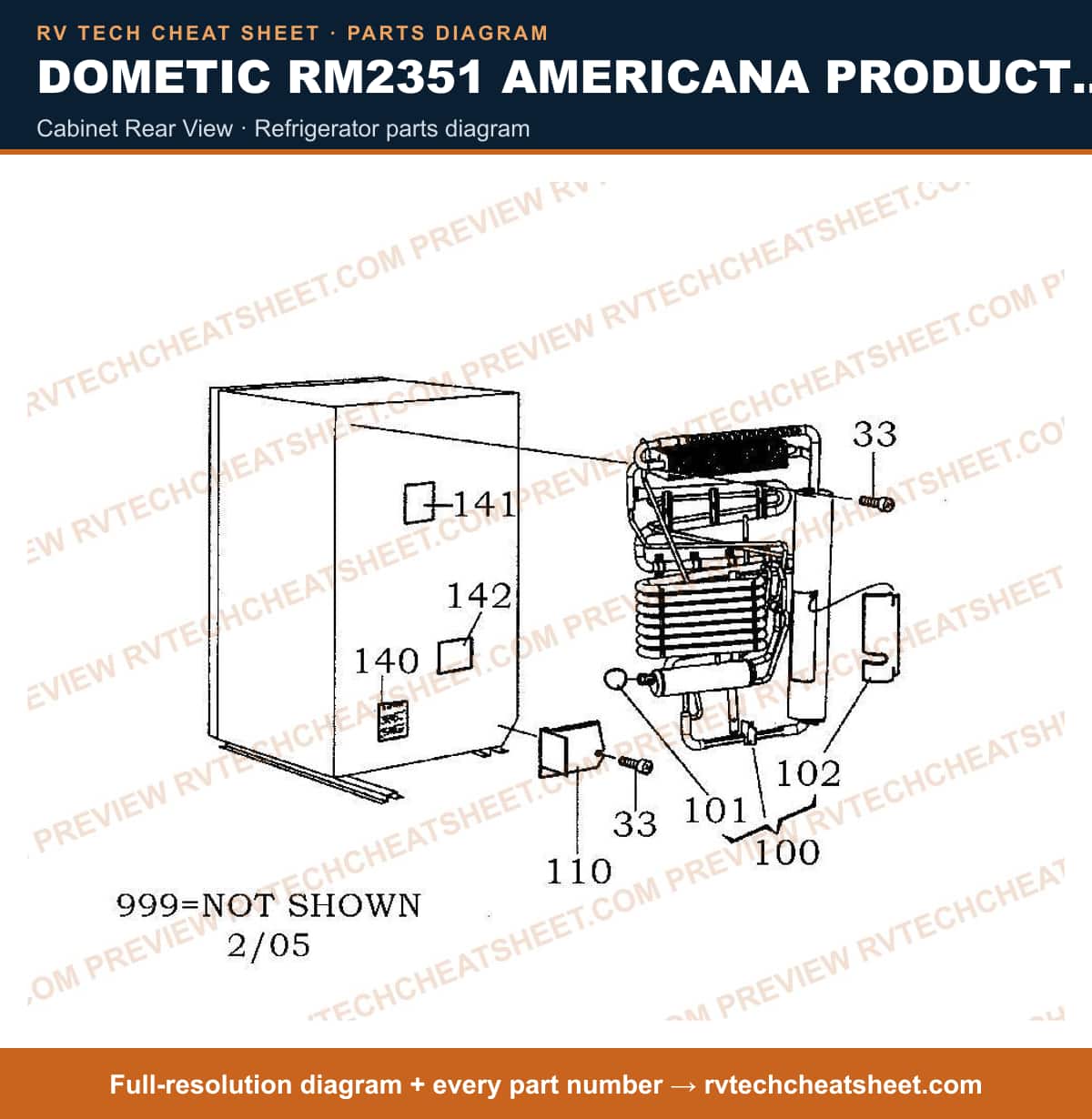

Cabinet Rear View

Components

8 items

1. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
2. #Refrigerator Cooling Unit; Replacement For Dometic RM2351/ RM2354 Model Refrigerator MFR # 2934341096
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #COVER, ELEMENT MFR # 2800821007
5. #Cover MFR # 3850601026
6. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
7. #LABEL MFR # 3850583000
8. #Decal MFR # 3850584008
