Dometic RM2352 Americana Product # 921145015 Beige Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 118 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2352 Americana Product # 921145015 Beige RV refrigerator: 5 assemblies (Door Assembly, Cabinet Rear View, Cabinet Interior, Cabinet Exterior, Burner & Controls) and 118 manufacturer part numbers. 20 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

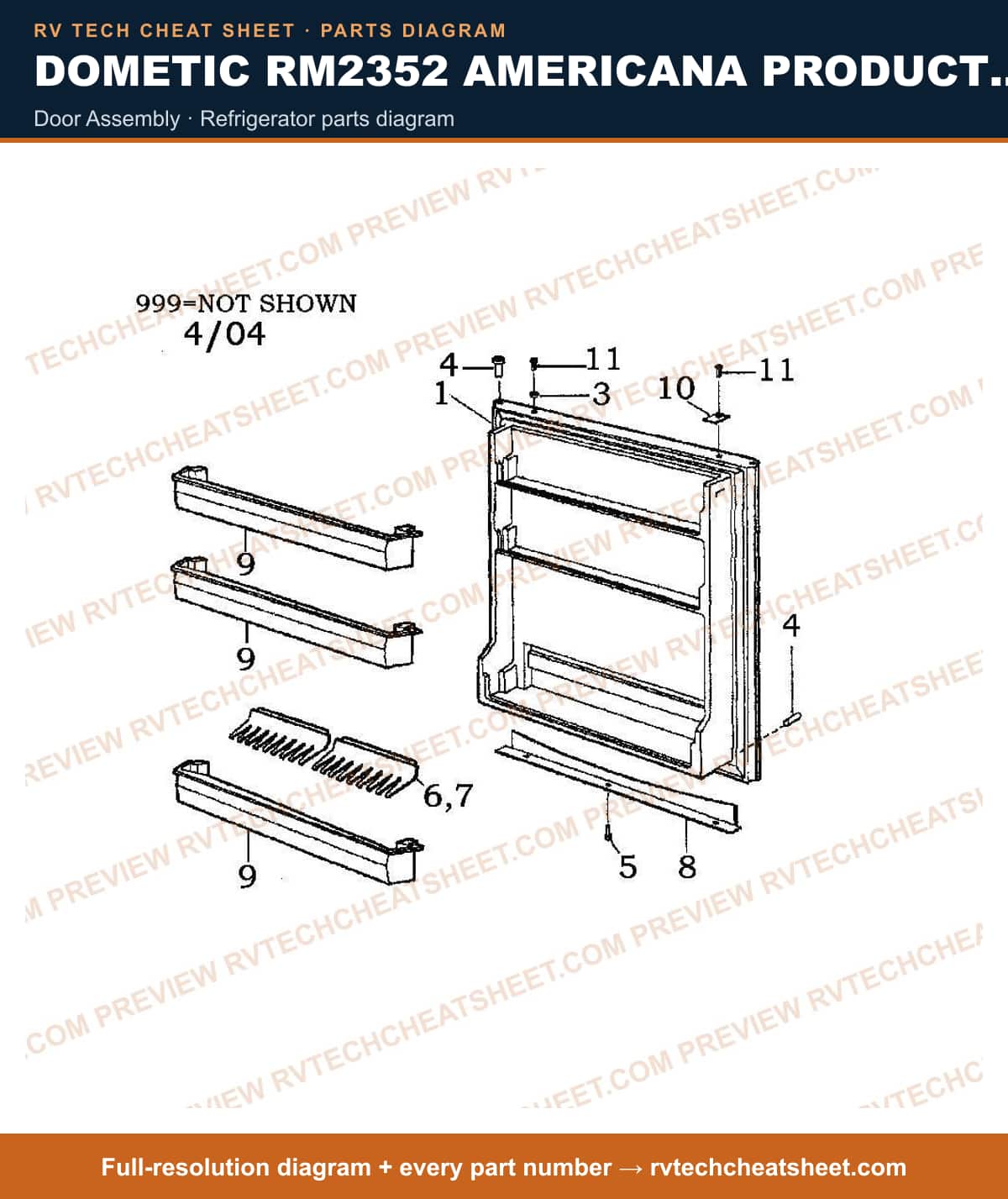

Door Assembly

Components

14 items

1. #DOOR, REFER MFR # 3850272067
2. #PLUG MFR # 3850261011
3. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
4. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
5. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
6. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
7. #Refrigerator Trim; Replacement For Dometic RM2352/ RM2353/ RM2351 Model Refrigerator; Door Bottom Trim MFR # 3850259015
8. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
9. #APPLIANCE COMPONENTS RV; Plate Lock MFR # 3850260013
10. #S,SCREW,RXS,4.2*13ZPBC MFR # 3858002037
11. #Refrigerator Door Panel; Fits Dometic Refrigerator 2353 Series; Woodgrain; Replaces: IS A USE # FOR 3106863040BSPECS: RM2353G PANEL ALSO FITS RM2351 AND RM2352; Dimensions: 25-1/4" X 19-9/16" MFR # RM2353G Superseded: see description
12. #Refrigerator Door Hinge; Reversing Kit For Models RM2351/ RM2354; Reverse Door Hinge Right To Left And Left To Right; Taupe MFR # 385030401
13. #PANEL, DOOR BRUSHED ALUMINUM MFR # RM2353BA
14. #Refrigerator Door Panel; Fits Dometic Refrigerator 2352 Series; Black; Acrylic; Dimensions: Bottom Panel - 25-1/4" X 19-9/16"; For Woodgrain use RM2353G MFR # RM2352L Superseded: see description

Cabinet Rear View

Components

13 items

1. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
2. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
3. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934340098N
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Cord Ac MFR # 2002699128
8. #S,TUBE,OVERFILL MFR # 2931829010
9. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
10. #PLATE MFR # 2933151017
11. #Refrigerator Vent Cover Back Plate; Use With Dometic Refrigerator Model RM2353 Americana/ RM2352 Americana MFR # 3850296017 Superseded: see description
12. #PLATE,SIDE COVER MFR # 2933152015
13. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006

Cabinet Interior

Components

21 items

1. #Refrigerator Evaporator Door Liner; Use With Dometic Refrigerator Model RM2351 Americana/ RM2354 Americana MFR # 3850291018 Superseded: see description
2. #Appliance Components RV; Shelf MFR # 3850301015
3. #SCREW, RXS B8 4.2X16 MFR # 3858002276
4. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
5. #Screw; Zinc Plated RXS B10 4.8 x 19 MFR # 3858002292
6. #Refrigerator Shelf; Replacement For Dometic RM2353/ RM2351/ RM2354 Refrigerators; Wire; With Cutout MFR # 2932022045
7. #HOSE,DRAIN MFR # 3850275011
8. #WASHER,STAINLESS MFR # 3858010121
9. #Spring, Freezer Door RH MFR # 2002237010
10. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
11. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
12. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
13. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
14. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
16. #Tray, Drip MFR # 3850274014
17. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
18. #Appliance Components RV; Door Evaporator MFR # 2002239339
19. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
20. #Gasket, Freezer Door White MFR # 2933145027
21. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000

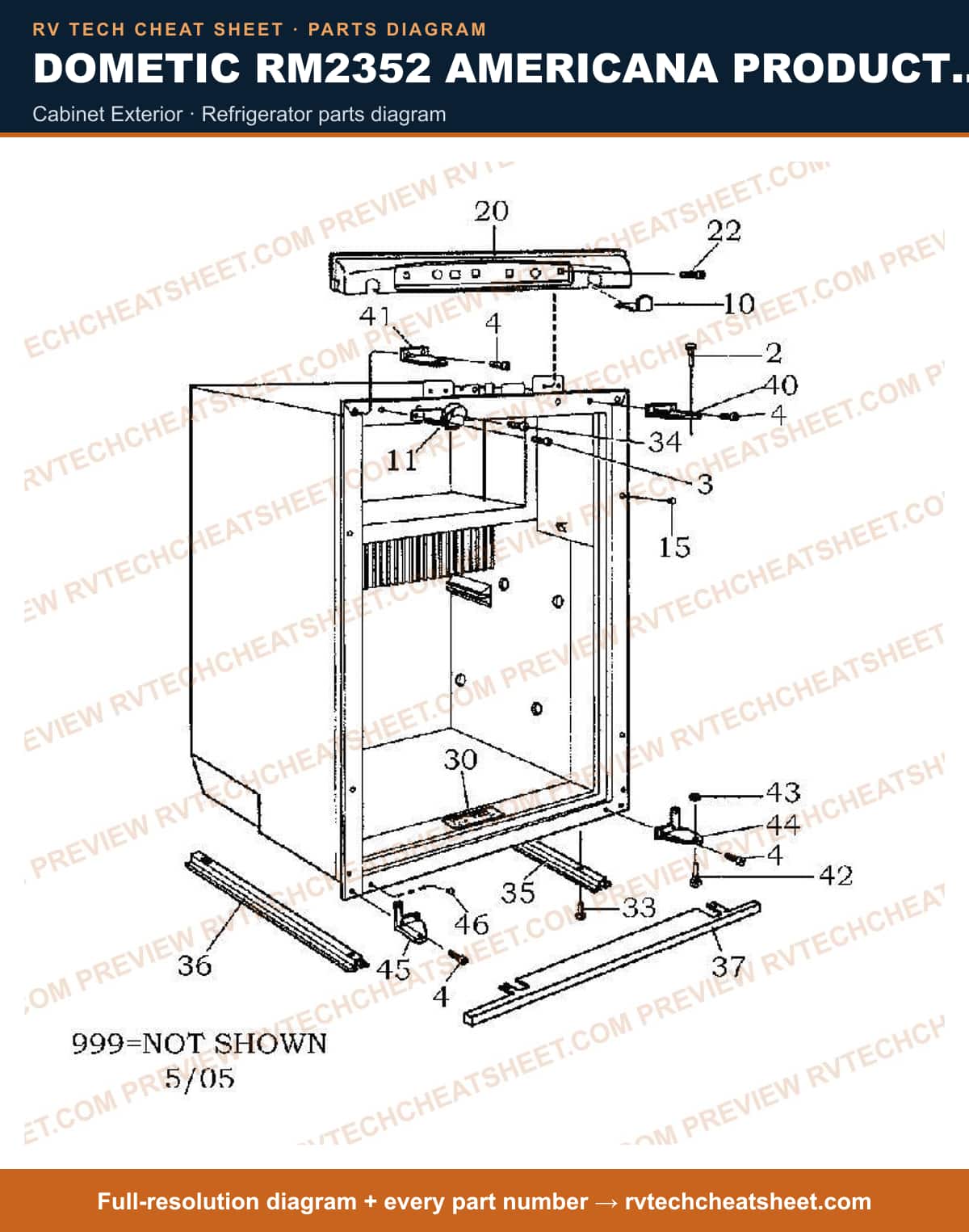

Cabinet Exterior

Components

19 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2354/ RM2353 Refrigerator; Fits Top Hinge MFR # 2932415017
2. #Tools & Fasteners RV; Screw Zinc-Plated MFR # 3858039088
3. #SCREW, ZINC PLATED MFX M5X10 MFR # 3858056025
4. #Refrigerator Trim Hole Plug; Use With Dometic Refrigerator Model RM2354 Americana MFR # 3850263017 Superseded: see description
5. #Appliance Components RV; Lock, Latch MFR # 3850319017
6. #Refrigerator Trim Hole Plug; Use With Dometic Refrigerator Model RM2353 Americana/ RM2352 Americana MFR # 3850336011 Superseded: see description
7. #TRIM, CONTROL PANEL 2-WAY MFR # 3850262068
8. #TOOLS & FASTENERS RV; SCREW ZINC-PLATED MFR # 3858039062
9. #SIGN PLATE MFR # 2932677004
10. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
11. #Screw; Zinc Plated RXS B10 4.8 x 9.5 MFR # 3858002219
12. #Runner; Right MFR # 2932486018
13. #Runner; Left MFR # 2932486026
14. #APPLIANCE COMPONENTS RV; Base Front MFR # 2932325026
15. #Refrigerator Door Hinge; Replacement For Dometic RM2354/ RM2351/ RM2353/ RM2352 Model Refrigerators; Fits Upper Cabinet Side; Upper Right Hand MFR # 3850270012
16. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2352 Americana; Fits Lower Hinge MFR # 3850322011 Superseded: see description
17. #Nut; Use With Dometic Americana Refrigerators; M6 x 3.2 Inch; Zinc MFR # 3858009032 Superseded: see description
18. #Refrigerator Door Hinge; Replacement For Dometic RM2351/ RM2352/ RM2353/ RM2352 Model Refrigerators; Lower Right Hand MFR # 3850340013
19. #PLUG MFR # 3850362017

Burner & Controls

Components

51 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
4. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RG1350/ RM2353 Refrigerators MFR # 2932591015
5. #NIPPLE MFR # 2931338012
6. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
7. #Thermostat Housing Bolt; Use With Dometic RM2352/ RM2353 Refrigerators MFR # 2954070005 Superseded: see description
8. #Refrigerator Cooling Fan Thermostat; Replacement For Dometic Refrigerator Models RM2332-926695201/ RM2333-926695401/ RM2333-926695801/ RM2352-921145002/ RM2352-921145004/ RM2352-921145009/ RM2352-921145013/ RM2352-921145015/ RM2352-921145018/ RM2352-921145019/ RM2353-921145003/ RM2353-921145005/ RM2353-921145011/ RM2353-921145014/ RM2353-921145016/ RM2353-921145020/ RM2353-921145021/ RM2452-921140101/ RM2452-921140102/ RM2452-921140107/ RM2452-921140108/ RM2453-921140103/ RM2453-921140104/ RM2453-921140109/ RM2453-921140110/ RM2552-921142001/ RM2552-921142002/ RM2553-921142003/ RM2553-921142004 MFR # 2931336016MC
9. #THERMOSTAT MFR # 2931336016
10. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932619014
11. #PROTECTION PLATE MFR # 2933150019
12. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
13. #RETAINER MFR # 2932487016
14. #INTERRUPTER MFR # 2955033002
15. #Refrigerator Gas Valve Adapter Fitting; Use On Dometic Refrigerator Models RM2330/ RM2350/ RM4601 MFR # 2955033002MC Superseded: see description
16. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
17. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
18. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
19. #S,PIEZO IGNITER,W/NUT,RM2352 MFR # 2931796011
20. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
21. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
22. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
23. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
24. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
25. #SCREW,ZINC PLATED M4X25 MFR # 3858039070
26. #APPLIANCE COMPONENTS RV; Valve Manual Gas MFR # 2932617018
27. #Refrigerator Power Selector Switch; Replacement For Dometic RM2353/ RG1350/ RM2552 Refrigerators MFR # 2932614015
28. #Refrigerator Bushing; Replacement For Dometic RM2353/ RG1350 Refrigerators; For Power Selector Switch MFR # 2932602010
29. #APPLIANCE COMPONENTS RV; Valve Shut Off MFR # 2932616010
30. #APPLIANCE COMPONENTS RV; NIPPLE MFR # 2931227017
31. #S,THERMOCOUPLE,RM2352 MFR # 2932337013
32. #Nut, T-Couple MFR # 2801043015
33. #TUBE,GAS BURNER MFR # 3850295019
34. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
35. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RM2453/ RM2552/ RM2453/ RM2352/ RM253/ RG1350/ RM2604 Model Refrigerator MFR # 2930488008
36. #ELBOW USE 2930488008 MFR # 2930488016 Superseded: see description
37. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
38. #S,CAP,FLUE MFR # 2007598010
39. #Refrigerator Trim; Use With Dometic Refrigerator Model RM2352 Americana/ RM2353 Americana; Top MFR # 3850255013 Superseded: see description
40. #APPLIANCE COMPONENTS RV; BUTTON,PUSH MFR # 3850265012
41. #Refrigerator Control Knob; Replacement For Dometic RM2352/ RM2353 Model Refrigerator; Thermostat Control Knob; Brown MFR # 3850317011
42. #S,KNOB ASM,SWITCH,LT BRWN MFR # 3850318019
43. #GUIDING DEVICE MFR # 2932595016
44. #Refrigerator Door Latch Spring; Replacement For Dometic RG1350/ RM2453/ RM2552 Model Refrigerator MFR # 2932594019
45. #Refrigerator Power Selector Switch Cover; Use With Dometic RM2352/ RM2353 Model Refrigerators MFR # 2954023004 Superseded: see description
46. #APPLIANCE COMPONENTS RV; INDICATOR, FLAME MFR # 2955037011
47. #RETAINER MFR # 2933073013
48. #ELEMENT, HEATING 175W 120V MFR # 173771072
49. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
50. #APPLIANCE COMPONENTS RV; WIRE, ELECTRODE MFR # 2931360032
51. #Appliance Components RV; Baffle, Flue MFR # 2007172022
