Dometic RM2352 Americana Product # 921145019 Black Parts Diagram · Cabinet Rear View

Refrigerator · 6 assemblies · 6 diagram sheets · 123 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2352 Americana Product # 921145019 Black RV refrigerator: 6 assemblies (Cabinet Rear View, Cabinet Interior, Cabinet Exterior, Burner & Controls, Door Assembly and more) and 123 manufacturer part numbers. 20 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

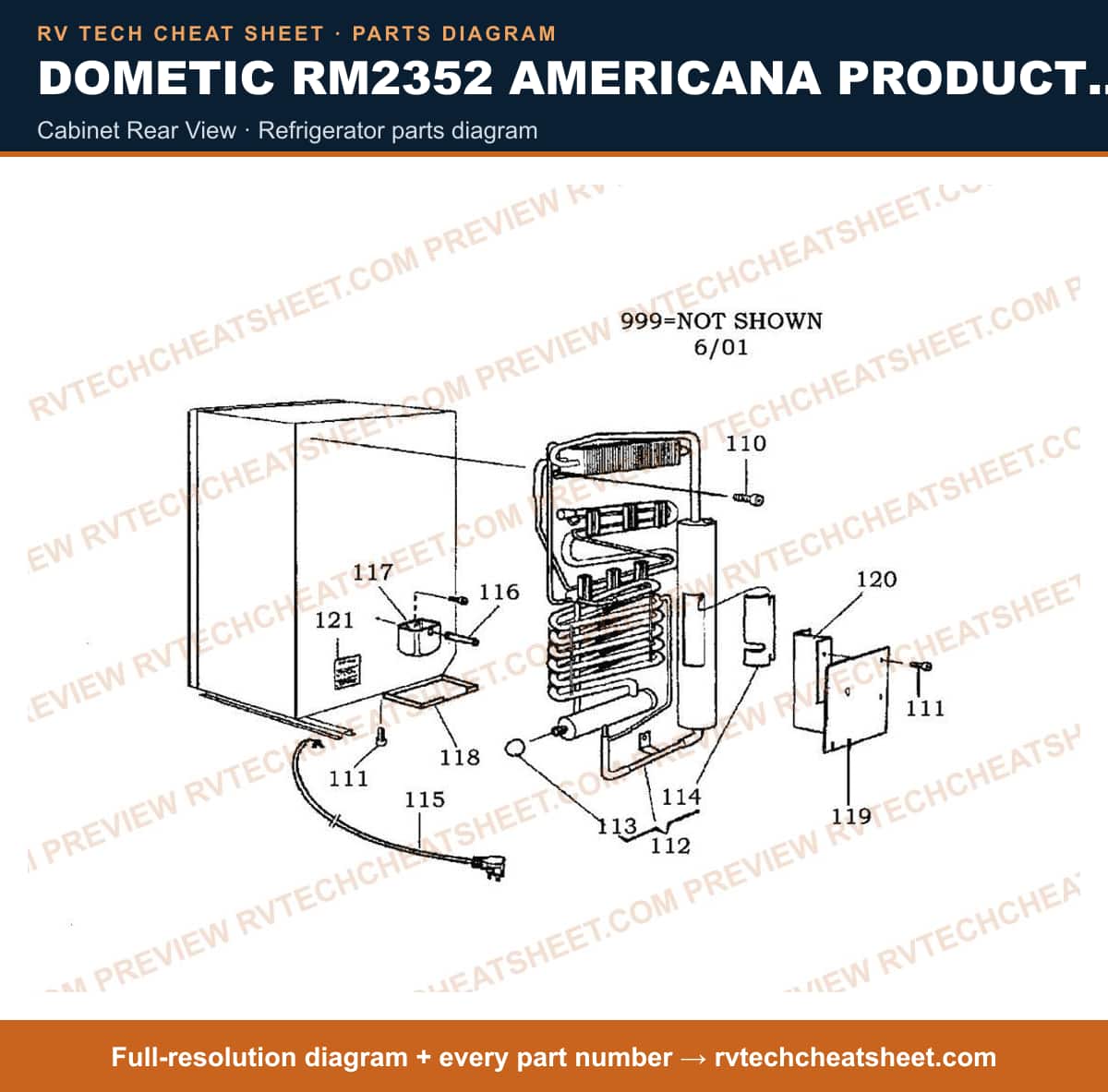

Cabinet Rear View

Components

14 items

1. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
2. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934340098N
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #COVER, ELEMENT MFR # 2800821007
6. #APPLIANCE COMPONENTS RV; Cord Ac MFR # 2002699128
7. #S,TUBE,OVERFILL MFR # 2931829010
8. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
9. #PLATE MFR # 2933151017
10. #Refrigerator Vent Cover Back Plate; Use With Dometic Refrigerator Model RM2353 Americana/ RM2352 Americana MFR # 3850296017 Superseded: see description
11. #PLATE,SIDE COVER MFR # 2933152015
12. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
13. #Decal MFR # 3850584008
14. #LABEL MFR # 3850583000

Cabinet Interior

Components

20 items

1. #Refrigerator Evaporator Door Liner; Use With Dometic Refrigerator Model RM2351 Americana/ RM2354 Americana MFR # 3850291018 Superseded: see description
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #Screw; Zinc Plated RXS B10 4.8 x 19 MFR # 3858002292
4. #Appliance Components RV; Shelf MFR # 3850301015
5. #Refrigerator Shelf; Replacement For Dometic RM2353/ RM2351/ RM2354 Refrigerators; Wire; With Cutout MFR # 2932022045
6. #HOSE,DRAIN MFR # 3850275011
7. #WASHER,STAINLESS MFR # 3858010121
8. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
9. #Spring, Freezer Door RH MFR # 2002237010
10. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
11. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
12. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
13. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
15. #Tray, Drip MFR # 3850274014
16. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
17. #Appliance Components RV; Door Evaporator MFR # 2002239339
18. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
19. #Gasket, Freezer Door White MFR # 2933145027
20. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000

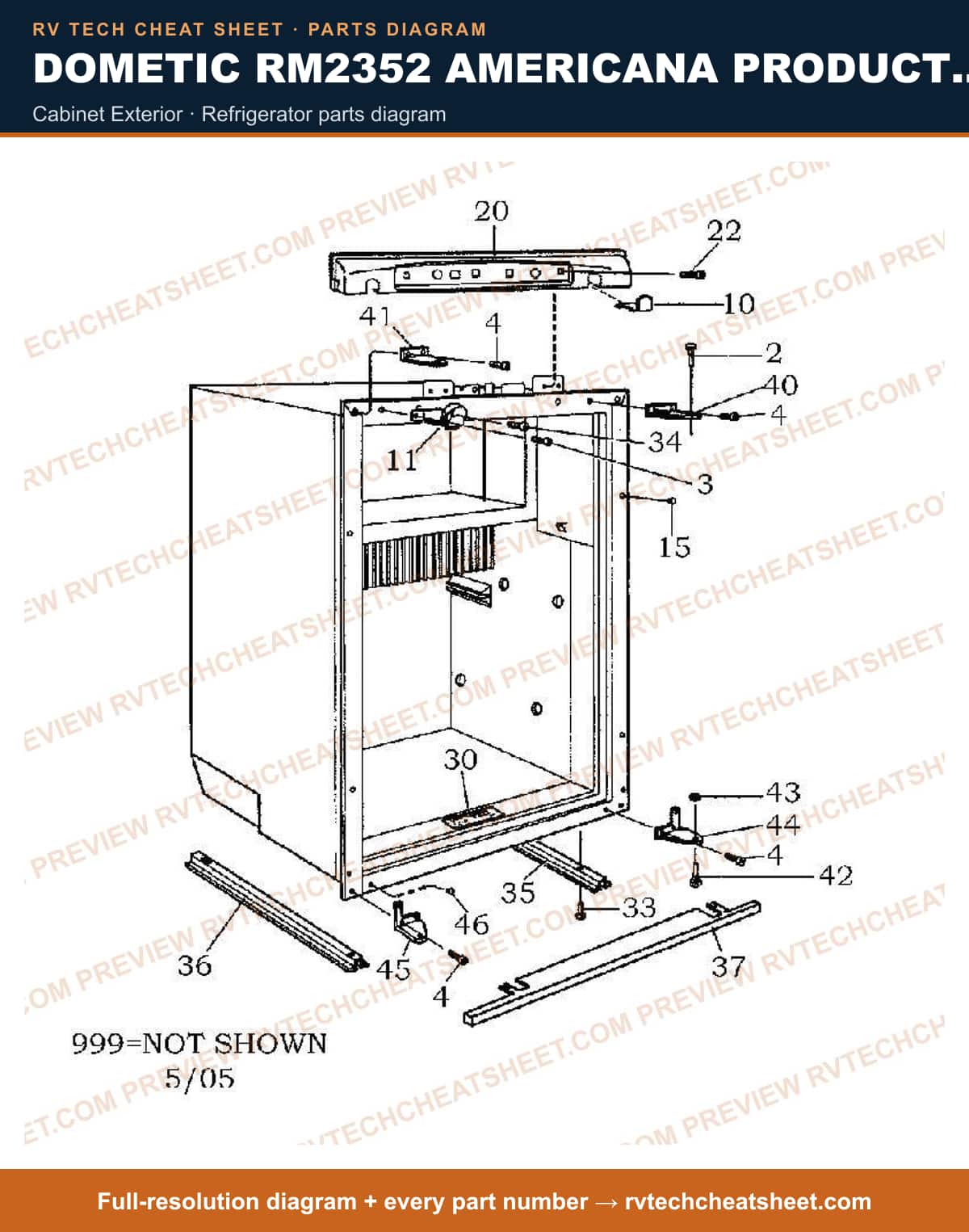

Cabinet Exterior

Components

20 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2354/ RM2353 Refrigerator; Fits Top Hinge MFR # 2932415017
2. #Tools & Fasteners RV; Screw Zinc-Plated MFR # 3858039088
3. #SCREW, ZINC PLATED MFX M5X10 MFR # 3858056025
4. #Refrigerator Trim Hole Plug; Use With Dometic Refrigerator Model RM2352 Americana; Black MFR # 3850263025 Superseded: see description
5. #Refrigerator Door Latch; Use With Dometic Refrigerator Model RM2354 Americana; Black MFR # 3850319025 Superseded: see description
6. #Appliance Components RV; Plug, Black MFR # 3850336029
7. #TRIM, CONTROL PANEL BLACK MFR # 3850262084
8. #TOOLS & FASTENERS RV; SCREW ZINC-PLATED MFR # 3858039062
9. #SIGN PLATE MFR # 2932677004
10. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
11. #Screw; Zinc Plated RXS B10 4.8 x 9.5 MFR # 3858002219
12. #Runner; Right MFR # 2932486018
13. #Runner; Left MFR # 2932486026
14. #Appliance Components RV; Base, Front MFR # 2932325042
15. #Refrigerator Door Hinge; Replacement For Dometic RM2354/ RM2351/ RM2353/ RM2352 Model Refrigerators; Fits Upper Cabinet Side; Upper Right Hand MFR # 3850270012
16. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2352 Americana; Fits Lower Hinge MFR # 3850322011 Superseded: see description
17. #Nut; Use With Dometic Americana Refrigerators; M6 x 3.2 Inch; Zinc MFR # 3858009032 Superseded: see description
18. #Refrigerator Door Hinge; Replacement For Dometic RM2351/ RM2352/ RM2353/ RM2352 Model Refrigerators; Lower Right Hand MFR # 3850340013
19. #Plug, Black MFR # 3850362025
20. #Reversing Kit, Door RH & LH Black MFR # 385030402

Burner & Controls

Components

52 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
4. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RG1350/ RM2353 Refrigerators MFR # 2932591015
5. #NIPPLE MFR # 2931338012
6. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
7. #Thermostat Housing Bolt; Use With Dometic RM2352/ RM2353 Refrigerators MFR # 2954070005 Superseded: see description
8. #THERMOSTAT MFR # 2931336016
9. #Refrigerator Cooling Fan Thermostat; Replacement For Dometic Refrigerator Models RM2332-926695201/ RM2333-926695401/ RM2333-926695801/ RM2352-921145002/ RM2352-921145004/ RM2352-921145009/ RM2352-921145013/ RM2352-921145015/ RM2352-921145018/ RM2352-921145019/ RM2353-921145003/ RM2353-921145005/ RM2353-921145011/ RM2353-921145014/ RM2353-921145016/ RM2353-921145020/ RM2353-921145021/ RM2452-921140101/ RM2452-921140102/ RM2452-921140107/ RM2452-921140108/ RM2453-921140103/ RM2453-921140104/ RM2453-921140109/ RM2453-921140110/ RM2552-921142001/ RM2552-921142002/ RM2553-921142003/ RM2553-921142004 MFR # 2931336016MC
10. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932619014
11. #PROTECTION PLATE MFR # 2933150019
12. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
13. #RETAINER MFR # 2932487016
14. #INTERRUPTER MFR # 2955033002
15. #Refrigerator Gas Valve Adapter Fitting; Use On Dometic Refrigerator Models RM2330/ RM2350/ RM4601 MFR # 2955033002MC Superseded: see description
16. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
17. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
18. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
19. #S,PIEZO IGNITER,W/NUT,RM2352 MFR # 2931796011
20. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
21. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
22. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
23. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
24. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
25. #SCREW,ZINC PLATED M4X25 MFR # 3858039070
26. #APPLIANCE COMPONENTS RV; Valve Manual Gas MFR # 2932617018
27. #Refrigerator Power Selector Switch; Replacement For Dometic RM2353/ RG1350/ RM2552 Refrigerators MFR # 2932614015
28. #Refrigerator Bushing; Replacement For Dometic RM2353/ RG1350 Refrigerators; For Power Selector Switch MFR # 2932602010
29. #TUBE GAS MFR # 2932489012
30. #APPLIANCE COMPONENTS RV; Valve Shut Off MFR # 2932616010
31. #APPLIANCE COMPONENTS RV; NIPPLE MFR # 2931227017
32. #S,THERMOCOUPLE,RM2352 MFR # 2932337013
33. #Nut, T-Couple MFR # 2801043015
34. #TUBE,GAS BURNER MFR # 3850295019
35. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
36. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RM2453/ RM2552/ RM2453/ RM2352/ RM253/ RG1350/ RM2604 Model Refrigerator MFR # 2930488008
37. #ELBOW USE 2930488008 MFR # 2930488016 Superseded: see description
38. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
39. #S,CAP,FLUE MFR # 2007598010
40. #Refrigerator Trim; Use With Dometic Refrigerator Model RM2352 Americana/ RM2353 Americana; Top MFR # 3850255013 Superseded: see description
41. #Refrigerator Door Light Switch; Use With Dometic Refrigerator Model RM2353 Americana/ RM2352 Americana; Push Button; Black MFR # 3850265020 Superseded: see description
42. #APPLIANCE COMPONENTS RV; KNOB, T-STAT BLACK MFR # 3850317029
43. #APPLIANCE COMPONENTS RV; KNOB,BLACK MFR # 3850318027
44. #GUIDING DEVICE MFR # 2932595016
45. #Refrigerator Door Latch Spring; Replacement For Dometic RG1350/ RM2453/ RM2552 Model Refrigerator MFR # 2932594019
46. #Refrigerator Power Selector Switch Cover; Use With Dometic RM2352/ RM2353 Model Refrigerators MFR # 2954023004 Superseded: see description
47. #APPLIANCE COMPONENTS RV; INDICATOR, FLAME MFR # 2955037011
48. #RETAINER MFR # 2933073013
49. #ELEMENT, HEATING 175W 120V MFR # 173771072
50. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
51. #APPLIANCE COMPONENTS RV; WIRE, ELECTRODE MFR # 2931360032
52. #Appliance Components RV; Baffle, Flue MFR # 2007172022

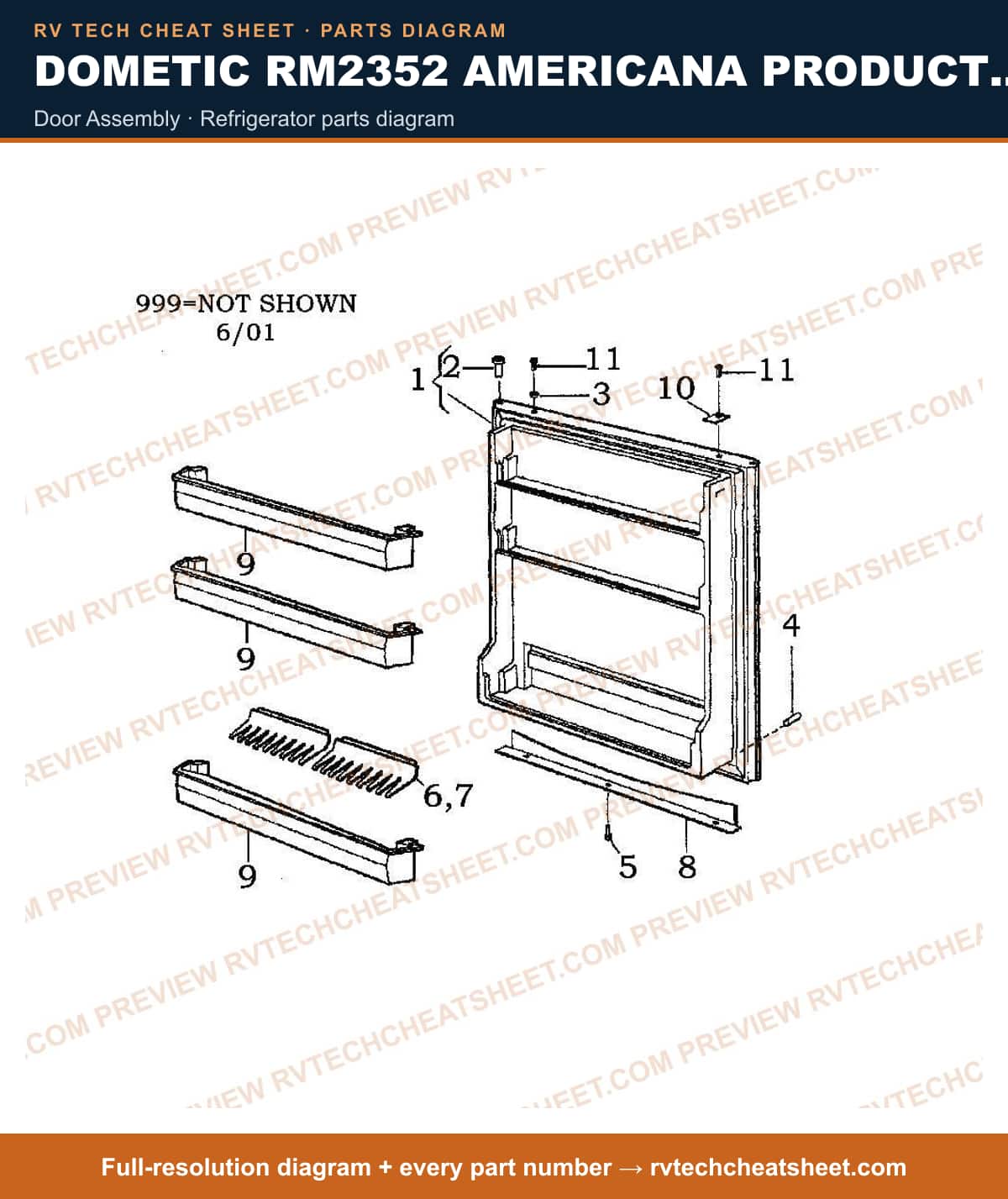

Door Assembly

Components

15 items

1. #Appliance Components RV; Door Refer Black MFR # 3850272075
2. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
3. #Appliance Components RV; Plug, Black MFR # 3850261029
4. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
5. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
6. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
7. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
8. #Refrigerator Trim; Replacement For Dometic RM2352/ RM2353/ RM2351/ RM2354 Model Refrigerator; Door Bottom Trim; Black MFR # 3850259023
9. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
10. #Appliance Components RV; Plate, Lock Black MFR # 3850260021
11. #S,SCREW,RXS,4.2*13ZPBC MFR # 3858002037
12. #Panel, Door Brushed Aluminum MFR # RM2352BA
13. #Refrigerator Door Hinge; Reversing Kit For Models RM2351/ RM2354; Reverse Door Hinge Right To Left And Left To Right; Taupe MFR # 385030401
14. #Refrigerator Door Panel; Fits Dometic Refrigerator 2352 Series; Black; Acrylic; Dimensions: Bottom Panel - 25-1/4" X 19-9/16"; For Woodgrain use RM2353G MFR # RM2352L Superseded: see description
15. #Refrigerator Door Panel; Fits Dometic Refrigerator 2353 Series; Woodgrain; Replaces: IS A USE # FOR 3106863040BSPECS: RM2353G PANEL ALSO FITS RM2351 AND RM2352; Dimensions: 25-1/4" X 19-9/16" MFR # RM2353G Superseded: see description

Replacement Refrigerator

Components

3 items

1. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; Permanent; 3 Cubic Foot Capacity; 30-3/8 Inch Height x 21-11/16 Inch Width x 22-1/16 Inch Depth; 110 Volt AC; 2 Way Alternating Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ 2 Liter Bottle And 1/2 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2351RB
2. #Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N300N
3. #64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N
