Dometic RM2353 Americana Product # 921145005 Beige Parts Diagram · Replacement Refrigerator

Refrigerator · 6 assemblies · 6 diagram sheets · 127 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2353 Americana Product # 921145005 Beige RV refrigerator: 6 assemblies (Replacement Refrigerator, Cabinet Rear View, Door Assembly, Burner & CONTR0LS, Cabinet Interior and more) and 127 manufacturer part numbers. 23 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

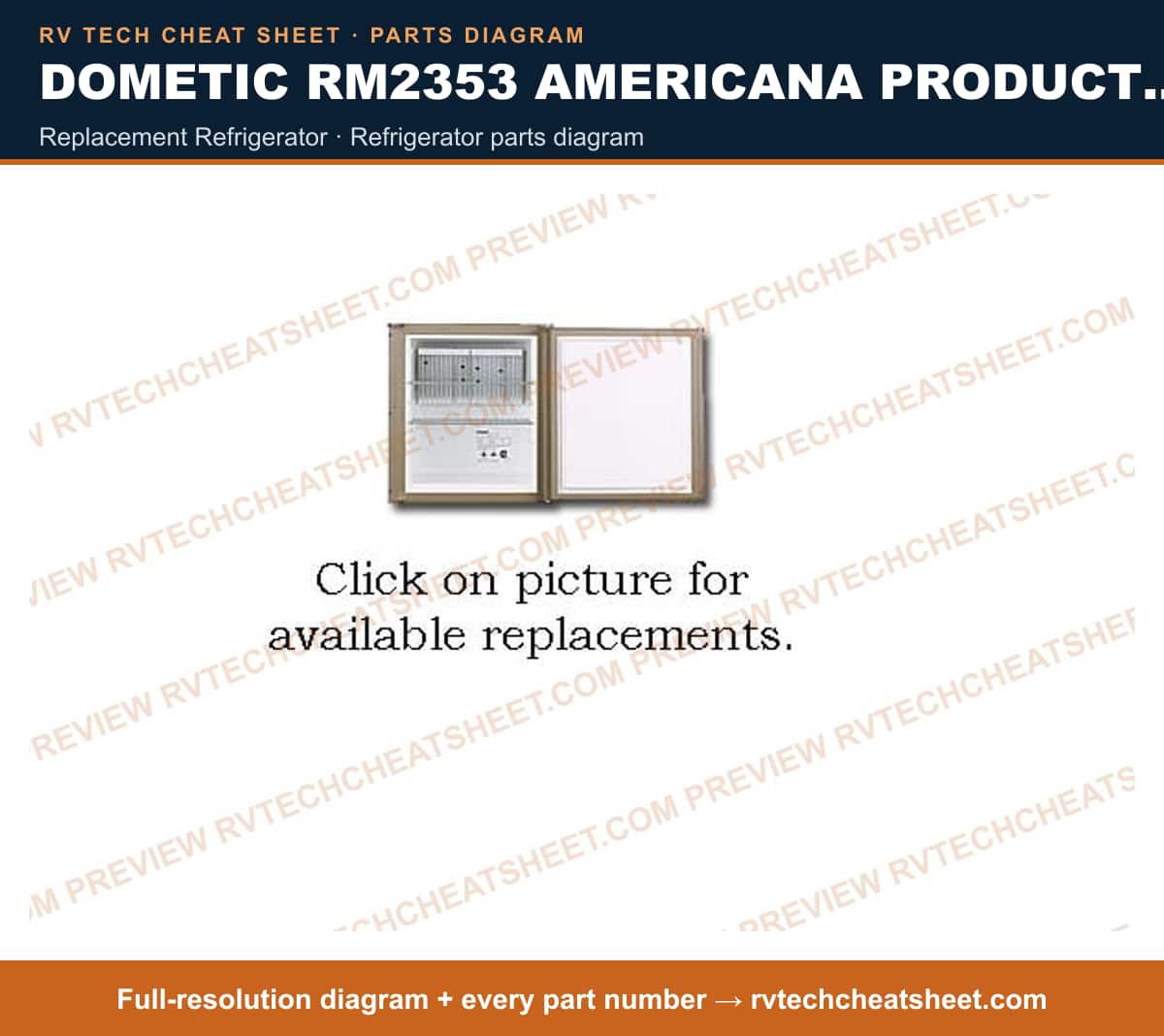

Replacement Refrigerator

Components

5 items

1. #REFER, 3 CU FT 3-WAY TAUPE 29 3/4"H X 20 1/2"W MFR # RM2354N
2. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 3 Cubic Foot Capacity; 30-3/8 Inch Height x 21-11/16 Inch Width x 22-1/16 Inch Depth; 110 Volt AC/ 12 Volt DC; 3 Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ 2 Liter Bottle And 1/2 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2354RB
3. #64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N
4. #REFER,3 CU.FT 3-WAY BLACK 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2353B
5. #REFER, 3 CU.FT USE RM2354N 3-WAY MFR # RM2353N Superseded: see description

Cabinet Rear View

Components

13 items

1. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
2. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
4. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934340098N
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Cord Ac MFR # 2002699128
8. #S,TUBE,OVERFILL MFR # 2931829010
9. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
10. #PLATE MFR # 2933151017
11. #Refrigerator Vent Cover Back Plate; Use With Dometic Refrigerator Model RM2353 Americana/ RM2352 Americana MFR # 3850296017 Superseded: see description
12. #PLATE,SIDE COVER MFR # 2933152015
13. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006

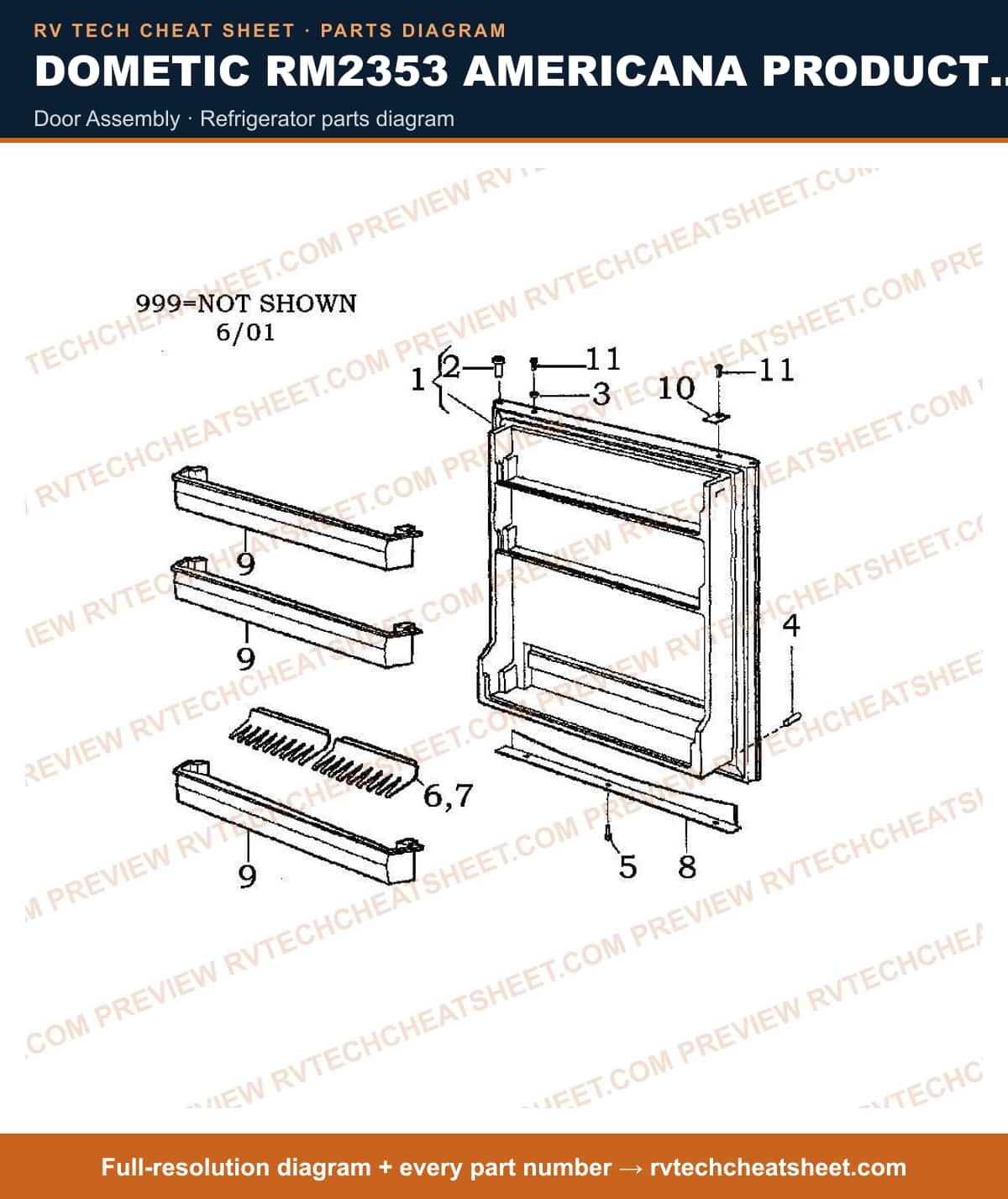

Door Assembly

Components

16 items

1. #APPLIANCE COMPONENTS RV; Door Main MFR # 3850272026
2. #APPLIANCE COMPONENTS RV; Door Main MFR # 3850272042
3. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
4. #PLUG MFR # 3850261011
5. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
6. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
7. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
8. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
9. #Refrigerator Trim; Replacement For Dometic RM2352/ RM2353/ RM2351 Model Refrigerator; Door Bottom Trim MFR # 3850259015
10. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
11. #APPLIANCE COMPONENTS RV; Plate Lock MFR # 3850260013
12. #SCREW - RXS B8X13 - Z. PL. MFR # 7295342013
13. #Refrigerator Door Panel; Fits Dometic Refrigerator 2353 Series; Woodgrain; Replaces: IS A USE # FOR 3106863040BSPECS: RM2353G PANEL ALSO FITS RM2351 AND RM2352; Dimensions: 25-1/4" X 19-9/16" MFR # RM2353G Superseded: see description
14. #PANEL, DOOR BRUSHED ALUMINUM MFR # RM2353BA
15. #Refrigerator Door Panel; Fits Dometic Refrigerator 2352 Series; Black; Acrylic; Dimensions: Bottom Panel - 25-1/4" X 19-9/16"; For Woodgrain use RM2353G MFR # RM2352L Superseded: see description
16. #Refrigerator Door Hinge; Reversing Kit For Models RM2351/ RM2354; Reverse Door Hinge Right To Left And Left To Right; Taupe MFR # 385030401

Burner & CONTR0LS

Components

55 items

1. #Refrigerator Power Selector Switch; Replacement For Dometic RM2353/ RG1350/ RM2552 Refrigerators MFR # 2932614015
2. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
3. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
4. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
5. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RG1350/ RM2353 Refrigerators MFR # 2932591015
6. #NIPPLE MFR # 2931338012
7. #Thermostat Housing Bolt; Use With Dometic RM2352/ RM2353 Refrigerators MFR # 2954070005 Superseded: see description
8. #T-STAT USE 2931336016 MFR # V61P0121000 Superseded: see description
9. #THERMOSTAT MFR # 2931336016
10. #Refrigerator Cooling Fan Thermostat; Replacement For Dometic Refrigerator Models RM2332-926695201/ RM2333-926695401/ RM2333-926695801/ RM2352-921145002/ RM2352-921145004/ RM2352-921145009/ RM2352-921145013/ RM2352-921145015/ RM2352-921145018/ RM2352-921145019/ RM2353-921145003/ RM2353-921145005/ RM2353-921145011/ RM2353-921145014/ RM2353-921145016/ RM2353-921145020/ RM2353-921145021/ RM2452-921140101/ RM2452-921140102/ RM2452-921140107/ RM2452-921140108/ RM2453-921140103/ RM2453-921140104/ RM2453-921140109/ RM2453-921140110/ RM2552-921142001/ RM2552-921142002/ RM2553-921142003/ RM2553-921142004 MFR # 2931336016MC
11. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932619014
12. #PROTECTION PLATE MFR # 2933150019
13. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
14. #RETAINER MFR # 2932487016
15. #INTERRUPTER MFR # 2955033002
16. #Refrigerator Gas Valve Adapter Fitting; Use On Dometic Refrigerator Models RM2330/ RM2350/ RM4601 MFR # 2955033002MC Superseded: see description
17. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
18. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
19. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
20. #S,PIEZO IGNITER,W/NUT,RM2352 MFR # 2931796011
21. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
22. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
23. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
24. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
25. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
26. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
27. #Screw; Replacement For Dometic RM2452/ RM7030/ RM2333 Refrigerator Models; Gas Valve Screw; M4 x 25; Zinc MFR # 7241297618
28. #APPLIANCE COMPONENTS RV; Valve Manual Gas MFR # 2932617018
29. #Refrigerator Bushing; Replacement For Dometic RM2353/ RG1350 Refrigerators; For Power Selector Switch MFR # 2932602010
30. #TUBE GAS MFR # 2932489012
31. #APPLIANCE COMPONENTS RV; Valve Shut Off MFR # 2932616010
32. #APPLIANCE COMPONENTS RV; NIPPLE MFR # 2931227017
33. #S,THERMOCOUPLE,RM2352 MFR # 2932337013
34. #Nut, T-Couple MFR # 2801043015
35. #TUBE,GAS BURNER MFR # 3850295019
36. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
37. #ELBOW USE 2930488008 MFR # 2930488016 Superseded: see description
38. #S,CAP,FLUE MFR # 2007598010
39. #Refrigerator Trim; Use With Dometic Refrigerator Model RM2352 Americana/ RM2353 Americana; Top MFR # 3850255013 Superseded: see description
40. #APPLIANCE COMPONENTS RV; BUTTON,PUSH MFR # 3850265012
41. #Refrigerator Control Knob; Replacement For Dometic RM2352/ RM2353 Model Refrigerator; Thermostat Control Knob; Brown MFR # 3850317011
42. #S,KNOB ASM,SWITCH,LT BRWN MFR # 3850318019
43. #GUIDING DEVICE MFR # 2932595016
44. #Refrigerator Door Latch Spring; Replacement For Dometic RG1350/ RM2453/ RM2552 Model Refrigerator MFR # 2932594019
45. #APPLIANCE COMPONENTS RV; INDICATOR, FLAME MFR # 2955037011
46. #RETAINER MFR # 2933073013
47. #ELEMENT, HEATING 150W 12V MFR # 173735051
48. #ELEMENT, HEATING 175W 120V MFR # 173771072
49. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
50. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
51. #3858022019 MFR # 3858022019
52. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
53. #SIGN PLATE, 12V MFR # 2933139012
54. #APPLIANCE COMPONENTS RV; WIRE, ELECTRODE MFR # 2931360032
55. #Appliance Components RV; Baffle, Flue MFR # 2007172022

Cabinet Interior

Components

21 items

1. #Refrigerator Evaporator Door Liner; Use With Dometic Refrigerator Model RM2351 Americana/ RM2354 Americana MFR # 3850291018 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Screw B10 X 38 MFR # 2801051018
3. #Screw; Replacement For Dometic RM2332/ RM2353 Model Refrigerator MFR # 2801062049
4. #Appliance Components RV; Shelf MFR # 3850301015
5. #Refrigerator Shelf; Replacement For Dometic RM2353/ RM2351/ RM2354 Refrigerators; Wire; With Cutout MFR # 2932022045
6. #HOSE,DRAIN MFR # 3850275011
7. #WASHER MFR # 2801090016
8. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
9. #Spring, Freezer Door RH MFR # 2002237010
10. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
11. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
12. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
13. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
15. #Tray, Drip MFR # 3850274014
16. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
17. #Appliance Components RV; Door Evaporator MFR # 2002239339
18. #APPLIANCE COMPONENTS RV; Door Evaporator MFR # 2002239313
19. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
20. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
21. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000

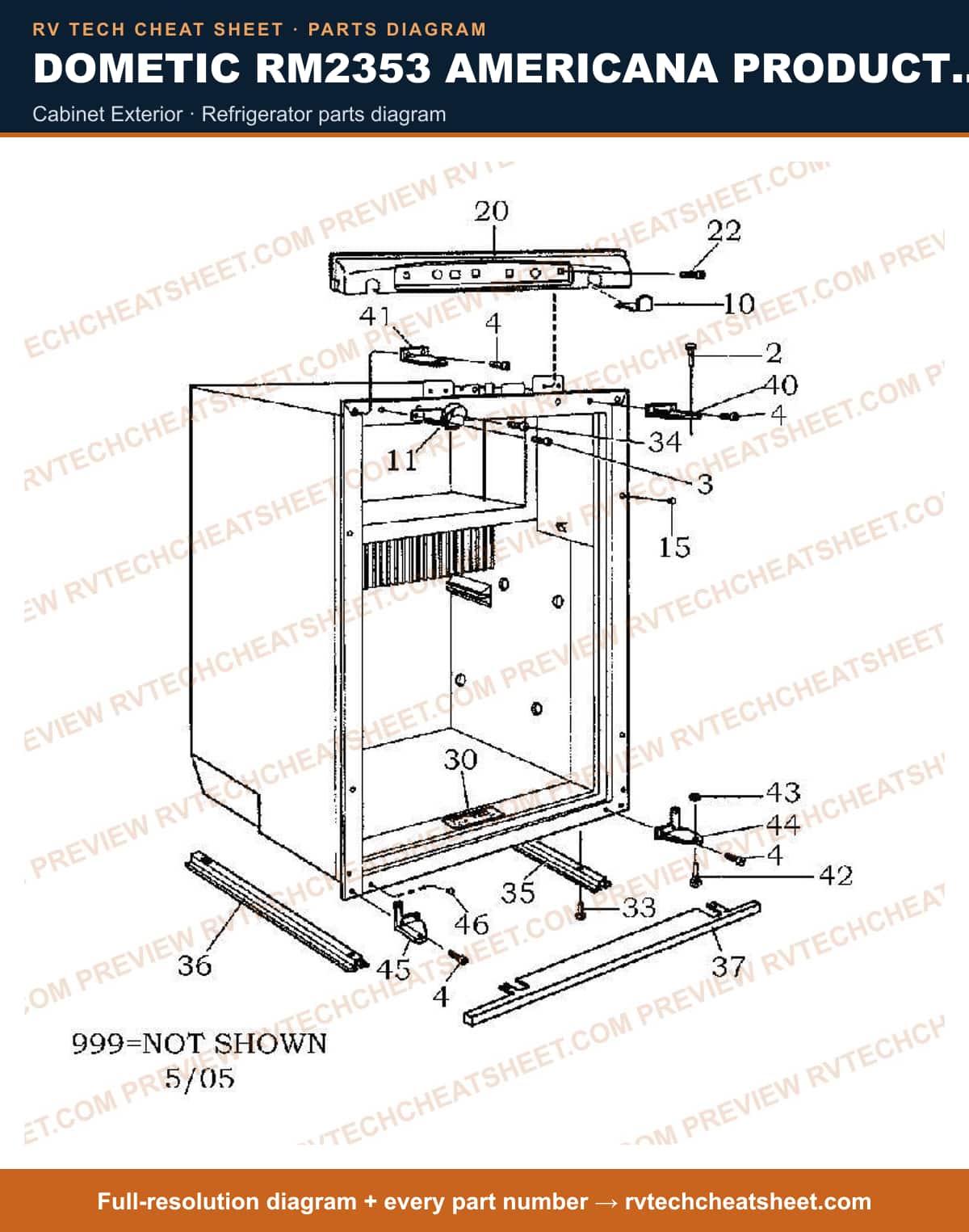

Cabinet Exterior

Components

19 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2354/ RM2353 Refrigerator; Fits Top Hinge MFR # 2932415017
2. #APPLIANCE COMPONENTS RV; Screw Hinge MFR # 7241325617
3. #Refrigerator Support Rail Screw; Replacement For Dometic RM2332/ RM2333/ RM2352/ RM2353 Model Refrigerator; Lower Hinge MFR # 7243325615
4. #Refrigerator Trim Hole Plug; Use With Dometic Refrigerator Model RM2354 Americana MFR # 3850263017 Superseded: see description
5. #Appliance Components RV; Lock, Latch MFR # 3850319017
6. #Refrigerator Trim Hole Plug; Use With Dometic Refrigerator Model RM2353 Americana/ RM2352 Americana MFR # 3850336011 Superseded: see description
7. #Refrigerator Optical Control Board Filler Box; Use With Dometic Refrigerator Model RM2353 Americana MFR # 3850262019 Superseded: see description
8. #SCREW M4 X 20 MFR # 7241295612
9. #SIGN PLATE MFR # 2932677004
10. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
11. #SCREW,RXS,B10 X 9.5 MFR # 7295408400
12. #Runner; Right MFR # 2932486018
13. #Runner; Left MFR # 2932486026
14. #APPLIANCE COMPONENTS RV; Base Front MFR # 2932325026
15. #Refrigerator Door Hinge; Replacement For Dometic RM2351/ RM2352/ RM2353/ RM2352 Model Refrigerators; Fits Upper Cabinet Side; Upper Left Hand MFR # 3850271010
16. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2352 Americana; Fits Lower Hinge MFR # 3850322011 Superseded: see description
17. #Nut; Use With Dometic Americana Refrigerators; M6 x 3.2 Inch; Zinc MFR # 3858009032 Superseded: see description
18. #PLUG MFR # 3850362017
19. #Refrigerator Door Hinge; Reversing Kit For Models RM2351/ RM2354; Reverse Door Hinge Right To Left And Left To Right; Taupe MFR # 385030401
