Dometic RM2354 Americana Product # 921145031 Black Parts Diagram · Cabinet Rear View

Refrigerator · 6 assemblies · 6 diagram sheets · 122 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2354 Americana Product # 921145031 Black RV refrigerator: 6 assemblies (Cabinet Rear View, Burner & Controls, Door Assembly, Cabinet Interior, Replacement Refrigerator and more) and 122 manufacturer part numbers. 22 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Rear View

Components

8 items

1. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
2. #Refrigerator Cooling Unit; Replacement For Dometic RM2351/ RM2354 Model Refrigerator MFR # 2934341096
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #COVER, ELEMENT MFR # 2800821007
5. #Cover MFR # 3850601026
6. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
7. #LABEL MFR # 3850583000
8. #Decal MFR # 3850584008

Burner & Controls

Components

46 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
8. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
9. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
10. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
11. #ELECTRODE MFR # 2932781012
12. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
13. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
14. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
15. #Nut, T-Couple MFR # 2801043015
16. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
17. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
18. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
19. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
20. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
21. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Black Box Board Kit 3850415.01 MFR # 385041501
22. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
23. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
24. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
25. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
26. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
27. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
28. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
29. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
30. #Lead; Solenoid Valve MFR # 2954540056
31. #Heating Element; 175W 120V; USE 49-8743 MFR # 173771023 Superseded: see description
32. #ELEMENT,HEATING 12V 150W MFR # 173735069
33. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
34. #Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description
35. #APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006
36. #3858022019 MFR # 3858022019
37. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
38. #Wire With Fuse MFR # 2954553018
39. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
40. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
41. #Reigniter - NLA MFR # 2931132027
42. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
43. #Appliance Components RV; Baffle, Flue MFR # 2007172022
44. #Bracket MFR # 3850754015
45. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
46. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110

Door Assembly

Components

15 items

1. #Appliance Components RV; Door Refer Black MFR # 3850272075
2. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
3. #Appliance Components RV; Plug, Black MFR # 3850261029
4. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
5. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
6. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
7. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
8. #Refrigerator Trim; Replacement For Dometic RM2352/ RM2353/ RM2351/ RM2354 Model Refrigerator; Door Bottom Trim; Black MFR # 3850259023
9. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
10. #Appliance Components RV; Plate, Lock Black MFR # 3850260021
11. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
12. #S,SCREW,RXS,4.2*13ZPBC MFR # 3858002037
13. #Refrigerator Door Panel; Fits Dometic Refrigerator 2354 Series; Brushed Aluminum MFR # RM2354BA
14. #PANEL, DOOR BLACK MFR # RM2354L
15. #PANEL, DOOR WOODGRAIN MFR # RM2354G

Cabinet Interior

Components

23 items

1. #Refrigerator Evaporator Door Liner; Use With Dometic Refrigerator Model RM2351 Americana/ RM2354 Americana MFR # 3850291018 Superseded: see description
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #Screw; Zinc Plated RXS B10 4.8 x 19 MFR # 3858002292
4. #Appliance Components RV; Shelf MFR # 3850301015
5. #Refrigerator Shelf; Replacement For Dometic RM2353/ RM2351/ RM2354 Refrigerators; Wire; With Cutout MFR # 2932022045
6. #Appliance Components RV; Drain Hose, 1060mm, WHT MFR # 2932749118
7. #Appliance Components RV; Kit Drain Hose MFR # 3312986247
8. #WASHER,STAINLESS MFR # 3858010121
9. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
10. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
11. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
12. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
13. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
14. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
16. #Tray, Drip MFR # 3850274014
17. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
18. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
19. #Appliance Components RV; Door Evaporator MFR # 2002239339
20. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
21. #Gasket, Freezer Door White MFR # 2933145027
22. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
23. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description

Replacement Refrigerator

Components

7 items

1. #Appliance Components RV; 3106863.008C Door Panel RM2351RB1F MFR # 106863008C
2. #ABSORPTION REFRIGERATOR, 3 CU.FT, 3-WAY, LEFT HINGE MFR # RM2354LB1F
3. #Refrigerator Door Panel;;Fits Dometic Refrigerator 2353 Series; Woodgrain MFR # 2353G
4. #Refrigerator Door Panel; Fits Dometic Refrigerator 2354 Series; Brushed Aluminum MFR # 2354BA
5. #Refrigerator Door Panel;;Fits Dometic Refrigerator 2352 Series; Black; Acrylic MFR # 2352L
6. #REFER,3 CU FT BLK FRAME 3W 29 3/4"H X 20 1/2"W X 21 3/8"D MFR # RM2354B
7. #REFRIGERATORS & ICE MAKERS RV; REFER, 3CF, R, W-WAY/BLK/W/1FAN MFR # RM2354RB1F

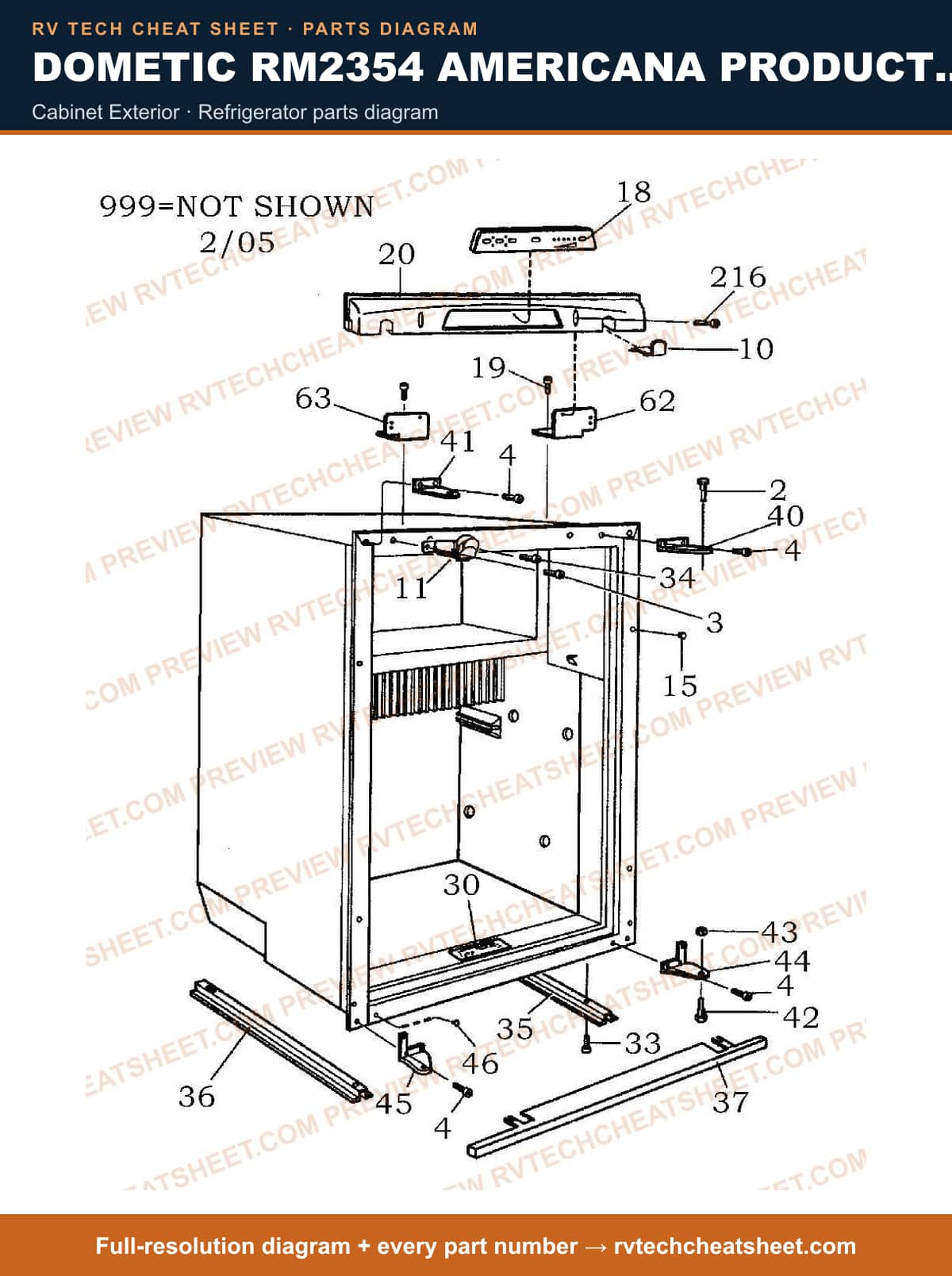

Cabinet Exterior

Components

25 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2354/ RM2353 Refrigerator; Fits Top Hinge MFR # 2932415017
2. #Tools & Fasteners RV; Screw Zinc-Plated MFR # 3858039088
3. #SCREW, ZINC PLATED MFX M5X10 MFR # 3858056025
4. #Refrigerator Trim Hole Plug; Use With Dometic Refrigerator Model RM2352 Americana; Black MFR # 3850263025 Superseded: see description
5. #Refrigerator Door Latch; Use With Dometic Refrigerator Model RM2354 Americana; Black MFR # 3850319025 Superseded: see description
6. #Appliance Components RV; Plug, Black MFR # 3850336029
7. #Refrigerator Eyebrow Power Control Circuit Board; Replacement For Dometic DM2663 Series Refrigerators; 3 Way Control; Black; With Display MFR # 3316995900
8. #Refrigerator Eyebrow Power Control Circuit Board; Replacement For Dometic Refrigerators; 3 Way Control; Black; With Display; Size; Also Use New Number 3316995.900 MFR # 2932884071 Superseded: see description
9. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
10. #Refrigerator Optical Control Board Filler Box; Use With Dometic Refrigerator Model RM2354 Americana; Black MFR # 3850759022 Superseded: see description
11. #INSTRUCTION SIGN PLATE MFR # 2932436005
12. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
13. #Screw; Zinc Plated RXS B10 4.8 x 9.5 MFR # 3858002219
14. #Runner; Right MFR # 2932486018
15. #Runner; Left MFR # 2932486026
16. #Appliance Components RV; Base, Front MFR # 2932325042
17. #Refrigerator Door Hinge; Replacement For Dometic RM2351/ RM2352/ RM2353/ RM2352 Model Refrigerators; Fits Upper Cabinet Side; Upper Left Hand MFR # 3850271010
18. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2352 Americana; Fits Lower Hinge MFR # 3850322011 Superseded: see description
19. #Nut; Use With Dometic Americana Refrigerators; M6 x 3.2 Inch; Zinc MFR # 3858009032 Superseded: see description
20. #Appliance Components RV; Hinge, Lower LH MFR # 3850341011
21. #Plug, Black MFR # 3850362025
22. #Holder MFR # 2933056018
23. #Holder MFR # 2933056026
24. #Screw RXK B6x16 MFR # 3858005022
25. #Reversing Kit, Door RH & LH Black MFR # 385030402
