Dometic RM2354 Americana Product # 921145048 Brown Parts Diagram · Door Assembly

Refrigerator · 6 assemblies · 12 diagram sheets · 117 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2354 Americana Product # 921145048 Brown RV refrigerator: 6 assemblies (Door Assembly, Cabinet Exterior, Cabinet Interior, Cabinet Rear View, Replacement Refrigerator and more) and 117 manufacturer part numbers. 14 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

14 items

1. #DOOR, REFRIGERATOR MFR # 3851163026
2. #GASKET, DOOR WHITE MFR # 3850990072
3. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
4. #PLUG MFR # 3850261011
5. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
6. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
7. #DECORATION STRIP, BROWN MFR # 3851136022
8. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
9. #APPLIANCE COMPONENTS RV; Plate Lock MFR # 3850260013
10. #LABEL MFR # 3851235006
11. #S,SCREW,RXS,4.2*13ZPBC MFR # 3858002037
12. #PANEL, DOOR BLACK MFR # RM2354L
13. #PANEL, DOOR WOODGRAIN MFR # RM2354G
14. #Refrigerator Door Panel; Fits Dometic Refrigerator 2354 Series; Brushed Aluminum MFR # RM2354BA

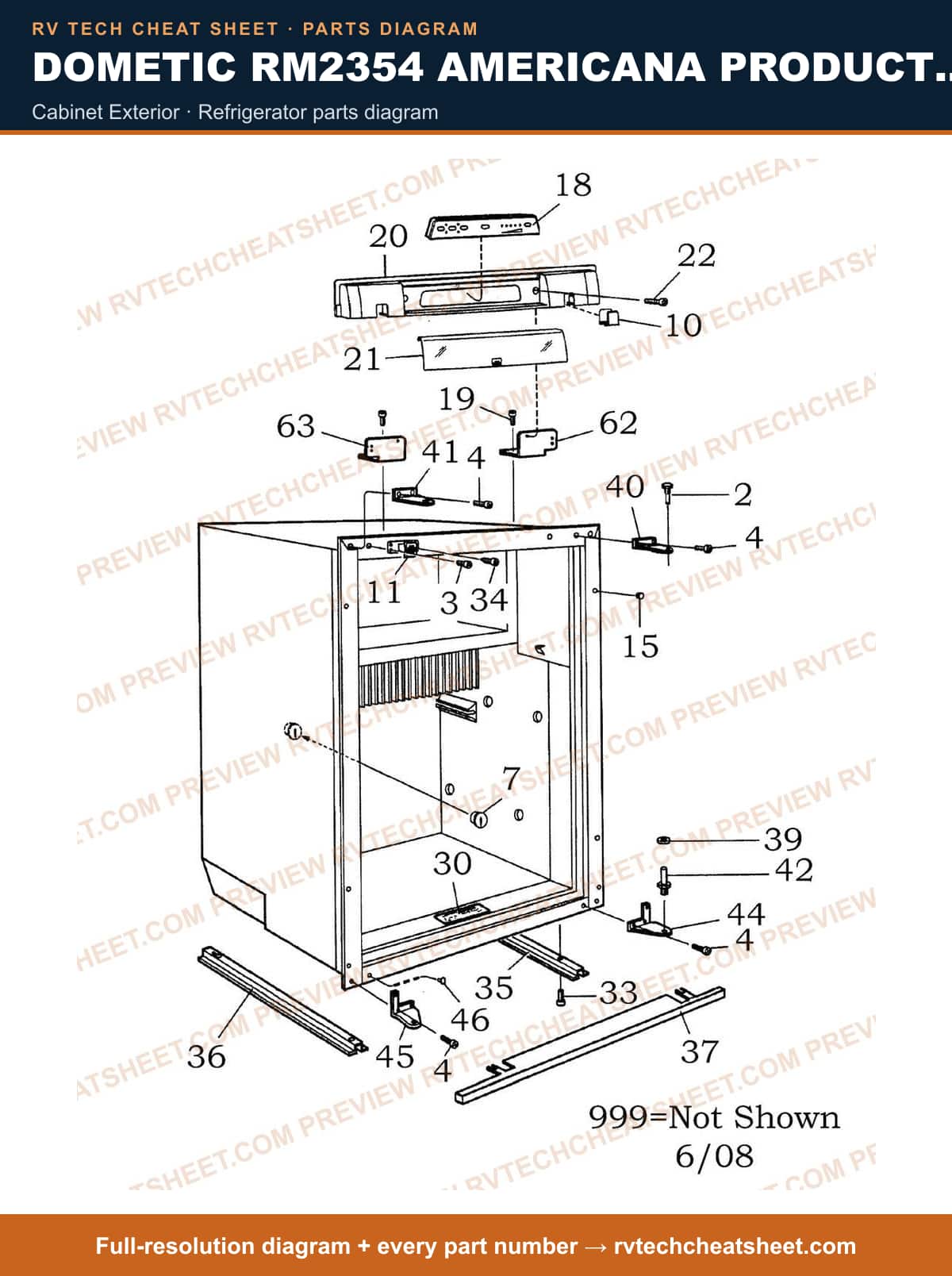

Cabinet Exterior

Components

26 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2354/ RM2353 Refrigerator; Fits Top Hinge MFR # 2932415017
2. #Tools & Fasteners RV; Screw Zinc-Plated MFR # 3858039088
3. #SCREW, ZINC PLATED MFX M5X10 MFR # 3858056025
4. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
5. #APPLIANCE COMPONENTS RV; COVER PLATE BROWN MFR # 3851139026
6. #CATCH,DOOR BROWN MFR # 3851138028
7. #Refrigerator Trim Hole Plug; Use With Dometic Refrigerator Model RM2353 Americana/ RM2352 Americana MFR # 3850336011 Superseded: see description
8. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description
9. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
10. #DECORATION,FRONT BROWN MFR # 3851141048
11. #Refrigerator Power Supply Circuit Board Cover; Replacement Refrigerator Power Supply Circuit Board Cover; 12 Inch Length x 2-7/8 Inch Width x 1/16 Inch Thick; Clear; WE CANNOT SPECIAL ORDER FROM THIS VENDOR. THIS ITEM IS A "C" ITEM THAT WILL ONLY BE ORDERED "AS NEEDED", AVAILABLE ONLY TO WHS 17. WE WILL NOT KEEP... MFR # 3851146013
12. #TOOLS & FASTENERS RV; SCREW ZINC-PLATED MFR # 3858039062
13. #INSTRUCTION SIGN PLATE MFR # 2932436005
14. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
15. #Screw; Zinc Plated RXS B10 4.8 x 9.5 MFR # 3858002219
16. #Runner; Right MFR # 2932486018
17. #Runner; Left MFR # 2932486026
18. #APPLIANCE COMPONENTS RV; Base Front MFR # 2932325026
19. #Washer; Use With Dometic Refrigerators; Zinc Plated; 5.5 x 12 x 1; Zinc Plated MFR # 3858010089 Superseded: see description
20. #Refrigerator Door Hinge; Replacement For Dometic RM2351/ RM2352/ RM2353/ RM2352 Model Refrigerators; Fits Upper Cabinet Side; Upper Left Hand MFR # 3850271010
21. #APPLIANCE COMPONENTS RV; PIN LOWER MFR # 3850269014
22. #Appliance Components RV; Hinge, Lower LH MFR # 3850341011
23. #PLUG MFR # 3850362017
24. #Holder MFR # 2933056018
25. #Holder MFR # 2933056026
26. #DOOR REVERSING KIT, RH TO LH MFR # 3850304019

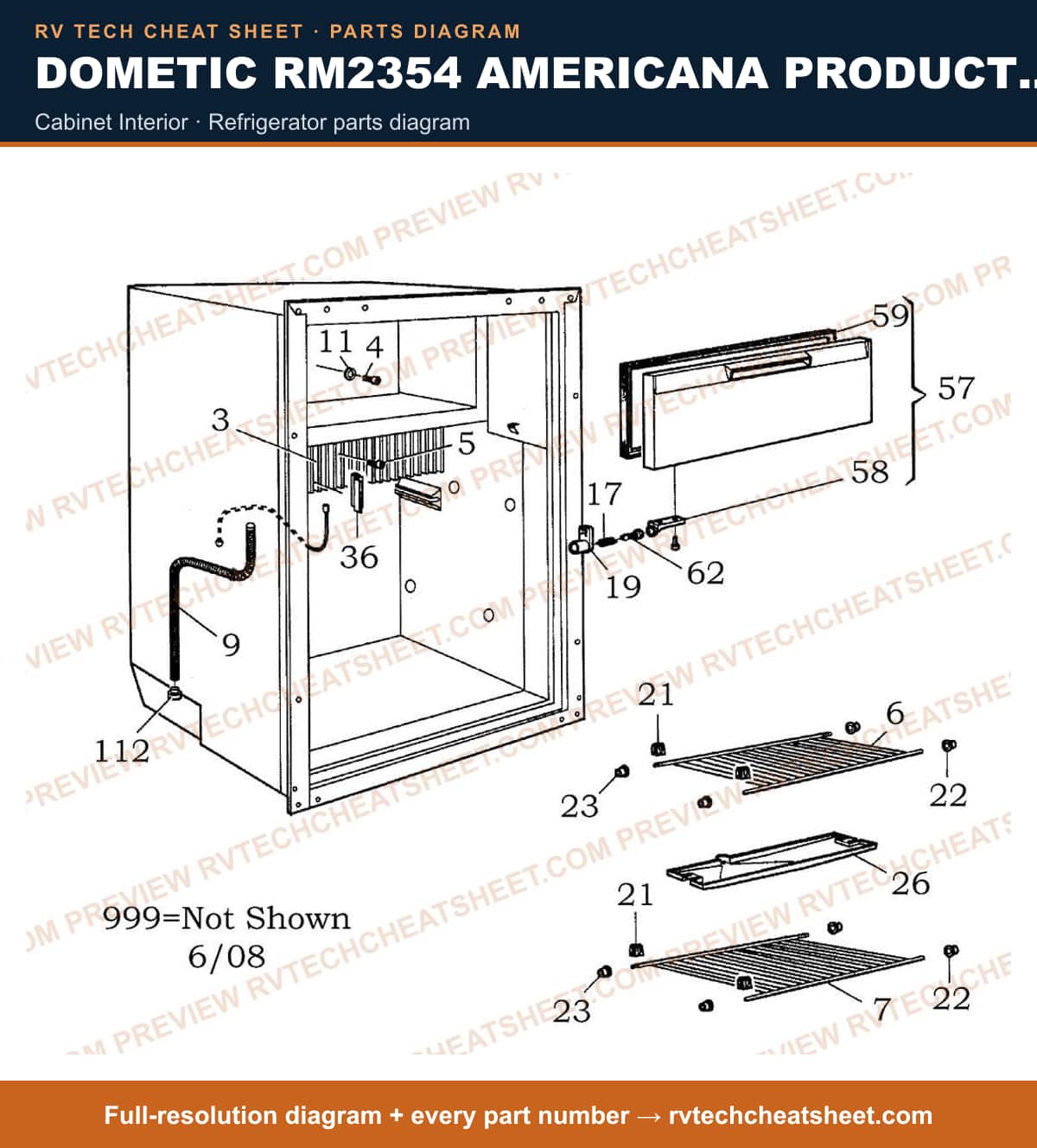

Cabinet Interior

Components

22 items

1. #Refrigerator Evaporator Door Liner; Use With Dometic Refrigerator Model RM2351 Americana/ RM2354 Americana MFR # 3850291018 Superseded: see description
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #Screw; Zinc Plated RXS B10 4.8 x 19 MFR # 3858002292
4. #SHELF MFR # 3850301023
5. #Refrigerator Shelf; Replacement For Dometic RM2353/ RM2351/ RM2354 Refrigerators; Wire; With Cutout MFR # 2932022045
6. #Appliance Components RV; Kit Drain Hose MFR # 3312986247
7. #Appliance Components RV; Drain Hose, 1060mm, WHT MFR # 2932749118
8. #WASHER,STAINLESS MFR # 3858010121
9. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
10. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
11. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
12. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
13. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
14. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
16. #Tray, Drip MFR # 3850274014
17. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
18. #S,LID,FRZ,RM2410,RM2350 MFR # 2002239271
19. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
20. #Gasket, Freezer Door White MFR # 2933145027
21. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
22. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description

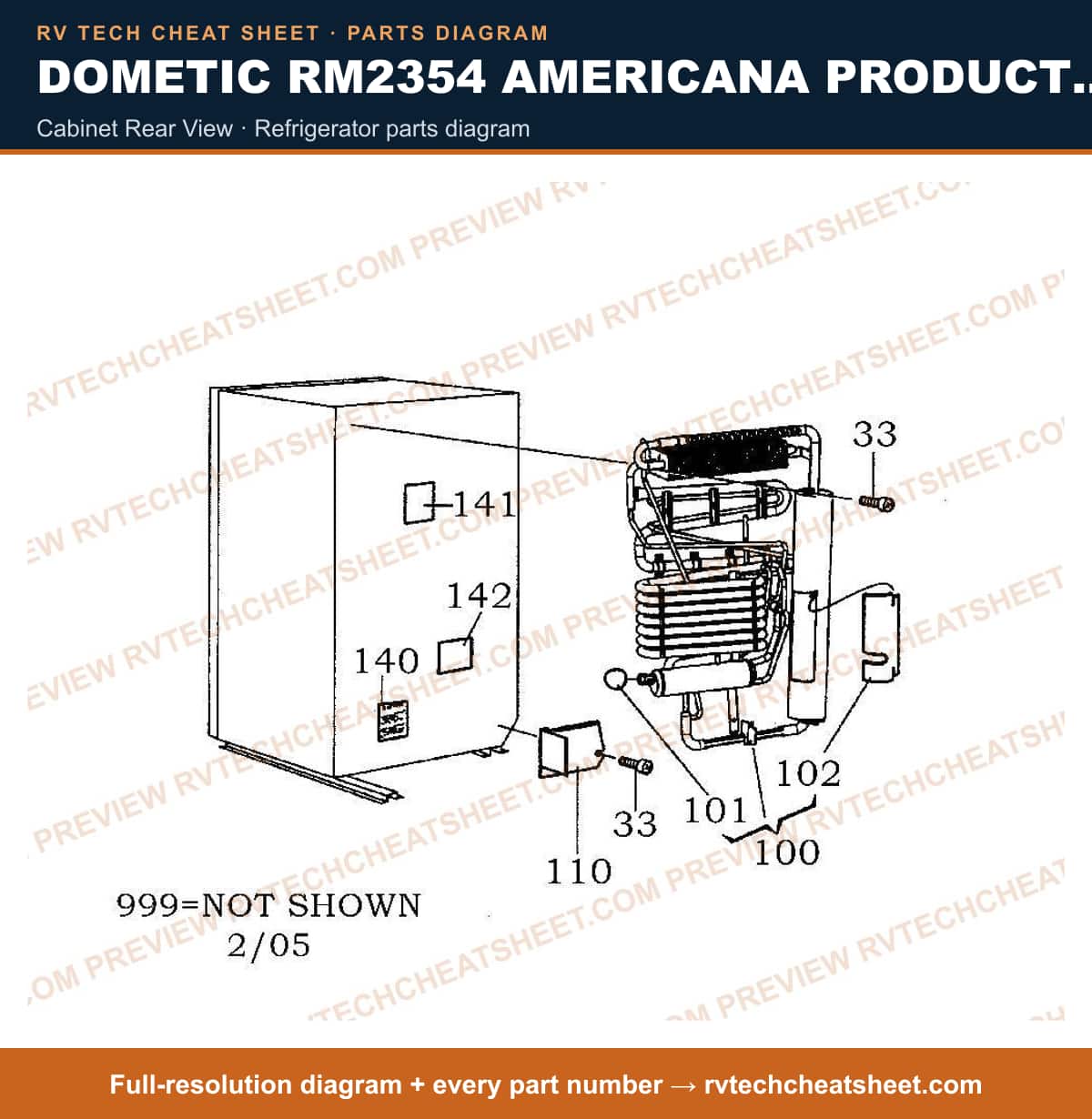

Cabinet Rear View

Components

8 items

1. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
2. #Refrigerator Cooling Unit; Replacement For Dometic RM2351/ RM2354 Model Refrigerator MFR # 2934341096
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #COVER, ELEMENT MFR # 2800821007
5. #Cover MFR # 3850601026
6. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
7. #LABEL MFR # 3850583000
8. #Decal MFR # 3850584008

Replacement Refrigerator

Components

7 items

1. #REFER,3 CU FT BLK FRAME 3W 29 3/4"H X 20 1/2"W X 21 3/8"D MFR # RM2354B
2. #REFRIGERATORS & ICE MAKERS RV; REFER, 3CF, R, W-WAY/BLK/W/1FAN MFR # RM2354RB1F
3. #ABSORPTION REFRIGERATOR, 3 CU.FT, 3-WAY, LEFT HINGE MFR # RM2354LB1F
4. #Refrigerator Door Panel;;Fits Dometic Refrigerator 2352 Series; Black; Acrylic MFR # 2352L
5. #Refrigerator Door Panel;;Fits Dometic Refrigerator 2353 Series; Woodgrain MFR # 2353G
6. #Refrigerator Door Panel; Fits Dometic Refrigerator 2354 Series; Brushed Aluminum MFR # 2354BA
7. #Appliance Components RV; 3106863.008C Door Panel RM2351RB1F MFR # 106863008C

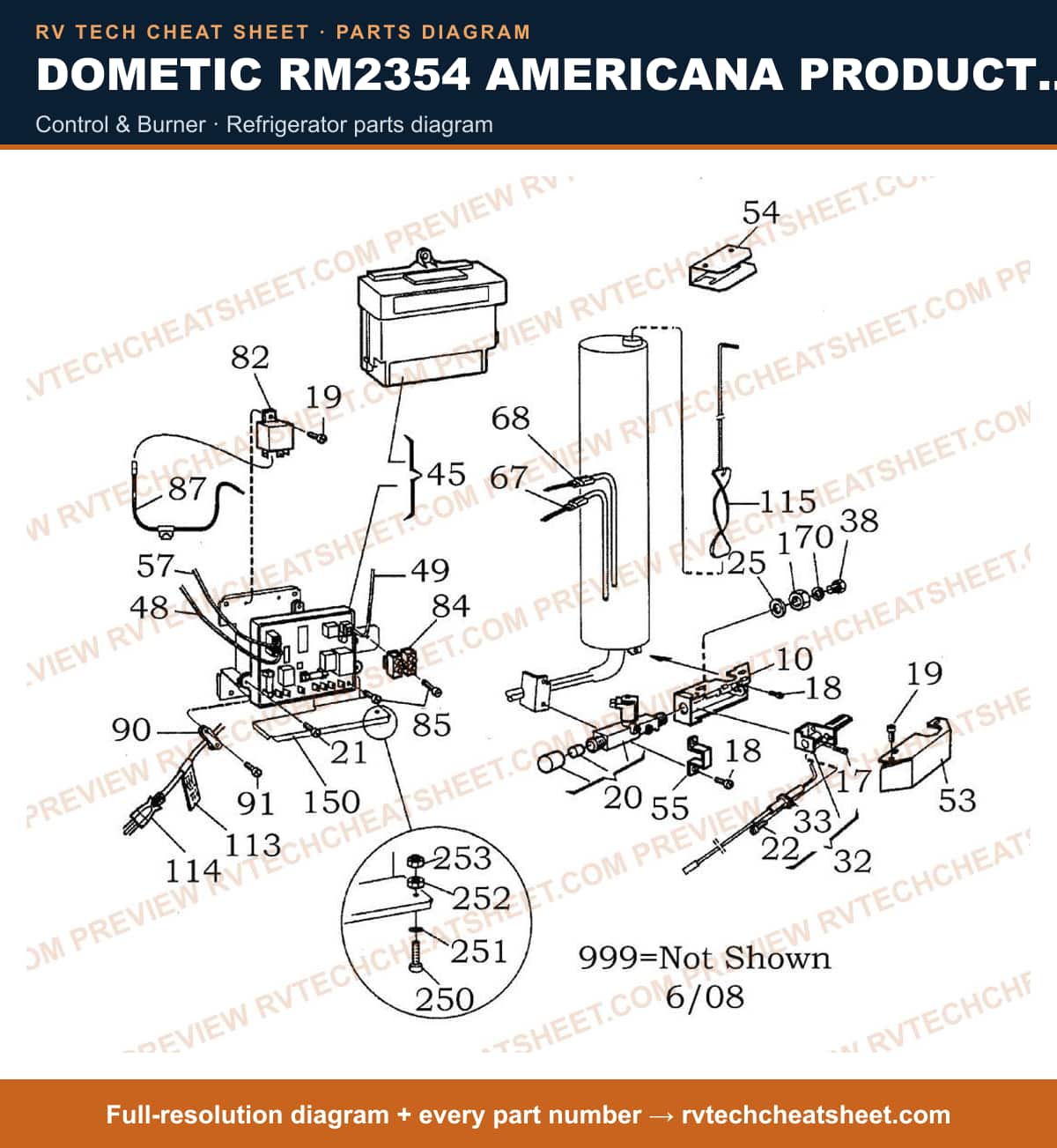

Control & Burner

Components

42 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
9. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
10. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
11. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
12. #ELECTRODE MFR # 2932781012
13. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
14. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Power Supply Circuit Board; Also Use New Number 3316996.900 MFR # 3850712013 Superseded: see description
15. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
16. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
17. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
18. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # 385071201
19. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 41 Inch Length; Also Use New Number 38510590422 MFR # 3851059034 Superseded: see description
20. #S THERMSTOR COMBO MFR # 3851059422
21. #CONDUCTOR, SOLENOID VALVE MFR # 2954540064
22. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
23. #S,CAP,FLUE MFR # 2007598010
24. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
25. #Refrigerator Interface Circuit Board; Fits Dometic Refrigerators Models RM2354 Americana/ RM2351 Americana MFR # 2954542060
26. #HEATERS & FURNACES RV; HEATER MFR # 3850646104
27. #APPLIANCE COMPONENTS RV; ELEMENT, HEATING 175W 120 MFR # 3850644455
28. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
29. #3851334007 MFR # 3851334007
30. #3858022019 MFR # 3858022019
31. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
32. #Wire With Fuse MFR # 2954553018
33. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
34. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
35. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
36. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
37. #Appliance Components RV; Baffle, Flue MFR # 2007172022
38. #Bracket MFR # 3850754015
39. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
40. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
41. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
42. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024
