Dometic RM2354 Americana Product # 936002068 Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 71 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2354 Americana Product # 936002068 RV refrigerator: 5 assemblies (Door Assembly, Burner Assembly Area, Cabinet Assembly - Rear View, Replacement, Cabinet Area) and 71 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

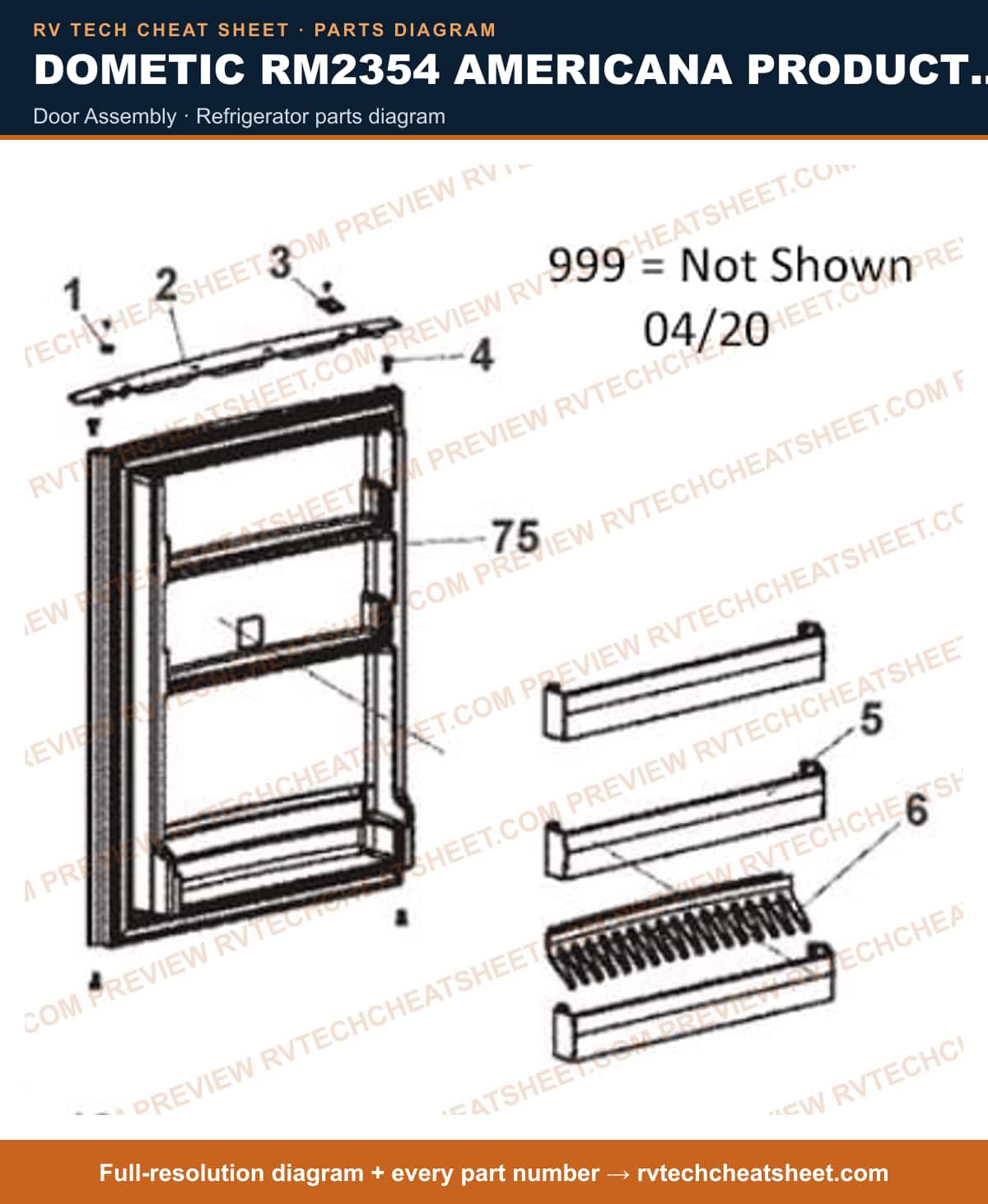

Door Assembly

Components

6 items

1. #plug black MFR # 385026102
2. #decoration strip black MFR # 385113601
3. #plate lock MFR # 4450007608
4. #DOOR SHELF MFR # 200226124
5. #bottle holder MFR # 293071505
6. #door service MFR # 4450006426

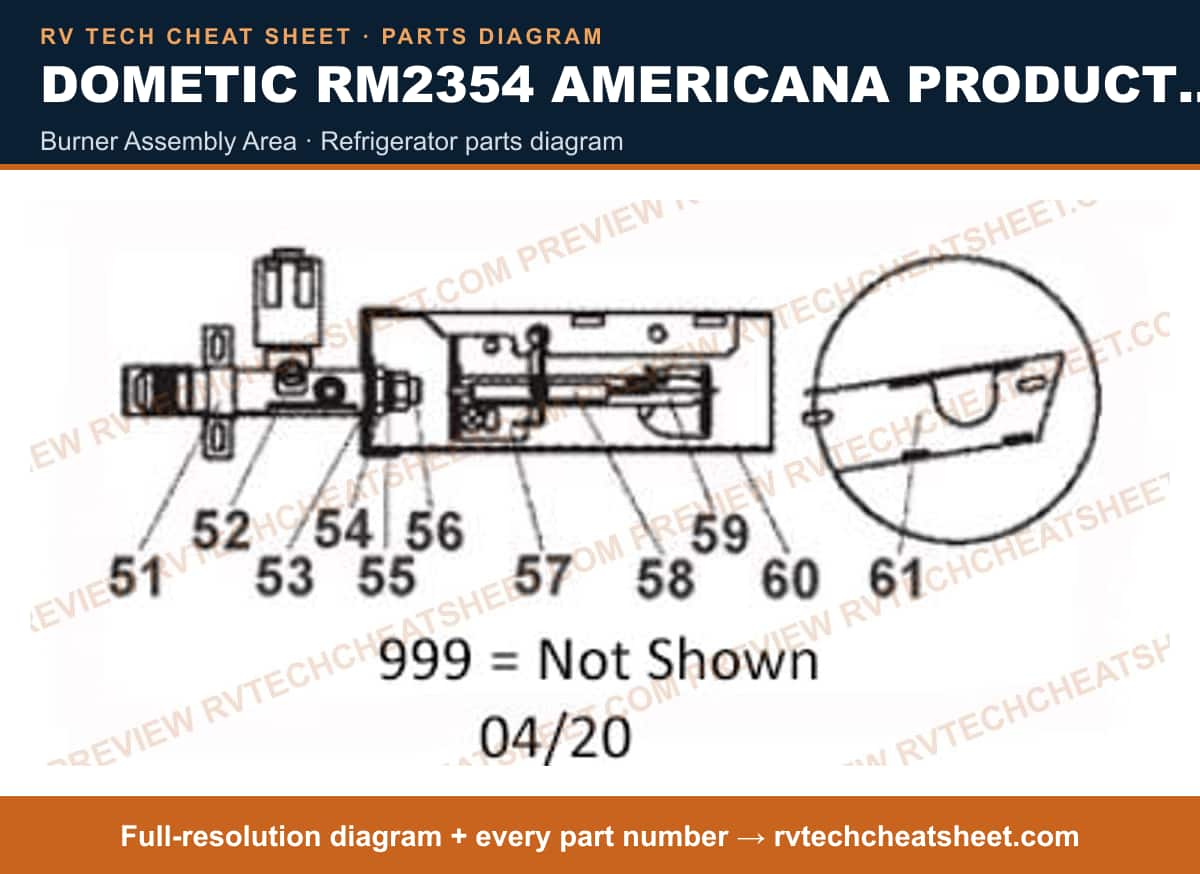

Burner Assembly Area

Components

9 items

1. #SOLENOID VALVE MFR # 293261501
2. #WASHER; 12.5X18.5X1 MFR # 385801007
3. #nut copper MFR # 4450003722
4. #WASHER MFR # 200745700
5. #NOZZLE MFR # 4450007092
6. #RETAINER TUBE MFR # 293065204
7. #electrode MFR # 4450010945
8. #BURNER HOUSING MFR # 293260301
9. #COVER GAS BURNER MFR # 293266101

Cabinet Assembly - Rear View

Components

19 items

1. #BRACKET MFR # 385075401
2. #TERMINAL BLOCK MFR # 385802201
3. #RELAY, SPDT 24VDC 40/30AMP MFR # 4450013715
4. #ANTI-STRAIN CLIP MFR # 293234201
5. #COVER GAS BURNER MFR # 4450003199
6. #PROTECTIVE PLATE MFR # 293112601
7. #CORD SET MFR # 200269911
8. #REFRIGERATORS & ICE MAKERS RV;;S, PWR CNTRL MOD, V2 ZANGBANCG MFR # 4450007138
9. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM2XXX Series Refrigerators; 120 Volt AC; 175 Watt MFR # 4450007079
10. #HEATER; 12 VOLT MFR # 4450007090
11. #helix MFR # 4450003231
12. #RETAINER HELIX MFR # 4450003196
13. #connection wiring MFR # 4450013255
14. #Dometic RM2652 Refrigerator Cooling Unit Assembly MFR # 4450001848
15. #ventilator MFR # 4450009628
16. #FIXING CLAMP VENTILATOR MFR # 4450013935
17. #BASE PLATE VENTILATOR MFR # 4450013934
18. #COOLING UNIT SERVICE - USE 4450006424 MFR # 4450006425 Superseded: see description
19. #cooling unit,service MFR # 4450006424

Replacement

Components

1 item

1. #ABSORPTION REFRIGERATOR, 3 CU.FT, 3-WAY, LEFT HINGE MFR # RM2354LB1F

Cabinet Area

Components

45 items

1. #HOLDER MFR # 293305601
2. #HOLDER MFR # 293305602
3. #front decoration black MFR # 385114102
4. #cover plate black MFR # 385113901
5. #NO GENERIC NAME;;DISPLAY PCB MFR # 4450007134
6. #DOOR CATCH BLACK MFR # 85113801
7. #COVER OPERATING PANEL MFR # 4450006625
8. #hinge pin upper MFR # 293241501
9. #HINGE LEFT MFR # 385027101
10. #hinge pin lower MFR # 385026901
11. #hinge lower left MFR # 385034101
12. #sealant Freezer flap door MFR # 4450002648
13. #cover inner Freezer flap door MFR # 4450007613
14. #insulation Freezer flap door MFR # 4450002578
15. #cover outer Freezer flap door MFR # 4450007612
16. #plate Freezer flap door MFR # 4450003150
17. #spring right MFR # 293275402
18. #SPRING CASING RIGHT MFR # 200223601
19. #BOLT MFR # 200223800
20. #retainer Freezer flap door MFR # 4450007614
21. #spring casing left MFR # 200223600
22. #SPRING LEFT MFR # 293275401
23. #grating upper MFR # 4450003149
24. #DRIP PROTECTION MFR # 385027401
25. #SHELF MFR # 293202204
26. #PLUG MFR # 293210101
27. #FUSE GRID MFR # 4450012282
28. #PLUG MFR # 293210301
29. #REAR-EVAPORATOR MFR # 4450003143
30. #NTC MFR # 385105903
31. #BRACKET THERMISTOR MFR # 385108801
32. #PLUG MFR # 200230100
33. #bottom décor trim for RM2351 MFR # 4450017616
34. #PLUG BLACK MFR # 385036202
35. #drainage hose white MFR # 293274911
36. #DISCHARGE PIPE PLUG MFR # 293211501
37. #SOLENOID VALVE MFR # 293261501
38. #WASHER; 12.5X18.5X1 MFR # 385801007
39. #nut copper MFR # 4450003722
40. #WASHER MFR # 200745700
41. #NOZZLE MFR # 4450007092
42. #RETAINER TUBE MFR # 293065204
43. #electrode MFR # 4450010945
44. #BURNER HOUSING MFR # 293260301
45. #COVER GAS BURNER MFR # 293266101
