Dometic RM2400 Parts Diagram · Cabinet Asm

Refrigerator · 5 assemblies · 5 diagram sheets · 164 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2400 RV refrigerator: 5 assemblies (Cabinet Asm, Gas-electric Asm, Replacement Refrigerator, Cooling Unit, Door Assembly) and 164 manufacturer part numbers. 53 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

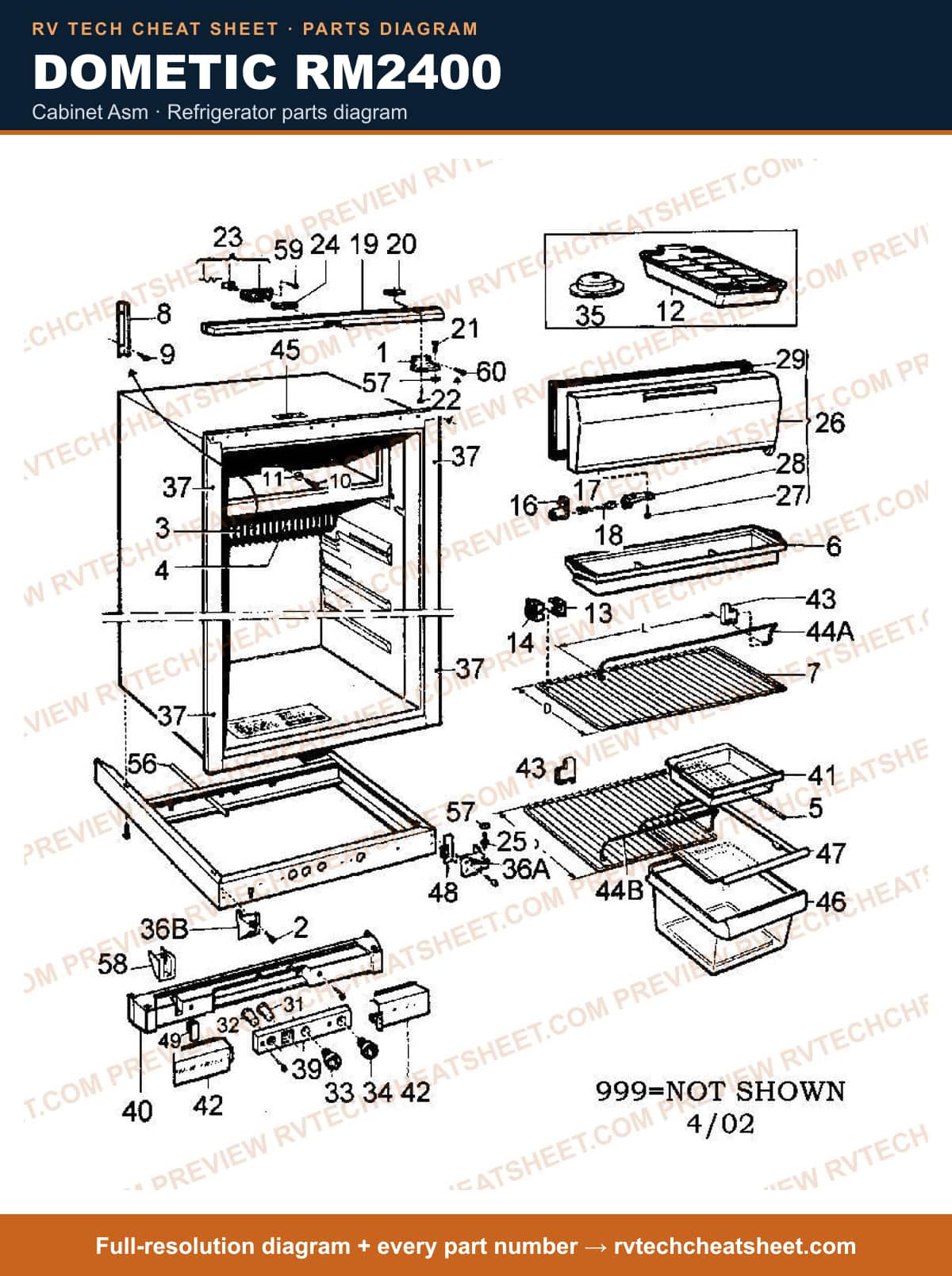

Cabinet Asm

Components

67 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Models RM3600/ RM3800 MFR # 2007270016 Superseded: see description
2. #NO PART # GIVEN BY VENDOR MFR # NPG
3. #Appliance Components RV; Flange Cooling MFR # 2007394006
4. #SCREW MFR # 7295414119
5. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
6. #SHELF,WIRE USE 2930133067 MFR # 2930133000 Superseded: see description
7. #Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description
8. #S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011
9. #SHELF, 9.5" X 17 7/8" MFR # 2002652242
10. #SHELF, WIRE USE 2002652242 MDL#660 9.5" DEEP MFR # 2002652150 Superseded: see description
11. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
12. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
13. #SCREW USE 7295344407 MFR # 7295344118 Superseded: see description
14. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
15. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
16. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
17. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
18. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
20. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
21. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
22. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
23. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
24. #Spring, Freezer Door RH MFR # 2002237010
25. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
26. #DECORATION, FRONT UPPER 2400 -2500 MFR # 2007545052
27. #Pin, Hinge Upper MFR # 2930612003
28. #LATCH USE 2007546027 MFR # 2007546019 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Key Rm 2500 MFR # 2930135021
30. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
31. #SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description
32. #S,LID,FRZ,RM2410,RM2350 MFR # 2002239271
33. #SHUTTER USE 2002239271 MFR # 2002239198 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Screw MFR # 7295286657
35. #SCREW USE 7295286657 MFR # 7295285659 Superseded: see description
36. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
37. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
38. #Knob, Push Use 2007479054 Black/Red MFR # 2007479047 Superseded: see description
39. #Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description
40. #Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088
41. #BUTTON, PUSH MFR # 2007479013
42. #APPLIANCE COMPONENTS RV; Knob T-Stat Use 200748015 MFR # 2007480193 Superseded: see description
43. #KNOB,T-STAT MFR # 2007480151
44. #KNOB, SELECTOR MFR # 2007480011
45. #Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177
46. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
47. #APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000
48. #APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008
49. #Plug, Face Use 2930132069 Brown MFR # 2930132028 Superseded: see description
50. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
51. #Panel, Beige Use 2007463058 MFR # 2007463033 Superseded: see description
52. #APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058
53. #BASE FRONT RM24 00, 2500 MFR # 2930591090
54. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
55. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
56. #Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015
57. #RETAINER USE 2930693045 MFR # 2930693029 Superseded: see description
58. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
59. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
60. #RETAINER USE 2930693029 MFR # 2930693011 Superseded: see description
61. #APPLIANCE COMPONENTS RV; Bar L Approx 8" 460-660 MFR # 2007337062
62. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
63. #SCREW MFR # 2930431008
64. #PLATE, SEALING MFR # 2930696014
65. #Appliance Components RV; Plug Grey/Brown MFR # 2930083031
66. #Plug Use 2930083031 MFR # 2930083023 Superseded: see description
67. #Washer; Replacement For Dometic RM2301/ RM2600/ RM3600 Model Refrigerator MFR # 2930714015

Gas-electric Asm

Components

68 items

1. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
4. #VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description
5. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
6. #T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description
7. #S,THERMOCOUPLE-232MM MFR # 2931496042
8. #Coupling MFR # 2007518000
9. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
10. #Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description
11. #DOMETIC DUAL T-STAT MFR # 2007199009
12. #T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description
13. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
14. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
15. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
16. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
17. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
18. #Appliance Components RV; Nut Union MFR # 172809006
19. #S,SWITCH,RM2410-2810 MFR # 2007432004
20. #Appliance Components RV; Cover Switch MFR # 2007439009
21. #Screw MFR # 140730011
22. #APPLIANCE COMPONENTS RV; Spring MFR # 2007577006
23. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
24. #Igniter, Piezo MFR # 2007423003
25. #Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description
26. #Appliance Components RV; Retainer MFR # 2007424001
27. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008
28. #Burner Use 2007503036 MFR # 2007503028 Superseded: see description
29. #Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036
30. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
31. #Electrode Use 2930379009MC MFR # 2007416007 Superseded: see description
32. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
33. #3858022019 MFR # 3858022019
34. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
35. #Ring, Sealing 2 Req. MFR # 140748005
36. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
37. #CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description
38. #CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description
39. #Catch Snap 12/120 (Fus) MFR # 2930066028
40. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
41. #Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009
42. #PLATE/SIGN,12 VOLT DC MFR # 2007452002
43. #ORIFICE #32 BUTANE 360 MFR # 2007419134
44. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
45. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
46. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
47. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
48. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
49. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
50. #SCREW M4 X 10 S MFR # 7241289615
51. #APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009
52. #ELEMENT, HEATING 125W 12V (25) USE 48-9516 MFR # 173735010 Superseded: see description
53. #ELEMENT, HEATING 125W 12V MFR # CS000045
54. #APPLIANCE COMPONENTS RV; Element Heating 120V MFR # 173756016
55. #ELEMENT,HEATING 120V MFR # CS000012
56. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM2300/ RM2400; 120 Volt; 160 Watts MFR # 173756016MC Superseded: see description
57. #ELEMENT, HEATING USE 173735010 150W 12V MFR # 173737016 Superseded: see description
58. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
59. #BUSHING USE 2002619001 MFR # 2930103003 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231
61. #FLUE TOP USE 45-5828* MFR # 2007598002 Superseded: see description
62. #S,CAP,FLUE MFR # 2007598010
63. #Conductor, Light; IS A USE # FOR 2007476015, 2007478015 MFR # 2007478031 Superseded: see description
64. #APPLIANCE COMPONENTS RV; Rod Push RM4-6-760 MFR # 2007468008
65. #S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016
66. #S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002
67. #S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003
68. #NO PART # GIVEN BY VENDOR MFR # NPG

Replacement Refrigerator

Components

9 items

1. #REFER, 4 CU FT 2 WAY 32 7/16"H X 21 3/16"W X 24; FOR BLACK DOOR PANELS USE 3106863008C FOR WOODGRAIN DOOR PANELS USE 3106863008B; 2 WAY SMALL SINGLE DOOR 7/29/02 - ON B/O W/DOMETIC UNTIL 9/1/02. JDH ... MFR # RM24102N Superseded: see description
2. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UL
3. #REFER USE 72-4906 OR 72-4907 N400.3 MFR # N4003N Superseded: see description
4. #REFER, 4 CU FT 3 WAY 32 7/16"H X 22 13/16"W MFR # RM24103N
5. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer; DIMENSIONS: 36-9/16" H X 23-11/16" W X 24" D; REPLACES: IS A USE # FOR N400N MFR # N410UR Superseded: see description
6. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N410UL
7. #REFER USE RM24102N OR RM24103N MFR # RM2400N Superseded: see description
8. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UR
9. #Refrigerator; Single Compartment Refrigerator With Freezer; Portable; 3.8 Cubic Foot; 22.83 Inch Width x 33-1/2 Inch Height x 24-7/8 Inch Depth; 120 Volt AC/ 1.3 Amp; 2-Way Alternating Current/ LP Gas; Right Hand Door Hinge Location; Taupe; Door Panel Must Be Ordered Separately; FOR BLACK DOOR PANELS USE 3106863008C FOR WOODGRAIN DOOR PANELS USE 3106863008B MFR # RM24102R Superseded: see description

Cooling Unit

Components

4 items

1. #Appliance Components RV; Cooling Unit MFR # 2934335098N
2. #Remanufactured Cooling Unit MFR # 9283359009R
3. #FLAT BLACK MFR # 5546
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084

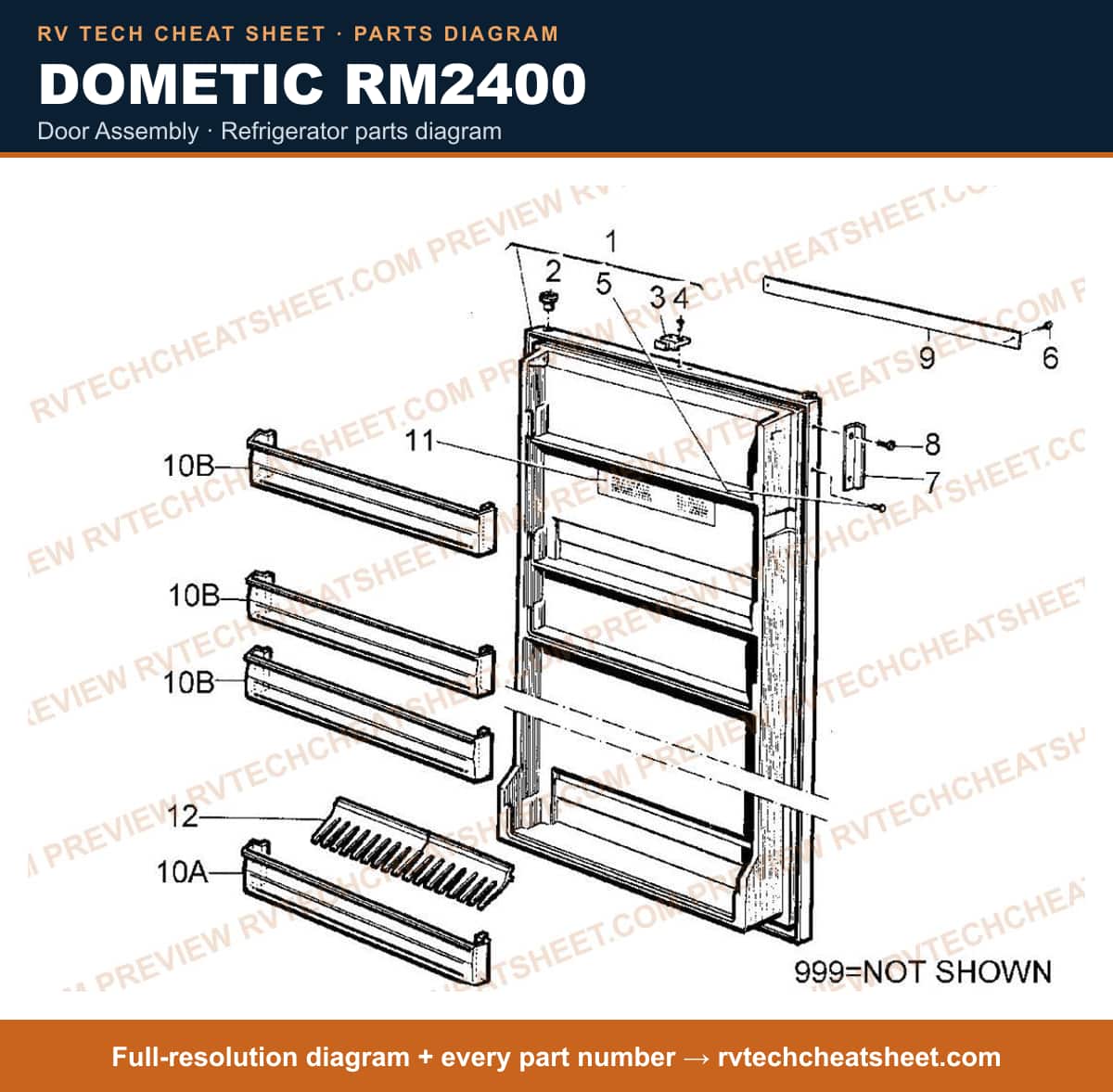

Door Assembly

Components

19 items

1. #Appliance Components RV; Gasket Kit MFR # 3103691006
2. #APPLIANCE COMPONENTS RV; Door Main MFR # 2930922113
3. #DOOR USE 2930922113 MFR # 2930679036 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
5. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
6. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
7. #NO PART # GIVEN BY VENDOR MFR # NPG
8. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
9. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
10. #DECORATION STRIP RM25 00 MFR # 2930640061
11. #APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2930640087
12. #SHELF,DOOR USE 2002261143 MFR # 2002261184 Superseded: see description
13. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
14. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
15. #Shelf, Door; Use 2000571220 MFR # 2000571204 Superseded: see description
16. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
17. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
18. #APPLIANCE COMPONENTS RV; Holder Bottle 8" Brown MFR # 2930715020
19. #HOLDER,BOTTLE 7" BROWN MFR # 2930715012
