Dometic RM2401 Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 150 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2401 RV refrigerator: 5 assemblies (Door Assembly, Replacement Refrigerator, Cooling Unit, Gas-electric Assembly, Cabinet Assembly) and 150 manufacturer part numbers. 42 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

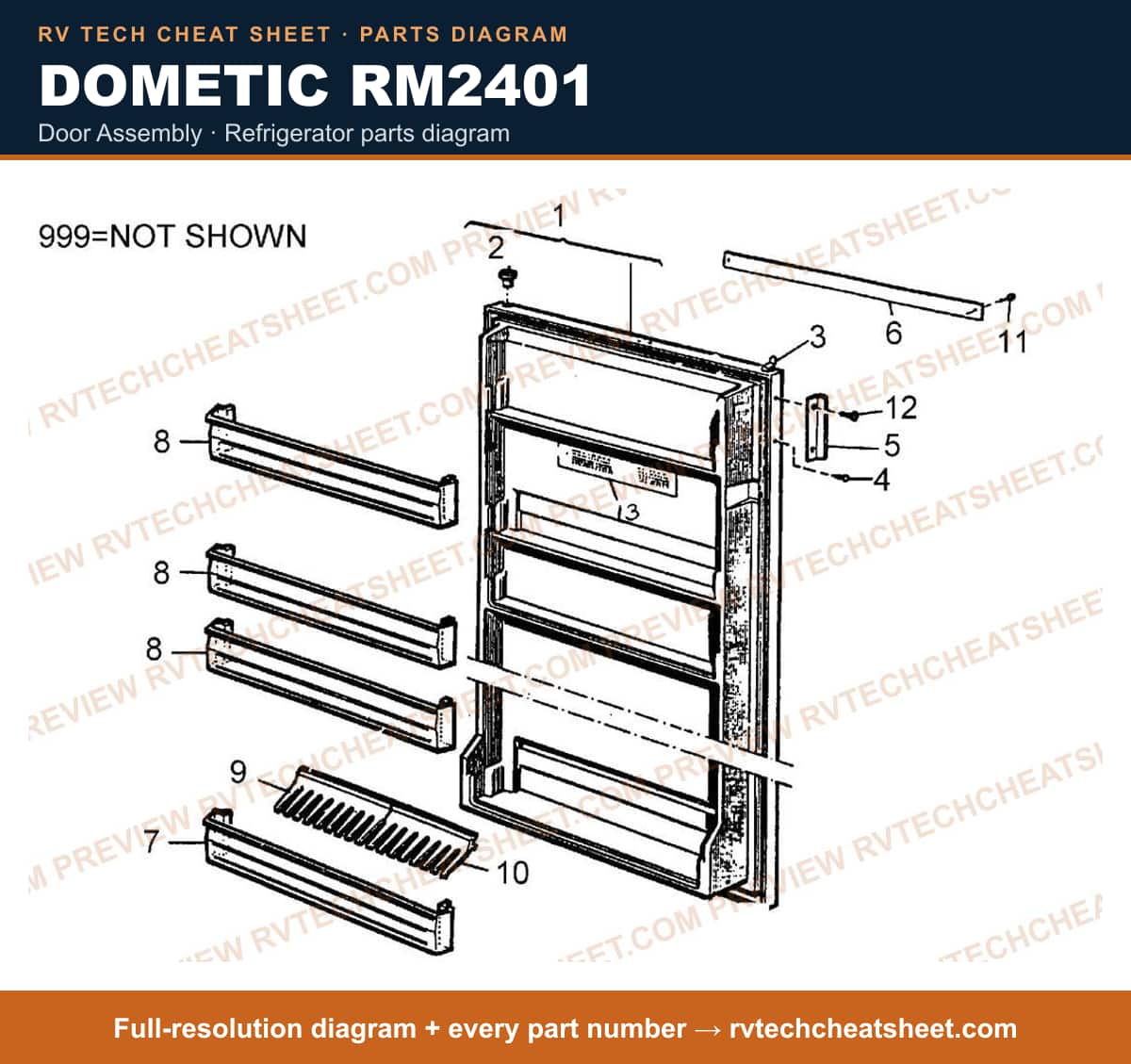

Door Assembly

Components

20 items

1. #Appliance Components RV; Door Main RM2401 Forgaske MFR # 2930922139
2. #Appliance Components RV; Gasket Kit MFR # 3103691006
3. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
4. #RETAINER, CATCH MFR # 2931111013
5. #APPLIANCE COMPONENTS RV; Catch Travel Strike MFR # 2931111021
6. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
8. #Appliance Components RV; Strip Decoration RM2401 MFR # 2930640426
9. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
10. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
11. #Shelf, Door; Use 2000571220 MFR # 2000571204 Superseded: see description
12. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
13. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
15. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
17. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
18. #Refrigerator Trim Screw; Replacement For Dometic RM2301/ RM2310/ RM2333/ RM2401/ RM2501/ RM4801 Model Refrigerator MFR # 7296229011
19. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
20. #NO PART # GIVEN BY VENDOR MFR # NPG

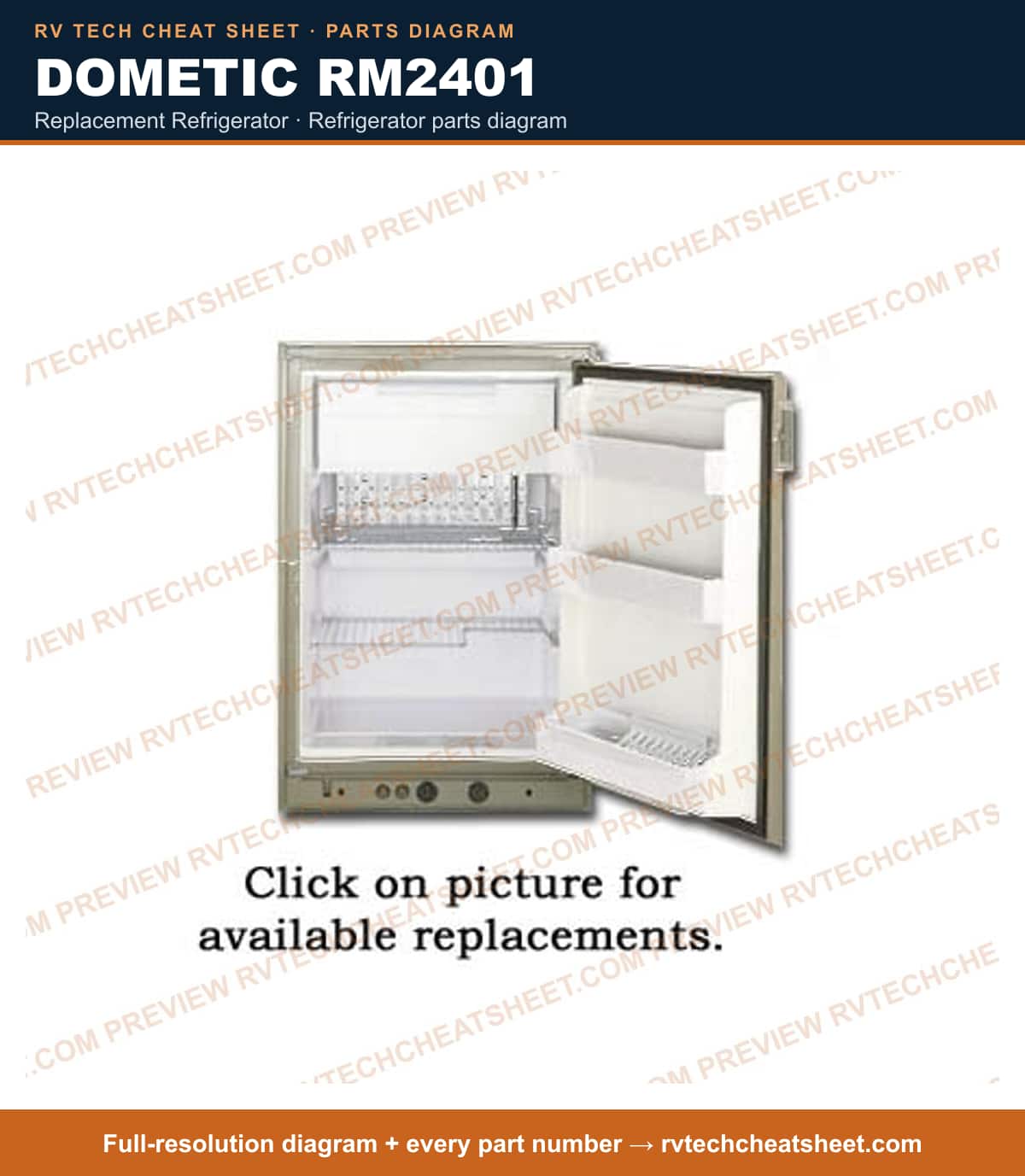

Replacement Refrigerator

Components

4 items

1. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer; DIMENSIONS: 36-9/16" H X 23-11/16" W X 24" D; REPLACES: IS A USE # FOR N400N MFR # N410UR Superseded: see description
2. #Refrigerator; Single Compartment Refrigerator With Freezer; Portable; 3.8 Cubic Foot; 22.83 Inch Width x 33-1/2 Inch Height x 24-7/8 Inch Depth; 120 Volt AC/ 1.3 Amp; 2-Way Alternating Current/ LP Gas; Right Hand Door Hinge Location; Taupe; Door Panel Must Be Ordered Separately; FOR BLACK DOOR PANELS USE 3106863008C FOR WOODGRAIN DOOR PANELS USE 3106863008B MFR # RM24102R Superseded: see description
3. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N410UL
4. #REFER, 4 CU FT 2 WAY 32 7/16"H X 21 3/16"W X 24; FOR BLACK DOOR PANELS USE 3106863008C FOR WOODGRAIN DOOR PANELS USE 3106863008B; 2 WAY SMALL SINGLE DOOR 7/29/02 - ON B/O W/DOMETIC UNTIL 9/1/02. JDH ... MFR # RM24102N Superseded: see description

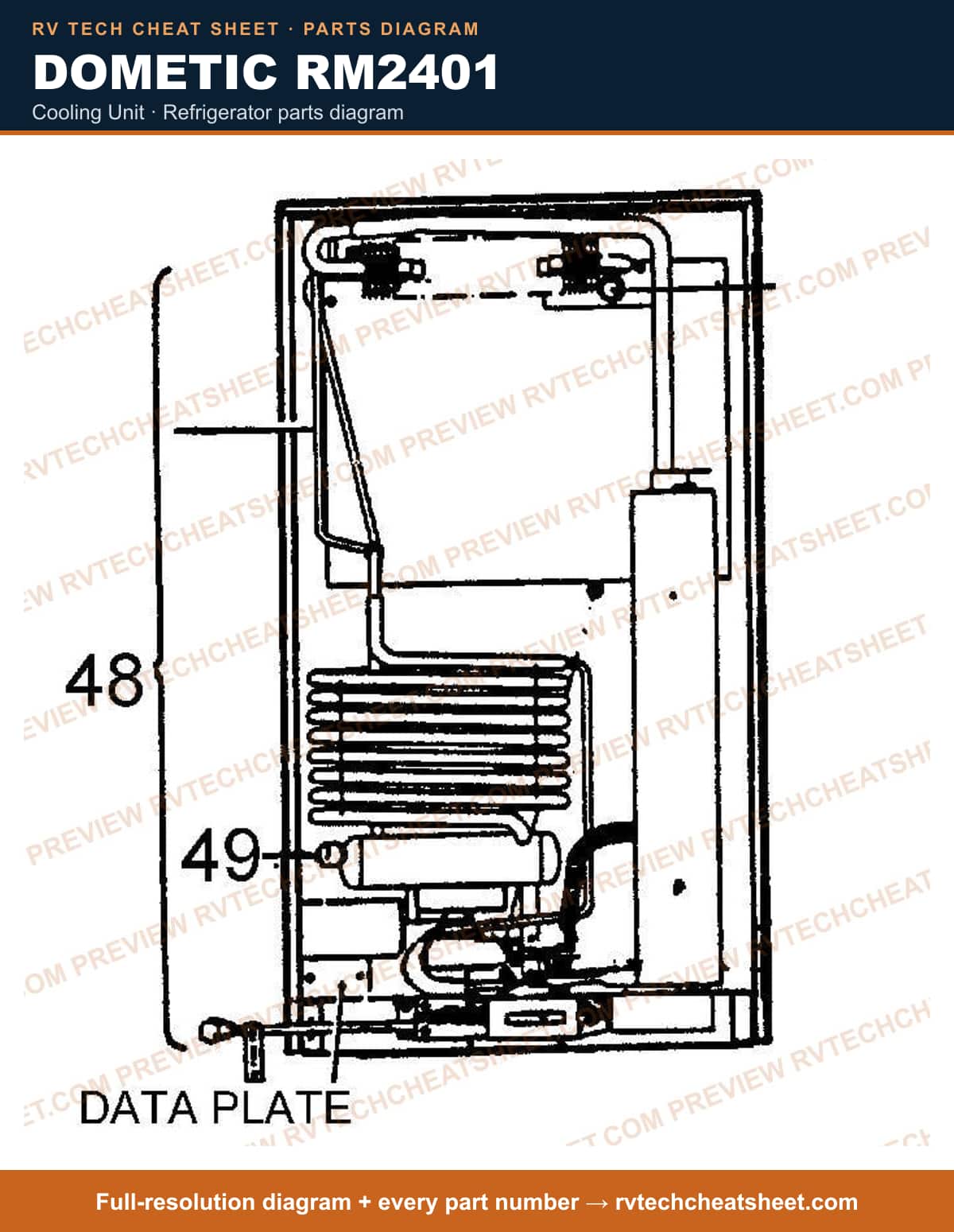

Cooling Unit

Components

5 items

1. #Cooling Unit; Use 2934335098N RM460 RM2401 MFR # 9283359009N Superseded: see description
2. #FLAT BLACK MFR # 5546
3. #Remanufactured Cooling Unit MFR # 9283359009R
4. #Appliance Components RV; Cooling Unit MFR # 2934335098N
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084

Gas-electric Assembly

Components

59 items

1. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005
2. #VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
4. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
5. #S,THERMOCOUPLE-232MM MFR # 2931496042
6. #T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description
7. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
8. #Coupling MFR # 2007518000
9. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
10. #DOMETIC DUAL T-STAT MFR # 2007199009
11. #T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description
12. #Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description
13. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
14. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
15. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
16. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
17. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
18. #Appliance Components RV; Nut Union MFR # 172809006
19. #S,SWITCH,RM2410-2810 MFR # 2007432004
20. #Appliance Components RV; Cover Switch MFR # 2007439009
21. #Screw MFR # 140730011
22. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
23. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
24. #Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description
25. #Igniter, Piezo MFR # 2007423003
26. #Appliance Components RV; Retainer MFR # 2007424001
27. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008
28. #Burner Use 2007503036 MFR # 2007503028 Superseded: see description
29. #Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036
30. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
31. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
32. #Ring, Sealing 2 Req. MFR # 140748005
33. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
34. #CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description
35. #Catch Snap 12/120 (Fus) MFR # 2930066028
36. #RAIL, SLIDE; USE WITH Dometic RM2400/ RM2410/ RM2310/ RM2411/ RM2800/ RM2810/ RM3600/ RM3900 Series Refrigerators MFR # 2007441008 Superseded: see description
37. #Grommet; Use On Refrigerator Frame; Replacement For Dometic Models MFR # 2007420004 Superseded: see description
38. #Clip; Use On Refrigerator Frame; Replacement For Various Dometic Models MFR # 2007431005 Superseded: see description
39. #Refrigerator Burner Tube; Replacement For Various Dometic Models MFR # 2007432002
40. #Flame Deflector; Replacement For Various Dometic Models MFR # 2007432007
41. #Refrigerator Door Spring; Replacement For Various Dometic Models MFR # 2007426007
42. #BURNER, BURNER BURNER; Replacement For Various Dometic Models MFR # 2005109004
43. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
44. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
45. #APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009
46. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM2300/ RM2400; 120 Volt; 160 Watts MFR # 173756016MC Superseded: see description
47. #ELEMENT,HEATING 120V MFR # CS000012
48. #ELEMENT, HEATING USE 173735010 150W 12V MFR # 173737016 Superseded: see description
49. #APPLIANCE COMPONENTS RV; Element Heating 120V MFR # 173756016
50. #ELEMENT, HEATING 125W 12V MFR # CS000045
51. #ELEMENT, HEATING 125W 12V (25) USE 48-9516 MFR # 173735010 Superseded: see description
52. #APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231
53. #S,CAP,FLUE MFR # 2007598010
54. #FLUE TOP USE 45-5828* MFR # 2007598002 Superseded: see description
55. #Conductor, Light; IS A USE # FOR 2007476015, 2007478015 MFR # 2007478031 Superseded: see description
56. #APPLIANCE COMPONENTS RV; Rod Push RM4-6-760 MFR # 2007468008
57. #S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016
58. #S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002
59. #S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003

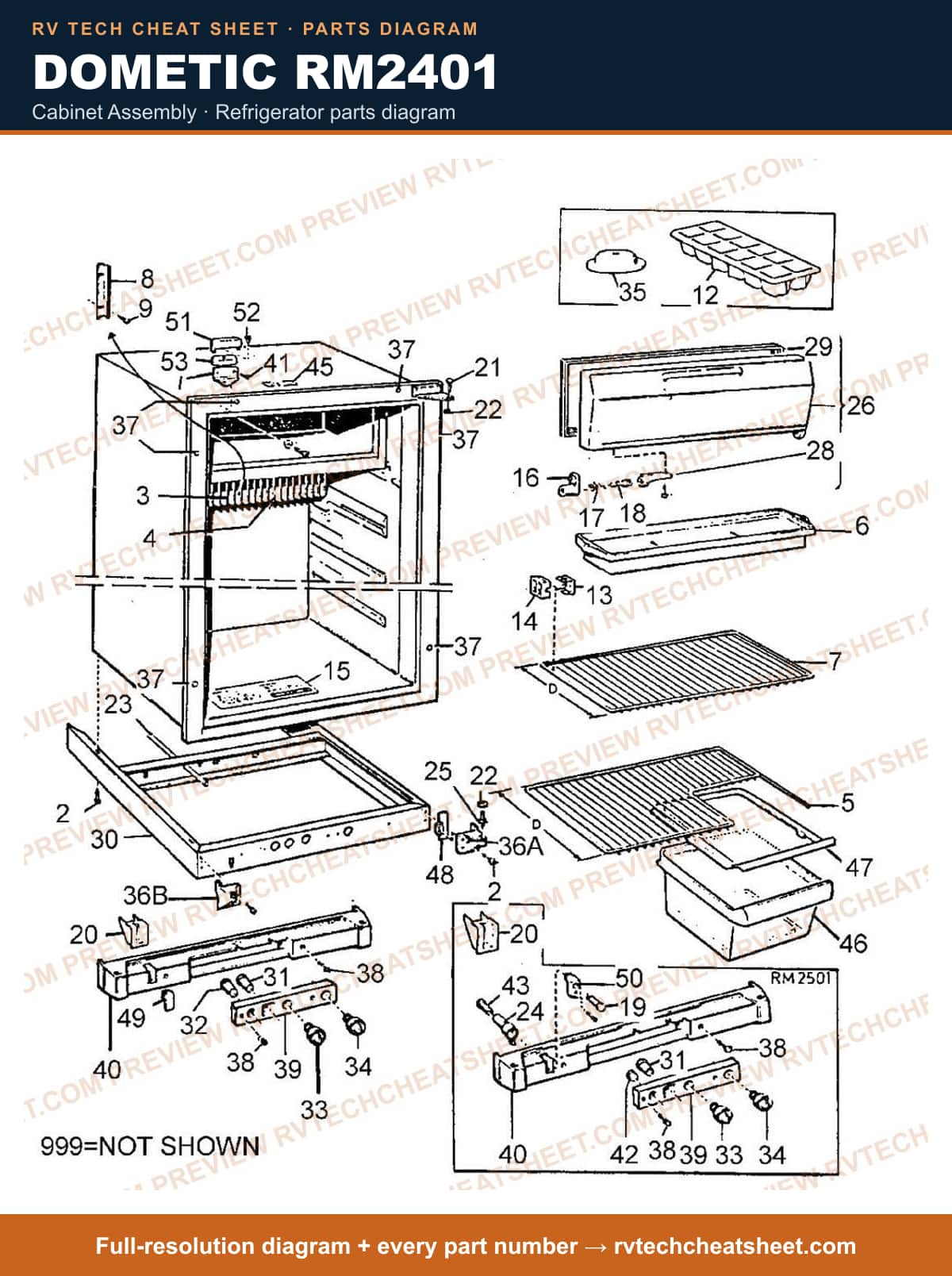

Cabinet Assembly

Components

63 items

1. #Appliance Components RV; Hinge Lh MFR # 2007621044
2. #Appliance Components RV; Hinge Rh MFR # 2007622059
3. #NO PART # GIVEN BY VENDOR MFR # NPG
4. #Appliance Components RV; Flange Cooling MFR # 2007394006
5. #SCREW MFR # 7295414119
6. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
7. #S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011
8. #Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
10. #SHELF, 9.5" X 17 7/8" MFR # 2002652242
11. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
12. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
13. #SCREW USE 7295344407 MFR # 7295344118 Superseded: see description
14. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
15. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
16. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
17. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
18. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
19. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
20. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
21. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
22. #Spring, Freezer Door RH MFR # 2002237010
23. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
24. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
25. #Lamp, Pilot Use 2932810019 MFR # 2007675008 Superseded: see description
26. #Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019
27. #Retainer, Lamp MFR # 2930557000
28. #RETAINER,LAMP USE 2930557000 MFR # 2930557018 Superseded: see description
29. #Pin, Hinge Upper MFR # 2930612003
30. #Appliance Components RV; Sleeve Protector RM130 MFR # 2007673003
31. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
32. #S,LID,FRZ,RM2510 MFR # 2002239289
33. #Door, Freezer MFR # 2002239222
34. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
35. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
36. #Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088
37. #Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Knob T-Stat Use 200748015 MFR # 2007480193 Superseded: see description
39. #S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185
40. #Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177
41. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
42. #APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000
43. #APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008
44. #APPLIANCE COMPONENTS RV; Plug Masking MFR # 2930132051
45. #APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058
46. #Appliance Components RV; Base Front Grey/Brown MFR # 2930591173
47. #Base Front MFR # 2930591165
48. #Plug, Grey/Brown MFR # 2007662022
49. #1 Sealing Sleeve MFR # 2007626OO
50. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
51. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
52. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Cover Crisper Use 2002727 MFR # 2002727010 Superseded: see description
54. #PLATE, SEALING MFR # 2930696014
55. #Appliance Components RV; Plug Grey/Brown MFR # 2930083031
56. #Appliance Components RV; Socket Lamp Grey/Brown MFR # 2007674019
57. #Appliance Components RV; Cover Dn1070 Brown Grey MFR # 2931110015
58. #SCREW,LATCH 2501 MFR # 2931112011
59. #CATCH,TRAVEL BLACK MFR # 2904817018
60. #LATCH,TRAVEL USE 2904817000 RM2301 MFR # 2931140012 Superseded: see description
61. #LATCH,TRAVEL USE 2904817018 RM2301 MFR # 2904817000 Superseded: see description
62. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
63. #Latch, Travel Use 2904817000 Brown/Grey MFR # 2904817026 Superseded: see description
