Dometic RM2451 Americana Product # 921140112 Taupe Parts Diagram · Cabinet Interior

Refrigerator · 6 assemblies · 6 diagram sheets · 104 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2451 Americana Product # 921140112 Taupe RV refrigerator: 6 assemblies (Cabinet Interior, Cabinet Rear View, Burner & Controls, Replacement Refrigerator, Door Assembly and more) and 104 manufacturer part numbers. 22 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

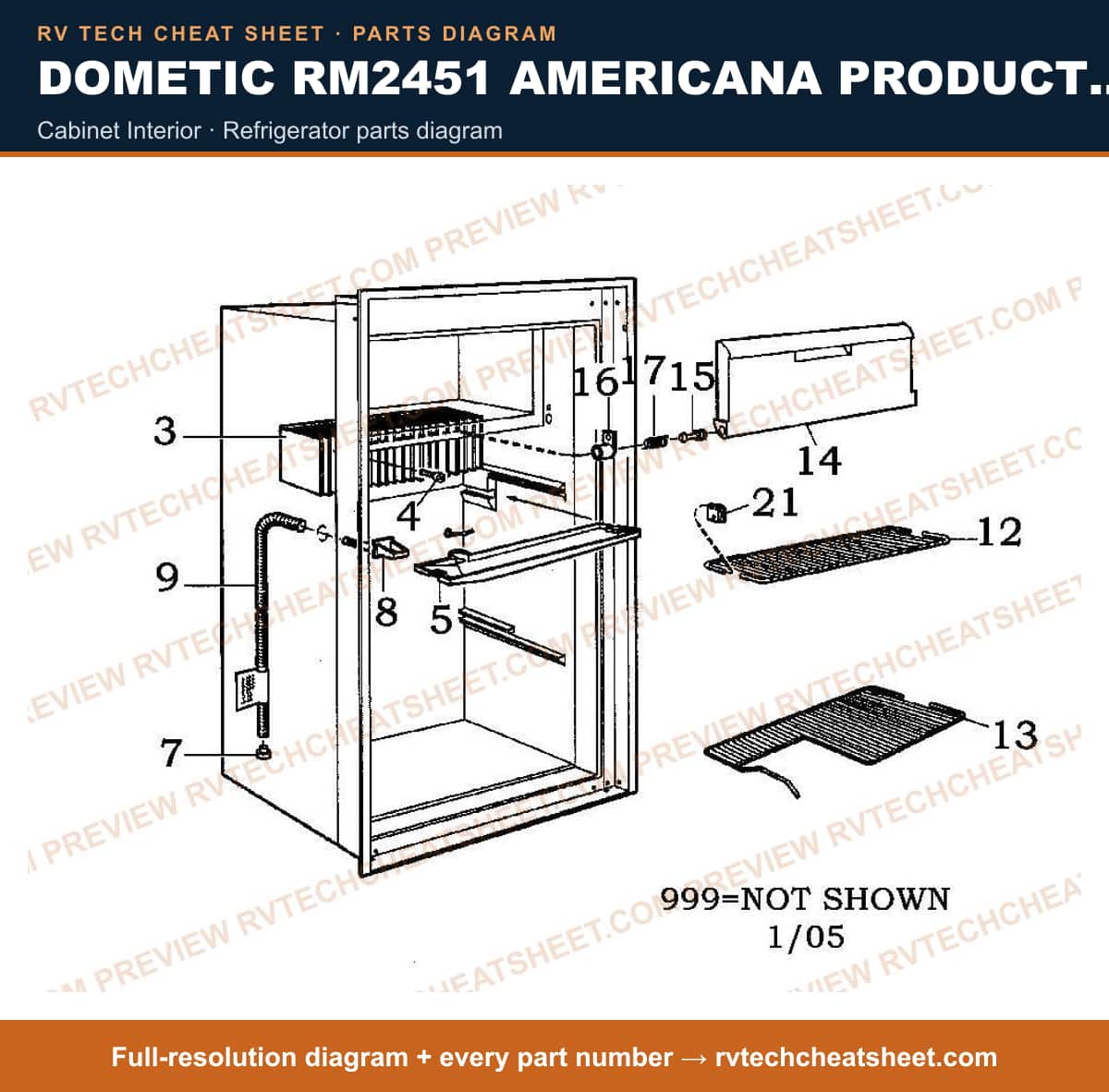

Cabinet Interior

Components

15 items

1. #Cooling Flange MFR # 2932628015
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #S,DRIP TRAY-4/5CF MFR # 2932623016
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
6. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
7. #Refrigerator Shelf; Replacement For Dometic RM2454/ RM2451 Refrigerators; Fresh Food Compartment; Wire; White MFR # 2932625060
8. #Appliance Components RV; Shelf, Milk White Wire MFR # 2932626142
9. #Refrigerator Door; Replacement For Dometic RM2451/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554 Model Refrigerator; Flap; Upper MFR # 2932650019
10. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
11. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
12. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
13. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
14. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
15. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011

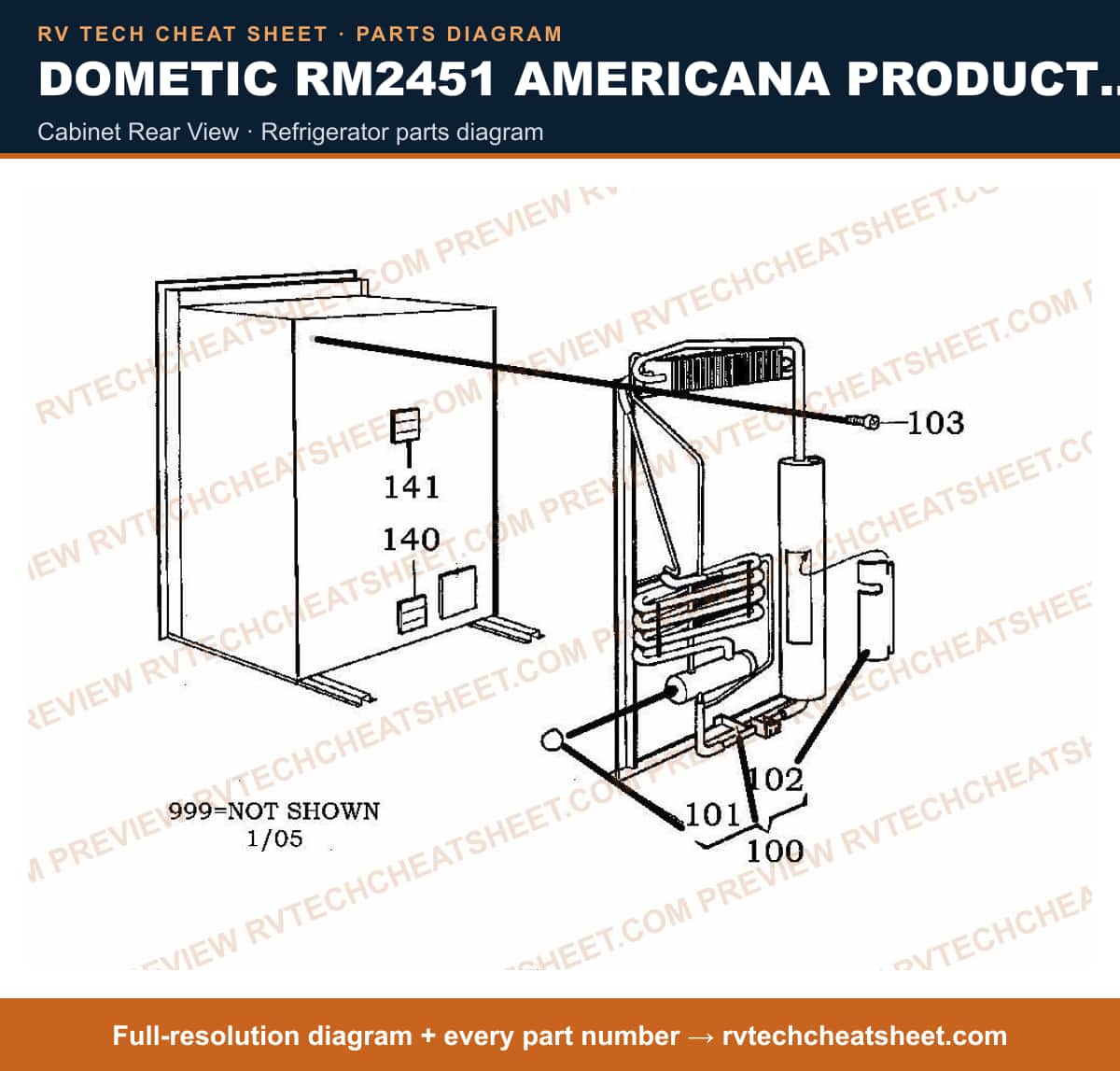

Cabinet Rear View

Components

6 items

1. #Cooling Unit # 409 MFR # 2934409091
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #SCREW DK4 X 16 PM MFR # 3858020013
5. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
6. #LABEL MFR # 3850583000

Burner & Controls

Components

42 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
4. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
5. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
6. #SCREW,RXS B6X13 ZINC MFR # 3858002151
7. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
8. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
9. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
10. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
11. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
12. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
13. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
14. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
15. #Nut, T-Couple MFR # 2801043015
16. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
17. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Black Box Board Kit 3850415.01 MFR # 385041501
18. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
19. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
20. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
21. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
22. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
23. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
24. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
25. #Appliance Components RV; Top, Flue MFR # 2930402009
26. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
27. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
28. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
29. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
30. #Conductor, Solenoid Valve MFR # 2954539033
31. #Heating Element; 175W 120V; USE 49-8743 MFR # 173771023 Superseded: see description
32. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
33. #3858022019 MFR # 3858022019
34. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
35. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
36. #Appliance Components RV; Igniter Spark MFR # 2933096014
37. #Refrigerator Switch Wiring Kit; For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator; Igniter Cable MFR # 2931360073
38. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
39. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2454/ RM2453/ RM2451 Refrigerators MFR # 2932667013
40. #Bracket, Reigniter MFR # 3850338017
41. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
42. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010

Replacement Refrigerator

Components

5 items

1. #Refrigerators & Ice Makers RV; Refr, 4CF, R, 2-Way/Blk/W/1Fan MFR # RM2451RB1F
2. #Refer, 4 Cu Ft 2 Way Beige 36 9/16"H X 23 11/16" MFR # RM2451
3. #Refrigerator / Freezer; Americana; Single Compartment Refrigerator With Freezer; Permanent; 4 Cubic Ft MFR # RM2454RB
4. #Refrigerators & Ice Makers RV; Refr, 4CF, L, 2-Way/Blk/W/1Fan MFR # RM2451LB1F
5. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 4 Cubic Foot Capacity; 37-3/8 Inch Height x 24-11/16 Inch Width x 24-7/8 Inch Depth; 110 Volt AC; 2 Way Alternating Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ Positive Lock Door Handles/ 2 Liter Bottle And 1 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2451RB

Door Assembly

Components

16 items

1. #Refrigerator Door; Use With Dometic RM2652/ RM2451 Refrigerators; Lower; Taupe MFR # 2932563121 Superseded: see description
2. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
3. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
4. #S,PLUG,UPR R/LWR L MFR # 2932682038
5. #S,PLUG,UPR L/LWR R MFR # 2932682046
6. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
7. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
8. #Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017
9. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
10. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
11. #S,DR DECOR,FRZ,BRN MFR # 3850381017
12. #Appliance Components RV; Strip, Decoration MFR # 3850919014
13. #Refrigerator Trim; Replacement For Dometic RM2453/ RM2652/ RM2852/ RM2551/ RM2454/ RM2652/ RM2451 Model Refrigerator; Decoration Trim; Brown MFR # 3850381330
14. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
15. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model RM2852 Americana; Right To Left And Left To Right Reverse Door Hinge MFR # 293275002 Superseded: see description
16. #Appliance Components RV; Hinge Kit Left To Right MFR # 293275003

Cabinet Exterior

Components

21 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020
4. #Refrigerator Door Hinge; Replacement For Dometic RM2452/ RM3863/ NDM1062 Refrigerators; Right Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643030 Superseded: see description
5. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
6. #Refrigerator Power Selector Switch Cover; Replacement For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator MFR # 2932330018
7. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
8. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
9. #Appliance Components RV; Cover, Front MFR # 2932641018
10. #Refrigerator Support Rail Screw; Replacement For Dometic DM2652/ NDR1062/ RM2451/ RM2454/ RM2551/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872 Model Refrigerator MFR # 2930740044
11. #Decal; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2562/ DM2862/ DM3862 MFR # 2932776004 Superseded: see description
12. #Plug MFR # 3850585047
13. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
14. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
15. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
16. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
17. #Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023
18. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
19. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
20. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
21. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
