Dometic RM2451 Americana Product # 921140126 Black Parts Diagram · Door Assembly

Refrigerator · 6 assemblies · 6 diagram sheets · 103 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2451 Americana Product # 921140126 Black RV refrigerator: 6 assemblies (Door Assembly, Burner & Control, Cabinet Rear View, Cabinet Exterior, Replacement Refrigerator and more) and 103 manufacturer part numbers. 21 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

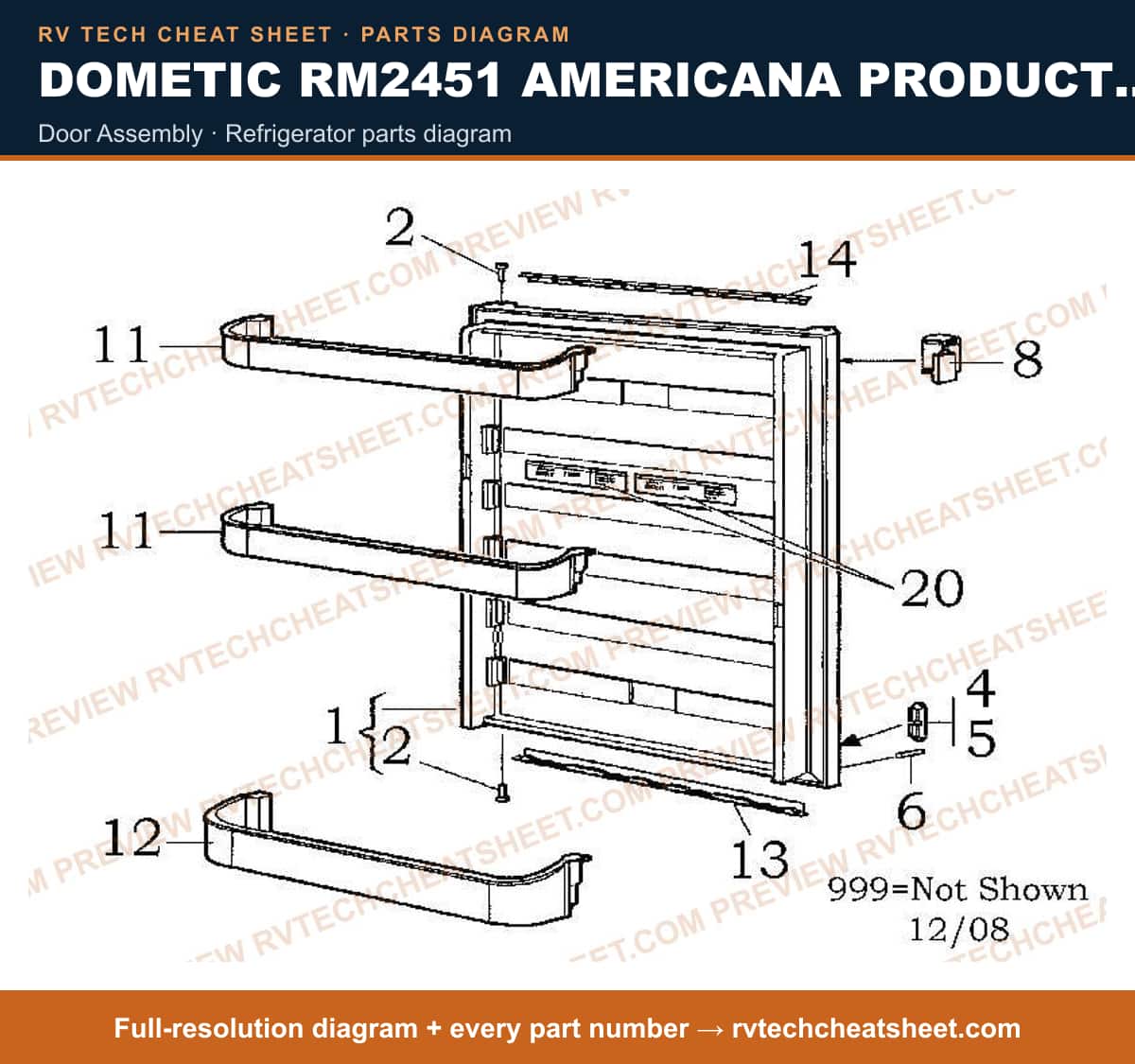

Door Assembly

Components

11 items

1. #Refrigerator Door; Use With Dometic RM2453/ RM2452/ RM2451 Refrigerators; Black MFR # 2932563139 Superseded: see description
2. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
3. #S,PLUG,UPR R/LWR L MFR # 2932682038
4. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
5. #S, REFRIGERATOR DOOR HANDLE, BLACK-4/5CF MFR # 2932670025
6. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
7. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
8. #Refrigerator Trim; Replacement For Dometic Refrigerator Door Liner; Black MFR # 3850919022
9. #Refrigerator Trim; Replacement For Dometic Refrigerator Door Liner; Black; Also Use New Number 3850919097 MFR # 3850919063 Superseded: see description
10. #Refrigerator Trim; Replacement For Dometic Refrigerator Door Liner; Black MFR # 3850919097
11. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008

Burner & Control

Components

38 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
9. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
10. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
11. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
12. #ELECTRODE MFR # 2932781012
13. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
14. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
15. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # 385071201
16. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Power Supply Circuit Board; Also Use New Number 3316996.900 MFR # 3850712013 Superseded: see description
17. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
18. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
19. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 41 Inch Length; Also Use New Number 38510590422 MFR # 3851059034 Superseded: see description
20. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,GAS VALVE,2WAY MFR # 2954539041
21. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
22. #Appliance Components RV; Top, Flue MFR # 2930402009
23. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
24. #Refrigerator Interface Circuit Board; Fits Dometic Refrigerators Models RM2354 Americana/ RM2351 Americana MFR # 2954542060
25. #APPLIANCE COMPONENTS RV; ELEMENT, HEATING 175W 120 MFR # 3850644455
26. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
27. #3858022019 MFR # 3858022019
28. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
29. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
30. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
31. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2454/ RM2453/ RM2451 Refrigerators MFR # 2932667013
32. #2002699094 MFR # 2002699094
33. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
34. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
35. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
36. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
37. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
38. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024

Cabinet Rear View

Components

6 items

1. #Cooling Unit # 409 MFR # 2934409091
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #SCREW 4.8 X 16 MFR # 3858068012
5. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
6. #LABEL MFR # 3850583000

Cabinet Exterior

Components

29 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #S,BRACKET,LH,BLK MFR # 2932644038
4. #Refrigerator Door Hinge; Replacement For Dometic RM2452/ RM3863/ NDM1062 Refrigerators; Right Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643030 Superseded: see description
5. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
6. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
7. #Refrigerator Power Selector Switch Cover; Replacement For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator MFR # 2932330018
8. #Refrigerator Eyebrow Power Control Circuit Board;;Replacement For Dometic Refrigerators; 2 Way Cont MFR # 2932771021
9. #EYEBROW DISPLAY BOARD, 2W, BLACK F/DM2X52 & RM2X51 MFR # 2932771039
10. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
11. #APPLIANCE COMPONENTS RV; FRONT,BLACK MFR # 2932641034
12. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
13. #Decal; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2562/ DM2862/ DM3862 MFR # 2932776004 Superseded: see description
14. #PLUG,BLACK MFR # 3850585039
15. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
16. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
17. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
18. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
19. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
20. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
21. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
22. #LABEL MFR # 2933180016
23. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
24. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
25. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
26. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
27. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
28. #Appliance Components RV; Reversing Kit, Door Black MFR # 293275014
29. #Trailer Wheel Bearing; Use With 1.378 Inch Out Diameter Axles; Tapered Roller Bearing; With Inner Bearing L-68149; Pack Of 2; Clamshell Pack; Folding Carton Package MFR # 2932750132 Superseded: see description

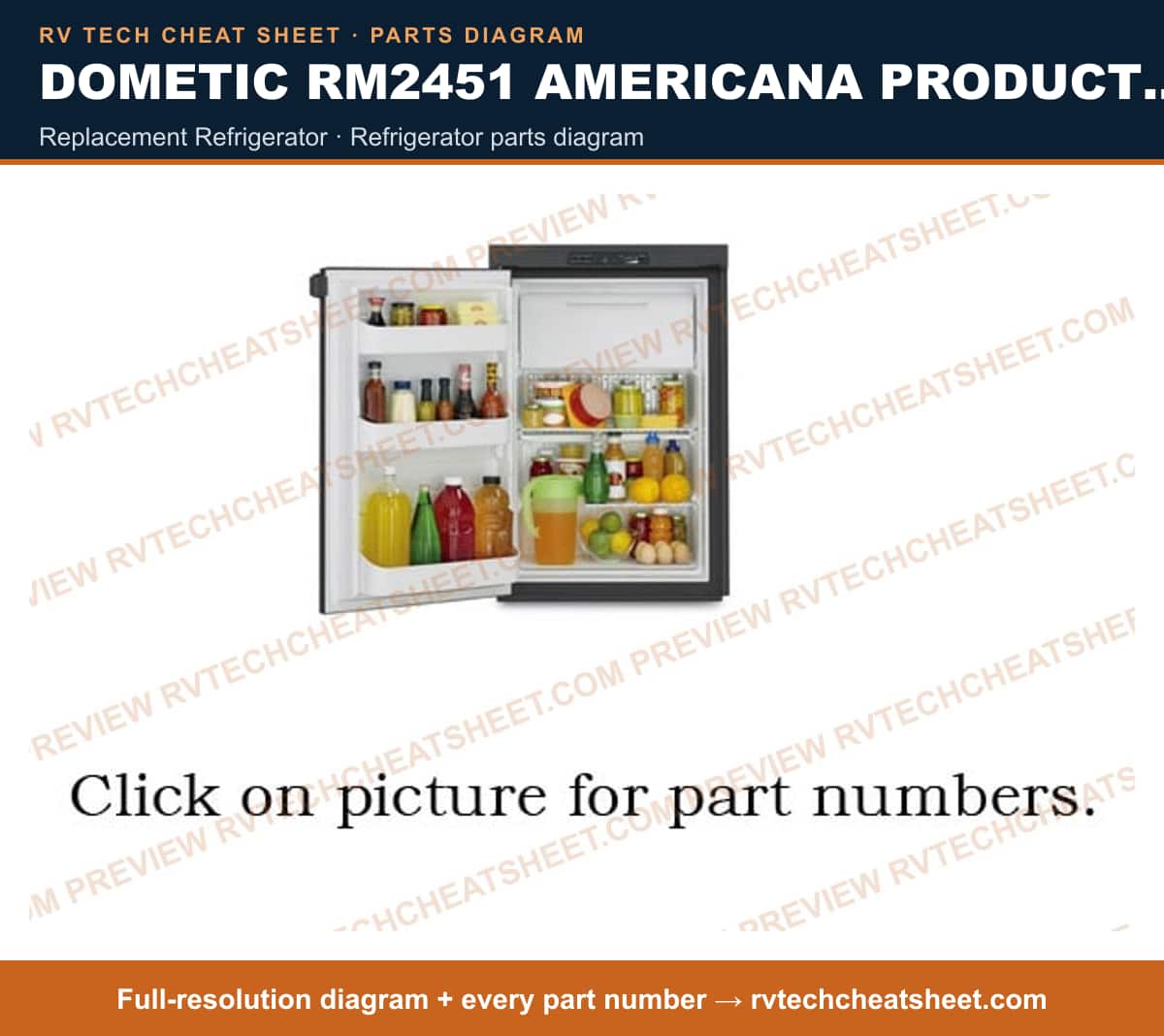

Replacement Refrigerator

Components

5 items

1. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 4 Cubic Foot Capacity; 37-3/8 Inch Height x 24-11/16 Inch Width x 24-7/8 Inch Depth; 110 Volt AC; 2 Way Alternating Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ Positive Lock Door Handles/ 2 Liter Bottle And 1 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2451RB
2. #Refrigerators & Ice Makers RV; Refr, 4CF, L, 2-Way/Blk/W/1Fan MFR # RM2451LB1F
3. #Refer, 4 Cu Ft 2 Way Beige 36 9/16"H X 23 11/16" MFR # RM2451
4. #Refrigerator / Freezer; Americana; Single Compartment Refrigerator With Freezer; Permanent; 4 Cubic Ft MFR # RM2454RB
5. #Refrigerators & Ice Makers RV; Refr, 4CF, R, 2-Way/Blk/W/1Fan MFR # RM2451RB1F

Cabinet Interior

Components

15 items

1. #Cooling Flange MFR # 2932628015
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #S,DRIP TRAY-4/5CF MFR # 2932623016
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
6. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
7. #Refrigerator Shelf; Replacement For Dometic RM2454/ RM2451 Refrigerators; Fresh Food Compartment; Wire; White MFR # 2932625060
8. #Appliance Components RV; Shelf, Milk White Wire MFR # 2932626142
9. #Refrigerator Door; Replacement For Dometic RM2451/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554 Model Refrigerator; Flap; Upper MFR # 2932650019
10. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
11. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
12. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
13. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
14. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
15. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011
