Dometic RM2452 Americana Product # 921140101 Brown Parts Diagram · Door Assm

Refrigerator · 7 assemblies · 8 diagram sheets · 141 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2452 Americana Product # 921140101 Brown RV refrigerator: 7 assemblies (Door Assm, Burner & Controls, Vibration Suppression Kit, Rear View, Replacement Refrigerator and more) and 141 manufacturer part numbers. 36 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assm

Components

21 items

1. #DOOR, LOWER USE 2932563121 MFR # 2932563113 Superseded: see description
2. #TAPE, GASKET KIT 1/32" X 3/4" X 18' MFR # 6141
3. #Refrigerator Door; Use With Dometic RM2652/ RM2451 Refrigerators; Lower; Taupe MFR # 2932563121 Superseded: see description
4. #GASKET TAPE 100" USE 6141 SINGLE DOOR REFER MFR # TAPE1 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Gasket Kit Door RM2452/ MFR # 3108708391
6. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
7. #Refrigerator Door; Use With Dometic Refrigerator Model RM2652 Americana; Fits Lower Door Left Hand Side MFR # 2932682012 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Plug Decoration Rh MFR # 2932682020
9. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
10. #S,DR DECOR,FRZ,BRN MFR # 3850381017
11. #Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description
12. #Appliance Components RV; Strip, Decoration MFR # 3850919014
13. #APPLIANCE COMPONENTS RV; STRIP, DECORATION MFR # 3850381041
14. #STRIP, DECO USE 3850381041 W/LOGO MFR # 2932642040 Superseded: see description
15. #Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017
16. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
17. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
18. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
19. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
20. #HINGE KIT USE 293275002 RIGHT TO LEFT MFR # 3106922002 Superseded: see description
21. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model RM2852 Americana; Right To Left And Left To Right Reverse Door Hinge MFR # 293275002 Superseded: see description

Burner & Controls

Components

65 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
4. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RG1350/ RM2353 Refrigerators MFR # 2932591015
5. #NIPPLE MFR # 2931338012
6. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
7. #Thermostat Housing Bolt; Use With Dometic RM2352/ RM2353 Refrigerators MFR # 2954070005 Superseded: see description
8. #Refrigerator Cooling Fan Thermostat; Replacement For Dometic Refrigerator Models RM2332-926695201/ RM2333-926695401/ RM2333-926695801/ RM2352-921145002/ RM2352-921145004/ RM2352-921145009/ RM2352-921145013/ RM2352-921145015/ RM2352-921145018/ RM2352-921145019/ RM2353-921145003/ RM2353-921145005/ RM2353-921145011/ RM2353-921145014/ RM2353-921145016/ RM2353-921145020/ RM2353-921145021/ RM2452-921140101/ RM2452-921140102/ RM2452-921140107/ RM2452-921140108/ RM2453-921140103/ RM2453-921140104/ RM2453-921140109/ RM2453-921140110/ RM2552-921142001/ RM2552-921142002/ RM2553-921142003/ RM2553-921142004 MFR # 2931336016MC
9. #THERMOSTAT MFR # 2931336016
10. #T-STAT USE 2931336016 MFR # V61P0121000 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932619014
12. #PROTECTION PLATE MFR # 2932599018
13. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
14. #APPLIANCE COMPONENTS RV; Bracket Shutoff Valve MFR # 2932062017
15. #INTERRUPTER MFR # 2955033002
16. #Refrigerator Gas Valve Adapter Fitting; Use On Dometic Refrigerator Models RM2330/ RM2350/ RM4601 MFR # 2955033002MC Superseded: see description
17. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
18. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
19. #SCREW M4 X 10 S MFR # 7241289615
20. #Appliance Components RV; Panel Control 2-Way MFR # 2932600030
21. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
22. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
23. #S,PIEZO IGNITER,W/NUT,RM2352 MFR # 2931796011
24. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
25. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
26. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
27. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
28. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
29. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
30. #Screw; Replacement For Dometic RM2452/ RM7030/ RM2333 Refrigerator Models; Gas Valve Screw; M4 x 25; Zinc MFR # 7241297618
31. #APPLIANCE COMPONENTS RV; Valve Manual Gas MFR # 2932617018
32. #Refrigerator Power Selector Switch; Replacement For Dometic RM2353/ RG1350/ RM2552 Refrigerators MFR # 2932614015
33. #Refrigerator Bushing; Replacement For Dometic RM2353/ RG1350 Refrigerators; For Power Selector Switch MFR # 2932602010
34. #GAS TUBE MFR # 2932618016
35. #APPLIANCE COMPONENTS RV; Valve Shut Off MFR # 2932616010
36. #APPLIANCE COMPONENTS RV; NIPPLE MFR # 2931227017
37. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2453/ RM2552/ RM2553 Model Refrigerator; Thermocouple Extension MFR # 2932726033
38. #Thermocouple; Replacement For Dometic RM2453/ RM2452 Refrigerators; Probe Sensor MFR # 2932726025
39. #Nut, T-Couple MFR # 2801043015
40. #GAS TUBE MFR # 2932620012
41. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
42. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RM2453/ RM2552/ RM2453/ RM2352/ RM253/ RG1350/ RM2604 Model Refrigerator MFR # 2930488008
43. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
44. #BUTTON, PUSH MFR # 2932596014
45. #APPLIANCE COMPONENTS RV; Knob T-Stat 2 1/2" MFR # 2932605013
46. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM2552/ RM2553/ RM2452 Refrigerators; 1 Inch Diameter MFR # 2932607019
47. #SPRING MFR # 2932593011
48. #GUIDING DEVICE MFR # 2932595016
49. #Refrigerator Door Latch Spring; Replacement For Dometic RG1350/ RM2453/ RM2552 Model Refrigerator MFR # 2932594019
50. #Refrigerator Power Selector Switch Cover; Use With Dometic RM2352/ RM2353 Model Refrigerators MFR # 2954023004 Superseded: see description
51. #APPLIANCE COMPONENTS RV; INDICATOR, FLAME MFR # 2955037011
52. #APPLIANCE COMPONENTS RV; ELEMENT, HEATING 175W 120 MFR # 3850644455
53. #Appliance Components RV; Element Heating 120Vac 17 MFR # 173771015
54. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
55. #CABLE, COMPLETE MFR # 2954427023
56. #Appliance Components RV; Block Terminal MFR # 2932592013
57. #Appliance Components RV; Cover MFR # 2932609015
58. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
59. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
60. #APPLIANCE COMPONENTS RV; WIRE, ELECTRODE MFR # 2931360032
61. #STRIP, TERMINAL 6 POS. MFR # 2930327008
62. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2454/ RM2453/ RM2451 Refrigerators MFR # 2932667013
63. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
64. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
65. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

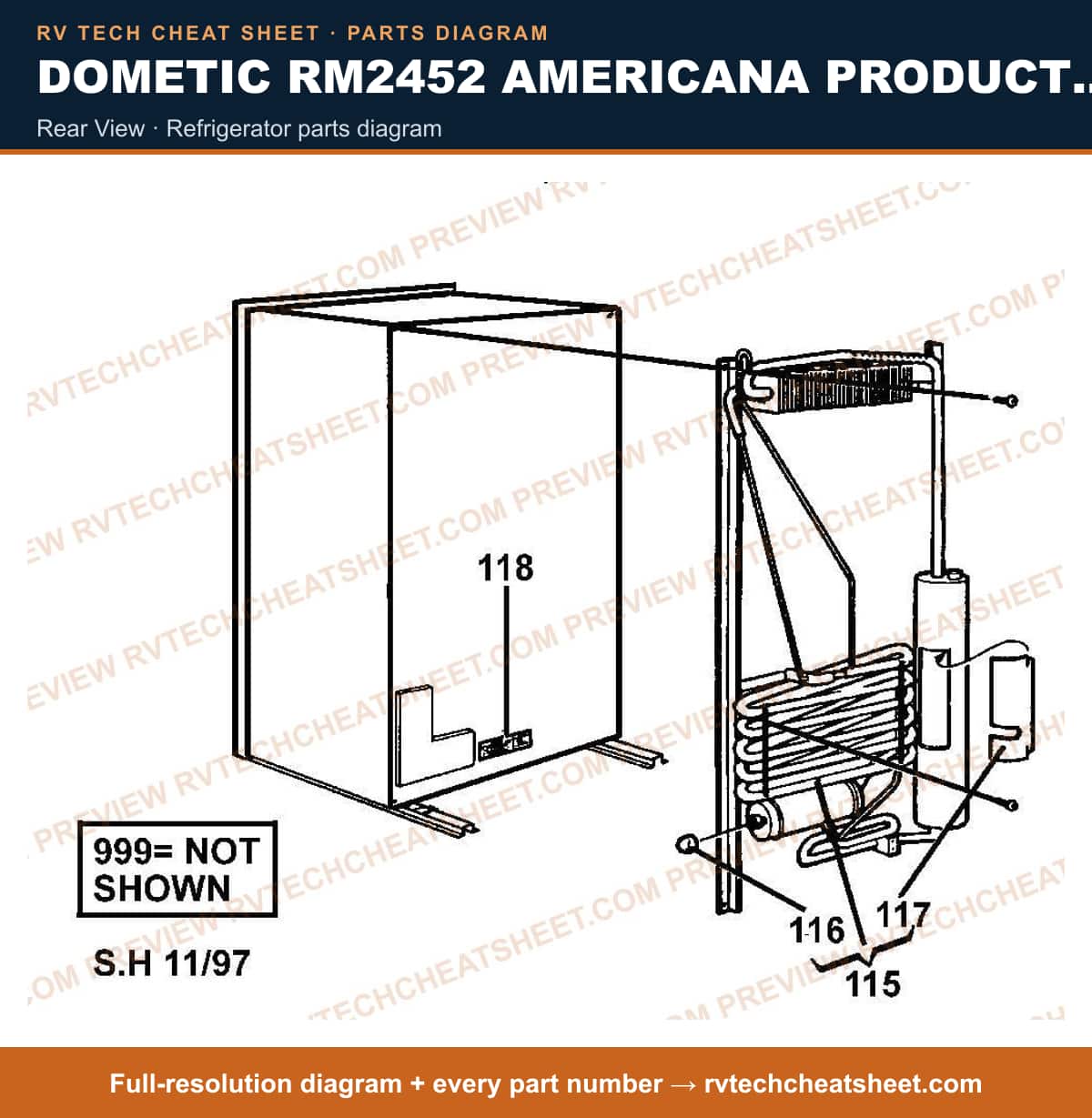

Rear View

Components

12 items

1. #REMAN COOLING UNIT MFR # 2934405099R
2. #Refrigerator Cooling Unit; Use With Dometic Refrigerator Model RM2452 Americana MFR # 2934405099N Superseded: see description
3. #Refrigerator Cooling Unit; Use With Dometic RM2452/ RM2453 Model Refrigerators MFR # 5542 Superseded: see description
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
6. #LABEL MFR # 3850583000
7. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
8. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
9. #CLIP, HOSE DRAIN CONDENSATION MFR # 3106590015
10. #MASTIC USE 2943397006 (504); FOR C/U SEALER USE ALT# 311COMPOUND MFR # 310COMPOUND Superseded: see description
11. #SCREW DK4 X 16 PM MFR # 3858020013
12. #MASTIC MFR # 2943397006

Replacement Refrigerator

Components

7 items

1. #Refer, 4 Cu Ft 2 Way Beige 36 9/16"H X 23 11/16" MFR # RM2451
2. #REFER, 4 CU.FT BLK USE RM2451B 2-WAY MFR # RM2452B Superseded: see description
3. #REFER, 4 CU.FT USE RM2451 2-WAY MFR # RM2452N Superseded: see description
4. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N410UL
5. #REFER, 4.5 CU FT 2 W USE N410U MFR # N400N Superseded: see description
6. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 4 Cubic Foot Capacity; 37-3/8 Inch Height x 24-11/16 Inch Width x 24-7/8 Inch Depth; 110 Volt AC; 2 Way Alternating Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ Positive Lock Door Handles/ 2 Liter Bottle And 1 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2451RB
7. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer; DIMENSIONS: 36-9/16" H X 23-11/16" W X 24" D; REPLACES: IS A USE # FOR N400N MFR # N410UR Superseded: see description

Cabinet Exterior

Components

21 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020
4. #Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022
5. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
6. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Cover Top Trim MFR # 2932640010
8. #SIGN PLATE MFR # 2932677004
9. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
10. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
11. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
12. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
13. #LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description
14. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
15. #Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023
16. #SCREW MFR # 7241283014
17. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
18. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
19. #PLUG MFR # 2932742014
20. #Hinge Kit L to R; Use 293275003 RM2453, RM3862 MFR # 3106922010 Superseded: see description
21. #Appliance Components RV; Hinge Kit Left To Right MFR # 293275003

Cabinet Interior

Components

14 items

1. #Cooling Flange MFR # 2932628015
2. #S,DRIP TRAY-4/5CF MFR # 2932623016
3. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
4. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
5. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
6. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 2932625052
7. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 2932626134
8. #Refrigerator Door; Replacement For Dometic RM2451/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554 Model Refrigerator; Flap; Upper MFR # 2932650019
9. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
10. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
11. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
12. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
13. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
14. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011
