Dometic RM2453 Americana Product # 921140103 Brown Parts Diagram · Replacement Refrigerator

Refrigerator · 7 assemblies · 7 diagram sheets · 147 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2453 Americana Product # 921140103 Brown RV refrigerator: 7 assemblies (Replacement Refrigerator, Vibration Suppression Kit, Cabinet Interior, Cabinet Exterior, Cabinet Rear View and more) and 147 manufacturer part numbers. 32 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

6 items

1. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UR
2. #REFER, 4 CU FT BL USE RM2454B 36 9/16 X 23 11/16 X 24 MFR # RM2453B Superseded: see description
3. #REFER USE 72-4906 OR 72-4907 N400.3 MFR # N4003N Superseded: see description
4. #REFER, 4 CU FT 3-W USE RM2454 36 9/16 X 23 11/16 X 24 MFR # RM2453N Superseded: see description
5. #REFER, 4 CU FT 3-WAY TAUPE 36 9/16 X 23 11/16 X 24 MFR # RM2454
6. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UL

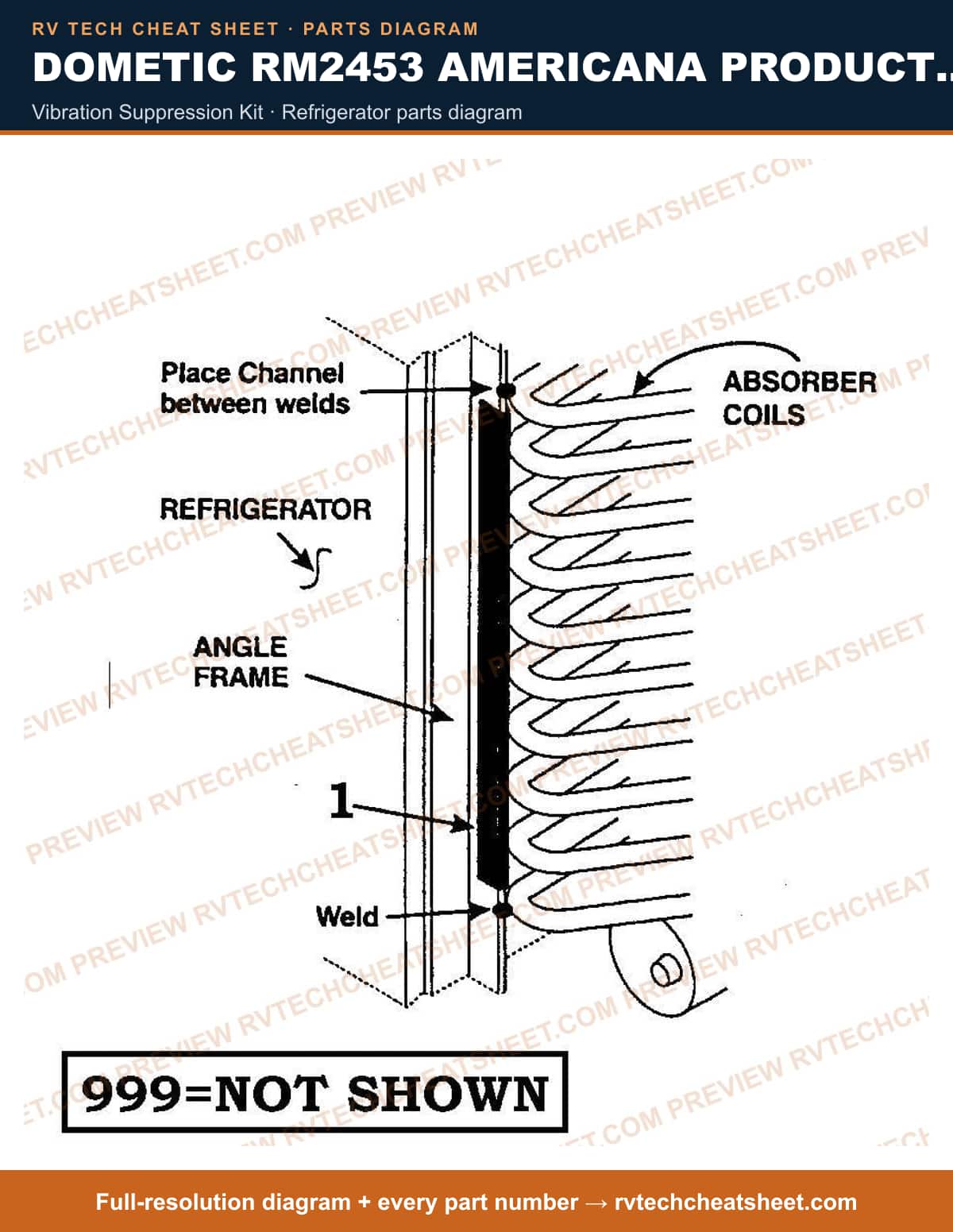

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

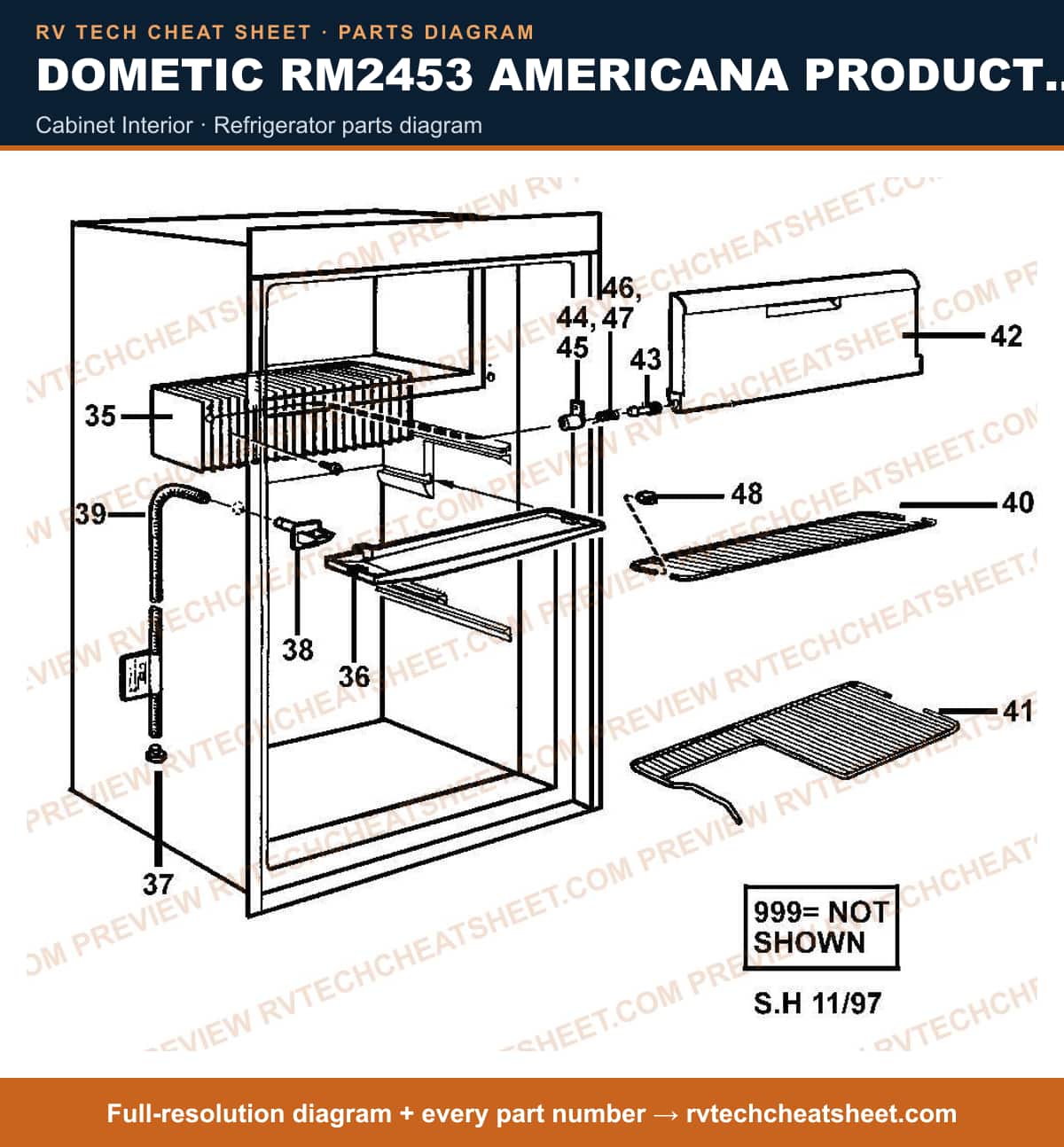

Cabinet Interior

Components

14 items

1. #Cooling Flange MFR # 2932628015
2. #S,DRIP TRAY-4/5CF MFR # 2932623016
3. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
4. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
5. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
6. #Refrigerator Shelf; Replacement For Dometic RM2454/ RM2451 Refrigerators; Fresh Food Compartment; Wire; White MFR # 2932625060
7. #Appliance Components RV; Shelf, Milk White Wire MFR # 2932626142
8. #Refrigerator Door; Replacement For Dometic RM2451/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554 Model Refrigerator; Flap; Upper MFR # 2932650019
9. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
10. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
11. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
12. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
13. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
14. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011

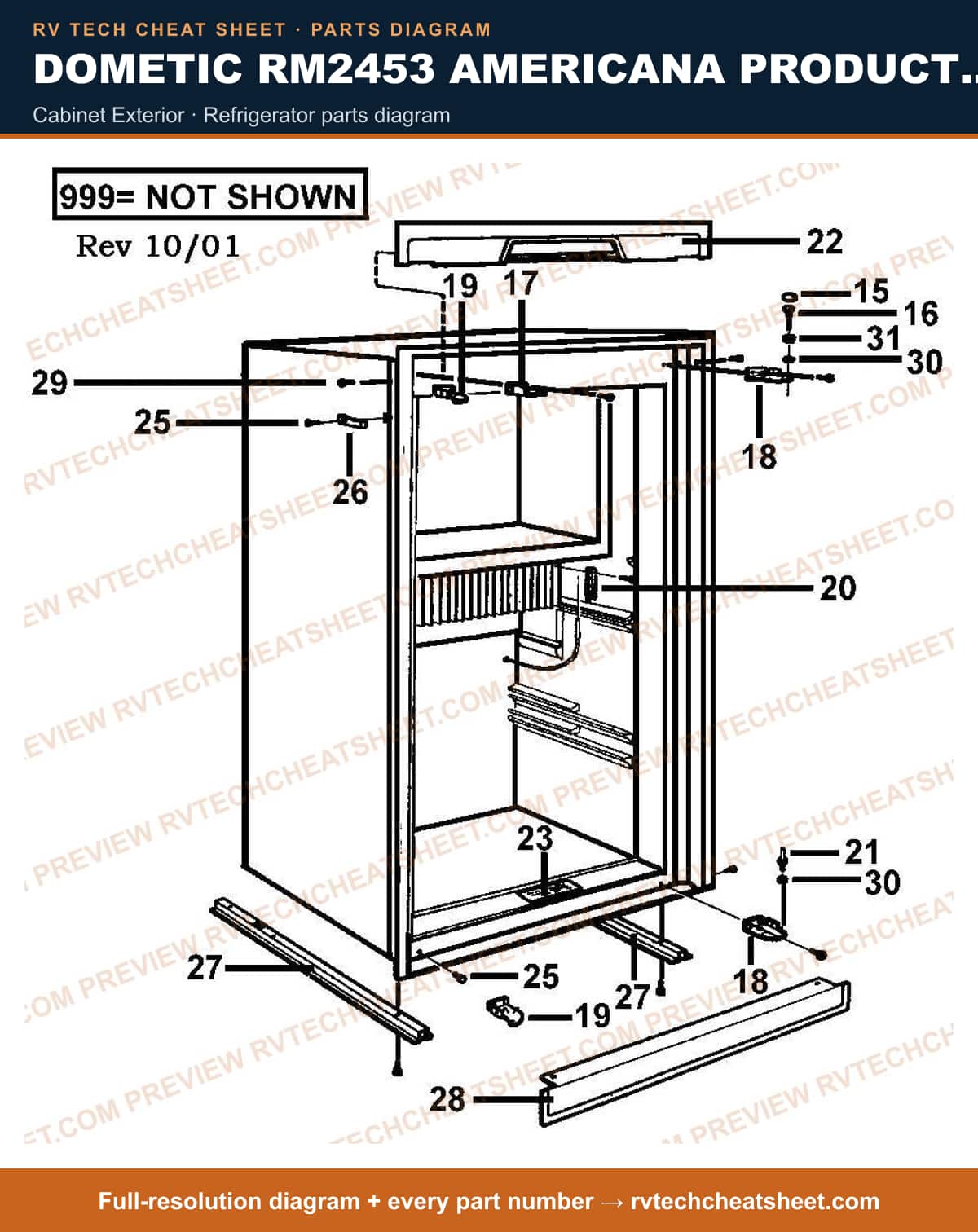

Cabinet Exterior

Components

23 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020
4. #Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022
5. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
6. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Cover Top Trim MFR # 2932640010
8. #SIGN PLATE MFR # 2932677004
9. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
11. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
12. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
13. #LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description
14. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
15. #Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023
16. #SCREW MFR # 7241283014
17. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
18. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
19. #Refrigerator Cooling Fan Thermostat; Replacement For Dometic Refrigerator Models RM2332-926695201/ RM2333-926695401/ RM2333-926695801/ RM2352-921145002/ RM2352-921145004/ RM2352-921145009/ RM2352-921145013/ RM2352-921145015/ RM2352-921145018/ RM2352-921145019/ RM2353-921145003/ RM2353-921145005/ RM2353-921145011/ RM2353-921145014/ RM2353-921145016/ RM2353-921145020/ RM2353-921145021/ RM2452-921140101/ RM2452-921140102/ RM2452-921140107/ RM2452-921140108/ RM2453-921140103/ RM2453-921140104/ RM2453-921140109/ RM2453-921140110/ RM2552-921142001/ RM2552-921142002/ RM2553-921142003/ RM2553-921142004 MFR # 2931336016MC
20. #T-STAT USE 2931336016 MFR # V61P0121000 Superseded: see description
21. #THERMOSTAT MFR # 2931336016
22. #PLUG MFR # 2932742014
23. #Appliance Components RV; Hinge Kit Left To Right MFR # 293275003

Cabinet Rear View

Components

11 items

1. #Refrigerator Cooling Unit; Use With Dometic RM2452/ RM2453 Model Refrigerators MFR # 5542 Superseded: see description
2. #Refrigerator Cooling Unit; Use With Dometic Refrigerator Model RM2452 Americana MFR # 2934405099N Superseded: see description
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
6. #CLIP, HOSE DRAIN CONDENSATION MFR # 3106590015
7. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
8. #LABEL MFR # 3850583000
9. #MASTIC MFR # 2943397006
10. #SCREW DK4 X 16 PM MFR # 3858020013
11. #MASTIC USE 2943397006 (504); FOR C/U SEALER USE ALT# 311COMPOUND MFR # 310COMPOUND Superseded: see description

Burner & Controls

Components

72 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
3. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
4. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RG1350/ RM2353 Refrigerators MFR # 2932591015
5. #NIPPLE MFR # 2931338012
6. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
7. #Thermostat Housing Bolt; Use With Dometic RM2352/ RM2353 Refrigerators MFR # 2954070005 Superseded: see description
8. #Refrigerator Cooling Fan Thermostat; Replacement For Dometic Refrigerator Models RM2332-926695201/ RM2333-926695401/ RM2333-926695801/ RM2352-921145002/ RM2352-921145004/ RM2352-921145009/ RM2352-921145013/ RM2352-921145015/ RM2352-921145018/ RM2352-921145019/ RM2353-921145003/ RM2353-921145005/ RM2353-921145011/ RM2353-921145014/ RM2353-921145016/ RM2353-921145020/ RM2353-921145021/ RM2452-921140101/ RM2452-921140102/ RM2452-921140107/ RM2452-921140108/ RM2453-921140103/ RM2453-921140104/ RM2453-921140109/ RM2453-921140110/ RM2552-921142001/ RM2552-921142002/ RM2553-921142003/ RM2553-921142004 MFR # 2931336016MC
9. #THERMOSTAT MFR # 2931336016
10. #T-STAT USE 2931336016 MFR # V61P0121000 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932619014
12. #PROTECTION PLATE MFR # 2932599018
13. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
14. #APPLIANCE COMPONENTS RV; Bracket Shutoff Valve MFR # 2932062017
15. #INTERRUPTER MFR # 2955033002
16. #Refrigerator Gas Valve Adapter Fitting; Use On Dometic Refrigerator Models RM2330/ RM2350/ RM4601 MFR # 2955033002MC Superseded: see description
17. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
18. #SCREW M4 X 10 S MFR # 7241289615
19. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
20. #Appliance Components RV; Panel Control 2-Way MFR # 2932600030
21. #Panel, Control 3-Way MFR # 2932600014
22. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
23. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
24. #S,PIEZO IGNITER,W/NUT,RM2352 MFR # 2931796011
25. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
26. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
27. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
28. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
29. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
30. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
31. #Screw; Replacement For Dometic RM2452/ RM7030/ RM2333 Refrigerator Models; Gas Valve Screw; M4 x 25; Zinc MFR # 7241297618
32. #APPLIANCE COMPONENTS RV; Valve Manual Gas MFR # 2932617018
33. #Refrigerator Power Selector Switch; Replacement For Dometic RM2353/ RG1350/ RM2552 Refrigerators MFR # 2932614015
34. #Refrigerator Bushing; Replacement For Dometic RM2353/ RG1350 Refrigerators; For Power Selector Switch MFR # 2932602010
35. #GAS TUBE MFR # 2932618016
36. #APPLIANCE COMPONENTS RV; Valve Shut Off MFR # 2932616010
37. #APPLIANCE COMPONENTS RV; NIPPLE MFR # 2931227017
38. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2453/ RM2552/ RM2553 Model Refrigerator; Thermocouple Extension MFR # 2932726033
39. #Thermocouple; Replacement For Dometic RM2453/ RM2452 Refrigerators; Probe Sensor MFR # 2932726025
40. #Nut, T-Couple MFR # 2801043015
41. #GAS TUBE MFR # 2932620012
42. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
43. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RM2453/ RM2552/ RM2453/ RM2352/ RM253/ RG1350/ RM2604 Model Refrigerator MFR # 2930488008
44. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
45. #BUTTON, PUSH MFR # 2932596014
46. #APPLIANCE COMPONENTS RV; Knob T-Stat 2 1/2" MFR # 2932605013
47. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM2552/ RM2553/ RM2452 Refrigerators; 1 Inch Diameter MFR # 2932607019
48. #SPRING MFR # 2932593011
49. #GUIDING DEVICE MFR # 2932595016
50. #Refrigerator Door Latch Spring; Replacement For Dometic RG1350/ RM2453/ RM2552 Model Refrigerator MFR # 2932594019
51. #Refrigerator Power Selector Switch Cover; Use With Dometic RM2352/ RM2353 Model Refrigerators MFR # 2954023004 Superseded: see description
52. #APPLIANCE COMPONENTS RV; INDICATOR, FLAME MFR # 2955037011
53. #APPLIANCE COMPONENTS RV; ELEMENT, HEATING 175W 120 MFR # 3850644455
54. #Appliance Components RV; Element Heating 120Vac 17 MFR # 173771015
55. #ELEMENT, HTG. USE 173739012 175WATT 12V MFR # 173739061 Superseded: see description
56. #Igniter Electrode; Replacement For Dometic RM661/ RM2453/ RM2453/ RM2553 Refrigerators; 175 Watt; 12 Volt; Dual Electrode MFR # 173739012
57. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
58. #CABLE, COMPLETE MFR # 2954427023
59. #Appliance Components RV; Block Terminal MFR # 2932592013
60. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
61. #3858022019 MFR # 3858022019
62. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
63. #Decal; Replacement For Dometic RM2453/ RM2552 Refrigerators; Rectangular MFR # 2932597012
64. #Appliance Components RV; Cover MFR # 2932609015
65. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
66. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
67. #APPLIANCE COMPONENTS RV; WIRE, ELECTRODE MFR # 2931360032
68. #STRIP, TERMINAL 6 POS. MFR # 2930327008
69. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2454/ RM2453/ RM2451 Refrigerators MFR # 2932667013
70. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
71. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
72. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description

Door Assm

Components

23 items

1. #APPLIANCE COMPONENTS RV; Gasket Kit Door RM2452/ MFR # 3108708391
2. #Refrigerator Door; Use With Dometic RM2652/ RM2451 Refrigerators; Lower; Taupe MFR # 2932563121 Superseded: see description
3. #GASKET TAPE 100" USE 6141 SINGLE DOOR REFER MFR # TAPE1 Superseded: see description
4. #TAPE, GASKET KIT 1/32" X 3/4" X 18' MFR # 6141
5. #DOOR, LOWER USE 2932563121 MFR # 2932563113 Superseded: see description
6. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
7. #Refrigerator Door; Use With Dometic Refrigerator Model RM2652 Americana; Fits Lower Door Left Hand Side MFR # 2932682012 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Plug Decoration Rh MFR # 2932682020
9. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
10. #Refrigerator Trim; Replacement For Dometic RM2453/ RM2652/ RM2852/ RM2551/ RM2454/ RM2652/ RM2451 Model Refrigerator; Decoration Trim; Brown MFR # 3850381330
11. #S,DR DECOR,FRZ,BRN MFR # 3850381017
12. #Appliance Components RV; Strip, Decoration MFR # 3850919014
13. #Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017
14. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
15. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
16. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
17. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
18. #Decal, French MFR # 3850581004
19. #PANEL, DOOR BLACK ACRYLIC FOR RM2452/2453 MFR # 3106863057C
20. #Refrigerator Door Panel; Fits Dometic Refrigerator 2452 Series; Black; Acrylic MFR # RM2452L
21. #PANELS, DOOR WOODGRAIN MFR # RM2452G
22. #PANEL, DOOR WOODGRAIN FOR RM2452/2453 MFR # 3106863057B
23. #Refrigerator Door Panel; Fits Dometic Refrigerator 2453 Series; Woodgrain MFR # RM2453G
