Dometic RM2453 Americana Product # 921140109 Black Parts Diagram · Burner & Controls

Refrigerator · 7 assemblies · 7 diagram sheets · 148 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2453 Americana Product # 921140109 Black RV refrigerator: 7 assemblies (Burner & Controls, Rear View, Door Assm, Vibration Suppression Kit, Cabinet Exterior and more) and 148 manufacturer part numbers. 33 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Burner & Controls

Components

68 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
3. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
4. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RG1350/ RM2353 Refrigerators MFR # 2932591015
5. #NIPPLE MFR # 2931338012
6. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
7. #Thermostat Housing Bolt; Use With Dometic RM2352/ RM2353 Refrigerators MFR # 2954070005 Superseded: see description
8. #T-STAT USE 2931336016 MFR # V61P0121000 Superseded: see description
9. #Refrigerator Cooling Fan Thermostat; Replacement For Dometic Refrigerator Models RM2332-926695201/ RM2333-926695401/ RM2333-926695801/ RM2352-921145002/ RM2352-921145004/ RM2352-921145009/ RM2352-921145013/ RM2352-921145015/ RM2352-921145018/ RM2352-921145019/ RM2353-921145003/ RM2353-921145005/ RM2353-921145011/ RM2353-921145014/ RM2353-921145016/ RM2353-921145020/ RM2353-921145021/ RM2452-921140101/ RM2452-921140102/ RM2452-921140107/ RM2452-921140108/ RM2453-921140103/ RM2453-921140104/ RM2453-921140109/ RM2453-921140110/ RM2552-921142001/ RM2552-921142002/ RM2553-921142003/ RM2553-921142004 MFR # 2931336016MC
10. #THERMOSTAT MFR # 2931336016
11. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932619014
12. #PROTECTION PLATE MFR # 2933150019
13. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
14. #APPLIANCE COMPONENTS RV; Bracket Shutoff Valve MFR # 2932062017
15. #INTERRUPTER MFR # 2955033002
16. #Refrigerator Gas Valve Adapter Fitting; Use On Dometic Refrigerator Models RM2330/ RM2350/ RM4601 MFR # 2955033002MC Superseded: see description
17. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
18. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
19. #SCREW M4 X 10 S MFR # 7241289615
20. #Appliance Components RV; Panel Control 2-Way MFR # 2932600030
21. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
22. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
23. #S,PIEZO IGNITER,W/NUT,RM2352 MFR # 2931796011
24. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
25. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
26. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
27. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
28. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
29. #Screw; Replacement For Dometic RM2452/ RM7030/ RM2333 Refrigerator Models; Gas Valve Screw; M4 x 25; Zinc MFR # 7241297618
30. #APPLIANCE COMPONENTS RV; Valve Manual Gas MFR # 2932617018
31. #Refrigerator Power Selector Switch; Replacement For Dometic RM2353/ RG1350/ RM2552 Refrigerators MFR # 2932614015
32. #Refrigerator Bushing; Replacement For Dometic RM2353/ RG1350 Refrigerators; For Power Selector Switch MFR # 2932602010
33. #GAS TUBE MFR # 2932618016
34. #APPLIANCE COMPONENTS RV; Valve Shut Off MFR # 2932616010
35. #APPLIANCE COMPONENTS RV; NIPPLE MFR # 2931227017
36. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2453/ RM2552/ RM2553 Model Refrigerator; Thermocouple Extension MFR # 2932726033
37. #Thermocouple; Replacement For Dometic RM2453/ RM2452 Refrigerators; Probe Sensor MFR # 2932726025
38. #Nut, T-Couple MFR # 2801043015
39. #GAS TUBE MFR # 2932620012
40. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
41. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RM2453/ RM2552/ RM2453/ RM2352/ RM253/ RG1350/ RM2604 Model Refrigerator MFR # 2930488008
42. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
43. #Button, Push Black MFR # 2932596030
44. #Appliance Components RV; Knob T-Stat Black MFR # 2932605047
45. #Knob, Gas Valve Black MFR # 2932607043
46. #SPRING MFR # 2932593011
47. #GUIDING DEVICE MFR # 2932595016
48. #Refrigerator Door Latch Spring; Replacement For Dometic RG1350/ RM2453/ RM2552 Model Refrigerator MFR # 2932594019
49. #Refrigerator Power Selector Switch Cover; Use With Dometic RM2352/ RM2353 Model Refrigerators MFR # 2954023004 Superseded: see description
50. #APPLIANCE COMPONENTS RV; INDICATOR, FLAME MFR # 2955037011
51. #Appliance Components RV; Element Heating 120Vac 17 MFR # 173771015
52. #APPLIANCE COMPONENTS RV; ELEMENT, HEATING 175W 120 MFR # 3850644455
53. #ELEMENT, HTG. USE 173739012 175WATT 12V MFR # 173739061 Superseded: see description
54. #Refrigerator Cooling Unit Heater Element; 12 Volt; 1 Wire; 14.6 Amp; 175 Watt; 3/8 Inch Diameter x 5 Inch Length With A 90 Degree Bend MFR # 0173739012
55. #Element, Heating 120V 210W MFR # CH000026
56. #Element, Heating 175W/12V 1Wire 3/8 x 5 MFR # TTCCH000186
57. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
58. #CABLE, COMPLETE MFR # 2954427023
59. #Appliance Components RV; Block Terminal MFR # 2932592013
60. #Appliance Components RV; Cover MFR # 2932609015
61. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
62. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
63. #APPLIANCE COMPONENTS RV; WIRE, ELECTRODE MFR # 2931360032
64. #STRIP, TERMINAL 6 POS. MFR # 2930327008
65. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2454/ RM2453/ RM2451 Refrigerators MFR # 2932667013
66. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
67. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
68. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description

Rear View

Components

12 items

1. #REMAN COOLING UNIT MFR # 2934405099R
2. #Refrigerator Cooling Unit; Use With Dometic RM2452/ RM2453 Model Refrigerators MFR # 5542 Superseded: see description
3. #Refrigerator Cooling Unit; Use With Dometic Refrigerator Model RM2452 Americana MFR # 2934405099N Superseded: see description
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
6. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
7. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
8. #LABEL MFR # 3850583000
9. #MASTIC MFR # 2943397006
10. #CLIP, HOSE DRAIN CONDENSATION MFR # 3106590015
11. #MASTIC USE 2943397006 (504); FOR C/U SEALER USE ALT# 311COMPOUND MFR # 310COMPOUND Superseded: see description
12. #SCREW DK4 X 16 PM MFR # 3858020013

Door Assm

Components

19 items

1. #S,PLUG,UPR L/LWR R MFR # 2932682046
2. #S,PLUG,UPR R/LWR L MFR # 2932682038
3. #GASKET TAPE 100" USE 6141 SINGLE DOOR REFER MFR # TAPE1 Superseded: see description
4. #TAPE, GASKET KIT 1/32" X 3/4" X 18' MFR # 6141
5. #APPLIANCE COMPONENTS RV; Gasket Kit Door RM2452/ MFR # 3108708391
6. #Refrigerator Door; Use With Dometic RM2453/ RM2452/ RM2451 Refrigerators; Black MFR # 2932563139 Superseded: see description
7. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
8. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
9. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
10. #Refrigerator Trim; Replacement For Dometic RM2662/ RM2852/ RM2652/ NDM1062 Model Refrigerators; Black; With Logo MFR # 3850381322
11. #Refrigerator Trim; Replacement Decoration Trim; Black MFR # 3850381165
12. #S, REFRIGERATOR DOOR HANDLE, BLACK-4/5CF MFR # 2932670025
13. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
14. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
15. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
16. #Decal, French MFR # 3850581004
17. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
18. #HINGE KIT USE 293275002 RIGHT TO LEFT MFR # 3106922002 Superseded: see description
19. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model RM2852 Americana; Right To Left And Left To Right Reverse Door Hinge MFR # 293275002 Superseded: see description

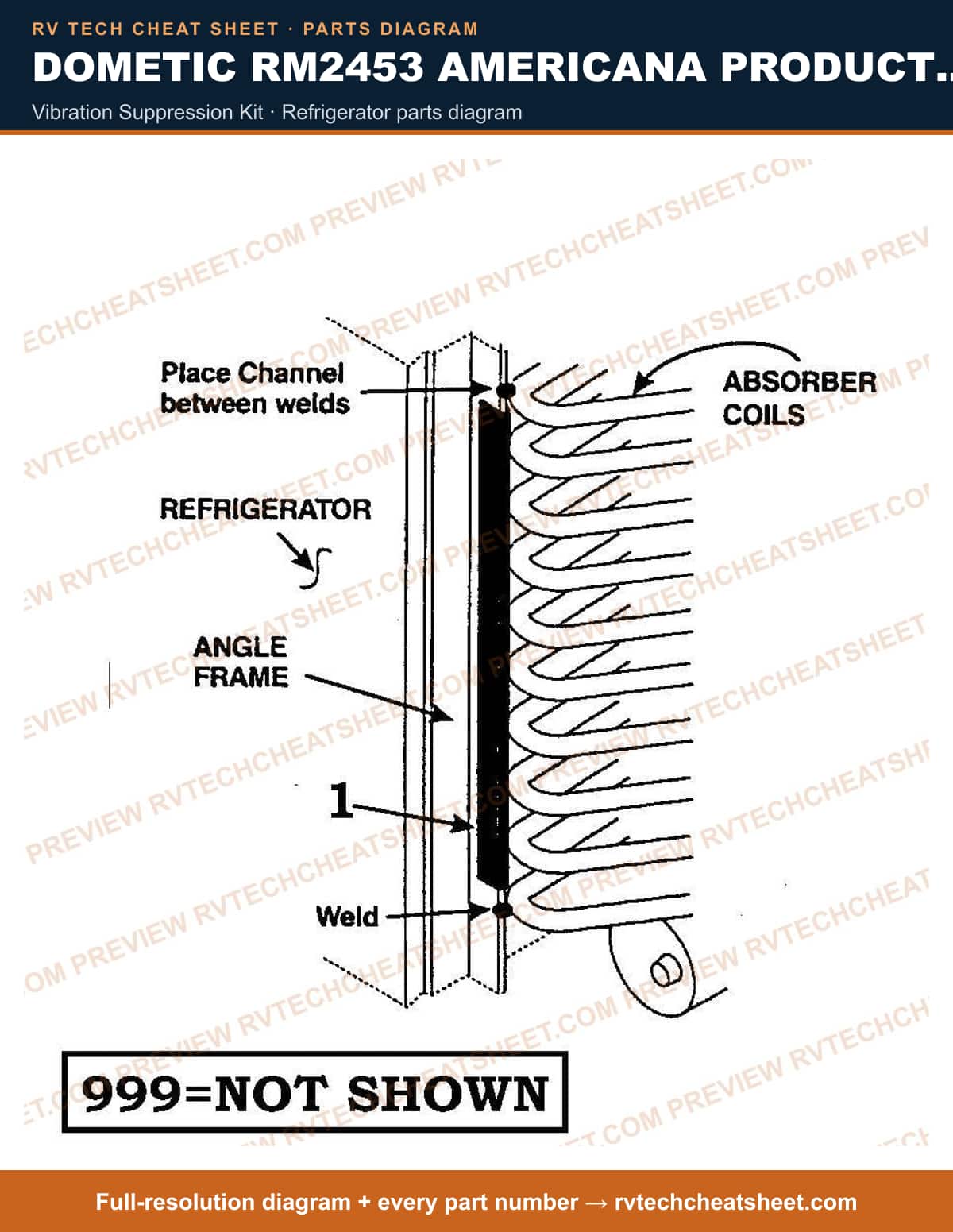

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

Cabinet Exterior

Components

31 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
3. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
4. #APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020
5. #Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022
6. #Refrigerator Door Hinge; Replacement For Dometic DM2652/ RM2852 Refrigerators; Left Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643048 Superseded: see description
7. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
8. #SCREW, RXS B8 4.2X16 MFR # 3858002276
9. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
10. #Front, Black MFR # 2932640044
11. #SIGN PLATE MFR # 2932677004
12. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
13. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
14. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
15. #PLUG,BLACK MFR # 3850585039
16. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
17. #LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description
18. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
19. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
20. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
21. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
22. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
23. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
25. #Appliance Components RV; Hinge Kit Left To Right MFR # 293275003
26. #Washer; Use With Dometic Refrigerators; Zinc Plated; 5.5 x 12 x 1; Zinc Plated MFR # 3858010089 Superseded: see description
27. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
28. #Hinge Kit L to R; Use 293275003 RM2453, RM3862 MFR # 3106922010 Superseded: see description
29. #PLUG MFR # 2932742014
30. #Door Reversal Kit; LH to RH Black MFR # 2932750140
31. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description

Replacement Refrigerator

Components

4 items

1. #REFER USE 72-4906 OR 72-4907 N400.3 MFR # N4003N Superseded: see description
2. #Refrigerator / Freezer; Americana; Single Compartment Refrigerator With Freezer; Permanent; 4 Cubic Ft MFR # RM2454RB
3. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UR
4. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UL

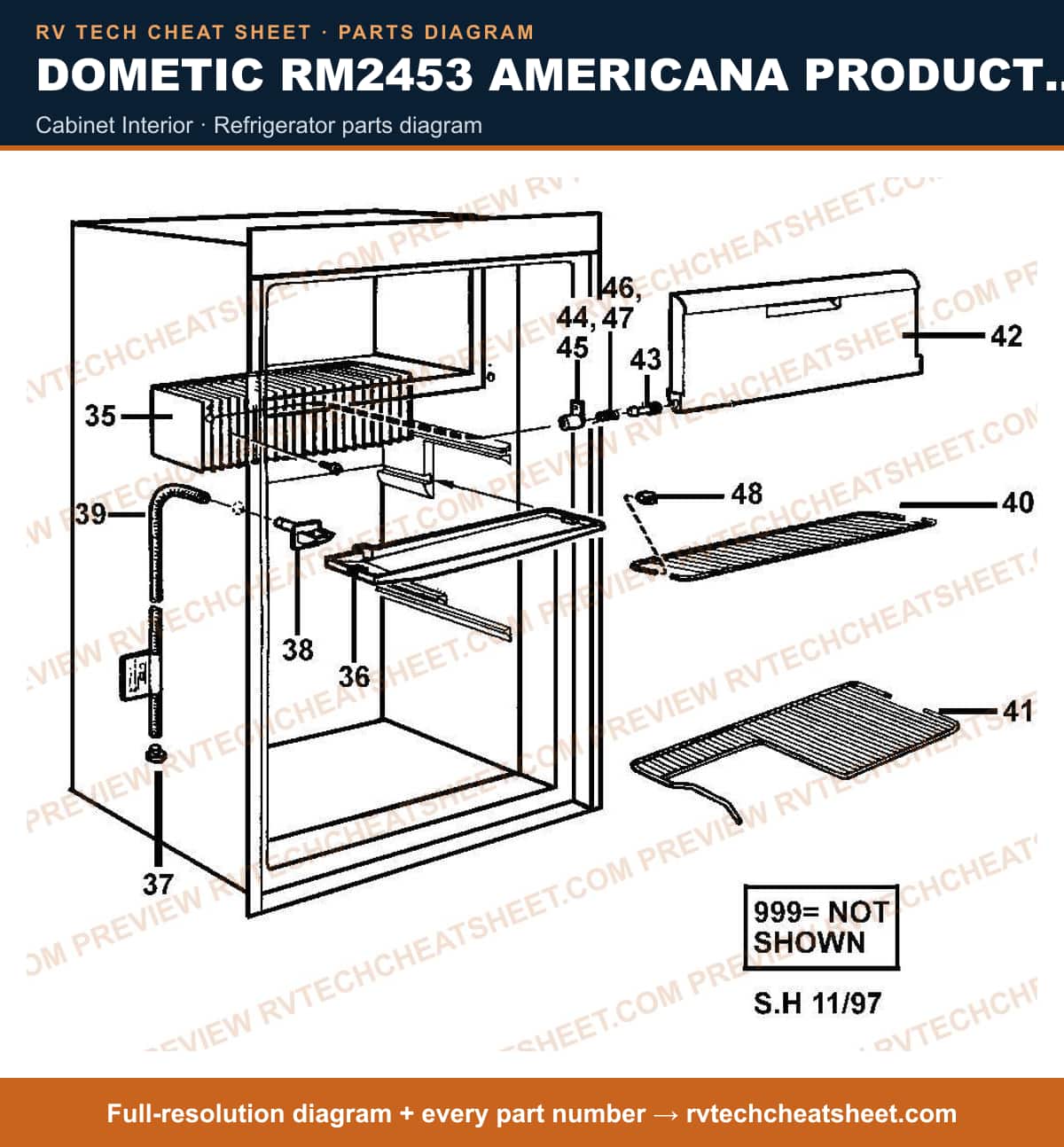

Cabinet Interior

Components

14 items

1. #Cooling Flange MFR # 2932628015
2. #S,DRIP TRAY-4/5CF MFR # 2932623016
3. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
4. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
5. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
6. #Refrigerator Shelf; Replacement For Dometic RM2454/ RM2451 Refrigerators; Fresh Food Compartment; Wire; White MFR # 2932625060
7. #Appliance Components RV; Shelf, Milk White Wire MFR # 2932626142
8. #Refrigerator Door; Replacement For Dometic RM2451/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554 Model Refrigerator; Flap; Upper MFR # 2932650019
9. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
10. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
11. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
12. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
13. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
14. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011
