Dometic RM2454 Americana Product # 921140119 Black Parts Diagram · Door Assembly

Refrigerator · 6 assemblies · 6 diagram sheets · 112 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2454 Americana Product # 921140119 Black RV refrigerator: 6 assemblies (Door Assembly, Cabinet Rear View, Replacement Refrigerator, Cabinet Interior, Burner & Controls and more) and 112 manufacturer part numbers. 23 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

15 items

1. #Refrigerator Door; Use With Dometic RM2453/ RM2452/ RM2451 Refrigerators; Black MFR # 2932563139 Superseded: see description
2. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
3. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
4. #S,PLUG,UPR R/LWR L MFR # 2932682038
5. #S,PLUG,UPR L/LWR R MFR # 2932682046
6. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
7. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
8. #S, REFRIGERATOR DOOR HANDLE, BLACK-4/5CF MFR # 2932670025
9. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
10. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
11. #Refrigerator Trim; Replacement Decoration Trim; Black MFR # 3850381165
12. #Refrigerator Trim; Replacement For Dometic RM2662/ RM2852/ RM2652/ NDM1062 Model Refrigerators; Black; With Logo MFR # 3850381322
13. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
14. #Appliance Components RV; Reversing Kit, Door Black MFR # 293275014
15. #Appliance Components RV; Reversing Kit, Door Black MFR # 293275013

Cabinet Rear View

Components

6 items

1. #Cooling Unit # 409 MFR # 2934409091
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #SCREW DK4 X 16 PM MFR # 3858020013
5. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
6. #LABEL MFR # 3850583000

Replacement Refrigerator

Components

5 items

1. #Refrigerator / Freezer; Americana; Single Compartment Refrigerator With Freezer; Permanent; 4 Cubic Ft MFR # RM2454RB
2. #Refrigerator/Freezer; Americana; Single Compartment Refrigerator With Freezer, Permanent, 4 Cubic Ft MFR # RM2454RB1F
3. #Refrigerator/Freezer; Americana; Single Compartment Refrigerator With Freezer, Permanent MFR # RM2454LB1F
4. #Refrigerator Door Panel; Fits Dometic Refrigerator 2453 Series, Woodgrain MFR # 2453G
5. #Refrigerator Door Panel; Fits Dometic Refrigerator 2452 Series, Black, Acrylic MFR # 2452L

Cabinet Interior

Components

15 items

1. #Cooling Flange MFR # 2932628015
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #S,DRIP TRAY-4/5CF MFR # 2932623016
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
6. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
7. #Refrigerator Shelf; Replacement For Dometic RM2454/ RM2451 Refrigerators; Fresh Food Compartment; Wire; White MFR # 2932625060
8. #Appliance Components RV; Shelf, Milk White Wire MFR # 2932626142
9. #Refrigerator Door; Replacement For Dometic RM2451/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554 Model Refrigerator; Flap; Upper MFR # 2932650019
10. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
11. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
12. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
13. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
14. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
15. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011

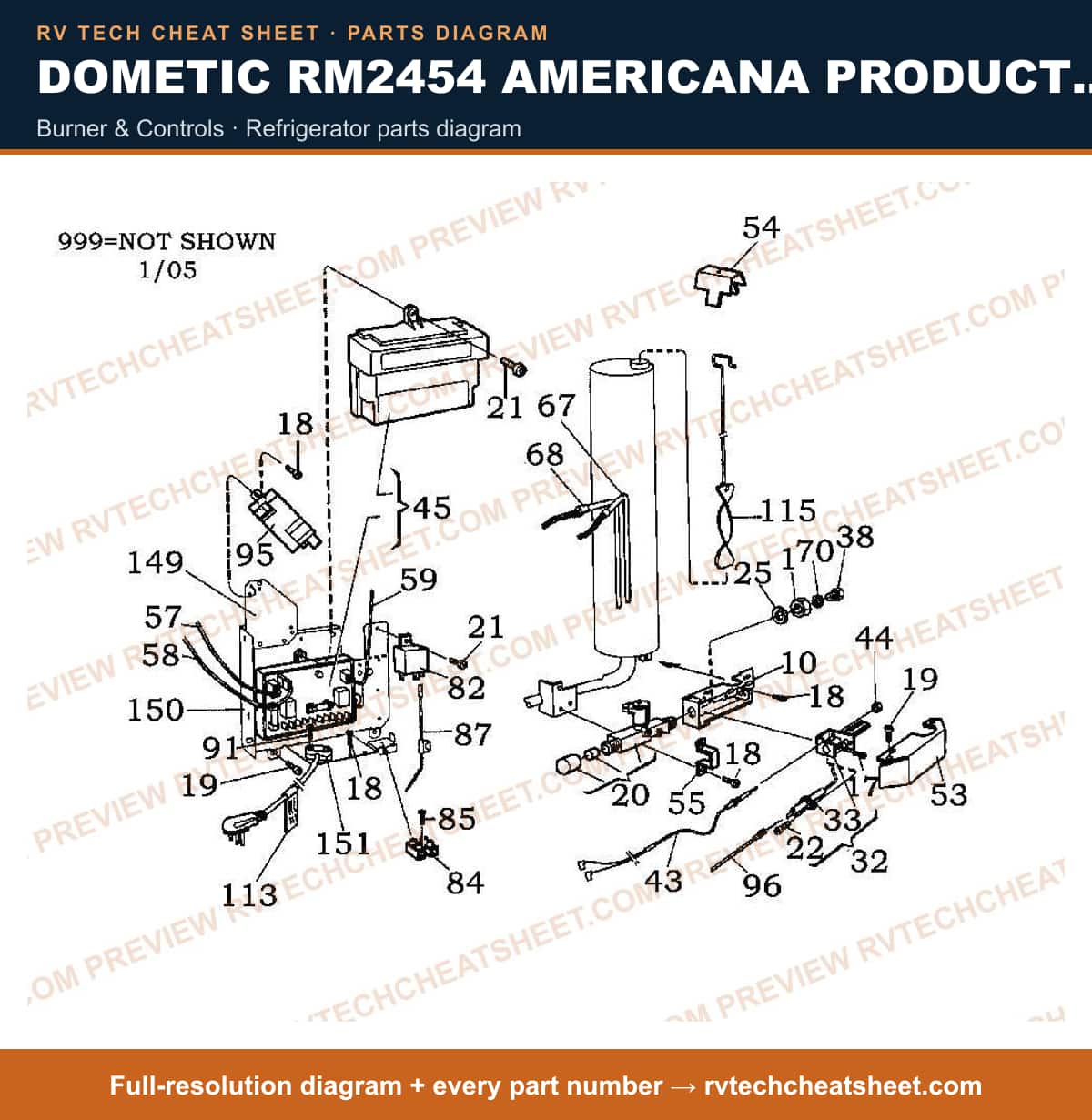

Burner & Controls

Components

48 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
9. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
10. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
11. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
12. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
13. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
14. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
15. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
16. #Nut, T-Couple MFR # 2801043015
17. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Black Box Board Kit 3850415.01 MFR # 385041501
18. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
19. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
20. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
21. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
22. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
23. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
24. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
25. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
26. #Appliance Components RV; Top, Flue MFR # 2930402009
27. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
28. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
29. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
30. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
31. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
32. #Conductor, Gas Solenoid Valve MFR # 2954540023
33. #Heating Element; 175W 120V; USE 49-8743 MFR # 173771023 Superseded: see description
34. #Appliance Components RV; Element Heating 175W 12V MFR # 173739079
35. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
36. #APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006
37. #Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description
38. #3858022019 MFR # 3858022019
39. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
40. #Wire With Fuse MFR # 2954553018
41. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
42. #Appliance Components RV; Igniter Spark MFR # 2933096014
43. #Refrigerator Switch Wiring Kit; For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator; Igniter Cable MFR # 2931360073
44. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
45. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2454/ RM2453/ RM2451 Refrigerators MFR # 2932667013
46. #Bracket, Reigniter MFR # 3850338017
47. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
48. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010

Cabinet Exterior

Components

24 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #S,BRACKET,LH,BLK MFR # 2932644038
4. #Refrigerator Door Hinge; Replacement For Dometic RM2452/ RM3863/ NDM1062 Refrigerators; Right Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643030 Superseded: see description
5. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
6. #Refrigerator Power Selector Switch Cover; Replacement For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator MFR # 2932330018
7. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description
8. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
9. #APPLIANCE COMPONENTS RV; FRONT,BLACK MFR # 2932641034
10. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
11. #INSTRUCTION SIGN PLATE MFR # 2932436005
12. #PLUG,BLACK MFR # 3850585039
13. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
14. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
15. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
16. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
17. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
18. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
19. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
20. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
21. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
22. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
23. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
24. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
