Dometic RM2500 Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 153 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2500 RV refrigerator: 5 assemblies (Door Assembly, Replacement Refrigerator, Cooling Unit, Cabinet Asm, Gas-electric) and 153 manufacturer part numbers. 38 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

22 items

1. #APPLIANCE COMPONENTS RV; Door RM2501 MFR # 2930923137
2. #DOOR, MAIN; USE 2930923137. FOR GASKET ONLY USE 3-103692-004. MFR # 2930680059 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103692004
4. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
5. #Latch, Travel Use 2904817000 Brown/Grey MFR # 2904817026 Superseded: see description
6. #LATCH,TRAVEL USE 2904817000 RM2301 MFR # 2931140012 Superseded: see description
7. #LATCH,TRAVEL USE 2904817018 RM2301 MFR # 2904817000 Superseded: see description
8. #CATCH,TRAVEL BLACK MFR # 2904817018
9. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
10. #NO PART # GIVEN BY VENDOR MFR # NPG
11. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
13. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
14. #APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2930640087
15. #DECORATION STRIP RM25 00 MFR # 2930640061
16. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
17. #SHELF,DOOR USE 2002261143 MFR # 2002261184 Superseded: see description
18. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
19. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
20. #Shelf, Door; Use 2000571220 MFR # 2000571204 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Holder Bottle 8" Brown MFR # 2930715020
22. #HOLDER,BOTTLE 7" BROWN MFR # 2930715012

Replacement Refrigerator

Components

9 items

1. #REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N
2. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UR
3. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N410U
4. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UL
5. #REFER 40 5/16 X 21 13/16 X 24 MFR # RM2500
6. #REFER 5 CF, 2 WAY, TAUPE, 40 5/16" X 21 13/16" X 24" MFR # RM25102R
7. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510UR
8. #REFER, 5.5 CU FT 2WAY USE N510U 42 5/8H X 23 11/16W X 24D MFR # N510URN Superseded: see description
9. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N5103UL

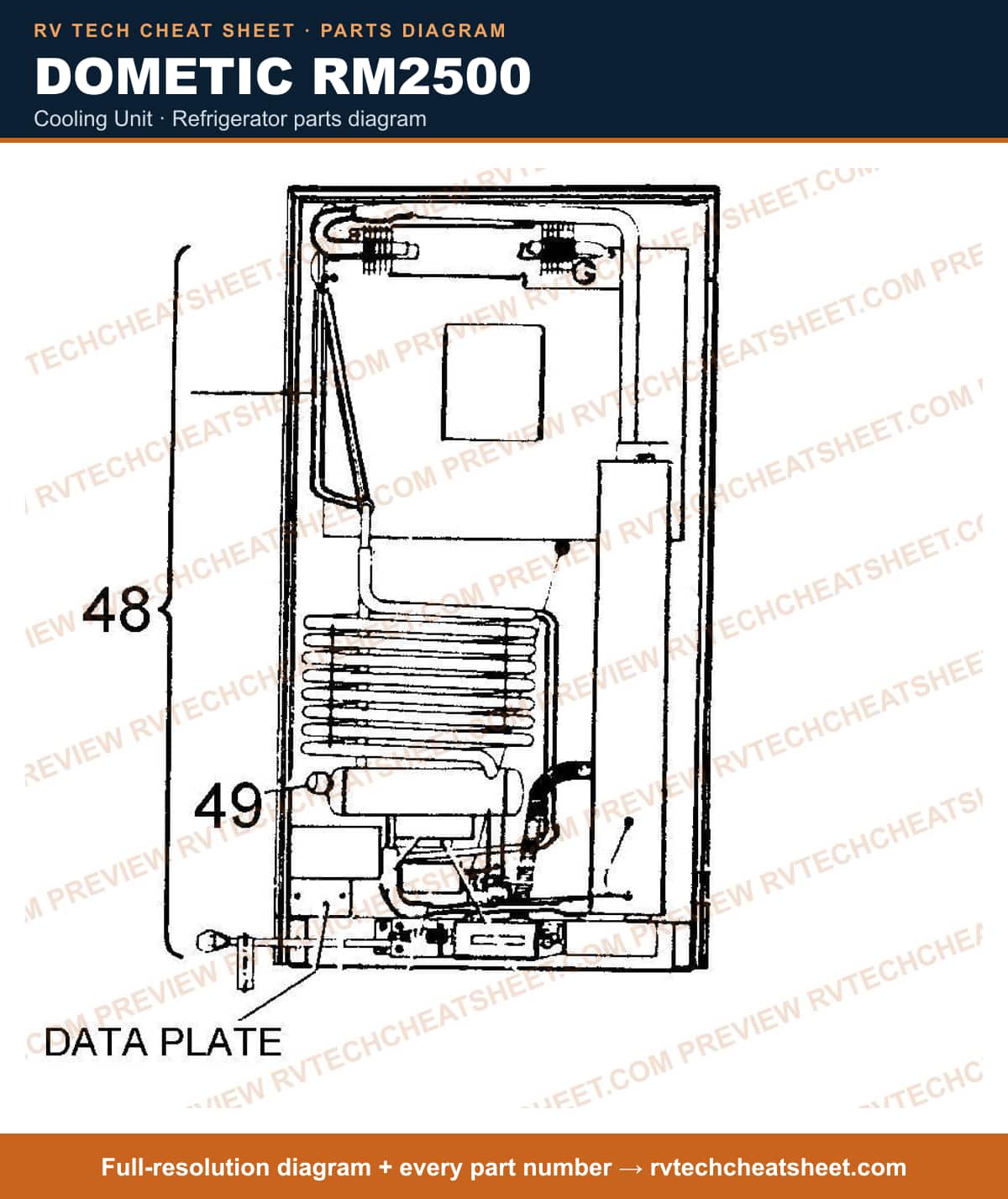

Cooling Unit

Components

4 items

1. #Refrigerator Cooling Unit; Use With Dometic RM2500/ RM2501/ RM660/ RM661/ RM663 Model Refrigerators; Steel Tubing MFR # 5525 Superseded: see description
2. #REMAN C/U USE 9283609007R RM660/663 RM2500 MFR # 9283609007R Superseded: see description
3. #Refrigerator Cooling Unit; Replacement For Dometic RM663/ RM660/ RM2500 Model Refrigerators MFR # 2934360096N
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084

Cabinet Asm

Components

65 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Models RM3600/ RM3800 MFR # 2007270016 Superseded: see description
2. #FLANGE, COOLING MFR # 2007558006
3. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
4. #SHELF,WIRE USE 2930133067 MFR # 2930133000 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
6. #S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011
7. #Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description
8. #SHELF USE 2002652226 MFR # 2002652135 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
10. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
11. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
12. #WASHER MFR # 7344888206
13. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
14. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
15. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
16. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
17. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
18. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
19. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
20. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
21. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
22. #Spring, Freezer Door RH MFR # 2002237010
23. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
24. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
25. #DECORATION, FRONT UPPER 2400 -2500 MFR # 2007545052
26. #NO PART # GIVEN BY VENDOR MFR # NPG
27. #Pin, Hinge Upper MFR # 2930612003
28. #APPLIANCE COMPONENTS RV; Latch Travel MFR # 2007546027
29. #APPLIANCE COMPONENTS RV; Key Rm 2500 MFR # 2930135021
30. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
31. #S,LID,FRZ,RM2510 MFR # 2002239289
32. #Refrigerator Door; Replacement For Dometic RM2500/ RM2501/ RM2510/ RM2401/ RM3500/ RM3501 Model Refrigerator; Upper; Door Measures 17 6/16" W X 7 9/16" H X 1" MFR # 2002239206
33. #SCREW USE 7295286657 MFR # 7295285659 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Screw MFR # 7295286657
35. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
36. #Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027
37. #APPLIANCE COMPONENTS RV; Knob T-Stat Use 200748015 MFR # 2007480193 Superseded: see description
38. #Appliance Components RV; Knob Selector 115V MFR # 2007480029
39. #Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177
40. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
41. #APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008
42. #APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000
43. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
44. #APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058
45. #BASE FRONT RM24 00, 2500 MFR # 2930591090
46. #Base Front; Use 2930591090 25001,2600 MFR # 2930591108 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
48. #Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015
49. #RETAINER USE 2930693029 MFR # 2930693011 Superseded: see description
50. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
51. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
52. #APPLIANCE COMPONENTS RV; Bar L Approx 8" 460-660 MFR # 2007337062
53. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
54. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
55. #APPLIANCE COMPONENTS RV; Cover Crisper Use 2002727 MFR # 2002727010 Superseded: see description
56. #PLATE, SEALING MFR # 2930696014
57. #Appliance Components RV; Socket Lamp MFR # 2007674001
58. #Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019
59. #Lamp, Pilot Use 2932810019 MFR # 2007675008 Superseded: see description
60. #Appliance Components RV; Sleeve Sealing MFR # 2007626001
61. #Plug, Grey/Brown MFR # 2007662022
62. #Plug, Beige Use 2007662022 MFR # 2007662014 Superseded: see description
63. #Appliance Components RV; Sleeve Protector RM130 MFR # 2007673003
64. #Washer; Replacement For Dometic RM2301/ RM2600/ RM3600 Model Refrigerator MFR # 2930714015
65. #Retainer, Lamp MFR # 2930557000

Gas-electric

Components

55 items

1. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
2. #VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
4. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
5. #S,THERMOCOUPLE-232MM MFR # 2931496042
6. #T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description
7. #Coupling MFR # 2007518000
8. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
9. #T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description
10. #Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description
11. #DOMETIC DUAL T-STAT MFR # 2007199009
12. #BYPASS SCREW S14 MFR # 1728190309
13. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
14. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
15. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
16. #Appliance Components RV; Nut Union MFR # 172809006
17. #S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010
18. #SWITCH, SELECTOR MFR # 2007664002
19. #S,COVER,CONTROLS,INNER MFR # 2007661008
20. #Screw MFR # 140730011
21. #APPLIANCE COMPONENTS RV; Spring MFR # 2007577006
22. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
23. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
24. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
25. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
26. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
27. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008
28. #Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036
29. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
30. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
31. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
32. #Ring, Sealing 2 Req. MFR # 140748005
33. #CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description
34. #CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description
35. #Catch Snap 12/120 (Fus) MFR # 2930066028
36. #WASHER MFR # 20074157001
37. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
38. #ORIFICE #32 BUTANE 360 MFR # 2007419134
39. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
40. #APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231
41. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
42. #S,BAFFLE ASM,551.5MM MFR # 2007590017
43. #APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009
44. #APPLIANCE COMPONENTS RV; Element Heating Alt Avail ALTERNATES AVAILABLE: 173738014MC OR CH000020 MFR # 173738014
45. #ELEMENT,HEATING 175W/115V 2WIRE 3/8 X 5 SUGGESTED ALTERNATE F/DOMETIC THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#173738014. MFR # CH000020
46. #Igniter Electrode; Replacement For Dometic RM661/ RM2453/ RM2453/ RM2553 Refrigerators; 175 Watt; 12 Volt; Dual Electrode MFR # 173739012
47. #SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#0173738014. SINCE THIS IS NOT AN ORIGINAL PART, I... MFR # 173738014MC
48. #Element, Heating 175W/12V 1Wire 3/8 x 5 MFR # CH000186
49. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
50. #BUSHING USE 2002619001 MFR # 2930103003 Superseded: see description
51. #S,CAP,FLUE MFR # 2007598010
52. #Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009
53. #S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016
54. #S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002
55. #S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003
