Dometic RM2501 Parts Diagram · Gas-electric

Refrigerator · 4 assemblies · 4 diagram sheets · 140 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2501 RV refrigerator: 4 assemblies (Gas-electric, Replacement Refrigerator, Cabinet Assembly, Door Assembly) and 140 manufacturer part numbers. 31 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Gas-electric

Components

58 items

1. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
2. #VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
4. #S,THERMOCOUPLE-232MM MFR # 2931496042
5. #T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description
6. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
7. #Coupling MFR # 2007518000
8. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
9. #DOMETIC DUAL T-STAT MFR # 2007199009
10. #T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description
11. #Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description
12. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
13. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
14. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
15. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
16. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
17. #Appliance Components RV; Nut Union MFR # 172809006
18. #S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010
19. #SWITCH, SELECTOR MFR # 2007664002
20. #S,COVER,CONTROLS,INNER MFR # 2007661008
21. #Screw MFR # 140730011
22. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
23. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
24. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
25. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
26. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
27. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
28. #NO PART # GIVEN BY VENDOR MFR # NPG
29. #Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036
30. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
31. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
32. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
33. #Ring, Sealing 2 Req. MFR # 140748005
34. #CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description
35. #Catch Snap 12/120 (Fus) MFR # 2930066028
36. #CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description
37. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
38. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
39. #ORIFICE #32 BUTANE 360 MFR # 2007419134
40. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
41. #APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231
42. #S,BAFFLE ASM,551.5MM MFR # 2007590017
43. #APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009
44. #Refrigerator Cooling Unit; Use With Dometic RM2500/ RM2501/ RM660/ RM661/ RM663 Model Refrigerators; Steel Tubing MFR # 5525 Superseded: see description
45. #REMAN C/U USE 9283609007R RM660/663 RM2500 MFR # 9283609007R Superseded: see description
46. #Reman C/U Use 9283609007R RM660/663 RM2500 MFR # 2934360096R Superseded: see description
47. #Refrigerator Cooling Unit; Replacement For Dometic RM663/ RM660/ RM2500 Model Refrigerators MFR # 2934360096N
48. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
49. #SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#0173738014. SINCE THIS IS NOT AN ORIGINAL PART, I... MFR # 173738014MC
50. #Element, Heating 175W/12V 1Wire 3/8 x 5 MFR # CH000186
51. #APPLIANCE COMPONENTS RV; Element Heating Alt Avail ALTERNATES AVAILABLE: 173738014MC OR CH000020 MFR # 173738014
52. #Igniter Electrode; Replacement For Dometic RM661/ RM2453/ RM2453/ RM2553 Refrigerators; 175 Watt; 12 Volt; Dual Electrode MFR # 173739012
53. #ELEMENT,HEATING 175W/115V 2WIRE 3/8 X 5 SUGGESTED ALTERNATE F/DOMETIC THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#173738014. MFR # CH000020
54. #S,CAP,FLUE MFR # 2007598010
55. #Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009
56. #S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016
57. #S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002
58. #S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003

Replacement Refrigerator

Components

8 items

1. #REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N
2. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N410UL
3. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UL
4. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer; DIMENSIONS: 36-9/16" H X 23-11/16" W X 24" D; REPLACES: IS A USE # FOR N400N MFR # N410UR Superseded: see description
5. #REFER, 5.5 CU FT 2WAY USE N510U 42 5/8H X 23 11/16W X 24D MFR # N510URN Superseded: see description
6. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U
7. #REFER 5 CF, 2 WAY, TAUPE, 40 5/16" X 21 13/16" X 24" MFR # RM25102R
8. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UR

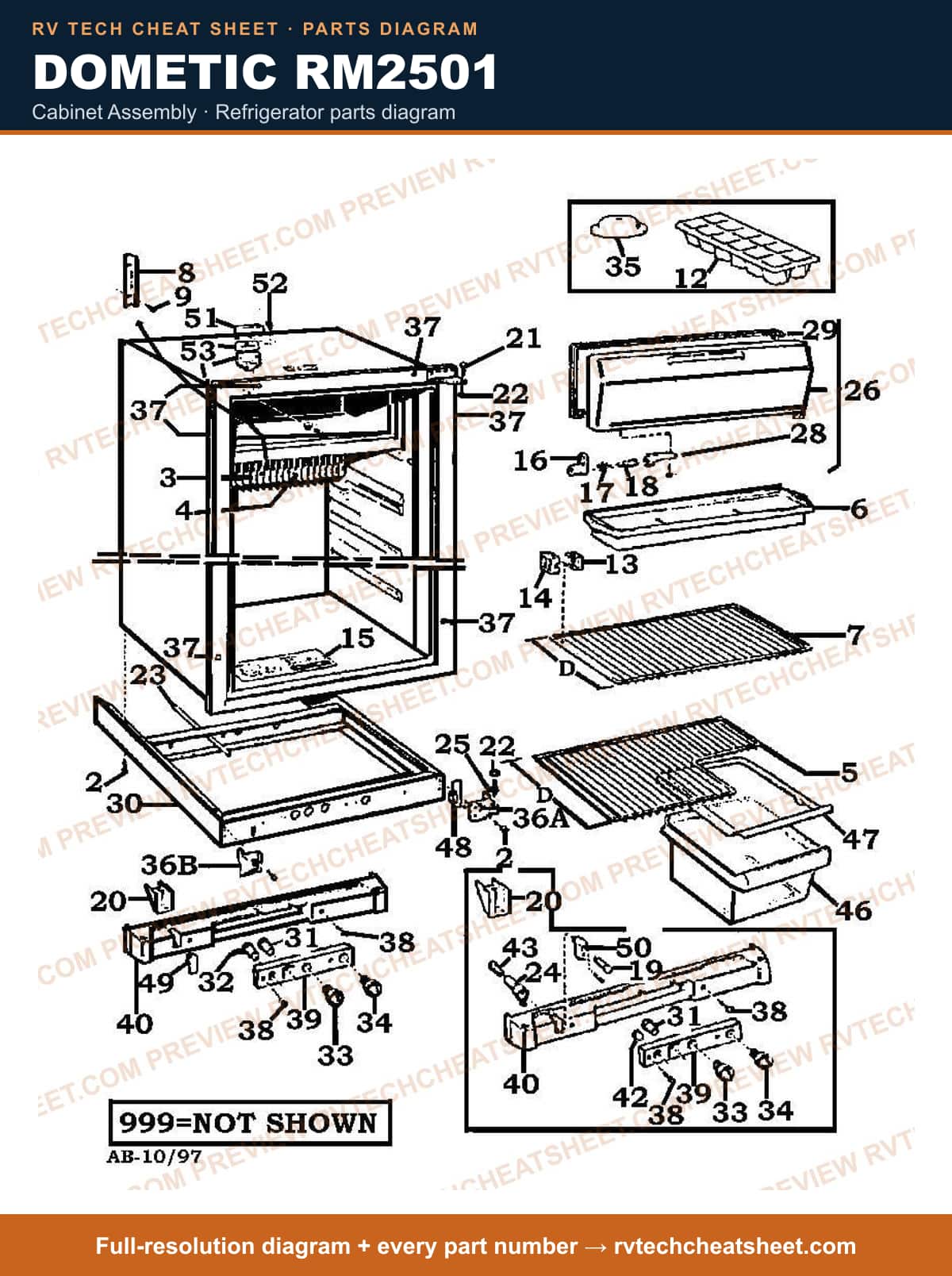

Cabinet Assembly

Components

56 items

1. #Appliance Components RV; Hinge Lh MFR # 2007621044
2. #FLANGE, COOLING MFR # 2007558006
3. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
4. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
5. #Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description
6. #S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011
7. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
8. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
9. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
10. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
11. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
12. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
13. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
14. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
15. #Pin, Hinge Upper MFR # 2930612003
16. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
17. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
18. #Spring, Freezer Door RH MFR # 2002237010
19. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
20. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
21. #Lamp, Pilot Use 2932810019 MFR # 2007675008 Superseded: see description
22. #Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019
23. #Retainer, Lamp MFR # 2930557000
24. #NO PART # GIVEN BY VENDOR MFR # NPG
25. #APPLIANCE COMPONENTS RV; Knob T-Stat Use 200748015 MFR # 2007480193 Superseded: see description
26. #Appliance Components RV; Sleeve Protector RM130 MFR # 2007673003
27. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
28. #S,LID,FRZ,RM2510 MFR # 2002239289
29. #Door, Freezer MFR # 2002239222
30. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
31. #Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027
32. #Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088
33. #Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description
34. #S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185
35. #Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177
36. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
37. #APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000
38. #APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008
39. #APPLIANCE COMPONENTS RV; Plug Masking MFR # 2930132051
40. #Appliance Components RV; Cover Dn1070 Brown Grey MFR # 2931110015
41. #APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058
42. #Appliance Components RV; Base Front Grey/Brown MFR # 2930591173
43. #Plug, Grey/Brown MFR # 2007662022
44. #1 SEALING SLEEVE MFR # 200762600
45. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
46. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
47. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
48. #APPLIANCE COMPONENTS RV; Cover Crisper Use 2002727 MFR # 2002727010 Superseded: see description
49. #PLATE, SEALING MFR # 2930696014
50. #Appliance Components RV; Plug Grey/Brown MFR # 2930083031
51. #Appliance Components RV; Socket Lamp Grey/Brown MFR # 2007674019
52. #SCREW,LATCH 2501 MFR # 2931112011
53. #LATCH,TRAVEL USE 2904817000 RM2301 MFR # 2931140012 Superseded: see description
54. #CATCH,TRAVEL BLACK MFR # 2904817018
55. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
56. #LATCH,TRAVEL USE 2904817018 RM2301 MFR # 2904817000 Superseded: see description

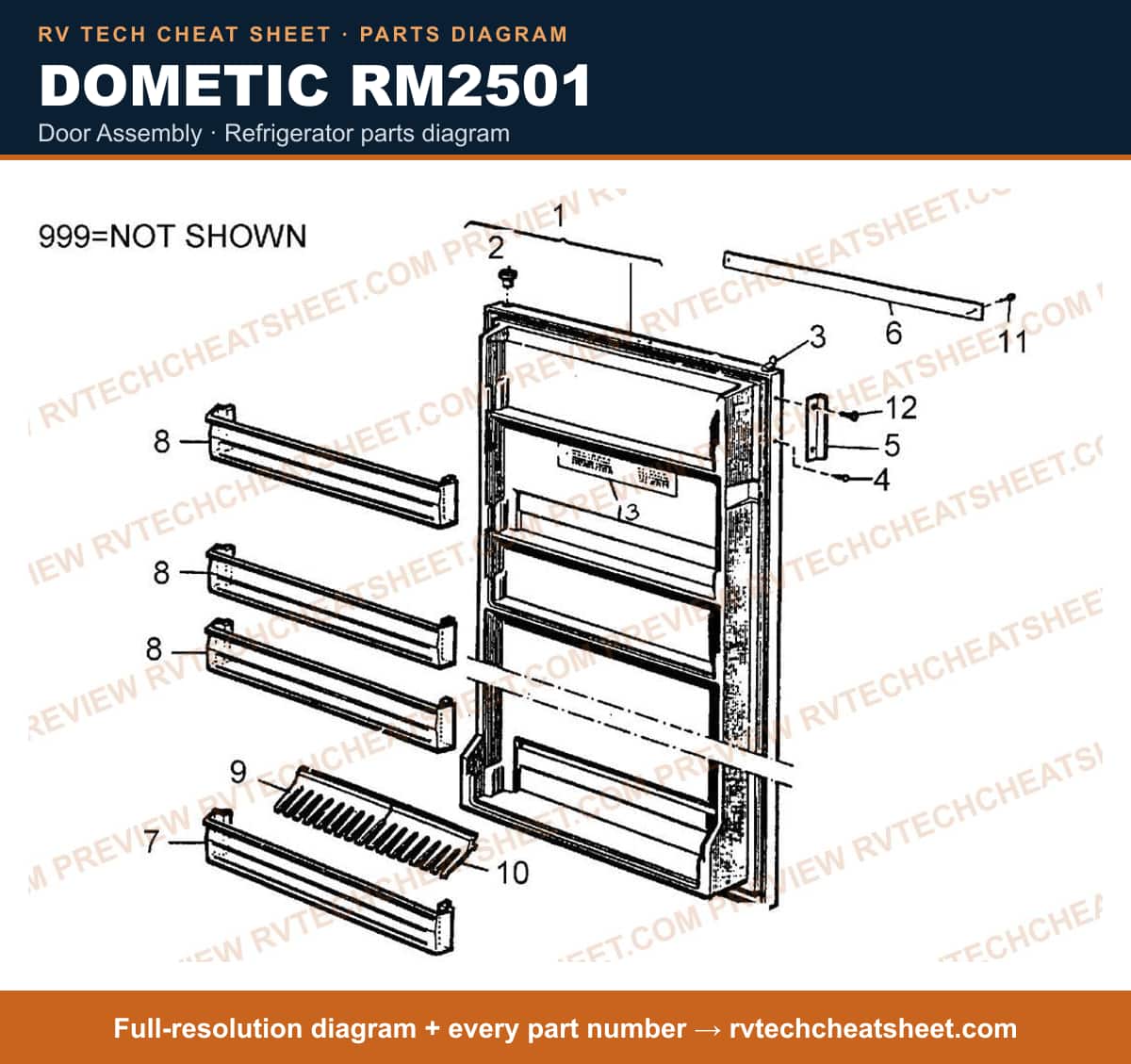

Door Assembly

Components

20 items

1. #APPLIANCE COMPONENTS RV; Door RM2501 MFR # 2930923137
2. #APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103692004
3. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
4. #RETAINER, CATCH MFR # 2931111013
5. #APPLIANCE COMPONENTS RV; Catch Travel Strike MFR # 2931111021
6. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
8. #Refrigerator Gasket; Replacement For Dometic RM2501 Refrigerator; Door Gasket MFR # 2930640442
9. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
10. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
11. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
12. #Shelf, Door; Use 2000571220 MFR # 2000571204 Superseded: see description
13. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
15. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
17. #Refrigerator Trim Screw; Replacement For Dometic RM2301/ RM2310/ RM2333/ RM2401/ RM2501/ RM4801 Model Refrigerator MFR # 7296229011
18. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
19. #NO PART # GIVEN BY VENDOR MFR # NPG
20. #PANEL, DOOR WOODGRAIN F/RM2510 MFR # 3106863016B
