Diagrams › Dometic › RM2510 Series 2-WAY Freedom Dometic RM2510 Series 2-WAY Freedom Parts Diagram · Product # 921941401 › Cabinet Front View
Refrigerator · 36 assemblies · 36 diagram sheets · 202 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM2510 Series 2-WAY Freedom RV refrigerator: 36 assemblies (Product # 921941401 › Cabinet Front View, Product # 921941101 › Cabinet Front View, Product # 921940701 › Door Assembly, Product # 921941401 › Door Assembly, Product # 921940701 › Replacement Refrigerator and more) and 202 manufacturer part numbers. 31 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Product # 921941401 › Cabinet Front View
Dometic RM2510 Series 2-WAY Freedom product # 921941401 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 57 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Dometic RM2193 RM2652 Cooling Unit Assembly MFR # 2931293027 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description # CABINET BASE MFR # 2007465004 # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,KNOB ASM,T-STAT,RM2410/2510 MFR # 2007480219 # S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185 # APPLIANCE COMPONENTS RV; Plug Black MFR # 2940347004 # PLUG,LG USE 2940347004 (DEAD HOLE COVER) RM2510 MFR # 2931531012 Superseded: see description # S,HINGE,LWR,R,PNTD,2410.2/2510 MFR # 2931539015 # S,HINGE,LWR,L,PNTD,2410.2/2510 MFR # 2931538017 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # S,BASE FRONT,L=573MM,RM2510 MFR # 2931528026 # SIGN PLATE MFR # 2930753005 # S,SOCKET,LAMP BISQUIT-RM2510.2 MFR # 2007674027 # Appliance Components RV; Socket Lamp Grey/Brown MFR # 2007674019 # LAMP, PILOT USE 2932810019; THIS PILOT LAMP HAS THE FIXTURE INCLUDED. IT IS READY TO INSTALL AND NEEDS NO OTHER PARTS MFR # 2007675016 Superseded: see description # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # Appliance Components RV; Sleeve Sealing MFR # 2007626001 # SLEEVE RM2510-RM2810 MFR # 2007673011 # S,STRIKE 9*35*24MM MFR # 2931511014 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # PARTS BAG MFR # 2931610014 # FLANGE, COOLING MFR # 2007558006 # SHELF, PLASTIC RM2510 MFR # 2931117077 # APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226 # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # SHELF, 9.5" X 17 7/8" MFR # 2002652242 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # CRISPER,BLACK USE 2002726061 MFR # 2002726103 Superseded: see description # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # S,LID,FRZ,RM2510 MFR # 2002239289 # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Spring, Freezer Door RH MFR # 2002237010 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Drain Tube; Replacement For Dometic RM2510/ RM2601/ RM2810 Model Refrigerator MFR # 2007349067
Product # 921941101 › Cabinet Front View
Dometic RM2510 Series 2-WAY Freedom product # 921941101 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 57 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Dometic RM2193 RM2652 Cooling Unit Assembly MFR # 2931293027 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description # CABINET BASE MFR # 2007465004 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,KNOB ASM,T-STAT,RM2410/2510 MFR # 2007480219 # S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185 # APPLIANCE COMPONENTS RV; Plug Black MFR # 2940347004 # PLUG,LG USE 2940347004 (DEAD HOLE COVER) RM2510 MFR # 2931531012 Superseded: see description # S,HINGE,LWR,R,PNTD,2410.2/2510 MFR # 2931539015 # S,HINGE,LWR,L,PNTD,2410.2/2510 MFR # 2931538017 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # S,BASE FRONT,L=573MM,RM2510 MFR # 2931528026 # SIGN PLATE MFR # 2930753005 # Appliance Components RV; Socket Lamp Grey/Brown MFR # 2007674019 # S,SOCKET,LAMP BISQUIT-RM2510.2 MFR # 2007674027 # LAMP, PILOT USE 2932810019; THIS PILOT LAMP HAS THE FIXTURE INCLUDED. IT IS READY TO INSTALL AND NEEDS NO OTHER PARTS MFR # 2007675016 Superseded: see description # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # Appliance Components RV; Sleeve Sealing MFR # 2007626001 # SLEEVE RM2510-RM2810 MFR # 2007673011 # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # PARTS BAG MFR # 2931610014 # FLANGE, COOLING MFR # 2007558006 # SHELF, PLASTIC RM2510 MFR # 2931117077 # APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226 # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # SHELF, 9.5" X 17 7/8" MFR # 2002652242 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # CRISPER,BLACK USE 2002726061 MFR # 2002726103 Superseded: see description # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # S,LID,FRZ,RM2510 MFR # 2002239289 # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Spring, Freezer Door RH MFR # 2002237010 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Drain Tube; Replacement For Dometic RM2510/ RM2601/ RM2810 Model Refrigerator MFR # 2007349067
Product # 921940701 › Door Assembly
Dometic RM2510 Series 2-WAY Freedom product # 921940701 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 20 items # TAPE, GASKET KIT 1/32" X 3/4" X 18' MFR # 6141 # APPLIANCE COMPONENTS RV; Gasket Kit Door RM2510 MFR # 3108708383 # GASKET TAPE 100" USE 6141 SINGLE DOOR REFER MFR # TAPE1 Superseded: see description # S,DOOR ASM,FF,RM2510 MFR # 2931587113 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2931583054 # TRIM, DECO USE 3850382031 MFR # 2931583187 Superseded: see description # Refrigerator Trim; Replacement Decoration Trim; With Logo MFR # 3850382031 # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # SHELF, LOWER DR USE 2002261242 RM2410 MFR # 2002261226 Superseded: see description # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # LABEL, WARNING FOR DOOR MFR # 2931620005 # APPLIANCE COMPONENTS RV; Service Kit Hinge Plate MFR # 3108703640
Product # 921941401 › Door Assembly
Dometic RM2510 Series 2-WAY Freedom product # 921941401 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 20 items # APPLIANCE COMPONENTS RV; Gasket Kit Door RM2510 MFR # 3108708383 # GASKET TAPE 100" USE 6141 SINGLE DOOR REFER MFR # TAPE1 Superseded: see description # S,DOOR ASM,FF,RM2510 MFR # 2931587113 # TAPE, GASKET KIT 1/32" X 3/4" X 18' MFR # 6141 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # Refrigerator Trim; Replacement Decoration Trim; With Logo MFR # 3850382031 # TRIM, DECO USE 3850382031 MFR # 2931583187 Superseded: see description # APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2931583054 # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # SHELF, LOWER DR USE 2002261242 RM2410 MFR # 2002261226 Superseded: see description # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description # LABEL, WARNING FOR DOOR MFR # 2931620005 # APPLIANCE COMPONENTS RV; Service Kit Hinge Plate MFR # 3108703640
Product # 921940701 › Replacement Refrigerator
Dometic RM2510 Series 2-WAY Freedom product # 921940701 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 2 items # REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U
Product # 921941102 › Cooling Unit
Dometic RM2510 Series 2-WAY Freedom product # 921941102 › cooling unit — parts list sheet Full-resolution diagram + every part number →
Components 8 items # SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096 # COOLING UNIT MFR # 2934506094 # REMAN COOLING UNIT RM2510 MFR # 5501N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # COVER, ELEMENT MFR # 2800821007 # Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005 # Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002 # LABEL MFR # 3850583000
Product # 921941102 › Cabinet Exterior
Dometic RM2510 Series 2-WAY Freedom product # 921941102 › cabinet exterior — parts list sheet Full-resolution diagram + every part number →
Components 34 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096 # Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description # Dometic RM2193 RM2652 Cooling Unit Assembly MFR # 2931293027 # SCREW W/WASHER MFR # 3858047016 # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description # CABINET BASE MFR # 2007465004 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,KNOB ASM,T-STAT,RM2410/2510 MFR # 2007480219 # S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185 # PLUG,LG USE 2940347004 (DEAD HOLE COVER) RM2510 MFR # 2931531012 Superseded: see description # APPLIANCE COMPONENTS RV; Plug Black MFR # 2940347004 # S,HINGE,LWR,L,PNTD,2410.2/2510 MFR # 2931538017 # TRAILER ACCESSORIES; NEVER FAIL BUSHING MFR # 87701 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # Washer; Use With Dometic Refrigerators; Zinc Plated; 5.5 x 12 x 1; Zinc Plated MFR # 3858010089 Superseded: see description # S,BASE FRONT,L=573MM,RM2510 MFR # 2931528026 # SIGN PLATE MFR # 2930753005 # S,SOCKET,LAMP BISQUIT-RM2510.2 MFR # 2007674027 # Appliance Components RV; Socket Lamp Grey/Brown MFR # 2007674019 # SCREW MFR # 3858056017 # SLEEVE RM2510-RM2810 MFR # 2007673011 # Refrigerator Drain Tube; Replacement For Dometic RM2510/ RM2601/ RM2810 Model Refrigerator MFR # 2007349067 # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # SCREW RXS B4X6.5 ZINC MFR # 3858002094 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # SCREW RXS B6 X 19 ZINC MFR # 3858002177
Product # 921940701 › Cabinet Front View
Dometic RM2510 Series 2-WAY Freedom product # 921940701 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 57 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Dometic RM2193 RM2652 Cooling Unit Assembly MFR # 2931293027 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description # CABINET BASE MFR # 2007465004 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,KNOB ASM,T-STAT,RM2410/2510 MFR # 2007480219 # S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185 # APPLIANCE COMPONENTS RV; Plug Black MFR # 2940347004 # PLUG,LG USE 2940347004 (DEAD HOLE COVER) RM2510 MFR # 2931531012 Superseded: see description # S,HINGE,LWR,R,PNTD,2410.2/2510 MFR # 2931539015 # S,HINGE,LWR,L,PNTD,2410.2/2510 MFR # 2931538017 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # S,BASE FRONT,L=573MM,RM2510 MFR # 2931528026 # SIGN PLATE MFR # 2930753005 # Appliance Components RV; Socket Lamp Grey/Brown MFR # 2007674019 # S,SOCKET,LAMP BISQUIT-RM2510.2 MFR # 2007674027 # LAMP, PILOT USE 2932810019; THIS PILOT LAMP HAS THE FIXTURE INCLUDED. IT IS READY TO INSTALL AND NEEDS NO OTHER PARTS MFR # 2007675016 Superseded: see description # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # Appliance Components RV; Sleeve Sealing MFR # 2007626001 # SLEEVE RM2510-RM2810 MFR # 2007673011 # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # PARTS BAG MFR # 2931610014 # FLANGE, COOLING MFR # 2007558006 # SHELF, PLASTIC RM2510 MFR # 2931117077 # APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226 # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # SHELF, 9.5" X 17 7/8" MFR # 2002652242 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # CRISPER,BLACK USE 2002726061 MFR # 2002726103 Superseded: see description # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # S,LID,FRZ,RM2510 MFR # 2002239289 # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Spring, Freezer Door RH MFR # 2002237010 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Drain Tube; Replacement For Dometic RM2510/ RM2601/ RM2810 Model Refrigerator MFR # 2007349067
Product # 921940701 › Cabinet Rear View
Dometic RM2510 Series 2-WAY Freedom product # 921940701 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 10 items # REMAN COOLING UNIT RM2510 MFR # 5501N # Refrigerator Cooling Unit; Replacement For Dometic RM663/ RM660/ RM2500 Model Refrigerators MFR # 2934360096N # Reman C/U Use 9283609007R RM660/663 RM2500 MFR # 2934360096R Superseded: see description # REMAN C/U USE 9283609007R RM660/663 RM2500 MFR # 9283609007R Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # DECAL RM3804 MFR # 2931503003 # APPLIANCE COMPONENTS RV; Plate Sign MFR # 2007574011 # DECAL, WARNING 2807/4801 MFR # 2002577001 # COVER, ELEMENT MFR # 2800821007 # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
Product # 921941102 › Door Assembly
Dometic RM2510 Series 2-WAY Freedom product # 921941102 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 14 items # S,DOOR ASM,FF,RM2510 MFR # 2931587113 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2510/ RM2620/ RM2820 Model Refrigerator; B4 x 16; Zinc Plated MFR # 3858002110 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Refrigerator Trim; Replacement Decoration Trim; With Logo MFR # 3850382031 # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # LABEL MFR # 3851235006 # BUSHING, HINGE MFR # 2931582015 # BUSHING, HINGE MFR # 2931582023 # APPLIANCE COMPONENTS RV; Gasket Kit Door RM2510 MFR # 3108708383
Product # 921940101 › Cabinet Rear View
Dometic RM2510 Series 2-WAY Freedom product # 921940101 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 11 items # NO PART # GIVEN BY VENDOR MFR # NPG # REMAN COOLING UNIT RM2510 MFR # 5501N # Reman C/U Use 9283609007R RM660/663 RM2500 MFR # 2934360096R Superseded: see description # REMAN C/U USE 9283609007R RM660/663 RM2500 MFR # 9283609007R Superseded: see description # Refrigerator Cooling Unit; Replacement For Dometic RM663/ RM660/ RM2500 Model Refrigerators MFR # 2934360096N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # DECAL RM3804 MFR # 2931503003 # APPLIANCE COMPONENTS RV; Plate Sign MFR # 2007574011 # DECAL, WARNING 2807/4801 MFR # 2002577001 # COVER, ELEMENT MFR # 2800821007 # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
Product # 921940401 › Burner & Controls
Dometic RM2510 Series 2-WAY Freedom product # 921940401 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 68 items # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # S,THERMOCOUPLE-232MM MFR # 2931496042 # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # DOMETIC DUAL T-STAT MFR # 2007199009 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010 # Appliance Components RV; PKG, Switch, Power/Selector MFR # 200766400P # SWITCH, SELECTOR MFR # 2007664002 # S,COVER,CONTROLS,INNER MFR # 2007661008 # Screw MFR # 140730011 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Lead, High Voltage MFR # 2007668011 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket Mount MFR # 2007410000 # Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # Block Terminal Small 3 Poi MFR # 7627202562 # Ring, Sealing 2 Req. MFR # 140748005 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # S,BAFFLE ASM,551.5MM MFR # 2007590017 # Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167 # CAP FLUE MFR # 2931540013 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # APPLIANCE COMPONENTS RV; Element Heating Alt Avail ALTERNATES AVAILABLE: 173738014MC OR CH000020 MFR # 173738014 # ELEMENT,HEATING 175W/115V 2WIRE 3/8 X 5 SUGGESTED ALTERNATE F/DOMETIC THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#173738014. MFR # CH000020 # SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#0173738014. SINCE THIS IS NOT AN ORIGINAL PART, I... MFR # 173738014MC
Product # 921941101 › Burner & Controls
Dometic RM2510 Series 2-WAY Freedom product # 921941101 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 72 items # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # S,THERMOCOUPLE-232MM MFR # 2931496042 # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # DOMETIC DUAL T-STAT MFR # 2007199009 # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # Appliance Components RV; PKG, Switch, Power/Selector MFR # 200766400P # S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010 # SWITCH, SELECTOR MFR # 2007664002 # S,COVER,CONTROLS,INNER MFR # 2007661008 # Screw MFR # 140730011 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Lead, High Voltage MFR # 2007668011 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket Mount MFR # 2007410000 # Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # 3858022019 MFR # 3858022019 # Block Terminal Small 3 Poi MFR # 7627202562 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # BLOCK, TERMINA USE 2930463019 LARGE RM2800, 2801 MFR # 2002633010 Superseded: see description # Ring, Sealing 2 Req. MFR # 140748005 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # S,BAFFLE ASM,551.5MM MFR # 2007590017 # Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167 # CAP FLUE MFR # 2931540013 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # Igniter Electrode; Replacement For Dometic RM661/ RM2453/ RM2453/ RM2553 Refrigerators; 175 Watt; 12 Volt; Dual Electrode MFR # 173739012 # ELEMENT,HEATING 175W/115V 2WIRE 3/8 X 5 SUGGESTED ALTERNATE F/DOMETIC THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#173738014. MFR # CH000020 # APPLIANCE COMPONENTS RV; Element Heating Alt Avail ALTERNATES AVAILABLE: 173738014MC OR CH000020 MFR # 173738014 # SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#0173738014. SINCE THIS IS NOT AN ORIGINAL PART, I... MFR # 173738014MC # Element, Heating 175W/12V 1Wire 3/8 x 5 MFR # CH000186 # PLATE/SIGN,12 VOLT DC MFR # 2007452002
Product # 921940401 › Replacement Refrigerator
Dometic RM2510 Series 2-WAY Freedom product # 921940401 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U # REFER 5 CF, 2 WAY, TAUPE, 40 5/16" X 21 13/16" X 24" MFR # RM25102R # REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N
Product # 921940701 › Burner & Controls
Dometic RM2510 Series 2-WAY Freedom product # 921940701 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 68 items # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # S,THERMOCOUPLE-232MM MFR # 2931496042 # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # DOMETIC DUAL T-STAT MFR # 2007199009 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # SWITCH, SELECTOR MFR # 2007664002 # Appliance Components RV; PKG, Switch, Power/Selector MFR # 200766400P # S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010 # S,COVER,CONTROLS,INNER MFR # 2007661008 # Screw MFR # 140730011 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Lead, High Voltage MFR # 2007668011 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket Mount MFR # 2007410000 # Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # Block Terminal Small 3 Poi MFR # 7627202562 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # Ring, Sealing 2 Req. MFR # 140748005 # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # S,BAFFLE ASM,551.5MM MFR # 2007590017 # Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167 # CAP FLUE MFR # 2931540013 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#0173738014. SINCE THIS IS NOT AN ORIGINAL PART, I... MFR # 173738014MC # ELEMENT,HEATING 175W/115V 2WIRE 3/8 X 5 SUGGESTED ALTERNATE F/DOMETIC THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#173738014. MFR # CH000020 # APPLIANCE COMPONENTS RV; Element Heating Alt Avail ALTERNATES AVAILABLE: 173738014MC OR CH000020 MFR # 173738014

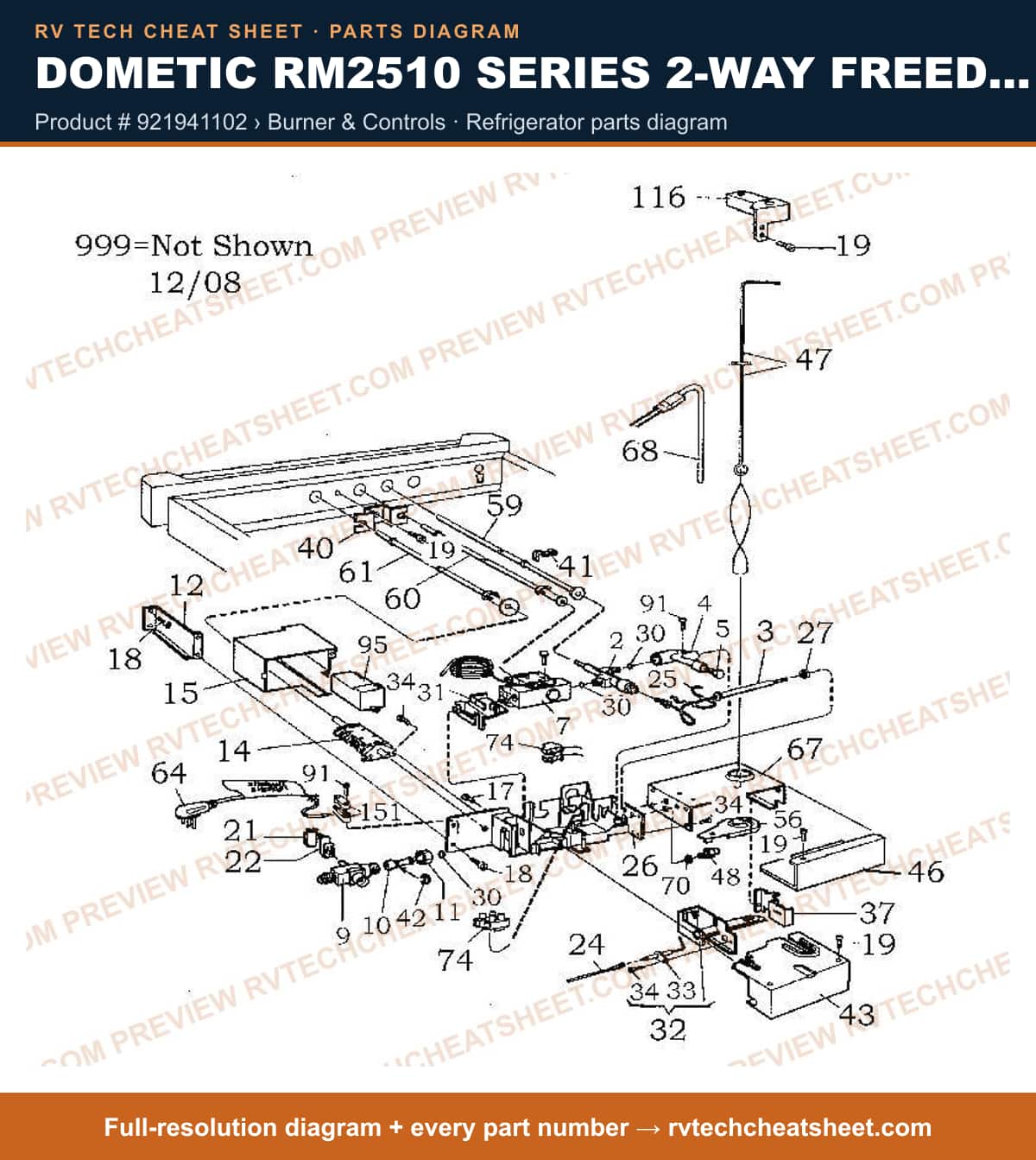

Product # 921941102 › Burner & Controls
Dometic RM2510 Series 2-WAY Freedom product # 921941102 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 53 items # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # S,THERMOCOUPLE-232MM MFR # 2931496042 # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # DOMETIC DUAL T-STAT MFR # 2007199009 # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # SWITCH, SELECTOR MFR # 2007664002 # S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010 # S,COVER,CONTROLS,INNER MFR # 2007661008 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # S,WIRE ASM,HI VOLTAGE,RM2510.2 MFR # 2007668037 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket MFR # 3850548011 # Washer, Brass MFR # 3858010139 # Ring, Sealing 2 Req. MFR # 140748005 # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014 # Retainer, Burner MFR # 2007651017 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # Ring, Retaining #8 Zinc MFR # 3858034022 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # S,BAFFLE ASM,551.5MM MFR # 2007590017 # Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # Refrigerator Burner Box Cover; Replacement For Dometic RM763/ RM1300/ RGE400 Model Refrigerator MFR # 2007502038 # S,HEATER,120V,185W MFR # 3850644505 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # S,TERMINAL BLOCK,SW180 MFR # 3858062023 # SCREW RXS B6 X 19 ZINC MFR # 3858002177 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # CAP FLUE MFR # 2931540013 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010

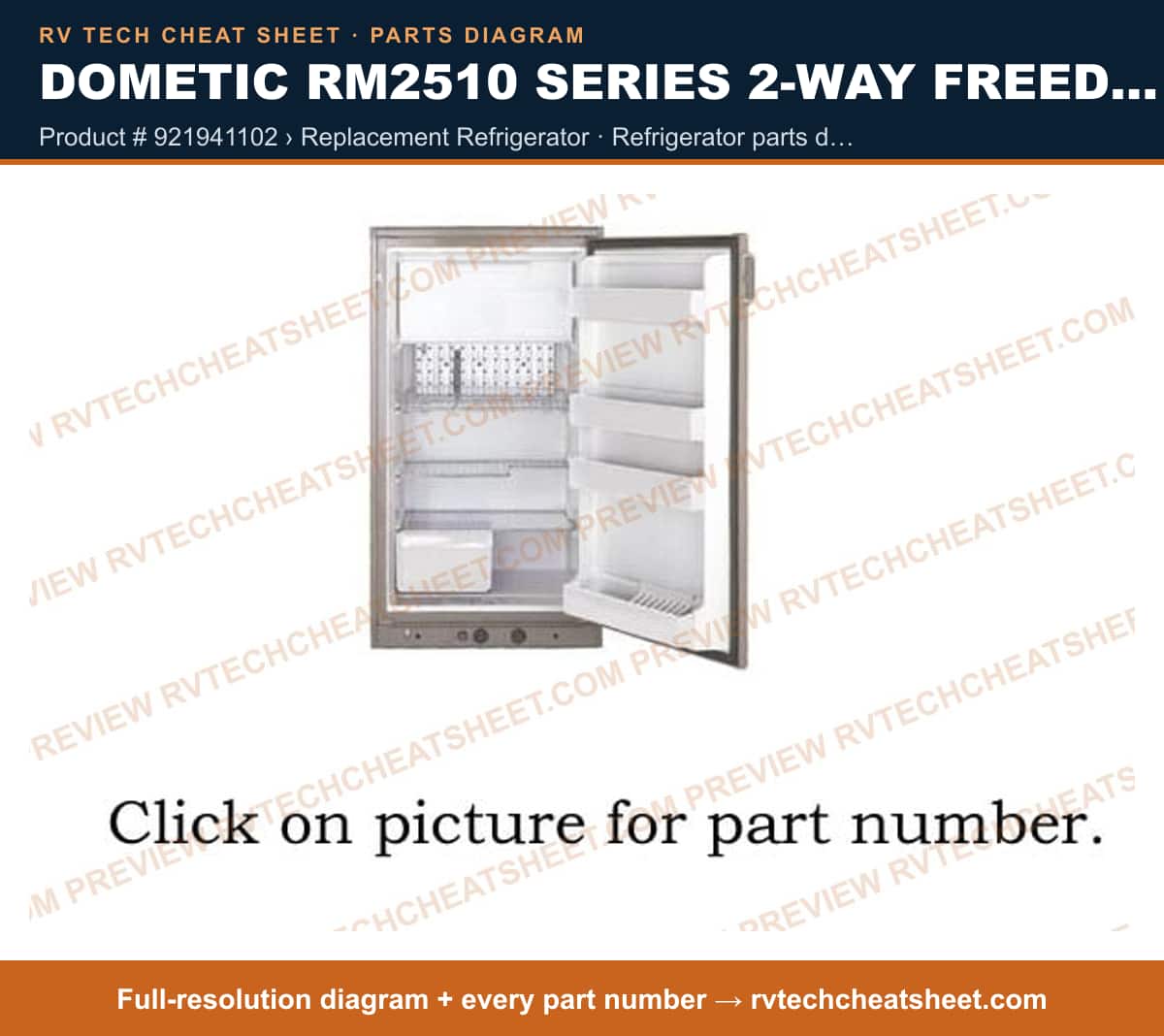

Product # 921941102 › Replacement Refrigerator
Dometic RM2510 Series 2-WAY Freedom product # 921941102 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N # REFER 5 CF, 2 WAY, TAUPE, 40 5/16" X 21 13/16" X 24" MFR # RM25102R # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U
Product # 921941401 › Cabinet Rear View
Dometic RM2510 Series 2-WAY Freedom product # 921941401 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 13 items # COOLING UNIT RM2510 (UPS) MFR # 2934506094N # REMAN COOLING UNIT RM2510 MFR # 5501N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # COVER, ELEMENT MFR # 2800821007 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # DECAL RM3804 MFR # 2931503003 # APPLIANCE COMPONENTS RV; Plate Sign MFR # 2007574011 # Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # DECAL, WARNING 2807/4801 MFR # 2002577001
Product # 921941102 › Cabinet Interior
Dometic RM2510 Series 2-WAY Freedom product # 921941102 › cabinet interior — parts list sheet Full-resolution diagram + every part number →
Components 22 items # FIN COOLING MFR # 2932272012 # Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019 # SHELF, PLASTIC RM2510 MFR # 2931117077 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # SCREW, RXS B8 4.2X16 MFR # 3858002276 # SHELF MFR # 2002652358 # Refrigerator Shelf; Use With Dometic Refrigerator Model RM260 Classic; Wire MFR # 2002652341 Superseded: see description # SHELF MFR # 2930133166 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # S,SPRING,R MARK W/YELLOW MFR # 2932754027 # Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019 # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # S,LID,FRZ,RM2510 MFR # 2002239289 # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # GASKET, WHITE MFR # 2933145035 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # WASHER MFR # 3858010147
Product # 921941101 › Replacement Refrigerator
Dometic RM2510 Series 2-WAY Freedom product # 921941101 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U # REFER 5 CF, 2 WAY, TAUPE, 40 5/16" X 21 13/16" X 24" MFR # RM25102R # REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N
Product # 958530491 › Cabinet Rear View
Dometic RM2510 Series 2-WAY Freedom product # 958530491 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 13 items # REMAN COOLING UNIT RM2510 MFR # 5501N # COOLING UNIT RM2510 (UPS) MFR # 2934506094N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # COVER, ELEMENT MFR # 2800821007 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # DECAL RM3804 MFR # 2931503003 # APPLIANCE COMPONENTS RV; Plate Sign MFR # 2007574011 # Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # DECAL, WARNING 2807/4801 MFR # 2002577001
Product # 958530491 › Burner & Controls
Dometic RM2510 Series 2-WAY Freedom product # 958530491 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 69 items # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # S,THERMOCOUPLE-232MM MFR # 2931496042 # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # DOMETIC DUAL T-STAT MFR # 2007199009 # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010 # SWITCH, SELECTOR MFR # 2007664002 # Appliance Components RV; PKG, Switch, Power/Selector MFR # 200766400P # S,COVER,CONTROLS,INNER MFR # 2007661008 # Screw MFR # 140730011 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Lead, High Voltage MFR # 2007668011 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket Mount MFR # 2007410000 # Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # Block Terminal Small 3 Poi MFR # 7627202562 # Ring, Sealing 2 Req. MFR # 140748005 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009 # S,BAFFLE ASM,551.5MM MFR # 2007590017 # Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167 # CAP FLUE MFR # 2931540013 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # ELEMENT,HEATING 175W/115V 2WIRE 3/8 X 5 SUGGESTED ALTERNATE F/DOMETIC THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#173738014. MFR # CH000020 # SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#0173738014. SINCE THIS IS NOT AN ORIGINAL PART, I... MFR # 173738014MC # APPLIANCE COMPONENTS RV; Element Heating Alt Avail ALTERNATES AVAILABLE: 173738014MC OR CH000020 MFR # 173738014
Product # 921940401 › Door Assembly
Dometic RM2510 Series 2-WAY Freedom product # 921940401 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 20 items # GASKET TAPE 100" USE 6141 SINGLE DOOR REFER MFR # TAPE1 Superseded: see description # TAPE, GASKET KIT 1/32" X 3/4" X 18' MFR # 6141 # APPLIANCE COMPONENTS RV; Gasket Kit Door RM2510 MFR # 3108708383 # S,DOOR ASM,FF,RM2510 MFR # 2931587113 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # Refrigerator Trim; Replacement Decoration Trim; With Logo MFR # 3850382031 # APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2931583054 # TRIM, DECO USE 3850382031 MFR # 2931583187 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # SHELF, LOWER DR USE 2002261242 RM2410 MFR # 2002261226 Superseded: see description # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description # LABEL, WARNING FOR DOOR MFR # 2931620005 # APPLIANCE COMPONENTS RV; Service Kit Hinge Plate MFR # 3108703640
Product # 921940101 › Cabinet Front View
Dometic RM2510 Series 2-WAY Freedom product # 921940101 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 56 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Dometic RM2193 RM2652 Cooling Unit Assembly MFR # 2931293027 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description # CABINET BASE MFR # 2007465004 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,KNOB ASM,T-STAT,RM2410/2510 MFR # 2007480219 # S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185 # APPLIANCE COMPONENTS RV; Plug Black MFR # 2940347004 # PLUG,LG USE 2940347004 (DEAD HOLE COVER) RM2510 MFR # 2931531012 Superseded: see description # S,HINGE,LWR,R,PNTD,2410.2/2510 MFR # 2931539015 # S,HINGE,LWR,L,PNTD,2410.2/2510 MFR # 2931538017 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # S,BASE FRONT,L=573MM,RM2510 MFR # 2931528026 # SIGN PLATE MFR # 2930753005 # Appliance Components RV; Socket Lamp Grey/Brown MFR # 2007674019 # S,SOCKET,LAMP BISQUIT-RM2510.2 MFR # 2007674027 # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # LAMP, PILOT USE 2932810019; THIS PILOT LAMP HAS THE FIXTURE INCLUDED. IT IS READY TO INSTALL AND NEEDS NO OTHER PARTS MFR # 2007675016 Superseded: see description # Appliance Components RV; Sleeve Sealing MFR # 2007626001 # SLEEVE RM2510-RM2810 MFR # 2007673011 # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # PARTS BAG MFR # 2931610014 # FLANGE, COOLING MFR # 2007558006 # SHELF, PLASTIC RM2510 MFR # 2931117077 # APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226 # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # SHELF, 9.5" X 17 7/8" MFR # 2002652242 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # S,LID,FRZ,RM2510 MFR # 2002239289 # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Spring, Freezer Door RH MFR # 2002237010 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Drain Tube; Replacement For Dometic RM2510/ RM2601/ RM2810 Model Refrigerator MFR # 2007349067
Product # 921941401 › Burner & Controls
Dometic RM2510 Series 2-WAY Freedom product # 921941401 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 68 items # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # S,THERMOCOUPLE-232MM MFR # 2931496042 # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # DOMETIC DUAL T-STAT MFR # 2007199009 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # SWITCH, SELECTOR MFR # 2007664002 # S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010 # Appliance Components RV; PKG, Switch, Power/Selector MFR # 200766400P # S,COVER,CONTROLS,INNER MFR # 2007661008 # Screw MFR # 140730011 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Lead, High Voltage MFR # 2007668011 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket Mount MFR # 2007410000 # Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # Block Terminal Small 3 Poi MFR # 7627202562 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # Ring, Sealing 2 Req. MFR # 140748005 # Catch Snap 12/120 (Fus) MFR # 2930066028 # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # S,BAFFLE ASM,551.5MM MFR # 2007590017 # APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009 # Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167 # CAP FLUE MFR # 2931540013 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#0173738014. SINCE THIS IS NOT AN ORIGINAL PART, I... MFR # 173738014MC # ELEMENT,HEATING 175W/115V 2WIRE 3/8 X 5 SUGGESTED ALTERNATE F/DOMETIC THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#173738014. MFR # CH000020 # APPLIANCE COMPONENTS RV; Element Heating Alt Avail ALTERNATES AVAILABLE: 173738014MC OR CH000020 MFR # 173738014
Product # 958530491 › Replacement Refrigerator
Dometic RM2510 Series 2-WAY Freedom product # 958530491 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U # REFER 5 CF, 2 WAY, TAUPE, 40 5/16" X 21 13/16" X 24" MFR # RM25102R # REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N
Product # 958530491 › Door Assembly
Dometic RM2510 Series 2-WAY Freedom product # 958530491 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 20 items # APPLIANCE COMPONENTS RV; Gasket Kit Door RM2510 MFR # 3108708383 # TAPE, GASKET KIT 1/32" X 3/4" X 18' MFR # 6141 # S,DOOR ASM,FF,RM2510 MFR # 2931587113 # GASKET TAPE 100" USE 6141 SINGLE DOOR REFER MFR # TAPE1 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2931583054 # TRIM, DECO USE 3850382031 MFR # 2931583187 Superseded: see description # Refrigerator Trim; Replacement Decoration Trim; With Logo MFR # 3850382031 # SHELF, LOWER DR USE 2002261242 RM2410 MFR # 2002261226 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description # LABEL, WARNING FOR DOOR MFR # 2931620005 # APPLIANCE COMPONENTS RV; Service Kit Hinge Plate MFR # 3108703640
Product # 921940101 › Door Assembly
Dometic RM2510 Series 2-WAY Freedom product # 921940101 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 18 items # TAPE, GASKET KIT 1/32" X 3/4" X 18' MFR # 6141 # GASKET TAPE 100" USE 6141 SINGLE DOOR REFER MFR # TAPE1 Superseded: see description # APPLIANCE COMPONENTS RV; Gasket Kit Door RM2510 MFR # 3108708383 # S,DOOR ASM,FF,RM2510 MFR # 2931587113 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2931583054 # Refrigerator Trim; Replacement Decoration Trim; With Logo MFR # 3850382031 # SHELF, LOWER DR USE 2002261242 RM2410 MFR # 2002261226 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # LABEL, WARNING FOR DOOR MFR # 2931620005 # APPLIANCE COMPONENTS RV; Service Kit Hinge Plate MFR # 3108703640

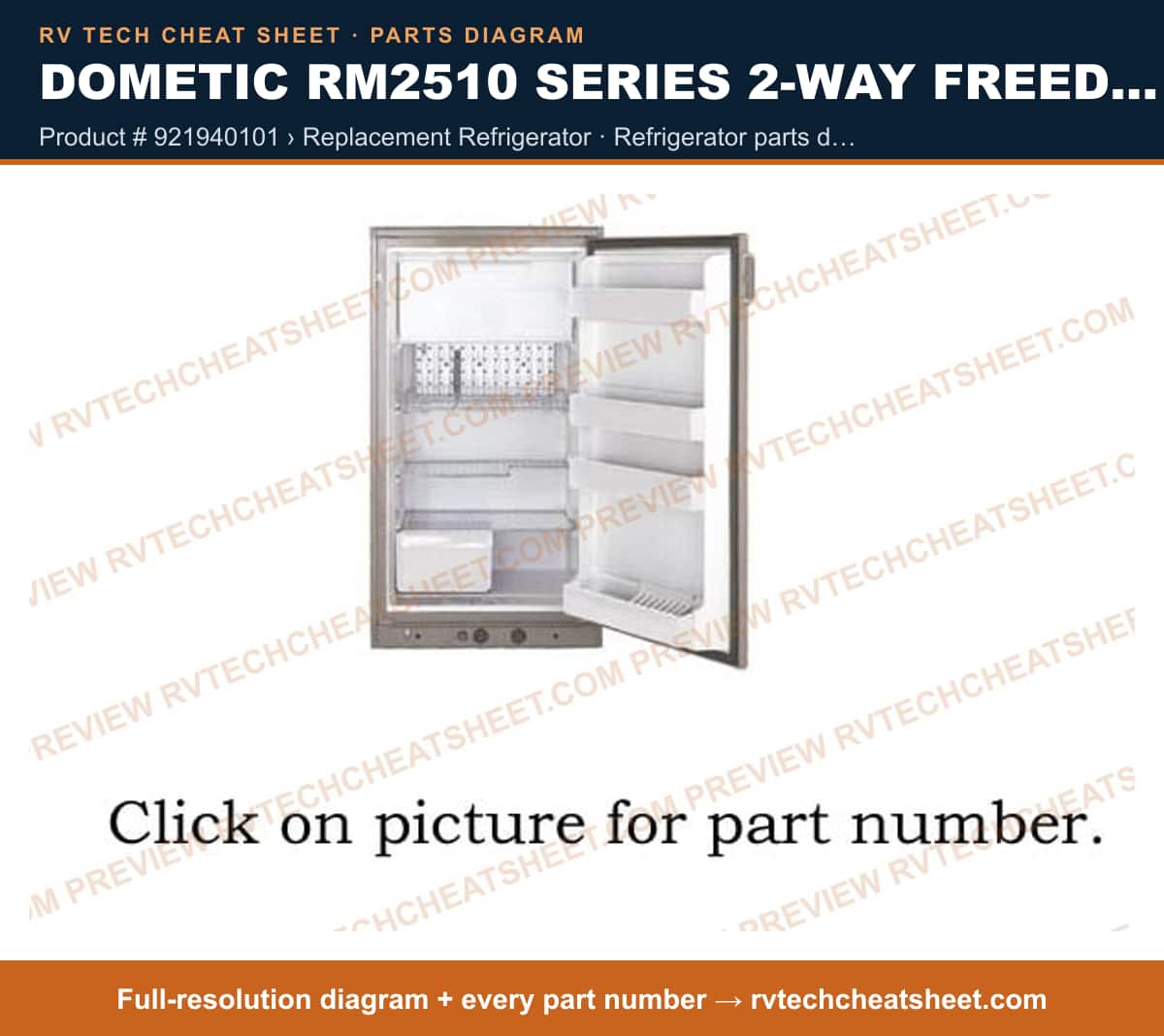

Product # 921940101 › Replacement Refrigerator
Dometic RM2510 Series 2-WAY Freedom product # 921940101 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U # REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N # REFER 5 CF, 2 WAY, TAUPE, 40 5/16" X 21 13/16" X 24" MFR # RM25102R
Product # 921941101 › Door Assembly
Dometic RM2510 Series 2-WAY Freedom product # 921941101 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 20 items # S,DOOR ASM,FF,RM2510 MFR # 2931587113 # GASKET TAPE 100" USE 6141 SINGLE DOOR REFER MFR # TAPE1 Superseded: see description # TAPE, GASKET KIT 1/32" X 3/4" X 18' MFR # 6141 # APPLIANCE COMPONENTS RV; Gasket Kit Door RM2510 MFR # 3108708383 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # TRIM, DECO USE 3850382031 MFR # 2931583187 Superseded: see description # APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2931583054 # Refrigerator Trim; Replacement Decoration Trim; With Logo MFR # 3850382031 # SHELF, LOWER DR USE 2002261242 RM2410 MFR # 2002261226 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # LABEL, WARNING FOR DOOR MFR # 2931620005 # APPLIANCE COMPONENTS RV; Service Kit Hinge Plate MFR # 3108703640
Product # 958530491 › Cabinet Front View
Dometic RM2510 Series 2-WAY Freedom product # 958530491 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 57 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Dometic RM2193 RM2652 Cooling Unit Assembly MFR # 2931293027 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description # CABINET BASE MFR # 2007465004 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,KNOB ASM,T-STAT,RM2410/2510 MFR # 2007480219 # S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185 # PLUG,LG USE 2940347004 (DEAD HOLE COVER) RM2510 MFR # 2931531012 Superseded: see description # APPLIANCE COMPONENTS RV; Plug Black MFR # 2940347004 # S,HINGE,LWR,R,PNTD,2410.2/2510 MFR # 2931539015 # S,HINGE,LWR,L,PNTD,2410.2/2510 MFR # 2931538017 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # S,BASE FRONT,L=573MM,RM2510 MFR # 2931528026 # SIGN PLATE MFR # 2930753005 # Appliance Components RV; Socket Lamp Grey/Brown MFR # 2007674019 # S,SOCKET,LAMP BISQUIT-RM2510.2 MFR # 2007674027 # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # LAMP, PILOT USE 2932810019; THIS PILOT LAMP HAS THE FIXTURE INCLUDED. IT IS READY TO INSTALL AND NEEDS NO OTHER PARTS MFR # 2007675016 Superseded: see description # Appliance Components RV; Sleeve Sealing MFR # 2007626001 # SLEEVE RM2510-RM2810 MFR # 2007673011 # S,STRIKE 9*35*24MM MFR # 2931511014 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # PARTS BAG MFR # 2931610014 # FLANGE, COOLING MFR # 2007558006 # SHELF, PLASTIC RM2510 MFR # 2931117077 # APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226 # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # SHELF, 9.5" X 17 7/8" MFR # 2002652242 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # CRISPER,BLACK USE 2002726061 MFR # 2002726103 Superseded: see description # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # S,LID,FRZ,RM2510 MFR # 2002239289 # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Spring, Freezer Door RH MFR # 2002237010 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Drain Tube; Replacement For Dometic RM2510/ RM2601/ RM2810 Model Refrigerator MFR # 2007349067
Product # 921940101 › Burner & Controls
Dometic RM2510 Series 2-WAY Freedom product # 921940101 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 67 items # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # S,THERMOCOUPLE-232MM MFR # 2931496042 # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # DOMETIC DUAL T-STAT MFR # 2007199009 # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # Appliance Components RV; PKG, Switch, Power/Selector MFR # 200766400P # SWITCH, SELECTOR MFR # 2007664002 # S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010 # S,COVER,CONTROLS,INNER MFR # 2007661008 # Screw MFR # 140730011 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Refrigerator Reignitor Board; Replacement for Dometic Models MFR # 2931932119 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Lead, High Voltage MFR # 2007668011 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket Mount MFR # 2007410000 # Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # Block Terminal Small 3 Poi MFR # 7627202562 # Ring, Sealing 2 Req. MFR # 140748005 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # S,BAFFLE ASM,551.5MM MFR # 2007590017 # Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167 # CAP FLUE MFR # 2931540013 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating Alt Avail ALTERNATES AVAILABLE: 173738014MC OR CH000020 MFR # 173738014 # SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#0173738014. SINCE THIS IS NOT AN ORIGINAL PART, I... MFR # 173738014MC # ELEMENT,HEATING 175W/115V 2WIRE 3/8 X 5 SUGGESTED ALTERNATE F/DOMETIC THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#173738014. MFR # CH000020
Product # 921940401 › Cabinet Rear View
Dometic RM2510 Series 2-WAY Freedom product # 921940401 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 11 items # NO PART # GIVEN BY VENDOR MFR # NPG # REMAN C/U USE 9283609007R RM660/663 RM2500 MFR # 9283609007R Superseded: see description # REMAN COOLING UNIT RM2510 MFR # 5501N # Refrigerator Cooling Unit; Replacement For Dometic RM663/ RM660/ RM2500 Model Refrigerators MFR # 2934360096N # Reman C/U Use 9283609007R RM660/663 RM2500 MFR # 2934360096R Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # DECAL RM3804 MFR # 2931503003 # APPLIANCE COMPONENTS RV; Plate Sign MFR # 2007574011 # DECAL, WARNING 2807/4801 MFR # 2002577001 # COVER, ELEMENT MFR # 2800821007 # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
Product # 921941401 › Replacement Refrigerator
Dometic RM2510 Series 2-WAY Freedom product # 921941401 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U # REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N # REFER 5 CF, 2 WAY, TAUPE, 40 5/16" X 21 13/16" X 24" MFR # RM25102R
Product # 921940401 › Cabinet Front View
Dometic RM2510 Series 2-WAY Freedom product # 921940401 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 57 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Dometic RM2193 RM2652 Cooling Unit Assembly MFR # 2931293027 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description # CABINET BASE MFR # 2007465004 # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,KNOB ASM,T-STAT,RM2410/2510 MFR # 2007480219 # S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185 # PLUG,LG USE 2940347004 (DEAD HOLE COVER) RM2510 MFR # 2931531012 Superseded: see description # APPLIANCE COMPONENTS RV; Plug Black MFR # 2940347004 # S,HINGE,LWR,R,PNTD,2410.2/2510 MFR # 2931539015 # S,HINGE,LWR,L,PNTD,2410.2/2510 MFR # 2931538017 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # S,BASE FRONT,L=573MM,RM2510 MFR # 2931528026 # SIGN PLATE MFR # 2930753005 # Appliance Components RV; Socket Lamp Grey/Brown MFR # 2007674019 # S,SOCKET,LAMP BISQUIT-RM2510.2 MFR # 2007674027 # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # LAMP, PILOT USE 2932810019; THIS PILOT LAMP HAS THE FIXTURE INCLUDED. IT IS READY TO INSTALL AND NEEDS NO OTHER PARTS MFR # 2007675016 Superseded: see description # Appliance Components RV; Sleeve Sealing MFR # 2007626001 # SLEEVE RM2510-RM2810 MFR # 2007673011 # S,STRIKE 9*35*24MM MFR # 2931511014 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # PARTS BAG MFR # 2931610014 # FLANGE, COOLING MFR # 2007558006 # SHELF, PLASTIC RM2510 MFR # 2931117077 # APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226 # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # SHELF, 9.5" X 17 7/8" MFR # 2002652242 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER,BLACK USE 2002726061 MFR # 2002726103 Superseded: see description # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # S,LID,FRZ,RM2510 MFR # 2002239289 # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Spring, Freezer Door RH MFR # 2002237010 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Drain Tube; Replacement For Dometic RM2510/ RM2601/ RM2810 Model Refrigerator MFR # 2007349067
Product # 921941101 › Cabinet Rear View
Dometic RM2510 Series 2-WAY Freedom product # 921941101 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 56 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Dometic RM2193 RM2652 Cooling Unit Assembly MFR # 2931293027 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description # CABINET BASE MFR # 2007465004 # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,KNOB ASM,T-STAT,RM2410/2510 MFR # 2007480219 # S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185 # APPLIANCE COMPONENTS RV; Plug Black MFR # 2940347004 # PLUG,LG USE 2940347004 (DEAD HOLE COVER) RM2510 MFR # 2931531012 Superseded: see description # S,HINGE,LWR,R,PNTD,2410.2/2510 MFR # 2931539015 # S,HINGE,LWR,L,PNTD,2410.2/2510 MFR # 2931538017 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # S,BASE FRONT,L=573MM,RM2510 MFR # 2931528026 # SIGN PLATE MFR # 2930753005 # Appliance Components RV; Socket Lamp Grey/Brown MFR # 2007674019 # S,SOCKET,LAMP BISQUIT-RM2510.2 MFR # 2007674027 # LAMP, PILOT USE 2932810019; THIS PILOT LAMP HAS THE FIXTURE INCLUDED. IT IS READY TO INSTALL AND NEEDS NO OTHER PARTS MFR # 2007675016 Superseded: see description # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # Appliance Components RV; Sleeve Sealing MFR # 2007626001 # SLEEVE RM2510-RM2810 MFR # 2007673011 # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # PARTS BAG MFR # 2931610014 # FLANGE, COOLING MFR # 2007558006 # SHELF, PLASTIC RM2510 MFR # 2931117077 # APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226 # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # SHELF, 9.5" X 17 7/8" MFR # 2002652242 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # S,LID,FRZ,RM2510 MFR # 2002239289 # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Spring, Freezer Door RH MFR # 2002237010 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Drain Tube; Replacement For Dometic RM2510/ RM2601/ RM2810 Model Refrigerator MFR # 2007349067
