Dometic RM2551 Americana Product # 921142019 Black Parts Diagram · Door Assembly

Refrigerator · 6 assemblies · 6 diagram sheets · 128 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2551 Americana Product # 921142019 Black RV refrigerator: 6 assemblies (Door Assembly, Cabinet Interior, Cabinet Rear View, Cabinet Exterior, Replacement Refrigerator and more) and 128 manufacturer part numbers. 31 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

15 items

1. #DOOR,REFER BLACK MFR # 2932562131
2. #GASKET KIT, DOOR MFR # 3108708409
3. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
4. #S,PLUG,UPR R/LWR L MFR # 2932682038
5. #S,PLUG,UPR L/LWR R MFR # 2932682046
6. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
7. #S, REFRIGERATOR DOOR HANDLE, BLACK-4/5CF MFR # 2932670025
8. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
9. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
10. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
11. #Refrigerator Trim; Replacement Decoration Trim; Black MFR # 3850381165
12. #Refrigerator Door Rail; Use With Dometic Americana/ Americana Plus Refrigerators; Decoration Strip; With Black Log MFR # 3850381272 Superseded: see description
13. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
14. #Appliance Components RV; Reversing Kit, Door Black MFR # 293275013
15. #Appliance Components RV; Reversing Kit, Door Black MFR # 293275014

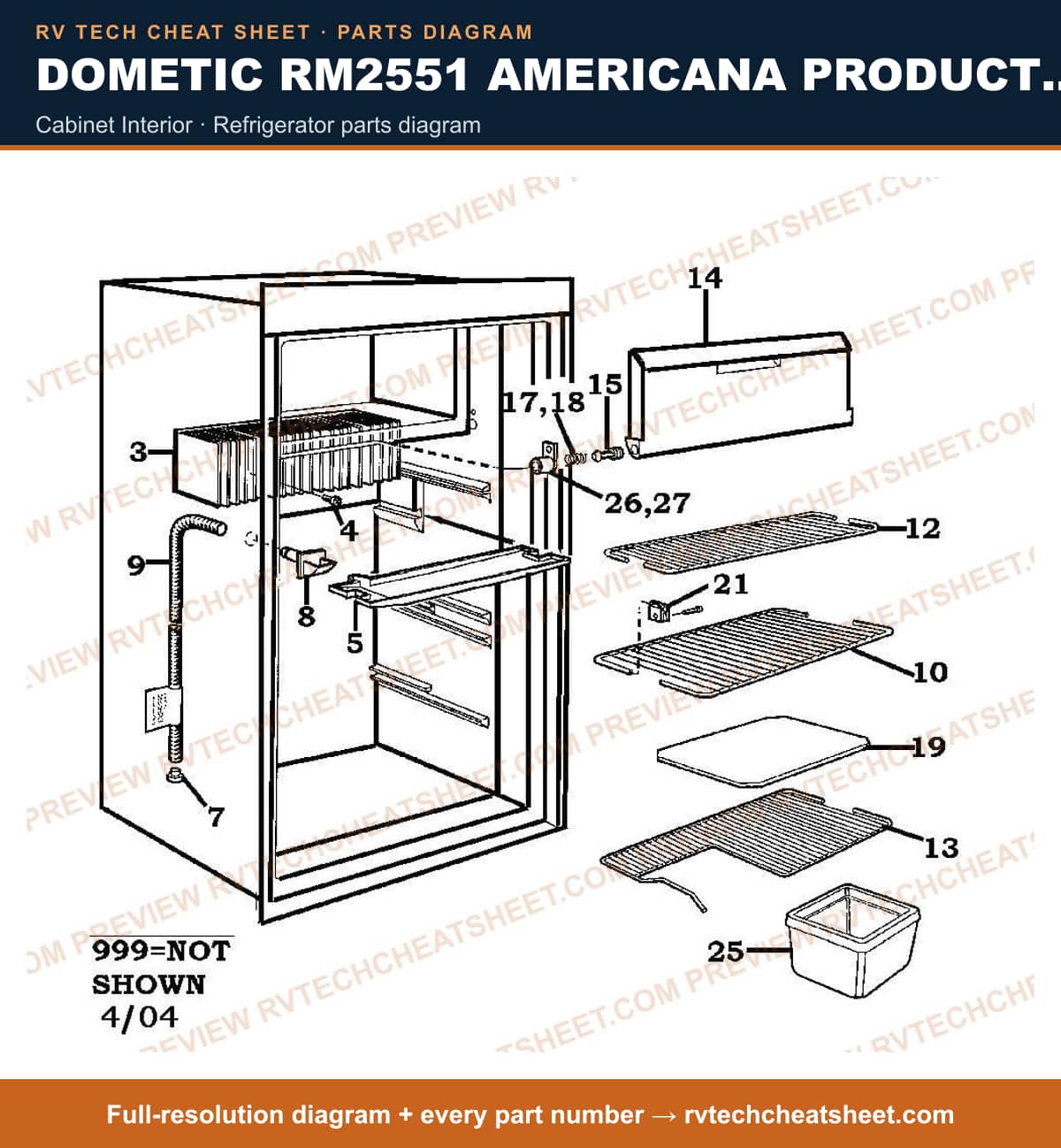

Cabinet Interior

Components

21 items

1. #COOLING FLANGE MFR # 2932629013
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #S,DRIP TRAY-4/5CF MFR # 2932623016
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
6. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
7. #Dometic RM2652 RM2662 Gas Valve Solenoid Coil MFR # 2932625029
8. #SHELF, WIRE USE 2932625029 MFR # 2932625011 Superseded: see description
9. #Refrigerator Shelf; Replacement For Dometic RM2454/ RM2451 Refrigerators; Fresh Food Compartment; Wire; White MFR # 2932625060
10. #Appliance Components RV; Shelf, Milk White Wire MFR # 2932626142
11. #Refrigerator Door; Replacement For Dometic RM2451/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554 Model Refrigerator; Flap; Upper MFR # 2932650019
12. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
13. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
14. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
15. #APPLIANCE COMPONENTS RV; LID, CRISPER MFR # 2931117093
16. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011
17. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
18. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
19. #CRISPER WHITE MFR # 9326210100
20. #Ice Bin; Replacement For Norcold 2117/ N1095/ N64X/ N84X/ N7LX/ N7LXIMF/ N8LX/ N8LXIMF/ N7LX/ N8LX/ NA8LX/ N10LX/ NA10LX Series Refrigerator; Clear MFR # 619007
21. #Refrigerator Crisper Bin; Replacement For Dometic RM2852/ RM2662 Refrigerators; White; Also Use New Number 29326210100 MFR # 2932621010 Superseded: see description

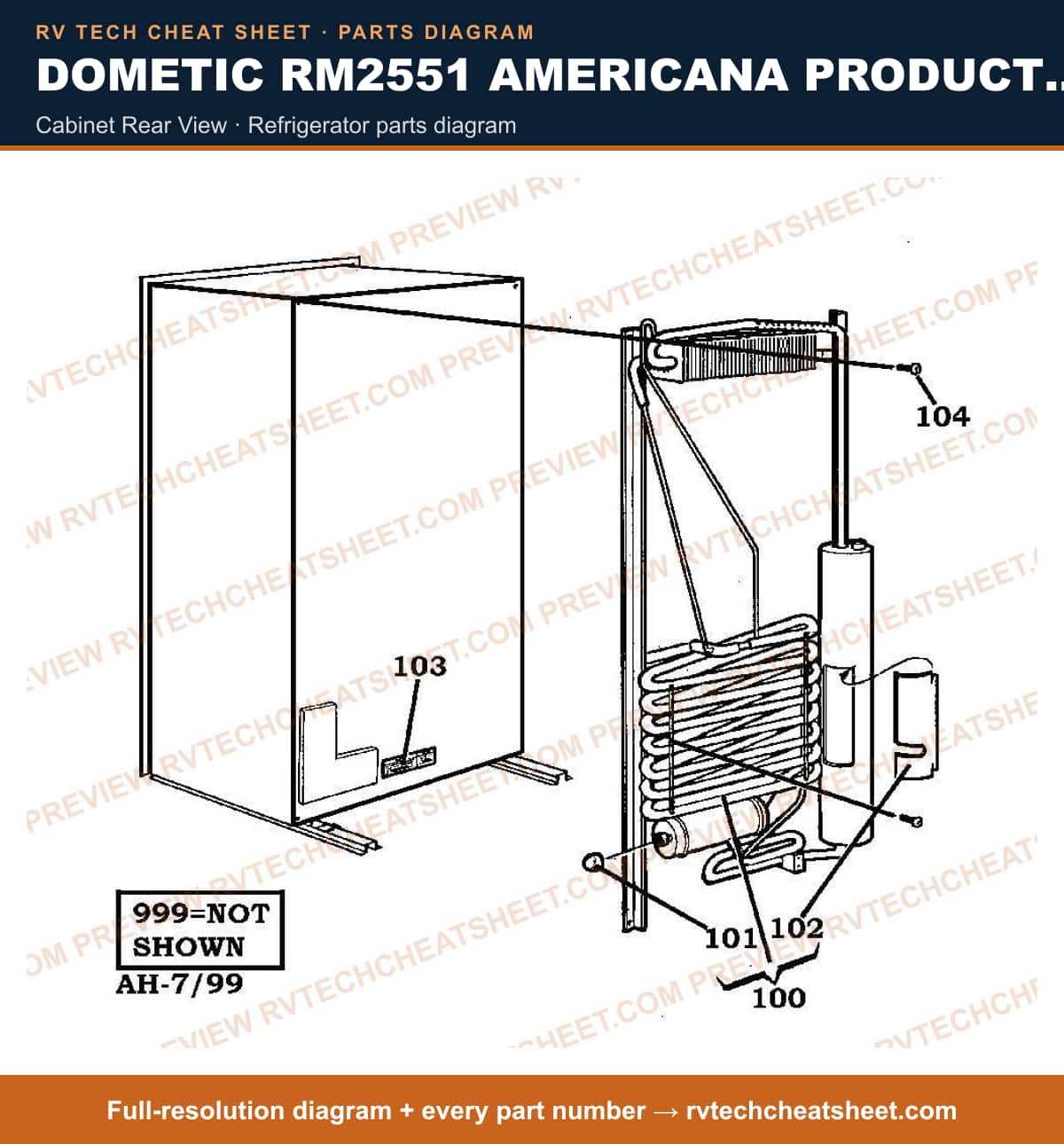

Cabinet Rear View

Components

10 items

1. #REMAN COOLING UNIT RM2551/RM2554 MFR # 5554N
2. #APPLIANCE COMPONENTS RV; COOLING UNIT MFR # 2934509098N
3. #REMAN COOLING UNIT MFR # 2934509098R
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
6. #LABEL MFR # 3850583000
7. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
8. #SCREW DK4 X 16 PM MFR # 3858020013
9. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
10. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110

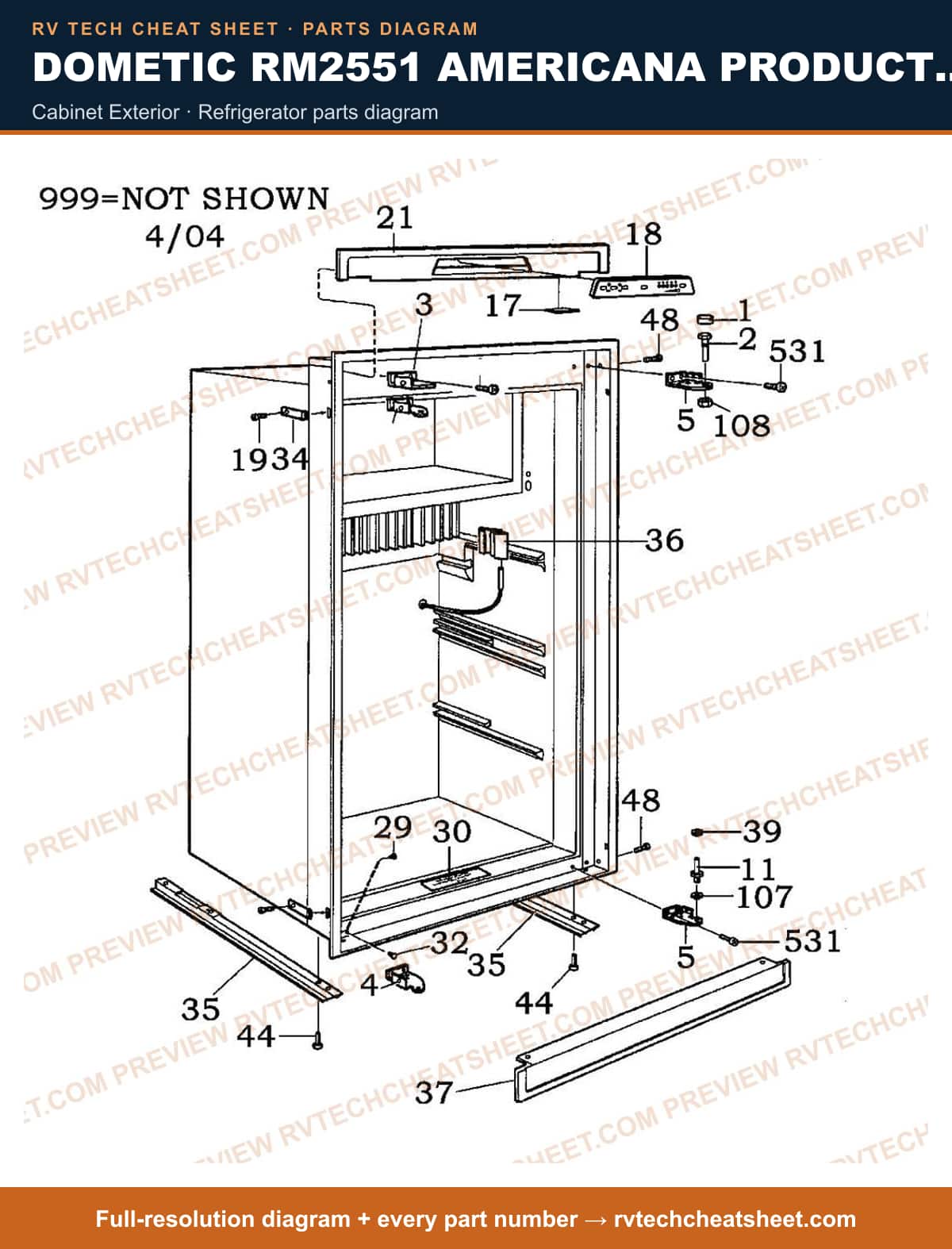

Cabinet Exterior

Components

30 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #S,BRACKET,RH,BLK MFR # 2932644046
4. #Refrigerator Door Hinge; Replacement For Dometic DM2652/ RM2852 Refrigerators; Left Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643048 Superseded: see description
5. #Refrigerator Door Hinge; Replacement For Dometic RM2452/ RM3863/ NDM1062 Refrigerators; Right Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643030 Superseded: see description
6. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
7. #Refrigerator Power Selector Switch Cover; Replacement For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator MFR # 2932330018
8. #EYEBROW DISPLAY BOARD, 2W, BLACK F/DM2X52 & RM2X51 MFR # 2932771039
9. #Refrigerator Eyebrow Power Control Circuit Board;;Replacement For Dometic Refrigerators; 2 Way Cont MFR # 2932771021
10. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
11. #APPLIANCE COMPONENTS RV; FRONT,BLACK MFR # 2932641034
12. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
13. #Decal; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2562/ DM2862/ DM3862 MFR # 2932776004 Superseded: see description
14. #PLUG,BLACK MFR # 3850585039
15. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
16. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
17. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
18. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
19. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
20. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
21. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
22. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
23. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
24. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
25. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
26. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
27. #Trailer Wheel Bearing; Use With 1.378 Inch Out Diameter Axles; Tapered Roller Bearing; With Inner Bearing L-68149; Pack Of 2; Clamshell Pack; Folding Carton Package MFR # 2932750132 Superseded: see description
28. #Appliance Components RV; Reversing Kit, Door Black MFR # 293275014
29. #Door Reversal Kit; LH to RH Black MFR # 2932750140
30. #Appliance Components RV; Reversing Kit, Door Black MFR # 293275013

Replacement Refrigerator

Components

4 items

1. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 5 Cubic Foot Capacity; 43-1/2 Inch Height x 24-11/16 Inch Width x 24-7/8 Inch Depth; 110 Volt AC; 2 Way Alternating Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ Positive Lock Door Handles/ 2 Liter Bottle And 1 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2551RB
2. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510UR
3. #Refrigerator / Freezer; Americana; Single Compartment Refrigerator With Freezer; Permanent; 5 Cubic Feet MFR # RM2551RB1F
4. #Refrigerator / Freezer; Americana; Single Compartment Refrigerator With Freezer; Permanent MFR # RM2551LB1F

Burner & Controls

Components

50 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
9. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
10. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
11. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
12. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
13. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
14. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
15. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
16. #Nut, T-Couple MFR # 2801043015
17. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
18. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
19. #BOARD, PC USE 3308741002 MFR # 2932770015 Superseded: see description
20. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
21. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
22. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
23. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
24. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
25. #S,COVER,LESS DECALS MFR # 2931858019
26. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
27. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
28. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
29. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
30. #Appliance Components RV; Top, Flue MFR # 2930402009
31. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
32. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
33. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
34. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
35. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
36. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
37. #LEAD, GAS VALVE MFR # 2954437055
38. #ELEMENT, HEATING 175W 120V USE 49-8743 MFR # 173738345 Superseded: see description
39. #Heating Element; 175W 120V; USE 49-8743 MFR # 173771023 Superseded: see description
40. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
41. #3858022019 MFR # 3858022019
42. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
43. #Appliance Components RV; Igniter Spark MFR # 2933096014
44. #Refrigerator Switch Wiring Kit; For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator; Igniter Cable MFR # 2931360073
45. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
46. #APPLIANCE COMPONENTS RV; Baffle Flue MFR # 2932667021
47. #Bracket, Reigniter MFR # 3850338017
48. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
49. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
50. #NO PART # GIVEN BY VENDOR MFR # NPG
