Dometic RM2551 Americana Product # 921142101 Beige Parts Diagram · Cabinet Rear View

Refrigerator · 6 assemblies · 6 diagram sheets · 126 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2551 Americana Product # 921142101 Beige RV refrigerator: 6 assemblies (Cabinet Rear View, Replacement Refrigerator, Cabinet Interior, Cabinet Exterior, Door Asm and more) and 126 manufacturer part numbers. 32 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Rear View

Components

7 items

1. #APPLIANCE COMPONENTS RV; COOLING UNIT MFR # 2934509098N
2. #REMAN COOLING UNIT MFR # 2934509098R
3. #REMAN COOLING UNIT RM2551/RM2554 MFR # 5554N
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
7. #SCREW DK4 X 16 PM MFR # 3858020013

Replacement Refrigerator

Components

8 items

1. #Refrigerator Door Panel; Fits Norcold Refrigerator N510 Series; Woodgrain MFR # N510G
2. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 5 Cubic Foot Capacity; 43-1/2 Inch Height x 24-11/16 Inch Width x 24-7/8 Inch Depth; 110 Volt AC; 2 Way Alternating Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ Positive Lock Door Handles/ 2 Liter Bottle And 1 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2551RB
3. #REFER, 5 CU.FT 2-WAY STAINLESS 42 5/8 X 23 11/16 X 24D MFR # RM2551S
4. #Refrigerator / Freezer; Americana; Single Compartment Refrigerator With Freezer; Permanent MFR # RM2551LB1F
5. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510UR
6. #Refrigerator / Freezer; Americana; Single Compartment Refrigerator With Freezer; Permanent; 5 Cubic Feet MFR # RM2551RB1F
7. #REFER, 5 CU FT 2WAY USE RM2551B 42 5/8" X 23 11/16" X 24"D MFR # RM2551N Superseded: see description
8. #PANEL, WOODGRAIN, USE N510G F/N510UR MFR # N510URG Superseded: see description

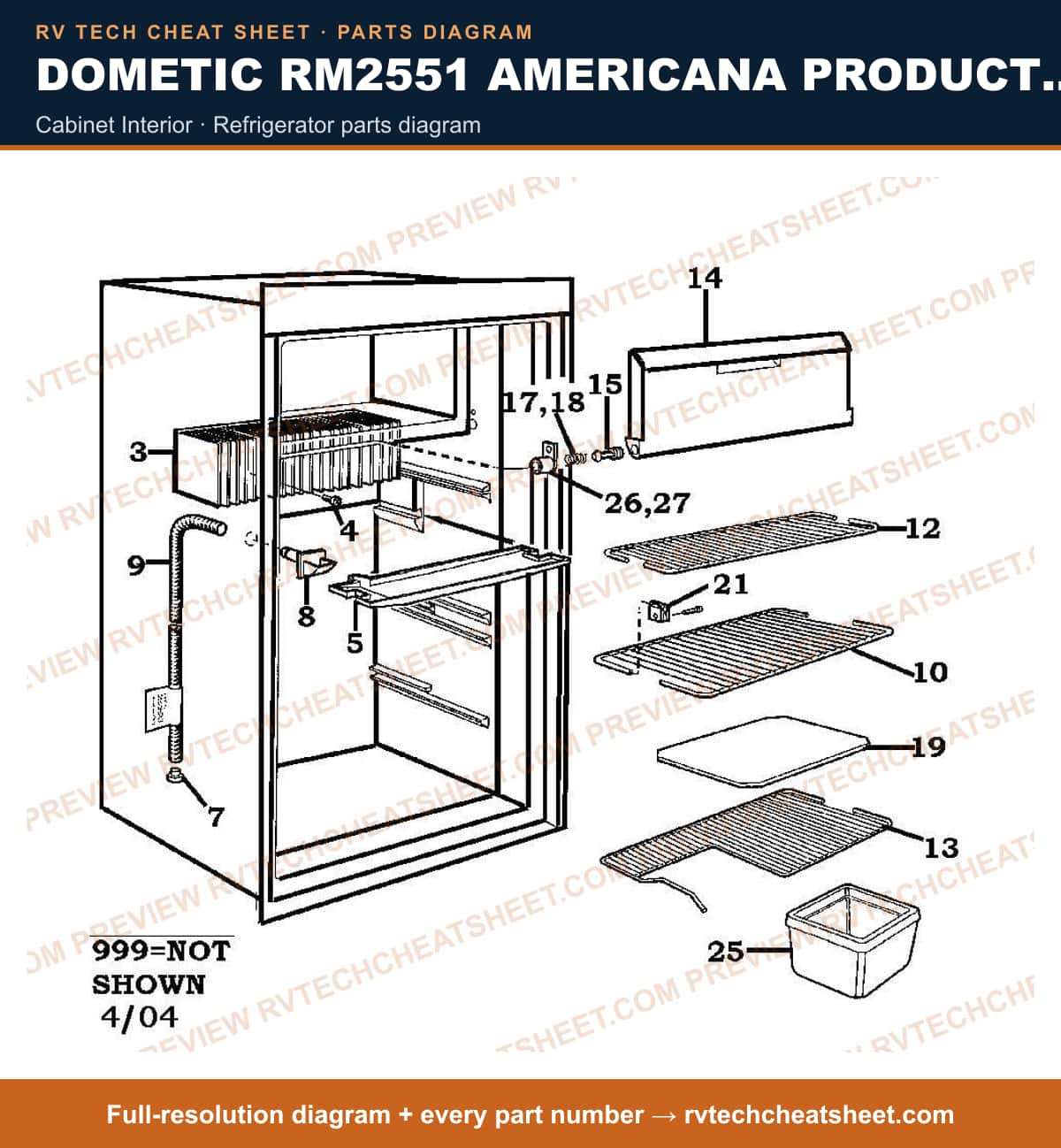

Cabinet Interior

Components

21 items

1. #COOLING FLANGE MFR # 2932629013
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #S,DRIP TRAY-4/5CF MFR # 2932623016
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
6. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
7. #SHELF, WIRE USE 2932625029 MFR # 2932625011 Superseded: see description
8. #Dometic RM2652 RM2662 Gas Valve Solenoid Coil MFR # 2932625029
9. #Refrigerator Shelf; Replacement For Dometic RM2454/ RM2451 Refrigerators; Fresh Food Compartment; Wire; White MFR # 2932625060
10. #Appliance Components RV; Shelf, Milk White Wire MFR # 2932626142
11. #Refrigerator Door; Replacement For Dometic RM2451/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554 Model Refrigerator; Flap; Upper MFR # 2932650019
12. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
13. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
14. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
15. #APPLIANCE COMPONENTS RV; LID, CRISPER MFR # 2931117093
16. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011
17. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
18. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
19. #Ice Bin; Replacement For Norcold 2117/ N1095/ N64X/ N84X/ N7LX/ N7LXIMF/ N8LX/ N8LXIMF/ N7LX/ N8LX/ NA8LX/ N10LX/ NA10LX Series Refrigerator; Clear MFR # 619007
20. #Refrigerator Crisper Bin; Replacement For Dometic RM2852/ RM2662 Refrigerators; White; Also Use New Number 29326210100 MFR # 2932621010 Superseded: see description
21. #CRISPER WHITE MFR # 9326210100

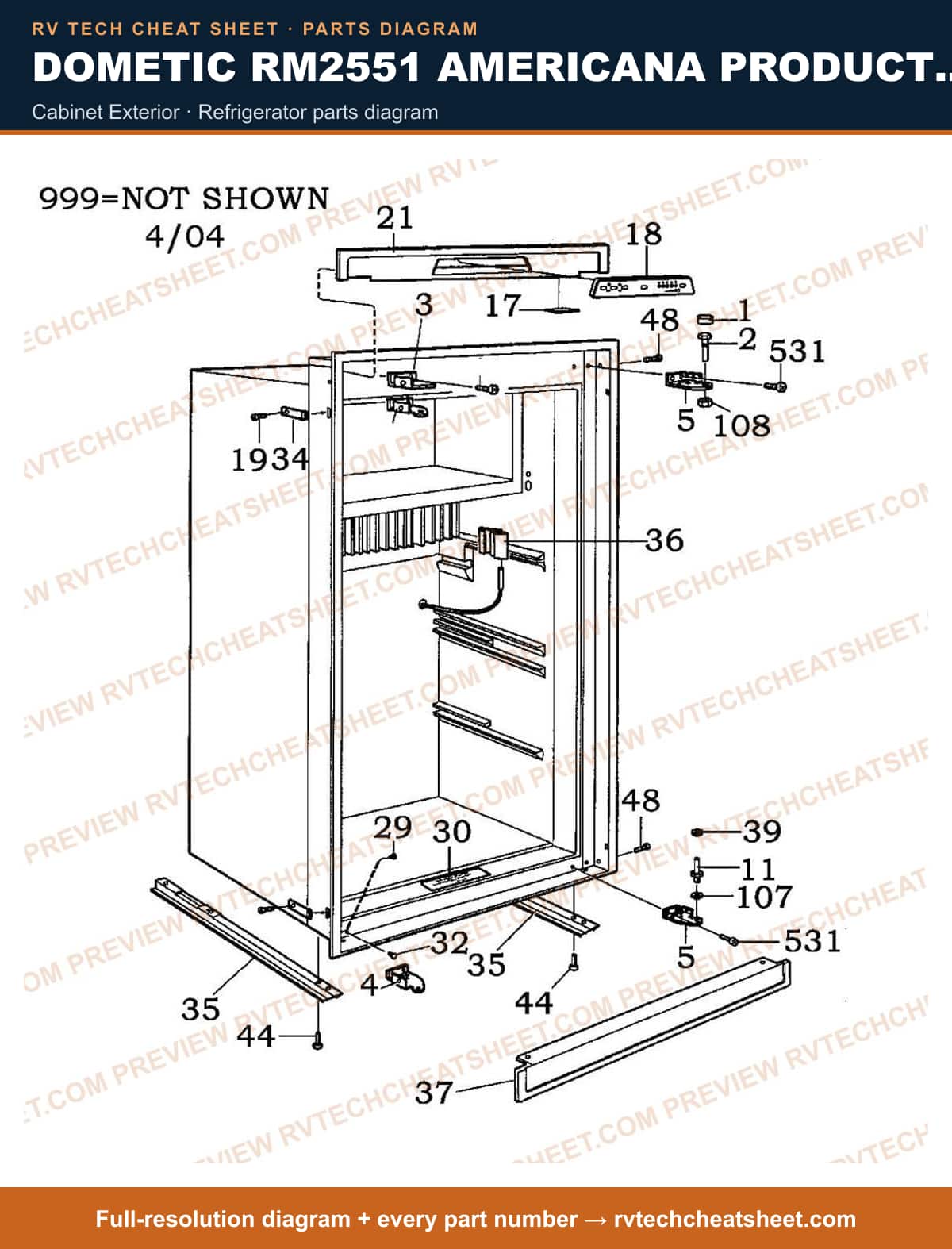

Cabinet Exterior

Components

24 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #Refrigerator Door Hinge Plate; Use With Dometic Refrigerator Models RM2852 Americana; Fits Left Hand Top MFR # 2932644012 Superseded: see description
4. #Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022
5. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
6. #Refrigerator Power Selector Switch Cover; Replacement For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator MFR # 2932330018
7. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
8. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
9. #Appliance Components RV; Cover, Front MFR # 2932641018
10. #Refrigerator Support Rail Screw; Replacement For Dometic DM2652/ NDR1062/ RM2451/ RM2454/ RM2551/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872 Model Refrigerator MFR # 2930740044
11. #Decal; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2562/ DM2862/ DM3862 MFR # 2932776004 Superseded: see description
12. #Plug MFR # 3850585047
13. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
14. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
15. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
16. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
17. #Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023
18. #Washer; Use With Dometic Refrigerators; Zinc Plated; 5.5 x 12 x 1; Zinc Plated MFR # 3858010089 Superseded: see description
19. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
20. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
21. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
22. #Nut; Use With Dometic Americana/ Americana Plus/ DM Series Refrigerators; ML6 x M6 MFR # 3858009040 Superseded: see description
23. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Hinge Kit Left To Right MFR # D7E293275003

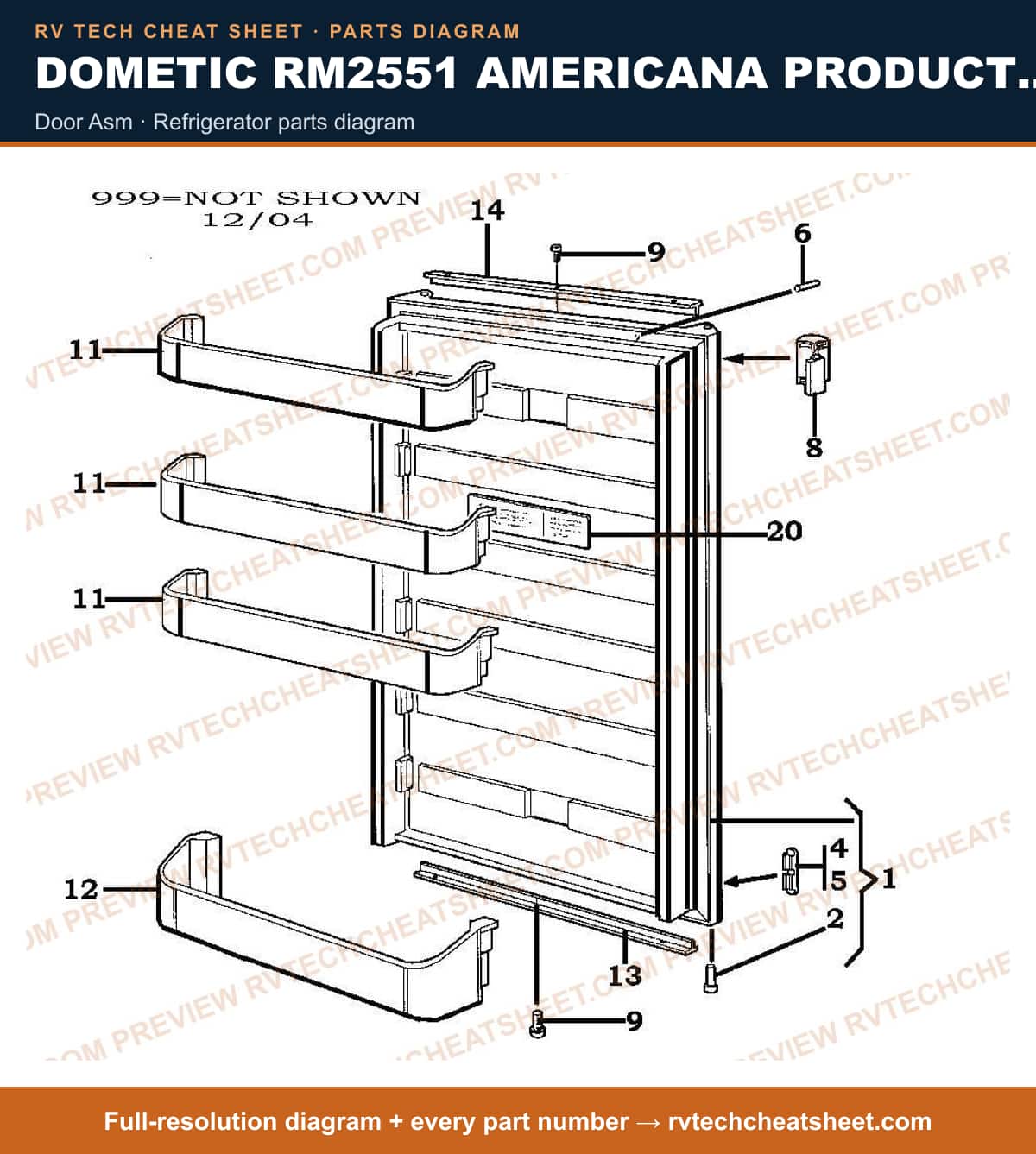

Door Asm

Components

21 items

1. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G
2. #Refrigerator Door; Use With Dometic RM2553/ RM2551 Refrigerators; Right Hand Side MFR # 2932562123 Superseded: see description
3. #Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A
4. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA
5. #KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C
6. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L
7. #Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D
8. #GASKET KIT, DOOR MFR # 3108708409
9. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
10. #Refrigerator Door; Use With Dometic Refrigerator Model RM2652 Americana; Fits Lower Door Left Hand Side MFR # 2932682012 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Plug Decoration Rh MFR # 2932682020
12. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
13. #Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017
14. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
15. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
16. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
17. #S,DR DECOR,FRZ,BRN MFR # 3850381017
18. #Appliance Components RV; Strip, Decoration MFR # 3850919014
19. #Refrigerator Trim; Replacement For Dometic RM2453/ RM2652/ RM2852/ RM2551/ RM2454/ RM2652/ RM2451 Model Refrigerator; Decoration Trim; Brown MFR # 3850381330
20. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
21. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018

Burner & Controls

Components

46 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
9. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
10. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
11. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
12. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
13. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
14. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
15. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
16. #Nut, T-Couple MFR # 2801043015
17. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
18. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
19. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
20. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
21. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
22. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Black Box Board Kit 3850415.01 MFR # 385041501
23. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
24. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
25. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
26. #Appliance Components RV; Top, Flue MFR # 2930402009
27. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
28. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
29. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
30. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
31. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
32. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
33. #Conductor, Solenoid Valve MFR # 2954539033
34. #Heating Element; 175W 120V; USE 49-8743 MFR # 173771023 Superseded: see description
35. #ELEMENT, HEATING 175W 120V USE 49-8743 MFR # 173738345 Superseded: see description
36. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
37. #3858022019 MFR # 3858022019
38. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
39. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
40. #Appliance Components RV; Igniter Spark MFR # 2933096014
41. #Refrigerator Switch Wiring Kit; For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator; Igniter Cable MFR # 2931360073
42. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
43. #APPLIANCE COMPONENTS RV; Baffle Flue MFR # 2932667021
44. #Bracket, Reigniter MFR # 3850338017
45. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
46. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
