Dometic RM2552 Americana Product # 921142001 Rh Door Parts Diagram · Cabinet Rear View

Refrigerator · 6 assemblies · 6 diagram sheets · 142 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2552 Americana Product # 921142001 Rh Door RV refrigerator: 6 assemblies (Cabinet Rear View, Burner & Controls, Cabinet Interior, Replacement Refrigerator, Cabinet Exterior and more) and 142 manufacturer part numbers. 31 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Rear View

Components

7 items

1. #Refrigerator Cooling Unit; Use With Dometic Refrigerator Model Number RM2552 MFR # 2934505096N Superseded: see description
2. #REMAN COOLING UNIT MFR # 2934505096R
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #CLIP, HOSE DRAIN CONDENSATION MFR # 3106590015
6. #MASTIC MFR # 2943397006
7. #MASTIC USE 2943397006 (504); FOR C/U SEALER USE ALT# 311COMPOUND MFR # 310COMPOUND Superseded: see description

Burner & Controls

Components

70 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
4. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RG1350/ RM2353 Refrigerators MFR # 2932591015
5. #NIPPLE MFR # 2931338012
6. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
7. #Thermostat Housing Bolt; Use With Dometic RM2352/ RM2353 Refrigerators MFR # 2954070005 Superseded: see description
8. #THERMOSTAT MFR # 2931336016
9. #Refrigerator Cooling Fan Thermostat; Replacement For Dometic Refrigerator Models RM2332-926695201/ RM2333-926695401/ RM2333-926695801/ RM2352-921145002/ RM2352-921145004/ RM2352-921145009/ RM2352-921145013/ RM2352-921145015/ RM2352-921145018/ RM2352-921145019/ RM2353-921145003/ RM2353-921145005/ RM2353-921145011/ RM2353-921145014/ RM2353-921145016/ RM2353-921145020/ RM2353-921145021/ RM2452-921140101/ RM2452-921140102/ RM2452-921140107/ RM2452-921140108/ RM2453-921140103/ RM2453-921140104/ RM2453-921140109/ RM2453-921140110/ RM2552-921142001/ RM2552-921142002/ RM2553-921142003/ RM2553-921142004 MFR # 2931336016MC
10. #T-STAT USE 2931336016 MFR # V61P0121000 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932619014
12. #PROTECTION PLATE MFR # 2932599018
13. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
14. #APPLIANCE COMPONENTS RV; Bracket Shutoff Valve MFR # 2932062017
15. #Refrigerator Gas Valve Adapter Fitting; Use On Dometic Refrigerator Models RM2330/ RM2350/ RM4601 MFR # 2955033002MC Superseded: see description
16. #INTERRUPTER MFR # 2955033002
17. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
18. #Panel, Control 2-Way; USE 46-0688 MFR # 2932600048 Superseded: see description
19. #Panel, Control 3-Way MFR # 2932600014
20. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
21. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
22. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
23. #Block Terminal Small 3 Poi MFR # 7627202562
24. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
25. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
26. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
27. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
28. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
29. #Screw; Replacement For Dometic RM2452/ RM7030/ RM2333 Refrigerator Models; Gas Valve Screw; M4 x 25; Zinc MFR # 7241297618
30. #APPLIANCE COMPONENTS RV; Valve Manual Gas MFR # 2932617018
31. #Refrigerator Power Selector Switch; Replacement For Dometic RM2353/ RG1350/ RM2552 Refrigerators MFR # 2932614015
32. #Refrigerator Bushing; Replacement For Dometic RM2353/ RG1350 Refrigerators; For Power Selector Switch MFR # 2932602010
33. #Gas Tube MFR # 2932618024
34. #APPLIANCE COMPONENTS RV; Valve Shut Off MFR # 2932616010
35. #APPLIANCE COMPONENTS RV; NIPPLE MFR # 2931227017
36. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2453/ RM2552/ RM2553 Model Refrigerator; Thermocouple Extension MFR # 2932726033
37. #Thermocouple; Replacement For Dometic RM2453/ RM2452 Refrigerators; Probe Sensor MFR # 2932726025
38. #Nut, T-Couple MFR # 2801043015
39. #GAS TUBE MFR # 2932620020
40. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
41. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RM2453/ RM2552/ RM2453/ RM2352/ RM253/ RG1350/ RM2604 Model Refrigerator MFR # 2930488008
42. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
43. #GUIDING DEVICE MFR # 2932595016
44. #APPLIANCE COMPONENTS RV; Knob T-Stat 2 1/2" MFR # 2932605013
45. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM2552/ RM2553/ RM2452 Refrigerators; 1 Inch Diameter MFR # 2932607019
46. #BUTTON, PUSH MFR # D7E2932596014
47. #Refrigerator Door Latch Spring; Replacement For Dometic RG1350/ RM2453/ RM2552 Model Refrigerator MFR # 2932594019
48. #Refrigerator Power Selector Switch Cover; Use With Dometic RM2352/ RM2353 Model Refrigerators MFR # 2954023004 Superseded: see description
49. #APPLIANCE COMPONENTS RV; INDICATOR, FLAME MFR # 2955037011
50. #ELEMENT, HEATING 120V 210W MFR # CH000023
51. #ELEMENT, HEATING 220V 210W MFR # 3108705082
52. #ELEMENT, HEATING USE CH000023 120V 210W MFR # 173738196 Superseded: see description
53. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
54. #CABLE, COMPLETE MFR # 2954427023
55. #Appliance Components RV; Block Terminal MFR # 2932592013
56. #Decal; Replacement For Dometic RM2453/ RM2552 Refrigerators; Rectangular MFR # 2932597012
57. #Appliance Components RV; Cover MFR # 2932609015
58. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
59. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
60. #CABLE, REIGNITOR MFR # 2954420010
61. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
62. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
63. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
64. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
65. #APPLIANCE COMPONENTS RV; Lead Electrode MFR # 2007668086
66. #STRIP, TERMINAL 6 POS. MFR # 2930327008
67. #APPLIANCE COMPONENTS RV; Baffle Flue MFR # 2932667021
68. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
69. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
70. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description

Cabinet Interior

Components

20 items

1. #COOLING FLANGE MFR # 2932629013
2. #S,DRIP TRAY-4/5CF MFR # 2932623016
3. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
4. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
5. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
6. #SHELF, WIRE USE 2932625029 MFR # 2932625011 Superseded: see description
7. #Dometic RM2652 RM2662 Gas Valve Solenoid Coil MFR # 2932625029
8. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 2932625052
9. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 2932626134
10. #Refrigerator Door; Replacement For Dometic RM2451/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554 Model Refrigerator; Flap; Upper MFR # 2932650019
11. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
12. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
13. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
14. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
15. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
16. #APPLIANCE COMPONENTS RV; LID, CRISPER MFR # 2931117093
17. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011
18. #Ice Bin; Replacement For Norcold 2117/ N1095/ N64X/ N84X/ N7LX/ N7LXIMF/ N8LX/ N8LXIMF/ N7LX/ N8LX/ NA8LX/ N10LX/ NA10LX Series Refrigerator; Clear MFR # 619007
19. #CRISPER WHITE MFR # 9326210100
20. #Refrigerator Crisper Bin; Replacement For Dometic RM2852/ RM2662 Refrigerators; White; Also Use New Number 29326210100 MFR # 2932621010 Superseded: see description

Replacement Refrigerator

Components

5 items

1. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U
2. #Refrigerator Door Panel; Fits Norcold Refrigerator N510 Series; Woodgrain MFR # N510G
3. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 5 Cubic Foot Capacity; 43-1/2 Inch Height x 24-11/16 Inch Width x 24-7/8 Inch Depth; 110 Volt AC; 2 Way Alternating Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ Positive Lock Door Handles/ 2 Liter Bottle And 1 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2551RB
4. #PANEL, WOODGRAIN, USE N510G F/N510UR MFR # N510URG Superseded: see description
5. #REFER, 5 CU.FT 2-WAY STAINLESS 42 5/8 X 23 11/16 X 24D MFR # RM2551S

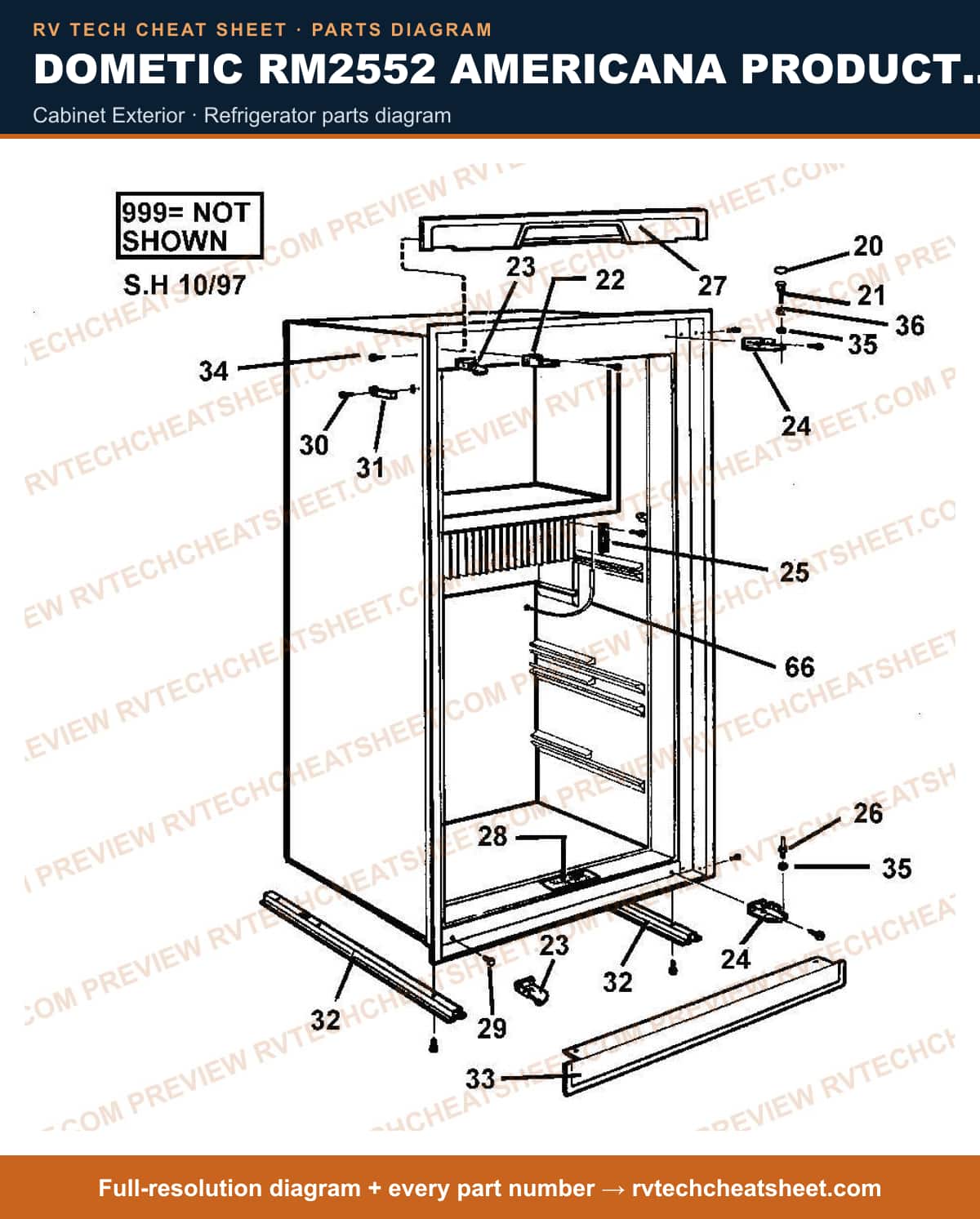

Cabinet Exterior

Components

25 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020
4. #Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022
5. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
6. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
7. #Refrigerator Trim; Replacement For Dometic RM2552/ RM2553 Refrigerators; Top MFR # 2932640028
8. #DECAL MFR # 2932678002
9. #PLUG MFR # 2932742014
10. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
11. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
12. #LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description
13. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
14. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
15. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
16. #Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023
17. #SCREW MFR # 7241283014
18. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
19. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
20. #Refrigerator Cooling Fan Thermostat; Replacement For Dometic Refrigerator Models RM2332-926695201/ RM2333-926695401/ RM2333-926695801/ RM2352-921145002/ RM2352-921145004/ RM2352-921145009/ RM2352-921145013/ RM2352-921145015/ RM2352-921145018/ RM2352-921145019/ RM2353-921145003/ RM2353-921145005/ RM2353-921145011/ RM2353-921145014/ RM2353-921145016/ RM2353-921145020/ RM2353-921145021/ RM2452-921140101/ RM2452-921140102/ RM2452-921140107/ RM2452-921140108/ RM2453-921140103/ RM2453-921140104/ RM2453-921140109/ RM2453-921140110/ RM2552-921142001/ RM2552-921142002/ RM2553-921142003/ RM2553-921142004 MFR # 2931336016MC
21. #THERMOSTAT MFR # 2931336016
22. #T-STAT USE 2931336016 MFR # V61P0121000 Superseded: see description
23. #Appliance Components RV; Hinge Kit Left To Right MFR # 293275003
24. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model RM2852 Americana; Right To Left And Left To Right Reverse Door Hinge MFR # 293275002 Superseded: see description
25. #Hinge Kit L to R; Use 293275003 RM2453, RM3862 MFR # 3106922010 Superseded: see description

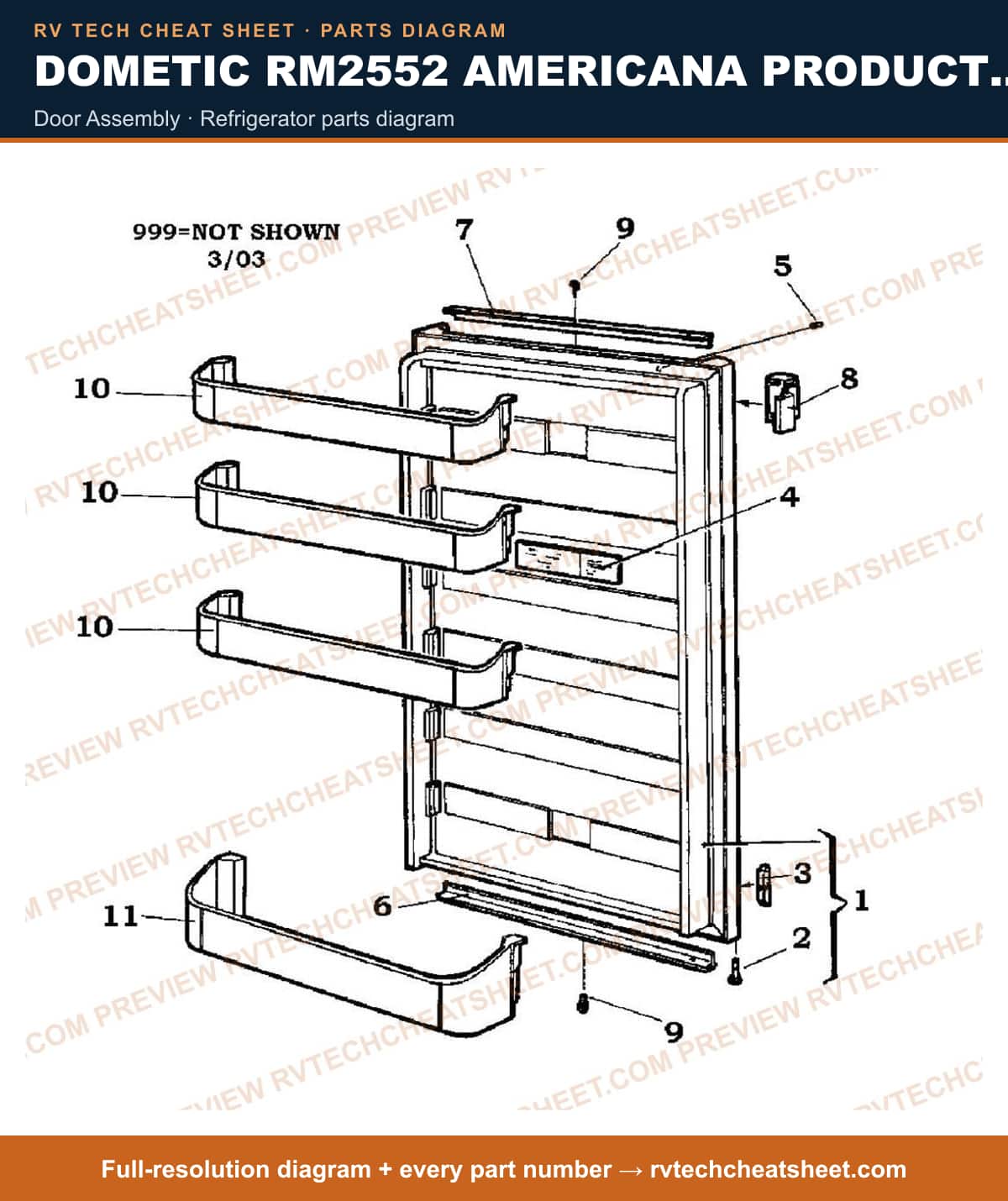

Door Assembly

Components

18 items

1. #GASKET KIT, DOOR MFR # 3108708409
2. #Refrigerator Door; Use With Dometic RM2552 Refrigerator; Left Hand Lower MFR # 2932562115 Superseded: see description
3. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
4. #APPLIANCE COMPONENTS RV; Plug Decoration Rh MFR # 2932682020
5. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
6. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
7. #S,DR DECOR,FRZ,BRN MFR # 3850381017
8. #Appliance Components RV; Strip, Decoration MFR # 3850919014
9. #Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description
10. #STRIP, DECO USE 3850381041 W/LOGO MFR # 2932642040 Superseded: see description
11. #APPLIANCE COMPONENTS RV; STRIP, DECORATION MFR # 3850381041
12. #Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017
13. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
14. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
15. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
16. #PANEL, DOOR BLACK ACRYLIC FOR RM2552/2553 MFR # 3106863065C
17. #PANEL, DOOR BLACK PLEXIGLASS SINGLE PANEL MFR # RM2552L
18. #PANEL, DOOR WOODGRAIN SINGLE PANEL MFR # RM2552G
