Dometic RM2554 Americana Product # 921142017 Beige Parts Diagram · Replacement Refrigerator

Refrigerator · 7 assemblies · 7 diagram sheets · 127 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2554 Americana Product # 921142017 Beige RV refrigerator: 7 assemblies (Replacement Refrigerator, Cabinet Exterior, Cabinet Rear View, Cabinet Interior, Door Assembly and more) and 127 manufacturer part numbers. 28 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

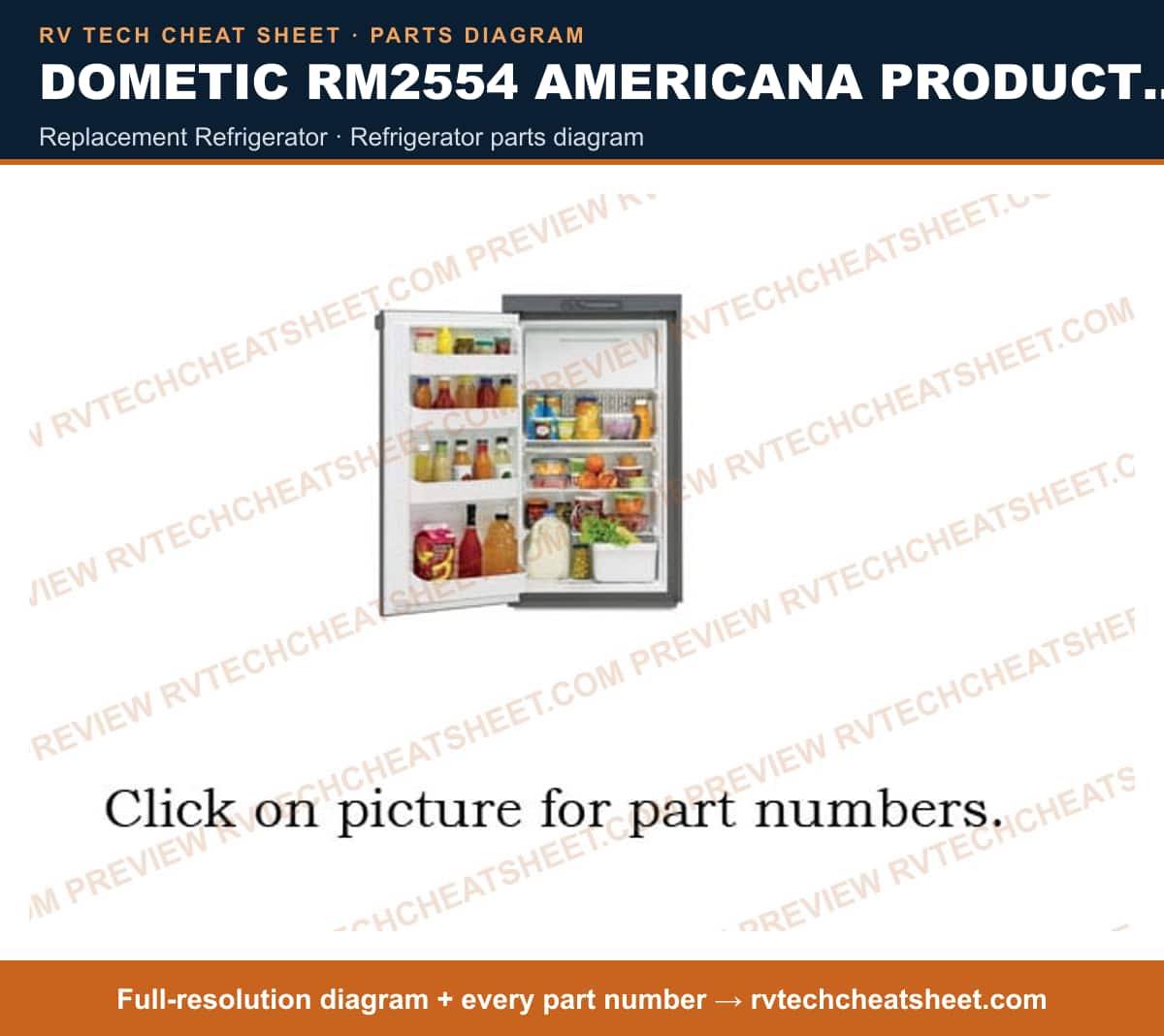

Replacement Refrigerator

Components

6 items

1. #Refrigerator / Freezer; Americana; Single Compartment Refrigerator With Freezer; Permanent; 5 Cubic F MFR # RM2554RB1F
2. #REFER, 5.5 CUFT. USE N5103UR 42 5/8H X 23 11/16W X 24D MFR # N5103U Superseded: see description
3. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N5103UR
4. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N5103UL
5. #Refrigerator / Freezer; Americana; Single Compartment Refrigerator With Freezer; Permanent MFR # RM2554LB1F
6. #Refrigerator / Freezer; Americana; Single Compartment Refrigerator With Freezer; Permanent; 5 Cubic Feet MFR # RM2554RB

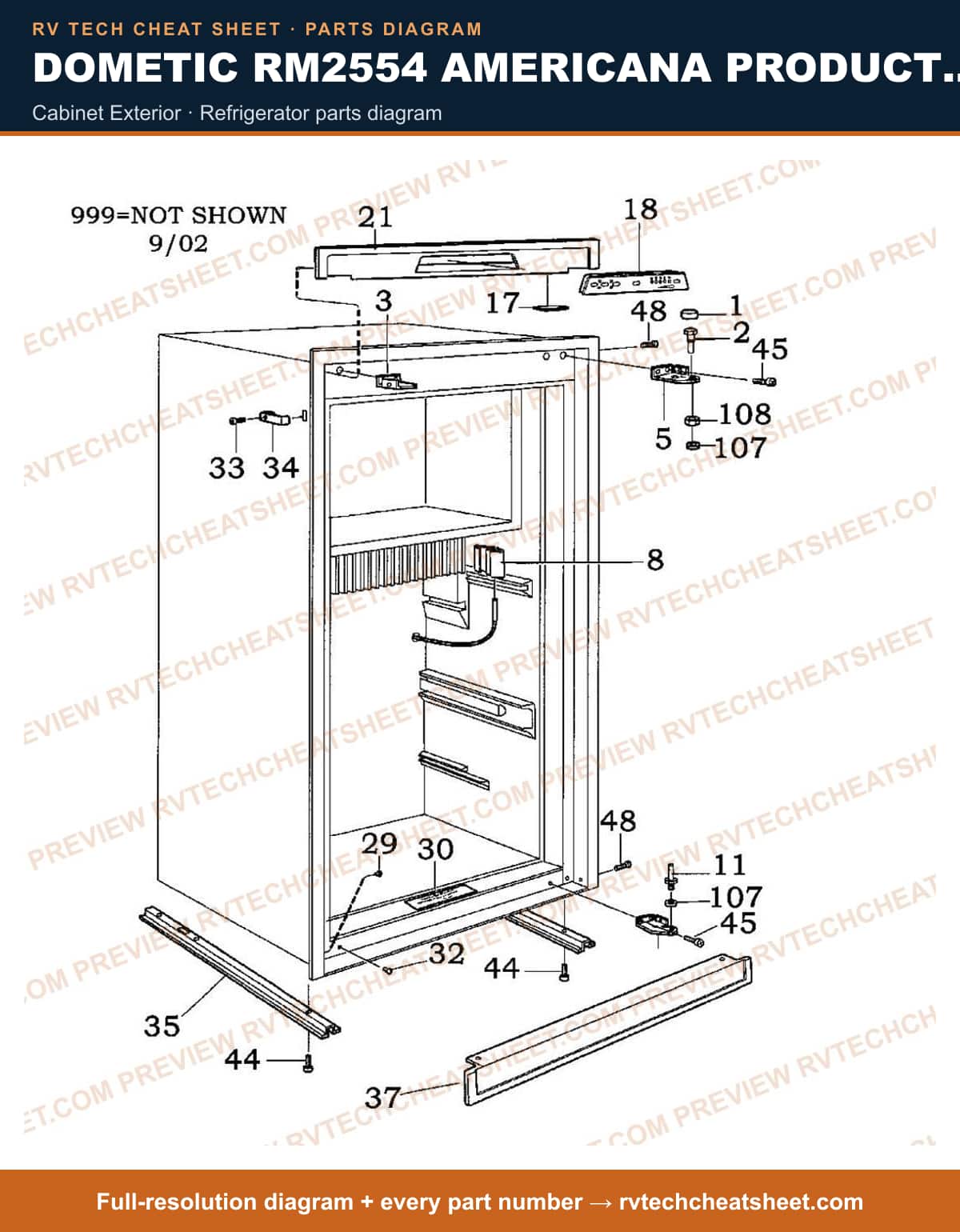

Cabinet Exterior

Components

26 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020
4. #Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022
5. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
6. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
7. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
8. #Refrigerator Power Selector Switch Cover; Replacement For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator MFR # 2932330018
9. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description
10. #Appliance Components RV; Cover, Front MFR # 2932641018
11. #Refrigerator Support Rail Screw; Replacement For Dometic DM2652/ NDR1062/ RM2451/ RM2454/ RM2551/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872 Model Refrigerator MFR # 2930740044
12. #Decal; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2562/ DM2862/ DM3862 MFR # 2932776004 Superseded: see description
13. #PLUG MFR # 2932742014
14. #SCREW RXS B6X5 MFR # 7295275015
15. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
16. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
17. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
18. #Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023
19. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
20. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
22. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
23. #SCREW M4 X 10 S MFR # 7241289615
24. #SCREW MFR # 7241283014
25. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
26. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014

Cabinet Rear View

Components

7 items

1. #REMAN COOLING UNIT RM2551/RM2554 MFR # 5554N
2. #APPLIANCE COMPONENTS RV; COOLING UNIT MFR # 2934509098N
3. #REMAN COOLING UNIT MFR # 2934509098R
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
7. #SCREW DK4 X 16 PM MFR # 3858020013

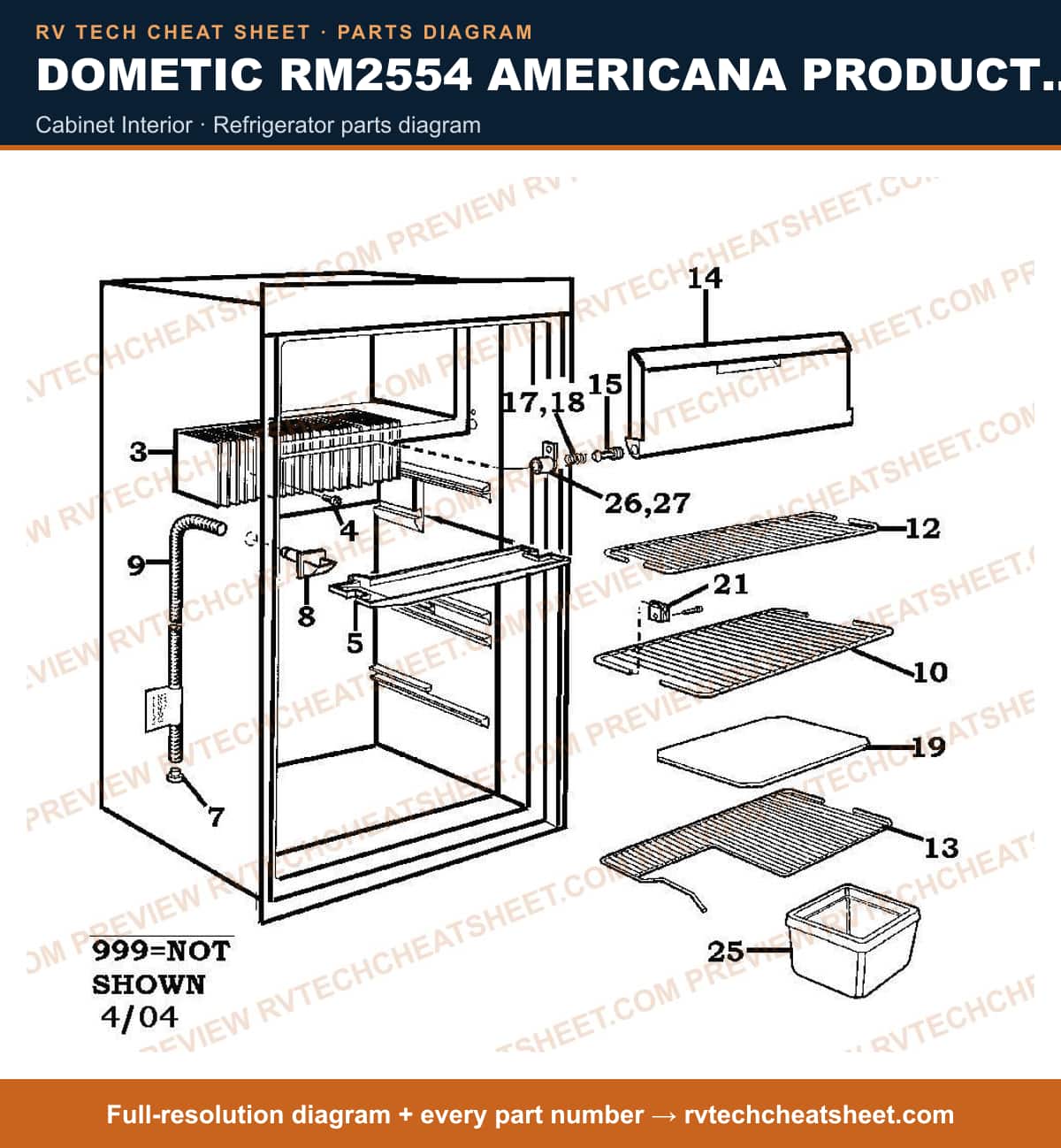

Cabinet Interior

Components

22 items

1. #COOLING FLANGE MFR # 2932629013
2. #APPLIANCE COMPONENTS RV; Screw B10 X 38 MFR # 2801051018
3. #S,DRIP TRAY-4/5CF MFR # 2932623016
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
6. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
7. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 2932625052
8. #SHELF, WIRE USE 2932625029 MFR # 2932625011 Superseded: see description
9. #Dometic RM2652 RM2662 Gas Valve Solenoid Coil MFR # 2932625029
10. #Refrigerator Shelf; Replacement For Dometic RM2454/ RM2451 Refrigerators; Fresh Food Compartment; Wire; White MFR # 2932625060
11. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 2932626134
12. #Refrigerator Door; Replacement For Dometic RM2451/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554 Model Refrigerator; Flap; Upper MFR # 2932650019
13. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
14. #Refrigerator Evaporator Door Spring Holder; Fits Left Hand Side Evaporator Door; Blue MFR # 2932754019
15. #S,SPRING,R MARK W/YELLOW MFR # 2932754027
16. #APPLIANCE COMPONENTS RV; LID, CRISPER MFR # 2931117093
17. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011
18. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
19. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
20. #Ice Bin; Replacement For Norcold 2117/ N1095/ N64X/ N84X/ N7LX/ N7LXIMF/ N8LX/ N8LXIMF/ N7LX/ N8LX/ NA8LX/ N10LX/ NA10LX Series Refrigerator; Clear MFR # 619007
21. #Refrigerator Crisper Bin; Replacement For Dometic RM2852/ RM2662 Refrigerators; White; Also Use New Number 29326210100 MFR # 2932621010 Superseded: see description
22. #CRISPER WHITE MFR # 9326210100

Door Assembly

Components

19 items

1. #Refrigerator Door; Use With Dometic RM2553/ RM2551 Refrigerators; Right Hand Side MFR # 2932562123 Superseded: see description
2. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA
3. #Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A
4. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L
5. #GASKET KIT, DOOR MFR # 3108708409
6. #KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C
7. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G
8. #Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D
9. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
10. #APPLIANCE COMPONENTS RV; Plug Decoration Rh MFR # 2932682020
11. #Refrigerator Door; Use With Dometic Refrigerator Model RM2652 Americana; Fits Lower Door Left Hand Side MFR # 2932682012 Superseded: see description
12. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
13. #Appliance Components RV; Strip, Decoration MFR # 3850919014
14. #S,DR DECOR,FRZ,BRN MFR # 3850381017
15. #APPLIANCE COMPONENTS RV; STRIP, DECORATION MFR # 3850381041
16. #Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017
17. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
18. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
19. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description

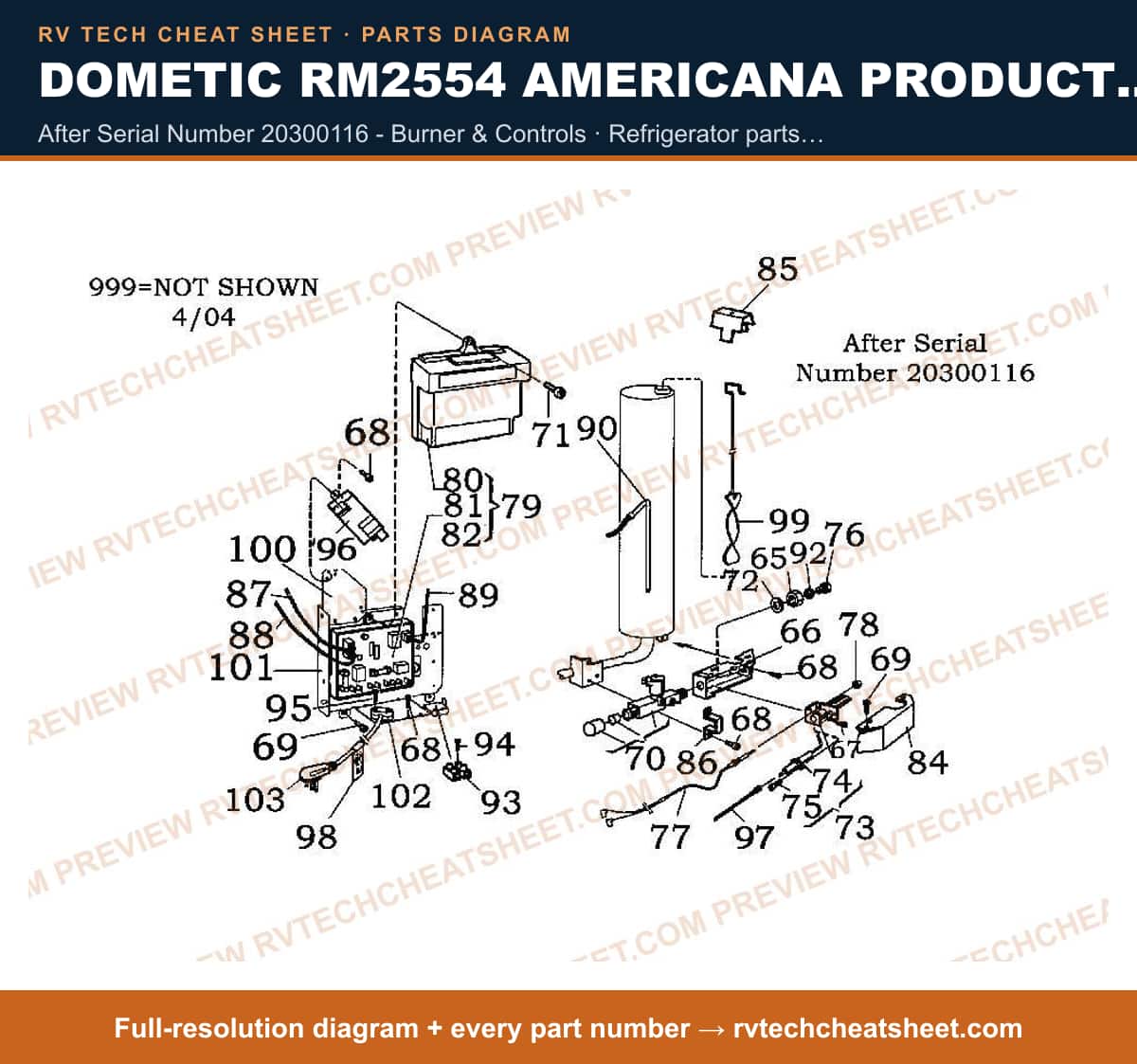

After Serial Number 20300116 - Burner & Controls

Components

48 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
6. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
7. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
8. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
9. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
10. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
11. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
12. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
13. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
14. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
15. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
16. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
17. #Nut, T-Couple MFR # 2801043015
18. #BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description
19. #Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000
20. #S,COVER,LESS DECALS MFR # 2931858019
21. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
22. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
23. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
24. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
25. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
26. #Fuse, 35 AMP MFR # 955036124
27. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
28. #Appliance Components RV; Top, Flue MFR # 2930402009
29. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
30. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
31. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
32. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
33. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
34. #LEAD, GAS VALVE MFR # 2954437055
35. #ELEMENT, HEATING 175W 120V USE 49-8743 MFR # 173738345 Superseded: see description
36. #Appliance Components RV; Element Heating 175W 12V MFR # 173739079
37. #Heating Element; 175W 120V; USE 49-8743 MFR # 173771023 Superseded: see description
38. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
39. #3858022019 MFR # 3858022019
40. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
41. #Appliance Components RV; Igniter Spark MFR # 2933096014
42. #Refrigerator Switch Wiring Kit; For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator; Igniter Cable MFR # 2931360073
43. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
44. #APPLIANCE COMPONENTS RV; Baffle Flue MFR # 2932667021
45. #Bracket, Reigniter MFR # 3850338017
46. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
47. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
48. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110

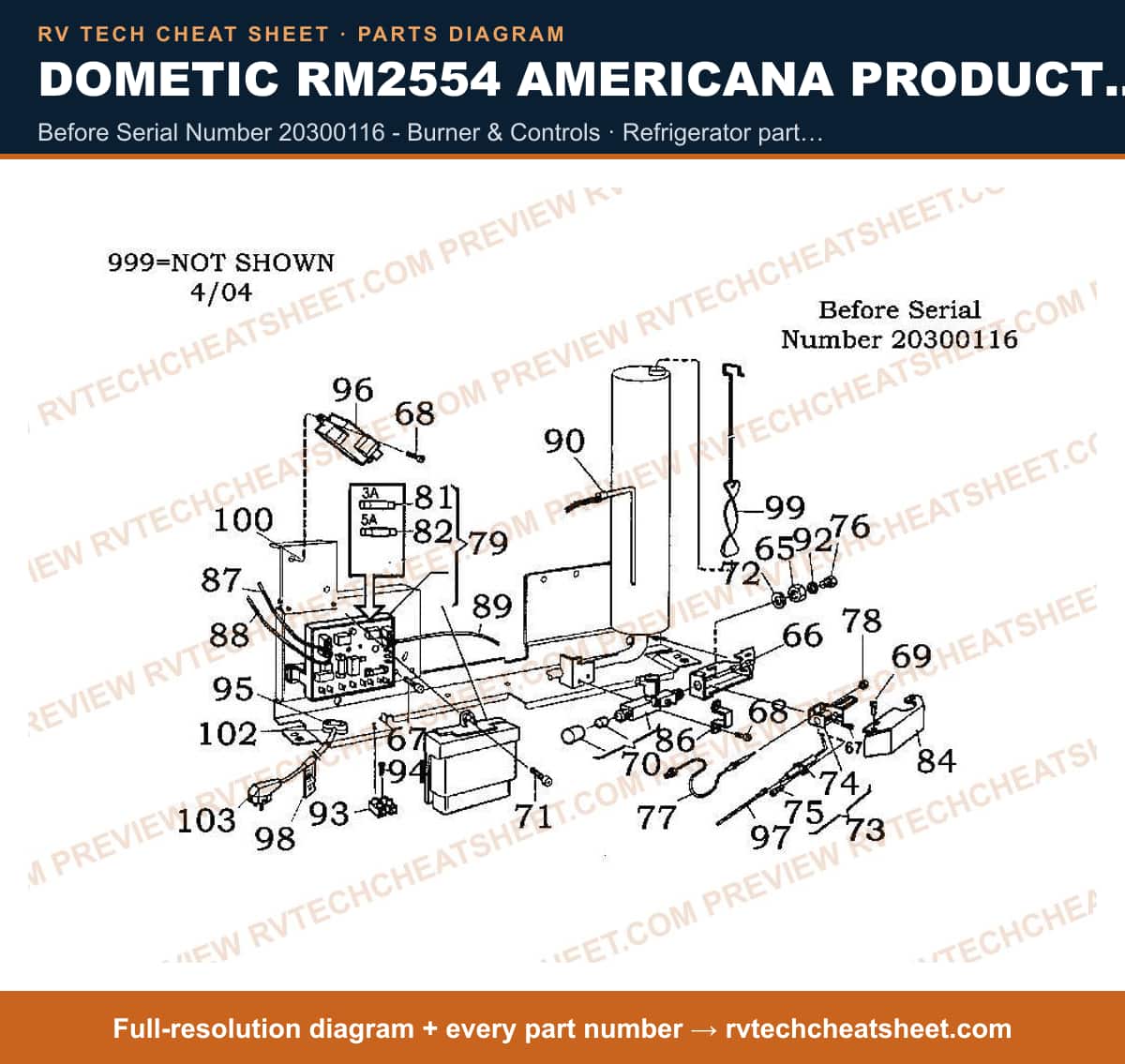

Before Serial Number 20300116 - Burner & Controls

Components

45 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
4. #SCREW M4 X 10 S MFR # 7241289615
5. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
6. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
7. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
9. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
10. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
11. #SCREW USE 7295281401 MFR # 7295281013 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
13. #S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061
14. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
15. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
16. #Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167
17. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
18. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
19. #Nut, T-Couple MFR # 2801043015
20. #BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description
21. #Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000
22. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
23. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
24. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
25. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
26. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
27. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
28. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
29. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
30. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
31. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
32. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
33. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
34. #LEAD, GAS VALVE MFR # 2954437055
35. #ELEMENT, HEATING 175W 120V USE 49-8743 MFR # 173738345 Superseded: see description
36. #Heating Element; 175W 120V; USE 49-8743 MFR # 173771023 Superseded: see description
37. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
38. #3858022019 MFR # 3858022019
39. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
40. #Appliance Components RV; Igniter Spark MFR # 2933096014
41. #Refrigerator Switch Wiring Kit; For Dometic RM2451/ RM2551/ RM2554 Model Refrigerator; Igniter Cable MFR # 2931360073
42. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
43. #APPLIANCE COMPONENTS RV; Baffle Flue MFR # 2932667021
44. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
45. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
