Dometic RM2601 Parts Diagram · Climate Control Kit

Refrigerator · 7 assemblies · 7 diagram sheets · 165 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2601 RV refrigerator: 7 assemblies (Climate Control Kit, Cooling Unit, Vibration Suppression Kit, Door Assembly, Gas- Electric and more) and 165 manufacturer part numbers. 48 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Climate Control Kit

Components

1 item

1. #APPLIANCE COMPONENTS RV; Climate Control Kit MFR # 2943700498

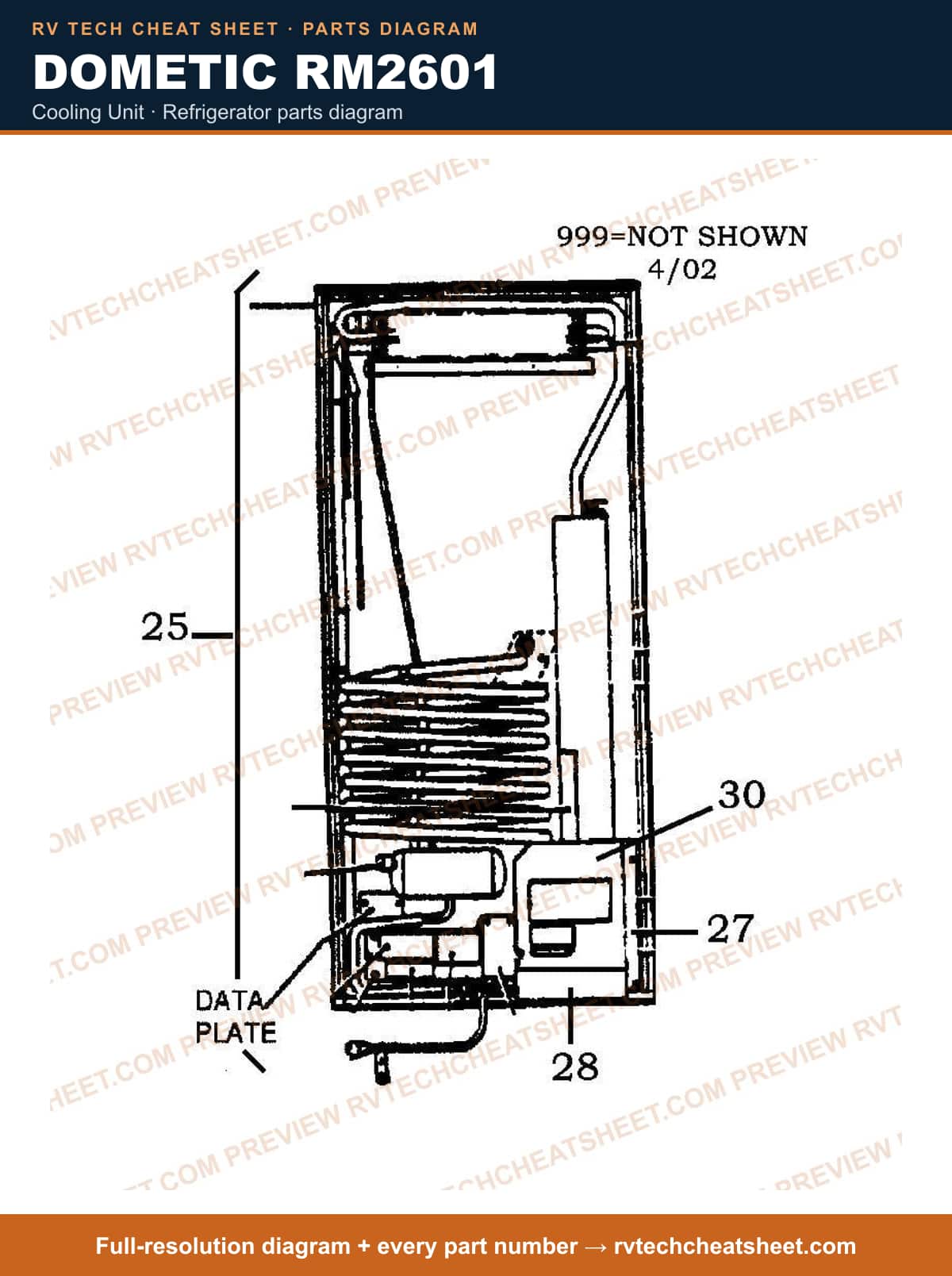

Cooling Unit

Components

6 items

1. #SG TNT 12 X 18 MFR # 5526
2. #REMAN C/U USE 5526 (UPS) RM2600/01/02/03 MFR # 2934801099R Superseded: see description
3. #Refrigerator Cooling Unit; Replacement For Dometic RM2602/ RM2601/ RM3600 Model Refrigerators MFR # 2934801099N
4. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
5. #Plate, Drip RM2600 MFR # 2930713017
6. #Plate Protection Rm2800 MFR # 2930785015

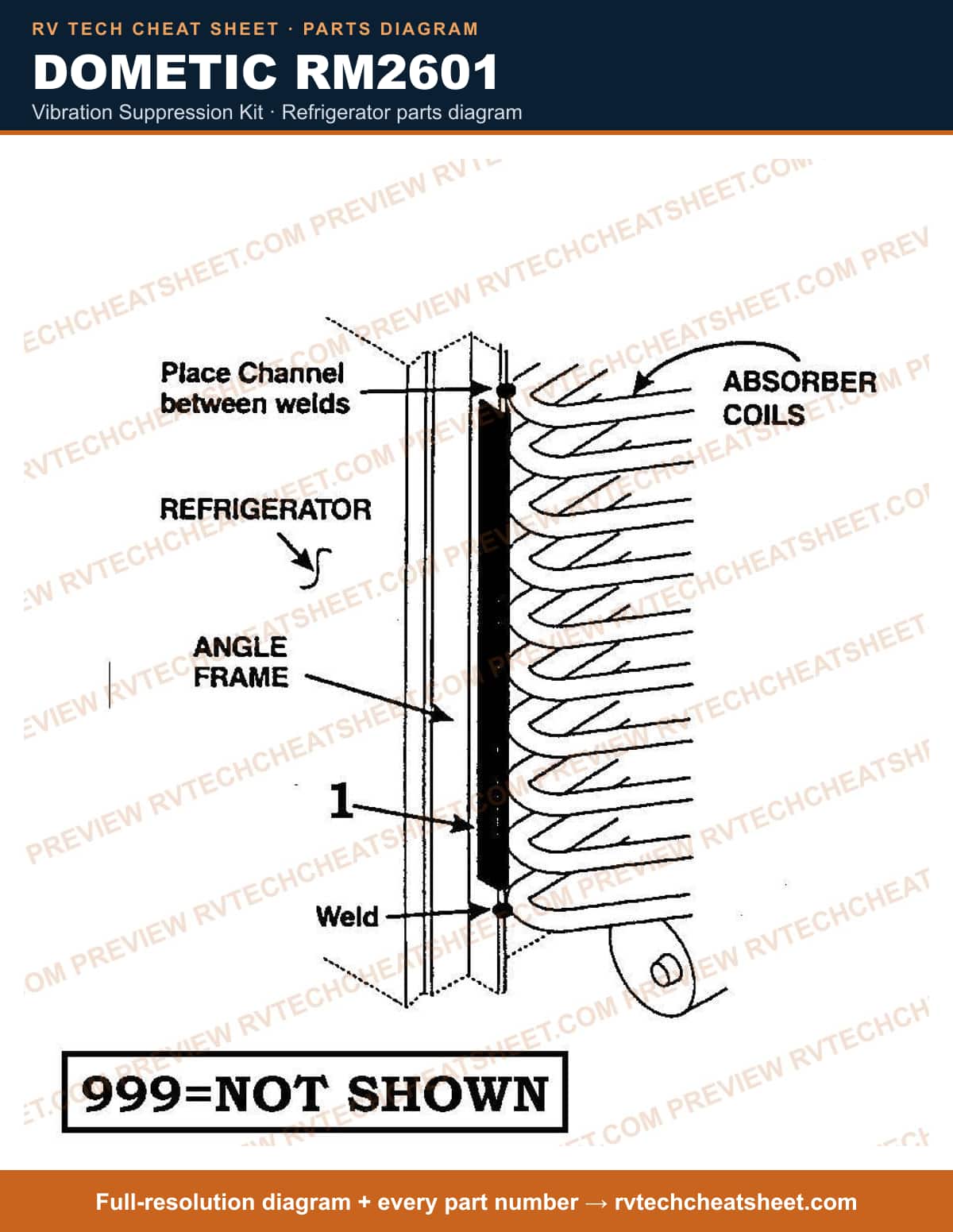

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

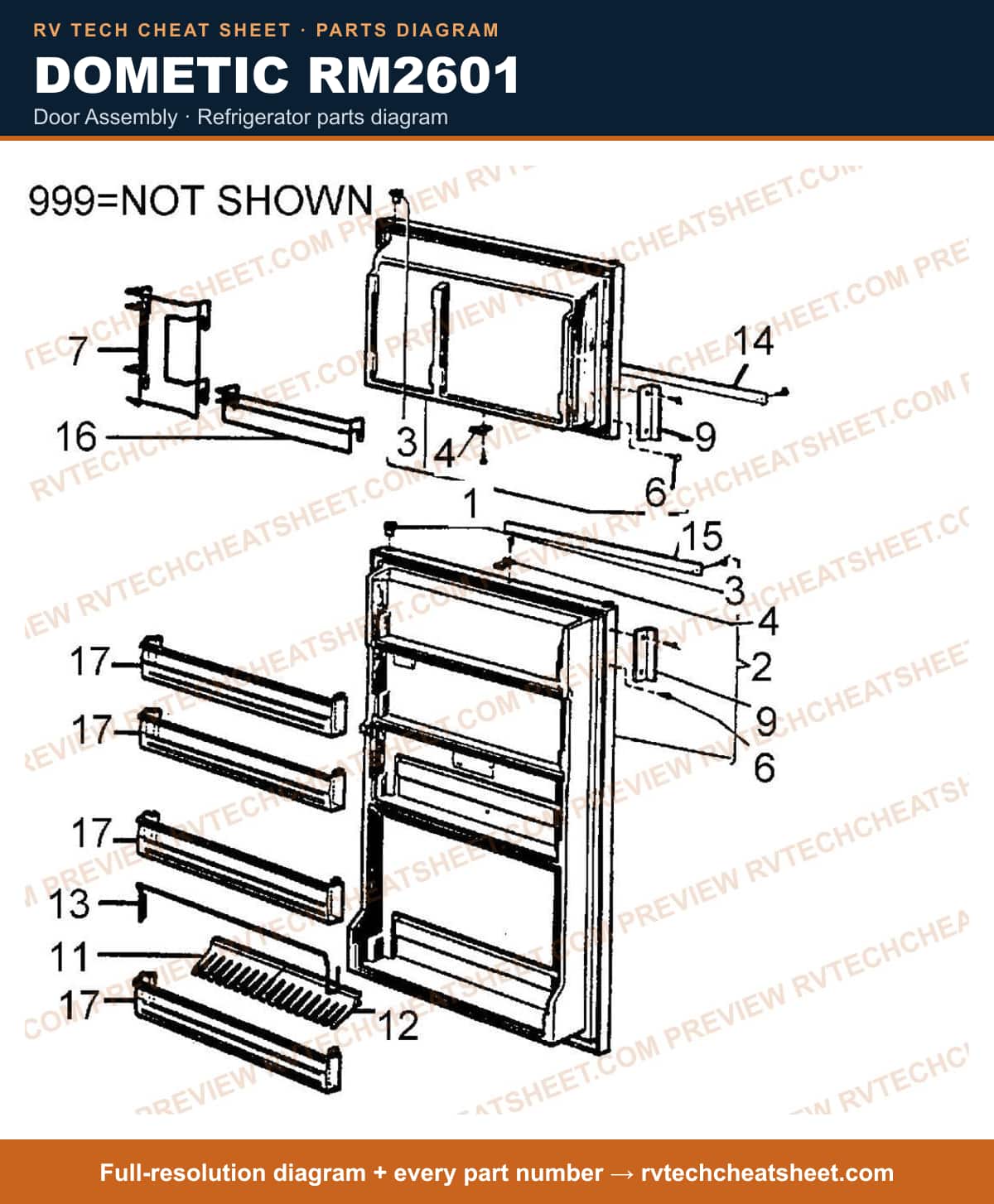

Door Assembly

Components

27 items

1. #Refrigerator Door; Use With Dometic Refrigerator Models RM3601/ RM3600/ RM2600; Upper MFR # 2930926130 Superseded: see description
2. #DOOR, LOWER USE 2930925157 MFR # 2930925157 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103688002
4. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
5. #CATCH, RETAINER MFR # 2931093013
6. #APPLIANCE COMPONENTS RV; RETAINER, CATCH MFR # 2931093021
7. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
8. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
9. #HOLDER, JUICE USE 2930533019 MFR # 2930533027 Superseded: see description
10. #RACK, WIRE MFR # 2007040005
11. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
12. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
13. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
14. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
16. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
17. #APPLIANCE COMPONENTS RV; Strip Deco MFR # 2930640509
18. #APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2930640467
19. #SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description
20. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
21. #RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
23. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
24. #Shelf, Door; Use 2000571220 MFR # 2000571204 Superseded: see description
25. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
26. #PANELS, DOOR WOODGRAIN TOP & BOTTOM PANELS MFR # RM2601G
27. #PANEL, DOOR BLACK PLEXIGLASS TOP & BOTTOM PANELS MFR # RM2601L

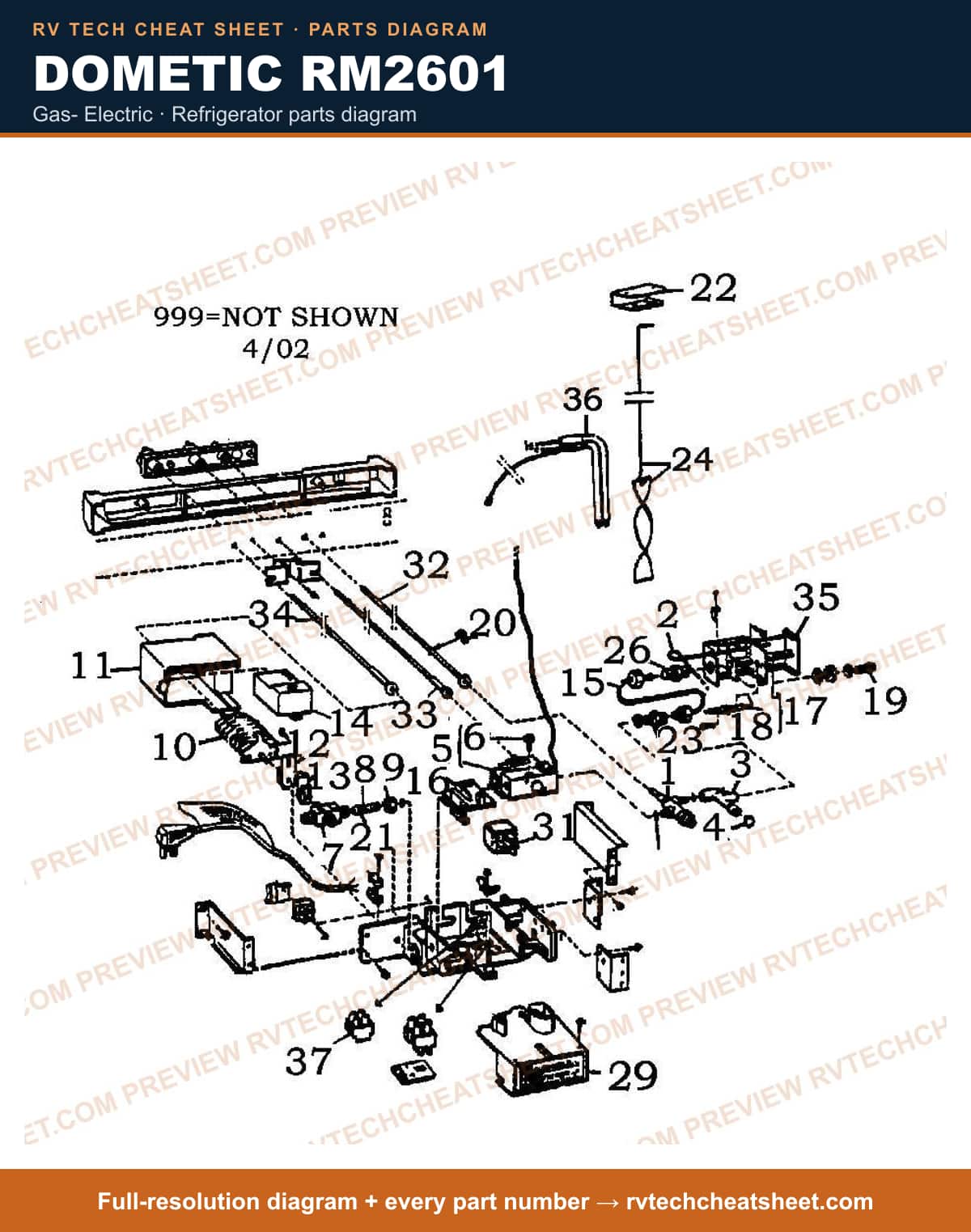

Gas- Electric

Components

57 items

1. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
3. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
4. #Thermocouple MFR # 2930665019
5. #Thermocouple MFR # 2931496091MC
6. #THERMOCOUPLE (350MM) MFR # 2931496091
7. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
8. #Coupling MFR # 2007518000
9. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
10. #DOMETIC DUAL T-STAT MFR # 2007199009
11. #Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description
12. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
13. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
14. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
15. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
16. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
17. #Appliance Components RV; Nut Union MFR # 172809006
18. #S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010
19. #SWITCH, SELECTOR MFR # 2007664002
20. #S,COVER,CONTROLS,INNER MFR # 2007661008
21. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
22. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
23. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
24. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
25. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
26. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
27. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2930618018
28. #CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description
29. #CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description
30. #Catch Snap 12/120 (Fus) MFR # 2930066028
31. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
32. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
33. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
34. #ORIFICE #51 USE 2007419183 BUTANE 760 MFR # 2007419175 Superseded: see description
35. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
36. #Refrigerator Burner Orifice; Replacement For Dometic RM660/ RM661/ RM2600/ RM2603/ RM2601/ RM2602/ RM760/ RM761/ RM3600 Series Refrigerators; #52 MFR # 2007419183
37. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
38. #APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231
39. #S,CAP,FLUE MFR # 2007598010
40. #Refrigerator Gas Valve Adapter Fitting; Use With Dometic Refrigerator Models RM2601/ RM2801/ RM2810; MALE CONNECTOR: 3/8" O.D TUBE X 1/4" O.D. TUBE MFR # 2930619008 Superseded: see description
41. #S,BAFFLE ASM,781MM MFR # 2007590058
42. #NIPPLE FOR GAS TUBE MFR # 2930752015
43. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
44. #Appliance Components RV; Relay For 12/115V RM760; Fits Models: RM2601, 2800, 2801; 0 332 019 151 # ON RELAY; 5 Terminals MFR # 2007329010
45. #S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016
46. #S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002
47. #S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003
48. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
49. #ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974
50. #ELEMENT, HEATING USE 48-9357 295W/120V 2WIRE MFR # 173754045 Superseded: see description
51. #ELEMENT, HEATING *ALT 72-8720 215W 12V; Suggested Alternate For Dometic: This part is not a Dometic original but can be used as an alternate to the Dometic P#173757089. MFR # CHX17748
52. #ELEMENT, HEATING USE 173754045 SEE NOTES MFR # 173754011 Superseded: see description
53. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM3600/ RM3800; 12 Volt; 215 Watts MFR # 173757022MC Superseded: see description
54. #ELEMENT, HEATING **ALT 72-8720 215W 12V; 17.9 Amps 3/8" DIA 4 1/4" LONG; Is a use # for 173757022D MFR # 173757022 Superseded: see description
55. #ELEMENT, HEATING 215W 12V; Suggested Alternate P# CHX17748 is available if original is out of stock; Is a use # for 173757022 MFR # 173757089 Superseded: see description
56. #ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386
57. #Block Terminal Small 3 Poi MFR # 7627202562

Cabinet Assembly

Components

64 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Models RM3600/ RM3800 MFR # 2007270016 Superseded: see description
2. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
3. #Refrigerator Shelf MFR # 2002652218
4. #Refrigerator Shelf MFR # 2931117044
5. #Refrigerator Shelf; Use With Dometic Refrigerator Models RM2601/ RM2603; Plastic MFR # 2931117028 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Shelf Wire 8"W X 17 7/8L MFR # 2002652234
7. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
8. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
9. #Refrigerator Door Latch; Travel Latch; Replacement For Dometic RM2802/ RM2803/ RM3800 Refrigerators MFR # 2930706052
10. #LATCH, TRAVEL USE 2930706052 MFR # 2930706045 Superseded: see description
11. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
12. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
13. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
14. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
16. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
17. #HOUSING, CATCH GREY/BROWN MFR # 2930707050
18. #CRISPER USE 2002726061 MFR # 2002726038 Superseded: see description
19. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
20. #APPLIANCE COMPONENTS RV; Decoration Front MFR # 2007275031
21. #Pin, Hinge Upper MFR # 2930612003
22. #APPLIANCE COMPONENTS RV; Hinge Upper Rm2603 MFR # 2930607011
23. #APPLIANCE COMPONENTS RV; Plug Masking MFR # 2930132051
24. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
25. #Appliance Components RV MFR # 2007519008
26. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
27. #BULB 2/PK MFR # 2007290006
28. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
29. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
30. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
31. #Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088
32. #Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description
33. #RETAINER,LAMP USE 2930557000 MFR # 2930557018 Superseded: see description
34. #Retainer, Lamp MFR # 2930557000
35. #APPLIANCE COMPONENTS RV; Knob T-Stat Use 200748015 MFR # 2007480193 Superseded: see description
36. #Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177
37. #S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185
38. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
39. #APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000
40. #APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008
41. #Refrigerator Door Hinge; Replacement For Dometic RM2803/ RM4801/ RM2601 Refrigerators; Fits Upper Door Side MFR # 2930613001
42. #APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058
43. #Appliance Components RV; Base Front Grey/Brown MFR # 2930591173
44. #Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015
45. #SWITCH, LAMP USE 4903055012 MFR # 2931049015 Superseded: see description
46. #Dometic 2-Way RM2193 Refrigerator Door Shelf MFR # 4903055012
47. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
48. #COVER, LIGHT SWITCH MFR # 2004044109
49. #SHADE, LAMP MFR # 2004043002
50. #PIN,RETAINING MFR # 2001281019
51. #Appliance Components RV; Socket Lamp Grey/Brown MFR # 2007674019
52. #LAMP, PILOT USE 2932810019; THIS PILOT LAMP HAS THE FIXTURE INCLUDED. IT IS READY TO INSTALL AND NEEDS NO OTHER PARTS MFR # 2007675016 Superseded: see description
53. #Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019
54. #NO PART # GIVEN BY VENDOR MFR # NPG
55. #Appliance Components RV; Sleeve Sealing MFR # 2007626001
56. #Plug, Grey/Brown MFR # 2007662022
57. #Appliance Components RV; Sleeve Protector RM130 MFR # 2007673003
58. #PLATE, SEALING MFR # 2930696014
59. #COVER USE 2930611013 RM2601/04 RM2800/04 MFR # 2930611005 Superseded: see description
60. #Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description
61. #CLAMP 2800 MFR # 2002798003
62. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
63. #SCREW USE 7295344407 MFR # 7295344118 Superseded: see description
64. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000

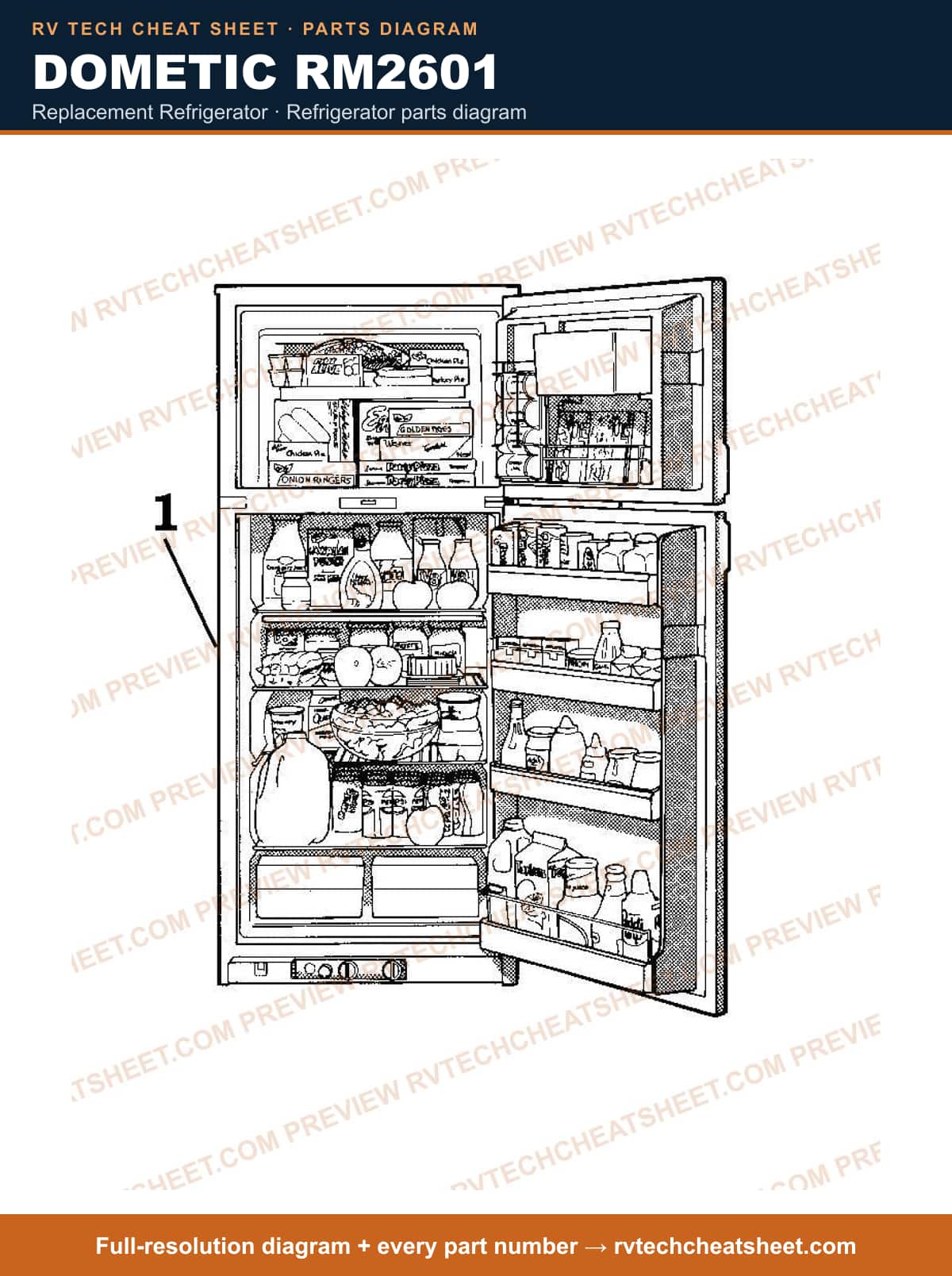

Replacement Refrigerator

Components

9 items

1. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
2. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
3. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
4. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
5. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
6. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
7. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
8. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
9. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
