Dometic RM2602 Parts Diagram · Vibration Suppression Kit

Refrigerator · 6 assemblies · 6 diagram sheets · 170 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2602 RV refrigerator: 6 assemblies (Vibration Suppression Kit, Replacement Refrigerator, Cabinet Assembly, Gas-electric, Cooling Unit and more) and 170 manufacturer part numbers. 61 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

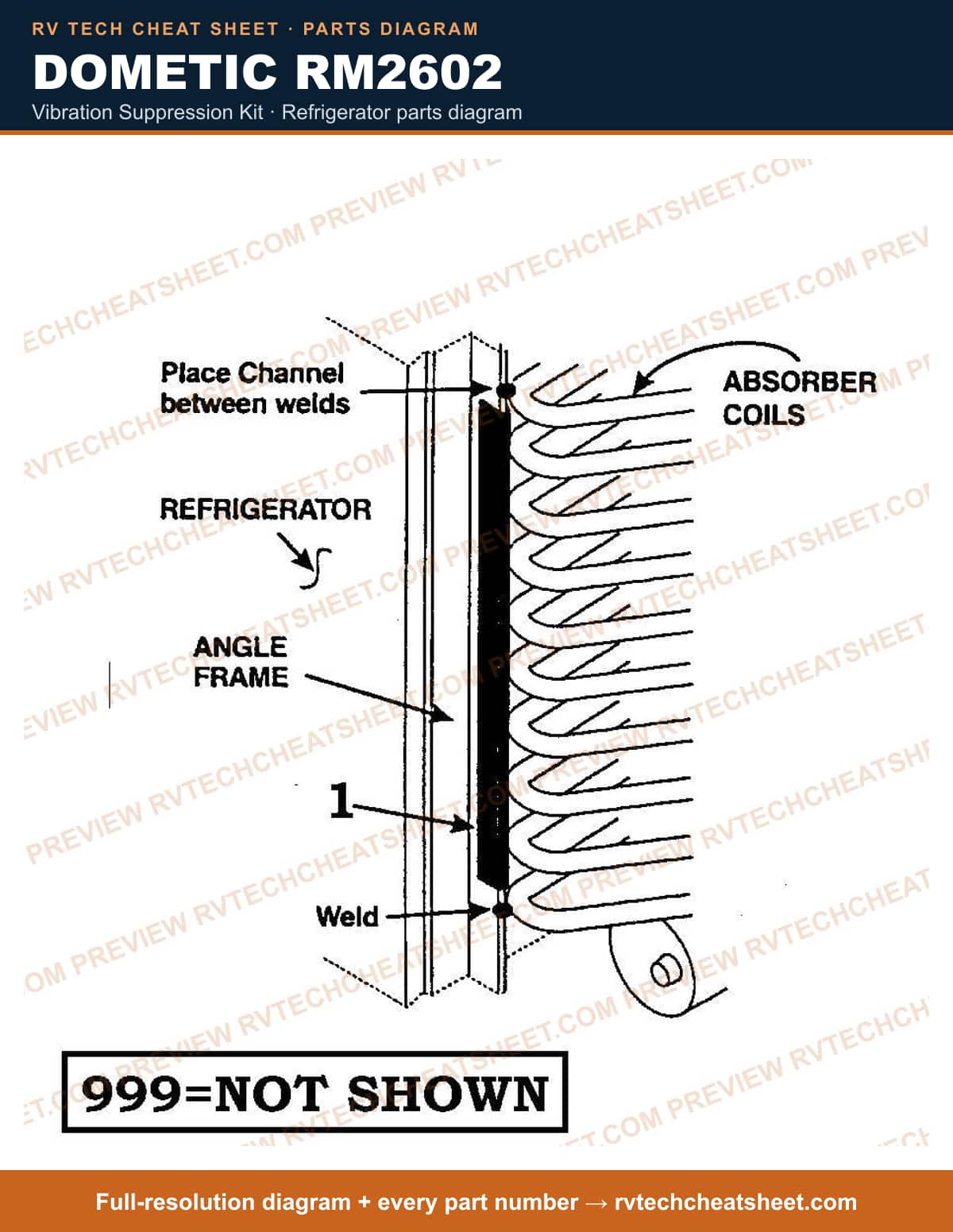

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

Replacement Refrigerator

Components

12 items

1. #Refrigerator; Americana; Dual Compartment 2 Door Refrigerator With Freezer; Permanent Bolt-In; Right Hand Hinge; 6 Cubic Foot; 54-9/16 Inch Height x 24-11/16 Inch Width x 24-7/8 Inch Depth; 110 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; Eye-Level Electronic Control/ Automatic Temperature Control; Black Frame; With Locking Door Handles/ 2 Crispers/ 3 Door Bins; Door Panels Must Be Ordered Separately MFR # DM2652RB
2. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
3. #REFER, 6 CU FT 2 WAY BLACK 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652B
4. #Refrigerator / Freezer; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641R
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
6. #PANELS,DOOR USE RM2652BA STAINLESS STEEL MFR # RM2652SS Superseded: see description
7. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
8. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
9. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
10. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
11. #REFER,6 CU FT 2 WAY SILVER 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652S
12. #REFER,6 CU.FT USE RM2652B 2-WAY BEIGE MFR # RM2652N Superseded: see description

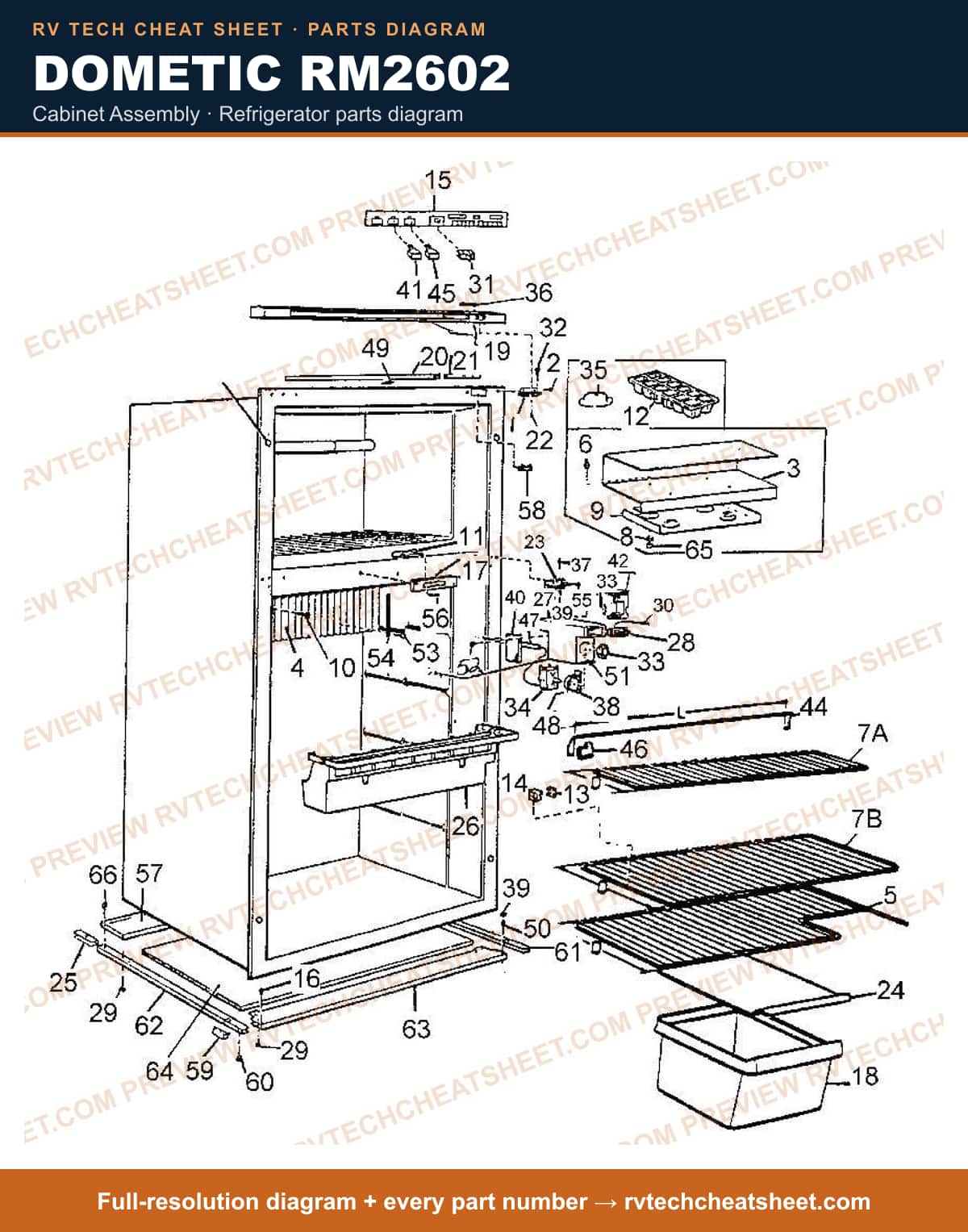

Cabinet Assembly

Components

73 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Models RM3600/ RM3800 MFR # 2007270016 Superseded: see description
2. #NO PART # GIVEN BY VENDOR MFR # NPG
3. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
4. #SHELF, WIRE USE 2930133067 11-1/2" W X 17-7/8" LONG MFR # 2930133026 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
6. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
7. #SHELF, WIRE USE 2002652234 MFR # 2002652143 Superseded: see description
8. #SHELF USE 2002652226 MFR # 2002652135 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
10. #APPLIANCE COMPONENTS RV; Shelf Wire 8"W X 17 7/8L MFR # 2002652234
11. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
12. #LATCH USE 2930706052 MFR # 2930706011 Superseded: see description
13. #LATCH, TRAVEL USE 2930706052 MFR # 2930706045 Superseded: see description
14. #Refrigerator Door Latch; Travel Latch; Replacement For Dometic RM2802/ RM2803/ RM3800 Refrigerators MFR # 2930706052
15. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
16. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
17. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
18. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
20. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
21. #APPLIANCE COMPONENTS RV; Board Circuit MFR # 87500350274
22. #HOUSING, CATCH GREY/BROWN MFR # 2930707050
23. #HOUSING, LATCH USE 2930707050 MFR # 2930707019 Superseded: see description
24. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
25. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
26. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
27. #APPLIANCE COMPONENTS RV; Decoration Top 2602 MFR # 2930983057
28. #STRIP, DECORATION RM2602, 26033 MFR # 2930989039
29. #STRIP, DECORATION MFR # 2930986019
30. #HINGE, MIDDLE MFR # 2930607003
31. #HINGE, LOWER MFR # 2930607005
32. #HINGE, REFRIGERATOR DOOR MFR # 2930707060
33. #REFRIGERATOR DOOR HINGE MFR # 2007092001
34. #COVER, LIGHT SWITCH MFR # 2004044109
35. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
36. #COVER, CONTROLS USE 2004044091 MFR # 2004044075 Superseded: see description
37. #2004044091 MFR # 2004044091
38. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
39. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
40. #APPLIANCE COMPONENTS RV; Key MFR # 2930982018
41. #Pin, Hinge Upper MFR # 2930612003
42. #KNOB, T-STAT USE 2930625039 MFR # 2930625021 Superseded: see description
43. #Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RM2603 MFR # 2930625039 Superseded: see description
44. #Refrigerator Thermostat Control Assembly; Use With Dometic Refrigerator Models RM2804/ RM3800/ RM3801 MFR # 2930814021MC Superseded: see description
45. #T-STAT USE 2930814021 MFR # K50P1336 Superseded: see description
46. #T-STAT, ELECTRIC USE 2930814021 MFR # 2930814013 Superseded: see description
47. #APPLIANCE COMPONENTS RV; T-Stat Electric MFR # 2930814021
48. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
49. #Refrigerator Door Hinge; Replacement For Dometic RM2803/ RM4801/ RM2601 Refrigerators; Fits Upper Door Side MFR # 2930613001
50. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
51. #SHADE, LAMP MFR # 2004043002
52. #Push Button Switch; On/ Off Switch; Middle; Panel Mount MFR # 2930980020
53. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
54. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
55. #Refrigerator Control Knob; For Use With Dometic RM2602/ RM2603/ RM2802/ RM2803/ RM3501/ RM3601/ RM3801 And RM4801 Refrigerator Models; Push Button MFR # 2930980038 Superseded: see description
56. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
57. #RETAINER USE 2930693045 MFR # 2930693029 Superseded: see description
58. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
59. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
60. #PIN,RETAINING MFR # 2001281019
61. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
62. #SCREW MFR # 7295283407
63. #SCREW USE 7295283407 MFR # 7295283118 Superseded: see description
64. #SCREW USE 7295344407 MFR # 7295344118 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
66. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016
67. #SCREW F/LID MFR # 7296279115
68. #FERRULE RM3801/3601/2802 2603,2803,3501,2602 MFR # 2930824012
69. #GABLE, RH MFR # 2930604000
70. #PLATE, LEFT SIDE MFR # 2930603002
71. #Refrigerator Support Rail; Replacement For Dometic RM3501/ RM3800/ RM2603 Refrigerators; Right Hand Side MFR # 2930602004
72. #APPLIANCE COMPONENTS RV; Base Front 3500/3600 MFR # 2930600008
73. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000

Gas-electric

Components

54 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
3. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
4. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
5. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
6. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
8. #BOARD, MODULE MFR # 3106375015
9. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
10. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
11. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
12. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Coil Solenoid Only MFR # 2007715010
14. #Thermocouple MFR # 2931496091MC
15. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
16. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
17. #THERMOCOUPLE (350MM) MFR # 2931496091
18. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
19. #Refrigerator Insulation; Use With Dometic RM3804/4804/2802 Series Refrigerators MFR # 2931052019 Superseded: see description
20. #BOX, COMPONENT MFR # 2930642042
21. #APPLIANCE COMPONENTS RV; Box Complete Use 29306420 MFR # 2930642034 Superseded: see description
22. #RETAINER MFR # 2930648015
23. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
24. #COVER MFR # 2930653015
25. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
26. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
27. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
28. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
29. #RETAINER, FUSE HOLDER MFR # 2930737016
30. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
31. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
32. #HOLDER, FUSE MFR # 7628801230
33. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
34. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
35. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
36. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
37. #Refrigerator Burner Orifice; Replacement For Dometic RM660/ RM661/ RM2600/ RM2603/ RM2601/ RM2602/ RM760/ RM761/ RM3600 Series Refrigerators; #52 MFR # 2007419183
38. #ORIFICE #51 USE 2007419183 BUTANE 760 MFR # 2007419175 Superseded: see description
39. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
40. #WIRE LEAD, 7 PIN MFR # 2930782053
41. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
42. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
44. #S,CAP,FLUE MFR # 2007598010
45. #S,BAFFLE ASM,781MM MFR # 2007590058
46. #LEAD, 4 WIRE MFR # 2930783028
47. #ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974
48. #ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386
49. #ELEMENT, HEATING USE 48-9357 295W/120V 2WIRE MFR # 173754045 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Board Alternative Use P2 MFR # MICROP26 Superseded: see description
51. #Refrigerator Interface Circuit Board; Replacement Control Board For Dometic Refrigerators; AC/ DC/ Gas Operation MFR # MICROP246
52. #Drain Pan; Especially For Splendide Appliances MFR # P26
53. #BOARD, MODULE 3W USE 3108705272 MFR # 2931308015 Superseded: see description
54. #BOARD, CIRCUIT USE 2931308015 MFR # 87500350266 Superseded: see description

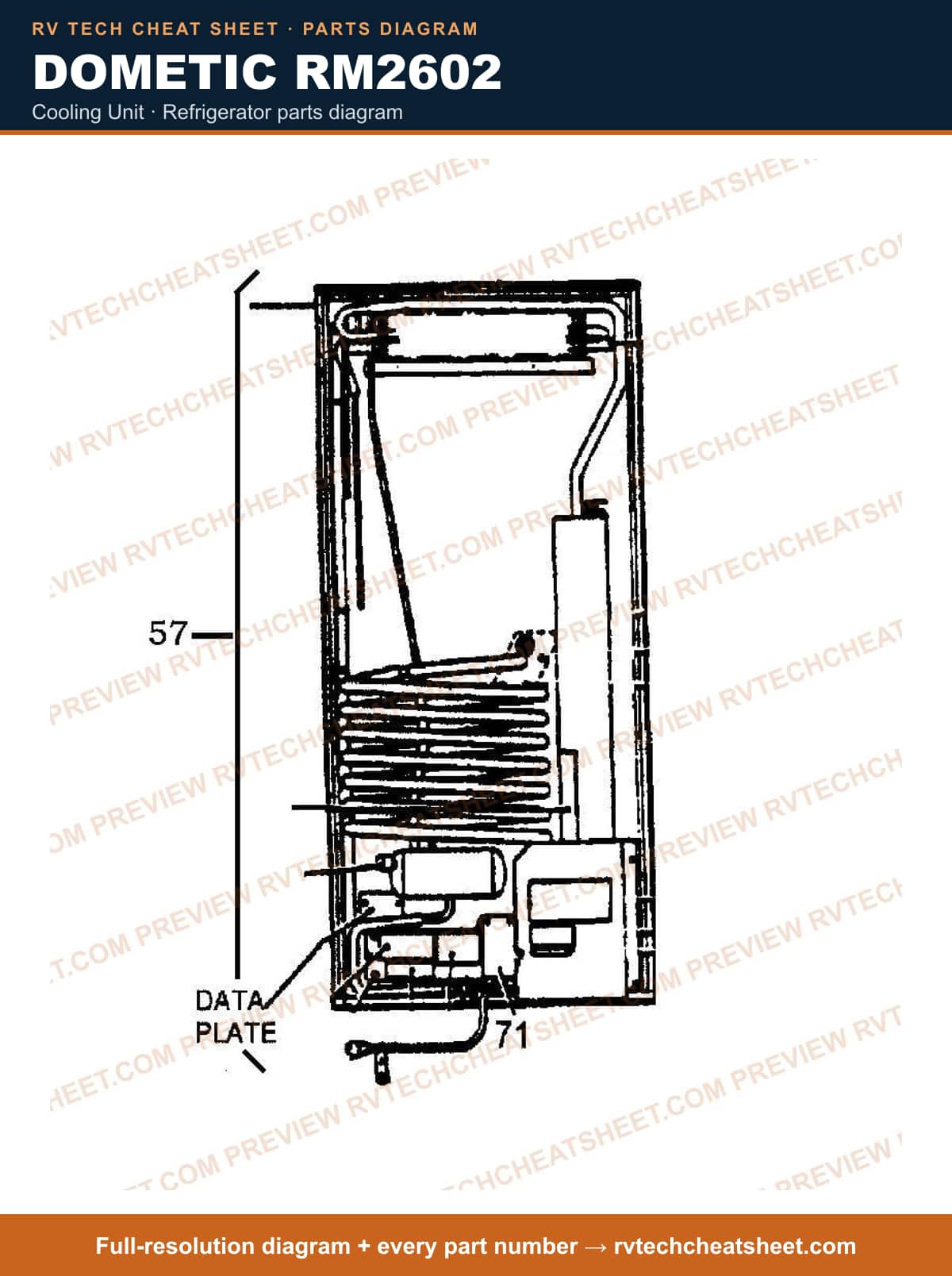

Cooling Unit

Components

4 items

1. #Refrigerator Cooling Unit; Replacement For Dometic RM2602/ RM2601/ RM3600 Model Refrigerators MFR # 2934801099N
2. #SG TNT 12 X 18 MFR # 5526
3. #REMAN C/U USE 5526 (UPS) RM2600/01/02/03 MFR # 2934801099R Superseded: see description
4. #APPLIANCE COMPONENTS RV; Protect Splash MFR # 2930810011

Door Assembly

Components

27 items

1. #DOOR, LOWER USE 2930925157 MFR # 2930925157 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103688002
3. #DOOR USE 2930926130 N MFR # 2930926114 Superseded: see description
4. #Refrigerator Door; Use With Dometic Refrigerator Models RM3601/ RM3600/ RM2600; Upper MFR # 2930926130 Superseded: see description
5. #DOOR, LOWER USE 2930925116 MFR # 2930925124 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
7. #Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model RM2802 MFR # 2930817016 Superseded: see description
8. #NO PART # GIVEN BY VENDOR MFR # NPG
9. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
10. #HOLDER, JUICE USE 2930533019 MFR # 2930533027 Superseded: see description
11. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
12. #RACK, WIRE MFR # 2007040005
13. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
14. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
15. #APPLIANCE COMPONENTS RV; Holder Bottle 8" Brown MFR # 2930715020
16. #BOTTLE HOLDER, LENGTH APPROX 7 1/2" MFR # 2907150112
17. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
18. #Refrigerator Gasket; Replacement For Dometic RM2602 Refrigerator; Door Gasket MFR # 2930640327
19. #APPLIANCE COMPONENTS RV; Strip Decoration Up 2600 MFR # 2930640111
20. #SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
22. #RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description
23. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
24. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
25. #SHELF, DOOR USE 2000571220 LOWER MFR # 2000571196 Superseded: see description
26. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
27. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
