Dometic RM2603 Parts Diagram · Vibration Suppression Kit

Refrigerator · 5 assemblies · 5 diagram sheets · 165 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2603 RV refrigerator: 5 assemblies (Vibration Suppression Kit, Door Assembly, Gas-electric, Refrigerator Replacement, Cabinet Assembly) and 165 manufacturer part numbers. 54 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

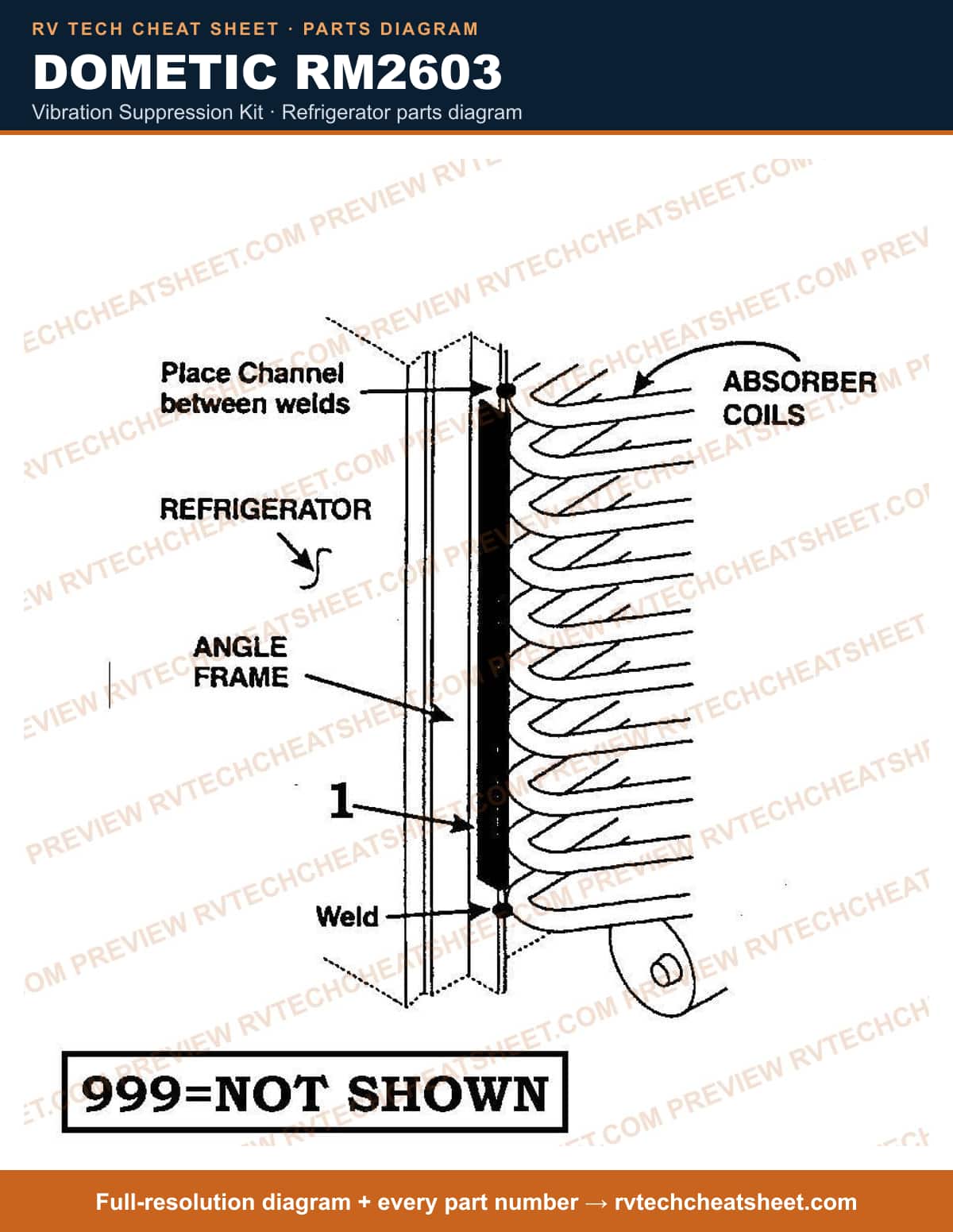

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

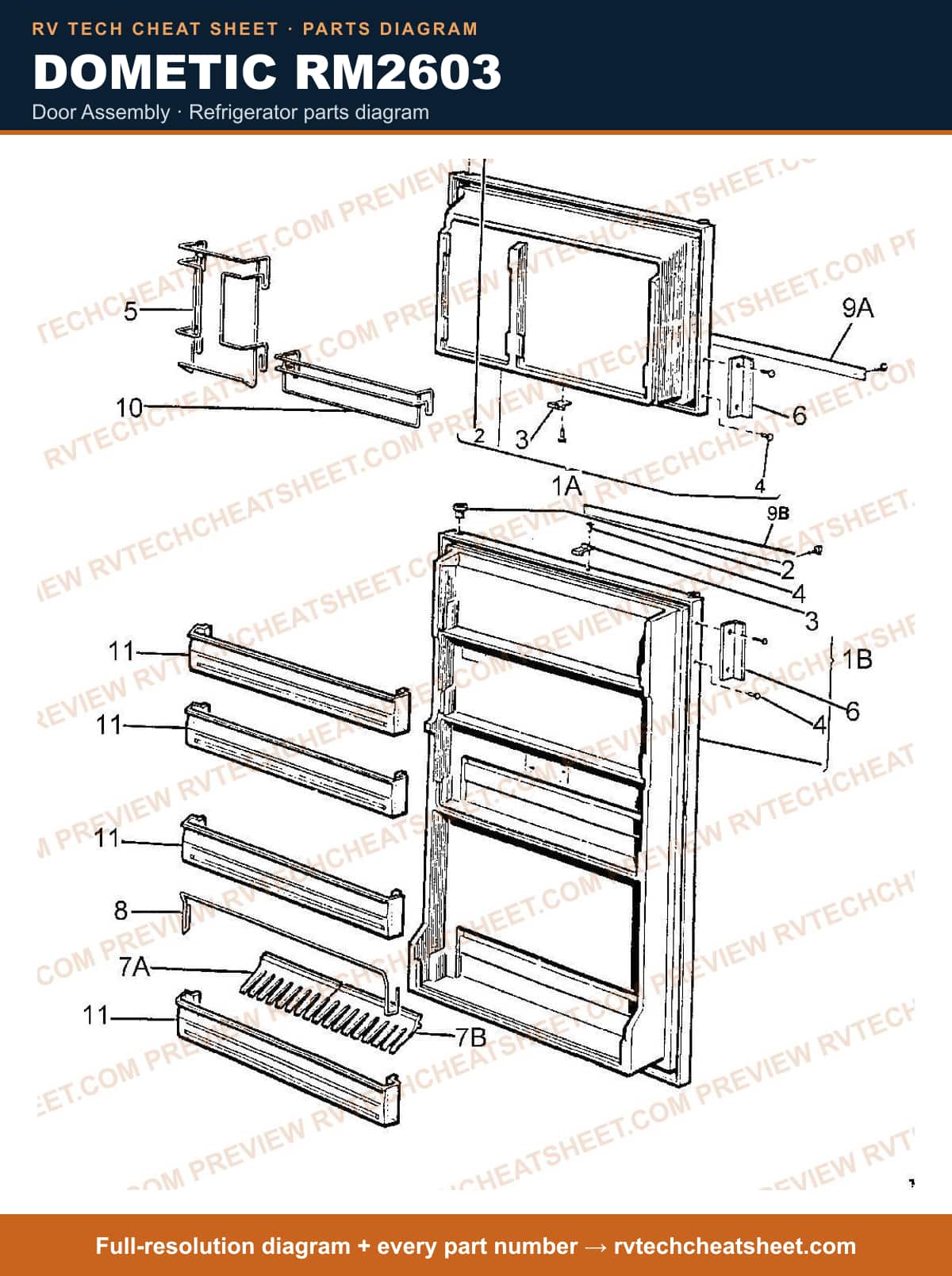

Door Assembly

Components

26 items

1. #DOOR, LOWER USE 2930925157 MFR # 2930925157 Superseded: see description
2. #Refrigerator Door; Use With Dometic Refrigerator Models RM3601/ RM3600/ RM2600; Upper MFR # 2930926130 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103688002
4. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
5. #APPLIANCE COMPONENTS RV; RETAINER, CATCH MFR # 2931093021
6. #CATCH, RETAINER MFR # 2931093013
7. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
8. #HOLDER, JUICE USE 2930533019 MFR # 2930533027 Superseded: see description
9. #RACK, WIRE MFR # 2007040005
10. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
12. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
13. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
14. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
16. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
17. #APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2930640467
18. #STRIP, DECO USE 2930640467 MFR # 2930640525 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Strip Deco MFR # 2930640509
20. #SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description
21. #RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
23. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
24. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
25. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
26. #SHELF, DOOR USE 2000571220 LOWER MFR # 2000571196 Superseded: see description

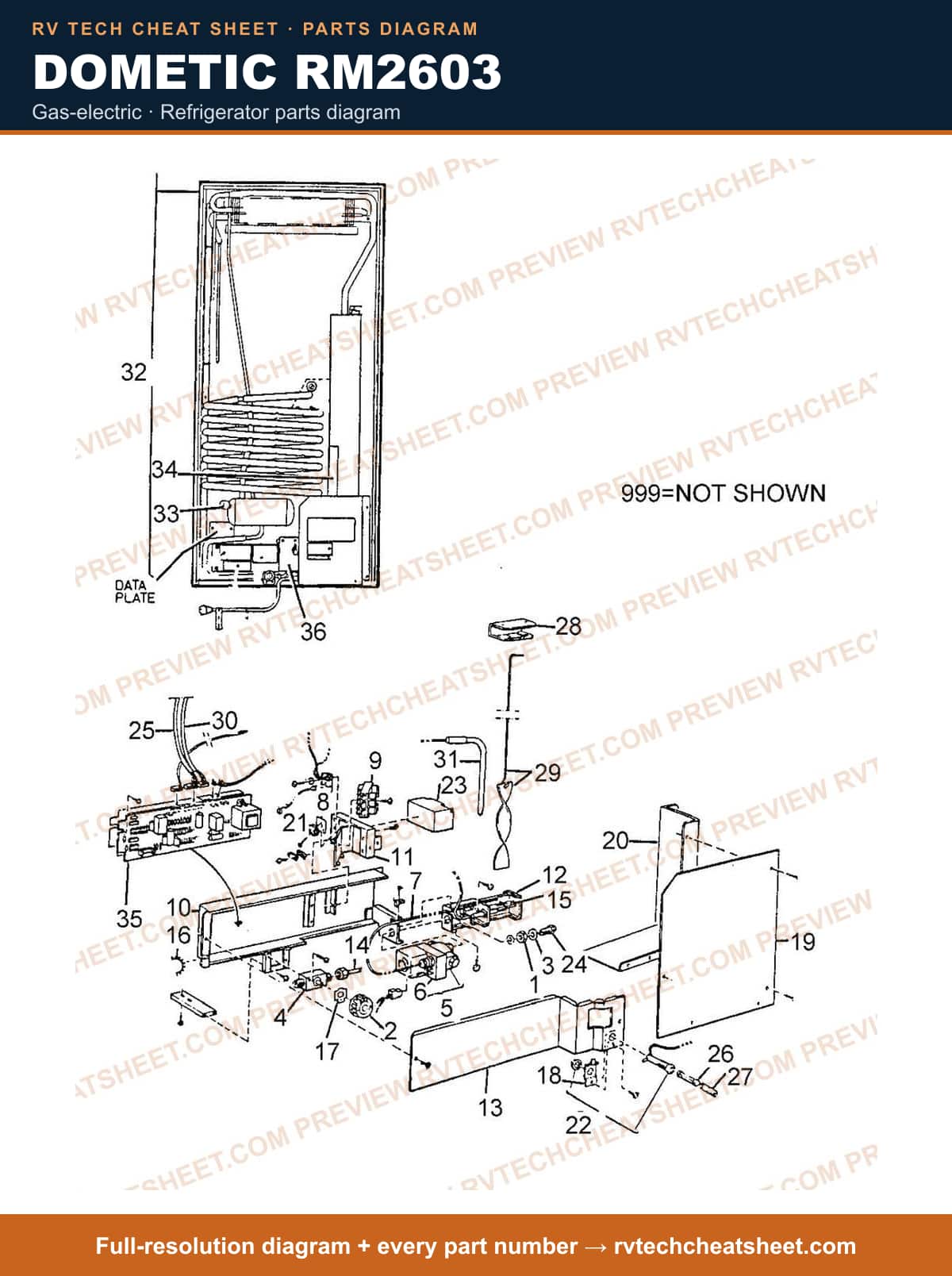

Gas-electric

Components

62 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
3. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
4. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
6. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
7. #BOARD, MODULE MFR # 3106375015
8. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
9. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
10. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
11. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Valve Kit Gas MFR # 3108705280
13. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
14. #THERMOCOUPLE (350MM) MFR # 2931496091
15. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
16. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
17. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
18. #Thermocouple MFR # 2931496091MC
19. #Refrigerator Insulation; Use With Dometic RM3804/4804/2802 Series Refrigerators MFR # 2931052019 Superseded: see description
20. #TERMINAL MFR # 76272037560
21. #APPLIANCE COMPONENTS RV; Box Complete Use 29306420 MFR # 2930642034 Superseded: see description
22. #BOX, COMPONENT MFR # 2930642042
23. #RETAINER MFR # 2930648015
24. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
25. #COVER MFR # 2930653015
26. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
27. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
28. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
29. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
30. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
31. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
32. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
33. #Block Terminal Small 3 Poi MFR # 7627202562
34. #HOLDER, FUSE MFR # 7628801230
35. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
36. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
37. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
38. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
39. #Refrigerator Burner Orifice; Replacement For Dometic RM660/ RM661/ RM2600/ RM2603/ RM2601/ RM2602/ RM760/ RM761/ RM3600 Series Refrigerators; #52 MFR # 2007419183
40. #ORIFICE #51 USE 2007419183 BUTANE 760 MFR # 2007419175 Superseded: see description
41. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
42. #WIRE LEAD, 7 PIN MFR # 2930782053
43. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
44. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
45. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
46. #S,CAP,FLUE MFR # 2007598010
47. #FLUE BAFFLE COMPLETE MFR # 20075890058
48. #LEAD, 4 WIRE MFR # 2930783028
49. #ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386
50. #ELEMENT, HEATING USE 48-9357 295W/120V 2WIRE MFR # 173754045 Superseded: see description
51. #ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974
52. #SG TNT 12 X 18 MFR # 5526
53. #Refrigerator Cooling Unit; Replacement For Dometic RM2602/ RM2601/ RM3600 Model Refrigerators MFR # 2934801099N
54. #REMAN C/U USE 5526 (UPS) RM2600/01/02/03 MFR # 2934801099R Superseded: see description
55. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
56. #Lid MFR # 2933557015
57. #Refrigerator Interface Circuit Board; Replacement Control Board For Dometic Refrigerators; AC/ DC/ Gas Operation MFR # MICROP246
58. #Drain Pan; Especially For Splendide Appliances MFR # P26
59. #APPLIANCE COMPONENTS RV; Board Alternative Use P2 MFR # MICROP26 Superseded: see description
60. #BOARD, CIRCUIT USE 2931308015 MFR # 87500350266 Superseded: see description
61. #BOARD, MODULE 3W USE 3108705272 MFR # 2931308015 Superseded: see description
62. #APPLIANCE COMPONENTS RV; Protect Splash MFR # 2930810011

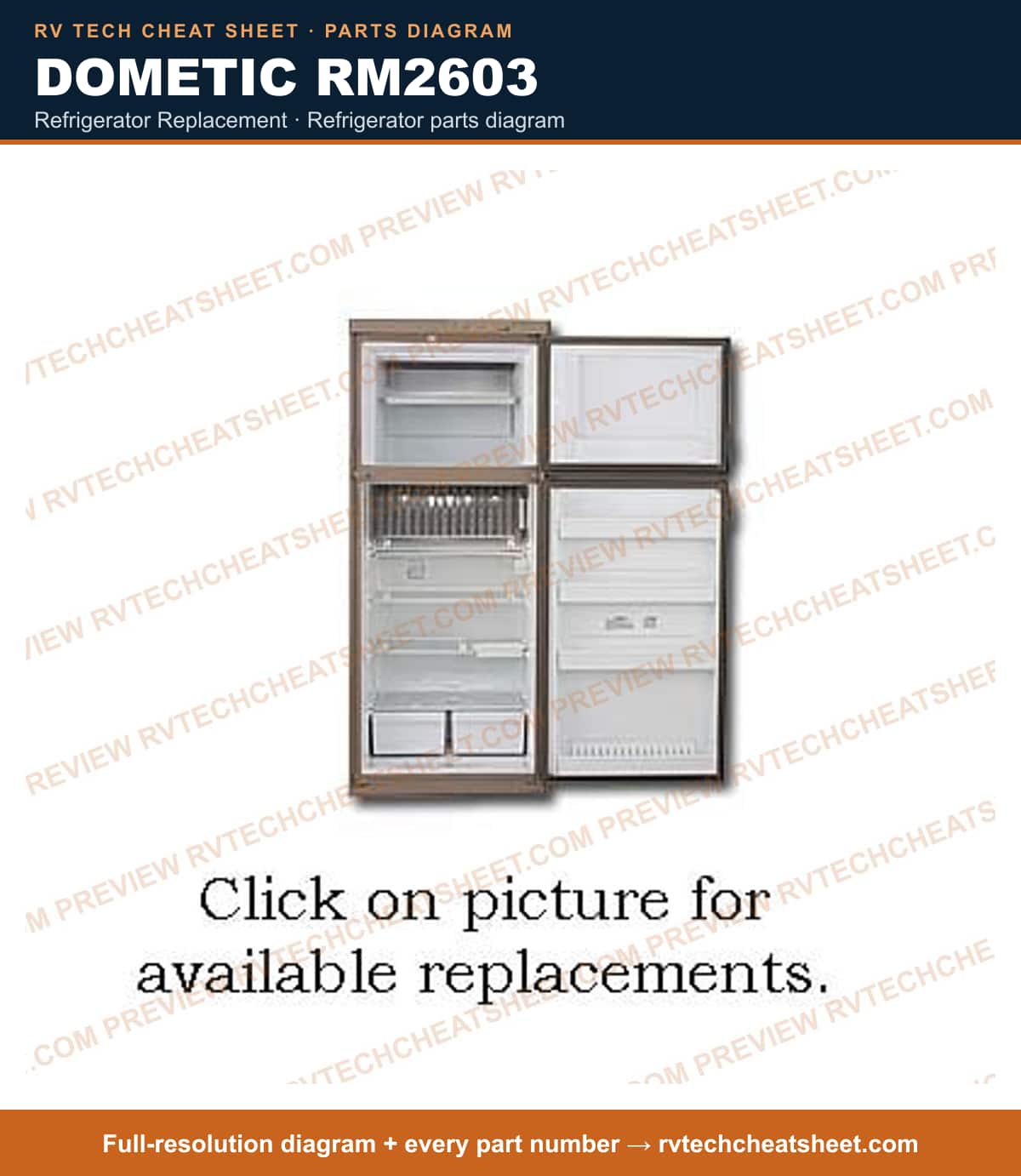

Refrigerator Replacement

Components

12 items

1. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
2. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
3. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
4. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
5. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
6. #REFER,6 CU.FT USE RM2652B 2-WAY BEIGE MFR # RM2652N Superseded: see description
7. #PANELS,DOOR USE RM2652BA STAINLESS STEEL MFR # RM2652SS Superseded: see description
8. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
9. #REFER, 6 CU FT 2 WAY BLACK 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652B
10. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
11. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
12. #Refrigerator Door Panel;;Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrige MFR # RM2652BA

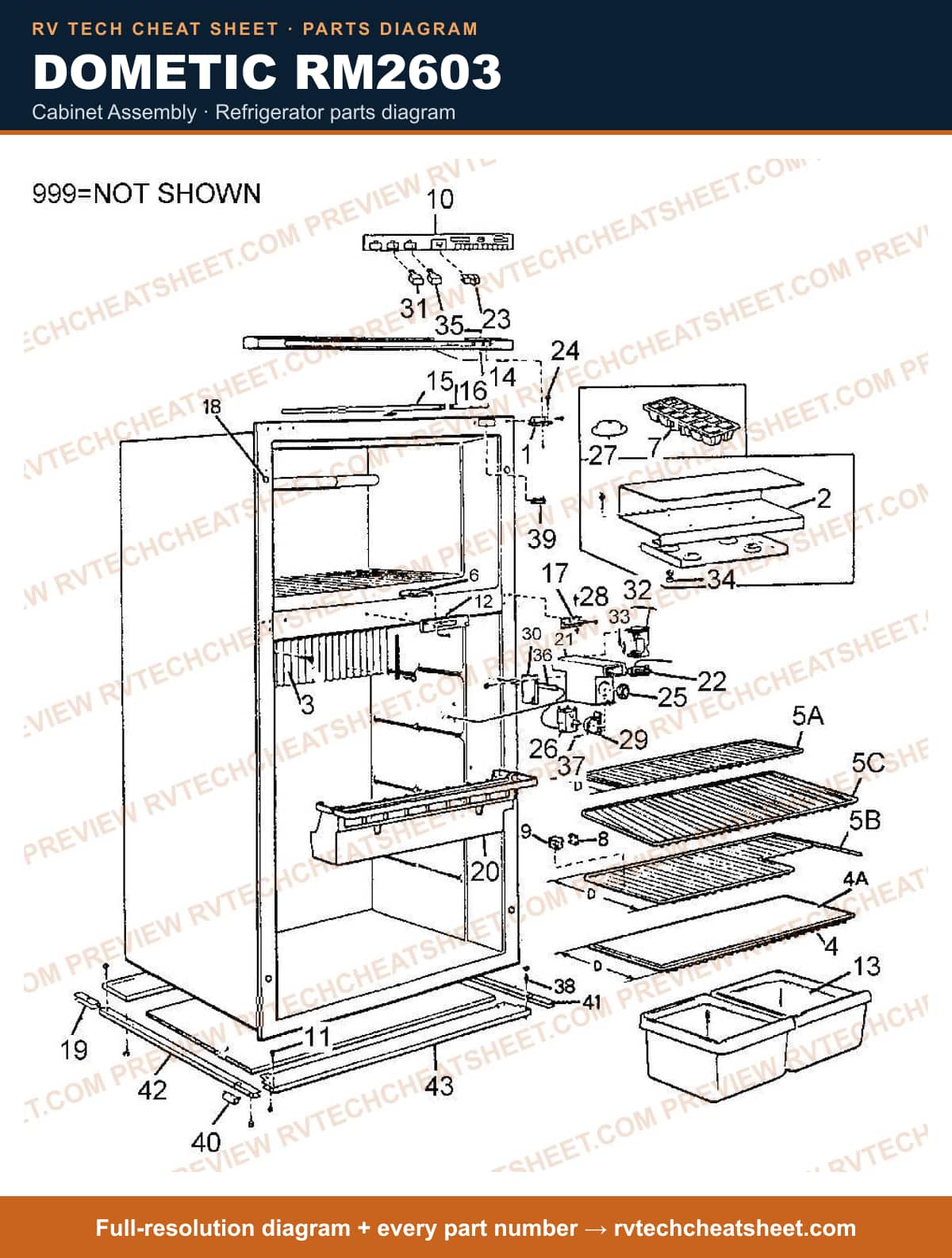

Cabinet Assembly

Components

64 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Models RM3600/ RM3800 MFR # 2007270016 Superseded: see description
2. #Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038
3. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
4. #Refrigerator Shelf MFR # 2002652218
5. #Refrigerator Shelf MFR # 2931117044
6. #Refrigerator Shelf; Use With Dometic Refrigerator Models RM2601/ RM2603; Plastic MFR # 2931117028 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Shelf Wire 8"W X 17 7/8L MFR # 2002652234
8. #SHELF, WIRE USE 2930133067 11-1/2" W X 17-7/8" LONG MFR # 2930133026 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
10. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
11. #LATCH, TRAVEL USE 2930706052 MFR # 2930706045 Superseded: see description
12. #Refrigerator Door Latch; Travel Latch; Replacement For Dometic RM2802/ RM2803/ RM3800 Refrigerators MFR # 2930706052
13. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
14. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
15. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
16. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
17. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
18. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Board Circuit MFR # 87500350274
20. #PLUG, FACE MFR # 2930740010
21. #APPLIANCE COMPONENTS RV; Plug Gray/Brown4 MFR # 2930740036
22. #HOUSING, CATCH GREY/BROWN MFR # 2930707050
23. #CRISPER USE 2002726061 MFR # 2002726038 Superseded: see description
24. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
25. #DECORATION, FRONT RM2603 MFR # 2930983065
26. #STRIP, DECORATION RM2602, 26033 MFR # 2930989039
27. #STRIP, DECORATION MFR # 2930986019
28. #APPLIANCE COMPONENTS RV; Hinge Upper Rm2603 MFR # 2930607011
29. #APPLIANCE COMPONENTS RV; Plug Masking MFR # 2930132051
30. #SUPPORT MFR # 2930774019
31. #Appliance Components RV MFR # 2007519008
32. #COVER, CONTROLS USE 2004044091 MFR # 2004044075 Superseded: see description
33. #COVER, LIGHT SWITCH MFR # 2004044109
34. #2004044091 MFR # 2004044091
35. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
36. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
37. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Key MFR # 2930982018
39. #Pin, Hinge Upper MFR # 2930612003
40. #KNOB, T-STAT USE 2930625039 MFR # 2930625021 Superseded: see description
41. #Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RM2603 MFR # 2930625039 Superseded: see description
42. #T-STAT, ELECTRIC USE 2930814021 MFR # 2930814013 Superseded: see description
43. #T-STAT USE 2930814021 MFR # K50P1336 Superseded: see description
44. #APPLIANCE COMPONENTS RV; T-Stat Electric MFR # 2930814021
45. #Refrigerator Thermostat Control Assembly; Use With Dometic Refrigerator Models RM2804/ RM3800/ RM3801 MFR # 2930814021MC Superseded: see description
46. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
47. #Refrigerator Door Hinge; Replacement For Dometic RM2803/ RM4801/ RM2601 Refrigerators; Fits Upper Door Side MFR # 2930613001
48. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
49. #SHADE, LAMP MFR # 2004043002
50. #Push Button Switch; On/ Off Switch; Middle; Panel Mount MFR # 2930980020
51. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
52. #BULB 2/PK MFR # 2007290006
53. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
54. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
55. #Refrigerator Control Knob; For Use With Dometic RM2602/ RM2603/ RM2802/ RM2803/ RM3501/ RM3601/ RM3801 And RM4801 Refrigerator Models; Push Button MFR # 2930980038 Superseded: see description
56. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
57. #PIN,RETAINING MFR # 2001281019
58. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
59. #FERRULE MFR # 2930824 012
60. #GABLE, LH MFR # 2930603010
61. #GABLE, RH GREY/BROWN RM28 03, 2603 MFR # 2930604018
62. #Refrigerator Support Rail; Replacement For Dometic RM3501/ RM3800/ RM2603 Refrigerators; Right Hand Side MFR # 2930602004
63. #Refrigerator Support Rail; Replacement For Dometic RM3801/ RM2603/ RM3800 Refrigerators; Left Hand Side MFR # 2930601006
64. #BASE FRONT GREY/BROWN RM28 03 MFR # 2930600024
