Dometic RM2604 Parts Diagram · Vibration Suppression Kit

Refrigerator · 6 assemblies · 6 diagram sheets · 216 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2604 RV refrigerator: 6 assemblies (Vibration Suppression Kit, Replacement Refrigerator, Door Assembly, Climate Control Kit, Cabinet Assembly and more) and 216 manufacturer part numbers. 51 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

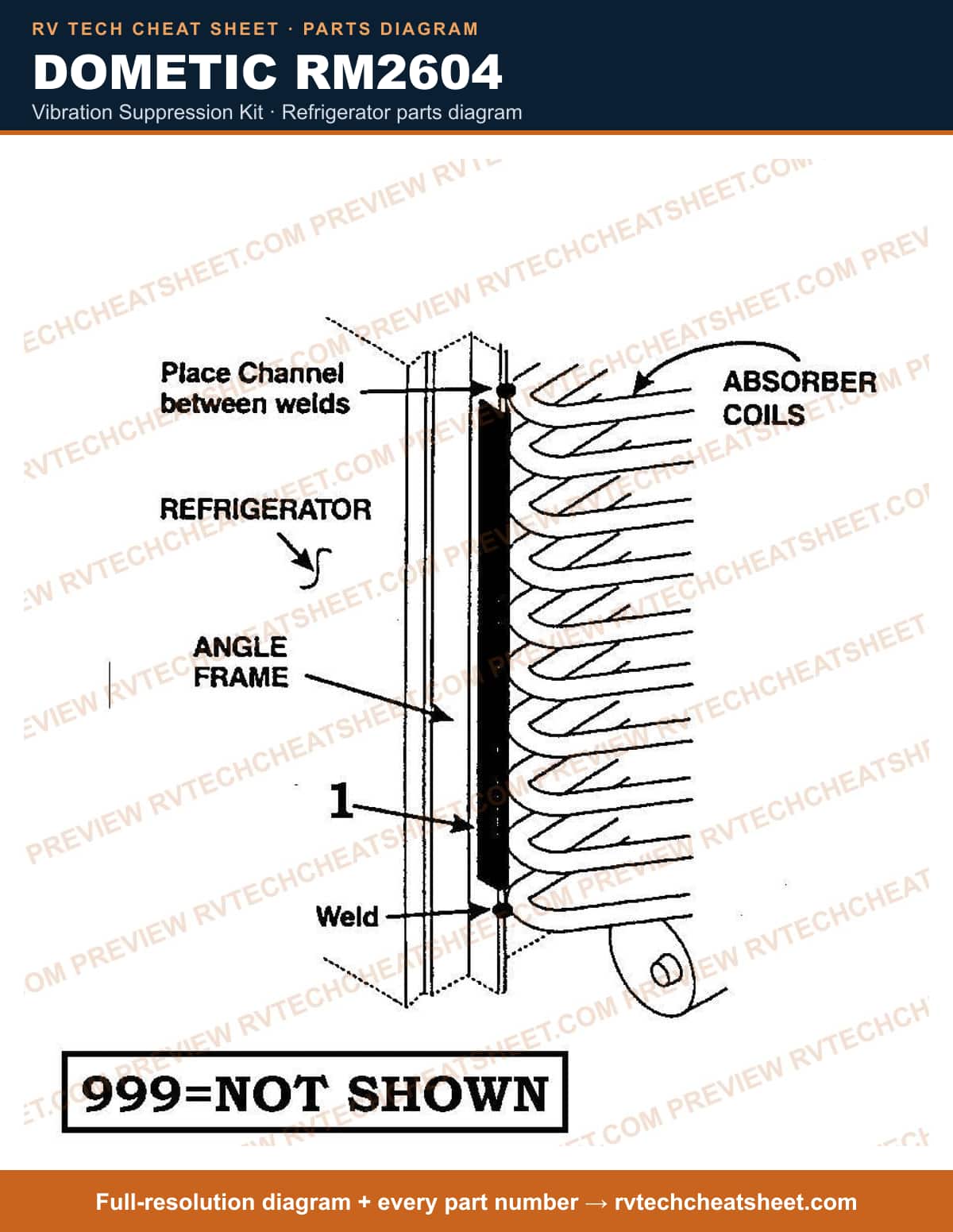

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

Replacement Refrigerator

Components

9 items

1. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
2. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
3. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
4. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
5. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
6. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
7. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
8. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
9. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS

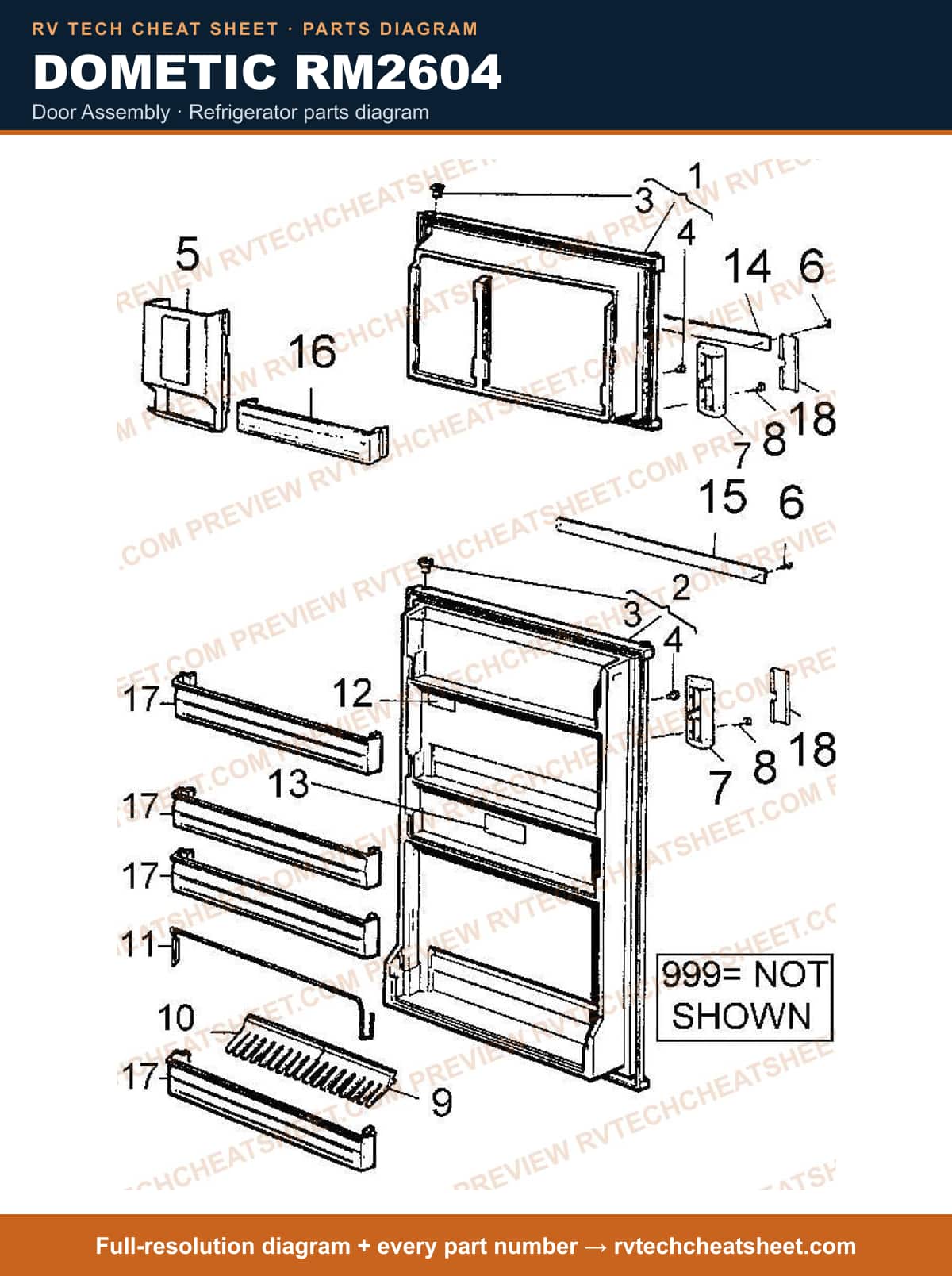

Door Assembly

Components

30 items

1. #Door Freezer; Use with Dometic RM2604; For refrigerators with production # ending in 401, 501, or 301. For those ending in 101 or 201 use 2931176115 MFR # 2931176123 Superseded: see description
2. #DOOR, FREEZER MFR # 2931176115
3. #Door Lower RM2604 MFR # 2931175117
4. #Refrigerator Gasket; Use With Dometic Refrigerator Models RM2604/ RM2610/ RM2607/ RM3604/ RM3607; Door Gasket; With Two Roll Double Sided Stick Tape/ One Roll Silicone MFR # 3108700 Superseded: see description
5. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
6. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
7. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
8. #SCREW USE 7295229400 MFR # 7295229012 Superseded: see description
9. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
10. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026
11. #HANDLE RM2804 USE 2931199026 MFR # 2931199018 Superseded: see description
12. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
13. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
14. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
15. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
17. #DECAL MFR # 2930757006
18. #LABEL, INSTRUCTION MFR # 2002356000
19. #Strip Deco MFR # 2931162024
20. #Refrigerator Gasket; Door Gasket MFR # 2931162040
21. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
22. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
24. #SHELF, DOOR USE 2000571220 LOWER MFR # 2000571196 Superseded: see description
25. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
26. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
27. #PLATE, COVER MFR # 2931196014
28. #Handle Kit Door MFR # 3107766010
29. #Plate Cover MFR # 2931571018
30. #Panels, Door Woodgrain Top & Bottom Panels MFR # RM3604G

Climate Control Kit

Components

1 item

1. #APPLIANCE COMPONENTS RV; Climate Control Kit MFR # 2943700514

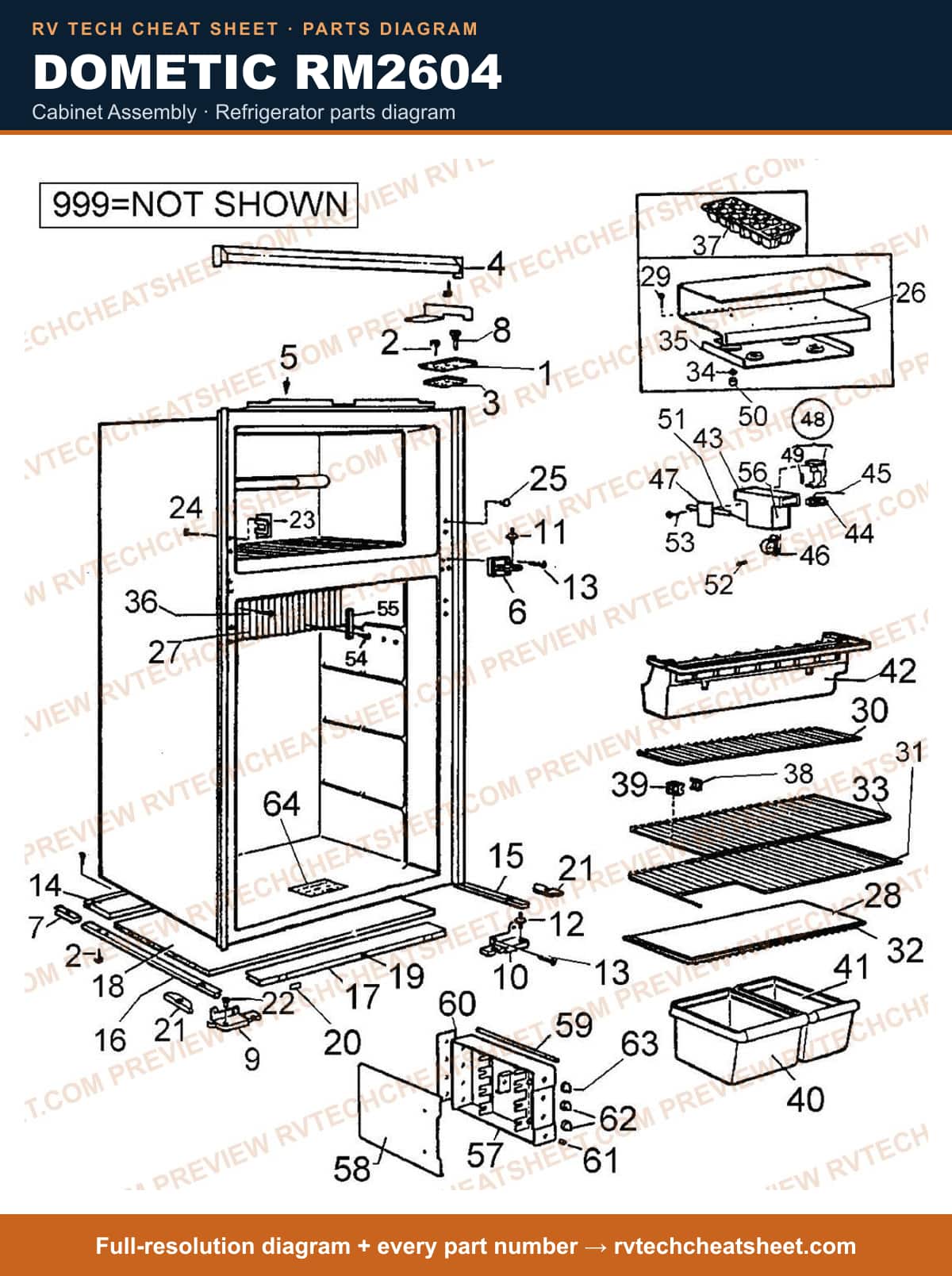

Cabinet Assembly

Components

84 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #Dometic RM2193 RM2652 Cooling Unit Assembly MFR # 2931293027
5. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
6. #Appliance Components RV MFR # 2931289017
7. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
8. #SUPPORT MFR # 2930774019
9. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
10. #HINGE, LOWER LH RM26 04 MFR # 2931283010
11. #HINGE, LOWER RH MFR # 2931283028
12. #S,HINGE PIN,MID,25MM MFR # 2931287011
13. #S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013
14. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
15. #Refrigerator Vent Cover Back Plate MFR # 2930664012
16. #APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014
17. #APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022
18. #BASE FRONT USE 2931282061 RM2604 2-WAY MFR # 2931282053 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061
20. #INSULATION MFR # 2930711011
21. #LAMP; USE 3254677713 MFR # 2931248021 Superseded: see description
22. #LAMP, REIGNITER (350) MFR # 3254677713
23. #Refrigerator Thermostat Cover MFR # 2931285015
24. #REINFORCEMENT MFR # 2931504019
25. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
26. #S,STRIKE 9*35*24MM MFR # 2931511014
27. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
28. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
29. #PLUG, COVER; USE 2931510032 GREY BROWN MFR # 2930736034 Superseded: see description
30. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
31. #Shelf, Freezer MFR # 2007535020
32. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
33. #Refrigerator Shelf MFR # 2931117044
34. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
35. #APPLIANCE COMPONENTS RV; Shelf Wire 8"W X 17 7/8L MFR # 2002652234
36. #Refrigerator Shelf MFR # 2930133141
37. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W Use 29301 MFR # 2930133109 Superseded: see description
38. #SHELF USE 2002652218 MFR # 2002652283 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
40. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
41. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
42. #PLATE RETAINING MFR # 2007649011
43. #SCREW MFR # 725422112
44. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
45. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
46. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
47. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
48. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
49. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
50. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
51. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
52. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
53. #Crisper Smoke Color; Dimensions: 6" W x 11-1/2" L x 5-1/4" D MFR # 2002726079
54. #Appliance Components RV MFR # 2007519008
55. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
56. #2004044091 MFR # 2004044091
57. #COVER, LIGHT SWITCH MFR # 2004044109
58. #COVER, CONTROLS USE 2004044091 MFR # 2004044075 Superseded: see description
59. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
60. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
61. #Lead T-Stat MFR # 2930735010
62. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
63. #SHADE, LAMP MFR # 2004043002
64. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
65. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
66. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
67. #PIN,RETAINING MFR # 2001281019
68. #SCREW MFR # 7295283407
69. #SCREW USE 7295344407 MFR # 7295344118 Superseded: see description
70. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
71. #CLAMP 2800 MFR # 2002798003
72. #Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description
73. #COVER USE 2930611013 RM2601/04 RM2800/04 MFR # 2930611005 Superseded: see description
74. #BOX, CONTROL MFR # 2931204016
75. #COVER MFR # 2931204013
76. #Gasket Control Box RM260 MFR # 2931225011
77. #PACKING, RM 2604 MFR # 2931212019
78. #COVER MFR # 2931205013
79. #BUTTON, PUSH MFR # 2931207019
80. #Refrigerator Control Knob; Thermostat & Igniter Control Knob; Round MFR # 2931229013
81. #KNOB, SELECTOR SWITCH 3 WAY MFR # 2931229021
82. #KNOB (2-WAY) 120VAC, GAS MFR # 293229039
83. #DECAL, 2-WAY, 110 VAC, GAS MFR # 2931313007
84. #Decal (3-Way) 12Vdc Gas MFR # 2931502005

Gas-electric

Components

91 items

1. #REMAN C/U MFR # 2934803996R
2. #REMAN C/U MFR # 2934803095R
3. #Cooling Unit (Ups) MFR # 2934803095N
4. #FILLING CAP MFR # 173558008
5. #Lid MFR # 2933557015
6. #DECAL RM3804 MFR # 2931503003
7. #DECAL RM38 04 MFR # 2007574029
8. #LABEL, IMPORTANT MFR # 2007689009
9. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
10. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
11. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
12. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
13. #Cover MFR # 2931233015
14. #DECAL, WARNING 2807/4801 MFR # 2002577001
15. #Nut MFR # 140107044
16. #VALVE, SAFETY; Use 293165 MFR # 2932656017 Superseded: see description
17. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
18. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
19. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
20. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
21. #VALVE, SAFETY MFR # 293165
22. #T-Couple MFR # 2931496067
23. #Thermocouple MFR # 2931232017
24. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
25. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
26. #Thermocouple MFR # 2931496091MC
27. #THERMOCOUPLE (350MM) MFR # 2931496091
28. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RM2453/ RM2552/ RM2453/ RM2352/ RM253/ RG1350/ RM2604 Model Refrigerator MFR # 2930488008
29. #Gas Valve MFR # 2931240010
30. #ELBOW USE 2930488008 MFR # 2930488016 Superseded: see description
31. #Gas Thermostat MFR # 2931224014
32. #Gas Thermostat MFR # V35P01430
33. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
34. #Shut Off Valve MFR # 2007430032
35. #Screw; Replacement For Dometic RM2452/ RM7030/ RM2333 Refrigerator Models; Gas Valve Screw; M4 x 25; Zinc MFR # 7241297618
36. #Tube, Gas MFR # 2931505016
37. #Power Selector Switch MFR # 2931226019
38. #Cover, Switch MFR # 2931708016
39. #Cover, Switch MFR # 2931206011
40. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
41. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
42. #SCREW M4 X 10 S MFR # 7241289615
43. #Tube, Gas MFR # 2931231019
44. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
45. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
46. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
47. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
48. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
49. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
50. #APPLIANCE COMPONENTS RV; NIPPLE MFR # 2931227017
51. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
52. #Sleeve MFR # 2931223016
53. #Coupler Kit MFR # 958169005
54. #Connector, Sleeve MFR # 2931222018
55. #Rod, Control MFR # 2931219014
56. #Plug MFR # 2931209015
57. #Sleeve MFR # 2931221010
58. #Shaft, Gas T-Stat MFR # 2931217018
59. #Shaft, Electric T-Stat MFR # 2931215012
60. #Shaft, Selector Switch MFR # 2931214015
61. #APPLIANCE COMPONENTS RV; T-Stat Electric MFR # 2930814021
62. #Refrigerator Thermostat Control Assembly; Use With Dometic Refrigerator Models RM2804/ RM3800/ RM3801 MFR # 2930814021MC Superseded: see description
63. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
64. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
65. #Mounting Plate MFR # 2931201012
66. #Plastic Cover MFR # 2931202010
67. #Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description
68. #RELAY USE 2930385006 MFR # 2930385014 Superseded: see description
69. #APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006
70. #RETAINER USE 2931791012 MFR # 2931203018 Superseded: see description
71. #Retainer MFR # 2931791012
72. #3858022019 MFR # 3858022019
73. #Block Terminal Small 3 Poi MFR # 7627202562
74. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
75. #Block Terminal MFR # 174004044
76. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
77. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
78. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
79. #STRIP, TERMINAL 6 POS. MFR # 2930327008
80. #Cover MFR # 2931216010
81. #Clamp (Retainer) MFR # 2931247015
82. #S,BAFFLE ASM,781MM MFR # 2007590058
83. #Flue Top MFR # 2007590010
84. #ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386
85. #ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974
86. #ELEMENT, HEATING USE 173754045 SEE NOTES MFR # 173754011 Superseded: see description
87. #ELEMENT, HEATING USE 48-9357 295W/120V 2WIRE MFR # 173754045 Superseded: see description
88. #APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063
89. #APPLIANCE COMPONENTS RV; Element Heating 12V Rm28 17.9 AMPS 12V MFR # 173757048
90. #LEAD, ELECTRODE MFR # 2007663052
91. #BRACKET, MOUNTING RM26 04 MFR # 2931200014
