Dometic RM2607 Product # 921570701 2-WAY Parts Diagram · Doors

Refrigerator · 5 assemblies · 5 diagram sheets · 180 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2607 Product # 921570701 2-WAY RV refrigerator: 5 assemblies (Doors, Cabinet Rear View, Burner & Controls, Replacement Refrigerator, Cabinet Front View) and 180 manufacturer part numbers. 43 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

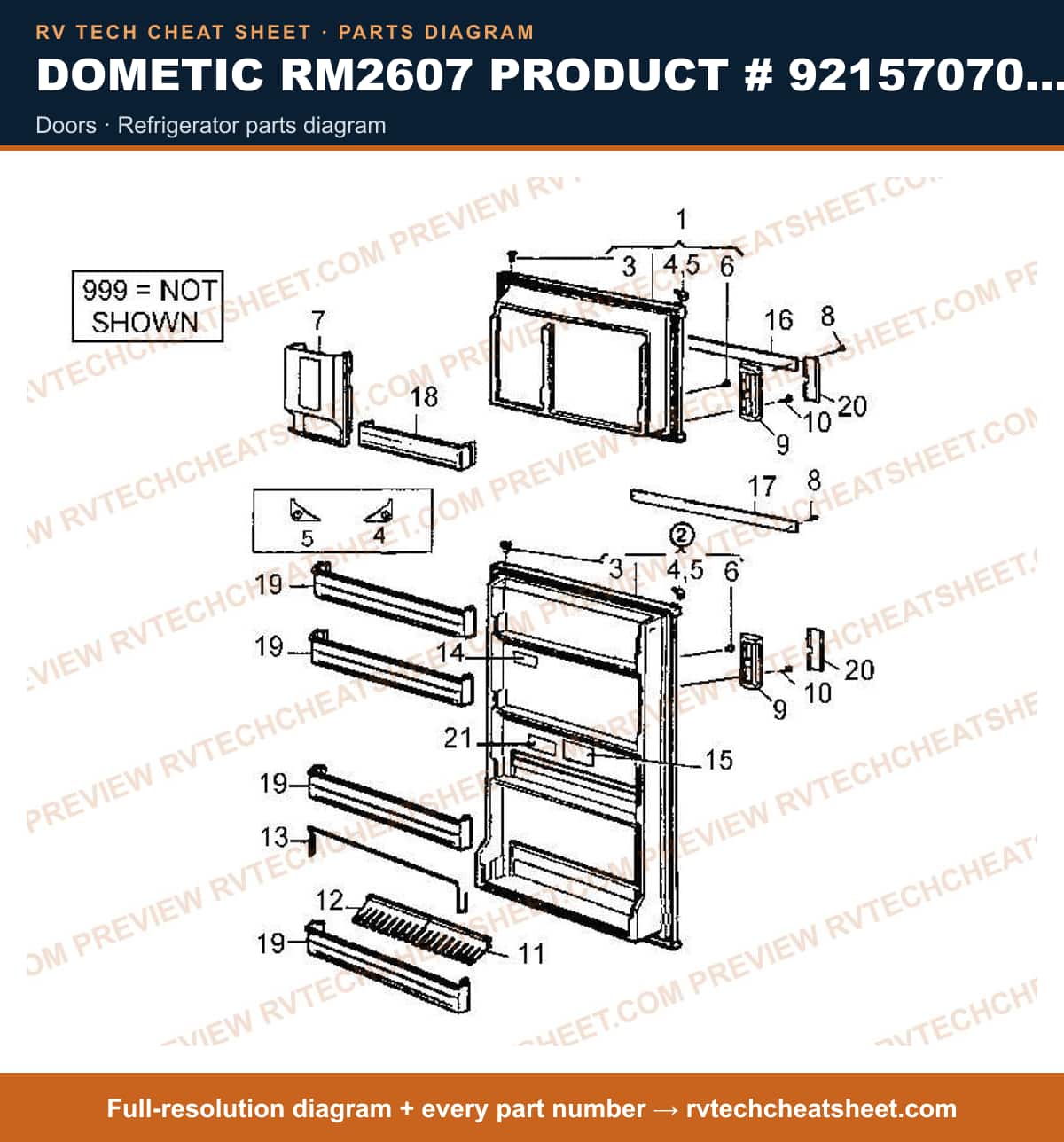

Doors

Components

30 items

1. #DOOR, FREEZER MFR # 2931636118
2. #Refrigerator Gasket; Use With Dometic Refrigerator Models RM2604/ RM2610/ RM2607/ RM3604/ RM3607; Door Gasket; With Two Roll Double Sided Stick Tape/ One Roll Silicone MFR # 3108700 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Door Lower MFR # 2931635110
4. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
5. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512012
6. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512020
7. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
8. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
9. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
10. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026
11. #HANDLE RM2804 USE 2931199026 MFR # 2931199018 Superseded: see description
12. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
13. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
14. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
16. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
18. #DECAL MFR # 2930757006
19. #LABEL, INSTRUCTION MFR # 2002356000
20. #Strip Deco MFR # 2931162024
21. #STRIP, DECO USE 2931162024 BOTTOM DOOR MFR # 2931162172 Superseded: see description
22. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
24. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
25. #SHELF, DOOR USE 2000571220 LOWER MFR # 2000571196 Superseded: see description
26. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
27. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
28. #Plate Cover MFR # 2931571018
29. #Handle Kit Door MFR # 3107766010
30. #LABEL, WARNING FOR DOOR MFR # 2931620005

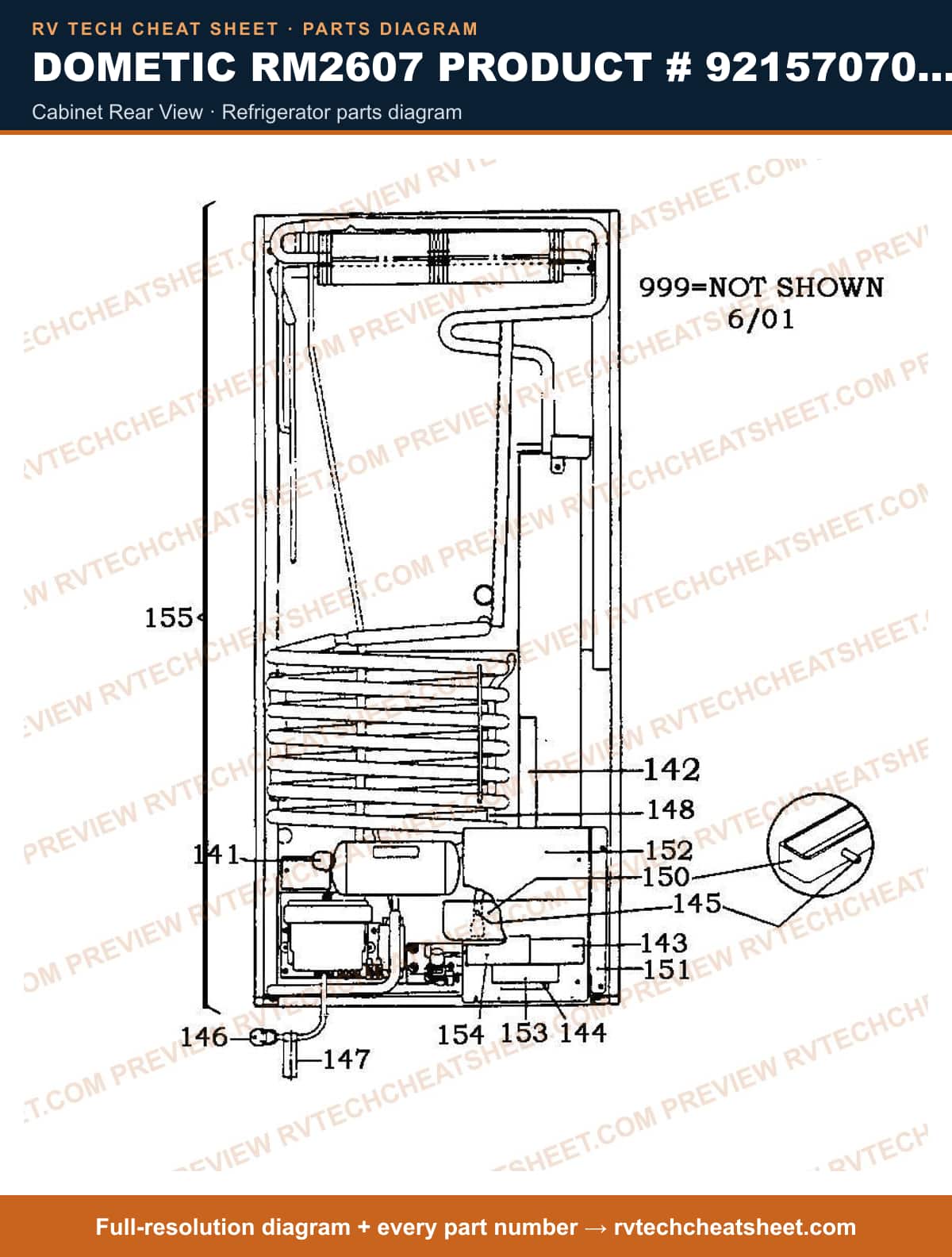

Cabinet Rear View

Components

22 items

1. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
2. #Lid MFR # 2933557015
3. #DECAL RM3804 MFR # 2931503003
4. #DECAL RM38 04 MFR # 2007574029
5. #S,TUBE,OVERFILL MFR # 2931829010
6. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
7. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
8. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
9. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
10. #TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description
11. #HOSE,DRAIN (725MM) MFR # 2931578054
12. #TUBE, DRAIN MFR # 2943361002
13. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
14. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
15. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
16. #Plate Protection Rm2800 MFR # 2930785015
17. #DECAL, WARNING 2807/4801 MFR # 2002577001
18. #LABEL, IMPORTANT MFR # 2007689009
19. #REMAN C/U MFR # 2934803095R
20. #Cooling Unit (Ups) MFR # 2934803095N
21. #APPLIANCE COMPONENTS RV; Clamp Hose MFR # 2943414009
22. #APPLIANCE COMPONENTS RV; Turbulence Kit Air; This kit contains 1 roof vent baffle, 1 protection plate extension, 1 burner end shield, 1 access door, 3 pop rivets 1/8 x 1/8, 1 installation instruction MFR # 3105559003

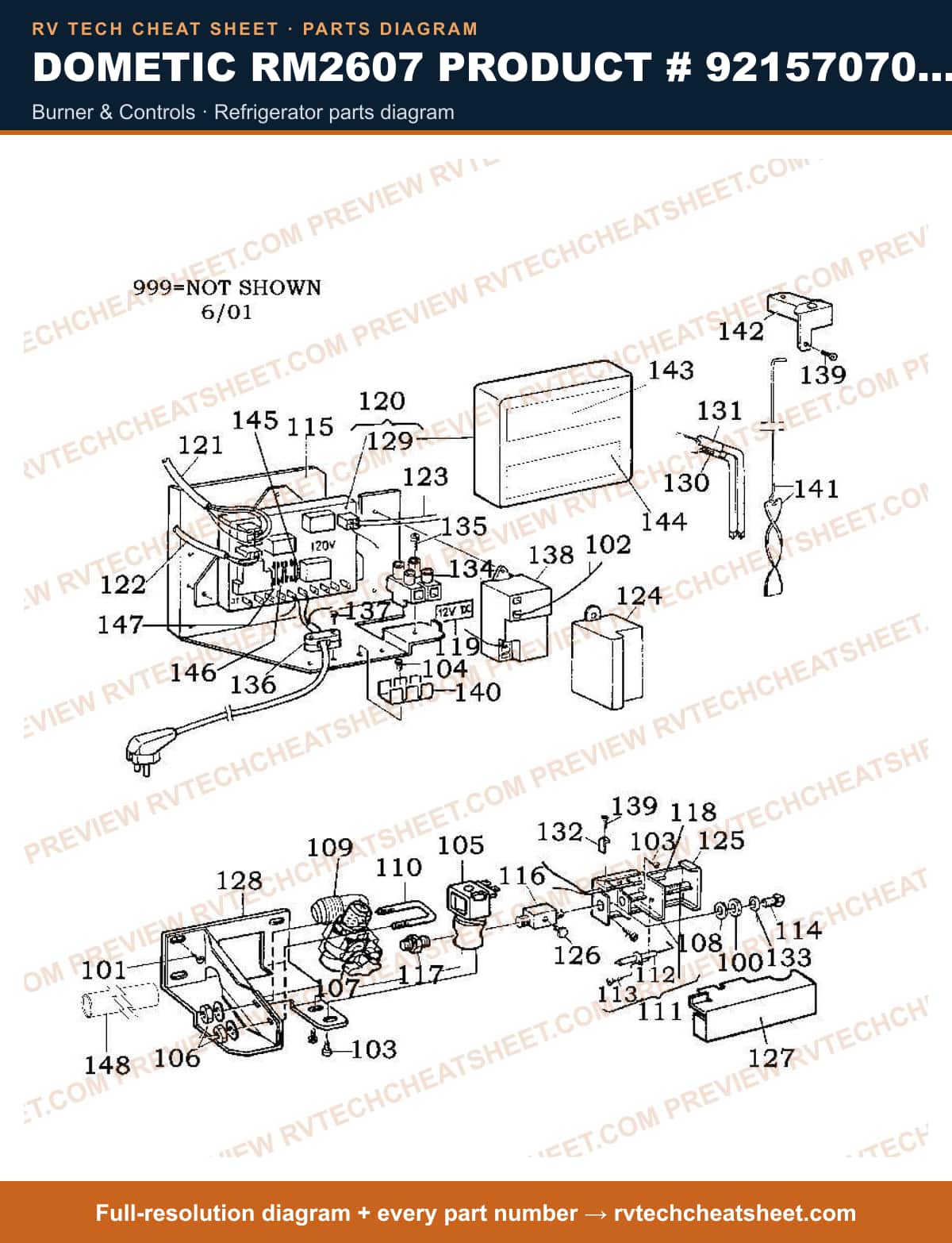

Burner & Controls

Components

49 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
4. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
5. #SCREW M4 X 10 S MFR # 7241289615
6. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
7. #SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
9. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
10. #NUT MFR # 2943286001
11. #S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004
12. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
13. #ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015
14. #APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003
15. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
16. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
17. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
18. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
19. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
20. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
21. #BRACKET, MOUNTING MFR # 2931822015
22. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
23. #NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026
24. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
25. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
26. #Label 12VDC MFR # 2931827006
27. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
28. #BOARD,PC USE 2932695014 COMPLETE W/COVER MFR # 2931842021 Superseded: see description
29. #DOM REPLACEMENT BRD MFR # MICROP711
30. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
31. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
32. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
33. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
34. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
35. #BOARD,MODULE USE 2932881010 2-WAY MFR # 2932695014 Superseded: see description
36. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
37. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
38. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
39. #LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description
40. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
41. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
42. #S,THERMISTOR,W/LEAD 64" MFR # 2931863019
43. #LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description
44. #APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675
45. #HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description
46. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
47. #HOUSING BURNER MFR # 2931913012
48. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
49. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016

Replacement Refrigerator

Components

3 items

1. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
2. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
3. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N

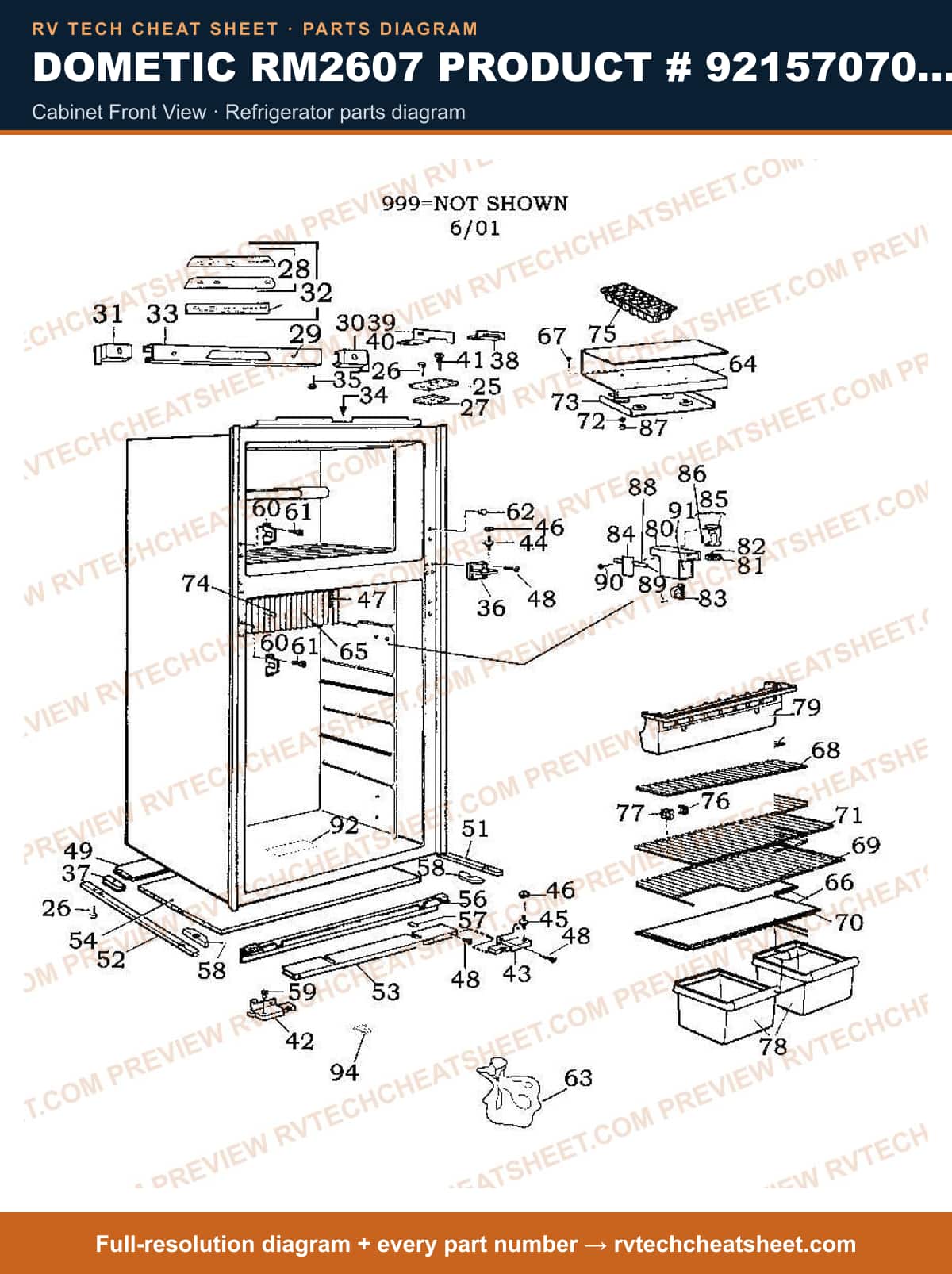

Cabinet Front View

Components

80 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #PLATE W/DECAL,MOUNTING 2 WAY RM2611 MFR # 955000096
5. #Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013
6. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
7. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
8. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
9. #BOARD,PC USE 2932884014 MFR # 2932697077 Superseded: see description
10. #BOARD,PC UPR USE 2932697077 2 WAY MFR # 2931844019 Superseded: see description
11. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
12. #Refrigerator Trim; Replacement For Dometic RM2611/ RM2607 Refrigerators MFR # 2931865048
13. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
14. #Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113
15. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
16. #Appliance Components RV MFR # 2931289017
17. #SUPPORT MFR # 2930774019
18. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
19. #PLATE,MOUNTING LH MFR # 2931459016
20. #PLATE,MOUNTING RH MFR # 2931459024
21. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
22. #HINGE, LOWER LH RM26 04 MFR # 2931283010
23. #HINGE, LOWER RH MFR # 2931283028
24. #S,HINGE PIN,MID,25MM MFR # 2931287011
25. #S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013
26. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
27. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
28. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
29. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
30. #APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014
31. #APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022
32. #APPLIANCE COMPONENTS RV; Base Front MFR # 2931282038
33. #INSULATION MFR # 2930711011
34. #APPLIANCE COMPONENTS RV; Trim Bottom MFR # 2931628016
35. #Refrigerator Thermostat Cover MFR # 2931285015
36. #REINFORCEMENT MFR # 2931504019
37. #Refrigerator Gasket Kit; Replacement For Dometic RM2607/ RM2611 Model Refrigerators; Left Hand MFR # 2930132012
38. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
39. #S,STRIKE 9*35*24MM MFR # 2931511014
40. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
41. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
42. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
43. #Appliance Components RV; Parts Bag MFR # 2931317016
44. #Shelf, Freezer MFR # 2007535020
45. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
46. #Refrigerator Shelf MFR # 2931117044
47. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
48. #APPLIANCE COMPONENTS RV; Shelf Wire 8"W X 17 7/8L MFR # 2002652234
49. #Refrigerator Shelf MFR # 2930133141
50. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W Use 29301 MFR # 2930133109 Superseded: see description
51. #Refrigerator Shelf MFR # 2002652218
52. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
53. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
54. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
55. #PLATE RETAINING MFR # 2007649011
56. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
57. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
58. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
59. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
60. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
61. #CRISPER USE 2002726061 MFR # 2002726038 Superseded: see description
62. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
63. #Refrigerator Drip Tray; Replacement For Dometic RM2607/ RM2611/ RM3607 Model Refrigerator MFR # 2931869016
64. #COVER, LIGHT SWITCH MFR # 2004044109
65. #2004044091 MFR # 2004044091
66. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
67. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
68. #Lead T-Stat MFR # 2930735010
69. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
70. #SHADE, LAMP MFR # 2004043002
71. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
72. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
73. #BULB 2/PK MFR # 2007290006
74. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
75. #COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description
76. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
77. #SCREW MFR # 7295283407
78. #Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description
79. #DECAL 2 WAY MFR # 2931882001
80. #BRACKET,MOUNTING MFR # 2931298018
