Dometic RM2607 Product # 921570801 2-WAY Parts Diagram · Cabinet Front View

Refrigerator · 5 assemblies · 10 diagram sheets · 165 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2607 Product # 921570801 2-WAY RV refrigerator: 5 assemblies (Cabinet Front View, Cabinet Rear View, Doors, Replacement Refrigerator, Burner & Controls) and 165 manufacturer part numbers. 42 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

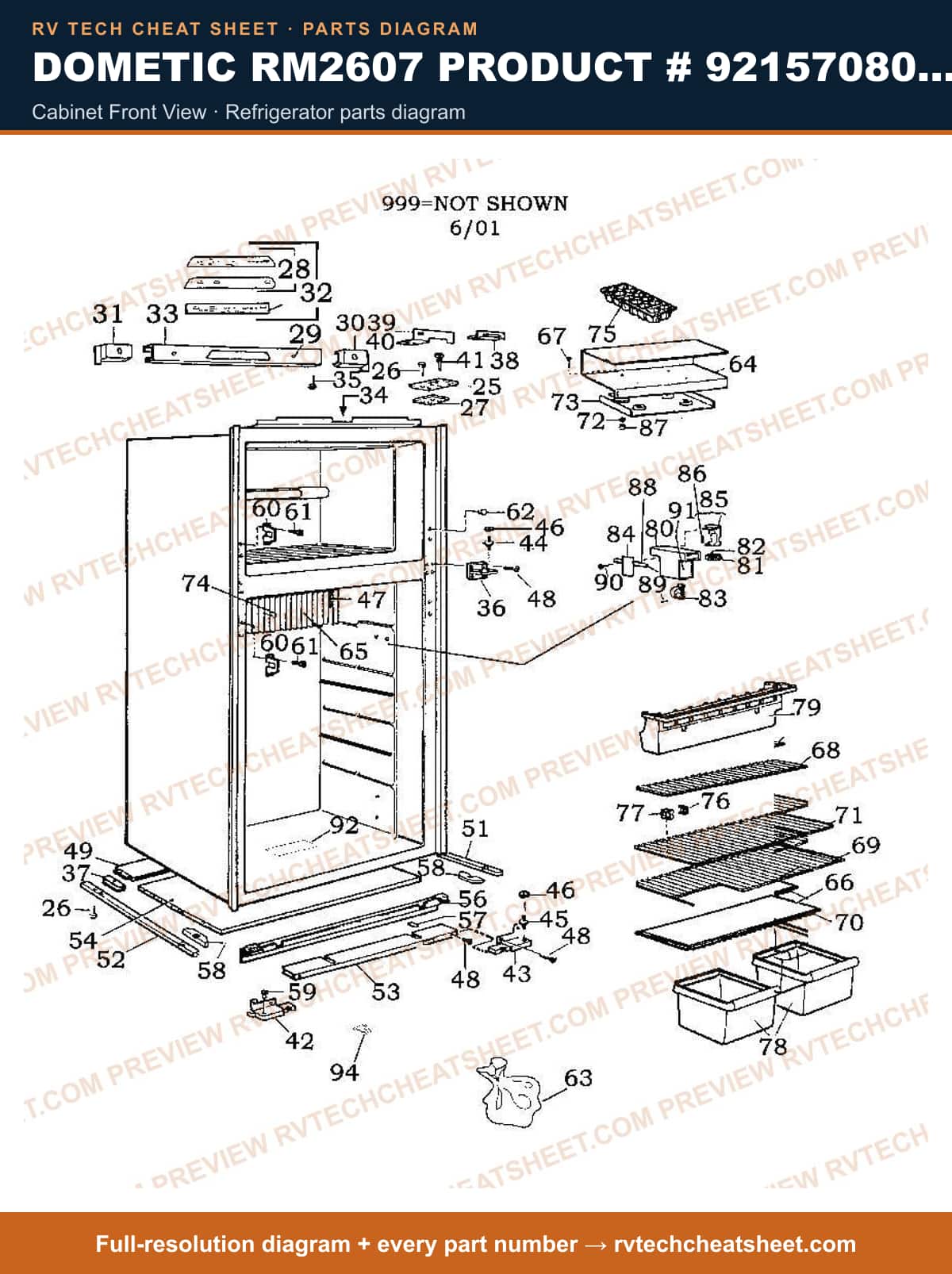

Cabinet Front View

Components

36 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #PLATE W/DECAL,MOUNTING 2 WAY RM2611 MFR # 955000096
5. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
6. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
7. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
8. #BOARD,PC USE 2932884014 MFR # 2932697077 Superseded: see description
9. #BOARD,PC UPR USE 2932697077 2 WAY MFR # 2931844019 Superseded: see description
10. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
11. #Refrigerator Trim; Replacement For Dometic RM2611/ RM2607 Refrigerators MFR # 2931865048
12. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
13. #Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113
14. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
15. #Appliance Components RV MFR # 2931289017
16. #SUPPORT MFR # 2930774019
17. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
18. #PLATE,MOUNTING LH MFR # 2931459016
19. #PLATE,MOUNTING RH MFR # 2931459024
20. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
21. #HINGE, LOWER LH RM26 04 MFR # 2931283010
22. #HINGE, LOWER RH MFR # 2931283028
23. #S,HINGE PIN,MID,25MM MFR # 2931287011
24. #S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013
25. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
26. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
27. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
28. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
29. #Refrigerator Vent Cover Back Plate MFR # 2930664012
30. #DECAL,ON/OFF SWITCH MFR # 2931877001
31. #APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014
32. #APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022
33. #APPLIANCE COMPONENTS RV; Base Front Rm26 11 MFR # 2931282079
34. #INSULATION MFR # 2930711011
35. #SWITCH,CLIMATE CONTROL MFR # 1901333006
36. #SWITCH,CLIMATE CONTROL (300) MFR # 19011103

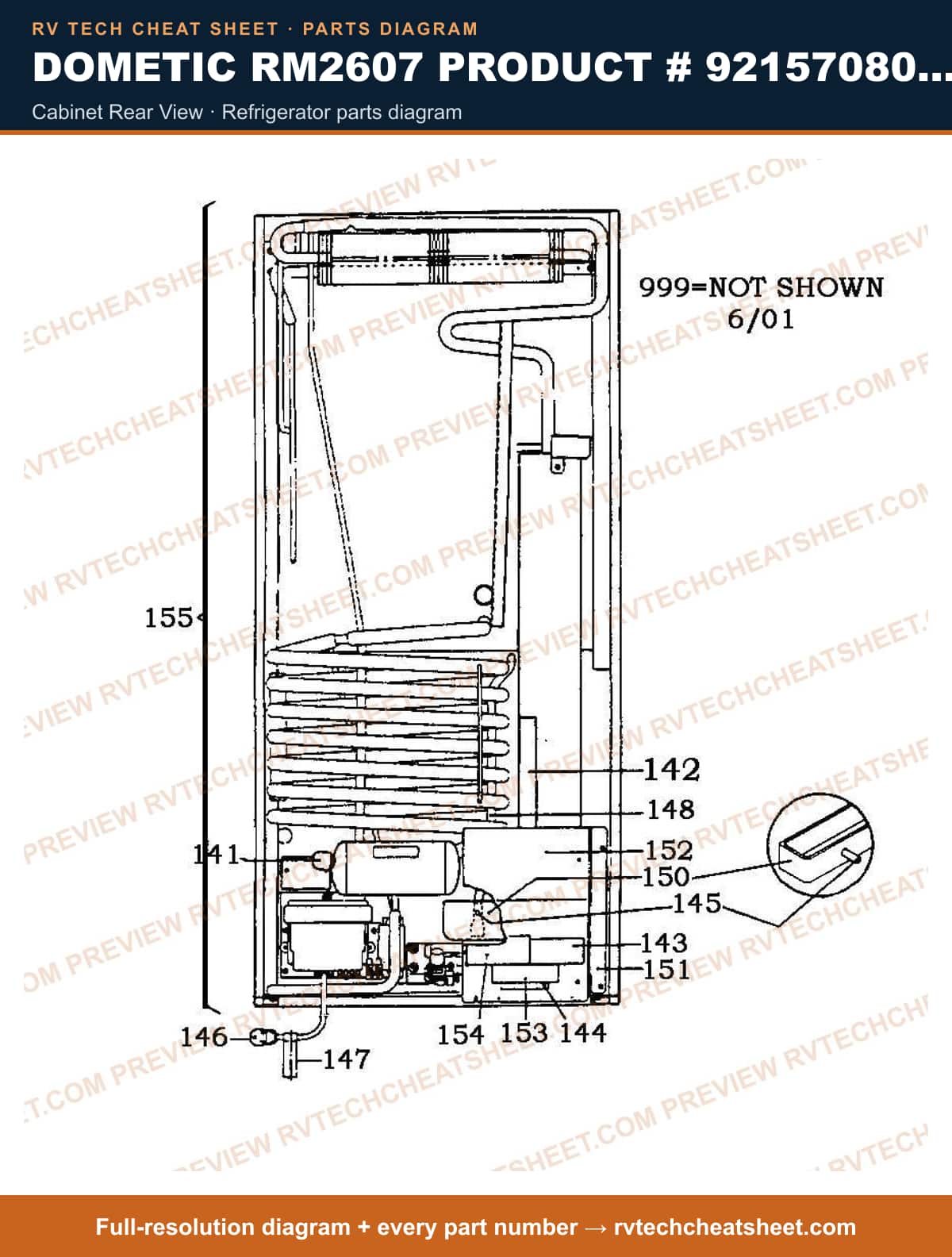

Cabinet Rear View

Components

23 items

1. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
2. #Lid MFR # 2933557015
3. #DECAL RM3804 MFR # 2931503003
4. #DECAL RM38 04 MFR # 2007574029
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #S,TUBE,OVERFILL MFR # 2931829010
7. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
10. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
11. #TUBE, DRAIN MFR # 2943361002
12. #TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description
13. #HOSE,DRAIN (725MM) MFR # 2931578054
14. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
15. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
16. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
17. #Plate Protection Rm2800 MFR # 2930785015
18. #DECAL, WARNING 2807/4801 MFR # 2002577001
19. #LABEL, IMPORTANT MFR # 2007689009
20. #REMAN C/U MFR # 2934803095R
21. #Cooling Unit (Ups) MFR # 2934803095N
22. #APPLIANCE COMPONENTS RV; Clamp Hose MFR # 2943414009
23. #APPLIANCE COMPONENTS RV; Turbulence Kit Air; This kit contains 1 roof vent baffle, 1 protection plate extension, 1 burner end shield, 1 access door, 3 pop rivets 1/8 x 1/8, 1 installation instruction MFR # 3105559003

Doors

Components

30 items

1. #DOOR, FREEZER MFR # 2931636118
2. #Refrigerator Gasket; Use With Dometic Refrigerator Models RM2604/ RM2610/ RM2607/ RM3604/ RM3607; Door Gasket; With Two Roll Double Sided Stick Tape/ One Roll Silicone MFR # 3108700 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Door Lower MFR # 2931635110
4. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
5. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512012
6. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512020
7. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
8. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
9. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
10. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026
11. #HANDLE RM2804 USE 2931199026 MFR # 2931199018 Superseded: see description
12. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
13. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
15. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
16. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
18. #DECAL MFR # 2930757006
19. #LABEL, INSTRUCTION MFR # 2002356000
20. #Strip Deco MFR # 2931162024
21. #STRIP, DECO USE 2931162024 BOTTOM DOOR MFR # 2931162172 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
23. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
24. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
25. #SHELF, DOOR USE 2000571220 LOWER MFR # 2000571196 Superseded: see description
26. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
27. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
28. #Plate Cover MFR # 2931571018
29. #Handle Kit Door MFR # 3107766010
30. #LABEL, WARNING FOR DOOR MFR # 2931620005

Replacement Refrigerator

Components

3 items

1. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
2. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
3. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N

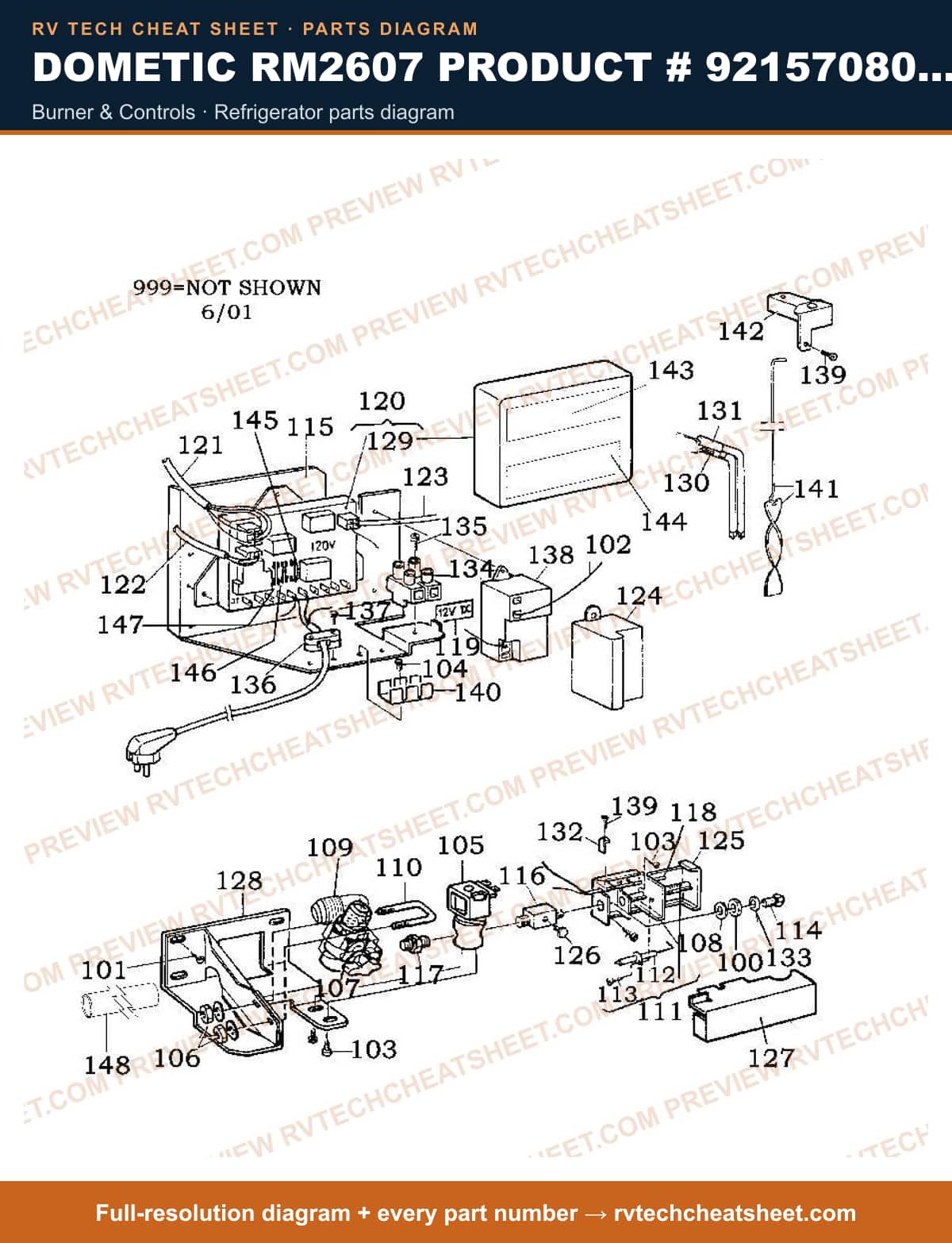

Burner & Controls

Components

74 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
4. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
5. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
6. #SCREW M4 X 10 S MFR # 7241289615
7. #SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description
8. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
10. #NUT MFR # 2943286001
11. #S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004
12. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
13. #ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015
14. #APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003
15. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
16. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
17. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
18. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
19. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
20. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
21. #BRACKET, MOUNTING MFR # 2931822015
22. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
23. #NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026
24. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
25. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
26. #Label 12VDC MFR # 2931827006
27. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
28. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
29. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
30. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
31. #DOM REPLACEMENT BRD MFR # MICROP711
32. #BOARD,PC USE 2932695014 COMPLETE W/COVER MFR # 2931842021 Superseded: see description
33. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
34. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
35. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
36. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
37. #BOARD,MODULE USE 2932881010 2-WAY MFR # 2932695014 Superseded: see description
38. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
39. #LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description
40. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
41. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
42. #S,THERMISTOR,W/LEAD 64" MFR # 2931863019
43. #APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675
44. #LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description
45. #HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description
46. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
47. #HOUSING BURNER MFR # 2931913012
48. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
49. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
50. #BRACKET, GAS VALVE MFR # 2931915017
51. #S,COVER,LESS DECALS MFR # 2931858019
52. #ELEMENT, HEATING USE 48-9357 295W/120V 2WIRE MFR # 173754045 Superseded: see description
53. #ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974
54. #ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386
55. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
56. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
57. #BLOCK, TERMINA USE 2930463019 LARGE RM2800, 2801 MFR # 2002633010 Superseded: see description
58. #3858022019 MFR # 3858022019
59. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
60. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
61. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
62. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
63. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
64. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
65. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
66. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
67. #STRIP, TERMINAL 6 POS. MFR # 2930327008
68. #S,BAFFLE ASM,781MM MFR # 2007590058
69. #CAP FLUE MFR # 2931540013
70. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
71. #FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description
72. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
73. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
74. #SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
