Dometic RM2607 Product # 921570901 3-WAY Parts Diagram · Cabinet Rear View

Refrigerator · 5 assemblies · 5 diagram sheets · 133 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2607 Product # 921570901 3-WAY RV refrigerator: 5 assemblies (Cabinet Rear View, Replacement Refrigerator, Doors, Burner & Controls, Cabinet Front View) and 133 manufacturer part numbers. 27 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Rear View

Components

23 items

1. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
2. #Lid MFR # 2933557015
3. #DECAL RM3804 MFR # 2931503003
4. #DECAL RM38 04 MFR # 2007574029
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #S,TUBE,OVERFILL MFR # 2931829010
7. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
8. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
9. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
10. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
11. #TUBE, DRAIN MFR # 2943361002
12. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
13. #TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description
14. #HOSE,DRAIN (725MM) MFR # 2931578054
15. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
16. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
17. #Plate Protection Rm2800 MFR # 2930785015
18. #DECAL, WARNING 2807/4801 MFR # 2002577001
19. #LABEL, IMPORTANT MFR # 2007689009
20. #Cooling Unit (Ups) MFR # 2934803095N
21. #REMAN C/U MFR # 2934803095R
22. #APPLIANCE COMPONENTS RV; Clamp Hose MFR # 2943414009
23. #APPLIANCE COMPONENTS RV; Turbulence Kit Air; This kit contains 1 roof vent baffle, 1 protection plate extension, 1 burner end shield, 1 access door, 3 pop rivets 1/8 x 1/8, 1 installation instruction MFR # 3105559003

Replacement Refrigerator

Components

3 items

1. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
2. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
3. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N

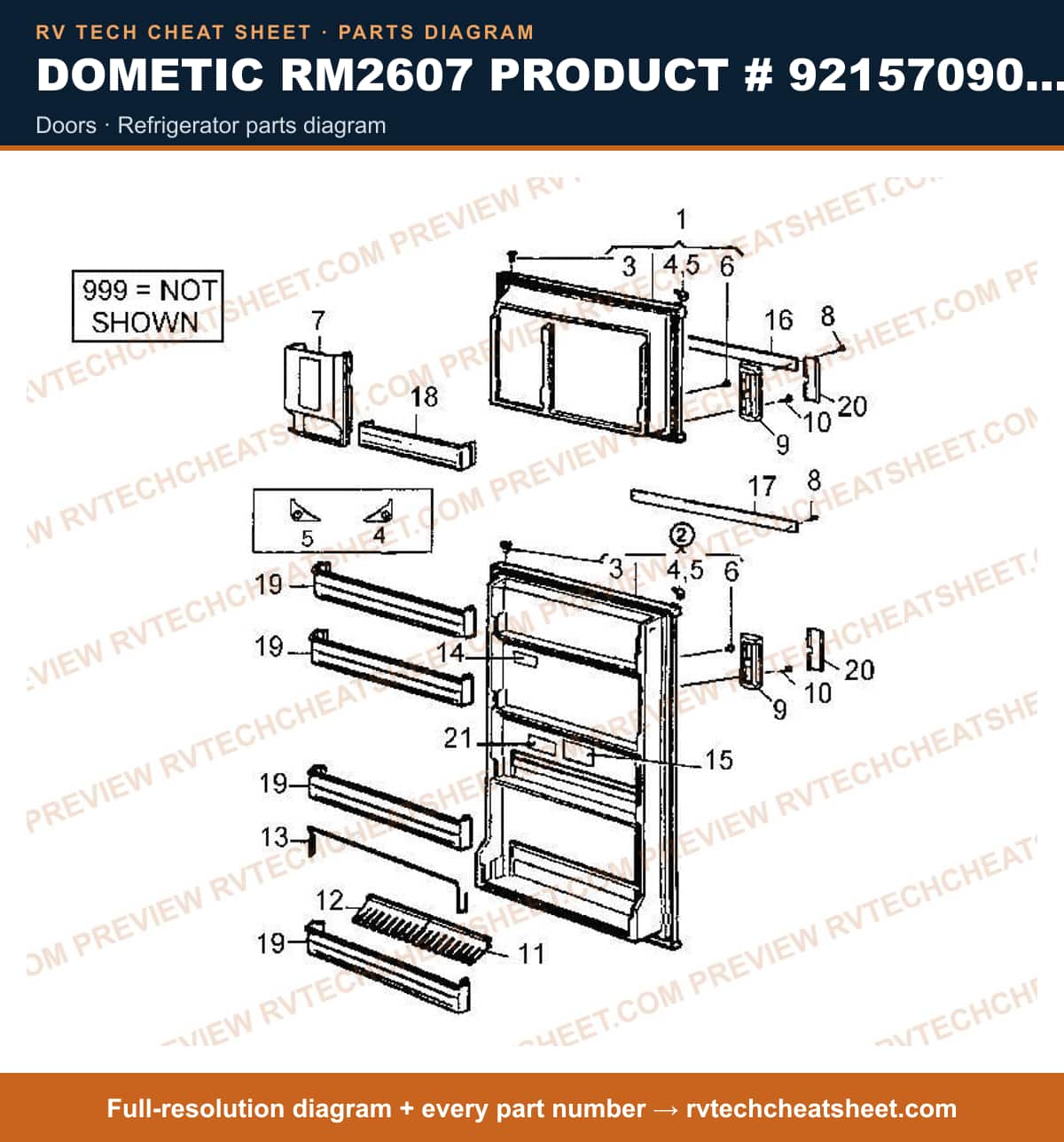

Doors

Components

26 items

1. #DOOR, FREEZER MFR # 2931636118
2. #APPLIANCE COMPONENTS RV; Door Lower MFR # 2931635110
3. #Refrigerator Gasket; Use With Dometic Refrigerator Models RM2604/ RM2610/ RM2607/ RM3604/ RM3607; Door Gasket; With Two Roll Double Sided Stick Tape/ One Roll Silicone MFR # 3108700 Superseded: see description
4. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
5. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512012
6. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512020
7. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
8. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
9. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
10. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026
11. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
12. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
13. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
15. #DECAL MFR # 2930757006
16. #LABEL, INSTRUCTION MFR # 2002356000
17. #Strip Deco MFR # 2931162024
18. #STRIP, DECO USE 2931162024 BOTTOM DOOR MFR # 2931162172 Superseded: see description
19. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
21. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
22. #SHELF, DOOR USE 2000571220 LOWER MFR # 2000571196 Superseded: see description
23. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
24. #Handle Kit Door MFR # 3107766010
25. #Plate Cover MFR # 2931571018
26. #LABEL, WARNING FOR DOOR MFR # 2931620005

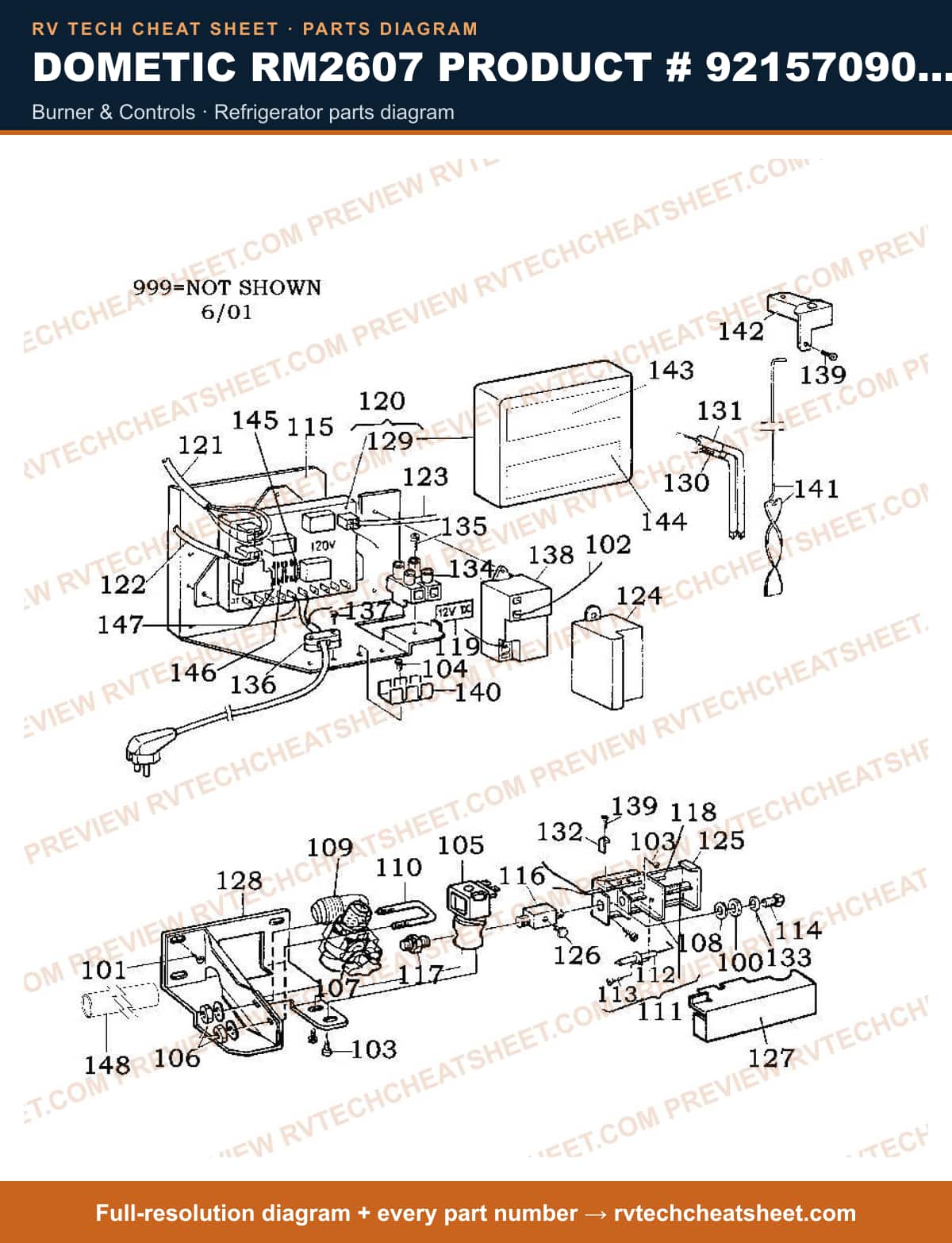

Burner & Controls

Components

47 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
4. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
5. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
6. #SCREW M4 X 10 S MFR # 7241289615
7. #SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
9. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
10. #NUT MFR # 2943286001
11. #S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004
12. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
13. #ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015
14. #APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003
15. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
16. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
17. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
18. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
19. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
20. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
21. #BRACKET, MOUNTING MFR # 2931822015
22. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
23. #NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026
24. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
25. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
26. #Ignition Module; Dometic MFR # 2930379002
27. #Label 12VDC MFR # 2931827006
28. #BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description
29. #DOM REPLACEMENT BRD MFR # MICROP711
30. #Fitting MFR # 2931916003
31. #Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000
32. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
33. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
34. #BURNER ASM MFR # 2931917006
35. #APPLIANCE COMPONENTS RV; Gasket MFR # 7241326766
36. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
37. #APPLIANCE COMPONENTS RV; Cap S MFR # 7241326768
38. #APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675
39. #HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description
40. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
41. #APPLIANCE COMPONENTS RV; Tube MFR # 7241325779
42. #Ignition Module; Replacement For Dometic RM1280/ RM1350/ RM1462/ RM2400/ RM2600/ RM2601/ RM2604/ RM2800/ RM2801/ RM2802/ RM2850/ RM2851/ RM2852/ RM3000/ RM3800/ RM3600/ RM3800/ RM4800/ RM7300/ RM7732/ RM7832 MFR # 2930379006
43. #VALVE, MANIFOLD USE 3858047001 IS A USE # FOR S520.014 & S520.015 CAN BE USED FOR S520.014 & S520.015 BUT ALL OTHER S520 MODEL USE 2943700019 MFR # 3858050001 Superseded: see description
44. #APPLIANCE COMPONENTS RV; Cover MFR # 7241317458
45. #APPLIANCE COMPONENTS RV; Gasket MFR # 7241319890
46. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931822001
47. #APPLIANCE COMPONENTS RV; Nut Bolt Screw MFR # 3858039046

Cabinet Front View

Components

35 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #PLATE, MOUNTING 3-WAY MFR # 955000104
5. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
6. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
7. #BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description
8. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description
9. #Refrigerator Trim; Replacement For Dometic RM2611/ RM2607 Refrigerators MFR # 2931865048
10. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
11. #Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113
12. #Appliance Components RV MFR # 2931289017
13. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
14. #SUPPORT MFR # 2930774019
15. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
16. #PLATE,MOUNTING LH MFR # 2931459016
17. #PLATE,MOUNTING RH MFR # 2931459024
18. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
19. #HINGE, LOWER LH RM26 04 MFR # 2931283010
20. #HINGE, LOWER RH MFR # 2931283028
21. #S,HINGE PIN,MID,25MM MFR # 2931287011
22. #S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013
23. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
24. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
25. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
26. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
27. #APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014
28. #APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022
29. #APPLIANCE COMPONENTS RV; Base Front MFR # 2931282038
30. #INSULATION MFR # 2930711011
31. #APPLIANCE COMPONENTS RV; Trim Bottom MFR # 2931628016
32. #Refrigerator Thermostat Cover MFR # 2931285015
33. #REINFORCEMENT MFR # 2931504019
34. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
35. #Refrigerator Door Latch; Closure Latch; Replacement For Dometic Refrigerator Models RM2604/ RM2611/ RM2620/ RM2804/ RM2807/ RM2820 MFR # 2931573011
