Dometic RM2607 Product # 921571001 3-WAY Parts Diagram · Cabinet Rear View

Refrigerator · 5 assemblies · 5 diagram sheets · 158 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2607 Product # 921571001 3-WAY RV refrigerator: 5 assemblies (Cabinet Rear View, Burner & Controls, Doors, Cabinet Front View, Replacement Refrigerator) and 158 manufacturer part numbers. 40 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Rear View

Components

22 items

1. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
2. #Lid MFR # 2933557015
3. #DECAL RM3804 MFR # 2931503003
4. #DECAL RM38 04 MFR # 2007574029
5. #S,TUBE,OVERFILL MFR # 2931829010
6. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
7. #Refrigerator Power Cord; For Use With Dometic M70/ MA40C/ NDR1272/ RM100/ RM1303/ RM182A/ RM2192/ RM2200A/ RM24/ RM2410/ RM2604/ RM2804/ RM36/ RM360/ RM361/ RM36A/ RM36C/ RM36D/ RM45/ RM45A Model Refrigerators; 39 Inch Length MFR # 45-5451 Superseded: see description
8. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
9. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
10. #TUBE, DRAIN MFR # 2943361002
11. #HOSE,DRAIN (725MM) MFR # 2931578054
12. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 46-0848
13. #TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description
14. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
15. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
16. #Plate Protection Rm2800 MFR # 2930785015
17. #DECAL, WARNING 2807/4801 MFR # 2002577001
18. #LABEL, IMPORTANT MFR # 2007689009
19. #REMAN C/U MFR # 2934803095R
20. #Cooling Unit (Ups) MFR # 2934803095N
21. #APPLIANCE COMPONENTS RV; Clamp Hose MFR # 2943414009
22. #APPLIANCE COMPONENTS RV; Turbulence Kit Air; This kit contains 1 roof vent baffle, 1 protection plate extension, 1 burner end shield, 1 access door, 3 pop rivets 1/8 x 1/8, 1 installation instruction MFR # 3105559003

Burner & Controls

Components

71 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
4. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
5. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
6. #SCREW M4 X 10 S MFR # 7241289615
7. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
8. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
9. #SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description
10. #NUT MFR # 2943286001
11. #S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004
12. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
13. #ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015
14. #APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003
15. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
16. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
17. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
18. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
19. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
20. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
21. #BRACKET, MOUNTING MFR # 2931822015
22. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
23. #NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026
24. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
25. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
26. #Label 12VDC MFR # 2931827006
27. #BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description
28. #DOM REPLACEMENT BRD MFR # MICROP711
29. #BOARD,PC USE 2932695014 COMPLETE W/COVER MFR # 2931842021 Superseded: see description
30. #Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000
31. #BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description
32. #LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description
33. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
34. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
35. #S,THERMISTOR,W/LEAD 64" MFR # 2931863019
36. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
37. #APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675
38. #LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description
39. #HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description
40. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
41. #HOUSING BURNER MFR # 2931913012
42. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
43. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
44. #BRACKET, GAS VALVE MFR # 2931915017
45. #S,COVER,LESS DECALS MFR # 2931858019
46. #ELEMENT, HEATING USE 48-9357 295W/120V 2WIRE MFR # 173754045 Superseded: see description
47. #ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974
48. #ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386
49. #APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063
50. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
51. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
52. #3858022019 MFR # 3858022019
53. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
54. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
55. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
56. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
57. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
58. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
59. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
60. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
61. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
62. #STRIP, TERMINAL 6 POS. MFR # 2930327008
63. #S,BAFFLE ASM,781MM MFR # 2007590058
64. #CAP FLUE MFR # 2931540013
65. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
66. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
67. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
68. #FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description
69. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
70. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
71. #SHIELD, THERMOCOUPLE LEAD MFR # 2932001015

Doors

Components

26 items

1. #DOOR, FREEZER MFR # 2931636118
2. #APPLIANCE COMPONENTS RV; Door Lower MFR # 2931635110
3. #Refrigerator Gasket; Use With Dometic Refrigerator Models RM2604/ RM2610/ RM2607/ RM3604/ RM3607; Door Gasket; With Two Roll Double Sided Stick Tape/ One Roll Silicone MFR # 3108700 Superseded: see description
4. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
5. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512012
6. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512020
7. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
8. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
9. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 47-8350
10. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026
11. #HANDLE RM2804 USE 2931199026 MFR # 2931199018 Superseded: see description
12. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
13. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 45-9953
14. #HOLDER, BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 45-9954 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
16. #DECAL MFR # 2930757006
17. #LABEL, INSTRUCTION MFR # 2002356000
18. #APPLIANCE COMPONENTS RV; Strip Deco MFR # 46-0174
19. #STRIP, DECO USE 2931162024 BOTTOM DOOR MFR # 2931162172 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 45-9814
21. #SHELF, DOOR USE 2000571220 LOWER MFR # 2000571196 Superseded: see description
22. #Refrigerator Shelf; Replacement For Dometic RM2611/ RM47/ RM66/ RM660/ RM663/ RM67D/ RM2607/ RM3500/ RM2510/ RM2612/ RM2607/ RM2405/ RM2601 Series Refrigerators; White MFR # 45-5058
23. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
24. #Plate Cover MFR # 2931571018
25. #APPLIANCE COMPONENTS RV; Handle Kit Door MFR # 46-4252
26. #LABEL, WARNING FOR DOOR MFR # 2931620005

Cabinet Front View

Components

31 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #PLATE W/DECAL,MOUNTING 2 WAY RM2611 MFR # 955000096
5. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
6. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
7. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
8. #BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description
9. #BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description
10. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description
11. #Refrigerator Trim; Replacement For Dometic RM2611/ RM2607 Refrigerators MFR # 2931865048
12. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
13. #Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113
14. #Appliance Components RV MFR # 2931289017
15. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
16. #SUPPORT MFR # 2930774019
17. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
18. #PLATE,MOUNTING LH MFR # 2931459016
19. #PLATE,MOUNTING RH MFR # 2931459024
20. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
21. #HINGE, LOWER LH RM26 04 MFR # 2931283010
22. #HINGE, LOWER RH MFR # 2931283028
23. #S,HINGE PIN,MID,25MM MFR # 2931287011
24. #S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013
25. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
26. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
27. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
28. #BOARD, MODULE 3W USE 3108705272 MFR # 2931308015 Superseded: see description
29. #Refrigerator Door Hinge Plate; Replacement For Dometic RM2611/ RM2620/ RM2820 Refrigerators; Fits Top Hinge Left Hand MFR # 2931293012
30. #Refrigerator Ventilation Grille; Use With Dometic RM2607/ RM2611/ RM2620/ RM2807/ RM2811/ RM2820/ RM3607/ RM3807/ RM3808/ RM3809/ RM3820/ RM3830; Fits Dometic Model Refrigerators MFR # 2931630001 Superseded: see description
31. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Bottom Hinge Right Hand MFR # 2931866011

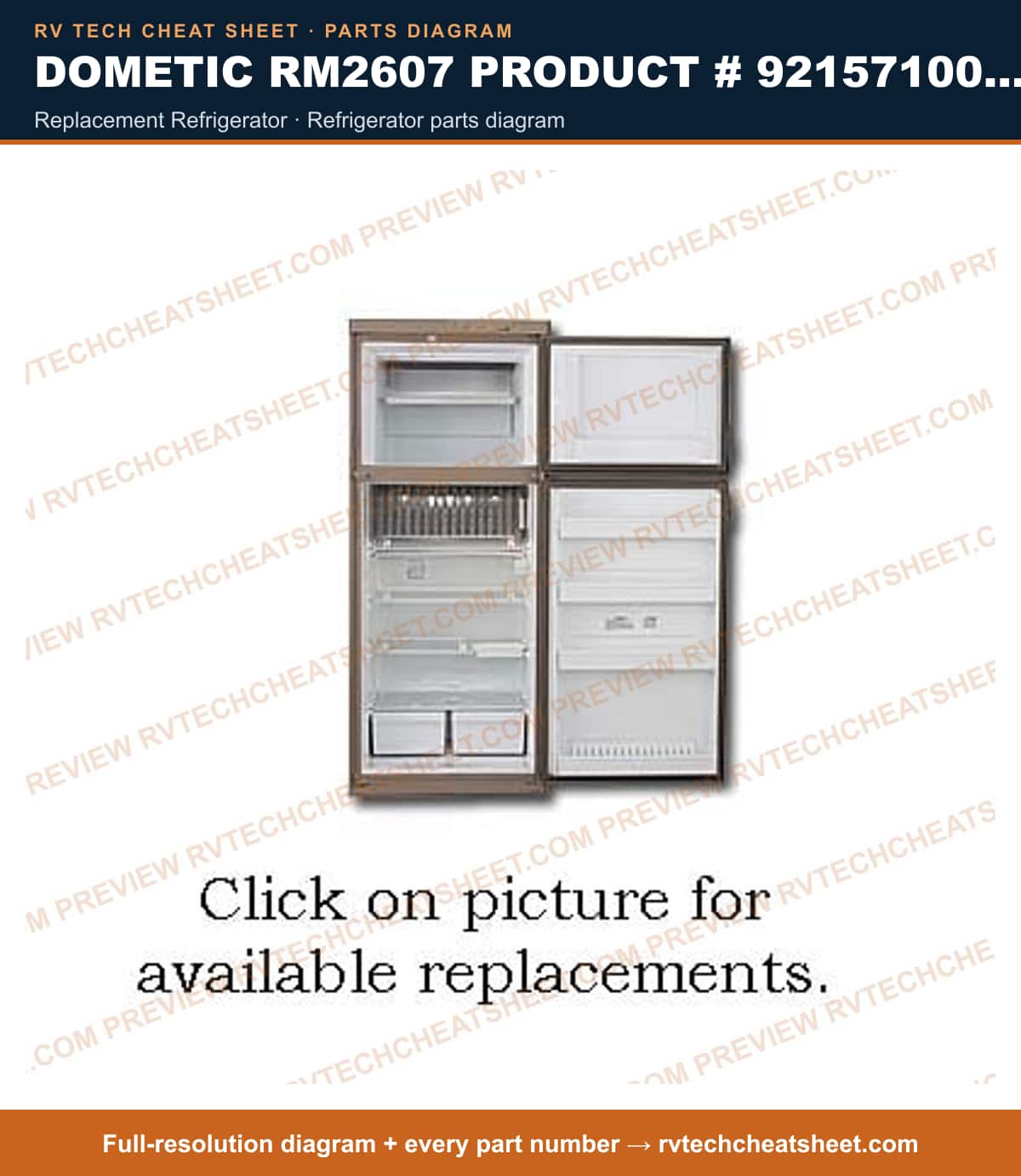

Replacement Refrigerator

Components

9 items

1. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
2. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
3. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
4. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
5. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
6. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
7. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
8. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
9. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
