Dometic RM2607 Product # 921571601 2-WAY Parts Diagram · Cabinet Front View

Refrigerator · 5 assemblies · 5 diagram sheets · 150 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2607 Product # 921571601 2-WAY RV refrigerator: 5 assemblies (Cabinet Front View, Cabinet Rear View, Burner & Controls, Doors, Replacement Refrigerator) and 150 manufacturer part numbers. 40 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

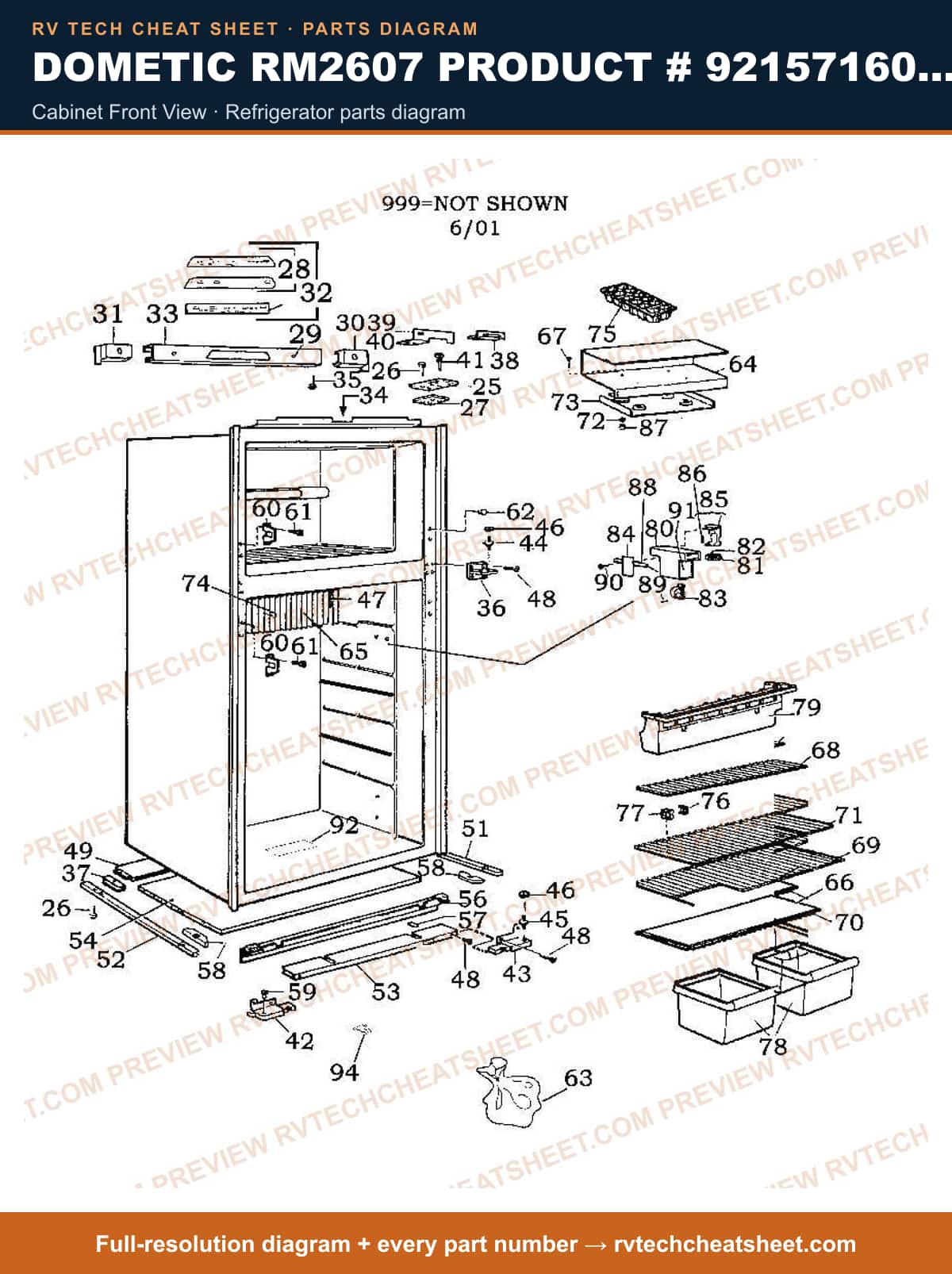

Cabinet Front View

Components

28 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #PLATE W/DECAL,MOUNTING 2 WAY RM2611 MFR # 955000096
5. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
6. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
7. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
8. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
9. #BOARD,PC UPR USE 2932697077 2 WAY MFR # 2931844019 Superseded: see description
10. #BOARD,PC USE 2932884014 MFR # 2932697077 Superseded: see description
11. #Refrigerator Trim; Replacement For Dometic RM2611/ RM2607 Refrigerators MFR # 2931865048
12. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
13. #Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113
14. #Appliance Components RV MFR # 2931289017
15. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
16. #SUPPORT MFR # 2930774019
17. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
18. #PLATE,MOUNTING LH MFR # 2931459016
19. #PLATE,MOUNTING RH MFR # 2931459024
20. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
21. #HINGE, LOWER LH RM26 04 MFR # 2931283010
22. #HINGE, LOWER RH MFR # 2931283028
23. #S,HINGE PIN,MID,25MM MFR # 2931287011
24. #S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013
25. #Refrigerator Door Handle; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Left Hand Side MFR # 2931864044
26. #Refrigerator Door Handle; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Right Hand Side MFR # 2931864037
27. #Refrigerator Door Handle Cap; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Left Hand Side MFR # 2931866026
28. #Refrigerator Door Handle Cap; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Right Hand Side MFR # 2931866025

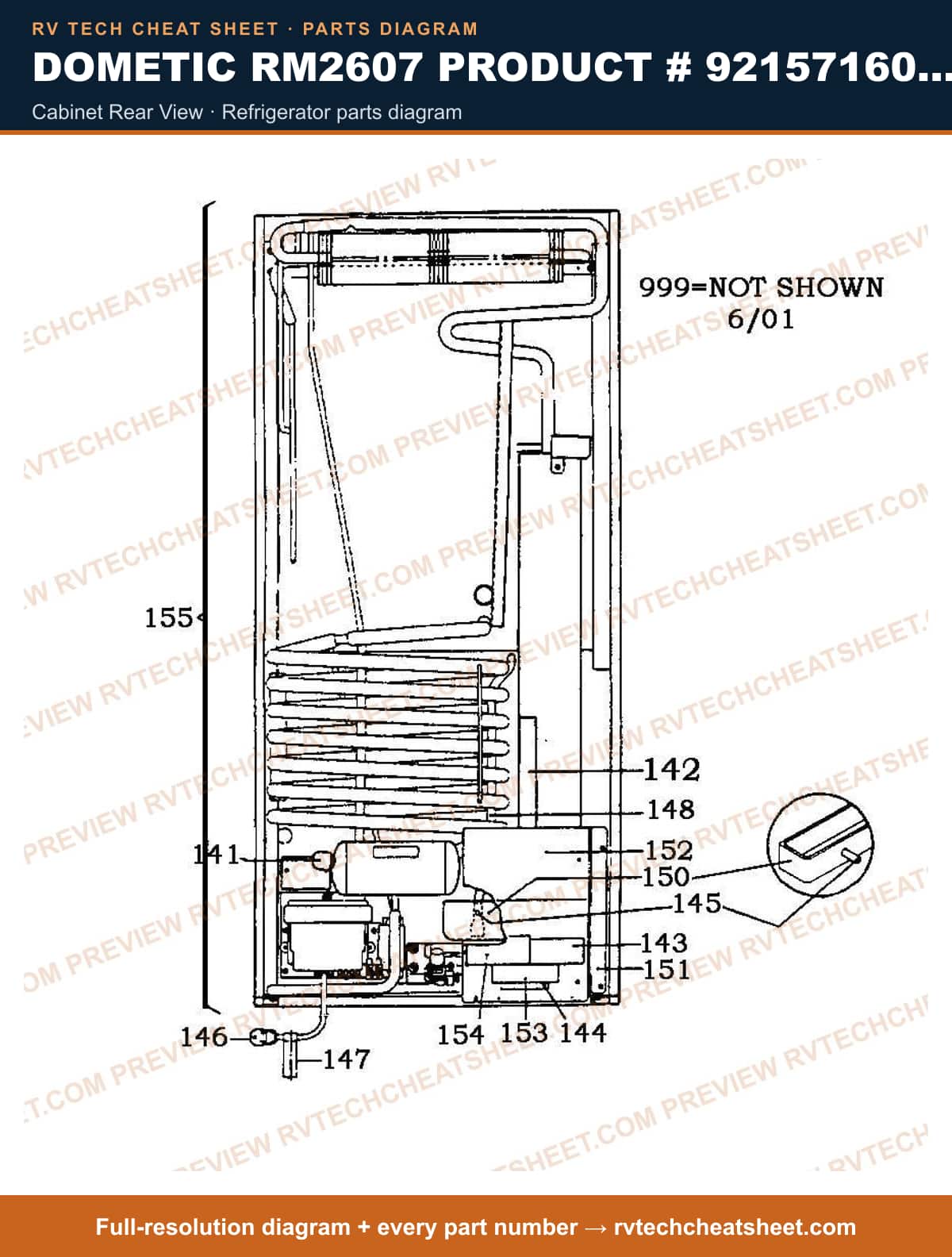

Cabinet Rear View

Components

22 items

1. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
2. #Lid MFR # 2933557015
3. #DECAL RM3804 MFR # 2931503003
4. #DECAL RM38 04 MFR # 2007574029
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #S,TUBE,OVERFILL MFR # 2931829010
7. #Refrigerator Power Cord; For Use With Dometic M70/ MA40C/ NDR1272/ RM100/ RM1303/ RM182A/ RM2192/ RM2200A/ RM24/ RM2410/ RM2604/ RM2804/ RM36/ RM360/ RM361/ RM36A/ RM36C/ RM36D/ RM45/ RM45A Model Refrigerators; 39 Inch Length MFR # 45-5451 Superseded: see description
8. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
9. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
10. #HOSE,DRAIN (725MM) MFR # 2931578054
11. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 46-0848
12. #TUBE, DRAIN MFR # 2943361002
13. #TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description
14. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
15. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
16. #Plate Protection Rm2800 MFR # 2930785015
17. #DECAL, WARNING 2807/4801 MFR # 2002577001
18. #LABEL, IMPORTANT MFR # 2007689009
19. #REMAN C/U MFR # 2934803095R
20. #Cooling Unit (Ups) MFR # 2934803095N
21. #APPLIANCE COMPONENTS RV; Clamp Hose MFR # 2943414009
22. #APPLIANCE COMPONENTS RV; Turbulence Kit Air; This kit contains 1 roof vent baffle, 1 protection plate extension, 1 burner end shield, 1 access door, 3 pop rivets 1/8 x 1/8, 1 installation instruction MFR # 3105559003

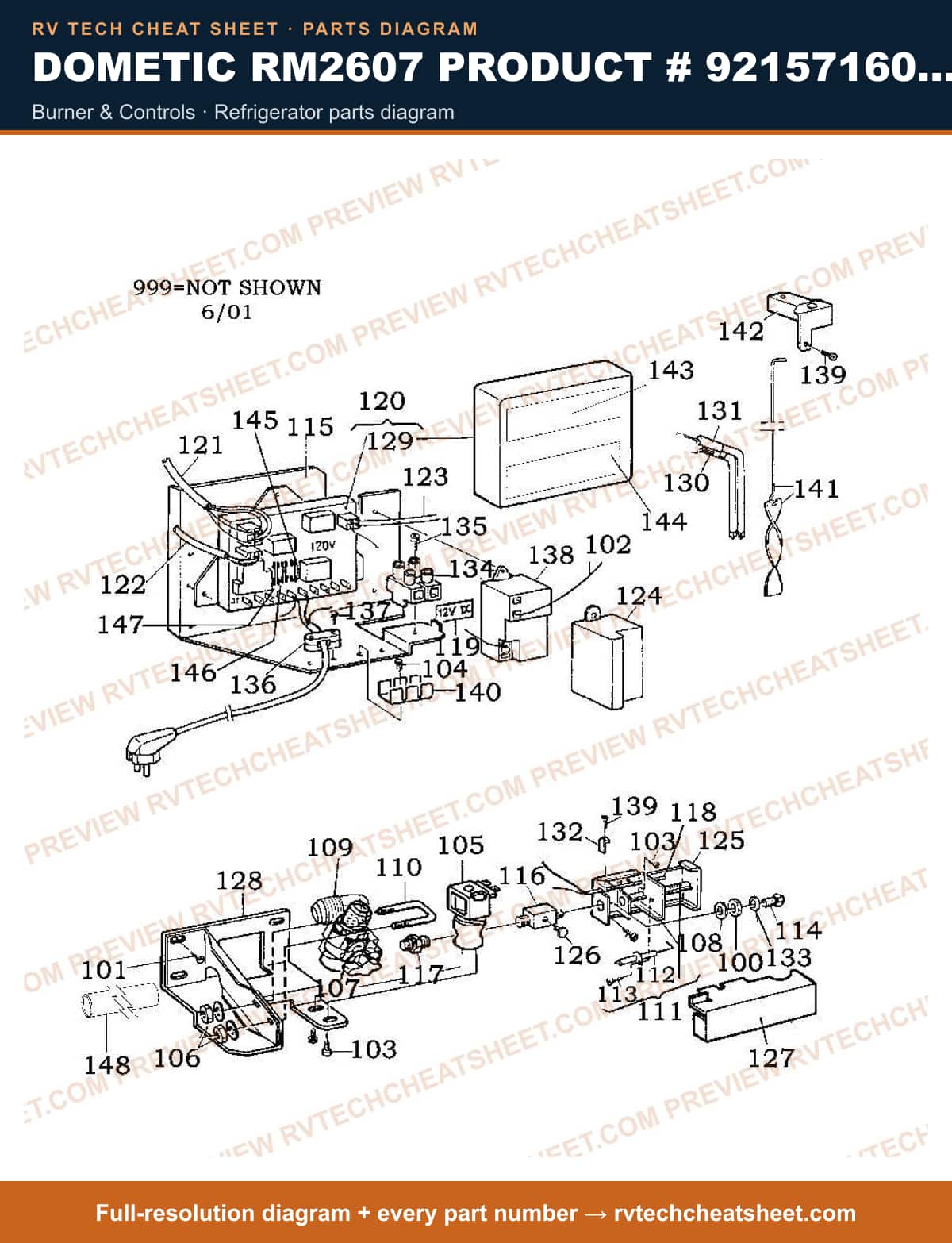

Burner & Controls

Components

62 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
4. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
5. #SCREW M4 X 10 S MFR # 7241289615
6. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
7. #SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
9. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
10. #NUT MFR # 2943286001
11. #S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004
12. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
13. #ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015
14. #APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003
15. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
16. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
17. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
18. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
19. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
20. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
21. #BRACKET, MOUNTING MFR # 2931822015
22. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
23. #NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026
24. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
25. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
26. #Label 12VDC MFR # 2931827006
27. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
28. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
29. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
30. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
31. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
32. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
33. #DOM REPLACEMENT BRD MFR # MICROP711
34. #BOARD,MODULE USE 2932881010 2-WAY MFR # 2932695014 Superseded: see description
35. #BOARD,PC USE 2932695014 COMPLETE W/COVER MFR # 2931842021 Superseded: see description
36. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
37. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
38. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
39. #LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description
40. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
41. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
42. #S,THERMISTOR,W/LEAD 64" MFR # 2931863019
43. #HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description
44. #APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675
45. #LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description
46. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
47. #HOUSING BURNER MFR # 2931913012
48. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
49. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
50. #BRACKET, GAS VALVE MFR # 2931915017
51. #S,COVER,LESS DECALS MFR # 2931858019
52. #ELEMENT,HEATING USE 48-9357 295W/120V 2WIRE MFR # 3308100008 Superseded: see description
53. #COMPONENTS RV; LEAD HARNESS MFR # 2931848006
54. #Refrigerator Flue Assembly; Replacement For Dometic RM2807 Refrigerators; Stainless Steel MFR # 2931855001
55. #LAMP,INDICATOR USE 2931814002 MFR # 3308547001 Superseded: see description
56. #VALVE, GAS USE 2954542039 MFR # 3308497003 Superseded: see description
57. #IGNITOR ASSEMBLY MFR # 2950913012
58. #Refrigerator Burnpot Assembly; Replacement For Dometic RM2807 Refrigerators MFR # 2931854001
59. #FLUE, VENT USE 2931855001 MFR # 3308503003 Superseded: see description
60. #SPARK GENERATOR USE 2931853001 MFR # 3308498007 Superseded: see description
61. #VENT, FLUE USE 2931854001 MFR # 3308498001 Superseded: see description
62. #Refrigerator Burnpot; Replacement For Dometic RM2807 Refrigerators MFR # 2931852002

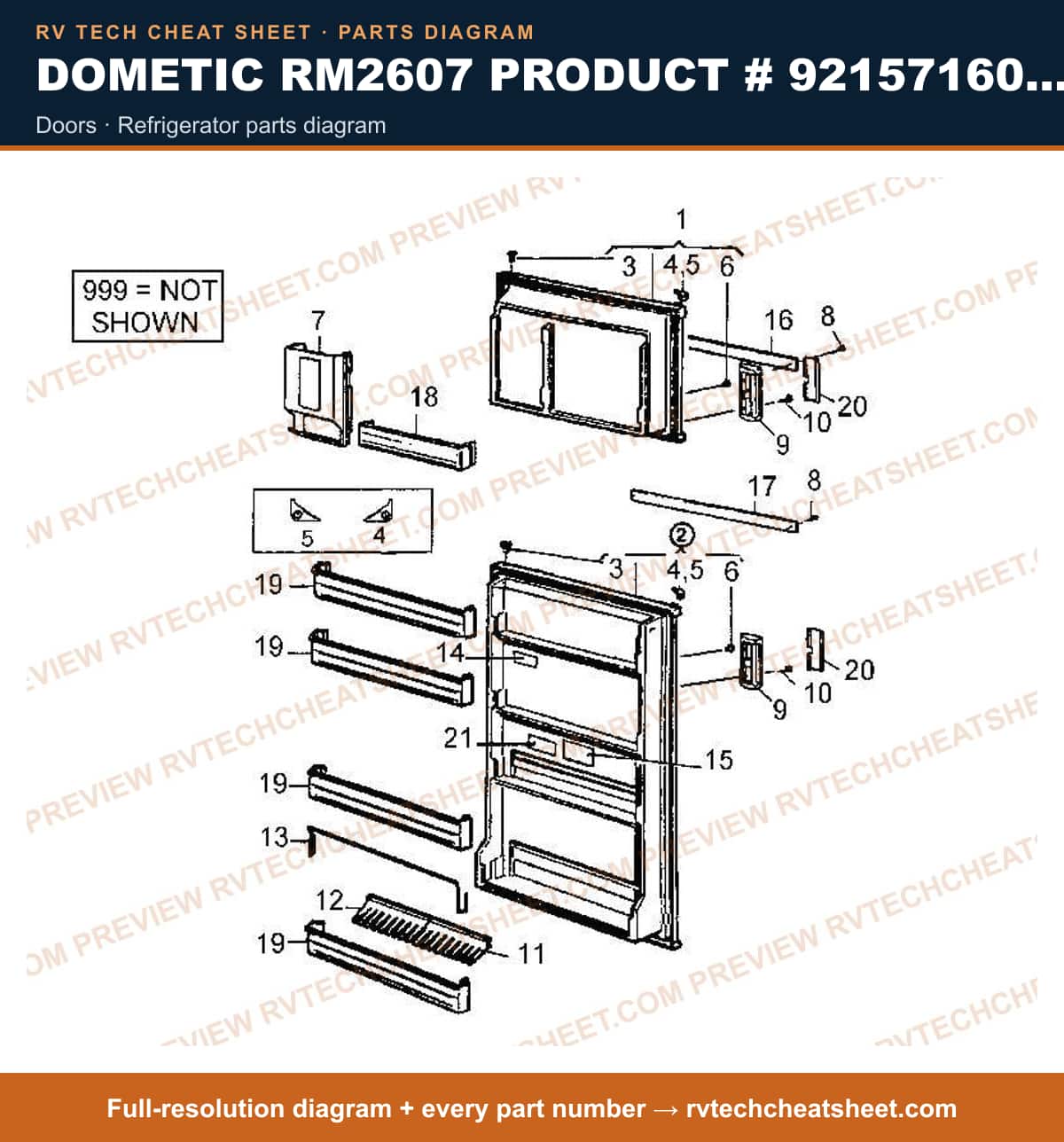

Doors

Components

30 items

1. #DOOR, FREEZER MFR # 2931636118
2. #APPLIANCE COMPONENTS RV; Door Lower MFR # 2931635110
3. #Refrigerator Gasket; Use With Dometic Refrigerator Models RM2604/ RM2610/ RM2607/ RM3604/ RM3607; Door Gasket; With Two Roll Double Sided Stick Tape/ One Roll Silicone MFR # 3108700 Superseded: see description
4. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
5. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512012
6. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512020
7. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
8. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
9. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
10. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026
11. #HANDLE RM2804 USE 2931199026 MFR # 2931199018 Superseded: see description
12. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
13. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
15. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
16. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
18. #DECAL MFR # 2930757006
19. #LABEL, INSTRUCTION MFR # 2002356000
20. #Strip Deco MFR # 2931162024
21. #STRIP, DECO USE 2931162024 BOTTOM DOOR MFR # 2931162172 Superseded: see description
22. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
23. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
25. #SHELF, DOOR USE 2000571220 LOWER MFR # 2000571196 Superseded: see description
26. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
27. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
28. #Plate Cover MFR # 2931571018
29. #Handle Kit Door MFR # 3107766010
30. #LABEL, WARNING FOR DOOR MFR # 2931620005

Replacement Refrigerator

Components

9 items

1. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
3. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
4. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
6. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
7. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
8. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
9. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
