Dometic RM2607 Product # 921573001 2-WAY Parts Diagram · Replacement Refrigerator

Refrigerator · 5 assemblies · 5 diagram sheets · 141 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2607 Product # 921573001 2-WAY RV refrigerator: 5 assemblies (Replacement Refrigerator, Doors, Burner & Controls, Cabinet Front View, Cabinet Rear View) and 141 manufacturer part numbers. 37 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

9 items

1. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
3. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
4. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
6. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
7. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
8. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
9. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS

Doors

Components

28 items

1. #DOOR, FREEZER MFR # 2931636118
2. #Refrigerator Gasket; Use With Dometic Refrigerator Models RM2604/ RM2610/ RM2607/ RM3604/ RM3607; Door Gasket; With Two Roll Double Sided Stick Tape/ One Roll Silicone MFR # 3108700 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Door Lower MFR # 2931635110
4. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
5. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512012
6. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512020
7. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
8. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
9. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
10. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026
11. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
12. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
13. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
14. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
15. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
17. #DECAL MFR # 2930757006
18. #LABEL, INSTRUCTION MFR # 2002356000
19. #Strip Deco MFR # 2931162024
20. #STRIP, DECO USE 2931162024 BOTTOM DOOR MFR # 2931162172 Superseded: see description
21. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
22. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
24. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
25. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
26. #Handle Kit Door MFR # 3107766010
27. #Plate Cover MFR # 2931571018
28. #LABEL, WARNING FOR DOOR MFR # 2931620005

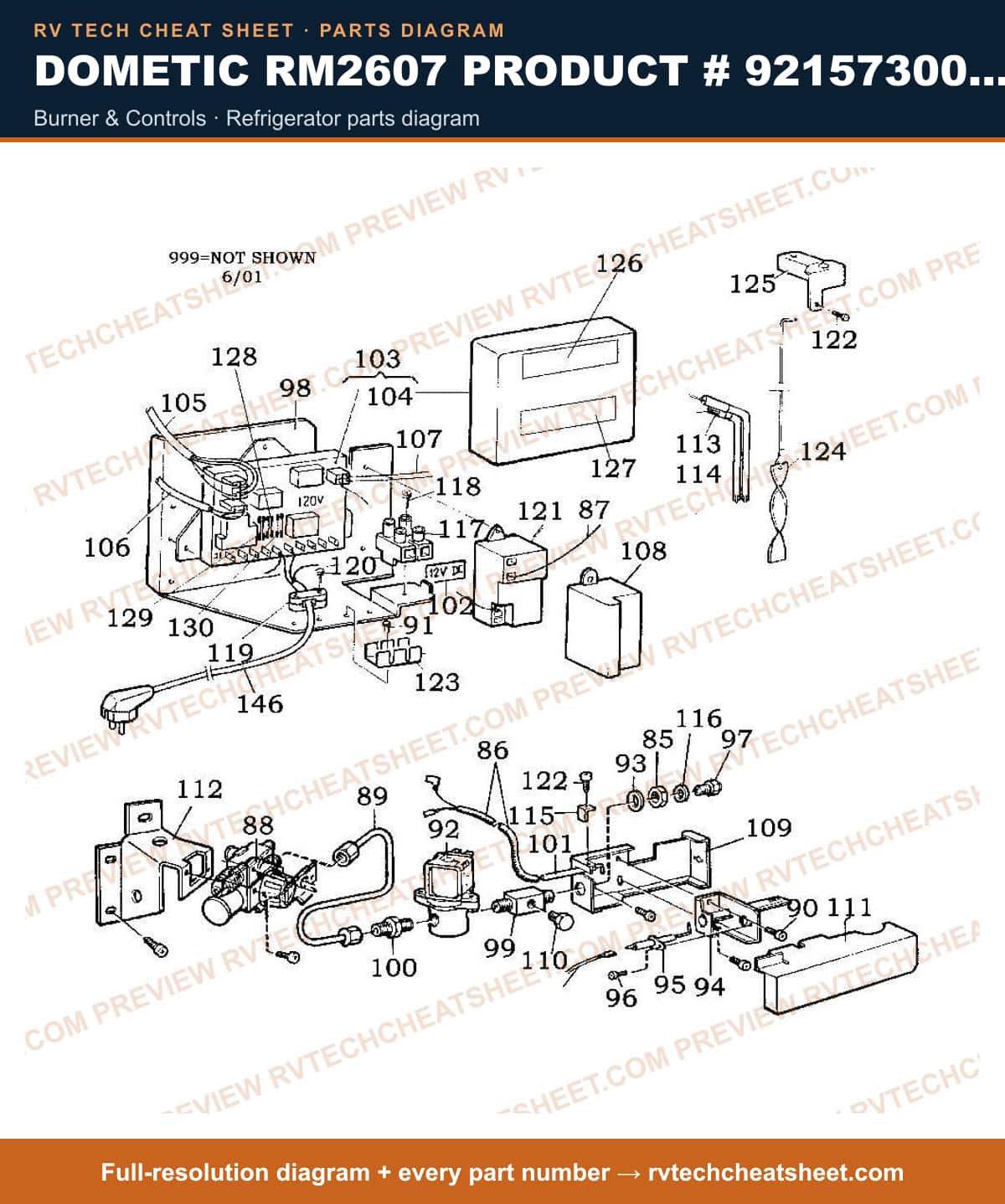

Burner & Controls

Components

50 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
3. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
4. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
6. #Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description
7. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
8. #SCREW M4 X 10 S MFR # 7241289615
9. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
10. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
12. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
13. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
14. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
15. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
16. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
17. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
18. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
19. #BRACKET, MOUNTING MFR # 2931822015
20. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
21. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015
22. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
23. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
24. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
25. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
26. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
27. #BOARD,PC USE 2932695014 MFR # 2931842039 Superseded: see description
28. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
29. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
30. #DOM REPLACEMENT BRD MFR # MICROP711
31. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
32. #BOARD,MODULE USE 2932881010 2-WAY MFR # 2932695014 Superseded: see description
33. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
34. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
35. #S,COVER,LESS DECALS MFR # 2931858019
36. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
37. #LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description
38. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
39. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
40. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
41. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
42. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
43. #THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description
44. #LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675
46. #HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description
47. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
48. #HOUSING BURNER MFR # 2931913012
49. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
50. #Grommet; 1/2 Inch ID; 3/4 Inch OD MFR # 3025200-38

Cabinet Front View

Components

31 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #PLATE W/DECAL,MOUNTING 2 WAY RM2611 MFR # 955000096
5. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
6. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
7. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
8. #BOARD,PC USE 2932884014 MFR # 2932697077 Superseded: see description
9. #BOARD,PC UPR USE 2932697077 2 WAY MFR # 2931844019 Superseded: see description
10. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
11. #FRONT MFR # 2931865105
12. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
13. #Appliance Components RV MFR # 2931289017
14. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
15. #BRACKET, MOUNTING RH MFR # 2932125012
16. #BRACKET, MOUNTING LH MFR # 2932125020
17. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
18. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
19. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
20. #S,HINGE PIN,MID,25MM MFR # 2931287011
21. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
22. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
23. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
24. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
25. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
26. #Refrigerator Vent Cover Back Plate MFR # 2930664012
27. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
28. #Refrigerator Door Rail; Replacement For Dometic RM2620/ RM2612/ RM2807 Refrigerators; Top Right Hand MFR # 2932110006
29. #Refrigerator Door Rail; Replacement For Dometic RM2811/ RM2807/ RM2620/ RM2612/ RM3807 Refrigerators; Left Hand Side MFR # 2932111039
30. #Refrigerator Door Rail; Replacement For Dometic RM2807/ RM3807/ RM2612/ RM2620 Refrigerators; Top Left Hand MFR # 2932111047
31. #Refrigerator Door Rail; Replacement For Dometic RM2620/ RM2607/ RM2807 Refrigerators; Right Hand Side MFR # 2932111031

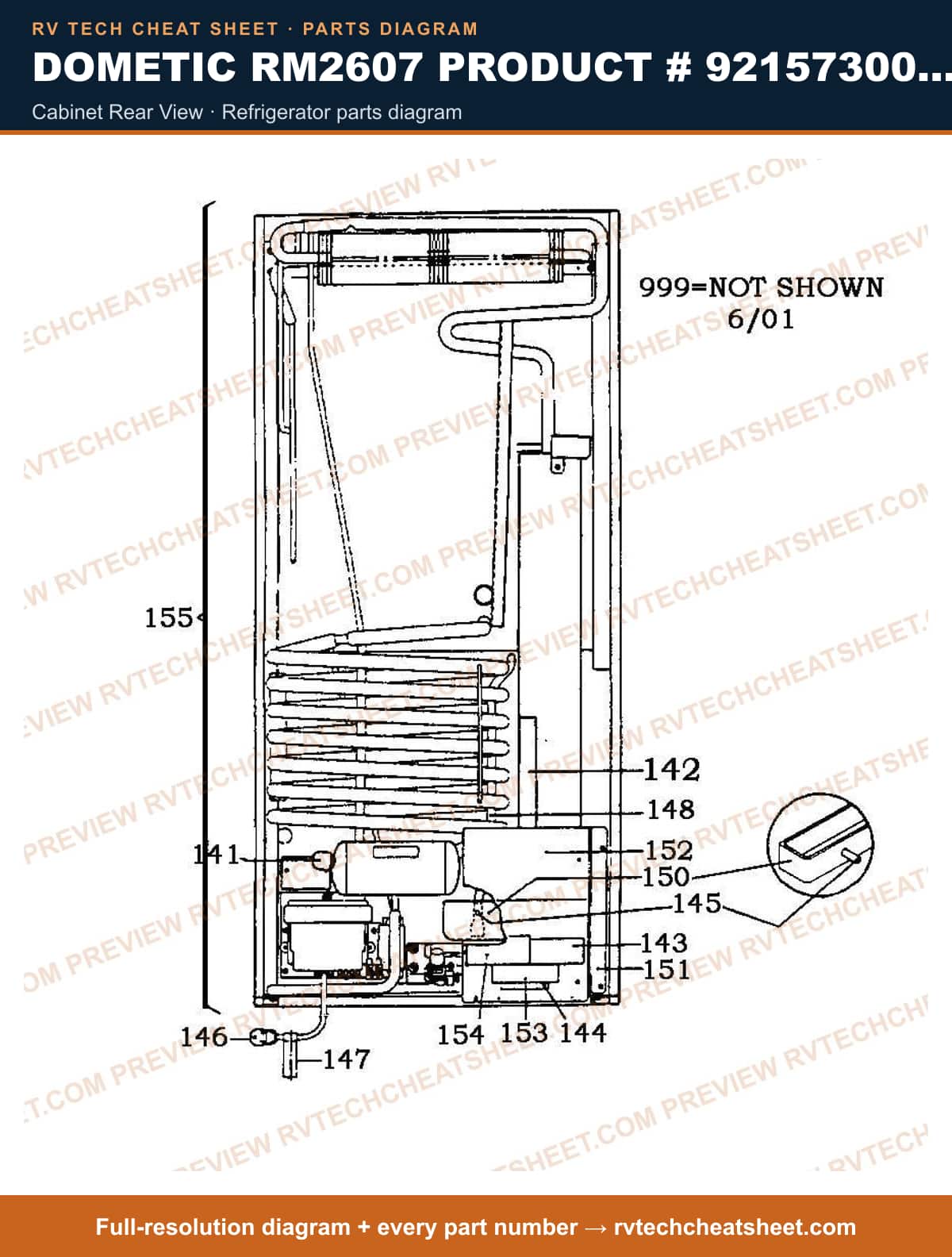

Cabinet Rear View

Components

23 items

1. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
2. #Lid MFR # 2933557015
3. #DECAL RM3804 MFR # 2931503003
4. #DECAL RM38 04 MFR # 2007574029
5. #S,TUBE,OVERFILL MFR # 2931829010
6. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
7. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
10. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
11. #TUBE, DRAIN MFR # 2943361002
12. #HOSE,DRAIN (725MM) MFR # 2931578054
13. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
14. #TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description
15. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
16. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
17. #Plate Protection Rm2800 MFR # 2930785015
18. #DECAL, WARNING 2807/4801 MFR # 2002577001
19. #LABEL, IMPORTANT MFR # 2007689009
20. #Cooling Unit (Ups) MFR # 2934803095N
21. #REMAN C/U MFR # 2934803095R
22. #APPLIANCE COMPONENTS RV; Clamp Hose MFR # 2943414009
23. #APPLIANCE COMPONENTS RV; Turbulence Kit Air; This kit contains 1 roof vent baffle, 1 protection plate extension, 1 burner end shield, 1 access door, 3 pop rivets 1/8 x 1/8, 1 installation instruction MFR # 3105559003
