Dometic RM2607 Product # 921574001 3-WAY Parts Diagram · Burner & Controls

Refrigerator · 5 assemblies · 5 diagram sheets · 160 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2607 Product # 921574001 3-WAY RV refrigerator: 5 assemblies (Burner & Controls, Cabinet Rear View, Replacement Refrigerators, Cabinet Front View, Doors) and 160 manufacturer part numbers. 42 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Burner & Controls

Components

72 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
3. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
4. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
5. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
6. #Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description
7. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
8. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
9. #SCREW M4 X 10 S MFR # 7241289615
10. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
12. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
13. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
14. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
15. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
16. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
17. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
18. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
19. #BRACKET, MOUNTING MFR # 2931822015
20. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
21. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015
22. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
23. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
24. #Label 12VDC MFR # 2931827006
25. #BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description
26. #Board, PC 3-Way Use 2932882018 Ames W. Cover MFR # 2931843045 Superseded: see description
27. #DOM REPLACEMENT BRD MFR # MICROP711
28. #Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000
29. #S,COVER,LESS DECALS MFR # 2931858019
30. #LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description
31. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
32. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
33. #THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description
34. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
35. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
36. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
37. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
38. #APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675
39. #HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description
40. #LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description
41. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
42. #HOUSING BURNER MFR # 2931913012
43. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
44. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
45. #APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011
46. #ELEMENT, HEATING USE 48-9357 295W/120V 2WIRE MFR # 173754045 Superseded: see description
47. #ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386
48. #ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974
49. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
50. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
51. #3858022019 MFR # 3858022019
52. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
53. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
54. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
55. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
56. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
57. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
58. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
59. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
61. #STRIP, TERMINAL 6 POS. MFR # 2930327008
62. #S,BAFFLE ASM,781MM MFR # 2007590058
63. #CAP FLUE MFR # 2931540013
64. #DECAL 3 - WAY MFR # 2932003003
65. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
66. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
67. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
68. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
69. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
70. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
71. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
72. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description

Cabinet Rear View

Components

23 items

1. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
2. #Lid MFR # 2933557015
3. #DECAL RM3804 MFR # 2931503003
4. #DECAL RM38 04 MFR # 2007574029
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #S,TUBE,OVERFILL MFR # 2931829010
7. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
10. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
11. #HOSE,DRAIN (725MM) MFR # 2931578054
12. #TUBE, DRAIN MFR # 2943361002
13. #TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description
14. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
15. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
16. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
17. #Plate Protection Rm2800 MFR # 2930785015
18. #DECAL, WARNING 2807/4801 MFR # 2002577001
19. #LABEL, IMPORTANT MFR # 2007689009
20. #Cooling Unit (Ups) MFR # 2934803095N
21. #REMAN C/U MFR # 2934803095R
22. #APPLIANCE COMPONENTS RV; Clamp Hose MFR # 2943414009
23. #APPLIANCE COMPONENTS RV; Turbulence Kit Air; This kit contains 1 roof vent baffle, 1 protection plate extension, 1 burner end shield, 1 access door, 3 pop rivets 1/8 x 1/8, 1 installation instruction MFR # 3105559003

Replacement Refrigerators

Components

9 items

1. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
2. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
3. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
4. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
5. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
6. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
7. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
8. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
9. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH

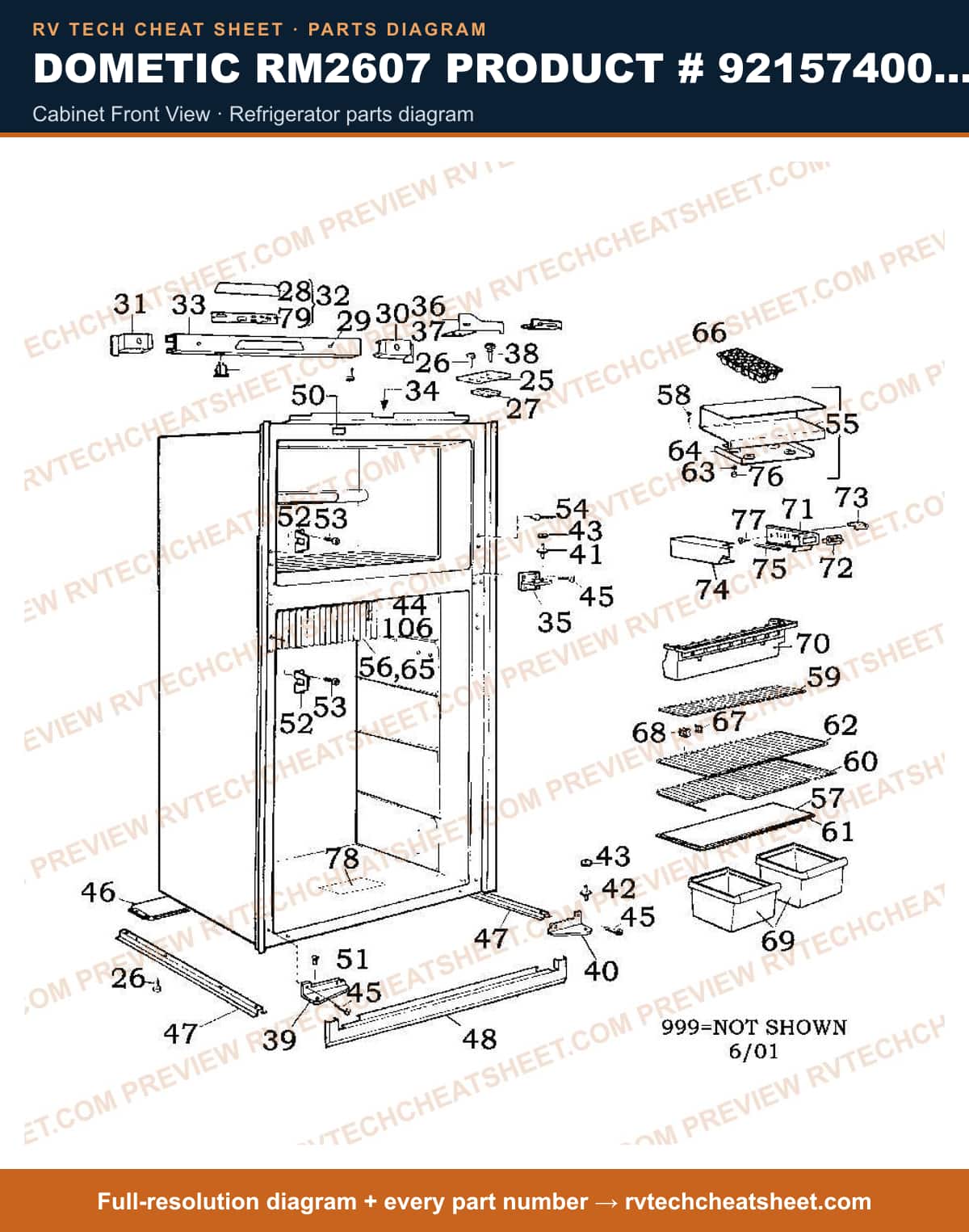

Cabinet Front View

Components

29 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #PLATE, MOUNTING 3-WAY MFR # 955000104
5. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
6. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
7. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
8. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description
9. #BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description
10. #BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description
11. #FRONT MFR # 2931865105
12. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
13. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
14. #Appliance Components RV MFR # 2931289017
15. #BRACKET, MOUNTING RH MFR # 2932125012
16. #BRACKET, MOUNTING LH MFR # 2932125020
17. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
18. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
19. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
20. #S,HINGE PIN,MID,25MM MFR # 2931287011
21. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
22. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
23. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
24. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
25. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
26. #Refrigerator Vent Cover Back Plate MFR # 2930664012
27. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
28. #Refrigerator Trim; Replacement For Dometic RM2607/ RM2620/ RM2611 Refrigerators; Front Lower MFR # 2932112036
29. #HEAT EXCHANGER MFR # 2931641011

Doors

Components

30 items

1. #DOOR, FREEZER MFR # 2931636118
2. #Refrigerator Gasket; Use With Dometic Refrigerator Models RM2604/ RM2610/ RM2607/ RM3604/ RM3607; Door Gasket; With Two Roll Double Sided Stick Tape/ One Roll Silicone MFR # 3108700 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Door Lower MFR # 2931635110
4. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
5. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512012
6. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512020
7. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
8. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
9. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
10. #HANDLE RM2804 USE 2931199026 MFR # 2931199018 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026
12. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
13. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
15. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
16. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
18. #DECAL MFR # 2930757006
19. #LABEL, INSTRUCTION MFR # 2002356000
20. #Strip Deco MFR # 2931162024
21. #STRIP, DECO USE 2931162024 BOTTOM DOOR MFR # 2931162172 Superseded: see description
22. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
24. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
25. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
26. #SHELF, DOOR USE 2000571220 LOWER MFR # 2000571196 Superseded: see description
27. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
28. #Plate Cover MFR # 2931571018
29. #Handle Kit Door MFR # 3107766010
30. #LABEL, WARNING FOR DOOR MFR # 2931620005
