Dometic RM2612 Freedom Product # 921573801 Beige Parts Diagram · Burner & Controls

Refrigerator · 6 assemblies · 6 diagram sheets · 178 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2612 Freedom Product # 921573801 Beige RV refrigerator: 6 assemblies (Burner & Controls, Cabinet Rear View, Replacement Refrigerator, Cabinet Interior, Cabinet Exterior and more) and 178 manufacturer part numbers. 41 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

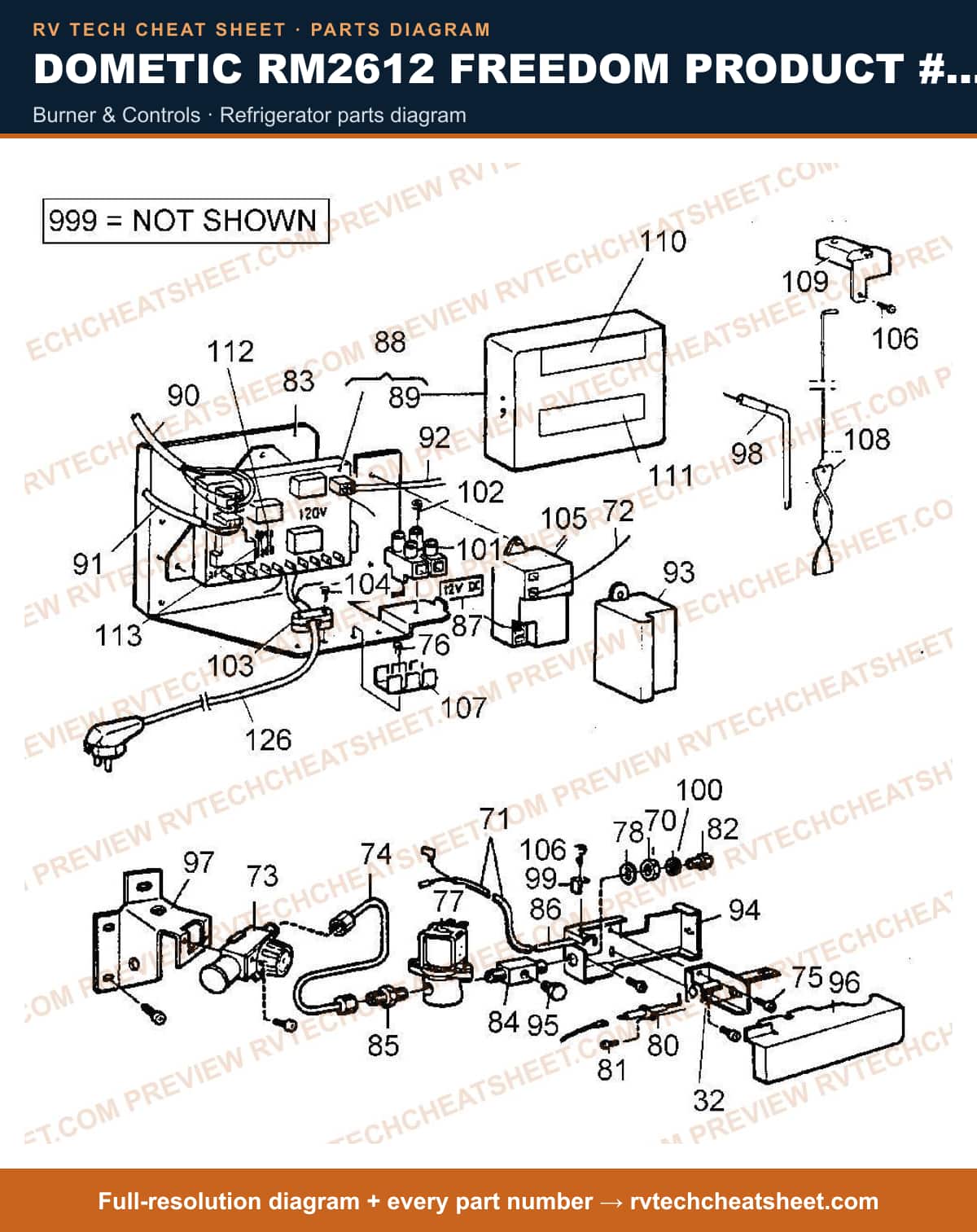

Burner & Controls

Components

73 items

1. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
2. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
3. #SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
4. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
5. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
7. #Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description
8. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
9. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
10. #SCREW M4 X 10 S MFR # 7241289615
11. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
13. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
14. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
15. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
16. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
17. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
18. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
19. #BRACKET, MOUNTING MFR # 2931822015
20. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
21. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015
22. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
23. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
24. #Label 12VDC MFR # 2931827006
25. #DOM REPLACEMENT BRD MFR # MICROP711
26. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
27. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
28. #CONTROL KIT ELECTRONIC MFR # 3108701610
29. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
30. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
31. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
32. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
33. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
34. #S,COVER,LESS DECALS MFR # 2931858019
35. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
36. #LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description
37. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
38. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
39. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
40. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
41. #HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description
42. #LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675
44. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
45. #HOUSING BURNER MFR # 2931913012
46. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
47. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
48. #APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011
49. #ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974
50. #ELEMENT, HEATING USE 48-9357 295W/120V 2WIRE MFR # 173754045 Superseded: see description
51. #ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386
52. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
53. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
54. #3858022019 MFR # 3858022019
55. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
56. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
57. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
58. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
59. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
60. #Refrigerator Reigniter Board; Use With Dometic Models MFR # REIGNITOR Superseded: see description
61. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
62. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
64. #STRIP, TERMINAL 6 POS. MFR # 2930327008
65. #S,BAFFLE ASM,781MM MFR # 2007590058
66. #CAP FLUE MFR # 2931540013
67. #FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description
68. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
69. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
70. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
71. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
72. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
73. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description

Cabinet Rear View

Components

20 items

1. #Cooling Unit (Ups) MFR # 2934803095N
2. #REMAN C/U MFR # 2934803095R
3. #Cooling Unit; Use 2934803095N MFR # 2934803996N Superseded: see description
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #COVER MFR # 17343000
6. #DECAL RM3804 MFR # 2931503003
7. #DECAL RM38 04 MFR # 2007574029
8. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
9. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
10. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
11. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
12. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
13. #TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description
14. #HOSE,DRAIN (725MM) MFR # 2931578054
15. #S,TUBE,OVERFILL MFR # 2931829010
16. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
17. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
18. #Plate Protection Rm2800 MFR # 2930785015
19. #DECAL, WARNING 2807/4801 MFR # 2002577001
20. #LABEL, IMPORTANT MFR # 2007689009

Replacement Refrigerator

Components

9 items

1. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
2. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
3. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
4. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
6. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
7. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
8. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
9. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH

Cabinet Interior

Components

20 items

1. #Shelf, Freezer MFR # 2007535020
2. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
3. #Refrigerator Shelf MFR # 2931117044
4. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
5. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
6. #PLATE RETAINING MFR # 2007649011
7. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
8. #Refrigerator Shelf MFR # 2930133141
9. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W Use 29301 MFR # 2930133109 Superseded: see description
10. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
11. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
12. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
13. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
14. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
15. #CRISPER,BLACK USE 2002726061 MFR # 2002726103 Superseded: see description
16. #Refrigerator Drip Tray; Replacement For Dometic RM2607/ RM2611/ RM3607 Model Refrigerator MFR # 2931869016
17. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
18. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
19. #APPLIANCE COMPONENTS RV; Shelf Wire 8"W X 17 7/8L MFR # 2002652234
20. #Refrigerator Shelf MFR # 2002652218

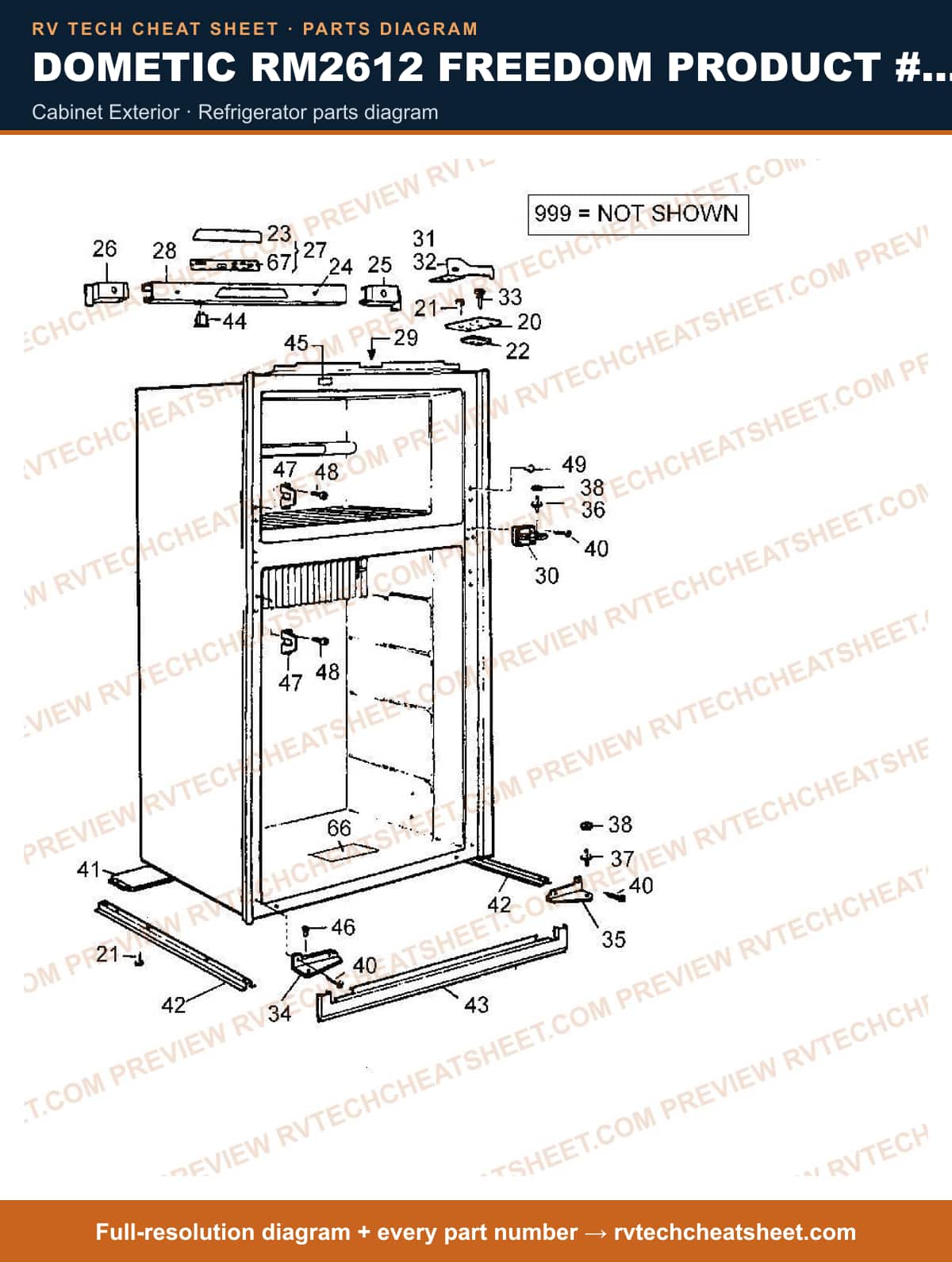

Cabinet Exterior

Components

43 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #COVER MFR # 955016712
5. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
6. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
7. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
8. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
9. #CONTROL KIT ELECTRONIC MFR # 3108701610
10. #FRONT MFR # 2931865105
11. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
12. #Appliance Components RV MFR # 2931289017
13. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
14. #BRACKET, MOUNTING RH MFR # 2932125012
15. #BRACKET, MOUNTING LH MFR # 2932125020
16. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
17. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
18. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
19. #S,HINGE PIN,MID,25MM MFR # 2931287011
20. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
21. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
22. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
23. #Refrigerator Vent Cover Back Plate MFR # 2930664012
24. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
25. #Refrigerator Trim; Replacement For Dometic RM2607/ RM2620/ RM2611 Refrigerators; Front Lower MFR # 2932112036
26. #SWITCH,CLIMATE CONTROL (300) MFR # 19011103
27. #APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011
28. #DECAL MFR # 2932165000
29. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
30. #S,STRIKE 9*35*24MM MFR # 2931511014
31. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
32. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
33. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
34. #DECAL MFR # 2932190008
35. #Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013
36. #Appliance Components RV; Lock Kit Travel MFR # 2932266030
37. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
38. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
39. #PARTS BAG RM26 11/2811 MFR # 2931610048
40. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
41. #Refrigerator Switch Wiring Kit; Replacement For Dometic RM2612 Model Refrigerator; Control Cable Use With Isolator Filter MFR # 3108701784 Superseded: see description
42. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
43. #Appliance Components RV; Light Kit Interior 12V MFR # 3108705942

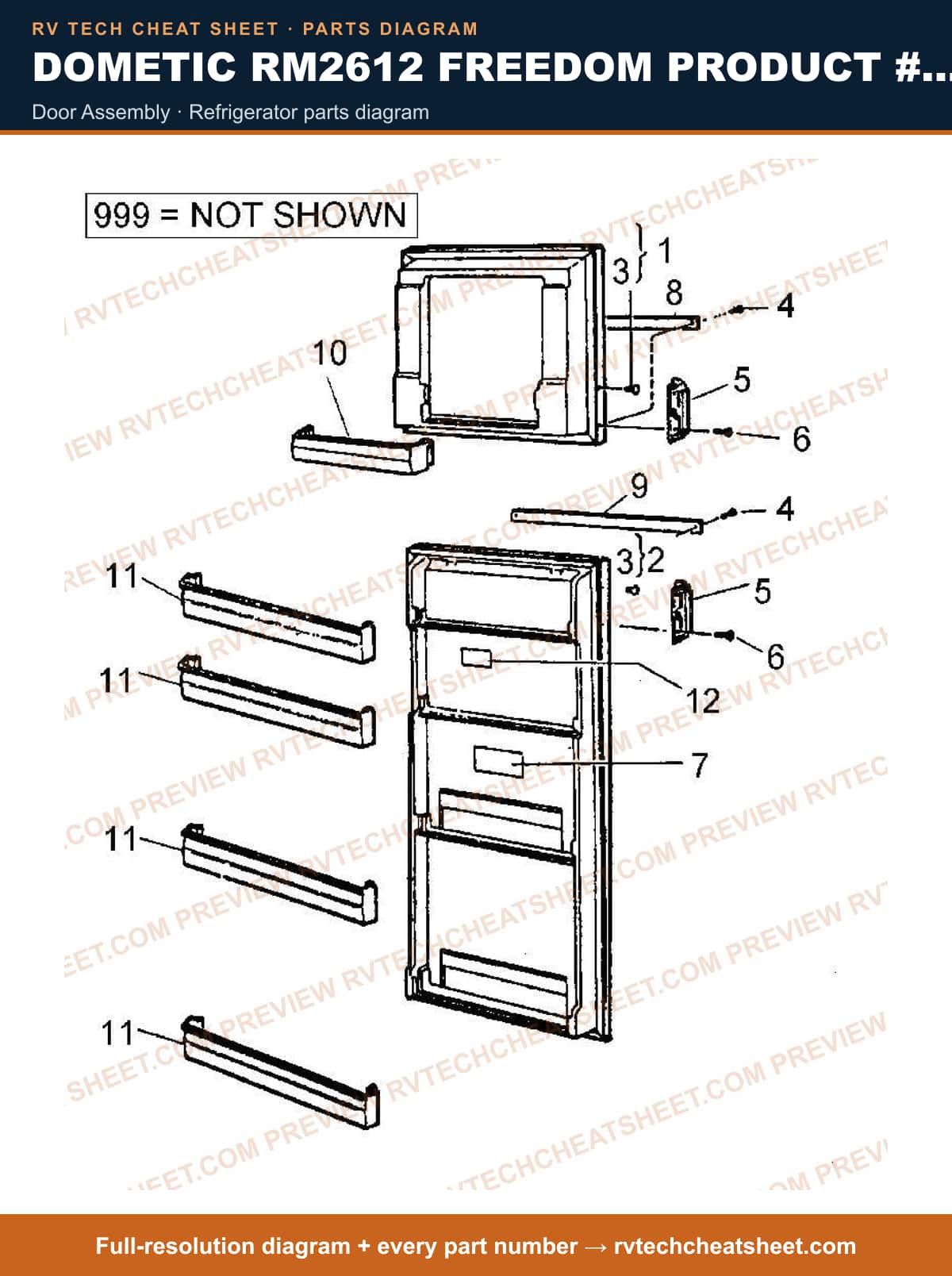

Door Assembly

Components

24 items

1. #DOOR,UPPER W/O SHELF RM2610 MFR # 2931589119
2. #PANELS, DOOR, WOODGRAIN FOR MODEL RM2620 MFR # RM2620G
3. #PANELS, DOOR WOODGRAIN F/RM2620 MFR # 3106863024B
4. #DOOR PANEL - BLK ACRYLIC AL MFR # RM2620L
5. #PANELS, DOOR BLK F/RM2620 MFR # 3106863024C
6. #GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Gasket Kit RM2611 RM261 MFR # 3108704250
8. #DOOR,LOWER WITHOUT SHELVES RM26/2410 MFR # 2931588111
9. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
10. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
11. #Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description
12. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
13. #LABEL, INSTRUCTION MFR # 2002356000
14. #APPLIANCE COMPONENTS RV; Strip Deco Use 3850382015 MFR # 2931583013 Superseded: see description
15. #TRIM, DECO USE 3850382031 MFR # 2931583187 Superseded: see description
16. #Refrigerator Trim; Replacement Decoration Trim; With Logo MFR # 3850382031
17. #Strip, Deco Use 2931583187 RM2612 MFR # 2931583161 Superseded: see description
18. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
19. #SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description
20. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
21. #LABEL, WARNING FOR DOOR MFR # 2931620005
22. #DOOR PANEL - BRUSHED ALUM MFR # 2620BA
23. #Appliance Components RV; Reversing Kit Door 12 Ser MFR # 3108704275
24. #APPLIANCE COMPONENTS RV; Service Kit Hinge Plate MFR # 3108703640
