Dometic RM2612 Freedom Product # 921574401 Beige Parts Diagram · Burner & Controls

Refrigerator · 6 assemblies · 6 diagram sheets · 170 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2612 Freedom Product # 921574401 Beige RV refrigerator: 6 assemblies (Burner & Controls, Door Assembly, Cabinet Interior, Cabinet Exterior, Replacement Refrigerator and more) and 170 manufacturer part numbers. 41 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Burner & Controls

Components

67 items

1. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
2. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
3. #SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
4. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
5. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
6. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
7. #Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description
8. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
9. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
10. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
12. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
13. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
14. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
15. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
16. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
17. #BRACKET, MOUNTING MFR # 2931822015
18. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
19. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015
20. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
21. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
22. #Label 12VDC MFR # 2931827006
23. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
24. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
25. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
26. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
27. #CONTROL KIT ELECTRONIC MFR # 3108701610
28. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
29. #DOM REPLACEMENT BRD MFR # MICROP711
30. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
31. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
32. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
33. #S,COVER,LESS DECALS MFR # 2931858019
34. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
35. #LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description
36. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
37. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
38. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
39. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
40. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
41. #APPLIANCE COMPONENTS RV; Conductor Gas Valve MFR # 2954437014
42. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
43. #HOUSING BURNER MFR # 2931913012
44. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
45. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
46. #APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011
47. #ELEMENT, HEATER USE 3108702386 120V 295W MFR # 173754102 Superseded: see description
48. #ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974
49. #ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386
50. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
51. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
52. #3858022019 MFR # 3858022019
53. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
54. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
55. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
56. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
57. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
58. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
59. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
60. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
61. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
62. #STRIP, TERMINAL 6 POS. MFR # 2930327008
63. #S,BAFFLE ASM,781MM MFR # 2007590058
64. #CAP FLUE MFR # 2931540013
65. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
66. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
67. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3

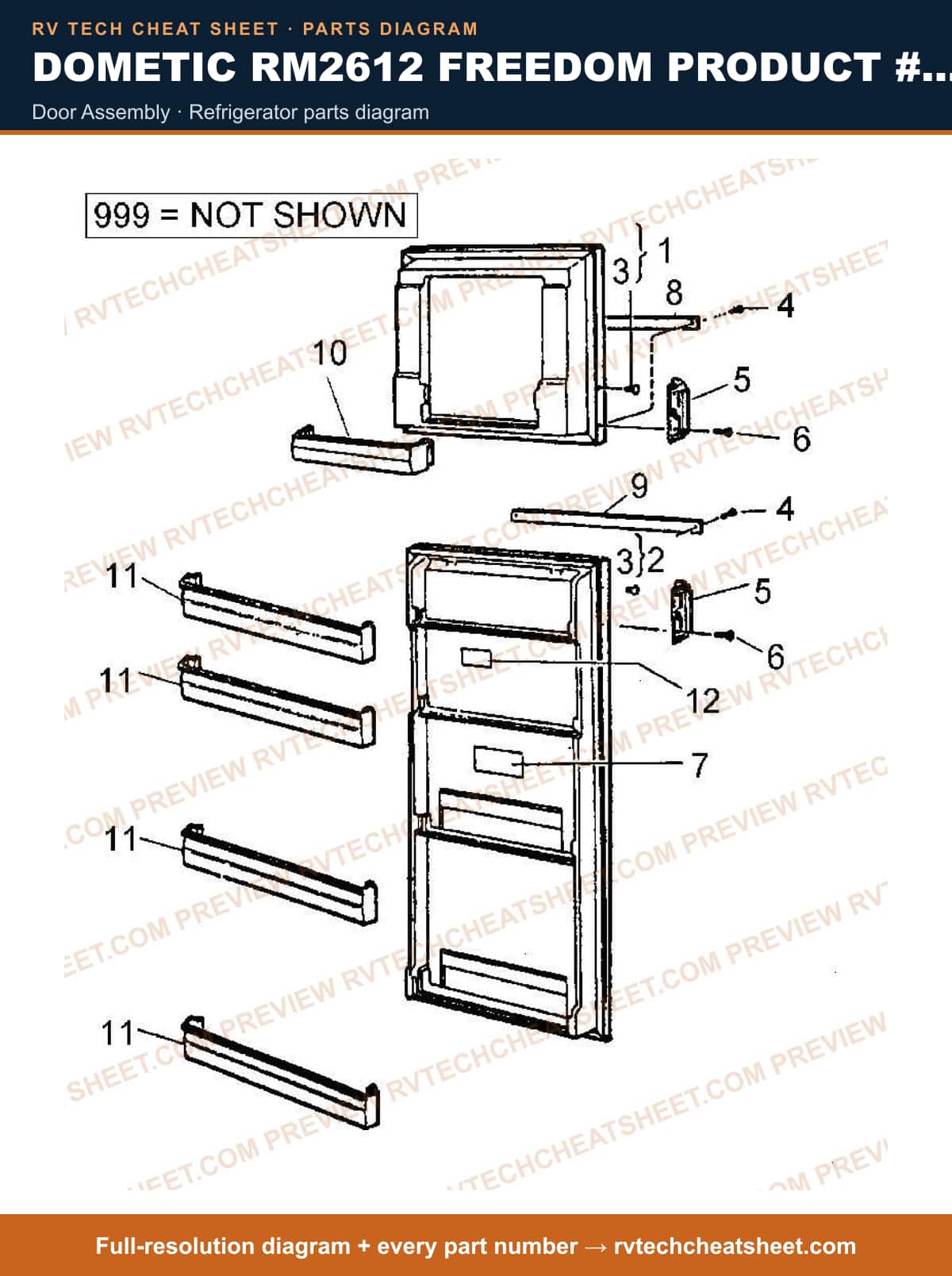

Door Assembly

Components

25 items

1. #PANELS, DOOR, WOODGRAIN FOR MODEL RM2620 MFR # RM2620G
2. #PANELS, DOOR BLK F/RM2620 MFR # 3106863024C
3. #PANELS, DOOR WOODGRAIN F/RM2620 MFR # 3106863024B
4. #DOOR PANEL - BLK ACRYLIC AL MFR # RM2620L
5. #DOOR,UPPER W/O SHELF RM2610 MFR # 2931589119
6. #APPLIANCE COMPONENTS RV; Gasket Kit RM2611 RM261 MFR # 3108704250
7. #DOOR,LOWER WITHOUT SHELVES RM26/2410 MFR # 2931588111
8. #GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description
9. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
10. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
11. #Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description
12. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
13. #LABEL, INSTRUCTION MFR # 2002356000
14. #APPLIANCE COMPONENTS RV; Strip Deco Use 3850382015 MFR # 2931583013 Superseded: see description
15. #Refrigerator Trim; Replacement Decoration Trim; With Logo MFR # 3850382031
16. #TRIM, DECO USE 3850382031 MFR # 2931583187 Superseded: see description
17. #Strip, Deco Use 2931583187 RM2612 MFR # 2931583161 Superseded: see description
18. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
19. #SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description
20. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
21. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
22. #LABEL, WARNING FOR DOOR MFR # 2931620005
23. #APPLIANCE COMPONENTS RV; Service Kit Hinge Plate MFR # 3108703640
24. #Appliance Components RV; Reversing Kit Door 12 Ser MFR # 3108704275
25. #DOOR PANEL - BRUSHED ALUM MFR # 2620BA

Cabinet Interior

Components

20 items

1. #Shelf, Freezer MFR # 2007535020
2. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
3. #Refrigerator Shelf MFR # 2931117044
4. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
5. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
6. #PLATE RETAINING MFR # 2007649011
7. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
8. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W Use 29301 MFR # 2930133109 Superseded: see description
9. #Refrigerator Shelf MFR # 2930133141
10. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
11. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
12. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
14. #CRISPER,BLACK USE 2002726061 MFR # 2002726103 Superseded: see description
15. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
16. #Refrigerator Drip Tray; Replacement For Dometic RM2607/ RM2611/ RM3607 Model Refrigerator MFR # 2931869016
17. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
18. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
19. #APPLIANCE COMPONENTS RV; Shelf Wire 8"W X 17 7/8L MFR # 2002652234
20. #Refrigerator Shelf MFR # 2002652218

Cabinet Exterior

Components

33 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
5. #CONTROL, UPPER USE 2932771013 PANEL W/DECAL MFR # 955030242 Superseded: see description
6. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
7. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
8. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
9. #FRONT MFR # 2931865105
10. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
11. #Appliance Components RV MFR # 2931289017
12. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
13. #BRACKET, MOUNTING RH MFR # 2932125012
14. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
15. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
16. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
17. #S,HINGE PIN,MID,25MM MFR # 2931287011
18. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
19. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
20. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
21. #Refrigerator Vent Cover Back Plate MFR # 2930664012
22. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
23. #Refrigerator Trim; Replacement For Dometic RM2607/ RM2620/ RM2611 Refrigerators; Front Lower MFR # 2932112036
24. #APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011
25. #SWITCH,CLIMATE CONTROL (300) MFR # 19011103
26. #DECAL MFR # 2932165000
27. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
28. #S,STRIKE 9*35*24MM MFR # 2931511014
29. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
30. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
31. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
32. #Decal; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2562/ DM2862/ DM3862 MFR # 2932776004 Superseded: see description
33. #Button Pushbutton On/Off MFR # 955024138

Replacement Refrigerator

Components

9 items

1. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
3. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
4. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
5. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
6. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
7. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
8. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
9. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N

Cabinet Rear View

Components

19 items

1. #Cooling Unit; Use 2934803095N MFR # 2934803996N Superseded: see description
2. #REMAN C/U MFR # 2934803095R
3. #Cooling Unit (Ups) MFR # 2934803095N
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #COVER MFR # 17343000
6. #DECAL RM3804 MFR # 2931503003
7. #DECAL RM38 04 MFR # 2007574029
8. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
9. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
10. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
11. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
12. #TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description
13. #HOSE,DRAIN (725MM) MFR # 2931578054
14. #S,TUBE,OVERFILL MFR # 2931829010
15. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
16. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
17. #Plate Protection Rm2800 MFR # 2930785015
18. #DECAL, WARNING 2807/4801 MFR # 2002577001
19. #LABEL, IMPORTANT MFR # 2007689009
