Dometic RM2612 Freedom Product # 921575003 Beige Parts Diagram · Cabinet Interior

Refrigerator · 6 assemblies · 6 diagram sheets · 139 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2612 Freedom Product # 921575003 Beige RV refrigerator: 6 assemblies (Cabinet Interior, Cabinet Exterior, Cabinet Rear View, Replacement Refrigerator, Door Assembly and more) and 139 manufacturer part numbers. 29 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Interior

Components

17 items

1. #Shelf, Freezer MFR # 2007535020
2. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
3. #Refrigerator Shelf MFR # 2931117044
4. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
5. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
6. #PLATE RETAINING MFR # 2007649011
7. #APPLIANCE COMPONENTS RV; Screw B10 X 38 MFR # 2801051018
8. #Refrigerator Shelf MFR # 2930133141
9. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
10. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
11. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM260 Classic; Wire MFR # 2002652341 Superseded: see description
12. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
13. #Refrigerator Drip Tray; Replacement For Dometic RM2607/ RM2611/ RM3607 Model Refrigerator MFR # 2931869016
14. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
15. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
16. #S,SHELF,WIRE,WHT,200*455MM MFR # 2002652416
17. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ RM2612 FREEDOM Series Refrigerators; Wire MFR # 2002652408

Cabinet Exterior

Components

31 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
5. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
6. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
7. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
8. #Refrigerator Trim; Use With Dometic Refrigerator Model RM2620 Classic; Upper Front MFR # 2931865121 Superseded: see description
9. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
10. #Appliance Components RV MFR # 2931289017
11. #BRACKET, MOUNTING RH MFR # 2932125012
12. #BRACKET, MOUNTING LH MFR # 2932125020
13. #LABEL MFR # 2932435007
14. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
15. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
16. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
17. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
18. #S,HINGE PIN,MID,25MM MFR # 2931287011
19. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
20. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
21. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
22. #SCREW M4 X 12 MFR # 7246291619
23. #Refrigerator Vent Cover Back Plate MFR # 2930664012
24. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
25. #Refrigerator Trim; Replacement For Dometic RM2607/ RM2620/ RM2611 Refrigerators; Front Lower MFR # 2932112036
26. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
27. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
28. #S,STRIKE 9*35*24MM MFR # 2931511014
29. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
30. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
31. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032

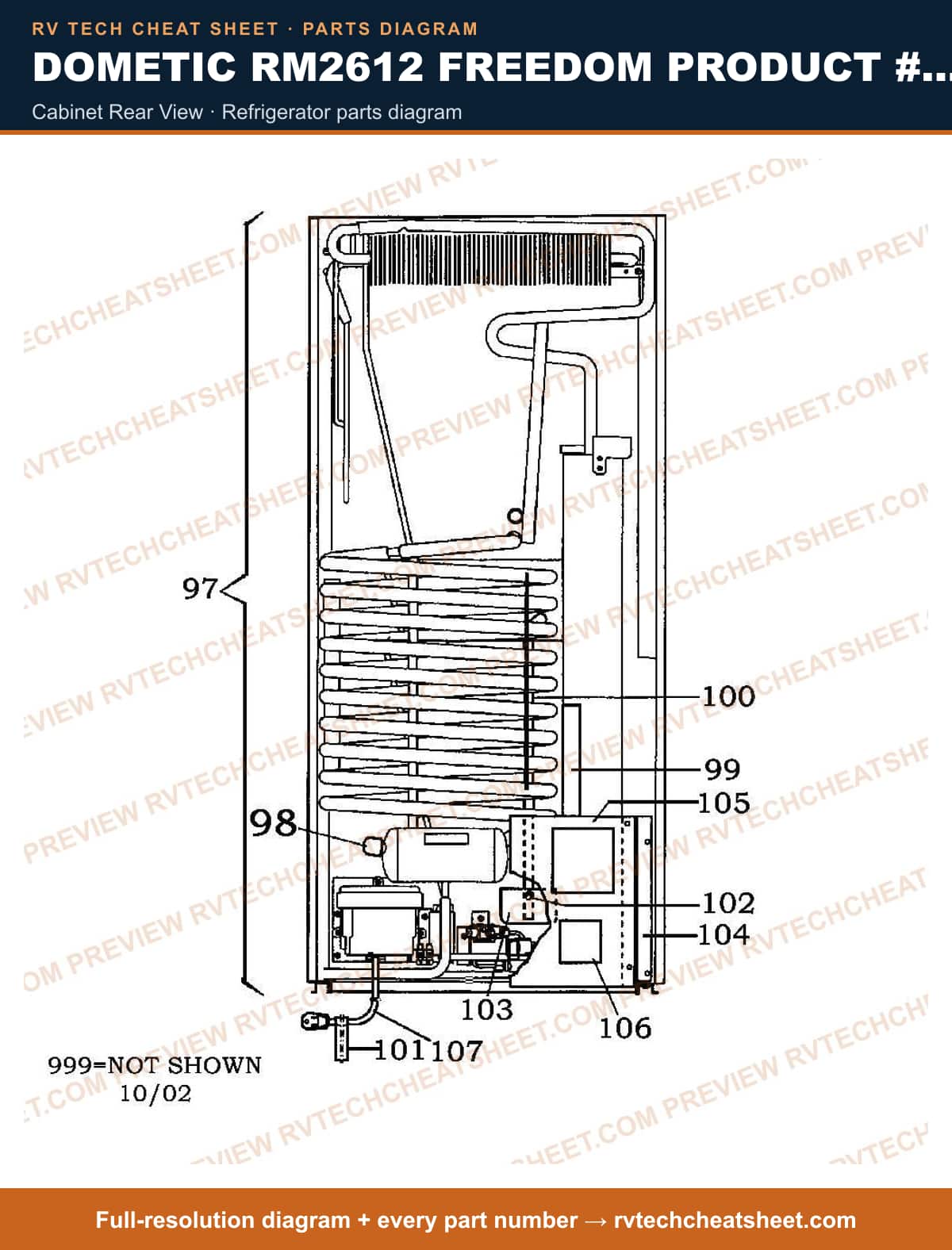

Cabinet Rear View

Components

13 items

1. #Cooling Unit (Ups) MFR # 2934803095N
2. #REMAN C/U MFR # 2934803095R
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #COVER MFR # 17343000
5. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
6. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
7. #S,TUBE,OVERFILL MFR # 2931829010
8. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
9. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
10. #Plate Protection Rm2800 MFR # 2930785015
11. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
12. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
13. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description

Replacement Refrigerator

Components

9 items

1. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
3. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
4. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
6. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
7. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
8. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
9. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description

Door Assembly

Components

17 items

1. #Refrigerator Door; Replacement For Dometic RM2612/ RM2620 Model Refrigerator; Upper MFR # 2931589150
2. #DOOR, LOWER MFR # 2931588194
3. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
4. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
5. #Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description
6. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
7. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
8. #Dometic RM2652 Refrigerator Burner Assembly MFR # 3850382015
9. #APPLIANCE COMPONENTS RV; Strip Deco Use 3850382015 MFR # 2931583013 Superseded: see description
10. #TRIM, DECO USE 3850382031 MFR # 2931583187 Superseded: see description
11. #Refrigerator Trim; Replacement Decoration Trim; With Logo MFR # 3850382031
12. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
13. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
14. #DOOR PANEL - BRUSHED ALUM MFR # 2620BA
15. #PANELS, DOOR, WOODGRAIN FOR MODEL RM2620 MFR # RM2620G
16. #DOOR PANEL - BLK ACRYLIC AL MFR # RM2620L
17. #APPLIANCE COMPONENTS RV; Gasket Kit RM2611 RM261 MFR # 3108704250

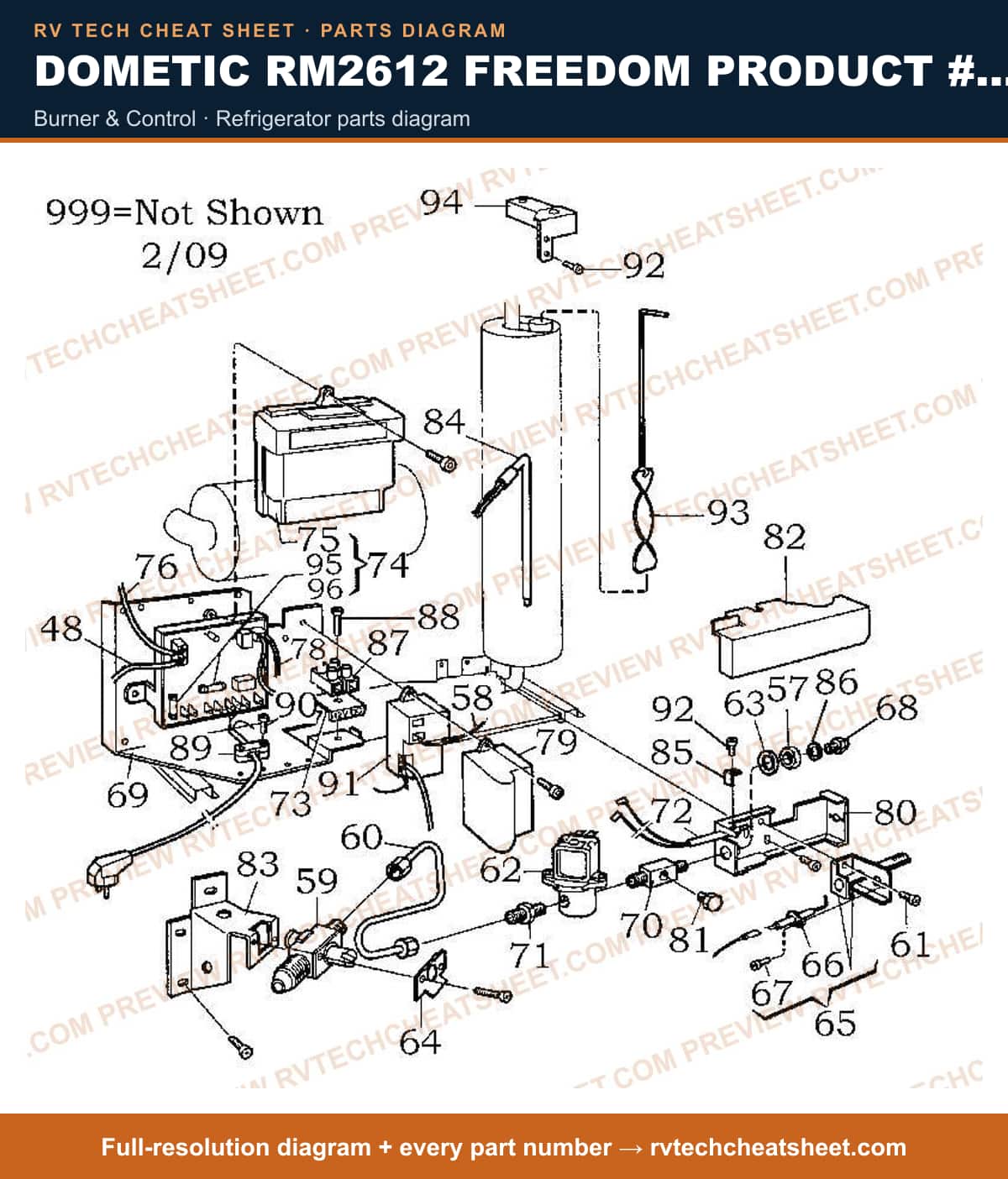

Burner & Control

Components

55 items

1. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
2. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
3. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
4. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
5. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
6. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
7. #Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description
8. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
9. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
11. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
12. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
13. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
14. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
15. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
16. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
17. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
18. #BRACKET, MOUNTING MFR # 2931822015
19. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
20. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015
21. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
22. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
23. #Label 12VDC MFR # 2931827006
24. #BOARD, PC USE 3308741002 MFR # 2932770015 Superseded: see description
25. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
26. #S,COVER,LESS DECALS MFR # 2931858019
27. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
28. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
29. #Gas Valve Solenoid; Fits Dometic Refrigerators Models RM3663 Royale/ RM2862 Americana Plus/ RM3863 Royale MFR # 2954437030
30. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
31. #HOUSING BURNER MFR # 2931913012
32. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
33. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
34. #APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011
35. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM2612/ RM2620; 120 Volt; 295 Watt MFR # 3850644414 Superseded: see description
36. #ELEMENT, HEATING USE 173768078 120V 295W MFR # 173754193 Superseded: see description
37. #ELEMENT, HEATING USE 3850644414 120V 295W MFR # 173768078 Superseded: see description
38. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
39. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
40. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
41. #3858022019 MFR # 3858022019
42. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
43. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
44. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
45. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
46. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
47. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
48. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
49. #S,BAFFLE ASM,781MM MFR # 2007590058
50. #CAP FLUE MFR # 2931540013
51. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
52. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
53. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
54. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
55. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
