Dometic RM2620 Classic Product # 921575008 Beige Parts Diagram · Cabinet Interior

Refrigerator · 6 assemblies · 6 diagram sheets · 157 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2620 Classic Product # 921575008 Beige RV refrigerator: 6 assemblies (Cabinet Interior, Cabinet Exterior, Cabinet Rear View, Door Assembly, Replacement Refrigerator and more) and 157 manufacturer part numbers. 33 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

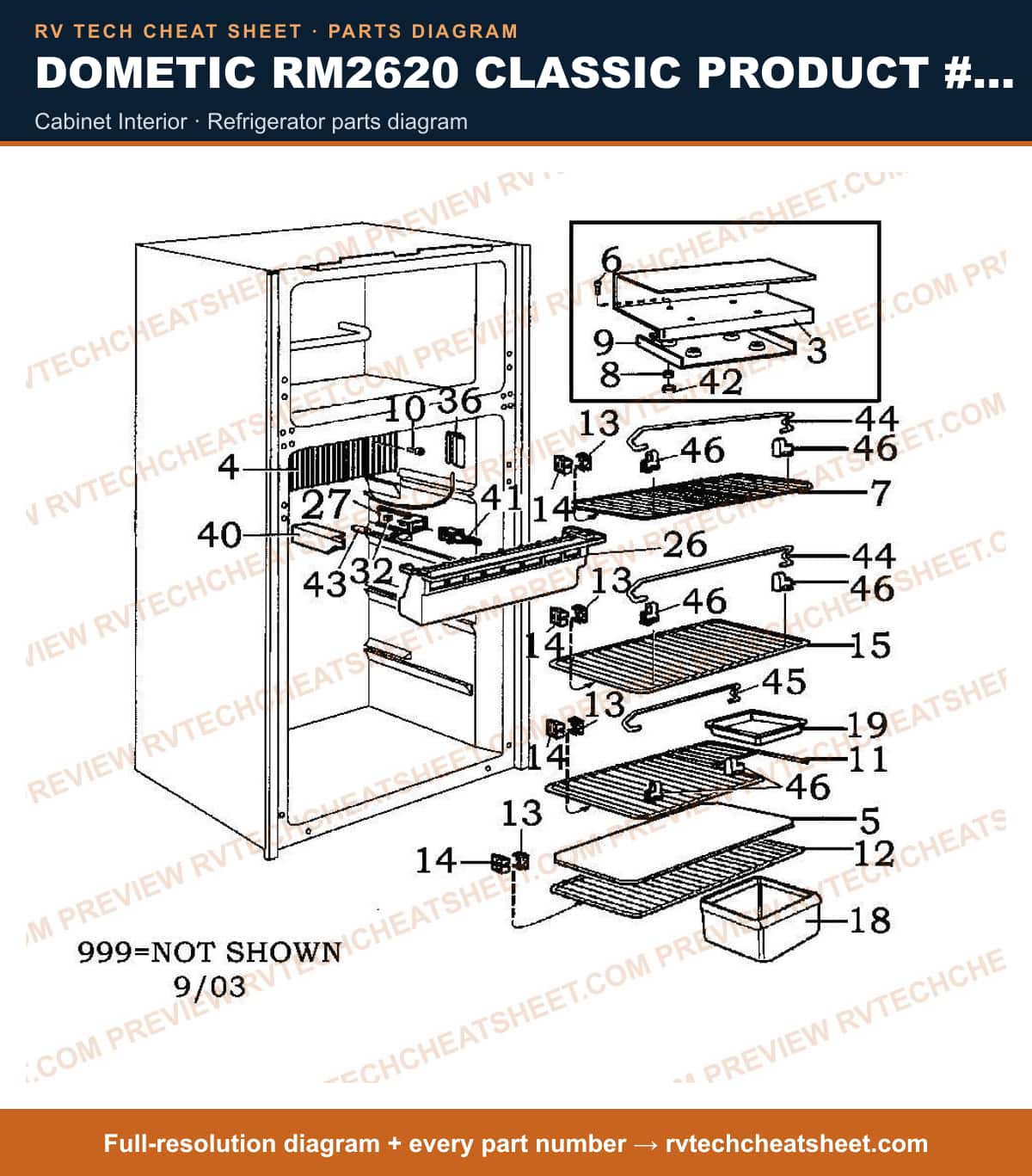

Cabinet Interior

Components

29 items

1. #Shelf, Freezer MFR # 2007535020
2. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
3. #Refrigerator Shelf MFR # 2931117044
4. #SCREW,M6S 5 X 20 NICKEL PLATED MFR # 3858041019
5. #S,SHELF,WIRE,WHT,200*455MM MFR # 2002652416
6. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
7. #PLATE RETAINING MFR # 2007649011
8. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
9. #Refrigerator Shelf MFR # 2930133141
10. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ RM2612 FREEDOM Series Refrigerators; Wire MFR # 2002652408
11. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
12. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
13. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM260 Classic; Wire MFR # 2002652341 Superseded: see description
14. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
15. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
16. #Refrigerator Drip Tray; Replacement For Dometic RM2607/ RM2611/ RM3607 Model Refrigerator MFR # 2931869016
17. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
18. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
19. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
20. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
21. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
22. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
23. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
24. #BULB 2/PK MFR # 2007290006
25. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
26. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ NDR1272/ NDR1282/ RM2820 CLASSIC Series Refrigerators MFR # 2007337138
27. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
28. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
29. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045

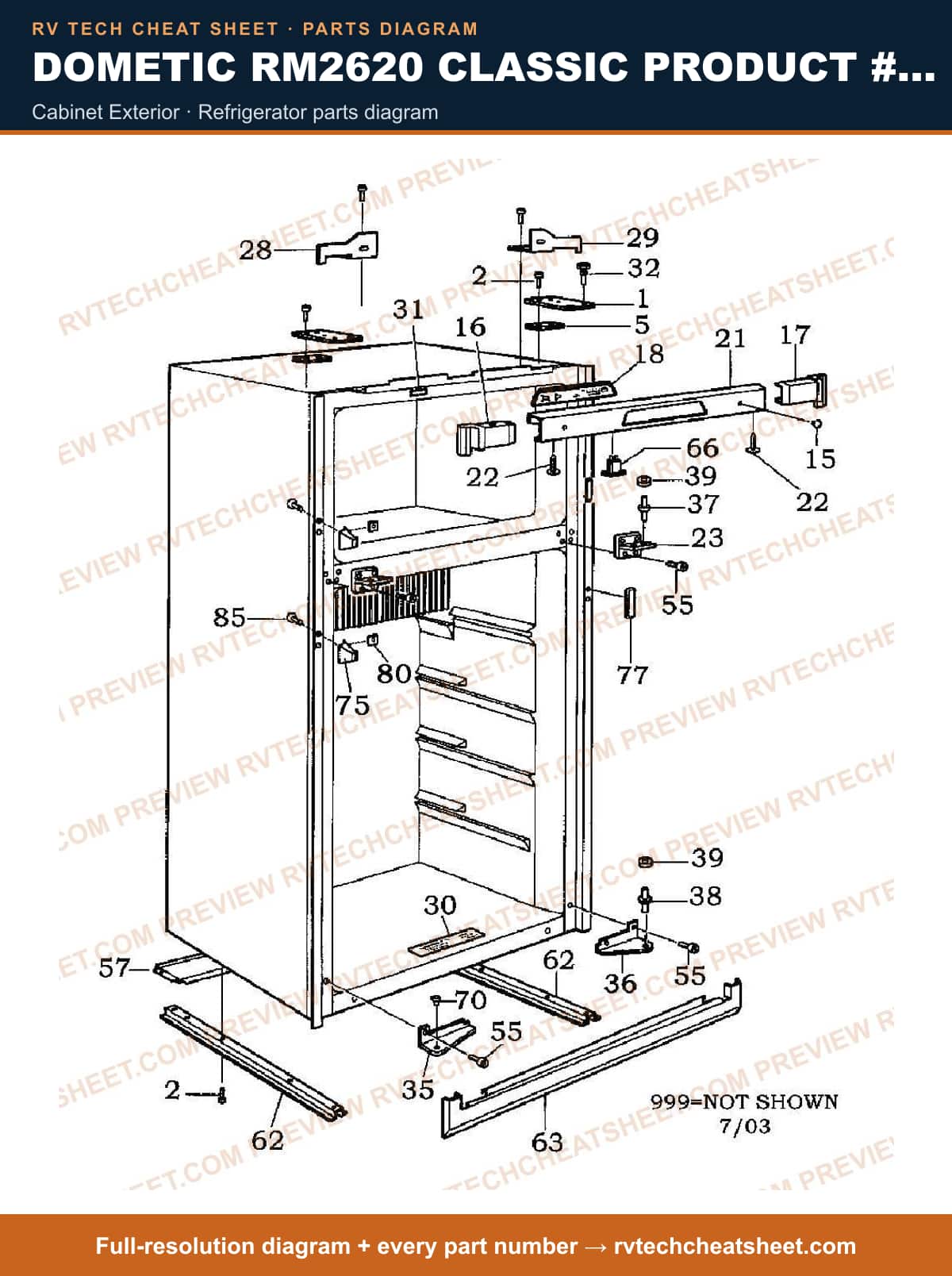

Cabinet Exterior

Components

32 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
5. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
6. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
7. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
8. #Refrigerator Trim; Use With Dometic Refrigerator Model RM2620 Classic; Upper Front MFR # 2931865121 Superseded: see description
9. #SCREW W/WASHER MFR # 3858047016
10. #Appliance Components RV MFR # 2931289017
11. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
12. #BRACKET, MOUNTING LH MFR # 2932125020
13. #BRACKET, MOUNTING RH MFR # 2932125012
14. #LABEL MFR # 2932435007
15. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
16. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
17. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
18. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
19. #S,HINGE PIN,MID,25MM MFR # 2931287011
20. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
21. #Washer; Use With Dometic Refrigerators; Zinc Plated; 5.5 x 12 x 1; Zinc Plated MFR # 3858010089 Superseded: see description
22. #SCREW MFR # 3858056017
23. #Refrigerator Vent Cover Back Plate MFR # 2930664012
24. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
25. #Refrigerator Trim; Replacement For Dometic RM2607/ RM2620/ RM2611 Refrigerators; Front Lower MFR # 2932112036
26. #SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description
27. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
28. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
29. #Refrigerator Burner Control Module Mounting Bracket; Use With Dometic Refrigerator Model RM2620 Classic MFR # 3850542014 Superseded: see description
30. #COVER,PLASTIC MFR # 3850544010
31. #NUT MFR # 3858061017
32. #SCREW MFR # 3858037033

Cabinet Rear View

Components

14 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934809092N
2. #REMAN COOLING UNIT RM2620 MFR # 5502N
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Lid MFR # 2933557015
5. #HOSE, DRAINAGE MFR # 2932221019
6. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
7. #S,TUBE,OVERFILL MFR # 2931829010
8. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
9. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
10. #Plate Protection Rm2800 MFR # 2930785015
11. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
12. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
13. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
14. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110

Door Assembly

Components

21 items

1. #Refrigerator Door; Replacement For Dometic RM2612/ RM2620 Model Refrigerator; Upper MFR # 2931589150
2. #Refrigerator Door; Use With Dometic RM2620 Refrigerator; Lower MFR # 2931588186 Superseded: see description
3. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
4. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2510/ RM2620/ RM2820 Model Refrigerator; B4 x 16; Zinc Plated MFR # 3858002110
5. #Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description
6. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
7. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
8. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
9. #DECAL MFR # 2930757006
10. #Dometic RM2652 Refrigerator Burner Assembly MFR # 3850382015
11. #STRIP DECORATION MFR # 3850382049
12. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
13. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
14. #RACK, WIRE MFR # 2001734025
15. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
16. #BUSHING, HINGE MFR # 2931582015
17. #BUSHING, HINGE MFR # 2931582023
18. #Refrigerator Gasket; Replacement For Dometic RM2620 Model Refrigerator; Upper/ Lower Door Gasket MFR # 3108710900
19. #DOOR PANEL - BRUSHED ALUM MFR # 2620BA
20. #PANELS, DOOR, WOODGRAIN FOR MODEL RM2620 MFR # RM2620G
21. #DOOR PANEL - BLK ACRYLIC AL MFR # RM2620L

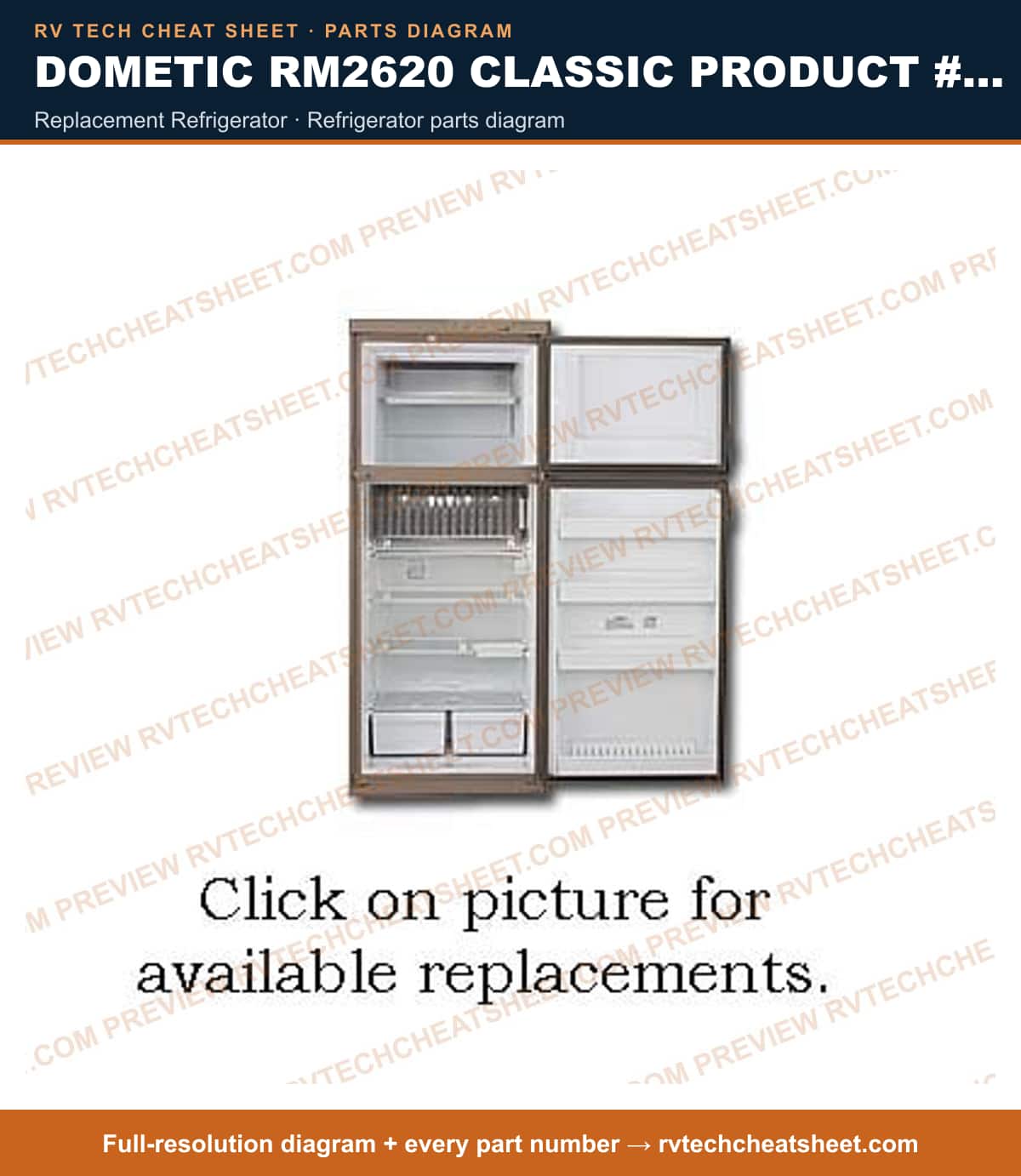

Replacement Refrigerator

Components

9 items

1. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
2. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
3. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
4. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
6. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
7. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
8. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
9. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R

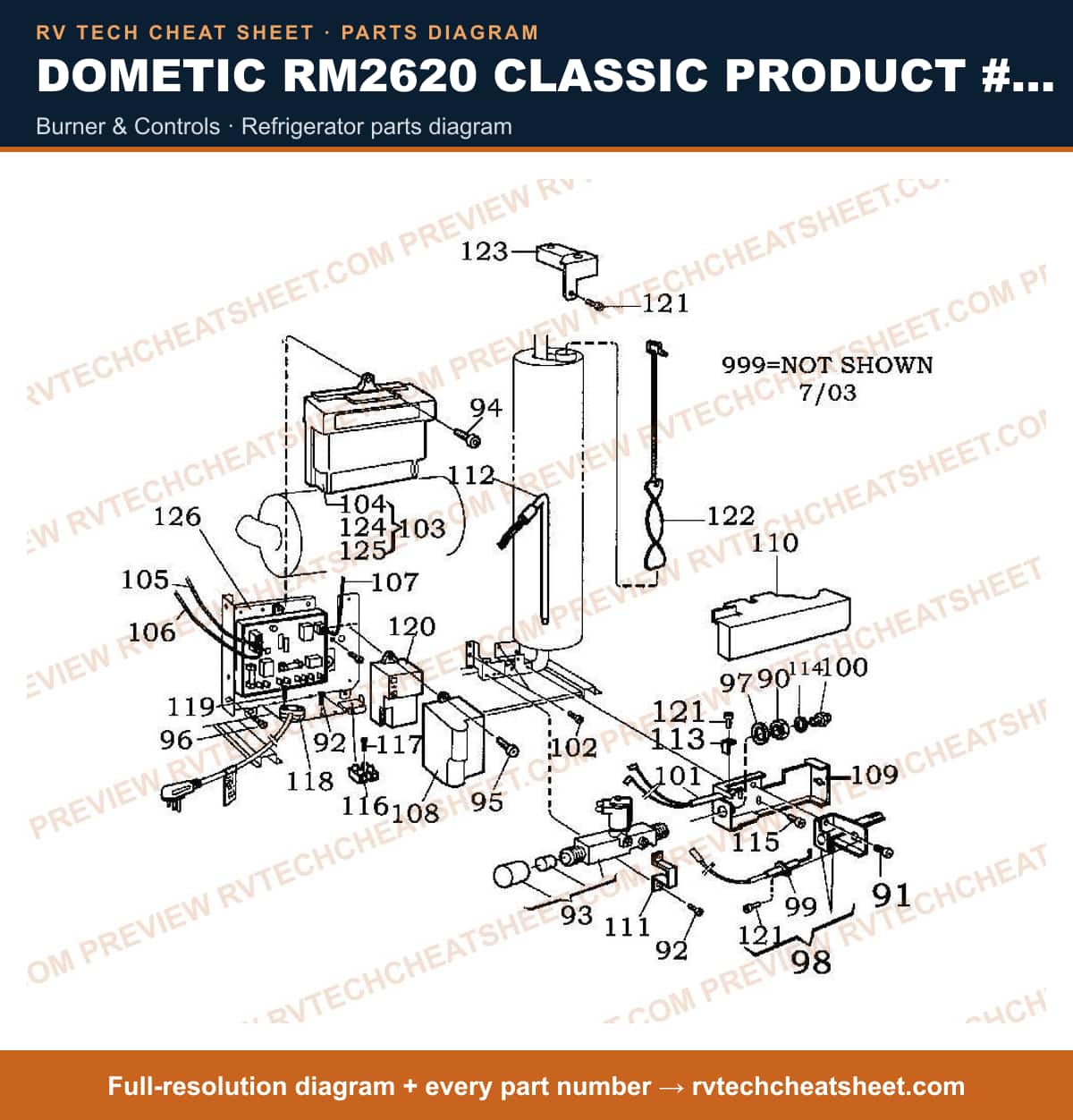

Burner & Controls

Components

54 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
4. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
5. #SCREW,RXS B6X13 ZINC MFR # 3858002151
6. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
7. #SCREW B8 X 25 ZINC MFR # 3858020021
8. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
9. #Appliance Components RV; Burner W/Conductor MFR # 2930697095
10. #ELECTRODE W/WIRE LEADS MFR # 293781012MC
11. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
12. #ELECTRODE MFR # 2932781012
13. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
14. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
15. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
16. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
17. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
18. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
19. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
20. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
21. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
22. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
23. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
24. #S,COVER,LESS DECALS MFR # 2931858019
25. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
26. #LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description
27. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
28. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
29. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
30. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
31. #Gas Valve Solenoid; Fits Dometic Refrigerators Models RM3663 Royale/ RM2862 Americana Plus/ RM3863 Royale MFR # 2954437030
32. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
33. #HOUSING BURNER MFR # 2931913012
34. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
35. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
36. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM2612/ RM2620; 120 Volt; 295 Watt MFR # 3850644414 Superseded: see description
37. #ELEMENT, HEATING USE 3850644414 120V 295W MFR # 173768078 Superseded: see description
38. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
39. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
40. #SCREW MRX M4 X 6 MFR # 3858039021
41. #3858022019 MFR # 3858022019
42. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
43. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
44. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
45. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
46. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
47. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
48. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
49. #S,BAFFLE ASM,781MM MFR # 2007590058
50. #CAP FLUE MFR # 2931540013
51. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
52. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
53. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
