Dometic RM2620 Classic Product # 921575011 Beige Parts Diagram · Cabinet Rear View

Refrigerator · 6 assemblies · 6 diagram sheets · 157 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2620 Classic Product # 921575011 Beige RV refrigerator: 6 assemblies (Cabinet Rear View, Cabinet Interior, Replacement Refrigerator, Door Assembly, Cabinet Exterior and more) and 157 manufacturer part numbers. 29 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Rear View

Components

14 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934809092N
2. #REMAN COOLING UNIT RM2620 MFR # 5502N
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Lid MFR # 2933557015
5. #S,TUBE,OVERFILL MFR # 2931829010
6. #HOSE, DRAINAGE MFR # 2932221019
7. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
8. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
9. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
10. #Plate Protection Rm2800 MFR # 2930785015
11. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
12. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
13. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
14. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096

Cabinet Interior

Components

31 items

1. #Shelf, Freezer MFR # 2007535020
2. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
3. #Refrigerator Shelf MFR # 2931117044
4. #SCREW,M6S 5 X 20 NICKEL PLATED MFR # 3858041019
5. #S,SHELF,WIRE,WHT,200*455MM MFR # 2002652416
6. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
7. #PLATE RETAINING MFR # 2007649011
8. #Refrigerator Shelf MFR # 2930133141
9. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ RM2612 FREEDOM Series Refrigerators; Wire MFR # 2002652408
10. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
11. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
12. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
13. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
14. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
15. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
16. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
17. #Refrigerator Drip Tray; Replacement For Dometic RM2607/ RM2611/ RM3607 Model Refrigerator MFR # 2931869016
18. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
19. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
20. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
21. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
22. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
23. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
24. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
25. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
26. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
27. #BULB 2/PK MFR # 2007290006
28. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ NDR1272/ NDR1282/ RM2820 CLASSIC Series Refrigerators MFR # 2007337138
29. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
30. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
31. #APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015

Replacement Refrigerator

Components

9 items

1. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
3. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
4. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
5. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
6. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
7. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
8. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
9. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R

Door Assembly

Components

21 items

1. #Refrigerator Door; Replacement For Dometic RM2612/ RM2620 Model Refrigerator; Upper MFR # 2931589150
2. #Refrigerator Door; Use With Dometic RM2620 Refrigerator; Lower MFR # 2931588186 Superseded: see description
3. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
4. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2510/ RM2620/ RM2820 Model Refrigerator; B4 x 16; Zinc Plated MFR # 3858002110
5. #Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description
6. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
7. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
8. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
9. #Dometic RM2652 Refrigerator Burner Assembly MFR # 3850382015
10. #STRIP DECORATION MFR # 3850382049
11. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
12. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
13. #RACK, WIRE MFR # 2001734025
14. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
15. #DECAL MFR # 2930757006
16. #BUSHING, HINGE MFR # 2931582015
17. #BUSHING, HINGE MFR # 2931582023
18. #PANELS, DOOR, WOODGRAIN FOR MODEL RM2620 MFR # RM2620G
19. #DOOR PANEL - BRUSHED ALUM MFR # 2620BA
20. #Refrigerator Gasket; Replacement For Dometic RM2620 Model Refrigerator; Upper/ Lower Door Gasket MFR # 3108710900
21. #DOOR PANEL - BLK ACRYLIC AL MFR # RM2620L

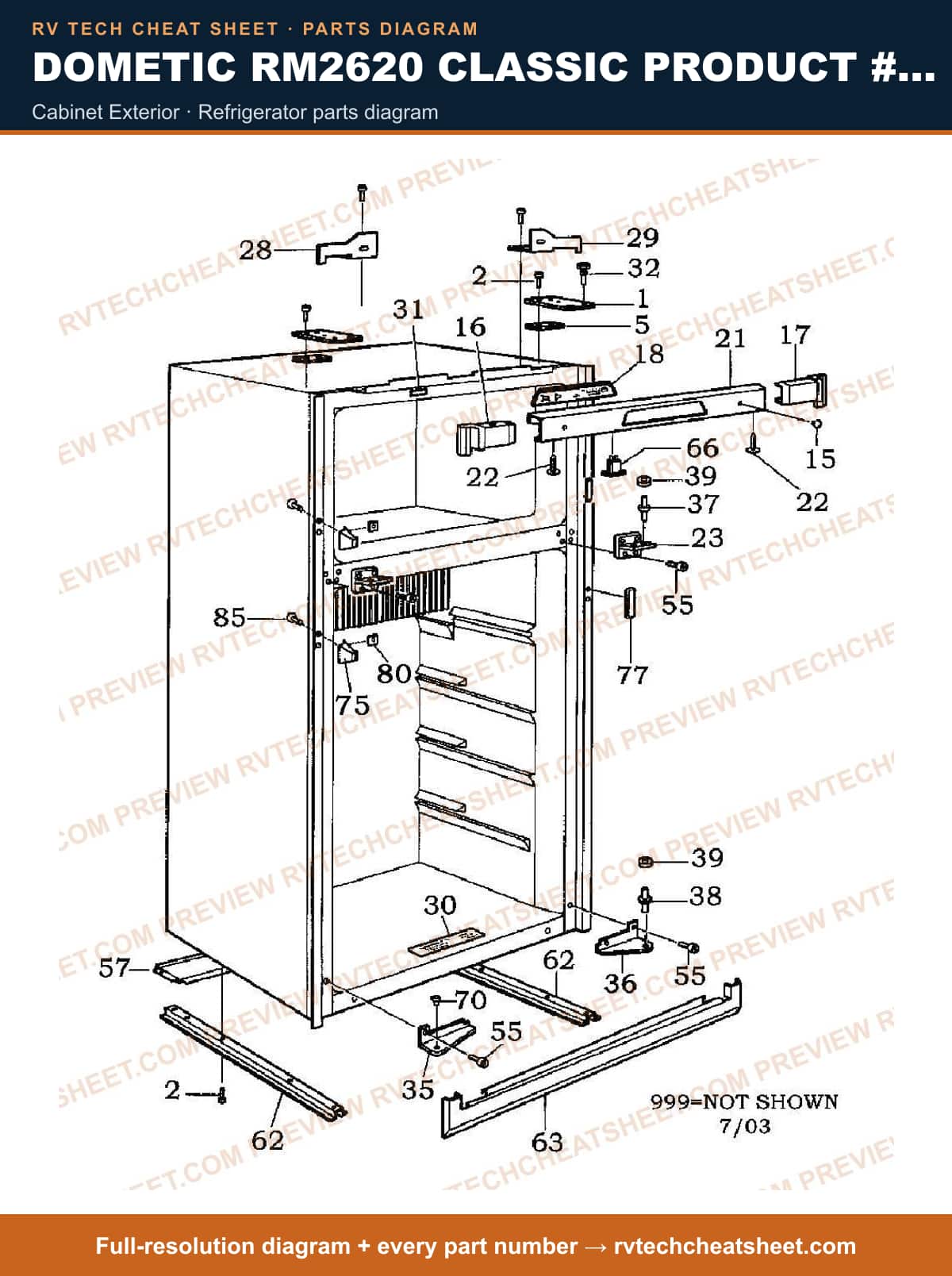

Cabinet Exterior

Components

32 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
5. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
6. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
7. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
8. #Refrigerator Trim; Use With Dometic Refrigerator Model RM2620 Classic; Upper Front MFR # 2931865121 Superseded: see description
9. #SCREW W/WASHER MFR # 3858047016
10. #Appliance Components RV MFR # 2931289017
11. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
12. #BRACKET, MOUNTING LH MFR # 2932125020
13. #BRACKET, MOUNTING RH MFR # 2932125012
14. #LABEL MFR # 2932435007
15. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
16. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
17. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
18. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
19. #S,HINGE PIN,MID,25MM MFR # 2931287011
20. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
21. #Washer; Use With Dometic Refrigerators; Zinc Plated; 5.5 x 12 x 1; Zinc Plated MFR # 3858010089 Superseded: see description
22. #SCREW MFR # 3858056017
23. #Refrigerator Vent Cover Back Plate MFR # 2930664012
24. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
25. #Refrigerator Trim; Replacement For Dometic RM2607/ RM2620/ RM2611 Refrigerators; Front Lower MFR # 2932112036
26. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
27. #SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description
28. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
29. #Refrigerator Burner Control Module Mounting Bracket; Use With Dometic Refrigerator Model RM2620 Classic MFR # 3850542014 Superseded: see description
30. #COVER,PLASTIC MFR # 3850544010
31. #NUT MFR # 3858061017
32. #SCREW MFR # 3858037033

Burner & Controls

Components

56 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #NIPPLE, GAS CONNECTION MFR # 3850665013
3. #NIPPLE MFR # 3850663018
4. #PIPE, GAS MFR # 3850662010
5. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
6. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
7. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
8. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
9. #SCREW,RXS B6X13 ZINC MFR # 3858002151
10. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
11. #SCREW B8 X 25 ZINC MFR # 3858020021
12. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
13. #Appliance Components RV; Burner W/Conductor MFR # 2930697095
14. #ELECTRODE MFR # 2932781012
15. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
16. #ELECTRODE W/WIRE LEADS MFR # 293781012MC
17. #SCREW,ZINC PLATED M4X25 MFR # 3858039070
18. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
19. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
20. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
21. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
22. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
23. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
24. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
25. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
26. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
27. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Black Box Board Kit 3850415.01 MFR # 385041501
28. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
29. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
30. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
31. #APPLIANCE COMPONENTS RV; Conductor PCB MFR # 2954542011
32. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
33. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
34. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
35. #APPLIANCE COMPONENTS RV; Conductor Solenoid Valve MFR # 2954539017
36. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
37. #HOUSING BURNER MFR # 2931913012
38. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
39. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
40. #APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011
41. #ELEMENT, HEATING USE 3850644414 120V 295W MFR # 173768078 Superseded: see description
42. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM2612/ RM2620; 120 Volt; 295 Watt MFR # 3850644414 Superseded: see description
43. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
44. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
45. #SCREW MRX M4 X 6 MFR # 3858039021
46. #3858022019 MFR # 3858022019
47. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
48. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
49. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
50. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
51. #Reigniter - NLA MFR # 2931132027
52. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
53. #S,BAFFLE ASM,781MM MFR # 2007590058
54. #CAP FLUE MFR # 2931540013
55. #WASHER, COPPER SEAL MFR # 2930500000
56. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
