Dometic RM2620 Classic Product # 921575014 Taupe Parts Diagram · Cooling Unit

Refrigerator · 6 assemblies · 6 diagram sheets · 145 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2620 Classic Product # 921575014 Taupe RV refrigerator: 6 assemblies (Cooling Unit, Burner & Control, Door Assembly, Replacement Refrigerator, Cabinet Interior and more) and 145 manufacturer part numbers. 22 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cooling Unit

Components

10 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit W/Thermal Fu MFR # 2934809100
2. #REMAN COOLING UNIT RM2620 MFR # 5502N
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Lid MFR # 2933557015
5. #HOSE,DRAIN MFR # 2932221027
6. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
7. #Plate Protection Rm2800 MFR # 2930785015
8. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
9. #LABEL MFR # 3850583000
10. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096

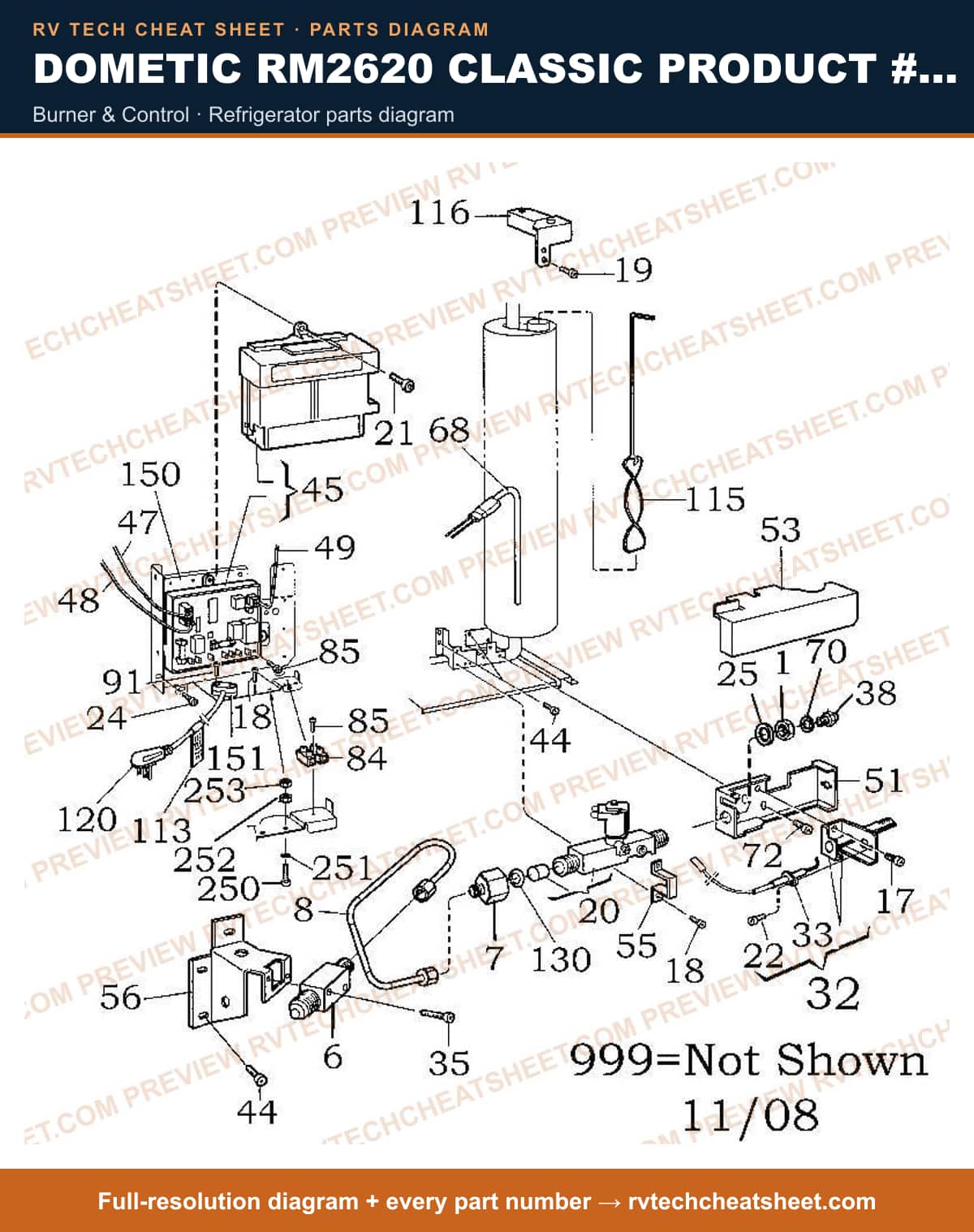

Burner & Control

Components

49 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #NIPPLE, GAS CONNECTION MFR # 3850665013
3. #NIPPLE MFR # 3850663018
4. #PIPE, GAS MFR # 3850662010
5. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
6. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
7. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
8. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
9. #SCREW,RXS B6X13 ZINC MFR # 3858002151
10. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
11. #SCREW B8 X 25 ZINC MFR # 3858020021
12. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
13. #Appliance Components RV; Burner W/Conductor MFR # 2930697095
14. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
15. #ELECTRODE MFR # 2932781012
16. #SCREW,ZINC PLATED M4X25 MFR # 3858039070
17. #ORIFICE, BURNER # 56 MFR # 2007419209
18. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
19. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
20. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # 385071201
21. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Power Supply Circuit Board; Also Use New Number 3316996.900 MFR # 3850712013 Superseded: see description
22. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
23. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
24. #APPLIANCE COMPONENTS RV; Conductor PCB MFR # 2954542011
25. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
26. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
27. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
28. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,GAS VALVE,2WAY MFR # 2954539041
29. #HOUSING BURNER MFR # 2931913012
30. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
31. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
32. #APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011
33. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM2612/ RM2620; 120 Volt; 295 Watt MFR # 3850644414 Superseded: see description
34. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
35. #SCREW MRX M4 X 6 MFR # 3858039021
36. #3858022019 MFR # 3858022019
37. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
38. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
39. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
40. #S,BAFFLE ASM,781MM MFR # 2007590058
41. #CAP FLUE MFR # 2931540013
42. #2002699094 MFR # 2002699094
43. #WASHER, COPPER SEAL MFR # 2930500000
44. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
45. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
46. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
47. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
48. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
49. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024

Door Assembly

Components

20 items

1. #Refrigerator Door; Replacement For Dometic RM2612/ RM2620 Model Refrigerator; Upper MFR # 2931589150
2. #Refrigerator Door; Use With Dometic RM2620 Refrigerator; Lower MFR # 2931588186 Superseded: see description
3. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
4. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2510/ RM2620/ RM2820 Model Refrigerator; B4 x 16; Zinc Plated MFR # 3858002110
5. #Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description
6. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
7. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
8. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
9. #DECAL MFR # 2930757006
10. #Dometic RM2652 Refrigerator Burner Assembly MFR # 3850382015
11. #STRIP DECORATION MFR # 3850382049
12. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
13. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
14. #RACK, WIRE MFR # 2001734025
15. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
16. #BUSHING, HINGE MFR # 2931582015
17. #BUSHING, HINGE MFR # 2931582023
18. #PANELS, DOOR, WOODGRAIN FOR MODEL RM2620 MFR # RM2620G
19. #DOOR PANEL - BRUSHED ALUM MFR # 2620BA
20. #DOOR PANEL - BLK ACRYLIC AL MFR # RM2620L

Replacement Refrigerator

Components

9 items

1. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
2. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
3. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
4. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
5. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
6. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
7. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
8. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
9. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS

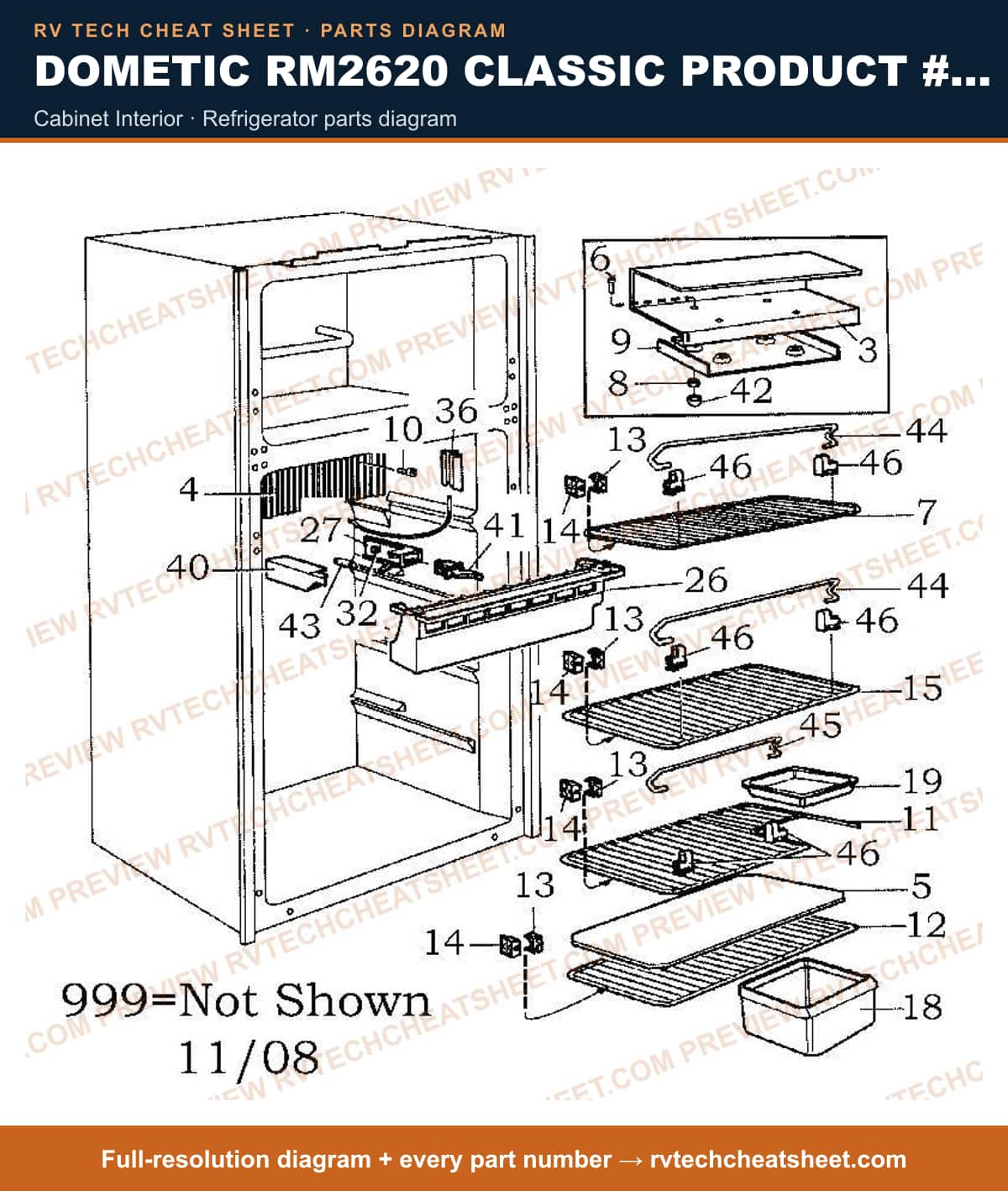

Cabinet Interior

Components

29 items

1. #Shelf, Freezer MFR # 2007535020
2. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
3. #Refrigerator Shelf MFR # 2931117044
4. #SCREW,M6S 5 X 20 NICKEL PLATED MFR # 3858041019
5. #S,SHELF,WIRE,WHT,200*455MM MFR # 2002652416
6. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
7. #PLATE RETAINING MFR # 2007649011
8. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
9. #Refrigerator Shelf MFR # 2930133141
10. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ RM2612 FREEDOM Series Refrigerators; Wire MFR # 2002652408
11. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
12. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
13. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM260 Classic; Wire MFR # 2002652341 Superseded: see description
14. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
15. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
16. #Refrigerator Drip Tray; Replacement For Dometic RM2607/ RM2611/ RM3607 Model Refrigerator MFR # 2931869016
17. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
18. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
19. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
20. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
21. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
22. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
23. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
24. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
25. #BULB 2/PK MFR # 2007290006
26. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ NDR1272/ NDR1282/ RM2820 CLASSIC Series Refrigerators MFR # 2007337138
27. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
28. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
29. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045

Cabinet Exterior

Components

33 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
5. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
6. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
7. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
8. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
9. #Refrigerator Trim; Use With Dometic Refrigerator Model RM2620 Classic; Upper Front MFR # 2931865121 Superseded: see description
10. #SCREW W/WASHER MFR # 3858047016
11. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
12. #BRACKET, MOUNTING LH MFR # 2932125020
13. #BRACKET, MOUNTING RH MFR # 2932125012
14. #LABEL MFR # 2932435007
15. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
16. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
17. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
18. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
19. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
20. #S,HINGE PIN,MID,25MM MFR # 2931287011
21. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
22. #Washer; Use With Dometic Refrigerators; Zinc Plated; 5.5 x 12 x 1; Zinc Plated MFR # 3858010089 Superseded: see description
23. #SCREW MFR # 3858056017
24. #Refrigerator Vent Cover Back Plate MFR # 2930664012
25. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
26. #Refrigerator Trim; Replacement For Dometic RM2607/ RM2620/ RM2611 Refrigerators; Front Lower MFR # 2932112036
27. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
28. #SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description
29. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
30. #S,STRIKE 9*35*24MM MFR # 2931511014
31. #SCREW RXS B4X6.5 ZINC MFR # 3858002094
32. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
33. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
