Dometic RM2620 Classic Product # 958527925 Beige Parts Diagram · Burner & Controls

Refrigerator · 6 assemblies · 6 diagram sheets · 142 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2620 Classic Product # 958527925 Beige RV refrigerator: 6 assemblies (Burner & Controls, Cabinet Exterior, Replacement Refrigerator, Door Assembly, Cabinet Interior and more) and 142 manufacturer part numbers. 20 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Burner & Controls

Components

48 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #NIPPLE, GAS CONNECTION MFR # 3850665013
3. #NIPPLE MFR # 3850663018
4. #PIPE, GAS MFR # 3850662010
5. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
6. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
7. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
8. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
9. #SCREW,RXS B6X13 ZINC MFR # 3858002151
10. #SCREW B8 X 25 ZINC MFR # 3858020021
11. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
12. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
13. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
14. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
15. #ELECTRODE MFR # 2932781012
16. #SCREW,ZINC PLATED M4X25 MFR # 3858039070
17. #3312986197 MFR # 3312986197
18. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
19. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
20. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
21. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
22. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # 385071201
23. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Power Supply Circuit Board; Also Use New Number 3316996.900 MFR # 3850712013 Superseded: see description
24. #2954542086 MFR # 2954542086
25. #S THERMSTOR COMBO MFR # 3851059422
26. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 41 Inch Length; Also Use New Number 38510590422 MFR # 3851059034 Superseded: see description
27. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,GAS VALVE,2WAY MFR # 2954539041
28. #HOUSING BURNER MFR # 2931913012
29. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
30. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
31. #APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011
32. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM2612/ RM2620; 120 Volt; 295 Watt MFR # 3850644414 Superseded: see description
33. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
34. #SCREW MRX M4 X 6 MFR # 3858039021
35. #3858022019 MFR # 3858022019
36. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
37. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
38. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
39. #S,BAFFLE ASM,781MM MFR # 2007590058
40. #CAP FLUE MFR # 2931540013
41. #2002699094 MFR # 2002699094
42. #WASHER, COPPER SEAL MFR # 2930500000
43. #Refrigerator Burner Control Module Mounting Bracket; Use With Dometic Refrigerator Model RM3762 MFR # 3851474019 Superseded: see description
44. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
45. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
46. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
47. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
48. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024

Cabinet Exterior

Components

33 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
5. #3313470024 MFR # 3313470024
6. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
7. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
8. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
9. #Refrigerator Trim; Replacement For Dometic RM2611/ RM2607 Refrigerators MFR # 2931865048
10. #SCREW W/WASHER MFR # 3858047016
11. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
12. #BRACKET, MOUNTING LH MFR # 2932125020
13. #BRACKET, MOUNTING RH MFR # 2932125012
14. #LABEL MFR # 2932435007
15. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
16. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
17. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
18. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
19. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
20. #S,HINGE PIN,MID,25MM MFR # 2931287011
21. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
22. #Washer; Use With Dometic Refrigerators; Zinc Plated; 5.5 x 12 x 1; Zinc Plated MFR # 3858010089 Superseded: see description
23. #SCREW MFR # 3858056017
24. #Refrigerator Vent Cover Back Plate MFR # 2930664012
25. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
26. #Refrigerator Trim; Replacement For Dometic RM2607/ RM2620/ RM2611 Refrigerators; Front Lower MFR # 2932112036
27. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
28. #SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description
29. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
30. #S,STRIKE 9*35*24MM MFR # 2931511014
31. #385002102 MFR # 385002102
32. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
33. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description

Replacement Refrigerator

Components

9 items

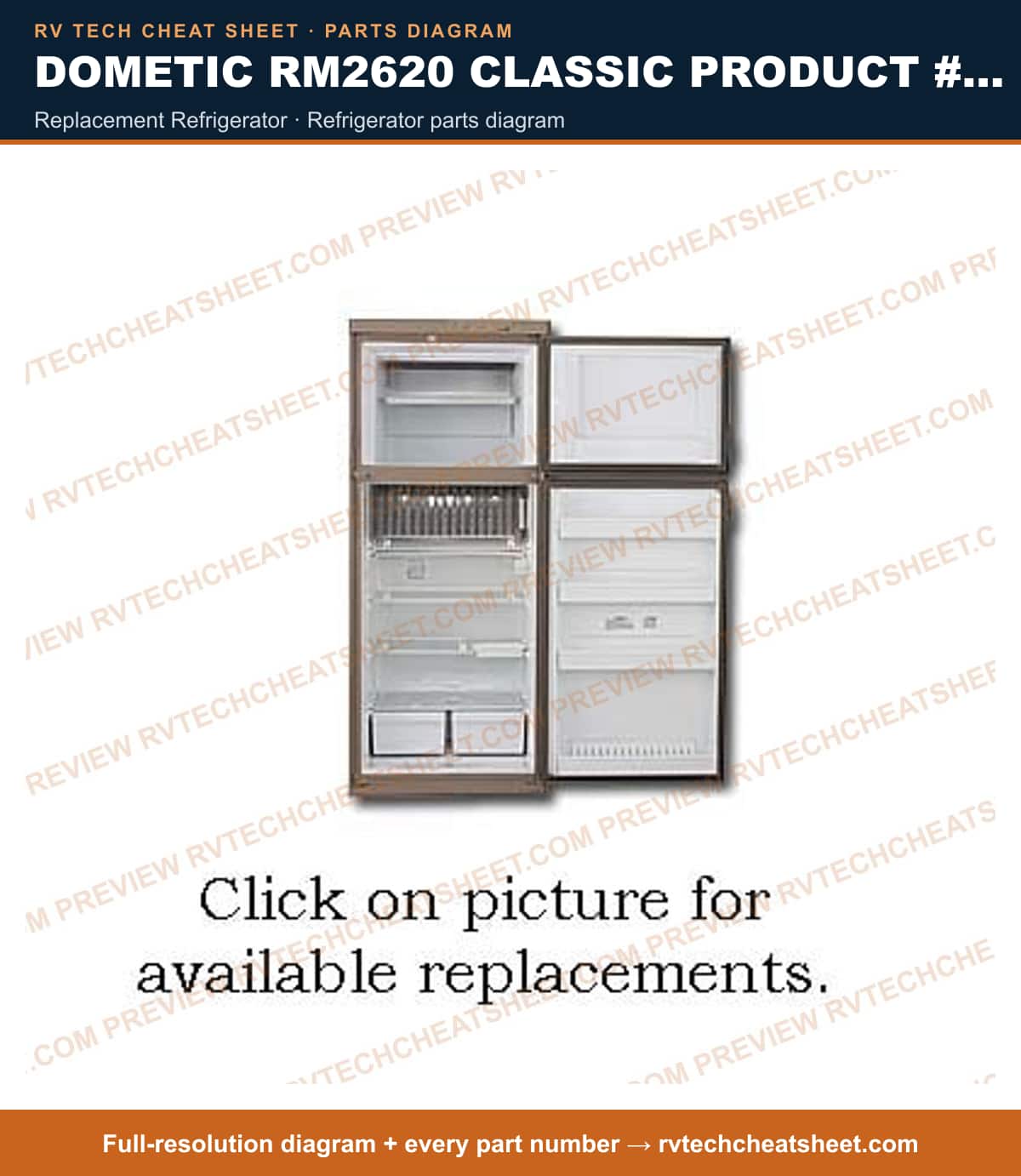

1. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
2. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
3. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
4. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
5. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
6. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
7. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
8. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
9. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description

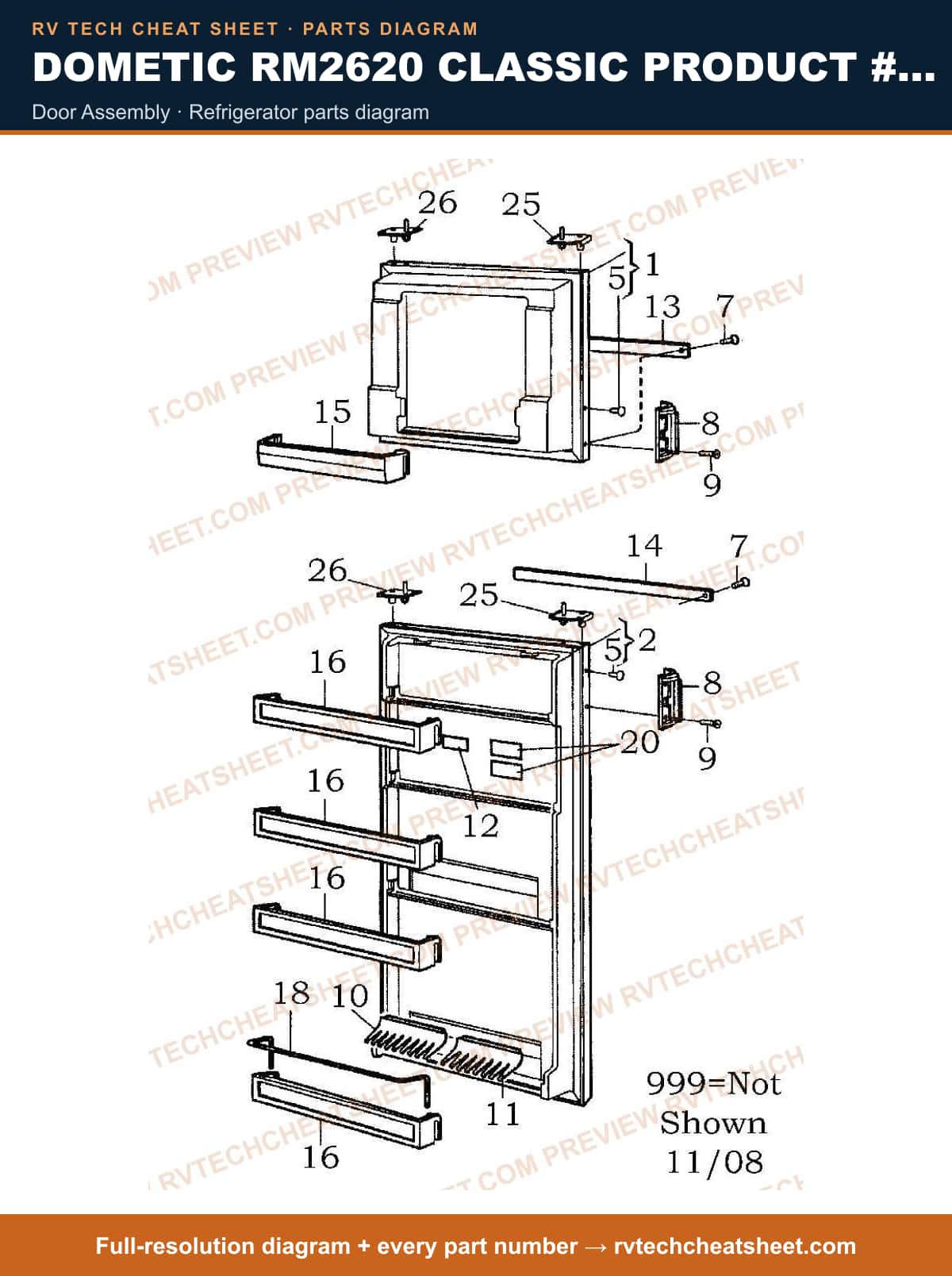

Door Assembly

Components

19 items

1. #Refrigerator Door; Replacement For Dometic RM2612/ RM2620 Model Refrigerator; Upper MFR # 2931589150
2. #Refrigerator Door; Use With Dometic RM2620 Refrigerator; Lower MFR # 2931588186 Superseded: see description
3. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
4. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2510/ RM2620/ RM2820 Model Refrigerator; B4 x 16; Zinc Plated MFR # 3858002110
5. #Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description
6. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
7. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
8. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
9. #Dometic RM2652 Refrigerator Burner Assembly MFR # 3850382015
10. #3850382072 MFR # 3850382072
11. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
12. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
13. #RACK, WIRE MFR # 2001734025
14. #LABEL MFR # 3851235014
15. #BUSHING, HINGE MFR # 2931582015
16. #BUSHING, HINGE MFR # 2931582023
17. #DOOR PANEL - BRUSHED ALUM MFR # 2620BA
18. #PANELS, DOOR, WOODGRAIN FOR MODEL RM2620 MFR # RM2620G
19. #DOOR PANEL - BLK ACRYLIC AL MFR # RM2620L

Cabinet Interior

Components

28 items

1. #Shelf, Freezer MFR # 2007535020
2. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
3. #3851429047 MFR # 3851429047
4. #SCREW,M6S 5 X 20 NICKEL PLATED MFR # 3858041019
5. #WASHER MFR # 3858010147
6. #S,SHELF,WIRE,WHT,200*455MM MFR # 2002652416
7. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
8. #PLATE RETAINING MFR # 2007649011
9. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
10. #Refrigerator Shelf MFR # 2930133141
11. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ RM2612 FREEDOM Series Refrigerators; Wire MFR # 2002652408
12. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
13. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
14. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
15. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
16. #Refrigerator Drip Tray; Replacement For Dometic RM2607/ RM2611/ RM3607 Model Refrigerator MFR # 2931869016
17. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
18. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
19. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
20. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
21. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
22. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
23. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
24. #BULB 2/PK MFR # 2007290006
25. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ NDR1272/ NDR1282/ RM2820 CLASSIC Series Refrigerators MFR # 2007337138
26. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
27. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
28. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045

Cooling Unit

Components

10 items

1. #3313470007 MFR # 3313470007
2. #REMAN COOLING UNIT RM2620 MFR # 5502N
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Lid MFR # 2933557015
5. #HOSE,DRAIN MFR # 2932221027
6. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
7. #Plate Protection Rm2800 MFR # 2930785015
8. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
9. #LABEL MFR # 3850583000
10. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
