Dometic RM2620 Classic Product # 958530345 Beige Parts Diagram · Cabinet Exterior

Refrigerator · 4 assemblies · 4 diagram sheets · 70 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2620 Classic Product # 958530345 Beige RV refrigerator: 4 assemblies (Cabinet Exterior, Replacement Refrigerator, Cabinet Interior, Cooling Unit) and 70 manufacturer part numbers. 8 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Exterior

Components

32 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
5. #3313470024 MFR # 3313470024
6. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
7. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
8. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
9. #Refrigerator Trim; Replacement For Dometic RM2611/ RM2607 Refrigerators MFR # 2931865048
10. #SCREW W/WASHER MFR # 3858047016
11. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
12. #BRACKET, MOUNTING LH MFR # 2932125020
13. #BRACKET, MOUNTING RH MFR # 2932125012
14. #LABEL MFR # 2932435007
15. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
16. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
17. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
18. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
19. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
20. #S,HINGE PIN,MID,25MM MFR # 2931287011
21. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
22. #Washer; Use With Dometic Refrigerators; Zinc Plated; 5.5 x 12 x 1; Zinc Plated MFR # 3858010089 Superseded: see description
23. #SCREW MFR # 3858056017
24. #Refrigerator Vent Cover Back Plate MFR # 2930664012
25. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
26. #Refrigerator Trim; Replacement For Dometic RM2607/ RM2620/ RM2611 Refrigerators; Front Lower MFR # 2932112036
27. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
28. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
29. #S,STRIKE 9*35*24MM MFR # 2931511014
30. #385002102 MFR # 385002102
31. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
32. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description

Replacement Refrigerator

Components

2 items

1. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
2. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R

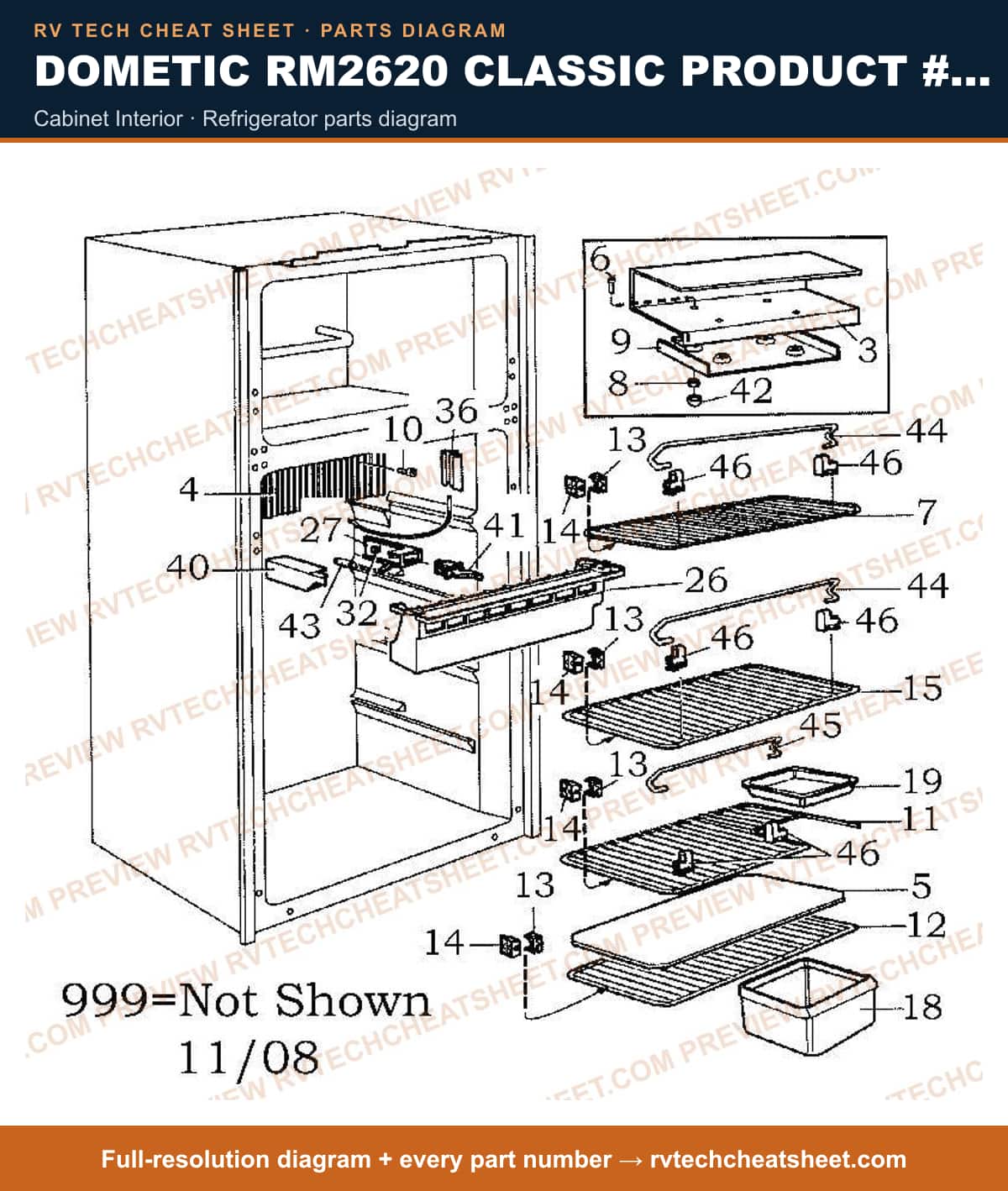

Cabinet Interior

Components

28 items

1. #Shelf, Freezer MFR # 2007535020
2. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
3. #3851429047 MFR # 3851429047
4. #SCREW,M6S 5 X 20 NICKEL PLATED MFR # 3858041019
5. #WASHER MFR # 3858010147
6. #S,SHELF,WIRE,WHT,200*455MM MFR # 2002652416
7. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
8. #PLATE RETAINING MFR # 2007649011
9. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
10. #Refrigerator Shelf MFR # 2930133141
11. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ RM2612 FREEDOM Series Refrigerators; Wire MFR # 2002652408
12. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
13. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
14. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
15. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
16. #Refrigerator Drip Tray; Replacement For Dometic RM2607/ RM2611/ RM3607 Model Refrigerator MFR # 2931869016
17. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
18. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
19. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
20. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
21. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
22. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
23. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
24. #BULB 2/PK MFR # 2007290006
25. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ NDR1272/ NDR1282/ RM2820 CLASSIC Series Refrigerators MFR # 2007337138
26. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
27. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
28. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045

Cooling Unit

Components

10 items

1. #REMAN COOLING UNIT RM2620 MFR # 5502N
2. #3313470007 MFR # 3313470007
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Lid MFR # 2933557015
5. #HOSE,DRAIN MFR # 2932221027
6. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
7. #Plate Protection Rm2800 MFR # 2930785015
8. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
9. #LABEL MFR # 3850583000
10. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
