Dometic RM2802 Parts Diagram · Cabinet Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 171 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2802 RV refrigerator: 5 assemblies (Cabinet Assembly, Door Assembly, Replacement Refrigerator, Vibration Suppression Kit, Gas-electric) and 171 manufacturer part numbers. 63 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Assembly

Components

77 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Models RM3600/ RM3800 MFR # 2007270016 Superseded: see description
2. #Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038
3. #Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description
4. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
6. #Shelf, Milk Use 2930133042 11-3/4" W X 19-7/8" Long RM1303 MFR # 2930133018 Superseded: see description
7. #SHELF USE 2930133117 MFR # 2930133042 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
9. #Shelf, Middle Use 2002652259 MFR # 2002652168 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
11. #Shelf, Upper Use 2002652267 MFR # 2002652176 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
13. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
14. #LATCH, TRAVEL USE 2930706052 MFR # 2930706045 Superseded: see description
15. #Refrigerator Door Latch; Travel Latch; Replacement For Dometic RM2802/ RM2803/ RM3800 Refrigerators MFR # 2930706052
16. #LATCH USE 2930706052 MFR # 2930706011 Superseded: see description
17. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
18. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
19. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
20. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
21. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
22. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
23. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Board Circuit MFR # 87500350274
25. #HOUSING, LATCH USE 2930707050 MFR # 2930707019 Superseded: see description
26. #HOUSING, CATCH GREY/BROWN MFR # 2930707050
27. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
28. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
29. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
30. #DECORATION MFR # 2930983040
31. #STRIP, DECORATION MFR # 2930989013
32. #STRIP, DECORATION MFR # 2930986019
33. #HINGE, MIDDLE MFR # 2930607003
34. #APPLIANCE COMPONENTS RV; Cover Crisper Use 2002727 MFR # 2002727010 Superseded: see description
35. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
36. #Tray, Drip Use 2007610013 MFR # 2007610005 Superseded: see description
37. #2004044091 MFR # 2004044091
38. #COVER, LIGHT SWITCH MFR # 2004044109
39. #COVER, CONTROLS USE 2004044091 MFR # 2004044075 Superseded: see description
40. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
41. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
42. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
43. #APPLIANCE COMPONENTS RV; Key MFR # 2930982018
44. #Pin, Hinge Upper MFR # 2930612003
45. #KNOB, T-STAT USE 2930625039 MFR # 2930625021 Superseded: see description
46. #Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RM2603 MFR # 2930625039 Superseded: see description
47. #T-STAT USE 2930814021 MFR # K50P1336 Superseded: see description
48. #Refrigerator Thermostat Control Assembly; Use With Dometic Refrigerator Models RM2804/ RM3800/ RM3801 MFR # 2930814021MC Superseded: see description
49. #APPLIANCE COMPONENTS RV; T-Stat Electric MFR # 2930814021
50. #T-STAT, ELECTRIC USE 2930814021 MFR # 2930814013 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
52. #THERMOSTAT RETAINER MFR # 2004042304
53. #Push Button Switch; On/ Off Switch; Middle; Panel Mount MFR # 2930980020
54. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
55. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
56. #BULB 2/PK MFR # 2007290006
57. #Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description
58. #Refrigerator Control Knob; For Use With Dometic RM2602/ RM2603/ RM2802/ RM2803/ RM3501/ RM3601/ RM3801 And RM4801 Refrigerator Models; Push Button MFR # 2930980038 Superseded: see description
59. #RETAINER USE 2930693045 MFR # 2930693029 Superseded: see description
60. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
61. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
62. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
63. #PIN,RETAINING MFR # 2001281019
64. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
65. #INDEX MFR # 2001354022
66. #SCREW USE 7295283407 MFR # 7295283118 Superseded: see description
67. #SCREW MFR # 7295283407
68. #SCREW USE 7295344407 MFR # 7295344118 Superseded: see description
69. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
70. #APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015
71. #GABLE, RH MFR # 2930604000
72. #PLATE, LEFT SIDE MFR # 2930603002
73. #Refrigerator Support Rail; Replacement For Dometic RM3501/ RM3800/ RM2603 Refrigerators; Right Hand Side MFR # 2930602004
74. #Refrigerator Support Rail; Replacement For Dometic RM3801/ RM2603/ RM3800 Refrigerators; Left Hand Side MFR # 2930601006
75. #BASE FRONT MFR # 2930600016
76. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
77. #FERRULE RM3801/3601/2802 2603,2803,3501,2602 MFR # 2930824012

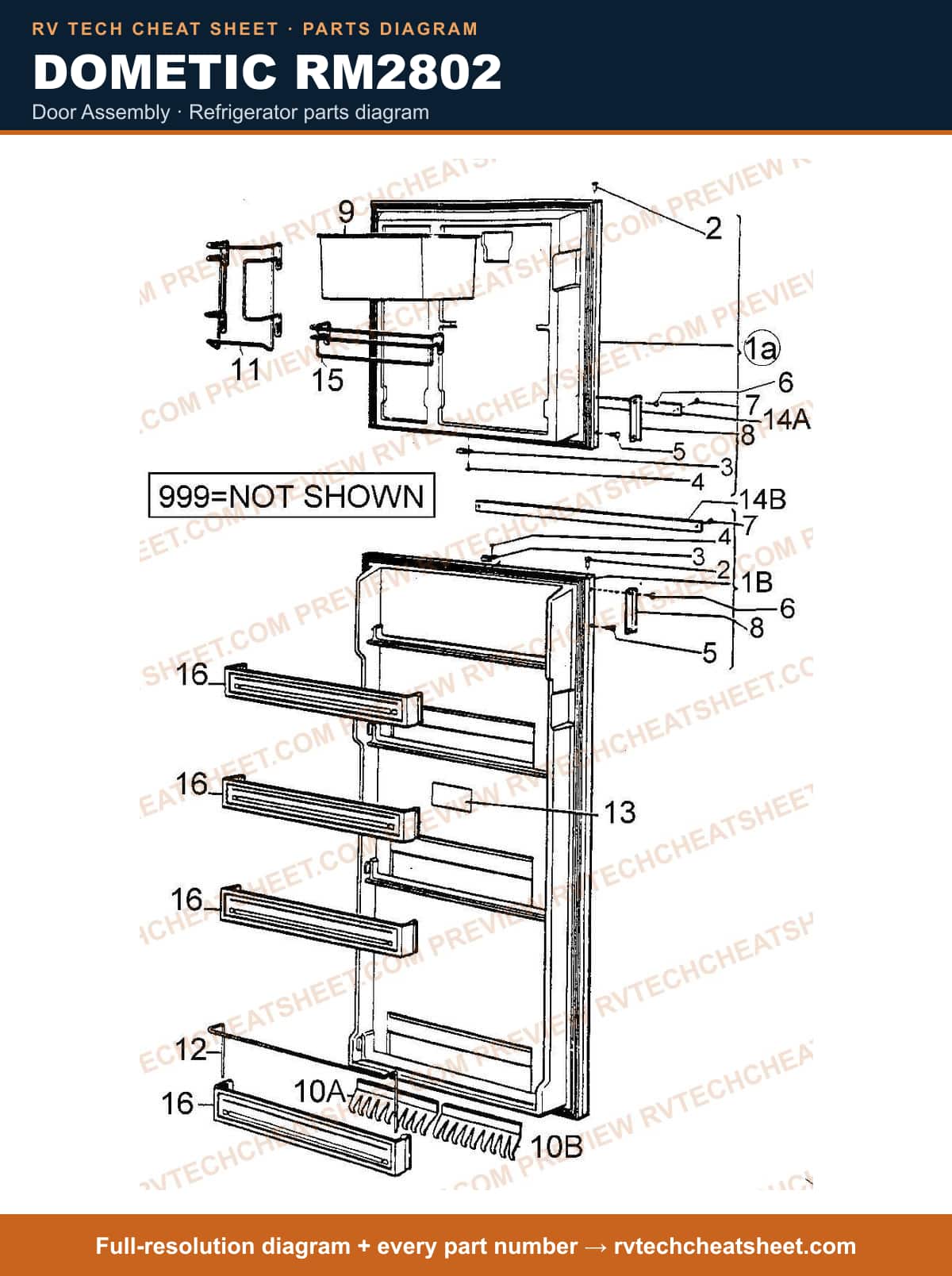

Door Assembly

Components

26 items

1. #Refrigerator Door; Use With Dometic Refrigerator Models RM2801/ RM2802/ RM2803; Lower MFR # 2930929142 Superseded: see description
2. #Gasket Kit Use 3103690008D Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008 Superseded: see description
3. #DOOR, UPPER MFR # 2930930132
4. #Gasket Kit (100) Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008D
5. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
6. #CATCH, RETAINER MFR # 2931093013
7. #APPLIANCE COMPONENTS RV; RETAINER, CATCH MFR # 2931093021
8. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
9. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
10. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
11. #ICEBOX CTR USE 2930536020 MFR # 2006136069 Superseded: see description
12. #BOX, ICE WHITE MFR # 2930536020
13. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
15. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
16. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
17. #RACK, WIRE MFR # 2007040005
18. #APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009
19. #APPLIANCE COMPONENTS RV; Strip Decoration Upper MFR # 2930640517
20. #APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2930640483
21. #SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description
22. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
23. #RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
25. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136

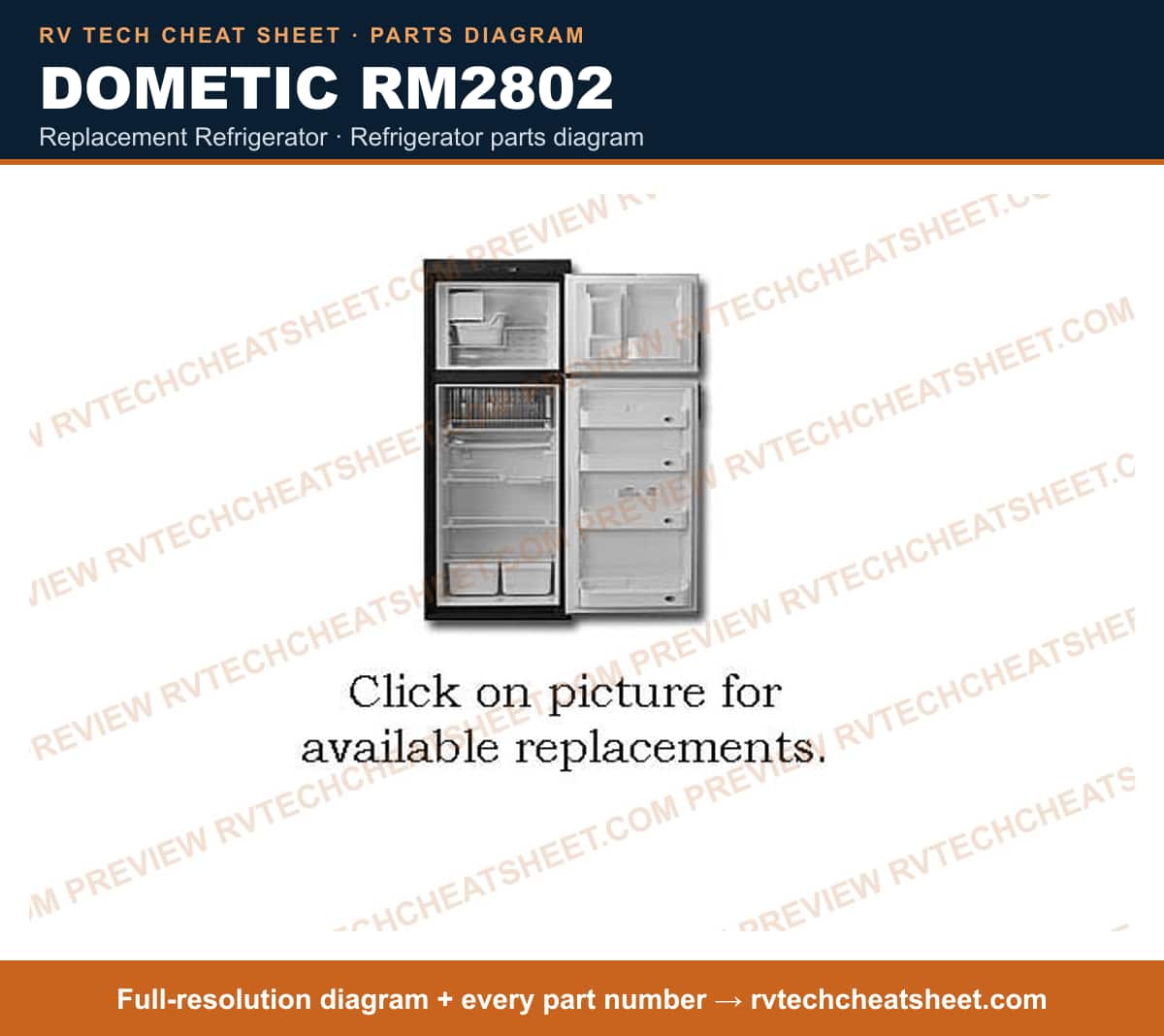

Replacement Refrigerator

Components

2 items

1. #RECON REFER 8 CU FT 2WAY MFR # RM2820R
2. #Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N

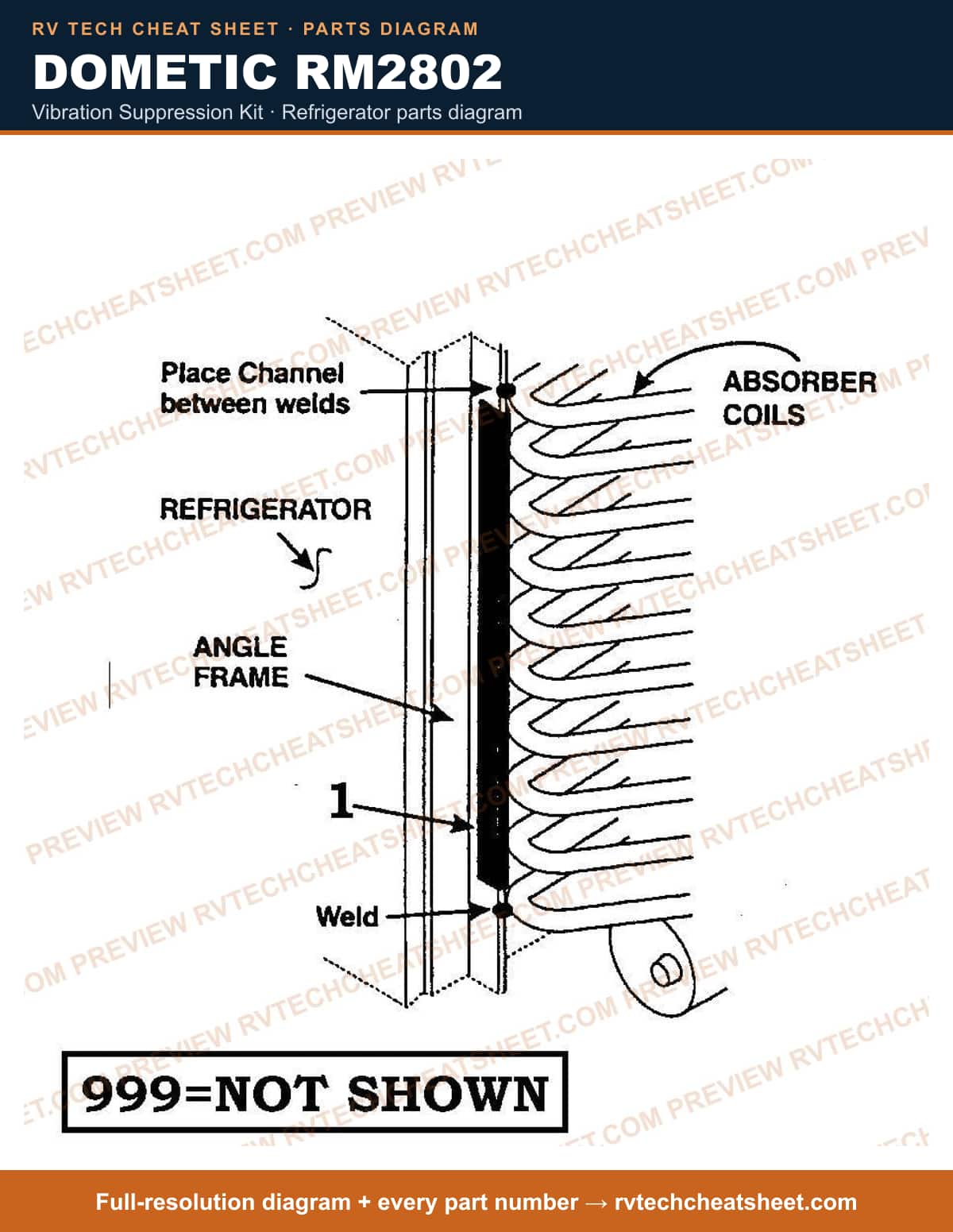

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

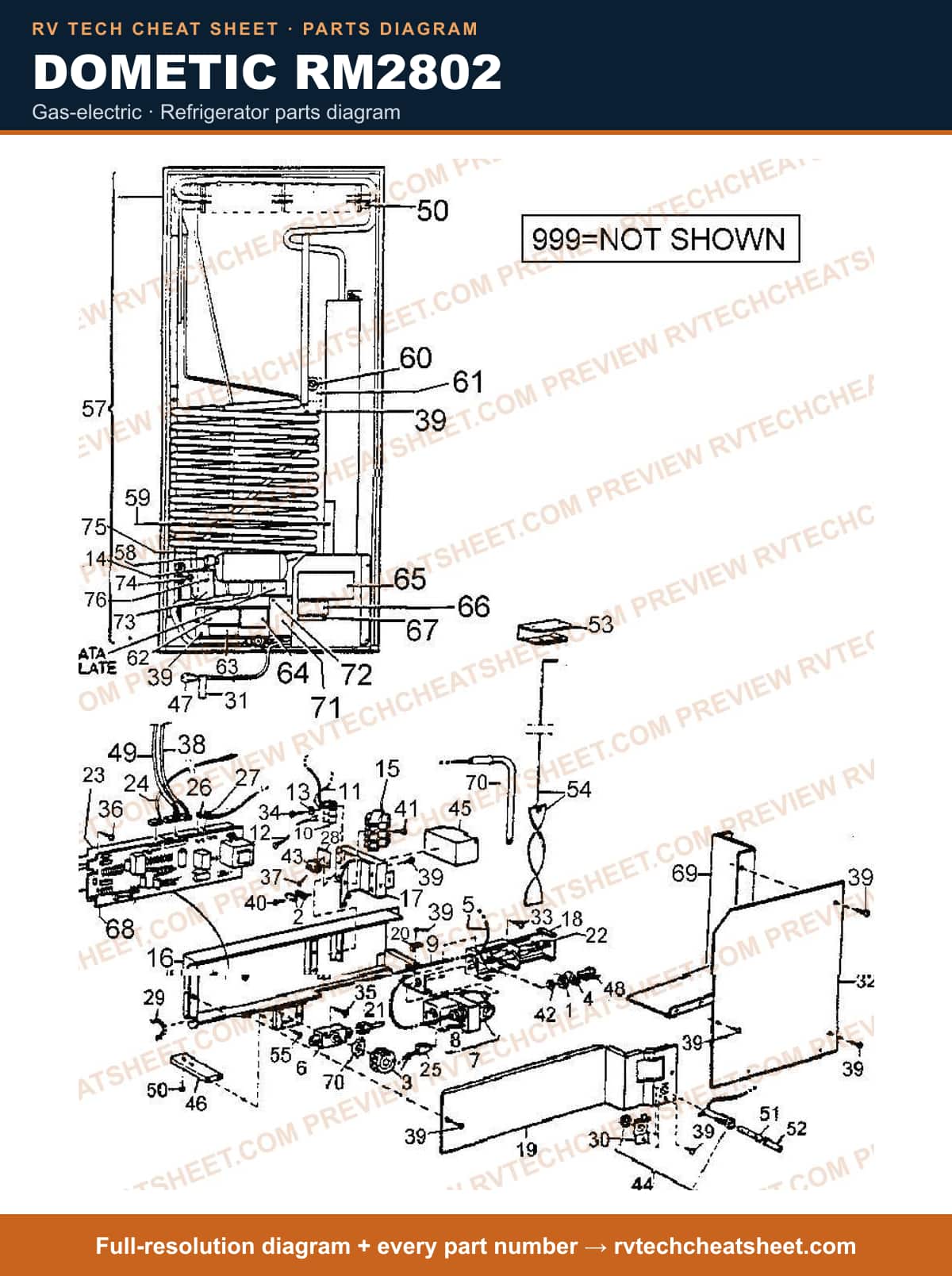

Gas-electric

Components

65 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
3. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
4. #NOT A SELLABLE PART MFR # ??
5. #BOARD, MODULE MFR # 3106375015
6. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
8. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
10. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
11. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
12. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
13. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Coil Solenoid Only MFR # 2007715010
15. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
16. #THERMOCOUPLE (350MM) MFR # 2931496091
17. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
18. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
19. #Thermocouple MFR # 2931496091MC
20. #BOX, COMPONENT MFR # 2930642042
21. #APPLIANCE COMPONENTS RV; Box Complete Use 29306420 MFR # 2930642034 Superseded: see description
22. #RETAINER MFR # 2930648015
23. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
24. #COVER MFR # 2930653015
25. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
26. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
27. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
28. #Refrigerator Insulation; Use With Dometic RM3804/4804/2802 Series Refrigerators MFR # 2931052019 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
30. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
31. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
32. #LEAD, 4 WIRE MFR # 2930783028
33. #HOLDER, FUSE MFR # 7628801230
34. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
35. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
36. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
37. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
38. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
39. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
40. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
41. #LEAD,10 WIRE MFR # 2930782095
42. #LEAD,WIRE USE 2930782095 10 PIN 7' LONG MFR # 2930782061 Superseded: see description
43. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
44. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
46. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066
47. #APPLIANCE COMPONENTS RV; Element Heating Use 48-9 MFR # 173742081 Superseded: see description
48. #ELEMENT, HEATING 120V 325W MFR # CS000022
49. #REMAN C/U USE 5528 MFR # 2934901097R Superseded: see description
50. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934901097N
51. #Refrigerator Cooling Unit; Use With Dometic RM2800/ RM2801/ RM2802/ RM2803/ RM2810/ RM3800/ RM3801/ RM3802/ RM3803/ RM3804 Model Refrigerators MFR # 5528 Superseded: see description
52. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
53. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
54. #Drain Pan; Especially For Splendide Appliances MFR # P26
55. #BOARD, CIRCUIT USE 2931308015 MFR # 87500350266 Superseded: see description
56. #Refrigerator Interface Circuit Board; Replacement Control Board For Dometic Refrigerators; AC/ DC/ Gas Operation MFR # MICROP246
57. #APPLIANCE COMPONENTS RV; Board Alternative Use P2 MFR # MICROP26 Superseded: see description
58. #BOARD, MODULE 3W USE 3108705272 MFR # 2931308015 Superseded: see description
59. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
61. #TRAY, EVAPORATION MFR # 2931134015
62. #TRAY, EVAP. MFR # 2930950015
63. #APPLIANCE COMPONENTS RV; Spillway MFR # 2930951013
64. #Refrigerator Drain Tube; Replacement For Dometic RM2801/ RM2802 Model Refrigerators MFR # 2930952011
65. #CLAMP 2800 ,3601,4801 MFR # 2930953019
