Dometic RM2803 Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 171 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2803 RV refrigerator: 5 assemblies (Door Assembly, Gas-electric, Vibration Suppression Kit, Cabinet Assembly, Replacement Refrigerator) and 171 manufacturer part numbers. 55 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

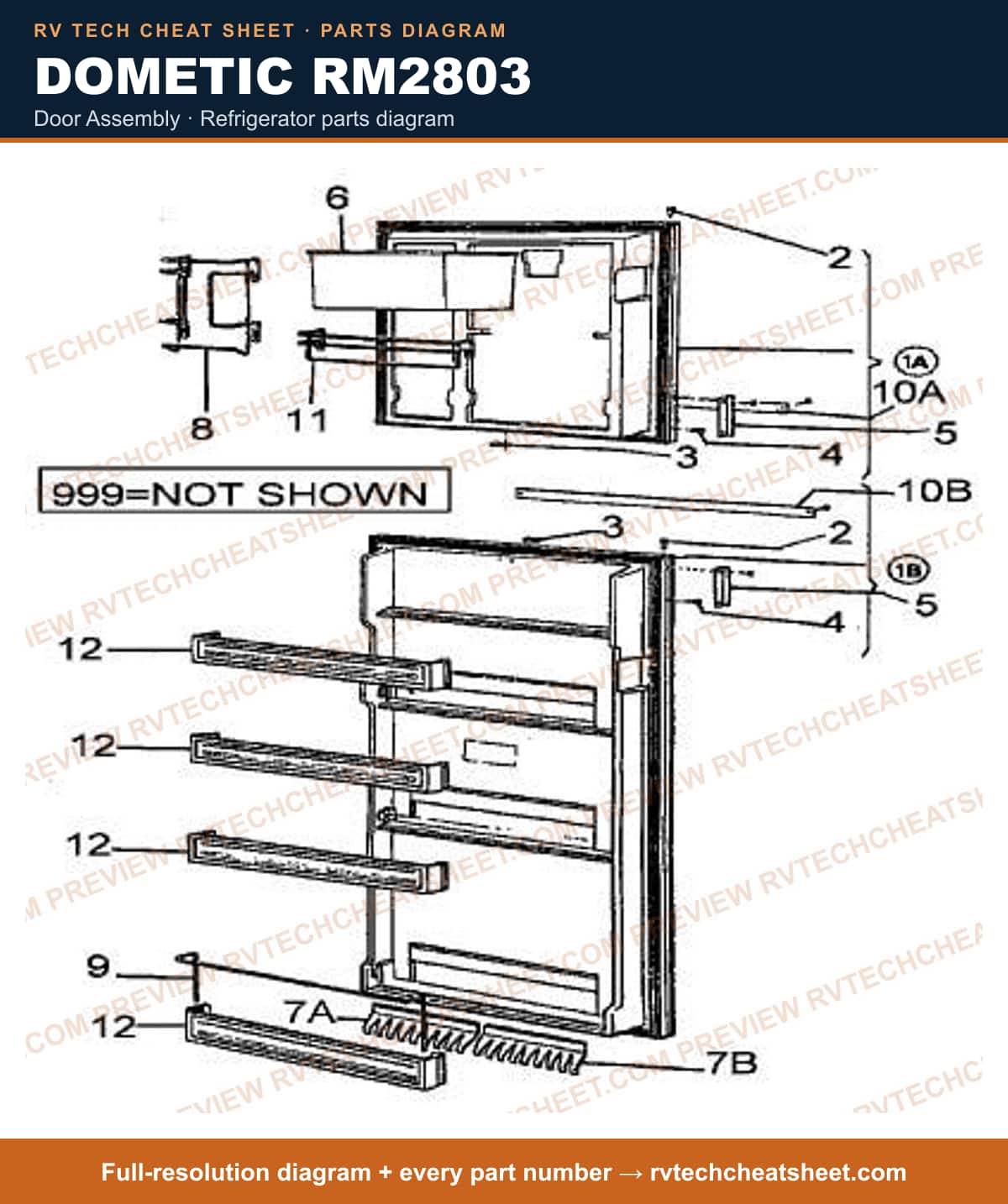

Door Assembly

Components

24 items

1. #Refrigerator Door; Use With Dometic Refrigerator Models RM2801/ RM2802/ RM2803; Lower MFR # 2930929142 Superseded: see description
2. #DOOR, UPPER MFR # 2930930132
3. #Gasket Kit (100) Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008D
4. #Gasket Kit Use 3103690008D Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
6. #CATCH, RETAINER MFR # 2931093013
7. #APPLIANCE COMPONENTS RV; RETAINER, CATCH MFR # 2931093021
8. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
10. #BOX, ICE WHITE MFR # 2930536020
11. #Box, Ice Center Use 2930536020. Look At Inventory In All W/H's On This Part Before Using Use #. This Is Smoke Colored And The Use # Is White. Offer Customer Their Choice Of Color. MFR # 2930536004 Superseded: see description
12. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
13. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
14. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
16. #RACK, WIRE MFR # 2007040005
17. #APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009
18. #STRIP, DECORATION MFR # 2930640533
19. #APPLIANCE COMPONENTS RV; Strip Decoration Upper MFR # 2930640517
20. #SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
22. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
23. #RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136

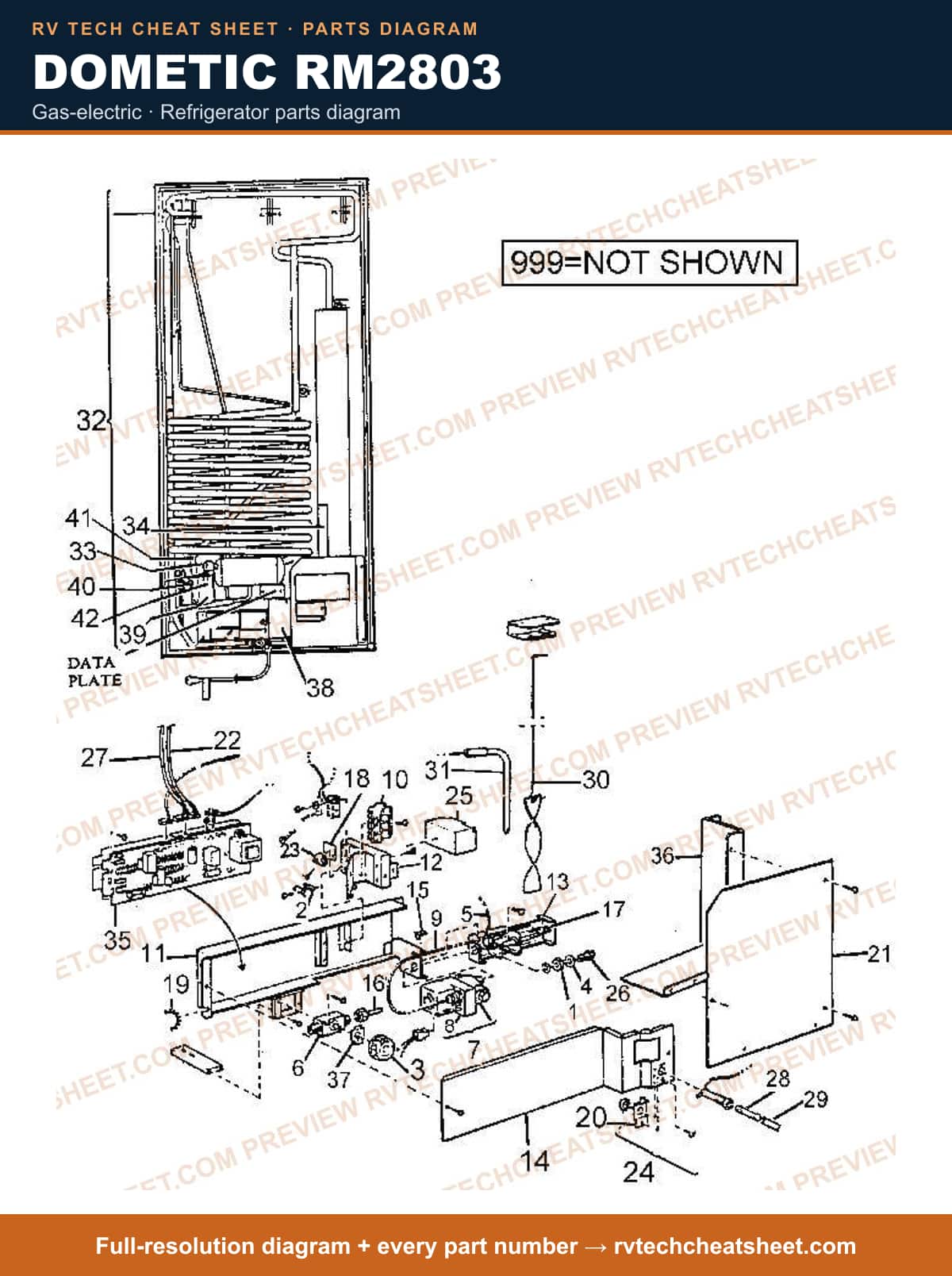

Gas-electric

Components

69 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
3. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
4. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
5. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
6. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
7. #BOARD, MODULE MFR # 3106375015
8. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
9. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
11. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
12. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Coil Solenoid Only MFR # 2007715010
14. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
15. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
16. #THERMOCOUPLE (350MM) MFR # 2931496091
17. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
19. #BLOCK, TERMINAL USE 2930463001 MFR # 7627203560 Superseded: see description
20. #BOX, COMPONENT MFR # 2930642042
21. #APPLIANCE COMPONENTS RV; Box Complete Use 29306420 MFR # 2930642034 Superseded: see description
22. #RETAINER MFR # 2930648015
23. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
24. #COVER MFR # 2930653015
25. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
26. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
27. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
28. #Refrigerator Insulation; Use With Dometic RM3804/4804/2802 Series Refrigerators MFR # 2931052019 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
30. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
31. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
32. #LEAD, 4 WIRE MFR # 2930783028
33. #Block Terminal Small 3 Poi MFR # 7627202562
34. #HOLDER, FUSE MFR # 7628801230
35. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
36. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
37. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
38. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
39. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
40. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
41. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
42. #LEAD,WIRE USE 2930782095 10 PIN 7' LONG MFR # 2930782061 Superseded: see description
43. #LEAD,10 WIRE MFR # 2930782095
44. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
45. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
46. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
47. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066
48. #ELEMENT, HEATING 120V 325W MFR # CS000022
49. #APPLIANCE COMPONENTS RV; Element Heating Use 48-9 MFR # 173742081 Superseded: see description
50. #REMAN C/U USE 5528 MFR # 2934901097R Superseded: see description
51. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934901097N
52. #Refrigerator Cooling Unit; Use With Dometic RM2800/ RM2801/ RM2802/ RM2803/ RM2810/ RM3800/ RM3801/ RM3802/ RM3803/ RM3804 Model Refrigerators MFR # 5528 Superseded: see description
53. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
54. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
55. #APPLIANCE COMPONENTS RV; Board Alternative Use P2 MFR # MICROP26 Superseded: see description
56. #BOARD, MODULE 3W USE 3108705272 MFR # 2931308015 Superseded: see description
57. #Refrigerator Interface Circuit Board; Replacement Control Board For Dometic Refrigerators; AC/ DC/ Gas Operation MFR # MICROP246
58. #Drain Pan; Especially For Splendide Appliances MFR # P26
59. #BOARD, CIRCUIT USE 2931308015 MFR # 87500350266 Superseded: see description
60. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
61. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
62. #APPLIANCE COMPONENTS RV; Protect Splash MFR # 2930810011
63. #TRAY, EVAPORATION MFR # 2931134015
64. #TRAY, EVAP. MFR # 2930950015
65. #APPLIANCE COMPONENTS RV; Spillway MFR # 2930951013
66. #Refrigerator Drain Tube; Replacement For Dometic RM2801/ RM2802 Model Refrigerators MFR # 2930952011
67. #CLAMP 2800 ,3601,4801 MFR # 2930953019
68. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
69. #DOMETIC ELECTRODE 663-763 MFR # 2930379009

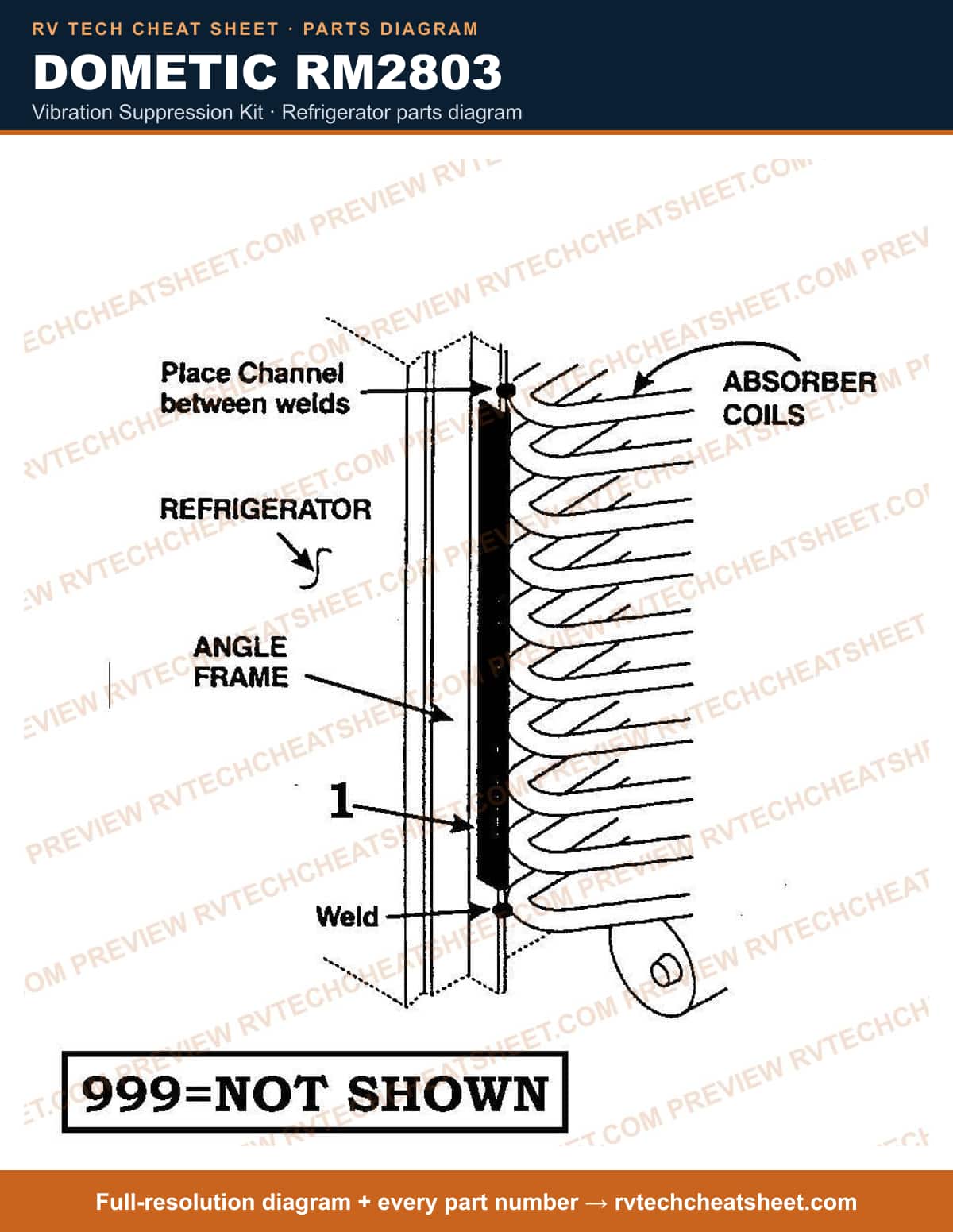

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

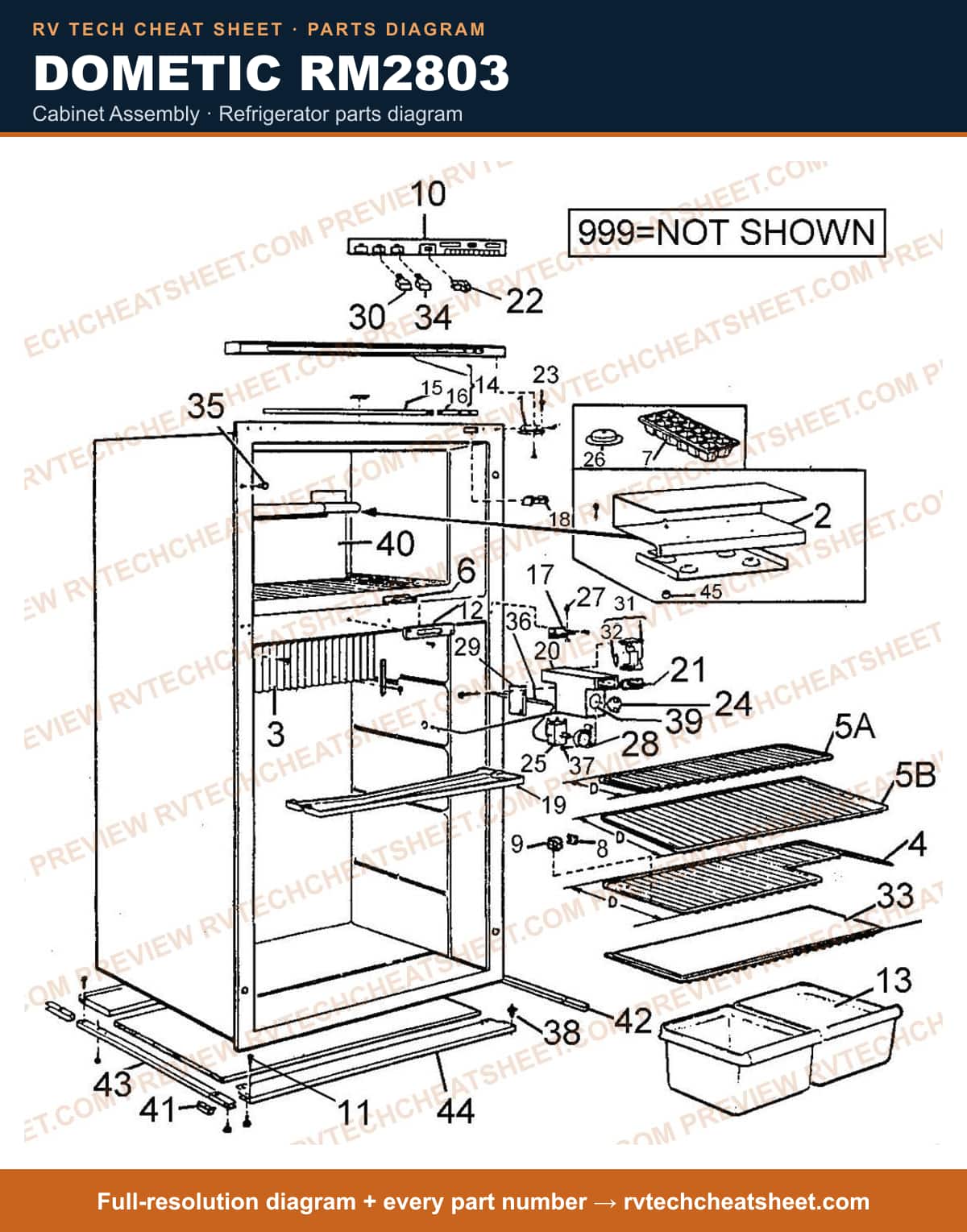

Cabinet Assembly

Components

65 items

1. #Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038
2. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
4. #SHELF 12" USE 2930133117 MFR # 2930133075 Superseded: see description
5. #SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
7. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
8. #LATCH, TRAVEL USE 2930706052 MFR # 2930706045 Superseded: see description
9. #Refrigerator Door Latch; Travel Latch; Replacement For Dometic RM2802/ RM2803/ RM3800 Refrigerators MFR # 2930706052
10. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
11. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
12. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
13. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
15. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
16. #APPLIANCE COMPONENTS RV; Board Circuit MFR # 87500350274
17. #PLUG, FACE MFR # 2930740010
18. #APPLIANCE COMPONENTS RV; Plug Gray/Brown4 MFR # 2930740036
19. #HOUSING, CATCH GREY/BROWN MFR # 2930707050
20. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
21. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
22. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
23. #TRIM, FRONT DECOR RM28 03 MFR # 2930983073
24. #STRIP, DECORATION MFR # 2930989013
25. #STRIP, DECORATION MFR # 2930986019
26. #APPLIANCE COMPONENTS RV; Hinge Upper Rm2603 MFR # 2930607011
27. #FERRULE RM3801/3601/2802 2603,2803,3501,2602 MFR # 2930824012
28. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
29. #COVER, CONTROLS USE 2004044091 MFR # 2004044075 Superseded: see description
30. #2004044091 MFR # 2004044091
31. #COVER, LIGHT SWITCH MFR # 2004044109
32. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
33. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
34. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
35. #APPLIANCE COMPONENTS RV; Key MFR # 2930982018
36. #Pin, Hinge Upper MFR # 2930612003
37. #Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RM2603 MFR # 2930625039 Superseded: see description
38. #KNOB, T-STAT USE 2930625039 MFR # 2930625021 Superseded: see description
39. #T-STAT, ELECTRIC USE 2930814021 MFR # 2930814013 Superseded: see description
40. #T-STAT USE 2930814021 MFR # K50P1336 Superseded: see description
41. #APPLIANCE COMPONENTS RV; T-Stat Electric MFR # 2930814021
42. #Refrigerator Thermostat Control Assembly; Use With Dometic Refrigerator Models RM2804/ RM3800/ RM3801 MFR # 2930814021MC Superseded: see description
43. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
44. #Refrigerator Door Hinge; Replacement For Dometic RM2803/ RM4801/ RM2601 Refrigerators; Fits Upper Door Side MFR # 2930613001
45. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
46. #SHADE, LAMP MFR # 2004043002
47. #Push Button Switch; On/ Off Switch; Middle; Panel Mount MFR # 2930980020
48. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
49. #BULB 2/PK MFR # 2007290006
50. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
51. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description
52. #SHELF,PLASTIC USE 2931117051 MFR # 2931117036 Superseded: see description
53. #Refrigerator Control Knob; For Use With Dometic RM2602/ RM2603/ RM2802/ RM2803/ RM3501/ RM3601/ RM3801 And RM4801 Refrigerator Models; Push Button MFR # 2930980038 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Plug Masking MFR # 2930132051
55. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
56. #PIN,RETAINING MFR # 2001281019
57. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
58. #INDEX MFR # 2001354022
59. #APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015
60. #GABLE, RH GREY/BROWN RM28 03, 2603 MFR # 2930604018
61. #GABLE, LH MFR # 2930603010
62. #Refrigerator Support Rail; Replacement For Dometic RM3501/ RM3800/ RM2603 Refrigerators; Right Hand Side MFR # 2930602004
63. #Refrigerator Support Rail; Replacement For Dometic RM3801/ RM2603/ RM3800 Refrigerators; Left Hand Side MFR # 2930601006
64. #BASE FRONT GREY/BROWN 4 2803 MFR # 2930600032
65. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000

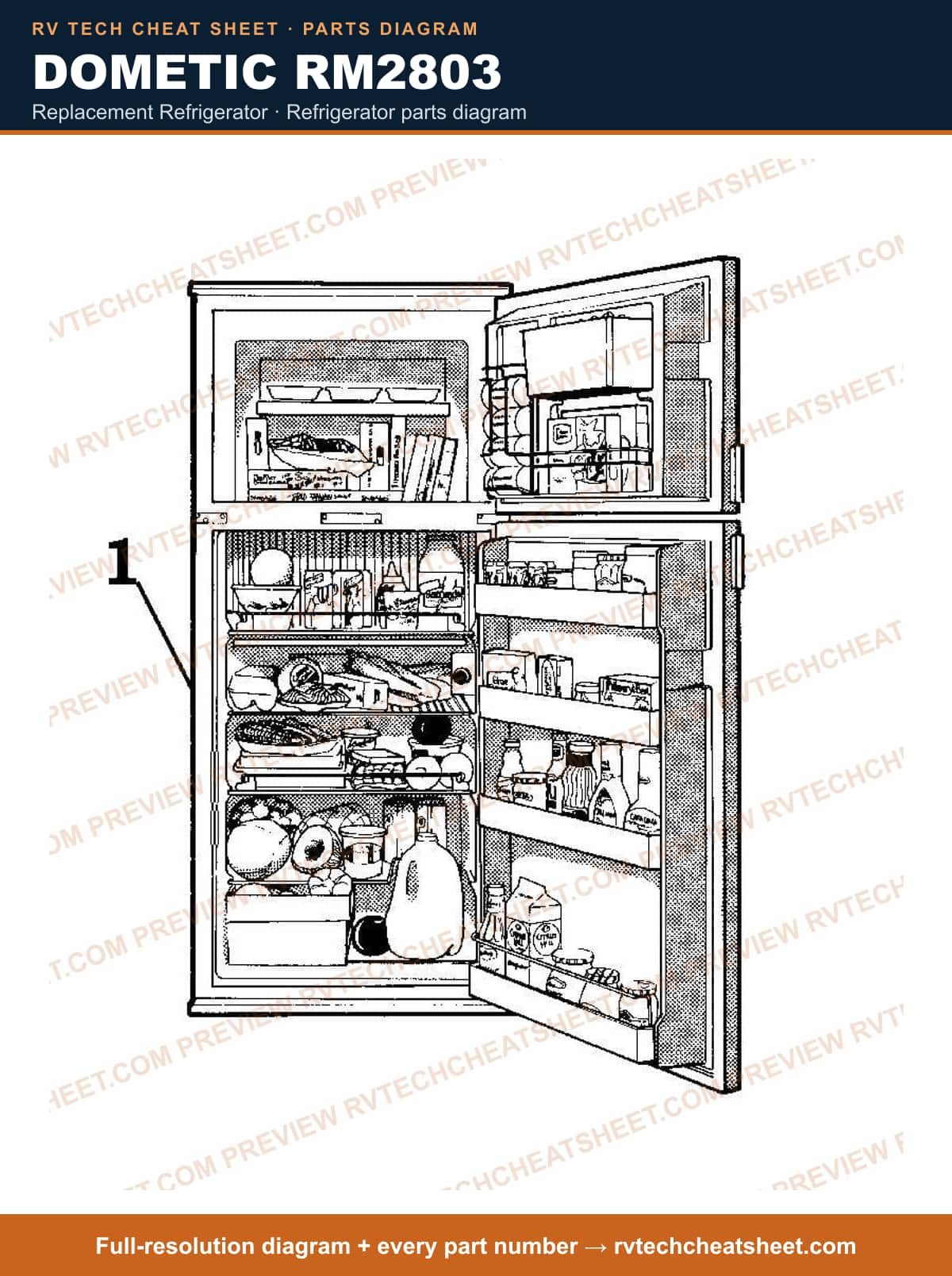

Replacement Refrigerator

Components

12 items

1. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N841IMSS
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
3. #REFER,8 CU FT 3-WAY WHITE 59 7/8"H X 23 1/2"W X 24"D MFR # N8413WH
4. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841SSR
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N841IMBK
6. #REFER,8CUFT BEIGE USE RM3862BN MFR # RM3862N Superseded: see description
7. #Refrigerator / Freezer; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Ft MFR # N8413SS
8. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N8413BK
9. #REFER,8 CU.FT USE RM2852B 2-WAY BEIGE MFR # RM2852N Superseded: see description
10. #Refer, 7.5 Cu Ft W/IM 59 7/8"H X 29 1/2"W X 24"D MFR # N841IMWH
11. #REFER, 10 CU FT 2 WAY BLACK 59 15/16" X 23 11/16" X 24" MFR # NDR1062BN
12. #Refer, 8 Cu Ft Use RM2862B 59 15/16" x 23 11/16" MFR # RM3862BN Superseded: see description
