Diagrams › Dometic › RM2811 3 Way Refrigerator Dometic RM2811 3 Way Refrigerator Parts Diagram · Product # 921592301 › Burner & Controls
Refrigerator · 53 assemblies · 53 diagram sheets · 227 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM2811 3 Way Refrigerator RV refrigerator: 53 assemblies (Product # 921592301 › Burner & Controls, Product # 921595201 › Cabinet Rear View, Product # 921592101 › Door Assembly, Product # 921594101 › Cabinet Front View, Product # 921591201 › Replacement Refrigerator and more) and 227 manufacturer part numbers. 62 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Product # 921592301 › Burner & Controls
Dometic RM2811 3 Way Refrigerator product # 921592301 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 70 items # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # BOARD, 3-WAY USE 2931843037 MFR # 2931843029 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # S,COVER,LESS DECALS MFR # 2931858019 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # 3858022019 MFR # 3858022019 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # SCREW, RXS. B6 X L9, STAINLESS (2 REQ.) MFR # 729528402 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
Product # 921595201 › Cabinet Rear View
Dometic RM2811 3 Way Refrigerator product # 921595201 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 21 items # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # REMAN C/U USE 5587 (UPS) RM2807/11 MFR # 2934903093R Superseded: see description # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # LABEL, IMPORTANT MFR # 2007689009 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description # HOSE,DRAIN (725MM) MFR # 2931578054 # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
Product # 921592101 › Door Assembly
Dometic RM2811 3 Way Refrigerator product # 921592101 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115 # Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268 # DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117 # GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description # S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023 # STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description # SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description # S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038 # SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # LABEL, WARNING FOR DOOR MFR # 2931620005
Product # 921594101 › Cabinet Front View
Dometic RM2811 3 Way Refrigerator product # 921594101 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 75 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # PLATE, MOUNTING 3-WAY MFR # 955000104 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description # BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description # BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description # Refrigerator Trim; Use With Dometic Refrigerator Model RM3807; Top MFR # 2931865113 Superseded: see description # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # Appliance Components RV MFR # 2931289017 # APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011 # SWITCH,CLIMATE CONTROL (300) MFR # 19011103 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # BRACKET, MOUNTING RH MFR # 2932125012 # BRACKET, MOUNTING LH MFR # 2932125020 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012 # S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020 # S,HINGE PIN,MID,25MM MFR # 2931287011 # Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014 # Refrigerator Trim; Replacement For Dometic RM3807/ RM2820/ RM2812 Refrigerators; Front Lower MFR # 2932112044 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # DECAL MFR # 2932165000 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description # SOCKET, LAMP; Use 2932523018 on Models RM4872 & RM4873 MFR # 2932107010 Superseded: see description # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012 # BULB 2/PK MFR # 2007290006 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # DECAL 2 WAY MFR # 2931882001 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model RM2807 2 Way MFR # 2932266014 Superseded: see description
Product # 921591201 › Replacement Refrigerator
Dometic RM2811 3 Way Refrigerator product # 921591201 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN # Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N # REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N
Product # 921591101 › Replacement Refrigerator
Dometic RM2811 3 Way Refrigerator product # 921591101 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN # Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N # REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N

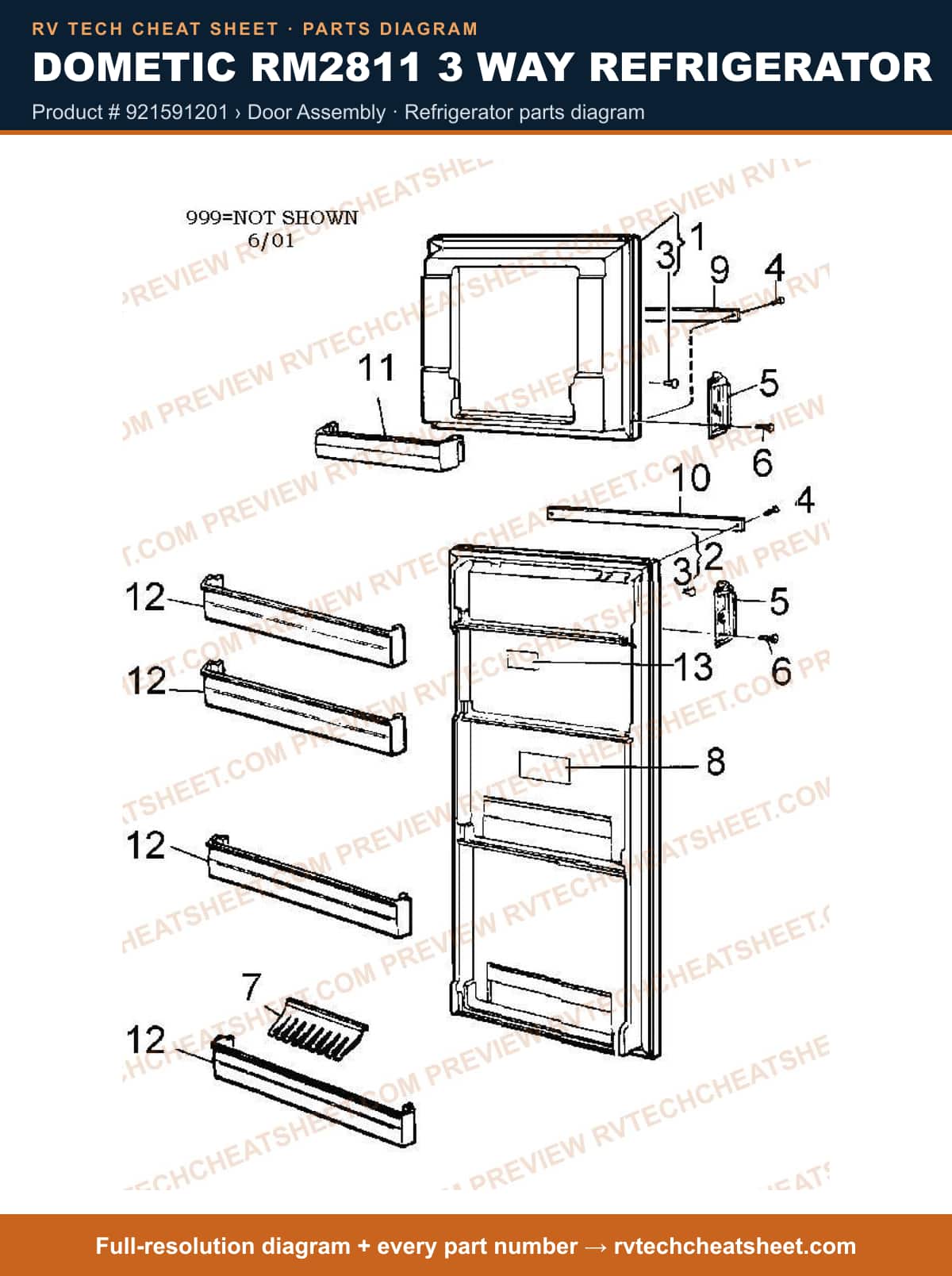

Product # 921591201 › Door Assembly
Dometic RM2811 3 Way Refrigerator product # 921591201 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115 # GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description # Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268 # DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description # S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023 # STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description # SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description # S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038 # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description # LABEL, WARNING FOR DOOR MFR # 2931620005
Product # 921591201 › Burner & Controls
Dometic RM2811 3 Way Refrigerator product # 921591201 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 70 items # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # BOARD, 3-WAY USE 2931843037 MFR # 2931843029 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # S,COVER,LESS DECALS MFR # 2931858019 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # SCREW, RXS. B6 X L9, STAINLESS (2 REQ.) MFR # 729528402 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
Product # 921595301 › Replacement Refrigerator
Dometic RM2811 3 Way Refrigerator product # 921595301 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N # REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN # REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N

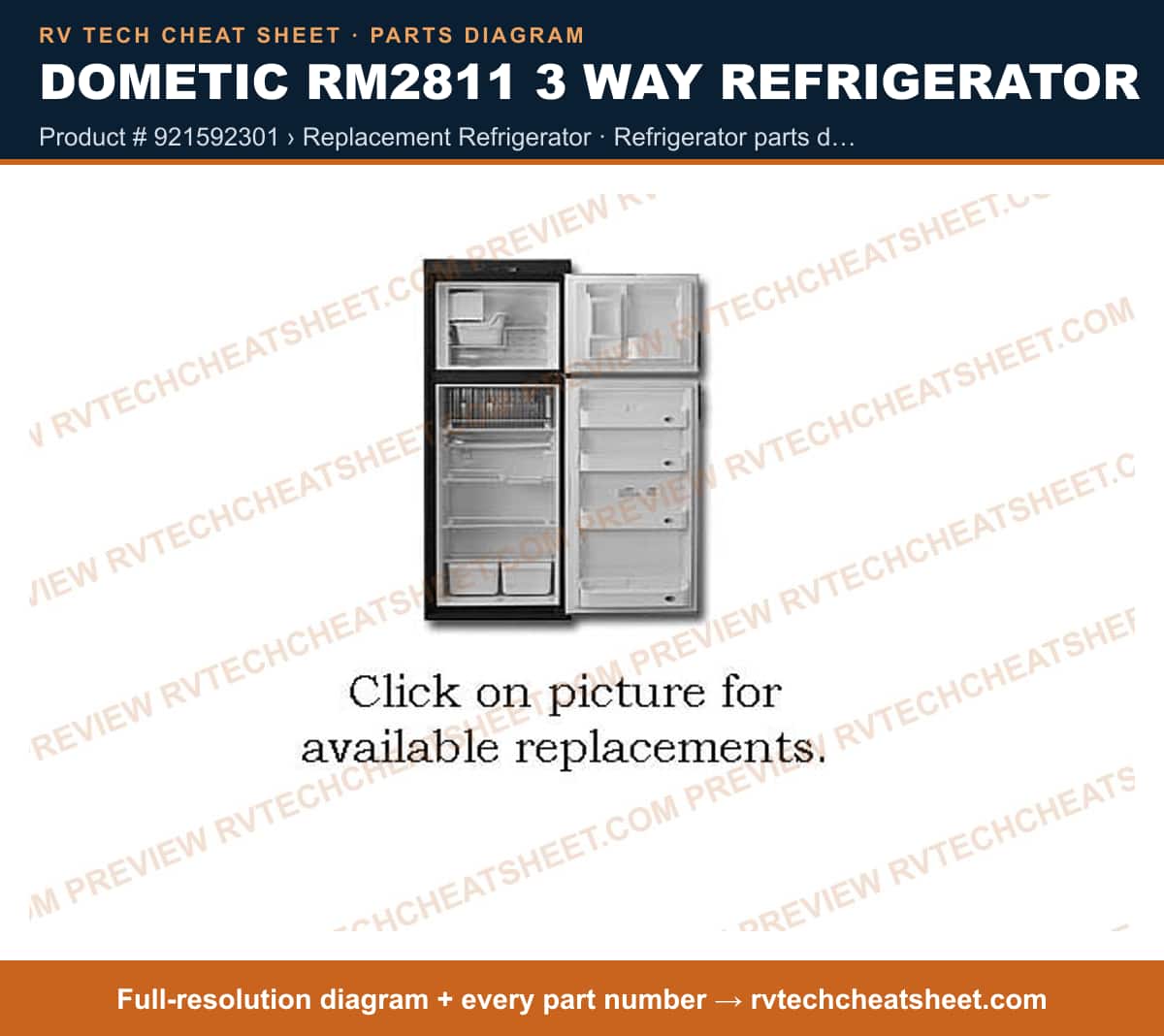

Product # 921592301 › Replacement Refrigerator
Dometic RM2811 3 Way Refrigerator product # 921592301 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N # REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN # REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N
Product # 921592001 › Cabinet Front View
Dometic RM2811 3 Way Refrigerator product # 921592001 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 69 items # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # DECAL, 3-WAY MFR # 2931883009 # PARTS BAG RM26 11/2811 MFR # 2931610048 # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # PLATE, MOUNTING 3-WAY MFR # 955000104 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description # BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # Appliance Components RV MFR # 2931289017 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # DECAL,ON/OFF SWITCH MFR # 2931877001 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061 # BASE,FRONT USE 2931282061 RM3807 MFR # 2931282087 Superseded: see description # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # SWITCH,CLIMATE CONTROL (300) MFR # 19011103 # APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015
Product # 921595201 › Door Assembly
Dometic RM2811 3 Way Refrigerator product # 921595201 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 18 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115 # DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117 # GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description # Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description # STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description # SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description # S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038 # SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # LABEL, WARNING FOR DOOR MFR # 2931620005
Product # 921591901 › Replacement Refrigerator
Dometic RM2811 3 Way Refrigerator product # 921591901 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N # Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N # REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN
Product # 921591101 › Cabinet Rear View
Dometic RM2811 3 Way Refrigerator product # 921591101 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 21 items # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # REMAN C/U USE 5587 (UPS) RM2807/11 MFR # 2934903093R Superseded: see description # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # LABEL, IMPORTANT MFR # 2007689009 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # HOSE,DRAIN (725MM) MFR # 2931578054 # TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
Product # 921591901 › Door Assembly
Dometic RM2811 3 Way Refrigerator product # 921591901 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115 # DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117 # GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description # Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description # S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023 # STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description # S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038 # SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description # SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # LABEL, WARNING FOR DOOR MFR # 2931620005
Product # 921592401 › Door Assembly
Dometic RM2811 3 Way Refrigerator product # 921592401 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115 # Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268 # GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description # DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # LABEL, INSTRUCTION MFR # 2002356000 # S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023 # APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description # STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description # S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038 # SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description # LABEL, WARNING FOR DOOR MFR # 2931620005
Product # 921591901 › Burner & Controls
Dometic RM2811 3 Way Refrigerator product # 921591901 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 67 items # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # NUT MFR # 2943286001 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # Label 12VDC MFR # 2931827006 # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # BOARD, 3-WAY USE 2931843037 MFR # 2931843029 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # S,COVER,LESS DECALS MFR # 2931858019 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # SCREW, RXS. B6 X L9, STAINLESS (2 REQ.) MFR # 729528402 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
Product # 921592101 › Cabinet Rear View
Dometic RM2811 3 Way Refrigerator product # 921592101 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 21 items # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # REMAN C/U USE 5587 (UPS) RM2807/11 MFR # 2934903093R Superseded: see description # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # LABEL, IMPORTANT MFR # 2007689009 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description # HOSE,DRAIN (725MM) MFR # 2931578054 # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
Product # 921594001 › Cabinet Rear View
Dometic RM2811 3 Way Refrigerator product # 921594001 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 20 items # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # REMAN C/U USE 5587 (UPS) RM2807/11 MFR # 2934903093R Superseded: see description # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # LABEL, IMPORTANT MFR # 2007689009 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description # HOSE,DRAIN (725MM) MFR # 2931578054 # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
Product # 921591901 › Cabinet Rear View
Dometic RM2811 3 Way Refrigerator product # 921591901 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 21 items # REMAN C/U USE 5587 (UPS) RM2807/11 MFR # 2934903093R Superseded: see description # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # LABEL, IMPORTANT MFR # 2007689009 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description # HOSE,DRAIN (725MM) MFR # 2931578054 # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description

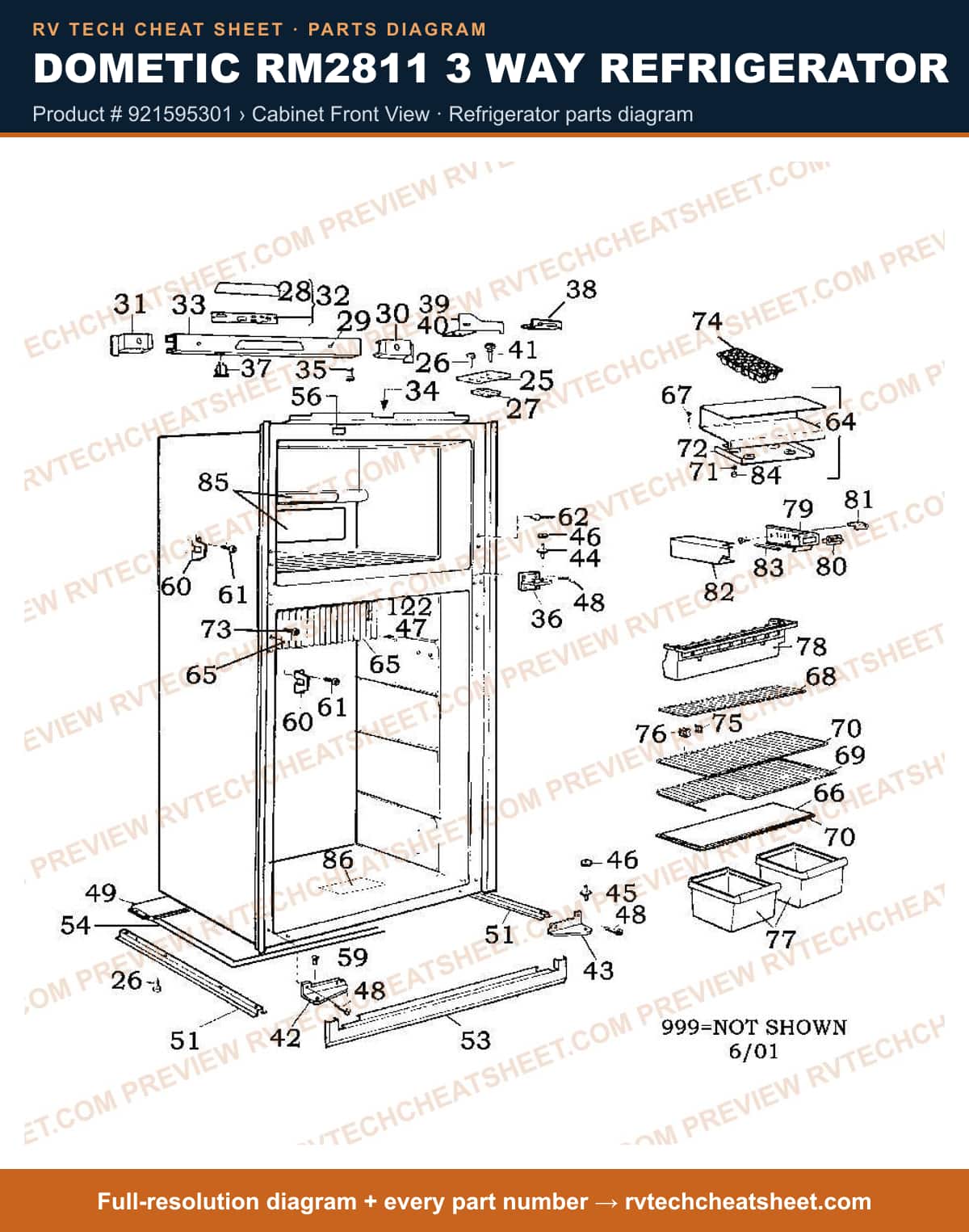

Product # 921595301 › Cabinet Front View
Dometic RM2811 3 Way Refrigerator product # 921595301 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 72 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # PLATE, MOUNTING 3-WAY MFR # 955000104 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description # BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description # Refrigerator Trim; Use With Dometic Refrigerator Model RM3807; Top MFR # 2931865113 Superseded: see description # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # Appliance Components RV MFR # 2931289017 # SWITCH,CLIMATE CONTROL (300) MFR # 19011103 # APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # BRACKET, MOUNTING RH MFR # 2932125012 # BRACKET, MOUNTING LH MFR # 2932125020 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012 # S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020 # S,HINGE PIN,MID,25MM MFR # 2931287011 # Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014 # Refrigerator Trim; Replacement For Dometic RM3807/ RM2820/ RM2812 Refrigerators; Front Lower MFR # 2932112044 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # DECAL MFR # 2932165000 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # SOCKET, LAMP; Use 2932523018 on Models RM4872 & RM4873 MFR # 2932107010 Superseded: see description # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # DECAL 2 WAY MFR # 2931882001 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model RM2807 2 Way MFR # 2932266014 Superseded: see description
Product # 921594001 › Replacement Refrigerator
Dometic RM2811 3 Way Refrigerator product # 921594001 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N # REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N # REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN

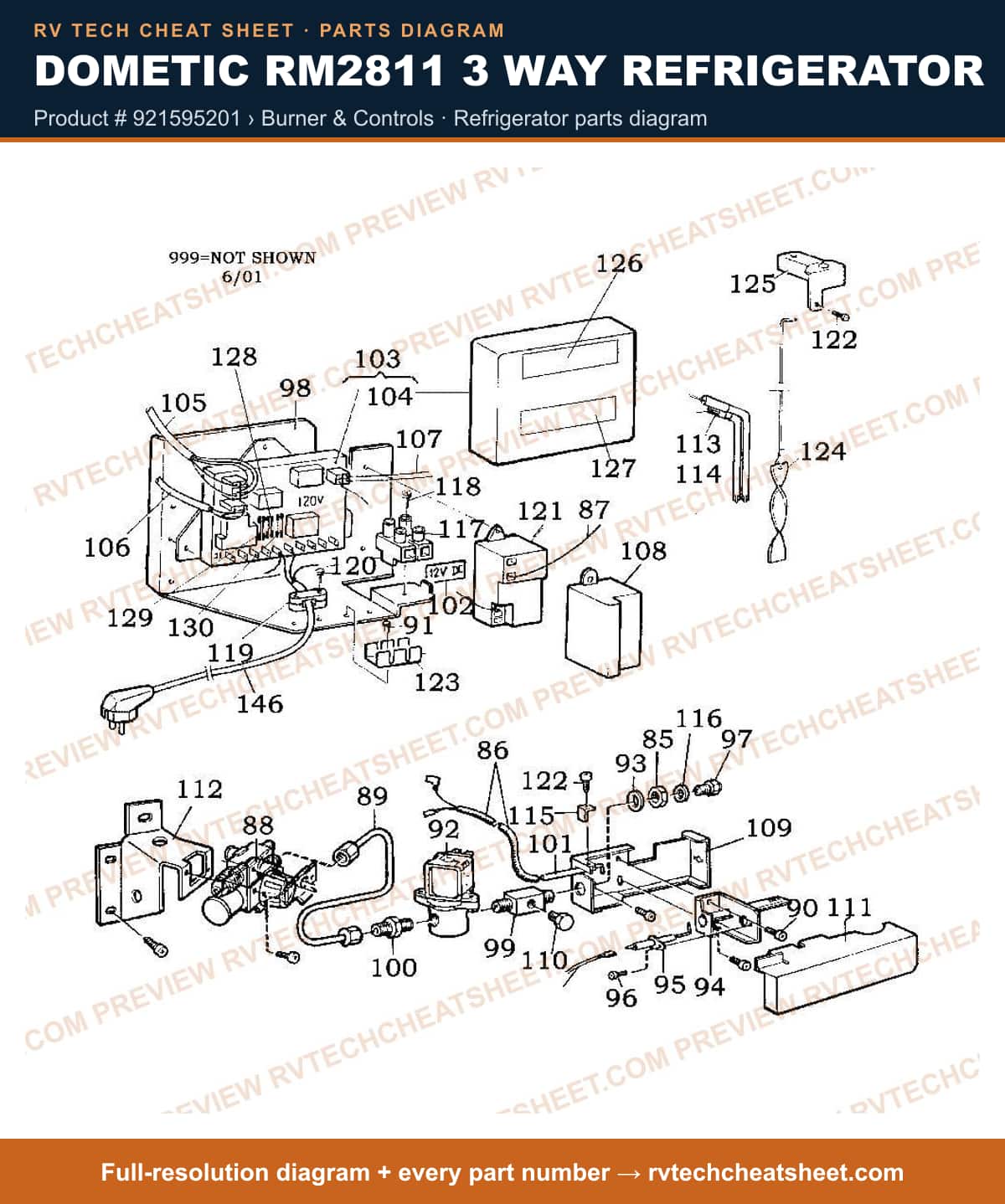

Product # 921595201 › Burner & Controls
Dometic RM2811 3 Way Refrigerator product # 921595201 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 71 items # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023 # Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # S,COVER,LESS DECALS MFR # 2931858019 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015 # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # Label 12VDC MFR # 2931827006 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # DOM REPLACEMENT BRD MFR # MICROP711 # Board, PC 3-Way Use 2932882018 Ames W. Cover MFR # 2931843045 Superseded: see description # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # CAP FLUE MFR # 2931540013 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # DECAL 3 - WAY MFR # 2932003003 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
Product # 921591901 › Cabinet Front View
Dometic RM2811 3 Way Refrigerator product # 921591901 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 66 items # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # DECAL, 3-WAY MFR # 2931883009 # PARTS BAG RM26 11/2811 MFR # 2931610048 # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # PLATE, MOUNTING 3-WAY MFR # 955000104 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description # BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # Appliance Components RV MFR # 2931289017 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # COVER, PLATE RM38 04 MFR # 2931282046 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # BRACKET,MOUNTING MFR # 2931298018
Product # 921591201 › Cabinet Front View
Dometic RM2811 3 Way Refrigerator product # 921591201 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 69 items # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # DECAL, 3-WAY MFR # 2931883009 # PARTS BAG RM26 11/2811 MFR # 2931610048 # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # PLATE, MOUNTING 3-WAY MFR # 955000104 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description # BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # Appliance Components RV MFR # 2931289017 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # DECAL,ON/OFF SWITCH MFR # 2931877001 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061 # BASE,FRONT USE 2931282061 RM3807 MFR # 2931282087 Superseded: see description # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # SWITCH,CLIMATE CONTROL (300) MFR # 19011103 # APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # S,STRIKE 9*35*24MM MFR # 2931511014 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015
Product # 921595301 › Burner & Controls
Dometic RM2811 3 Way Refrigerator product # 921595301 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 70 items # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023 # Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # BRACKET, MOUNTING MFR # 2931822015 # S,COVER,LESS DECALS MFR # 2931858019 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015 # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # Board, PC 3-Way Use 2932882018 Ames W. Cover MFR # 2931843045 Superseded: see description # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # 3858022019 MFR # 3858022019 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # CAP FLUE MFR # 2931540013 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # DECAL 3 - WAY MFR # 2932003003 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
Product # 921592401 › Replacement Refrigerator
Dometic RM2811 3 Way Refrigerator product # 921592401 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N # REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N # REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN
Product # 921592401 › Cabinet Rear View
Dometic RM2811 3 Way Refrigerator product # 921592401 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 21 items # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # REMAN C/U USE 5587 (UPS) RM2807/11 MFR # 2934903093R Superseded: see description # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # LABEL, IMPORTANT MFR # 2007689009 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # HOSE,DRAIN (725MM) MFR # 2931578054 # TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
Product # 921592301 › Door Assembly
Dometic RM2811 3 Way Refrigerator product # 921592301 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115 # GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description # DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117 # Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description # S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023 # STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description # S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038 # SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description # SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # LABEL, WARNING FOR DOOR MFR # 2931620005
Product # 921592401 › Burner & Controls
Dometic RM2811 3 Way Refrigerator product # 921592401 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 70 items # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # DOM REPLACEMENT BRD MFR # MICROP711 # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # BOARD, 3-WAY USE 2931843037 MFR # 2931843029 Superseded: see description # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # S,COVER,LESS DECALS MFR # 2931858019 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # 3858022019 MFR # 3858022019 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # SCREW, RXS. B6 X L9, STAINLESS (2 REQ.) MFR # 729528402 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015

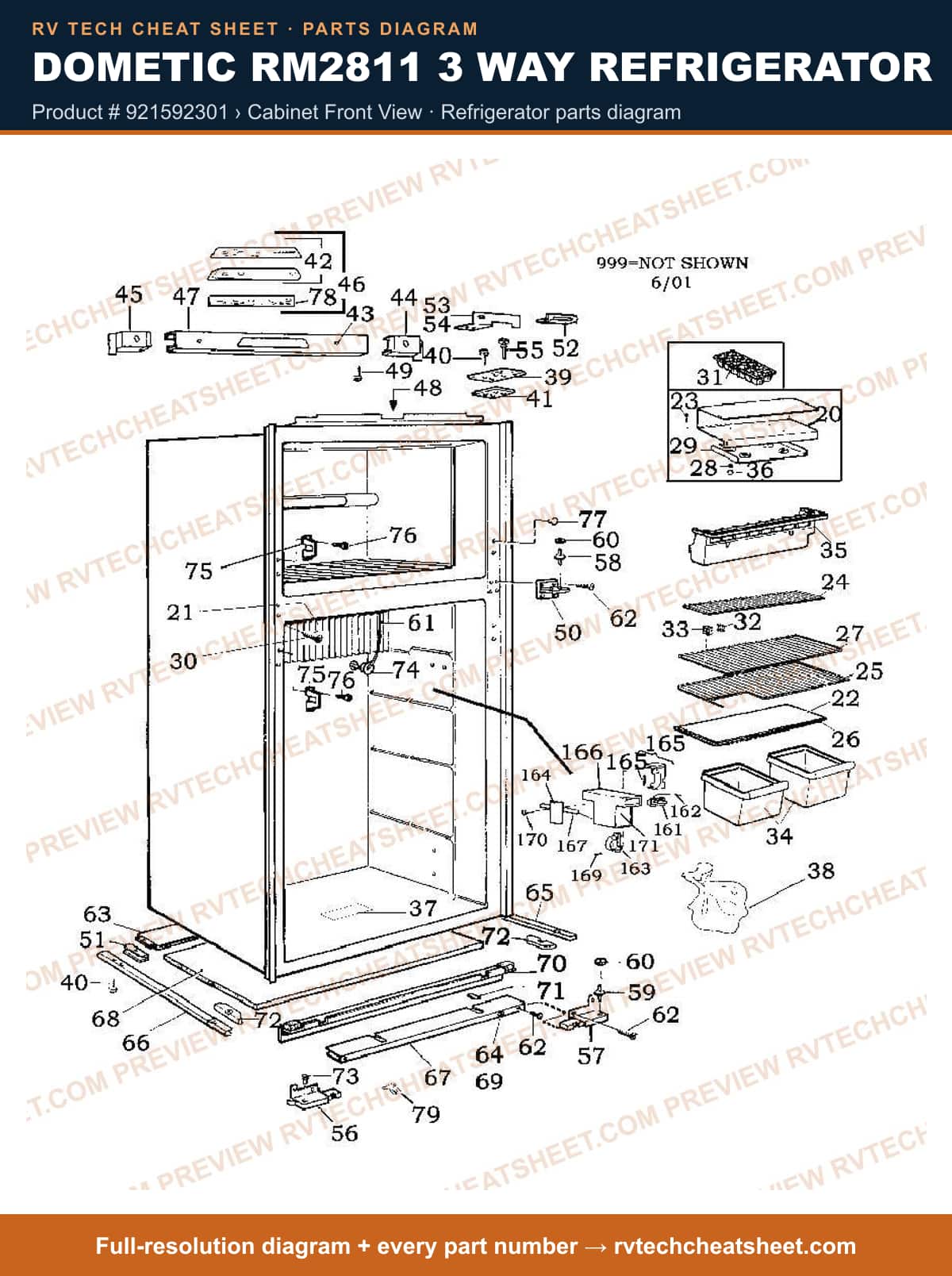

Product # 921592301 › Cabinet Front View
Dometic RM2811 3 Way Refrigerator product # 921592301 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 82 items # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # DECAL, 3-WAY MFR # 2931883009 # PARTS BAG RM26 11/2811 MFR # 2931610048 # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # PLATE, MOUNTING 3-WAY MFR # 955000104 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description # BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # Appliance Components RV MFR # 2931289017 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # DECAL,ON/OFF SWITCH MFR # 2931877001 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # BASE,FRONT USE 2931282061 RM3807 MFR # 2931282087 Superseded: see description # APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # SWITCH,CLIMATE CONTROL (300) MFR # 19011103 # APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # Lead T-Stat MFR # 2930735010 # RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004 # SHADE, LAMP MFR # 2004043002 # APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012 # BULB 2/PK MFR # 2007290006 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description # COVER, LIGHT SWITCH MFR # 2004044109 # 2004044091 MFR # 2004044091 # SCREW MFR # 7295283407 # Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015

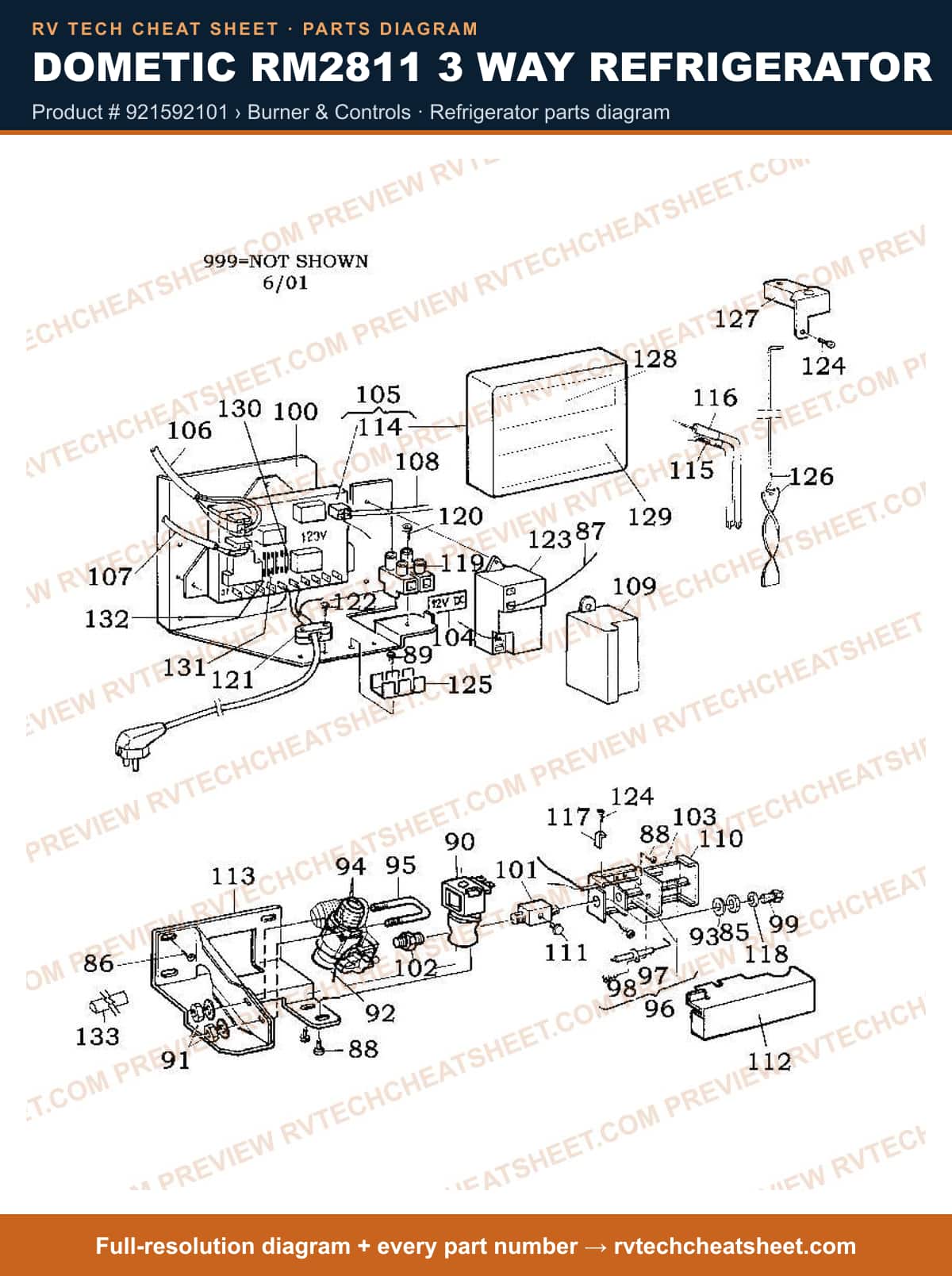

Product # 921592101 › Burner & Controls
Dometic RM2811 3 Way Refrigerator product # 921592101 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 70 items # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # BOARD, 3-WAY USE 2931843037 MFR # 2931843029 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # S,COVER,LESS DECALS MFR # 2931858019 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # SCREW, RXS. B6 X L9, STAINLESS (2 REQ.) MFR # 729528402 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
Product # 921592001 › Cabinet Rear View
Dometic RM2811 3 Way Refrigerator product # 921592001 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 21 items # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # REMAN C/U USE 5587 (UPS) RM2807/11 MFR # 2934903093R Superseded: see description # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # LABEL, IMPORTANT MFR # 2007689009 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # HOSE,DRAIN (725MM) MFR # 2931578054 # TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
Product # 921594101 › Cabinet Rear View
Dometic RM2811 3 Way Refrigerator product # 921594101 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 21 items # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # REMAN C/U USE 5587 (UPS) RM2807/11 MFR # 2934903093R Superseded: see description # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # LABEL, IMPORTANT MFR # 2007689009 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # HOSE,DRAIN (725MM) MFR # 2931578054 # TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description

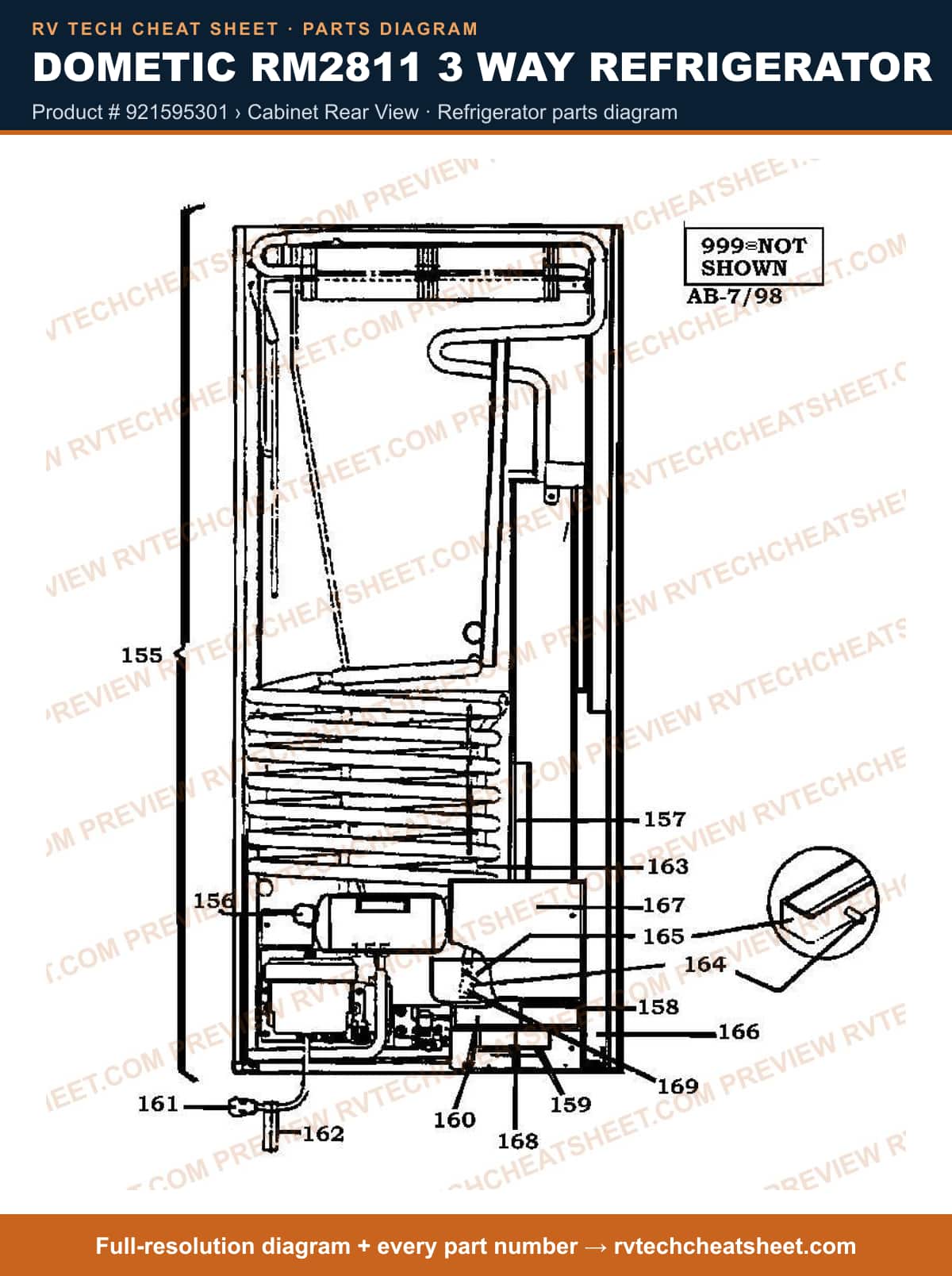

Product # 921595301 › Cabinet Rear View
Dometic RM2811 3 Way Refrigerator product # 921595301 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 19 items # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # LABEL, IMPORTANT MFR # 2007689009 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description # HOSE,DRAIN (725MM) MFR # 2931578054 # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
Product # 921595301 › Door Assembly
Dometic RM2811 3 Way Refrigerator product # 921595301 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115 # GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description # Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268 # DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description # S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023 # STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description # SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description # S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038 # SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # LABEL, WARNING FOR DOOR MFR # 2931620005
Product # 921595201 › Cabinet Front View
Dometic RM2811 3 Way Refrigerator product # 921595201 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 75 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # PLATE, MOUNTING 3-WAY MFR # 955000104 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description # BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description # Refrigerator Trim; Use With Dometic Refrigerator Model RM3807; Top MFR # 2931865113 Superseded: see description # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # Appliance Components RV MFR # 2931289017 # APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011 # SWITCH,CLIMATE CONTROL (300) MFR # 19011103 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # BRACKET, MOUNTING RH MFR # 2932125012 # BRACKET, MOUNTING LH MFR # 2932125020 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012 # S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020 # S,HINGE PIN,MID,25MM MFR # 2931287011 # Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014 # Refrigerator Trim; Replacement For Dometic RM3807/ RM2820/ RM2812 Refrigerators; Front Lower MFR # 2932112044 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # DECAL MFR # 2932165000 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description # SOCKET, LAMP; Use 2932523018 on Models RM4872 & RM4873 MFR # 2932107010 Superseded: see description # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012 # BULB 2/PK MFR # 2007290006 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # DECAL 2 WAY MFR # 2931882001 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model RM2807 2 Way MFR # 2932266014 Superseded: see description
Product # 921592001 › Burner & Controls
Dometic RM2811 3 Way Refrigerator product # 921592001 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 66 items # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # BOARD, 3-WAY USE 2931843037 MFR # 2931843029 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # S,COVER,LESS DECALS MFR # 2931858019 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # ELECTRODE, SPARK MFR # 2931012206 # BRACKET, GAS VALVE MFR # 2931141011 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
Product # 921594001 › Door Assembly
Dometic RM2811 3 Way Refrigerator product # 921594001 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115 # GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description # Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268 # DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # LABEL, INSTRUCTION MFR # 2002356000 # S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023 # APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description # STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description # SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description # S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038 # SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # LABEL, WARNING FOR DOOR MFR # 2931620005
Product # 921592001 › Door Assembly
Dometic RM2811 3 Way Refrigerator product # 921592001 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115 # Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268 # GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description # DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023 # APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description # STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description # SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description # S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038 # SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # LABEL, WARNING FOR DOOR MFR # 2931620005
Product # 921591101 › Burner & Controls
Dometic RM2811 3 Way Refrigerator product # 921591101 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 68 items # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # BOARD, 3-WAY USE 2931843037 MFR # 2931843029 Superseded: see description # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # DOM REPLACEMENT BRD MFR # MICROP711 # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # S,COVER,LESS DECALS MFR # 2931858019 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # SCREW, RXS. B6 X L9, STAINLESS (2 REQ.) MFR # 729528402 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
Product # 921591101 › Cabinet Front View
Dometic RM2811 3 Way Refrigerator product # 921591101 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 66 items # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # DECAL, 3-WAY MFR # 2931883009 # PARTS BAG RM26 11/2811 MFR # 2931610048 # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # PLATE, MOUNTING 3-WAY MFR # 955000104 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description # BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # Appliance Components RV MFR # 2931289017 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # COVER, PLATE RM38 04 MFR # 2931282046 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # BRACKET,MOUNTING MFR # 2931298018
Product # 921594101 › Door Assembly
Dometic RM2811 3 Way Refrigerator product # 921594101 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115 # DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117 # Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268 # GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description # S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023 # STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description # SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description # S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038 # SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # LABEL, WARNING FOR DOOR MFR # 2931620005
Product # 921591201 › Cabinet Rear View
Dometic RM2811 3 Way Refrigerator product # 921591201 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 21 items # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # REMAN C/U USE 5587 (UPS) RM2807/11 MFR # 2934903093R Superseded: see description # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # LABEL, IMPORTANT MFR # 2007689009 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # HOSE,DRAIN (725MM) MFR # 2931578054 # TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
Product # 921594101 › Replacement Refrigerator
Dometic RM2811 3 Way Refrigerator product # 921594101 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN # Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N # REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N
Product # 921595201 › Replacement Refrigerator
Dometic RM2811 3 Way Refrigerator product # 921595201 › replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N # REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN # Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N
Product # 921591101 › Door Assembly
Dometic RM2811 3 Way Refrigerator product # 921591101 › door assembly — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115 # Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268 # DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117 # GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description # S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023 # STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description # SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description # S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038 # SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # LABEL, WARNING FOR DOOR MFR # 2931620005
Product # 921594101 › Burner & Controls
Dometic RM2811 3 Way Refrigerator product # 921594101 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 70 items # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023 # Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # BRACKET, MOUNTING MFR # 2931822015 # S,COVER,LESS DECALS MFR # 2931858019 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015 # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # Label 12VDC MFR # 2931827006 # DOM REPLACEMENT BRD MFR # MICROP711 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # Board, PC 3-Way Use 2932882018 Ames W. Cover MFR # 2931843045 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # 3858022019 MFR # 3858022019 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # CAP FLUE MFR # 2931540013 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # DECAL 3 - WAY MFR # 2932003003 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
Product # 921592401 › Cabinet Front View
Dometic RM2811 3 Way Refrigerator product # 921592401 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 70 items # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # Label 12VDC MFR # 2931827006 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # BOARD, 3-WAY USE 2931843037 MFR # 2931843029 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # S,COVER,LESS DECALS MFR # 2931858019 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # SCREW, RXS. B6 X L9, STAINLESS (2 REQ.) MFR # 729528402 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
Product # 921592101 › Cabinet Front View
Dometic RM2811 3 Way Refrigerator product # 921592101 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 68 items # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # DECAL, 3-WAY MFR # 2931883009 # PARTS BAG RM26 11/2811 MFR # 2931610048 # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # PLATE, MOUNTING 3-WAY MFR # 955000104 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description # BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description # BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # Appliance Components RV MFR # 2931289017 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # DECAL,ON/OFF SWITCH MFR # 2931877001 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # BASE,FRONT USE 2931282061 RM3807 MFR # 2931282087 Superseded: see description # APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015
Product # 921592301 › Cabinet Rear View
Dometic RM2811 3 Way Refrigerator product # 921592301 › cabinet rear view — parts list sheet Full-resolution diagram + every part number →
Components 21 items # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # REMAN C/U USE 5587 (UPS) RM2807/11 MFR # 2934903093R Superseded: see description # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # LABEL, IMPORTANT MFR # 2007689009 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # HOSE,DRAIN (725MM) MFR # 2931578054 # TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
Product # 921594001 › Cabinet Front View
Dometic RM2811 3 Way Refrigerator product # 921594001 › cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 73 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # PLATE, MOUNTING 3-WAY MFR # 955000104 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # BOARD, PC USE 2932697093 UPPER,W/MTG PLT 3 WAY MFR # 2931845016 Superseded: see description # BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description # Refrigerator Trim; Use With Dometic Refrigerator Model RM3807; Top MFR # 2931865113 Superseded: see description # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # Appliance Components RV MFR # 2931289017 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # SWITCH,CLIMATE CONTROL (300) MFR # 19011103 # APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # BRACKET, MOUNTING RH MFR # 2932125012 # BRACKET, MOUNTING LH MFR # 2932125020 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012 # S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020 # S,HINGE PIN,MID,25MM MFR # 2931287011 # Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014 # Refrigerator Trim; Replacement For Dometic RM3807/ RM2820/ RM2812 Refrigerators; Front Lower MFR # 2932112044 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # DECAL MFR # 2932165000 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012 # BULB 2/PK MFR # 2007290006 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # DECAL 2 WAY MFR # 2931882001 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model RM2807 2 Way MFR # 2932266014 Superseded: see description
Product # 921594001 › Burner & Controls
Dometic RM2811 3 Way Refrigerator product # 921594001 › burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 69 items # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023 # Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # BRACKET, MOUNTING MFR # 2931822015 # S,COVER,LESS DECALS MFR # 2931858019 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015 # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # Board, PC 3-Way Use 2932882018 Ames W. Cover MFR # 2931843045 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # 3858022019 MFR # 3858022019 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # CAP FLUE MFR # 2931540013 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # DECAL 3 - WAY MFR # 2932003003 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
