Dometic RM2812 Freedom Product # 921594701 Parts Diagram · Cabinet Front View

Refrigerator · 5 assemblies · 5 diagram sheets · 184 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2812 Freedom Product # 921594701 RV refrigerator: 5 assemblies (Cabinet Front View, Burner & Controls, Replacement Refrigerator, Cabinet Rear View, Door Assembly) and 184 manufacturer part numbers. 53 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

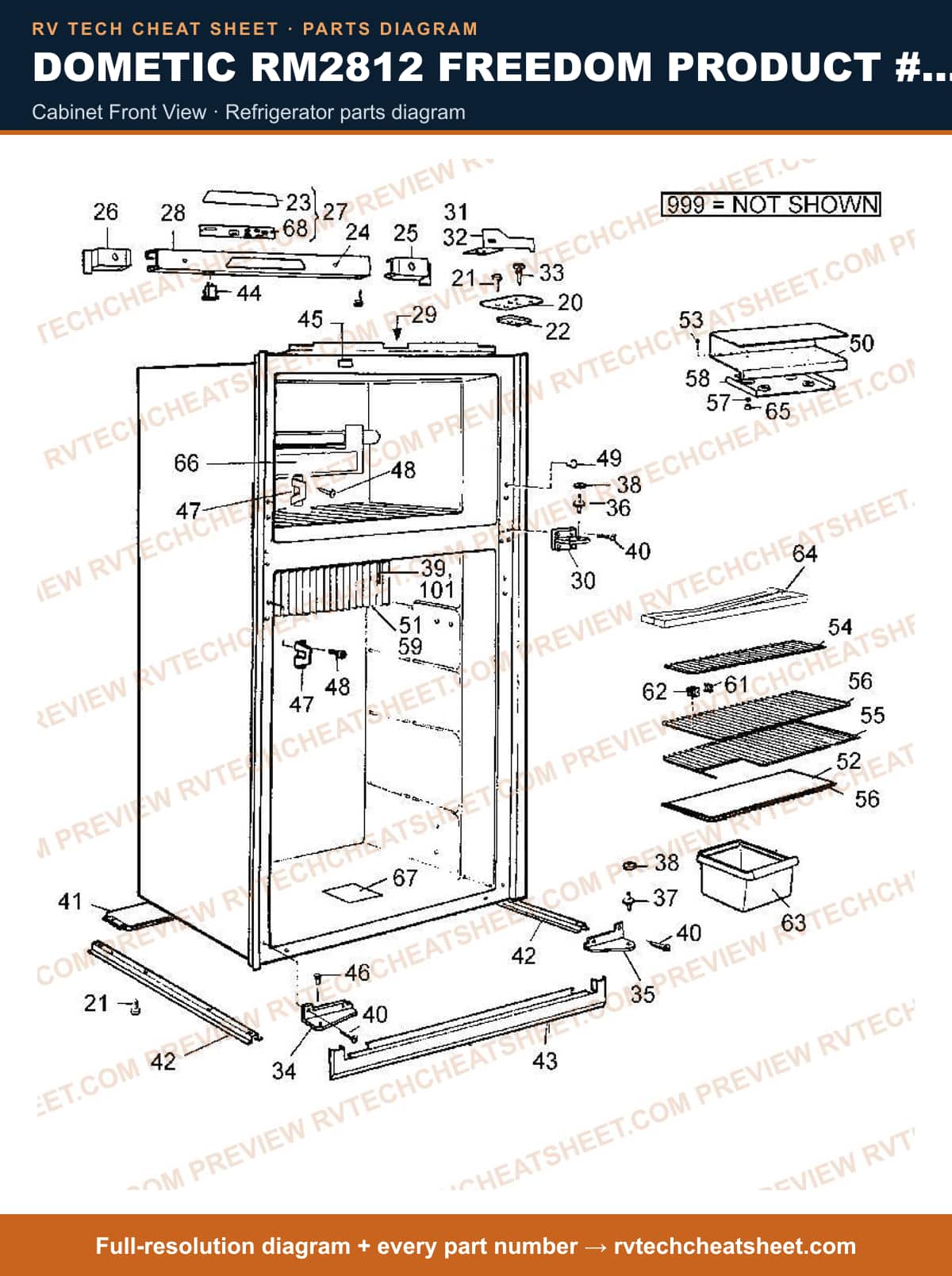

Cabinet Front View

Components

62 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #COVER MFR # 955016712
5. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
6. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
7. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
8. #BOARD,UPPER PC USE 2932771013 RM2812 MFR # 2932189034 Superseded: see description
9. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
10. #Refrigerator Trim; Use With Dometic Refrigerator Model RM3807; Top MFR # 2931865113 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
12. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
13. #Appliance Components RV MFR # 2931289017
14. #BRACKET, MOUNTING RH MFR # 2932125012
15. #BRACKET, MOUNTING LH MFR # 2932125020
16. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
17. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
18. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
19. #S,HINGE PIN,MID,25MM MFR # 2931287011
20. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
21. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
22. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
23. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
24. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
25. #Refrigerator Vent Cover Back Plate MFR # 2930664012
26. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
27. #Refrigerator Trim; Replacement For Dometic RM3807/ RM2820/ RM2812 Refrigerators; Front Lower MFR # 2932112044
28. #APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011
29. #SWITCH,CLIMATE CONTROL (300) MFR # 19011103
30. #DECAL MFR # 2932165000
31. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
32. #S,STRIKE 9*35*24MM MFR # 2931511014
33. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
34. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
35. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
36. #Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038
37. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
38. #Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description
39. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description
40. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
41. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
42. #SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
44. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
45. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
46. #PLATE RETAINING MFR # 2007649011
47. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
48. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
49. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
50. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
51. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
52. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
53. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
54. #APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015
55. #DECAL MFR # 2932190008
56. #Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013
57. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
58. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
59. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
60. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
61. #Appliance Components RV; Light Kit Interior 12V MFR # 3108705942
62. #Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model RM2807 2 Way MFR # 2932266014 Superseded: see description

Burner & Controls

Components

80 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
3. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
4. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
5. #BOARD, MODULE MFR # 3106375015
6. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
7. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
8. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
10. #Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description
11. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
12. #SCREW M4 X 10 S MFR # 7241289615
13. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
15. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
17. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
18. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
19. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
20. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
21. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
22. #9DIR MFR # 9DIR
23. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
24. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
25. #BRACKET, MOUNTING MFR # 2931822015
26. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
27. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015
28. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
29. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
30. #Label 12VDC MFR # 2931827006
31. #DOM REPLACEMENT BRD MFR # MICROP711
32. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
33. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
34. #BOARD, PC USE 3308741002 MFR # 2932770015 Superseded: see description
35. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
36. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
37. #CONTROL KIT ELECTRONIC MFR # 3108701610
38. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
39. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
40. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
41. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
42. #S,COVER,LESS DECALS MFR # 2931858019
43. #LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description
44. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
45. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
46. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
47. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
48. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
49. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
50. #LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description
51. #HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description
52. #APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675
53. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
54. #HOUSING BURNER MFR # 2931913012
55. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
56. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
57. #APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011
58. #APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description
59. #ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020
60. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
61. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
62. #3858022019 MFR # 3858022019
63. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
64. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
65. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
66. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
67. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
68. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
69. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
70. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
71. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
72. #STRIP, TERMINAL 6 POS. MFR # 2930327008
73. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066
74. #CAP FLUE MFR # 2931540013
75. #DECAL RM3804 MFR # 2931503003
76. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
77. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
78. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
79. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
80. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110

Replacement Refrigerator

Components

5 items

1. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
2. #Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N
3. #REFER, 8 CUFT. USE RM2820N 2WAY 55 3/8 X 23 5/8 X 24 MFR # RM28122N Superseded: see description
4. #REFRIGERATORS & ICE MAKERS RV; NORCOLD 2-WAY REFRIGERATOR MFR # N1095
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R

Cabinet Rear View

Components

19 items

1. #Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description
2. #Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #DECAL RM3804 MFR # 2931503003
6. #DECAL RM38 04 MFR # 2007574029
7. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
8. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
9. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
10. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
11. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
12. #HOSE,DRAIN (725MM) MFR # 2931578054
13. #TUBE,DRAIN USE 2931578054 MFR # 2931578070 Superseded: see description
14. #S,TUBE,OVERFILL MFR # 2931829010
15. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
16. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
17. #Plate Protection Rm2800 MFR # 2930785015
18. #DECAL, WARNING 2807/4801 MFR # 2002577001
19. #LABEL, IMPORTANT MFR # 2007689009

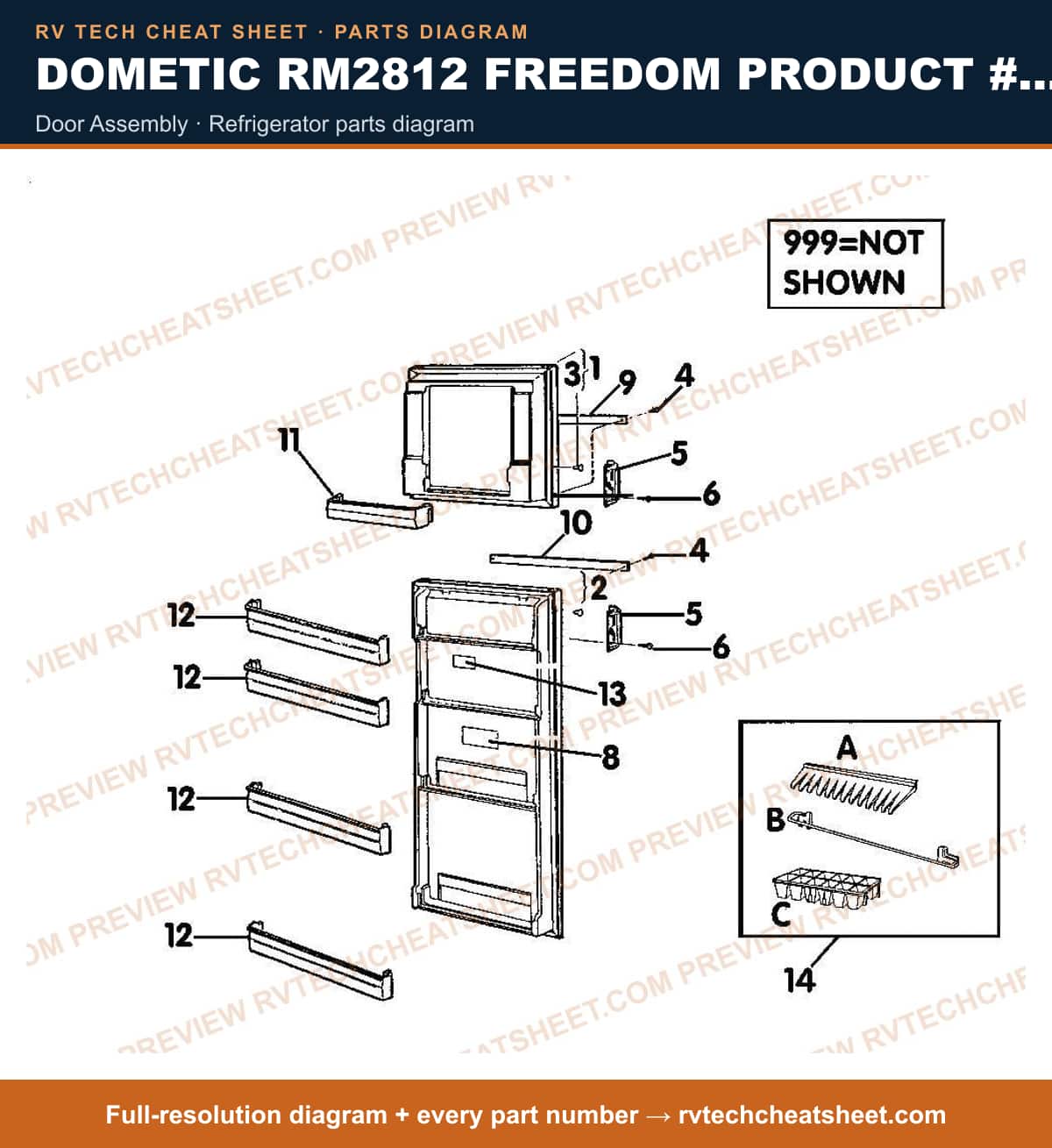

Door Assembly

Components

29 items

1. #APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115
2. #PANELS, DOOR, WOODGRAIN FOR MODEL RM2812/20 MFR # RM2820G
3. #PANEL, DOOR W/G USE RM2820G MFR # 3106863032B Superseded: see description
4. #PANELS, DOOR, BLACK ACRYLIC FOR MODEL RM2812/20 MFR # RM2820L
5. #PANEL, DOOR USE RM2820L RM2812/RM2820 MFR # 3106863032C Superseded: see description
6. #Refrigerator Shelf Support; Use With Dometic Refrigerator Model RM2812 Freedom/ Adjustable MFR # 3107358008 Superseded: see description
7. #Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268
8. #GUARD, SHELF USE 3107358008 MFR # 3105084002 Superseded: see description
9. #GASKET TAPE 210" USE 6141 DOUBLE DOOR REFER 210" MFR # TAPE2 Superseded: see description
10. #DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117
11. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
12. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
13. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
14. #Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description
15. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
16. #LABEL, INSTRUCTION MFR # 2002356000
17. #S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023
18. #APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description
19. #STRIP,DECO USE 2931583021 MFR # 2931583146 Superseded: see description
20. #SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description
21. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
22. #SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136
24. #LABEL, WARNING FOR DOOR MFR # 2931620005
25. #ACCESSORIES KIT MFR # 3108701743
26. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
27. #MAGIC FINGERS USE 3106753001 MFR # 3105085009 Superseded: see description
28. #Appliance Components RV; Reversing Kit Door 12 Ser MFR # 3108704275
29. #DOOR PANEL - BRUSHED ALUM MFR # 2820BA
